Western North Pacific: TD 06W is still forecast to intensify next 72hours, 23/03utc update

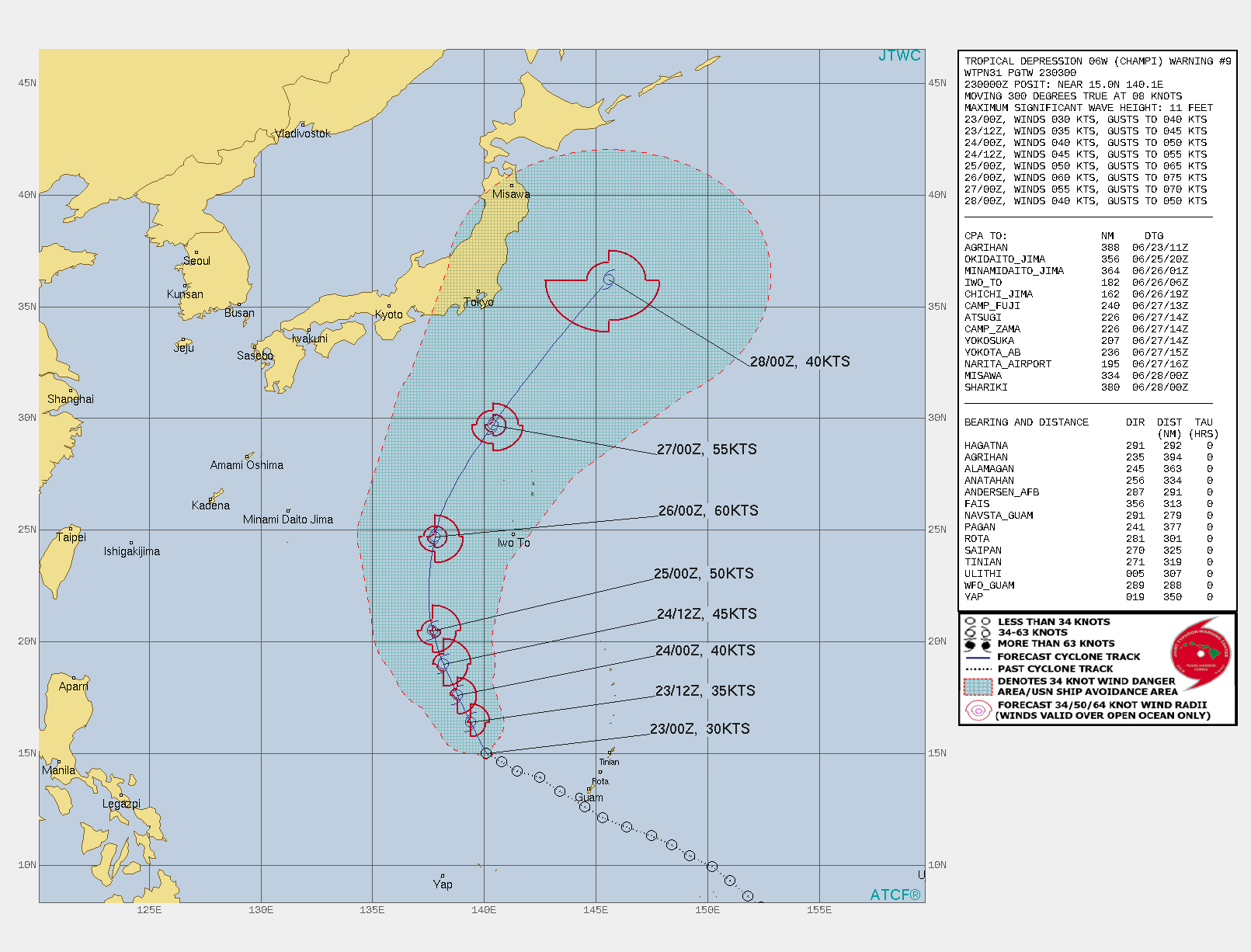

WARNING 9 ISSUED AT 23/03UTC.FORECAST DISCUSSION: TROPICAL DEPRESSION (TD) 06W CONTINUES TO TRACK  NORTHWESTWARD AROUND THE PERIPHERY OF THE SUBTROPICAL RIDGE TO THE  NORTHEAST. A TURN TOWARD THE NORTH BY 48 HOURS AND THEN NORTHEAST BY  72 HOURS AND MODERATE ACCELERATION IS EXPECTED AS THE CYCLONE ROUNDS  THE RIDGE NEAR THE BAIU FRONTAL BOUNDARY SOUTHEAST OF JAPAN. THE JTWC INTENSITY FORECAST ASSUMES THAT THE VORTEX WILL  BE ABLE TO MIX OUT THE DRY AIR IN A LOW SHEAR ENVIRONMENT DURING THE  NEXT 36-48 HOURS, AS SUGGESTED BY THE HWRF AND GFS MODELS, ALLOWING  MODEST INTENSIFICATION DURING THE 36-72 HOUR PERIOD TO A PEAK OF  AROUND 60 KNOTS. MODERATE NORTHERLY SHEAR AFTER 36 HOURS IS EXPECTED TO  BE A LIMITING FACTOR, ESPECIALLY GIVEN THE CYCLONE'S SMALL SIZE,  WHICH MAKES IT MORE SUSCEPTIBLE TO SHEAR. THE TIMING ULTIMATELY WILL BE THE HARDEST TO ASCERTAIN WITH ANY CLARITY UNTIL  THE SYSTEM IS INFLUENCED BY THE BOUNDARY. THE CYCLONE'S FORWARD  SPEED WILL VARY LARGELY IN PART DUE TO THE SENSITIVITY OF TIMING AND  POSITION OF THE DEEP-LAYER STEERING FLOW BETWEEN THE SUBTROPICAL  RIDGE AND THE BAIU FRONT. THE INTENSITY FORECAST ALSO DEPENDS ON  THIS EVOLUTION. EVENTUAL ABSORPTION INTO THE BAIU BOUNDARY REMAINS  MOST PLAUSIBLE ALONG WITH THE ASSOCIATED TRANSITION DUE TO COOLER SEA SURFACE TEMPERATURES (SSTS) AND  INCREASED SHEAR, LEADING TO A RAPID EXTRATROPICAL TRANSITION  BEGINNING AROUND 96H THROUGH 120H.
WARNING 9 ISSUED AT 23/03UTC.FORECAST DISCUSSION: TROPICAL DEPRESSION (TD) 06W CONTINUES TO TRACK NORTHWESTWARD AROUND THE PERIPHERY OF THE SUBTROPICAL RIDGE TO THE NORTHEAST. A TURN TOWARD THE NORTH BY 48 HOURS AND THEN NORTHEAST BY 72 HOURS AND MODERATE ACCELERATION IS EXPECTED AS THE CYCLONE ROUNDS THE RIDGE NEAR THE BAIU FRONTAL BOUNDARY SOUTHEAST OF JAPAN. THE JTWC INTENSITY FORECAST ASSUMES THAT THE VORTEX WILL BE ABLE TO MIX OUT THE DRY AIR IN A LOW SHEAR ENVIRONMENT DURING THE NEXT 36-48 HOURS, AS SUGGESTED BY THE HWRF AND GFS MODELS, ALLOWING MODEST INTENSIFICATION DURING THE 36-72 HOUR PERIOD TO A PEAK OF AROUND 60 KNOTS. MODERATE NORTHERLY SHEAR AFTER 36 HOURS IS EXPECTED TO BE A LIMITING FACTOR, ESPECIALLY GIVEN THE CYCLONE'S SMALL SIZE, WHICH MAKES IT MORE SUSCEPTIBLE TO SHEAR. THE TIMING ULTIMATELY WILL BE THE HARDEST TO ASCERTAIN WITH ANY CLARITY UNTIL THE SYSTEM IS INFLUENCED BY THE BOUNDARY. THE CYCLONE'S FORWARD SPEED WILL VARY LARGELY IN PART DUE TO THE SENSITIVITY OF TIMING AND POSITION OF THE DEEP-LAYER STEERING FLOW BETWEEN THE SUBTROPICAL RIDGE AND THE BAIU FRONT. THE INTENSITY FORECAST ALSO DEPENDS ON THIS EVOLUTION. EVENTUAL ABSORPTION INTO THE BAIU BOUNDARY REMAINS MOST PLAUSIBLE ALONG WITH THE ASSOCIATED TRANSITION DUE TO COOLER SEA SURFACE TEMPERATURES (SSTS) AND INCREASED SHEAR, LEADING TO A RAPID EXTRATROPICAL TRANSITION BEGINNING AROUND 96H THROUGH 120H.
2021 JUNE 23 0245UTC #WESTERNNORTHPACIFIC
TD #06W #CHAMPI
WARNING 9/UPDATE
As of 00:00 UTC June 23, 2021:
Location: 15.0°N 140.1°E
Maximum Winds: 30 kt ( 55km/h)
Gusts: 40 kt ( 75km/h)
Minimum Central Pressure: 1005 mb
FORECAST TO INTENSIFY
LOCATED AT 23/00UTC APPROXIMATELY 515 KM WEST-NORTHWEST OF NAVSTA GUAM, HAS TRACKED WEST-NORTHWESTWARD
AT 15 KM/H OVER THE PAST SIX HOURS.
Satellite bulletins are to be found in the comments of this post on JTWC BIS

Cheers,
Patrick Hoareau
JTWC PH
ILES SOEURS

Joint Typhoon Warning Center

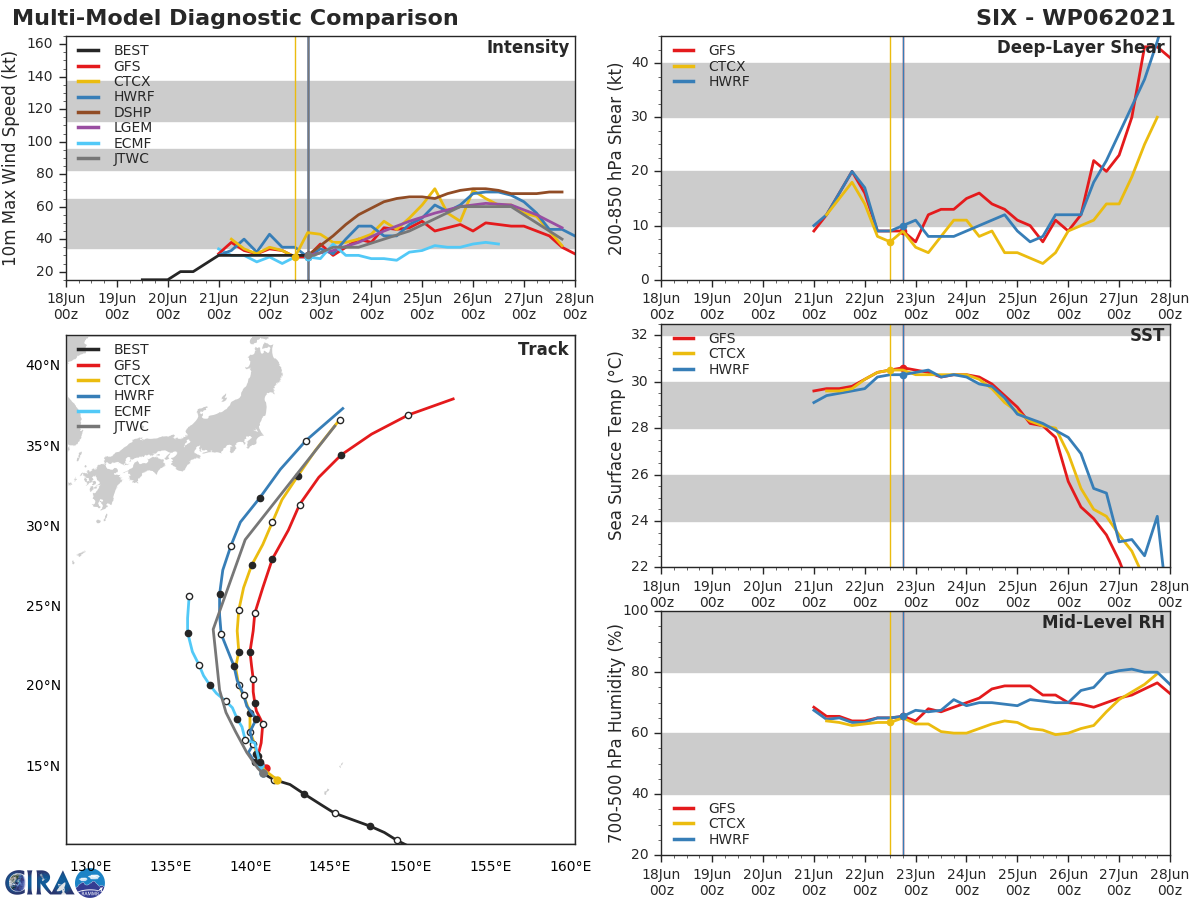

MODEL DISCUSSION: THE SYSTEM'S ALONG-TRACK FORWARD SPEED DURING THE  72-120 HOUR VARIES EXTREMELY IN THE MODEL GUIDANCE DURING THE EXTENDED FORECAST, WITH THE VARIANCE BETWEEN NAVGEM AND GFS AT WELL OVER 1575 KM  BY 120H. THE JTWC TRACK FORECAST LIES CLOSE TO THE MULTI-MODEL  CONSENSUS, BETWEEN THE LEFTWARD, SLOW ECMWF ENSEMBLE AND THE RIGHTWARD, FAST GFS. THE JTWC INTENSITY FORECAST IS SLIGHTLY BELOW  THE MULTI-MODEL CONSENSUS THROUGH 48 HOURS, THEN CLOSE TO CONSENSUS  THEREAFTER.
MODEL DISCUSSION: THE SYSTEM'S ALONG-TRACK FORWARD SPEED DURING THE 72-120 HOUR VARIES EXTREMELY IN THE MODEL GUIDANCE DURING THE EXTENDED FORECAST, WITH THE VARIANCE BETWEEN NAVGEM AND GFS AT WELL OVER 1575 KM BY 120H. THE JTWC TRACK FORECAST LIES CLOSE TO THE MULTI-MODEL CONSENSUS, BETWEEN THE LEFTWARD, SLOW ECMWF ENSEMBLE AND THE RIGHTWARD, FAST GFS. THE JTWC INTENSITY FORECAST IS SLIGHTLY BELOW THE MULTI-MODEL CONSENSUS THROUGH 48 HOURS, THEN CLOSE TO CONSENSUS THEREAFTER.

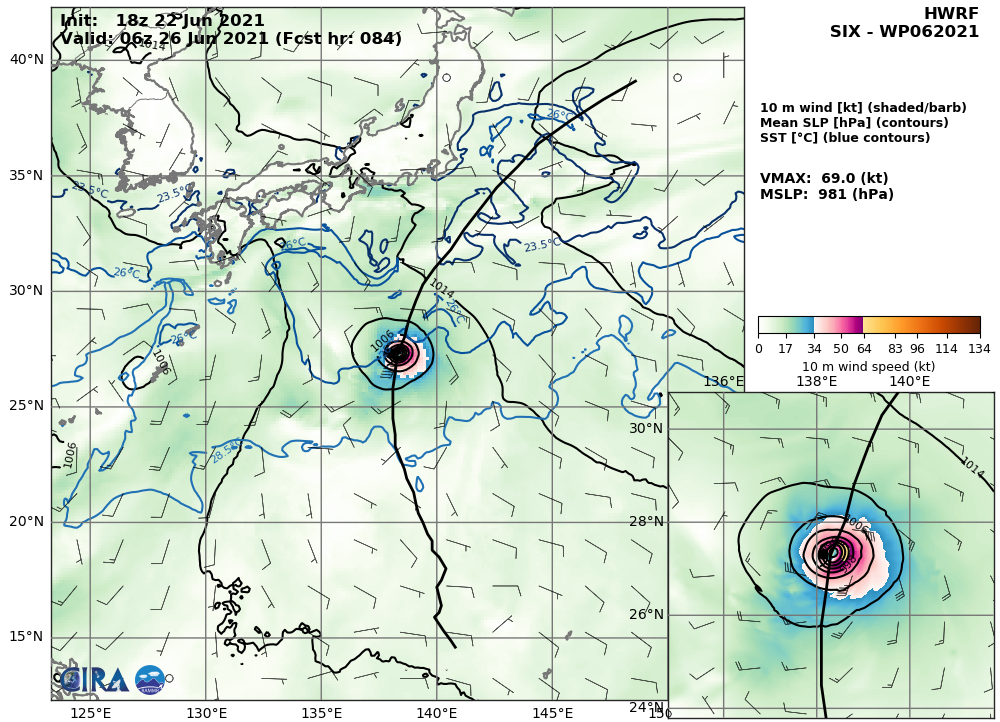

22/18UTC. HWRF INTENSITY GUIDANCE: 69KNOTS AT +84H.
22/18UTC. HWRF INTENSITY GUIDANCE: 69KNOTS AT +84H.

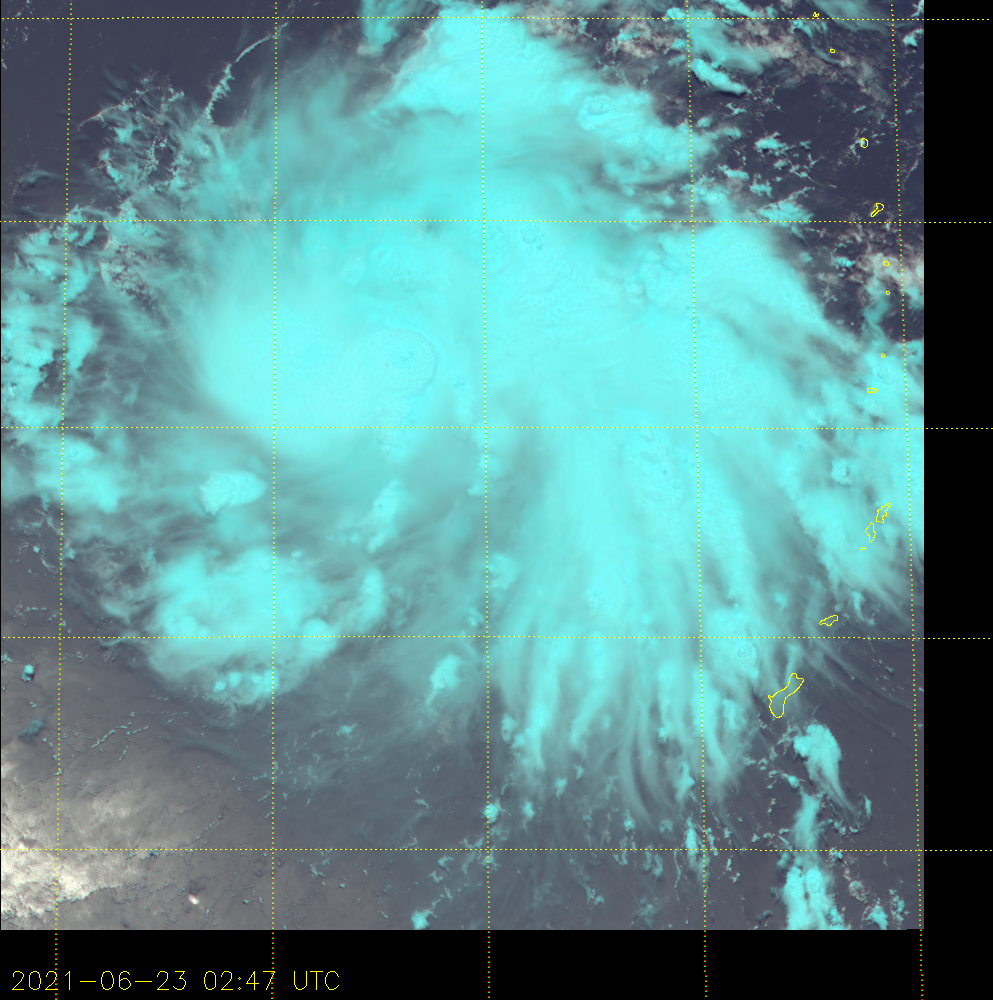

23/0247UTC. SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION:  ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) INDICATES A CENTRAL  COLD COVER (CCC) HAS COMPLETELY OBSCURED THE LOW-LEVEL CENTER (LLC)  UNDER A MASS OF CONVECTION. A 222055Z SSMIS 91GHZ MICROWAVE IMAGE SHOWS NO ORGANIZED STRUCTURE TO THE MID-LEVEL VORTEX REMAINS  SLIGHTLY DISPLACED FROM THE LLC WITH A SW TO NE TILT. THE EMBEDDED  LLC UNDER THE CCC IS INDICATIVE OF SLOW GROWTH FOR THE SYSTEM. THE  ENVIRONMENT REMAINS MARGINALLY FAVORABLE WITH DRIER AIR TO THE WEST,  ALONG WITH WEAK RADIAL OUTFLOW ALOFT. THE CONVECTIVE STRUCTURE HAS  IMPROVED SLIGHTLY OVER THE NORTHWEST AND NORTHEAST SECTOR OF THE LLC AS SEEN ON THE LATEST MSI.  HOWEVER, THE DRY AIR  TO THE WEST WILL CONTINUE TO ALLOW ONLY SLOW DEVELOPMENT.
23/0247UTC. SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) INDICATES A CENTRAL COLD COVER (CCC) HAS COMPLETELY OBSCURED THE LOW-LEVEL CENTER (LLC) UNDER A MASS OF CONVECTION. A 222055Z SSMIS 91GHZ MICROWAVE IMAGE SHOWS NO ORGANIZED STRUCTURE TO THE MID-LEVEL VORTEX REMAINS SLIGHTLY DISPLACED FROM THE LLC WITH A SW TO NE TILT. THE EMBEDDED LLC UNDER THE CCC IS INDICATIVE OF SLOW GROWTH FOR THE SYSTEM. THE ENVIRONMENT REMAINS MARGINALLY FAVORABLE WITH DRIER AIR TO THE WEST, ALONG WITH WEAK RADIAL OUTFLOW ALOFT. THE CONVECTIVE STRUCTURE HAS IMPROVED SLIGHTLY OVER THE NORTHWEST AND NORTHEAST SECTOR OF THE LLC AS SEEN ON THE LATEST MSI. HOWEVER, THE DRY AIR TO THE WEST WILL CONTINUE TO ALLOW ONLY SLOW DEVELOPMENT.

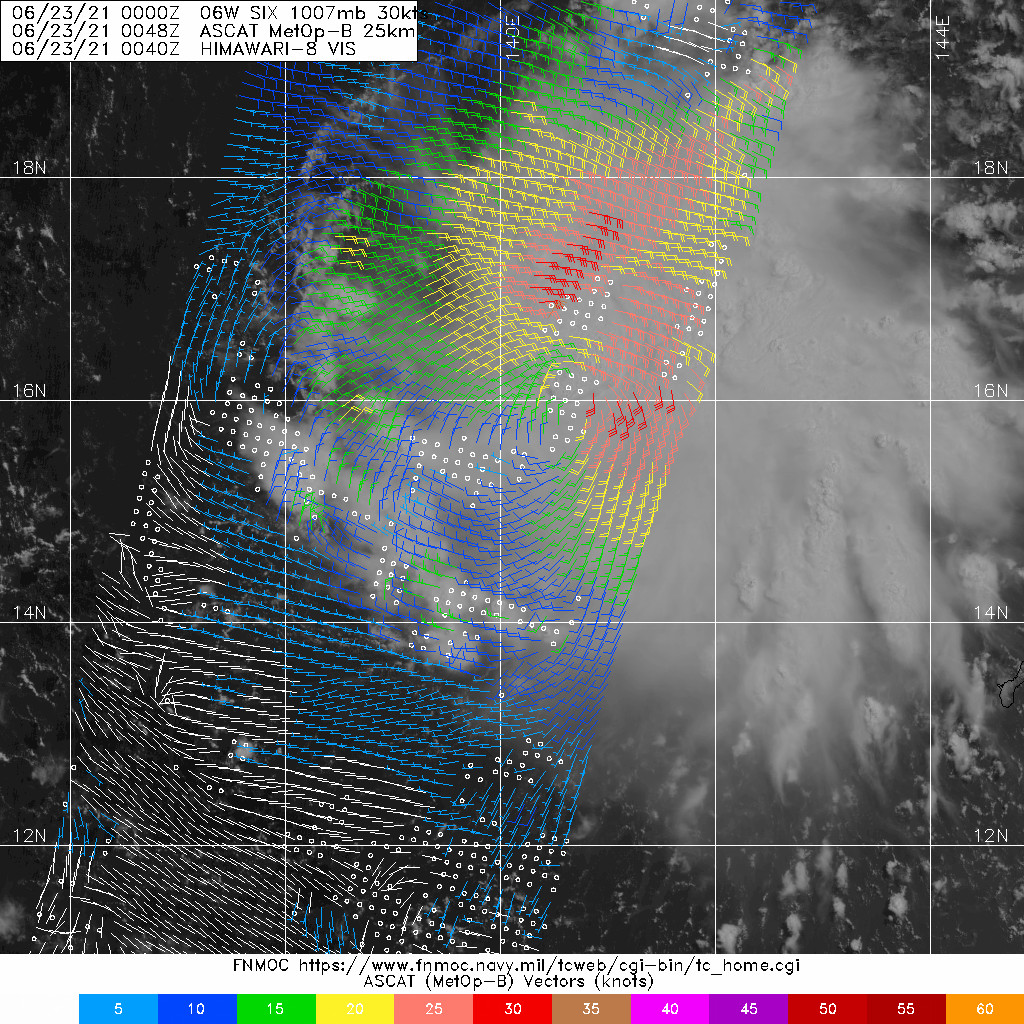

23/0048UTC. ASCAT READ 30KNOT WINDS.
23/0048UTC. ASCAT READ 30KNOT WINDS.

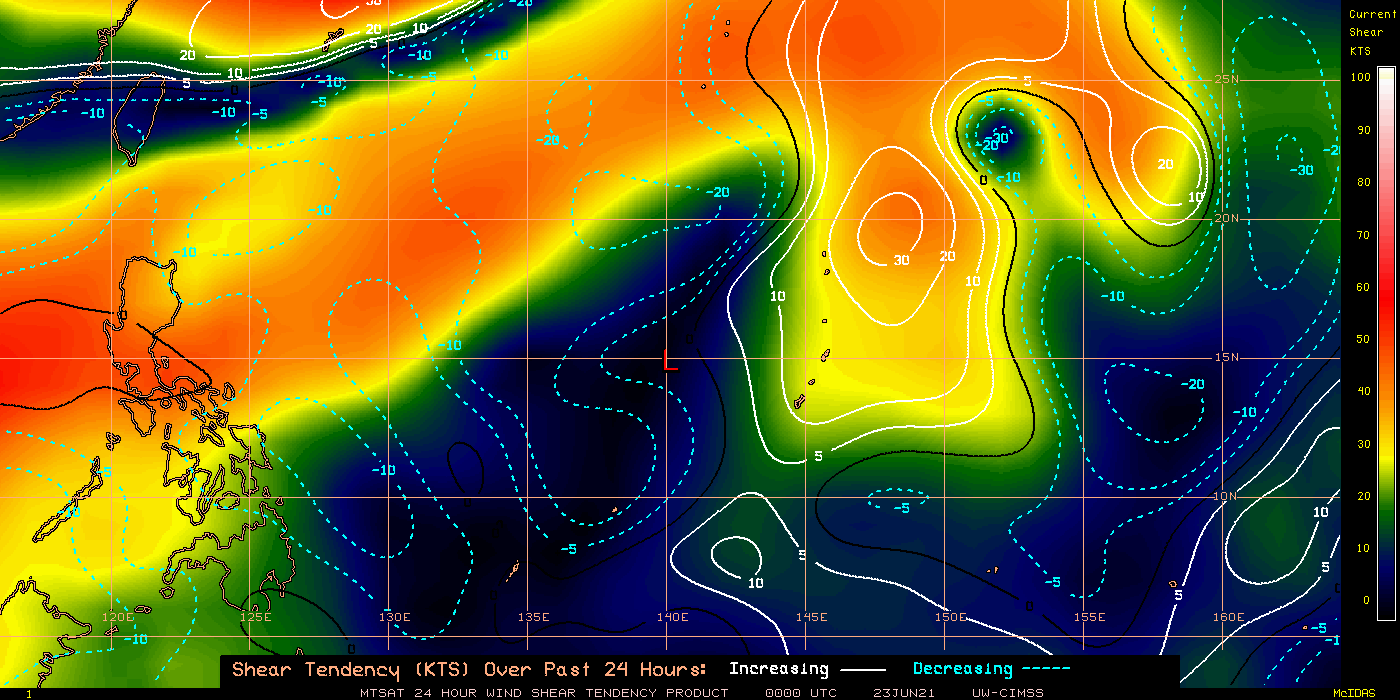

23/00UTC.24H SHEAR TENDENCY.UW-CIMSS Experimental Vertical Shear and TC Intensity Trend Estimates: CIMSS Vertical Shear Magnitude : 1.0 m/s (1.9 kts)Direction : 343.8deg Outlook for TC Intensification Based on Current Env. Shear Values and MPI Differential: VERY FAVOURABLE OVER 24H.
23/00UTC.24H SHEAR TENDENCY.UW-CIMSS Experimental Vertical Shear and TC Intensity Trend Estimates: CIMSS Vertical Shear Magnitude : 1.0 m/s (1.9 kts)Direction : 343.8deg Outlook for TC Intensification Based on Current Env. Shear Values and MPI Differential: VERY FAVOURABLE OVER 24H.

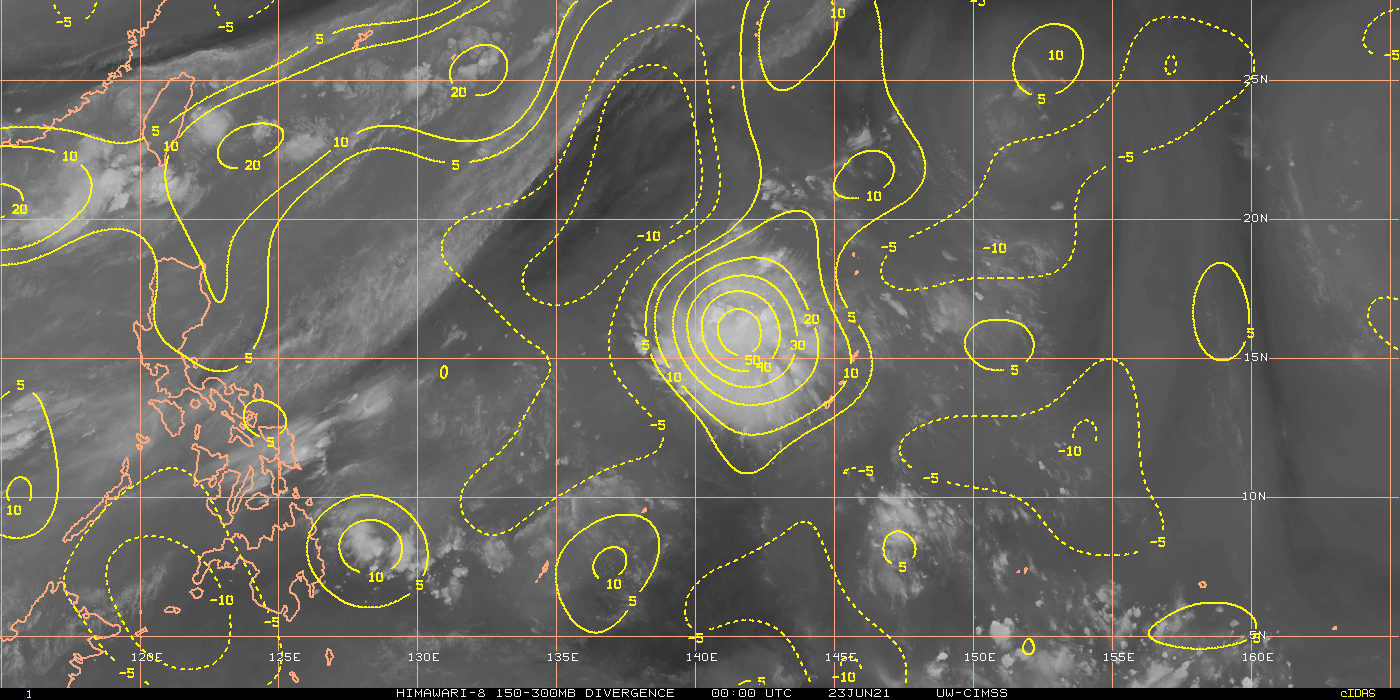

SLIGHTLY IMPROVED RADIAL OUTFLOW.
SLIGHTLY IMPROVED RADIAL OUTFLOW.

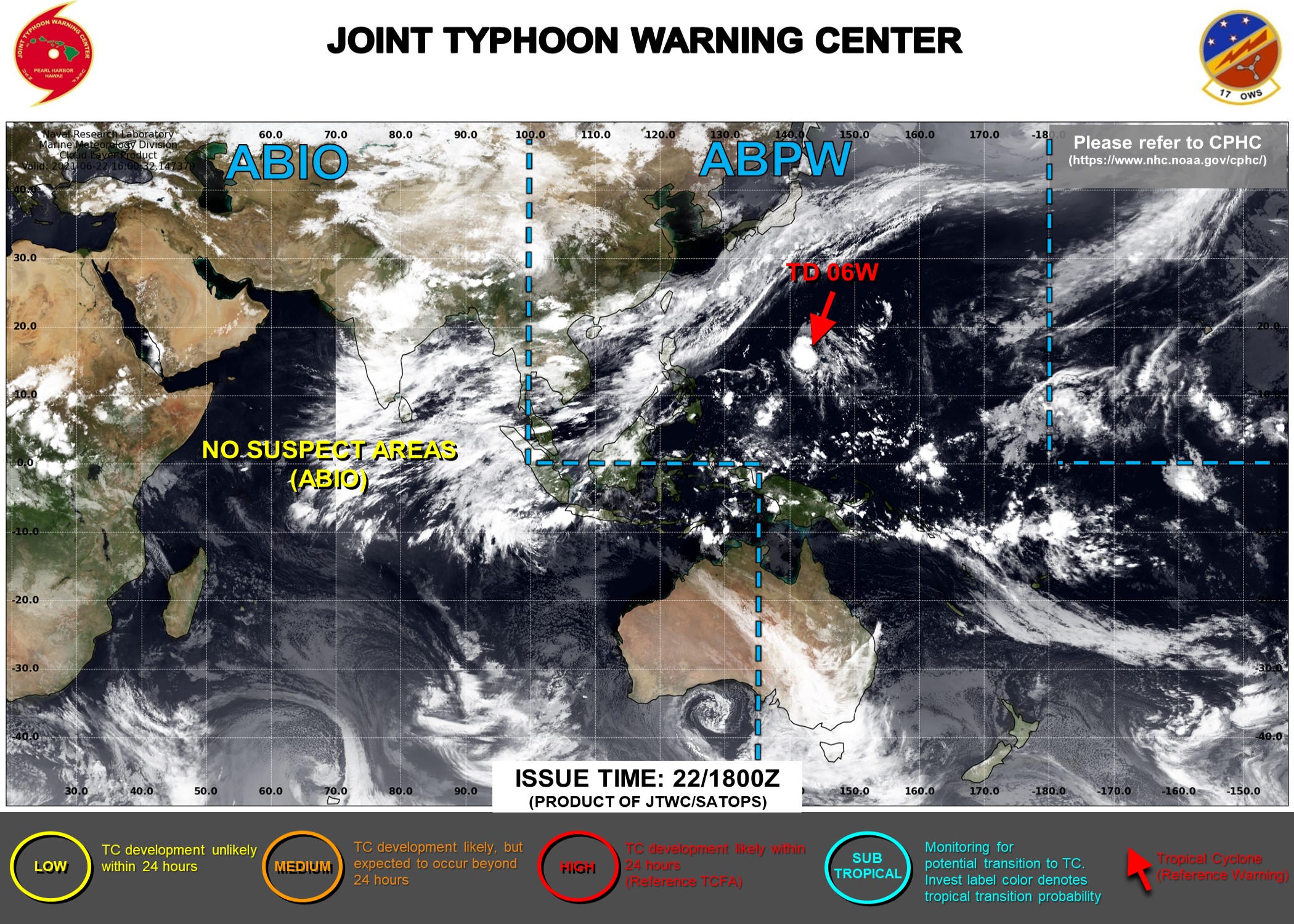

THE JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON 06W.
THE JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON 06W.

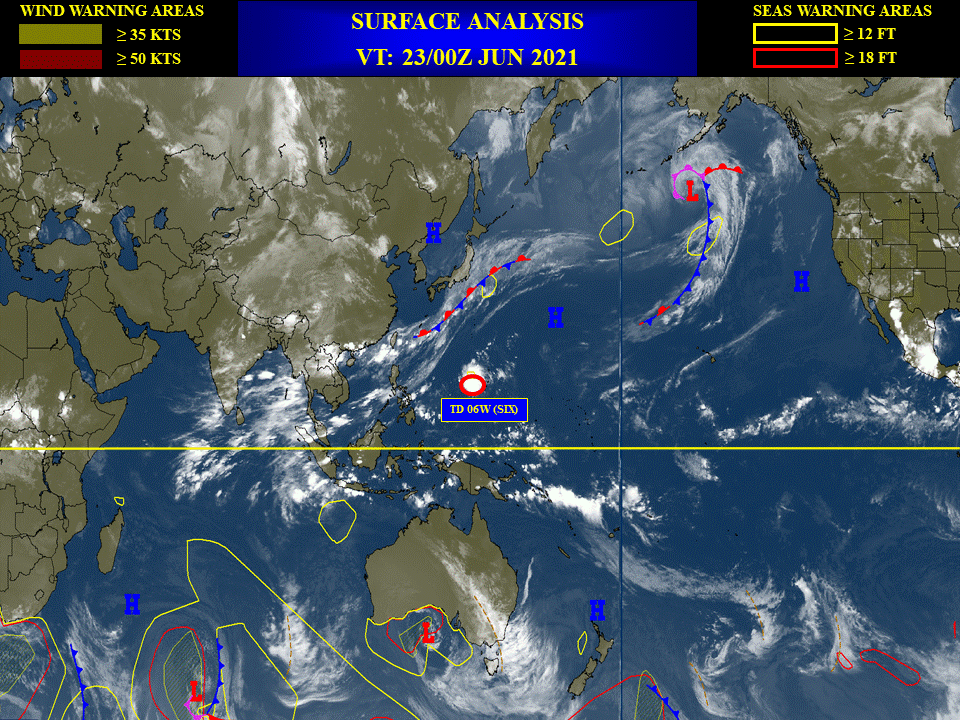

23/00UTC.
23/00UTC.

23/00UTC.
23/00UTC.
Rédigé par PATRICK HOAREAU le Wednesday, June 23rd 2021 à 07:18
