CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

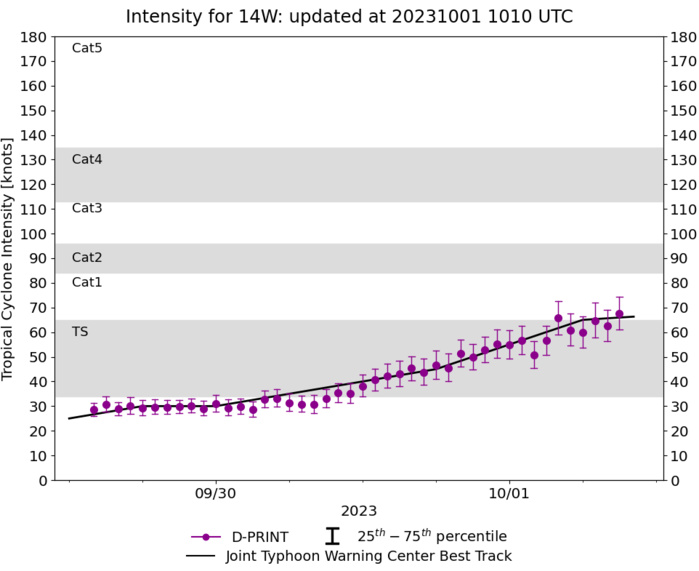

WESTERN NORTH PACIFIC: TY 14W(KOINU). CURRENT ESTIMATED INTENSITY IS 65 KNOTS/CAT 1 US: +30 KNOTS/24H.
1423092700 136N1439E 15
1423092706 140N1433E 15
1423092712 144N1427E 15
1423092718 148N1421E 15
1423092800 154N1415E 15
1423092806 158N1401E 15
1423092812 158N1385E 15
1423092818 158N1370E 15
1423092900 157N1355E 20
1423092906 156N1348E 20
1423092912 155N1342E 25
1423092918 155N1332E 30
1423093000 154N1320E 30
1423093006 157N1312E 35
1423093012 164N1306E 40
1423093018 168N1300E 45
1423100100 174N1295E 55
1423100106 179N1290E 65
1423092706 140N1433E 15
1423092712 144N1427E 15
1423092718 148N1421E 15
1423092800 154N1415E 15
1423092806 158N1401E 15
1423092812 158N1385E 15
1423092818 158N1370E 15
1423092900 157N1355E 20
1423092906 156N1348E 20
1423092912 155N1342E 25
1423092918 155N1332E 30
1423093000 154N1320E 30
1423093006 157N1312E 35
1423093012 164N1306E 40
1423093018 168N1300E 45
1423100100 174N1295E 55
1423100106 179N1290E 65
WARNING 8 ISSUED AT 01/09UTC.

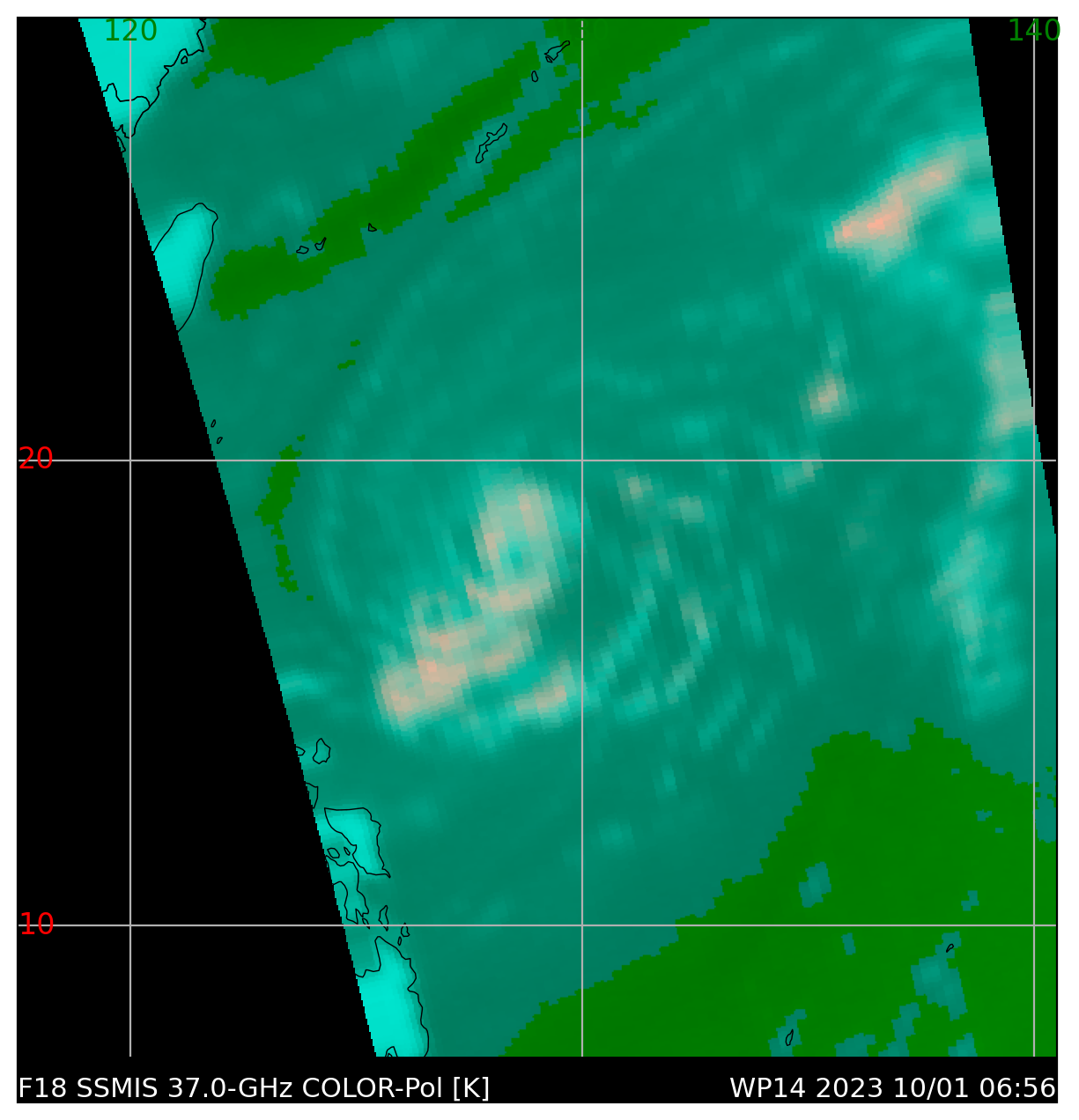

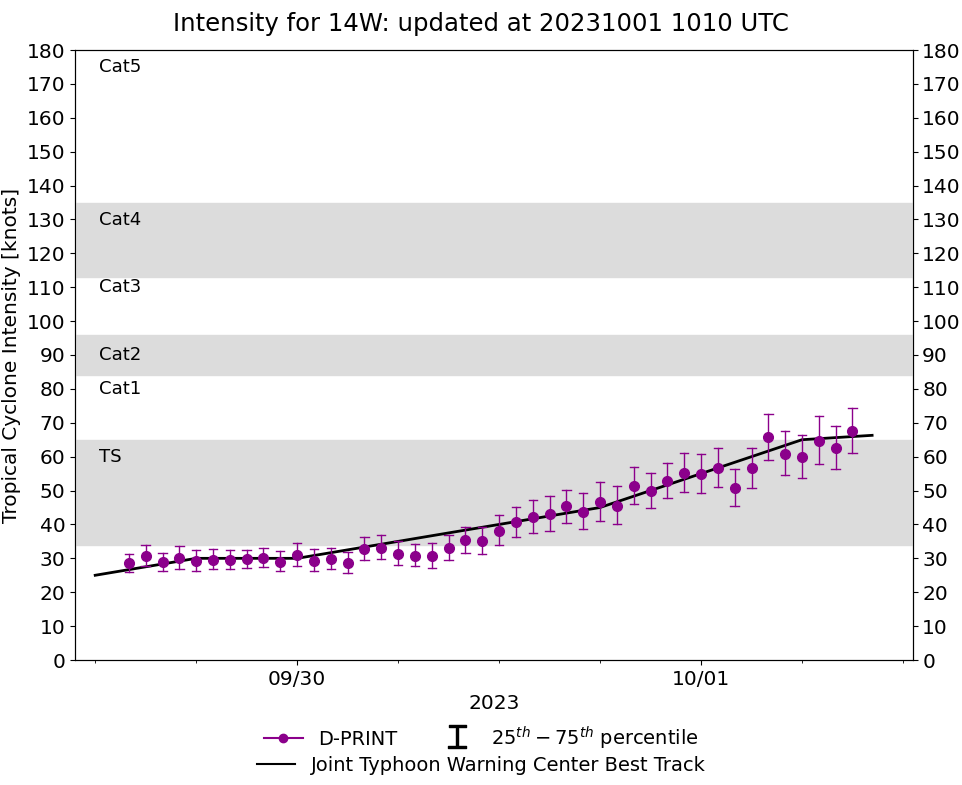

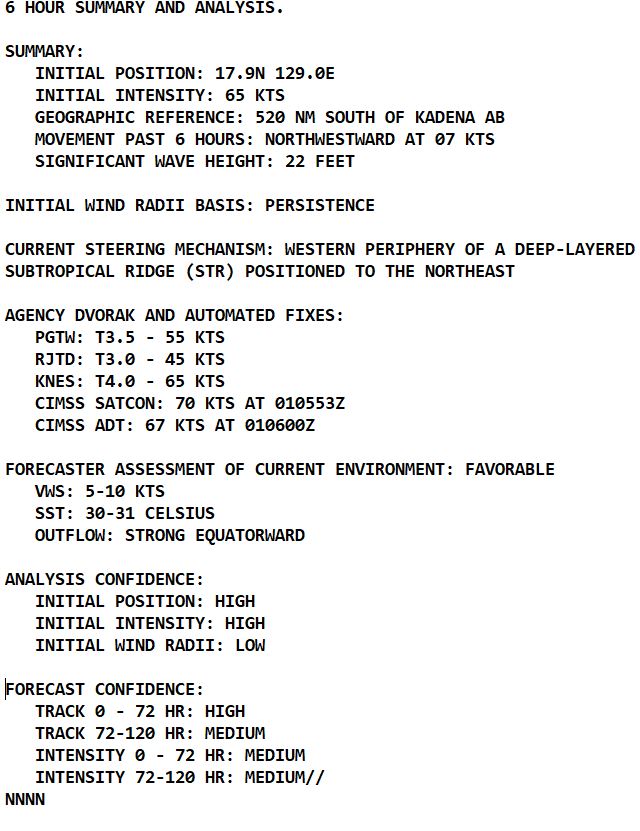

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) DEPICTS A RAPIDLY CONSOLIDATING TYPHOON STRENGTH TROPICAL CYCLONE. DEEP CONVECTIVE BANDING IS NOW FULLY WRAPPING THE CIRCULATION AND A POSSIBLE TRANSIENT EYE FEATURE IS NOW OBSERVABLE. A RECENT 010455Z ATMS 165GHZ MICROWAVE IMAGE SHOWS A NEARLY COMPLETE MICROWAVE EYE FEATURE WITH DEEP CONVECTIVE BANDINGS PRIMARILY TO THE SOUTH OF THE LLCC. A 010515Z AMSR2 MICROWAVE RADIOMETRY PARTIAL PASS REVEALS A THICK BAND OF 50-60KT WINDS EVIDENT IN THE WESTERN REGION OF THE FORMING EYE WALL. THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON MSI AND ATMS IMAGERY. THE INITIAL INTENSITY OF 65 KTS IS ASSESSED WITH MEDIUM CONFIDENCE BASED ON A GROWING RANGE OF DVORAK AND AUTOMATED INTENSITY ESTIMATES. WEAK TYPHOON STRENGTH TROPICAL CYCLONES ARE NOTORIOUS FOR THE WIDE RANGE OF INTENSITY ESTIMATES THEY GARNER, DUE TO THE VARIOUS DVORAK METHODS THAT CAN BE USED. UNTIL A DEFINED EYE FEATURE FORMS, INTENSITY ESTIMATES MAY FLUCTUATE, THUS OVERALL MEDIUM CONFIDENCE.

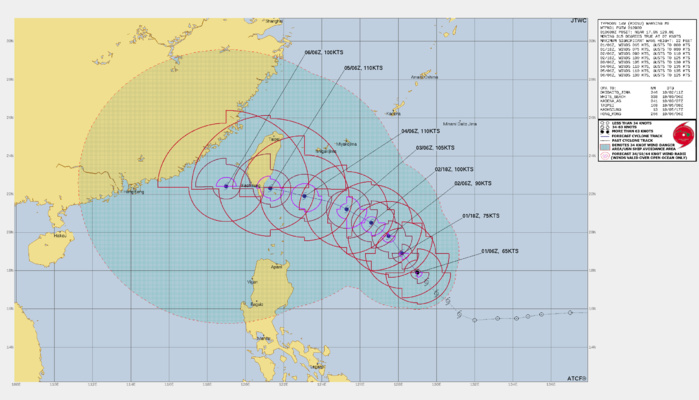

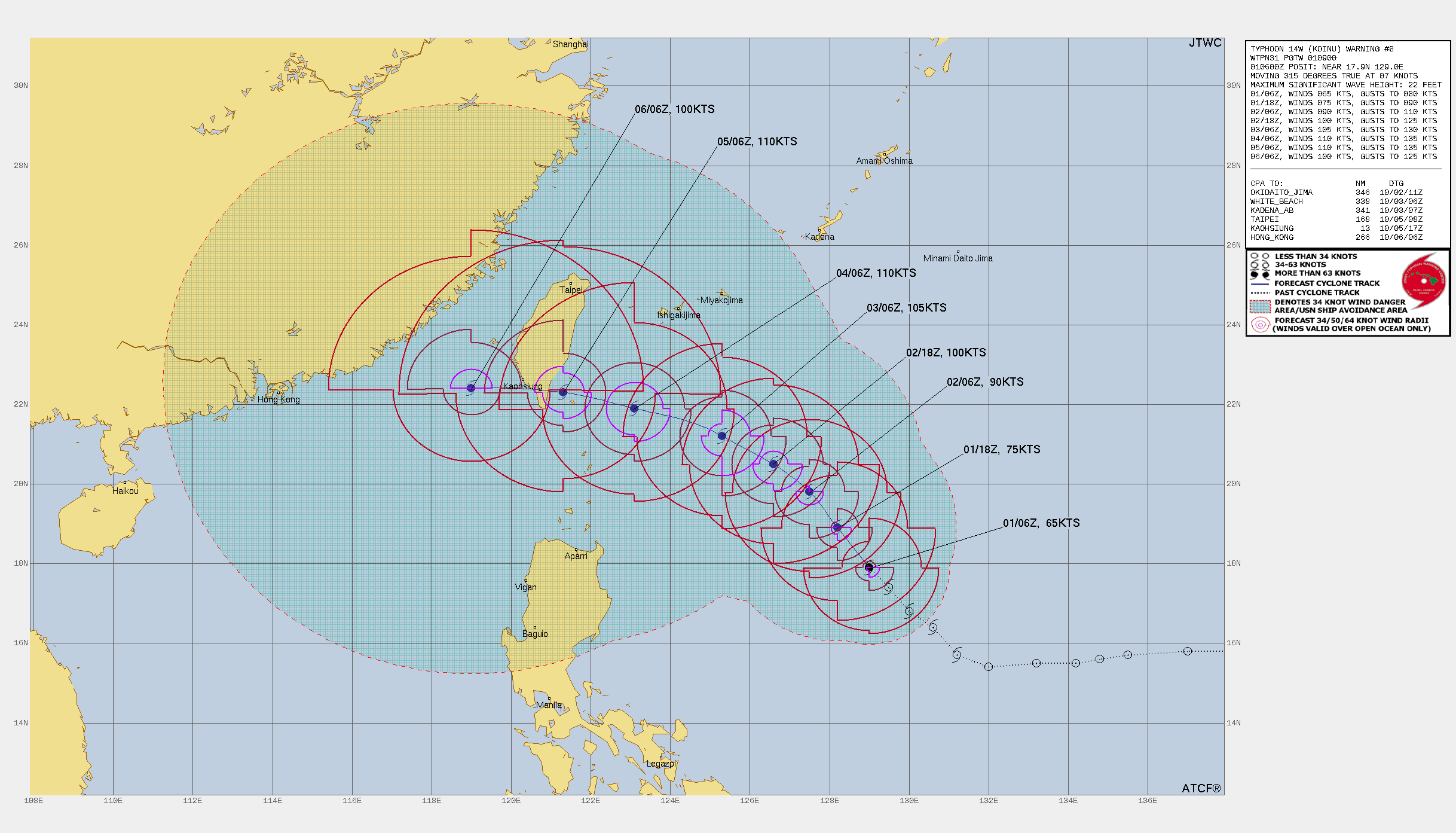

TC Warning Graphic
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: HAVING RECENTLY ACHIEVED TYPHOON STRENGTH, TY 14W (KOINU) IS FORECAST TO CONTINUE TRACKING NORTHWESTWARD UNDER THE STEERING INFLUENCE OF THE STR TO THE NORTHEAST. BY TAU 24, THIS STR BEGINS TO BUILD BACK UP AND MIGRATE WESTWARD, RESULTING IN A GRADUAL WESTWARD ARC TOWARD THE SOUTHERN TIP OF TAIWAN. IN TERMS OF INTENSITY, 14W WILL RAPIDLY SURGE TO 100KTS BY TAU 36, FUELED BY WARM SSTS (30C), LOW VERTICAL WIND SHEAR AND IMPROVING OUTFLOW ALOFT. BY TAU 72, 14W IS FORECAST TO REACH ITS PEAK INTENSITY OF 110KTS AND POSSIBLY HIGHER BEFORE VWS INCREASES AND FAVORABLE OUTFLOW IS LOST. THE SYSTEM IS FORECAST TO MAKE LANDFALL OVER SOUTHERN TAIWAN NEAR 110KTS AND PROCEED WESTWARD GRADUALLY WEAKENING THROUGH THE FORECAST PERIOD. IT IS IMPORTANT TO NOTE THAT IF THE STR TO THE NORTHEAST BUILDS UP MORE RAPIDLY OR EXTENDS POLEWARD OF 14W AS ECMWF AND COAMPS-TC INDICATE. THIS WOULD CAUSE A MORE DRAMATIC WESTWARD COURSE, KEEPING THE SYSTEM OVER OPEN WATERS AND MORE IMPORTANTLY AWAY FROM THE TAIWANESE MOUNTAIN RANGE, ALL OF WHICH COULD ALLOW FOR ADDITIONAL INTENSIFICATION THROUGH THE FORECAST PERIOD.

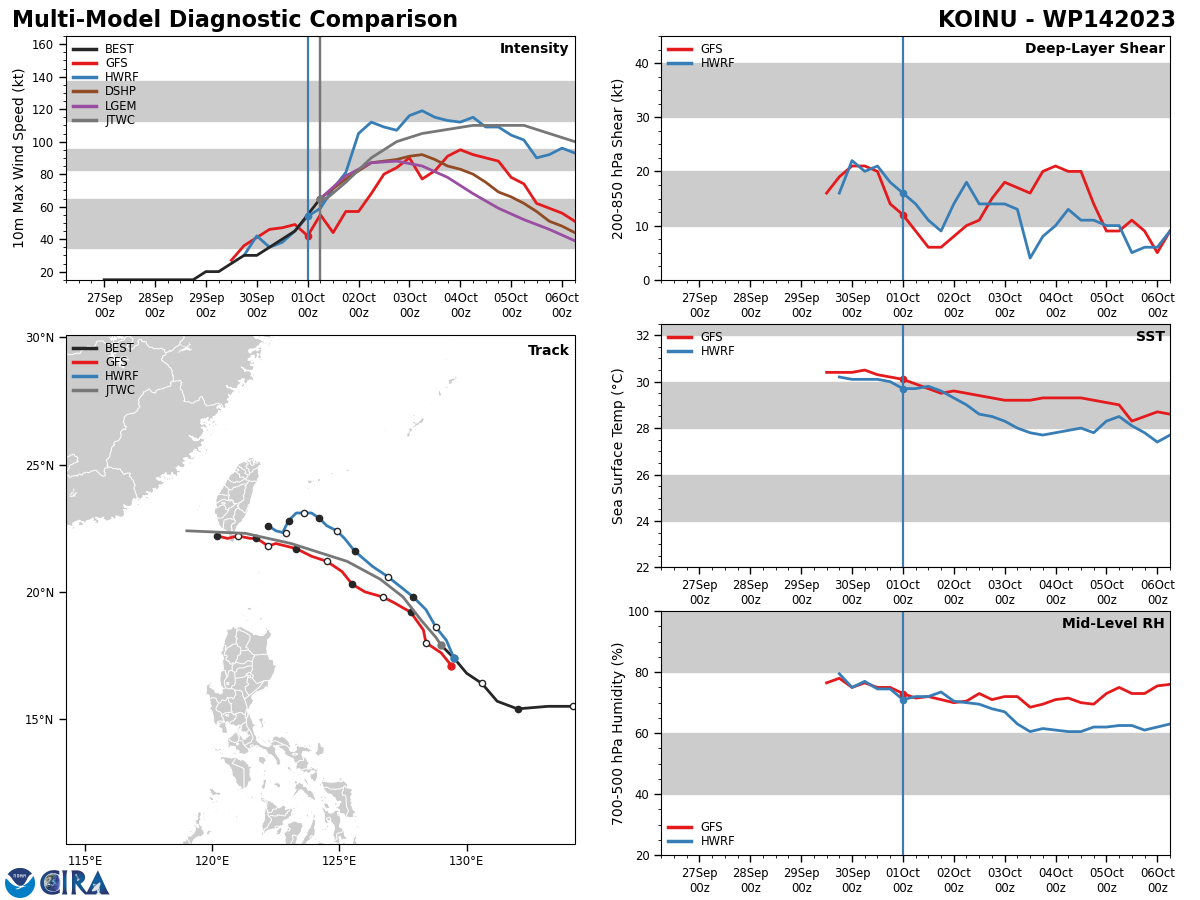

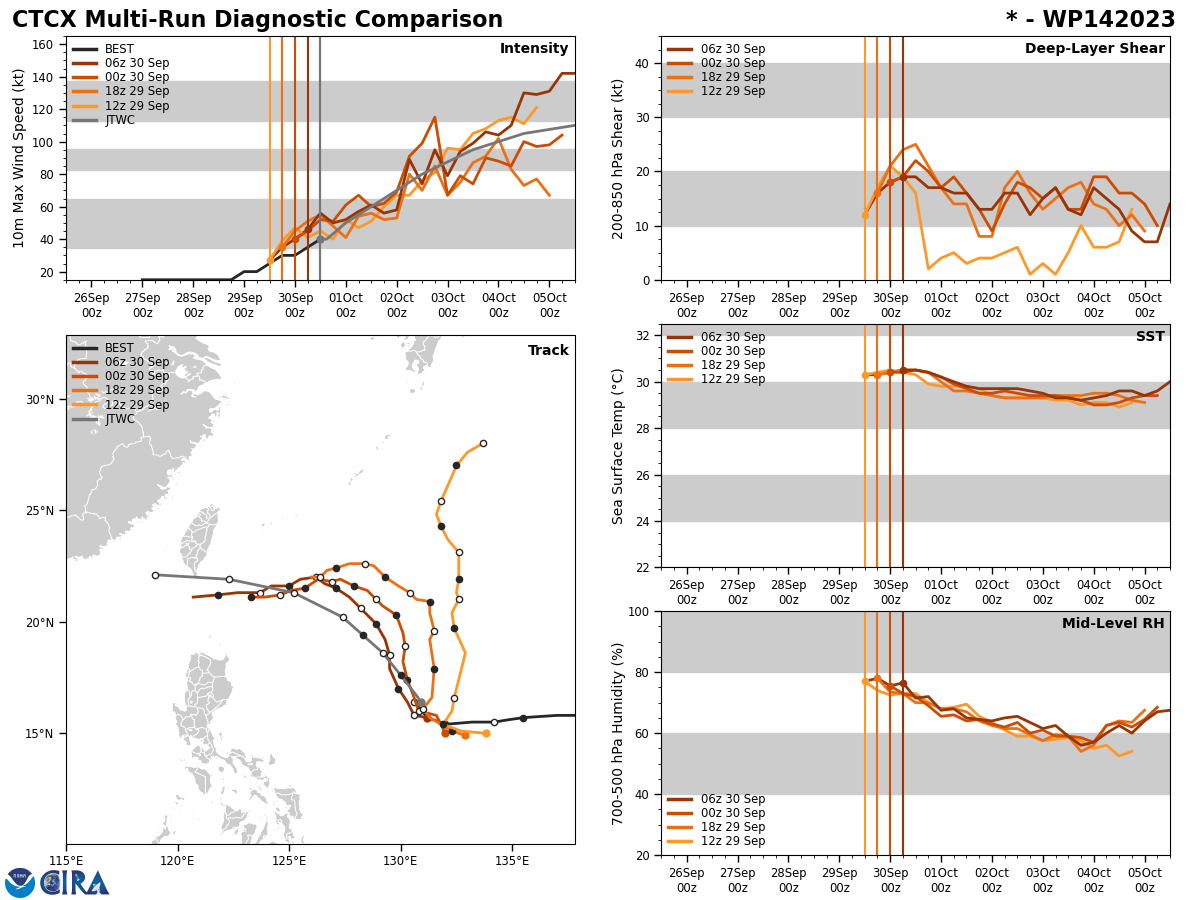

Model Diagnostic Plot
MODEL DISCUSSION: NUMERICAL MODELS ARE IN FAIR AGREEMENT WITH A MAJORITY OF THE MEMBERS CLOSELY FOLLOWING THE JTWC FORECAST TRACK. AS PREVIOUSLY MENTIONED ABOVE, ECMWF AND COAMPS-TC INDICATE A MORE DRAMATIC WESTWARD COURSE OVER OPEN WATERS AND INTO THE NORTHERN REGIONS OF THE SOUTH CHINA SEA. FOR THIS REASON THE JTWC TRACK FORECAST IS PLACED INITIALLY WITH HIGH CONFIDENCE AND WITH MEDIUM CONFIDENCE THEREAFTER. RELIABLE MODEL INTENSITY GUIDANCE IS IN GOOD AGREEMENT WITH ALL MEMBERS QUICKLY INTENSIFYING THE SYSTEM THROUGH TAU 72, AFTER WHICH GRADUAL WEAKENING THROUGH THE FORECAST PERIOD. AS SOME MEMBERS ARE INDICATING LANDFALL AND OTHERS REMAIN OVER OPEN WATER, THERE IS A MODERATE SPREAD IN THE MEMBERS BY TAU 120. THEREFOR, THE JTWC INTENSITY FORECAST REMAINS SLIGHTLY ABOVE THE MULTI-MODEL CONSENSUS WITH OVERALL MEDIUM CONFIDENCE.

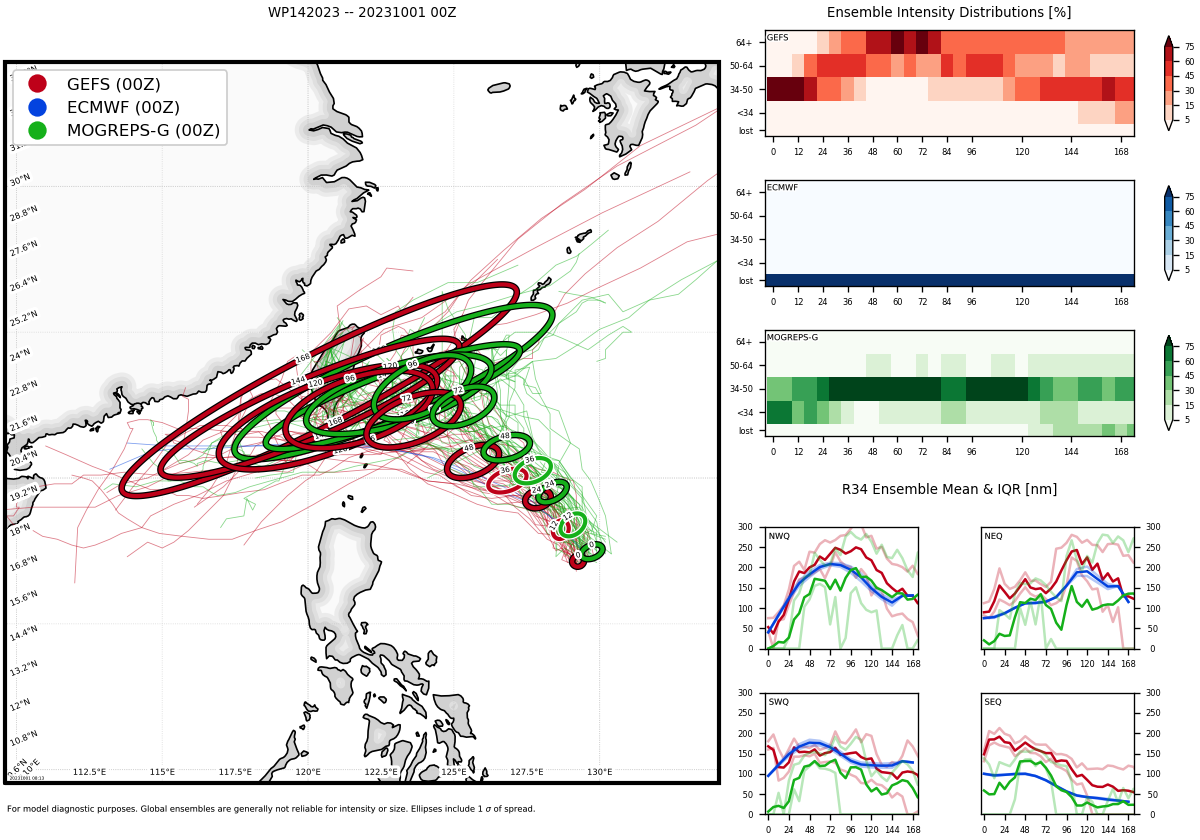

Ensemble Track Ellipses

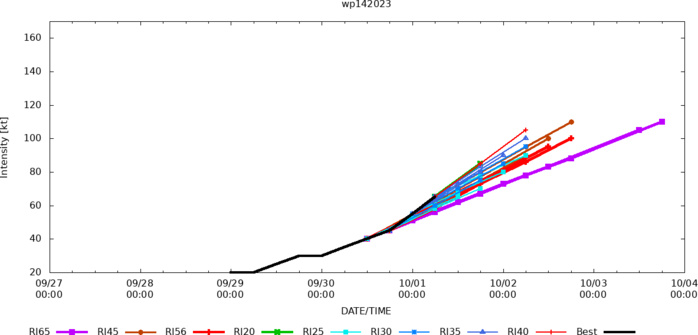

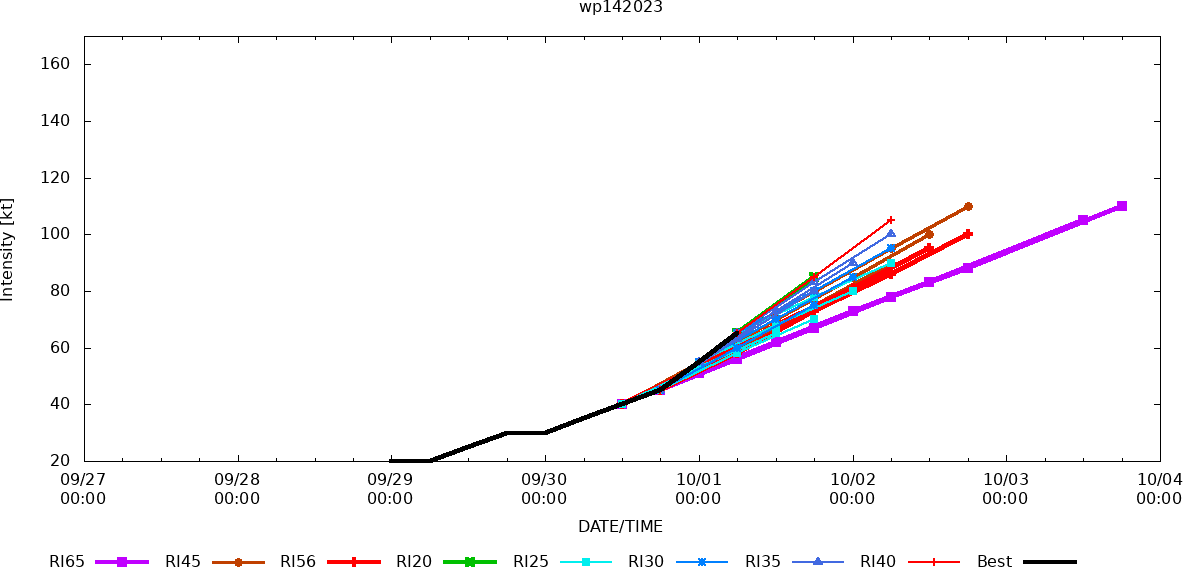

RIPA Forecast

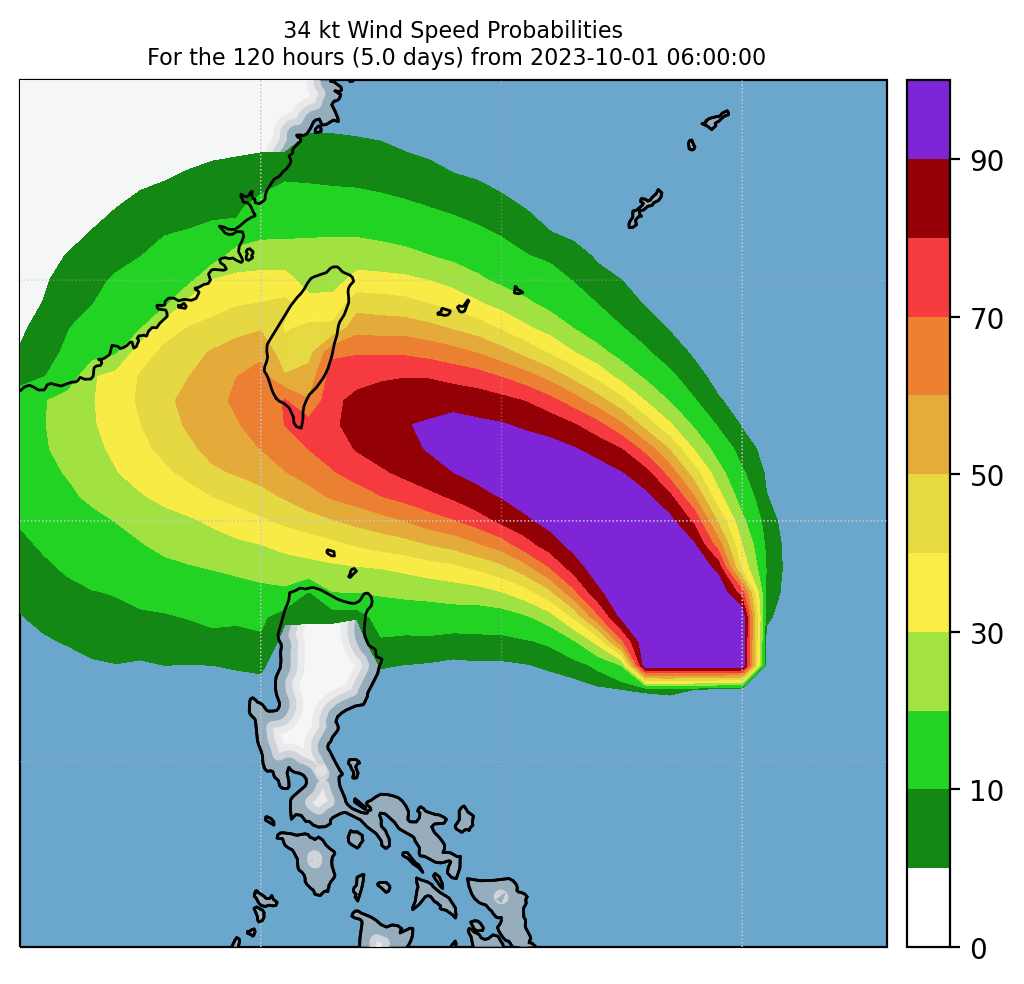

Experimental 34-kt Wind Speed Probabilities

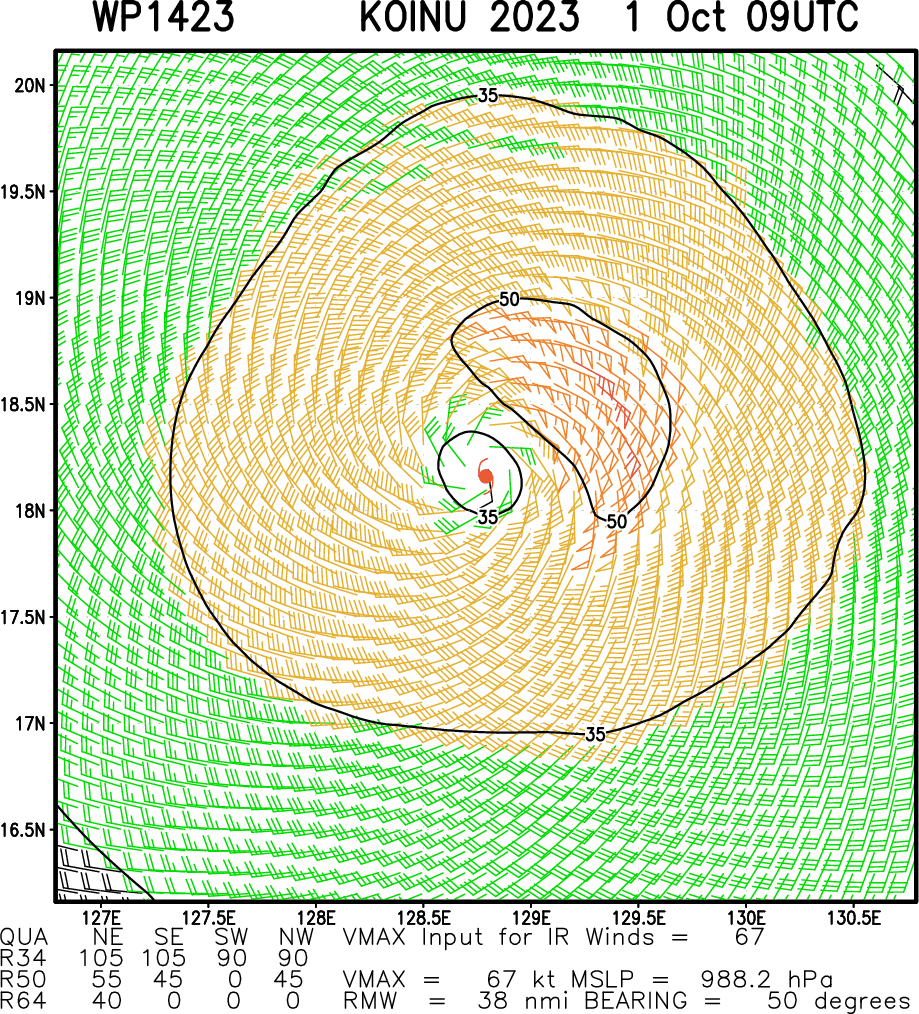

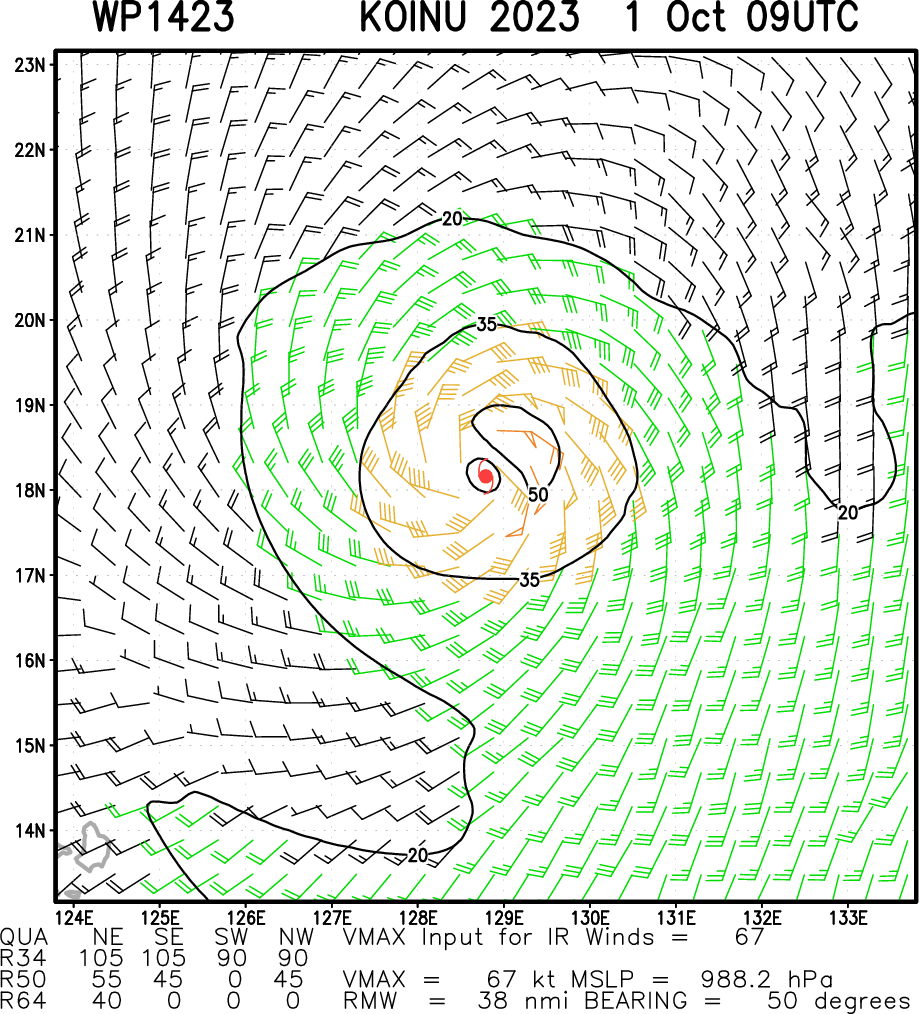

Multiplatform Satellite Surface Wind Analysis (Experimental)

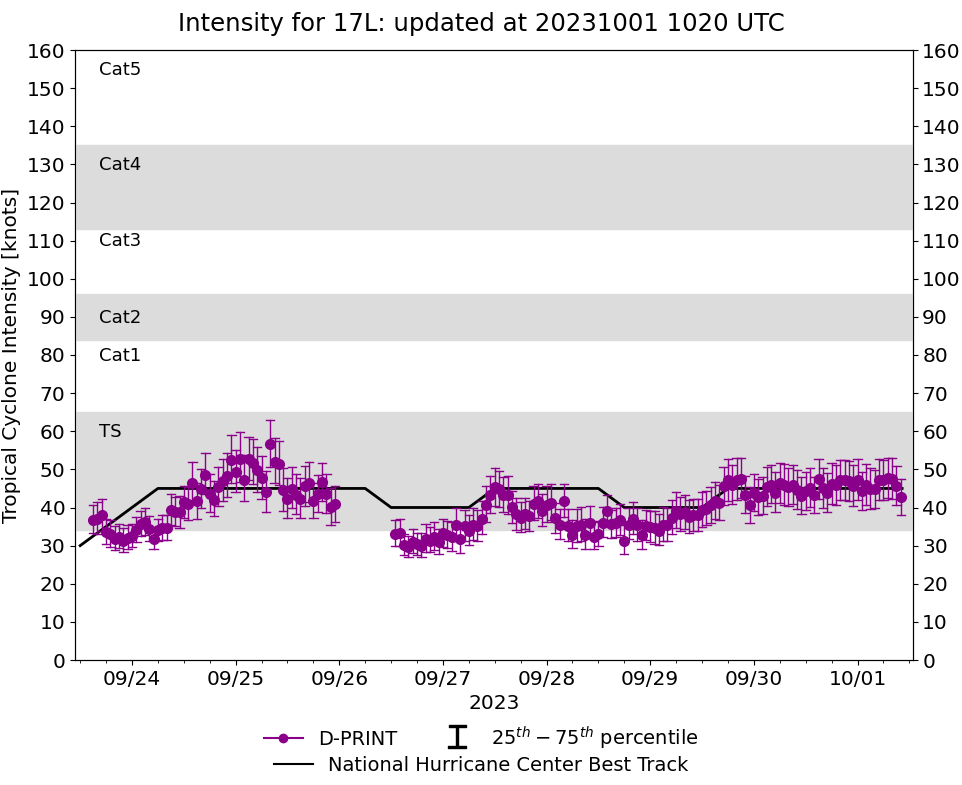

NORTH ATLANTIC OCEAN: TS 17L(PHILIPPE). CURRENT ESTIMATED INTENSITY IS 45 KNOTS: STABLE/24H.
1723092018 125N 240W 20
1723092100 126N 252W 20
1723092106 128N 265W 20
1723092112 130N 276W 20
1723092118 139N 289W 25
1723092200 142N 305W 25
1723092206 146N 318W 25
1723092212 150N 329W 25
1723092218 155N 344W 25
1723092300 157N 354W 25
1723092306 157N 366W 30
1723092312 156N 381W 30
1723092318 157N 391W 35
1723092400 158N 398W 40
1723092406 160N 405W 45
1723092412 163N 412W 45
1723092418 166N 420W 45
1723092500 169N 427W 45
1723092506 171N 436W 45
1723092512 170N 449W 45
1723092518 171N 464W 45
1723092600 174N 473W 45
1723092606 176N 485W 45
1723092612 173N 498W 40
1723092618 170N 508W 40
1723092700 172N 515W 40
1723092706 174N 524W 40
1723092712 172N 530W 45
1723092718 175N 537W 45
1723092800 180N 542W 45
1723092806 187N 544W 45
1723092812 187N 547W 45
1723092818 187N 548W 40
1723092900 186N 549W 40
1723092906 185N 551W 40
1723092912 184N 553W 40
1723092918 181N 556W 45
1723093000 177N 557W 45
1723093006 172N 558W 45
1723093012 169N 560W 45
1723093018 164N 564W 45
1723100100 162N 568W 45
1723100106 163N 575W 45
1723092100 126N 252W 20
1723092106 128N 265W 20
1723092112 130N 276W 20
1723092118 139N 289W 25
1723092200 142N 305W 25
1723092206 146N 318W 25
1723092212 150N 329W 25
1723092218 155N 344W 25
1723092300 157N 354W 25
1723092306 157N 366W 30
1723092312 156N 381W 30
1723092318 157N 391W 35
1723092400 158N 398W 40
1723092406 160N 405W 45
1723092412 163N 412W 45
1723092418 166N 420W 45
1723092500 169N 427W 45
1723092506 171N 436W 45
1723092512 170N 449W 45
1723092518 171N 464W 45
1723092600 174N 473W 45
1723092606 176N 485W 45
1723092612 173N 498W 40
1723092618 170N 508W 40
1723092700 172N 515W 40
1723092706 174N 524W 40
1723092712 172N 530W 45
1723092718 175N 537W 45
1723092800 180N 542W 45
1723092806 187N 544W 45
1723092812 187N 547W 45
1723092818 187N 548W 40
1723092900 186N 549W 40
1723092906 185N 551W 40
1723092912 184N 553W 40
1723092918 181N 556W 45
1723093000 177N 557W 45
1723093006 172N 558W 45
1723093012 169N 560W 45
1723093018 164N 564W 45
1723100100 162N 568W 45
1723100106 163N 575W 45

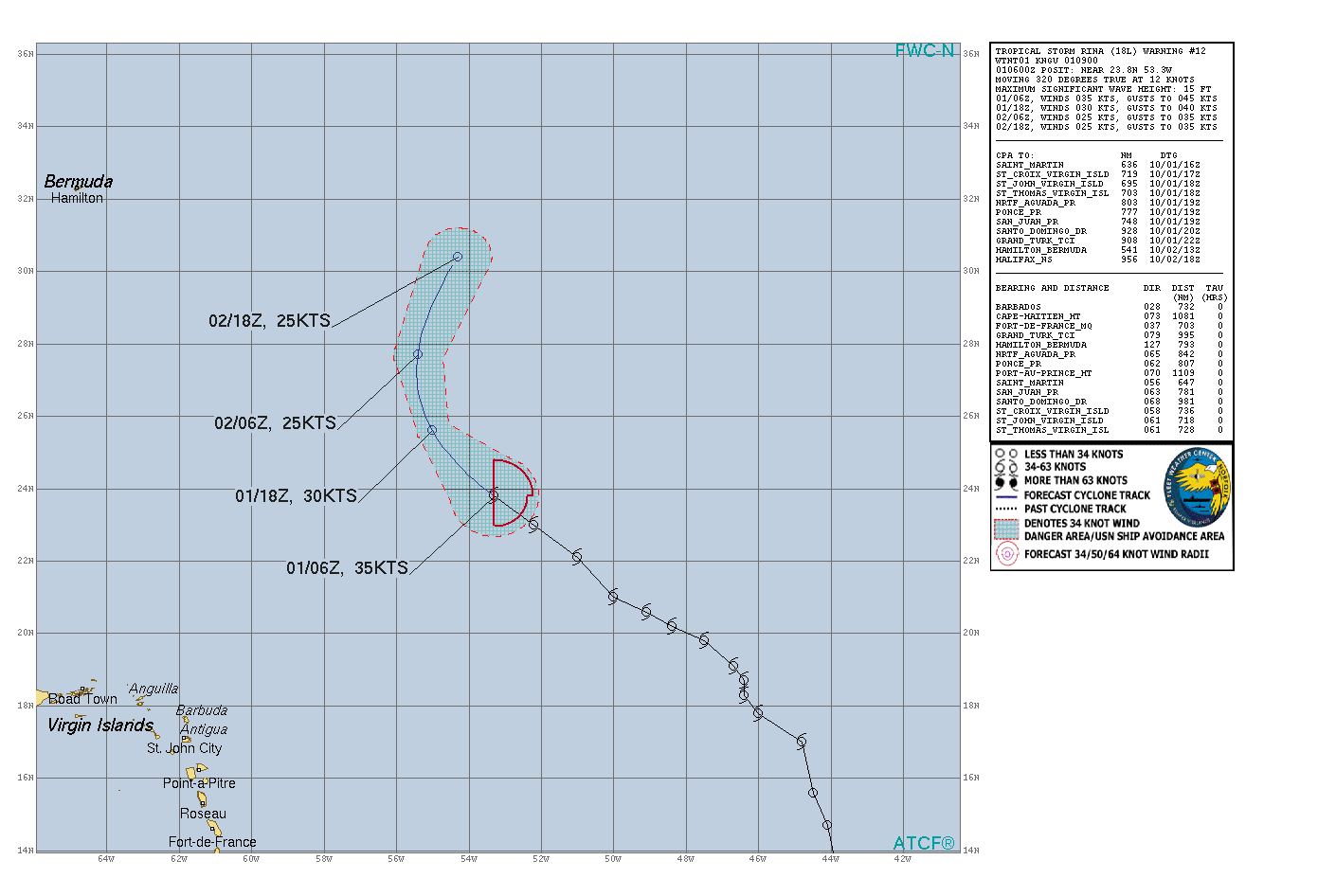

TC Warning Graphic

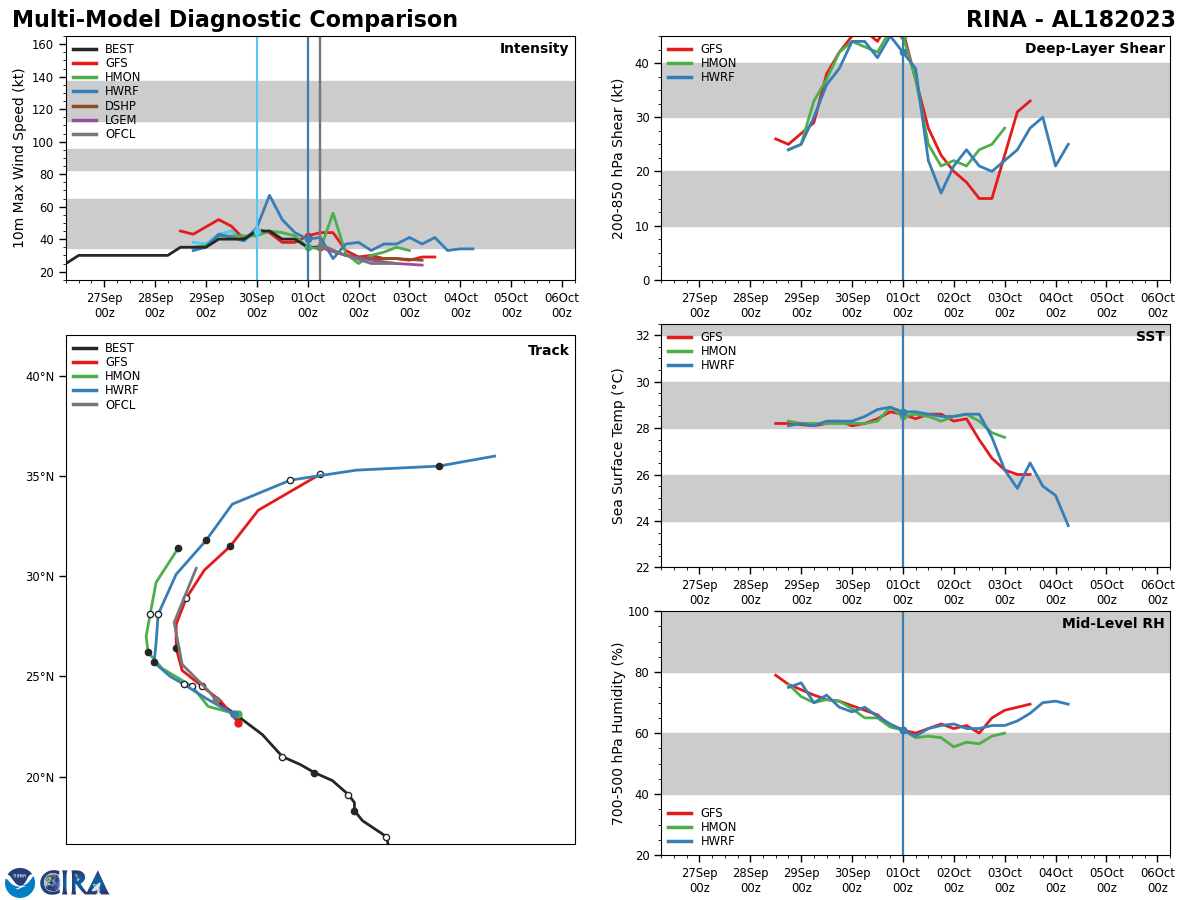

Model Diagnostic Plot

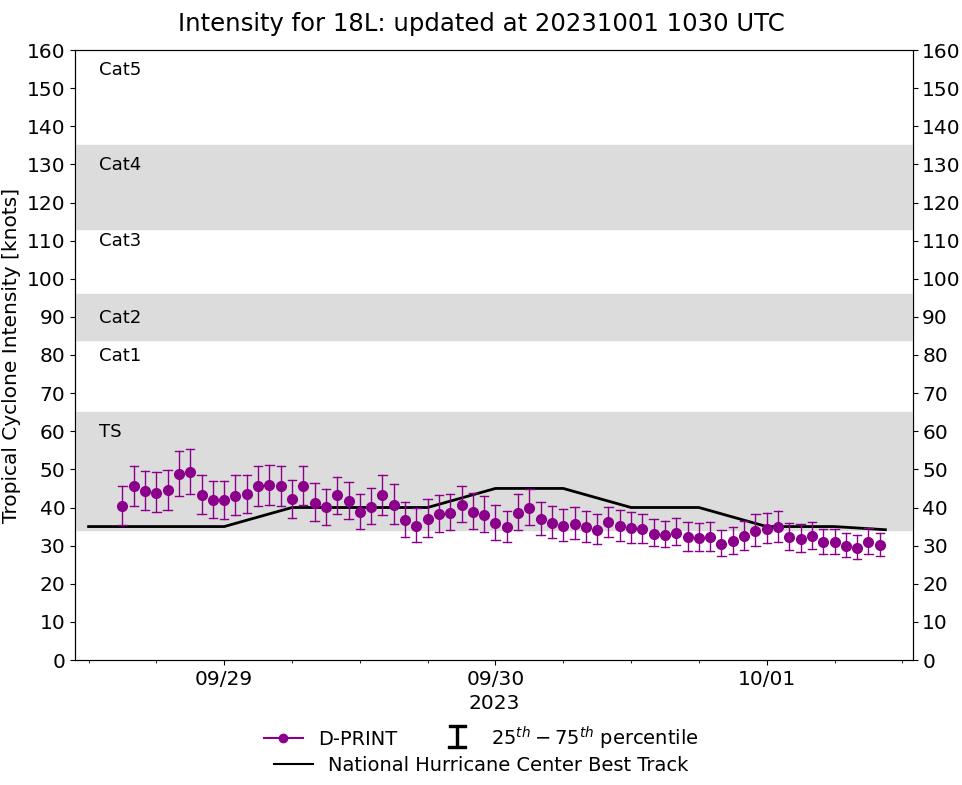

NORTH ATLANTIC OCEAN: TS 18L(RINA). CURRENT ESTIMATED INTENSITY IS 35 KNOTS: -10 KNOTS/24H.
1823092318 105N 219W 15
1823092400 99N 229W 15
1823092406 94N 239W 15
1823092412 90N 250W 20
1823092418 87N 265W 20
1823092500 90N 280W 20
1823092506 95N 295W 20
1823092512 102N 307W 20
1823092518 104N 325W 20
1823092600 105N 341W 25
1823092606 106N 355W 25
1823092612 108N 373W 30
1823092618 112N 392W 30
1823092700 112N 406W 30
1823092706 112N 420W 30
1823092712 126N 434W 30
1823092718 137N 439W 30
1823092800 147N 441W 30
1823092806 156N 445W 30
1823092812 170N 448W 35
1823092818 178N 460W 35
1823092900 183N 464W 35
1823092906 187N 464W 40
1823092912 191N 467W 40
1823092918 198N 475W 40
1823093000 202N 484W 45
1823093006 206N 491W 45
1823093012 210N 500W 40
1823093018 221N 510W 40
1823100100 230N 522W 35
1823100106 238N 533W 35
1823092400 99N 229W 15
1823092406 94N 239W 15
1823092412 90N 250W 20
1823092418 87N 265W 20
1823092500 90N 280W 20
1823092506 95N 295W 20
1823092512 102N 307W 20
1823092518 104N 325W 20
1823092600 105N 341W 25
1823092606 106N 355W 25
1823092612 108N 373W 30
1823092618 112N 392W 30
1823092700 112N 406W 30
1823092706 112N 420W 30
1823092712 126N 434W 30
1823092718 137N 439W 30
1823092800 147N 441W 30
1823092806 156N 445W 30
1823092812 170N 448W 35
1823092818 178N 460W 35
1823092900 183N 464W 35
1823092906 187N 464W 40
1823092912 191N 467W 40
1823092918 198N 475W 40
1823093000 202N 484W 45
1823093006 206N 491W 45
1823093012 210N 500W 40
1823093018 221N 510W 40
1823100100 230N 522W 35
1823100106 238N 533W 35
