05W(DOKSURI) peaks at Super Typhoon Intensity//Invest 91W//Invest 94B//Invest 95L// 2503utc

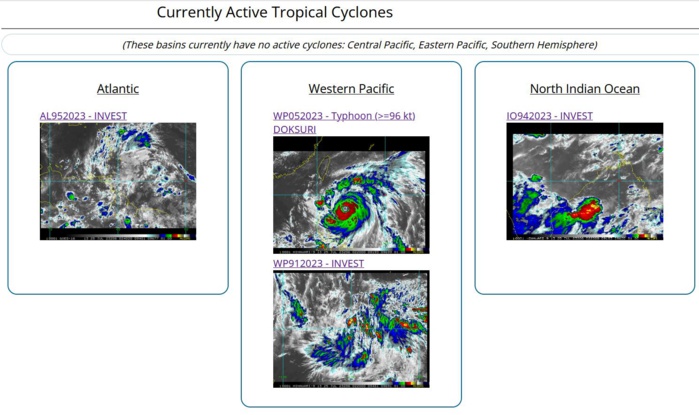

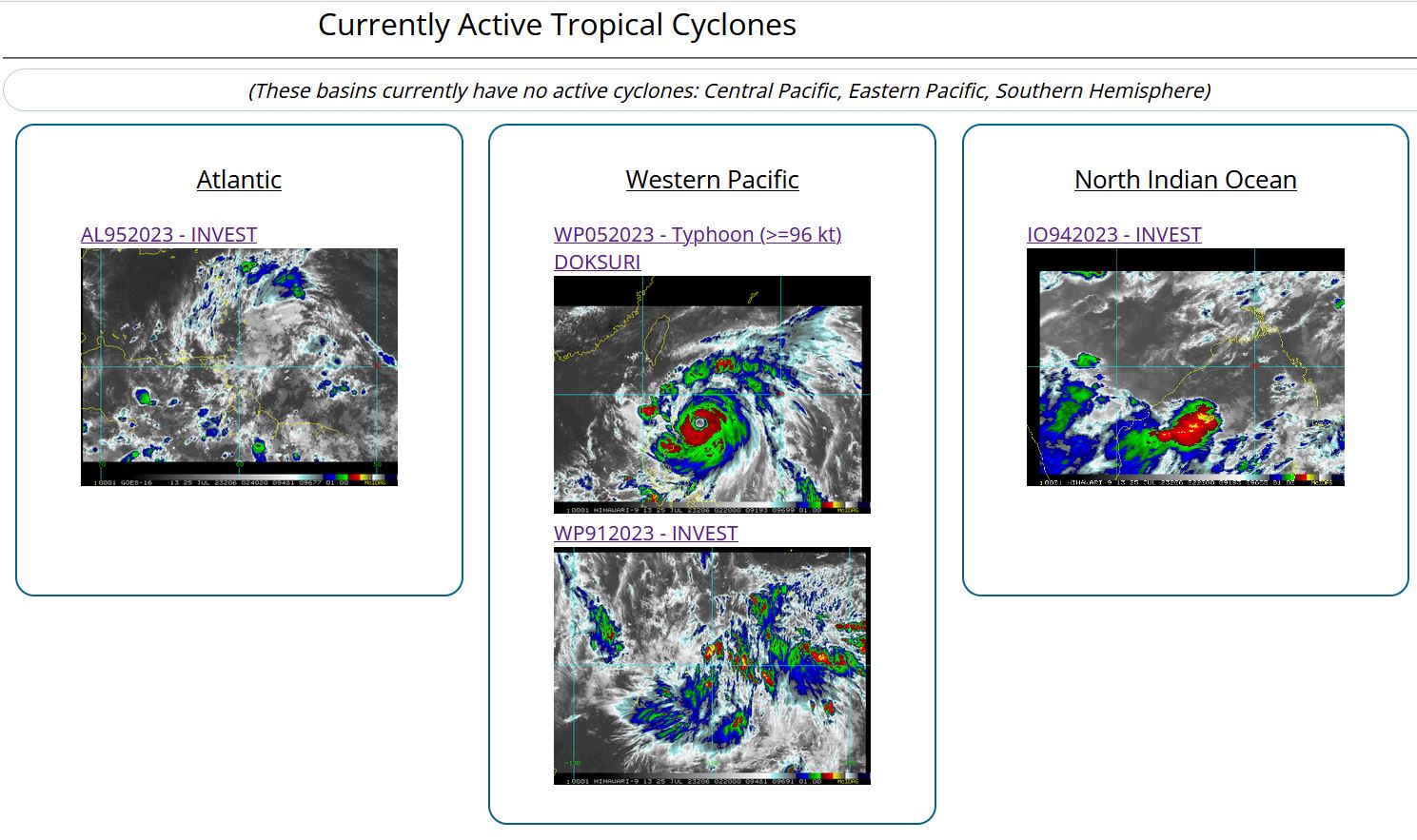

CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

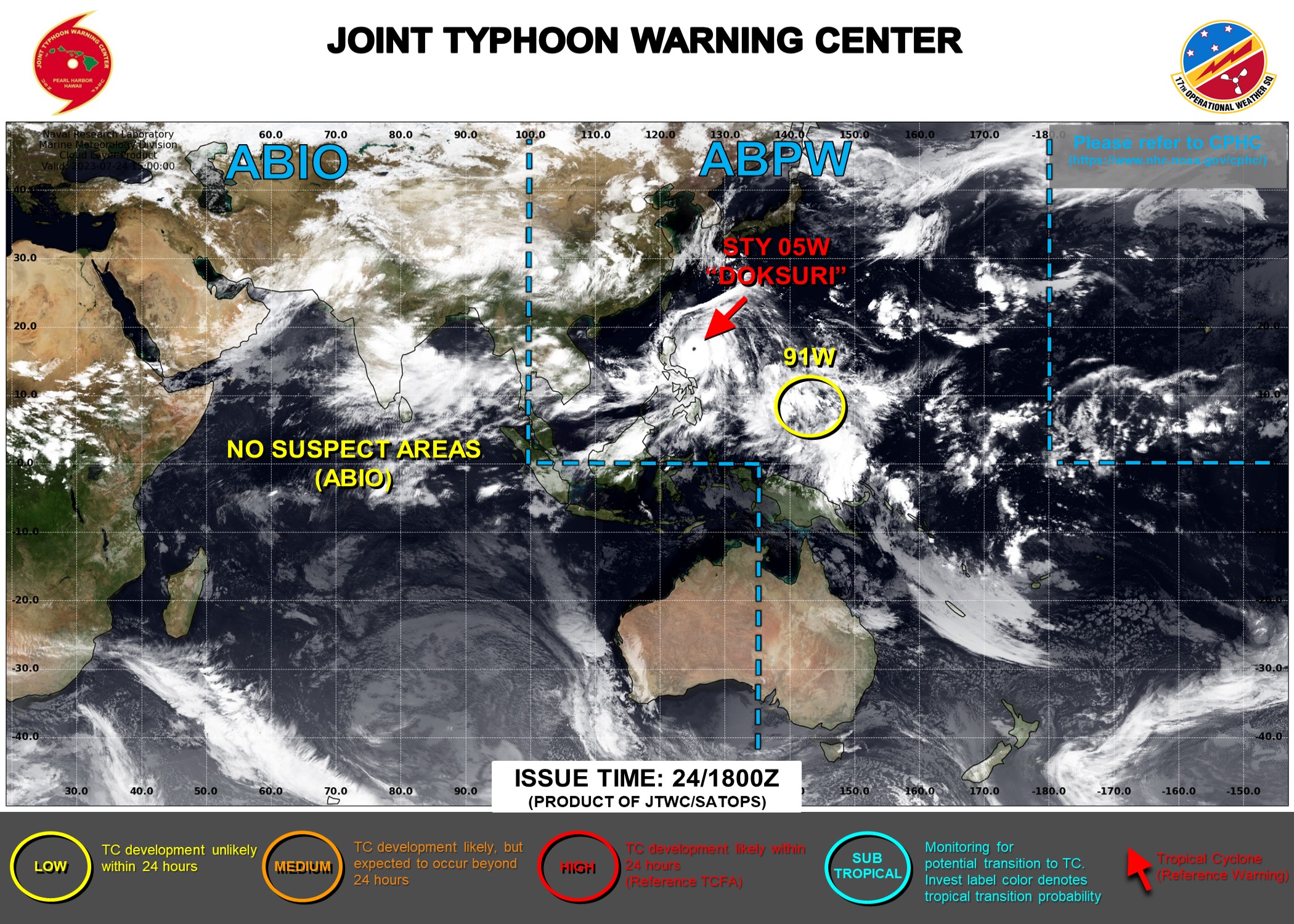

JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON STY 05W(DOKSURI).
JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON STY 05W(DOKSURI).

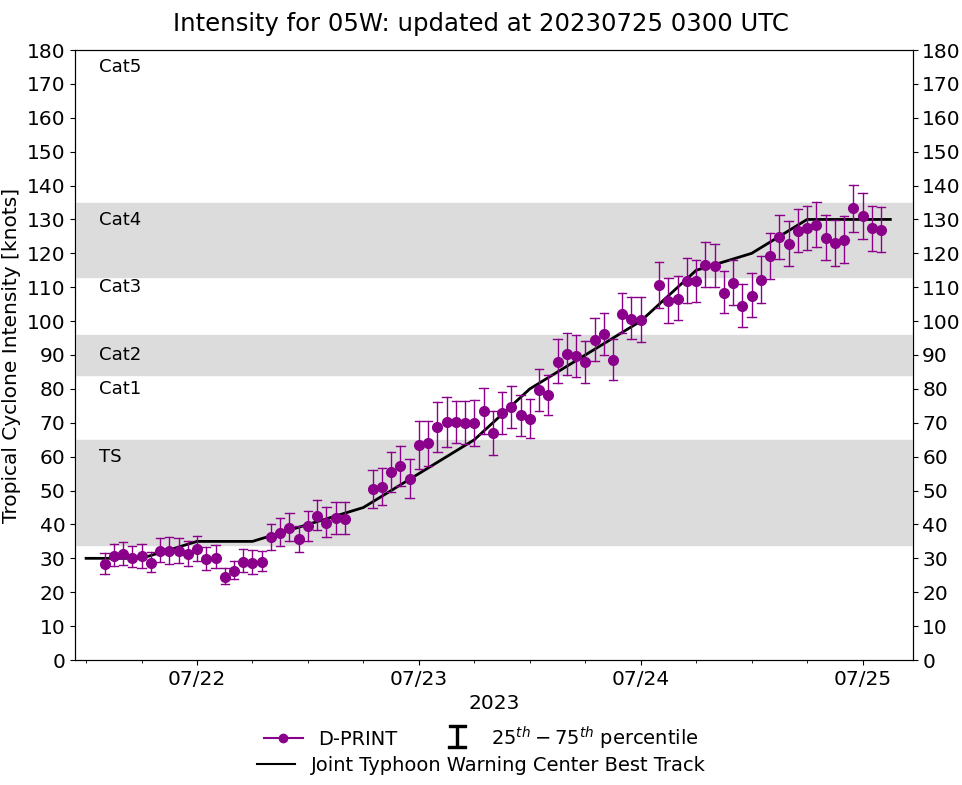

WESTERN NORTH PACIFIC: STY 05W(DOKSURI). CURRENT ESTIMATED INTENSITY IS 130 KNOTS/CAT 4 US: +30 KNOTS/24H.

0523072318 152N1270E  90
0523072400 153N1266E 100
0523072406 157N1263E 115
0523072412 165N1258E 120
0523072418 170N1251E 130
0523072500 177N1246E 130

WARNING 15 ISSUED AT 25/03UTC.

05W(DOKSURI) peaks at Super Typhoon Intensity//Invest 91W//Invest 94B//Invest 95L// 2503utc


CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED.

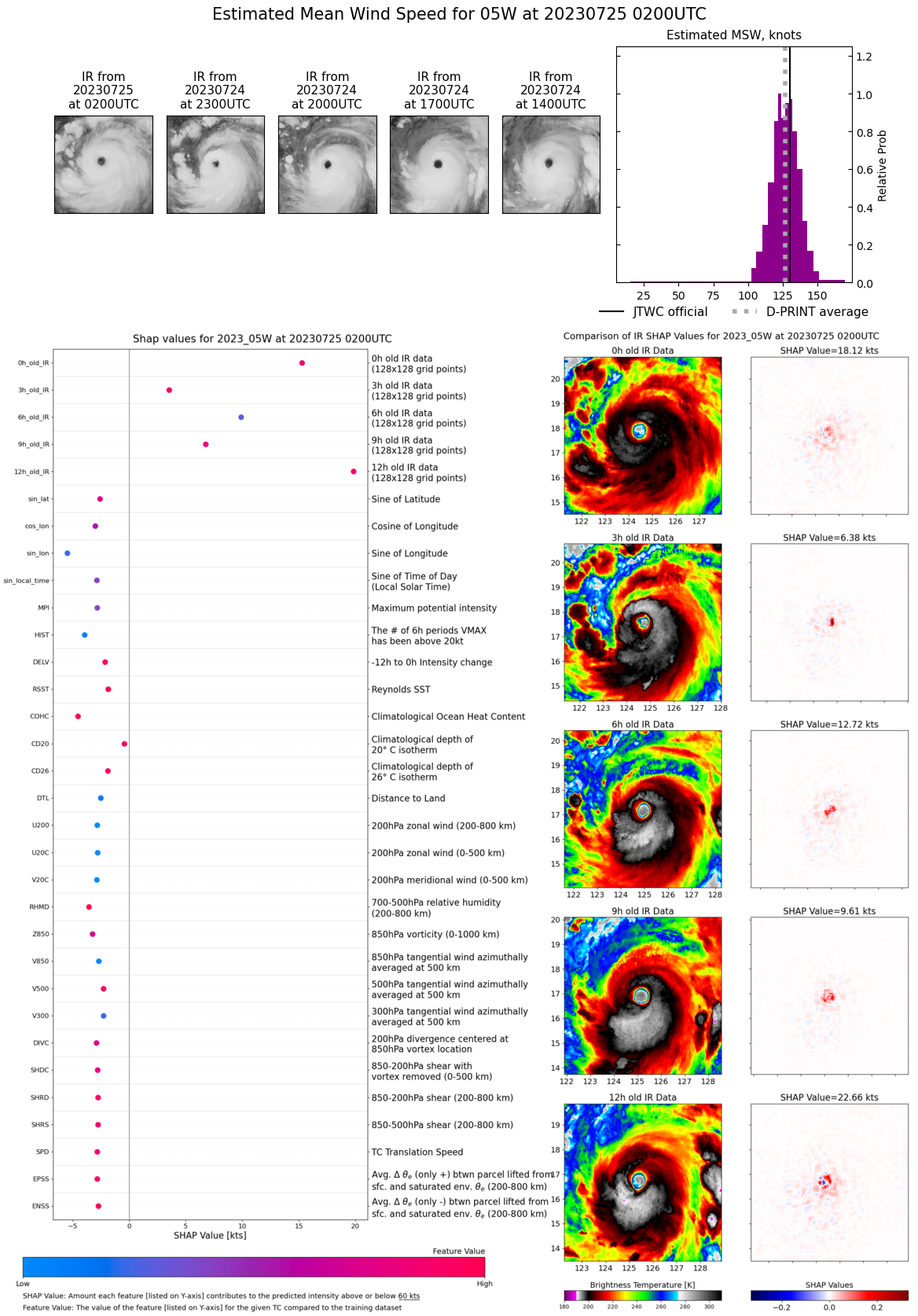

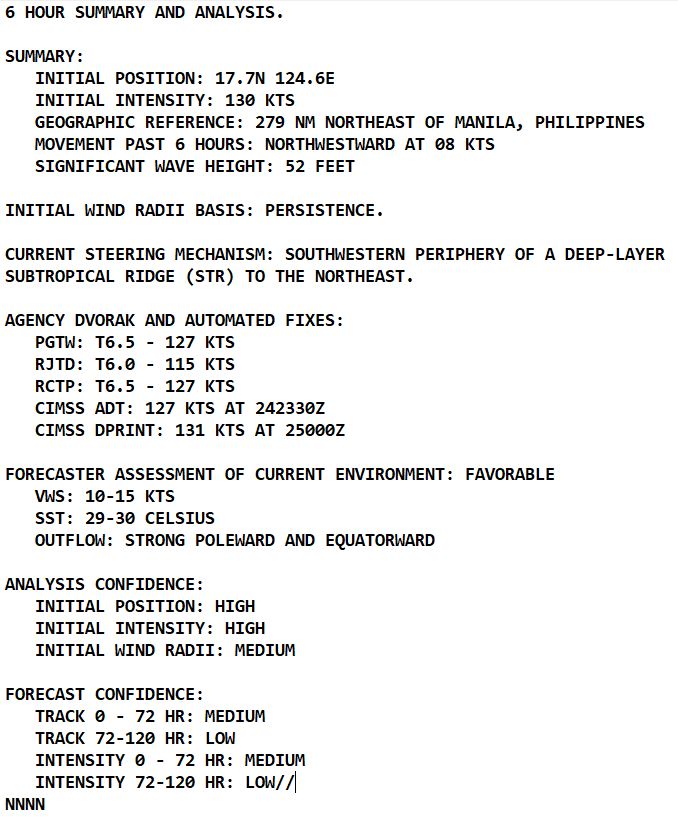

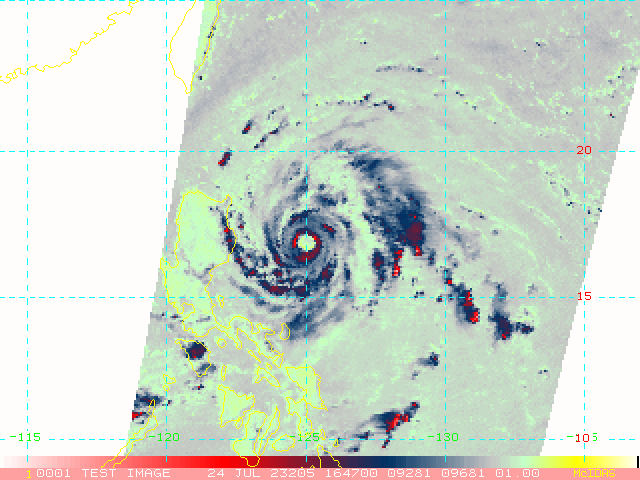

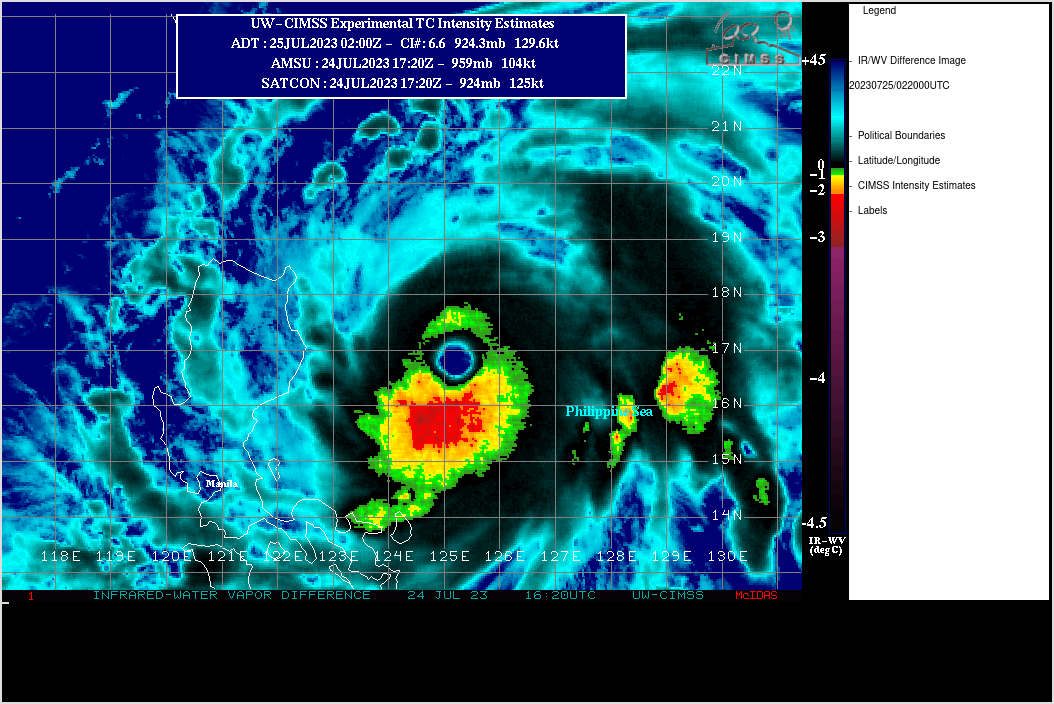

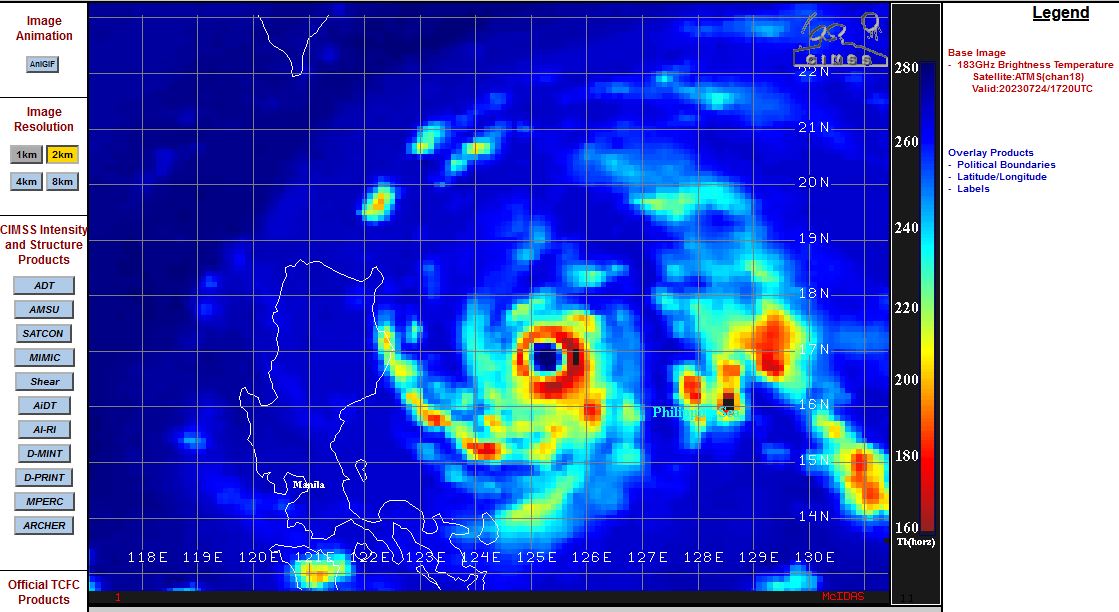

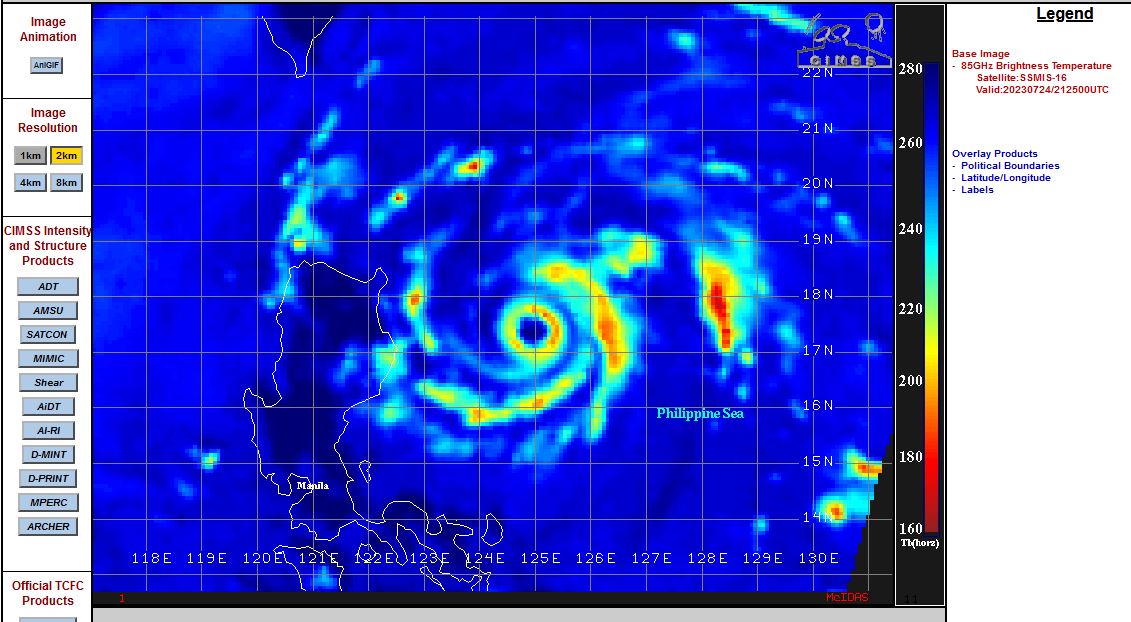

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) SHOWS A LARGE AND VERY INTENSE SYSTEM THAT MAINTAINED ITS OVERALL CONVECTIVE STRUCTURE OVER THE PAST SIX HOURS. A MOAT OF DRY AIR HAS ALMOST COMPLETELY SURROUNDED THE EYEWALL, AN INDICATION OF IMMINENT EYE WALL REPLACEMENT CYCLE (EWRC). THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON THE EYE FEATURE IN THE MSI LOOP. THE INITIAL INTENSITY OF 130KTS IS BASED ON THE OVERALL ASSESSMENT OF AGENCY AND  AUTOMATED DVORAK ESTIMATES. ANALYSIS INDICATES A FAVORABLE  ENVIRONMENT, FOR NOW, WITH VERY WARM SST, LOW VWS, AND STRONG DUAL  OUTFLOW ALOFT.
SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) SHOWS A LARGE AND VERY INTENSE SYSTEM THAT MAINTAINED ITS OVERALL CONVECTIVE STRUCTURE OVER THE PAST SIX HOURS. A MOAT OF DRY AIR HAS ALMOST COMPLETELY SURROUNDED THE EYEWALL, AN INDICATION OF IMMINENT EYE WALL REPLACEMENT CYCLE (EWRC). THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON THE EYE FEATURE IN THE MSI LOOP. THE INITIAL INTENSITY OF 130KTS IS BASED ON THE OVERALL ASSESSMENT OF AGENCY AND AUTOMATED DVORAK ESTIMATES. ANALYSIS INDICATES A FAVORABLE ENVIRONMENT, FOR NOW, WITH VERY WARM SST, LOW VWS, AND STRONG DUAL OUTFLOW ALOFT.

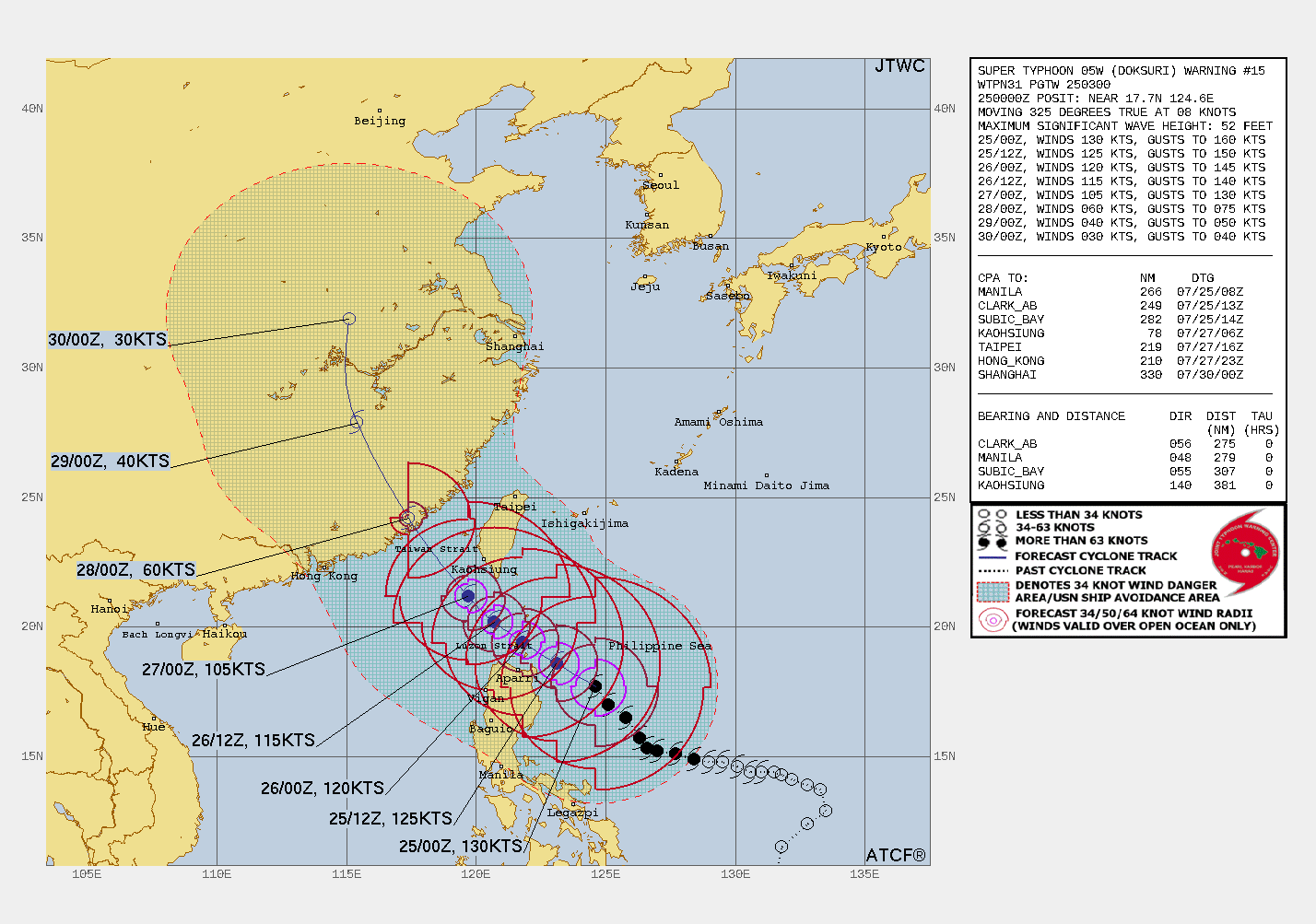

TC Warning Graphic

FORECAST REASONING.  SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING.  FORECAST DISCUSSION: SUPER TYPHOON DOKSURI WILL CONTINUE ON ITS NORTHWESTWARD TRACK UNDER THE STEERING STR INTO THE LUZON AND TAIWAN STRAITS BEFORE MAKING LANDFALL NEAR XIAMEN, CHINA, JUST AFTER TAU 72. AFTERWARD, IT WILL TURN MORE NORTH-NORTHWESTWARD AS IT ROUNDS THE STR AXIS TOWARD A BREAK IN THE RIDGE. THE SYSTEM HAS PEAKED INTENSITY AS AN EWRC WILL NOW WEAKEN THE SYSTEM FOLLOWED BY INCREASING LAND INTERACTION WITH THE NORTHERN TIP OF LUZON AND TAIWAN. BEFORE LANDFALL, DIMINISHING OUTFLOW AHEAD OF A MIDLATITUDE TROUGH WILL FURTHER WEAKEN THE SYSTEM DOWN TO 60KTS BY TAU 72. AFTER LANDFALL, INTERACTION WITH THE RUGGED TERRAIN AND INCREASING VWS WILL RAPIDLY ERODE THE SYSTEM, LEADING TO DISSIPATION  BY TAU 120 AS IT TRACKS DEEPER INTO THE CHINESE INTERIOR.
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: SUPER TYPHOON DOKSURI WILL CONTINUE ON ITS NORTHWESTWARD TRACK UNDER THE STEERING STR INTO THE LUZON AND TAIWAN STRAITS BEFORE MAKING LANDFALL NEAR XIAMEN, CHINA, JUST AFTER TAU 72. AFTERWARD, IT WILL TURN MORE NORTH-NORTHWESTWARD AS IT ROUNDS THE STR AXIS TOWARD A BREAK IN THE RIDGE. THE SYSTEM HAS PEAKED INTENSITY AS AN EWRC WILL NOW WEAKEN THE SYSTEM FOLLOWED BY INCREASING LAND INTERACTION WITH THE NORTHERN TIP OF LUZON AND TAIWAN. BEFORE LANDFALL, DIMINISHING OUTFLOW AHEAD OF A MIDLATITUDE TROUGH WILL FURTHER WEAKEN THE SYSTEM DOWN TO 60KTS BY TAU 72. AFTER LANDFALL, INTERACTION WITH THE RUGGED TERRAIN AND INCREASING VWS WILL RAPIDLY ERODE THE SYSTEM, LEADING TO DISSIPATION BY TAU 120 AS IT TRACKS DEEPER INTO THE CHINESE INTERIOR.

capturet_1.jpg CaptureT.JPG  (329.38 KB)

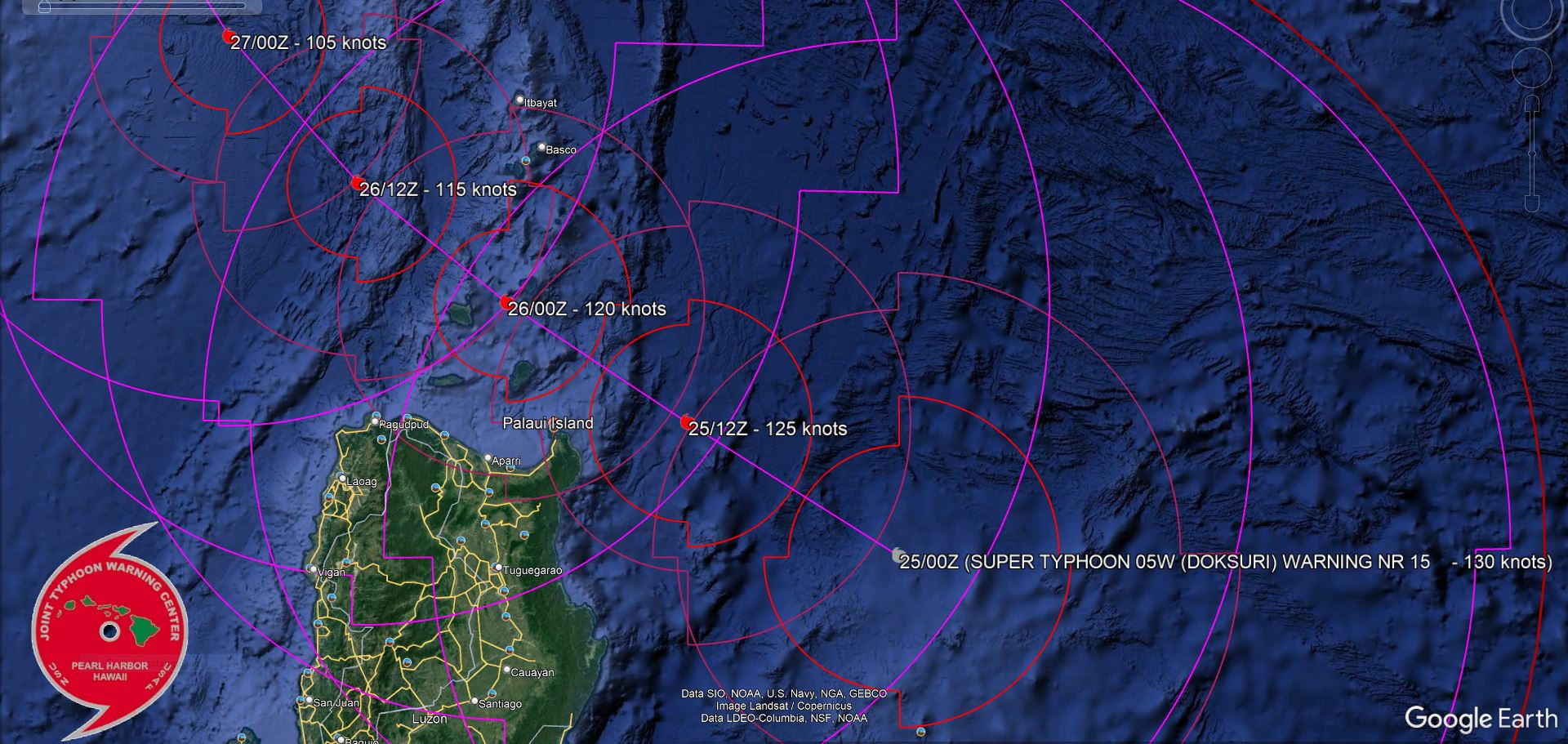

Forecast track next 48hours

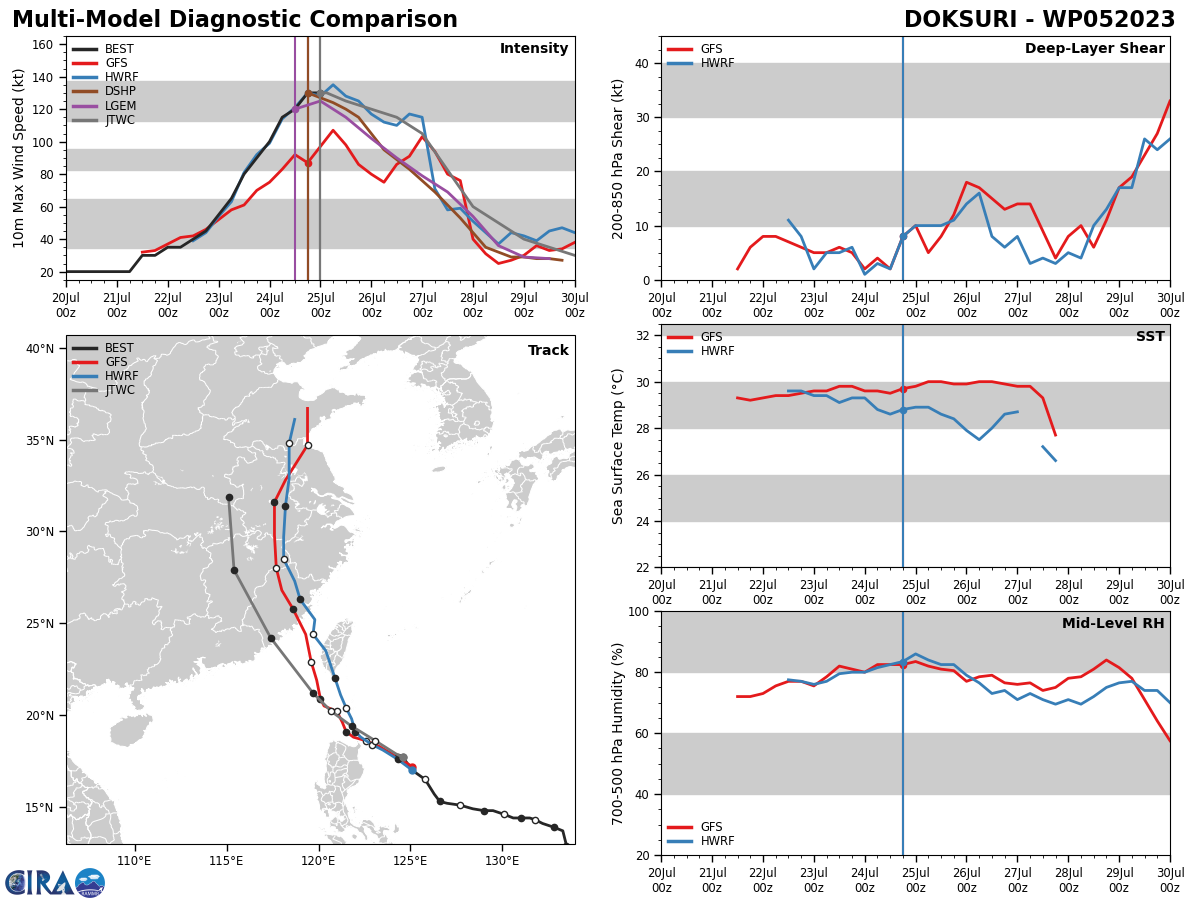

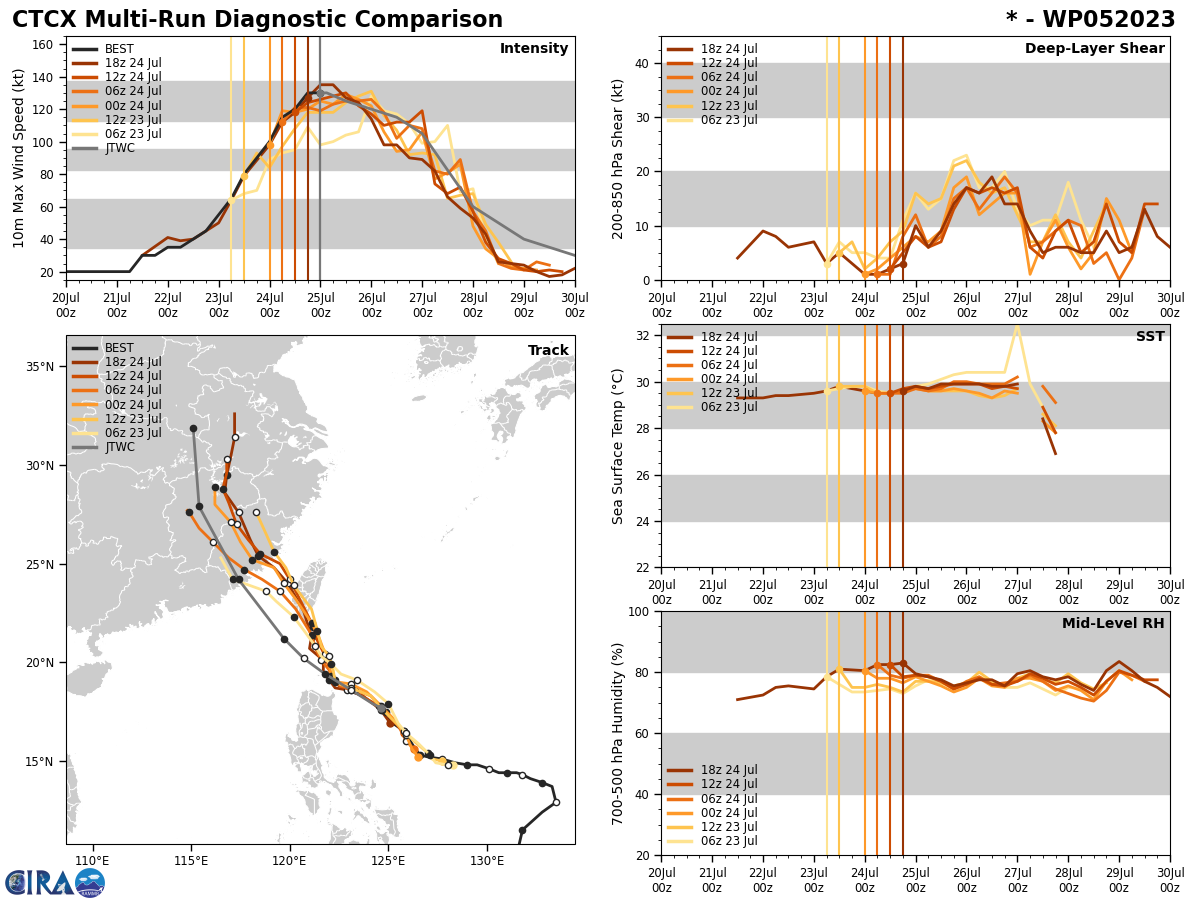

Model Diagnostic Plot

MODEL DISCUSSION: NUMERICAL MODELS ARE IN TIGHT AGREEMENT UP TO TAU 72 WITH A GRADUAL AND EVEN SPREAD TO 184NM WITH GFS ON THE RIGHT MARGIN AND NVGM AND EEMN ON THE LEFT MARGIN OF THE MODEL ENVELOPE. HOWEVER, RECENT TROCHOIDAL MOTION MAY CONTINUE IN THE NEAR TERM LENDING ONLY MODERATE CONFIDENCE IN THE JTWC TRACK FORECAST THAT IS LAID JUST TO THE RIGHT OF CONW IN SLIGHT FAVOR OF THE GFS SOLUTION. THERE IS LOW CONFIDENCE IN THE EXTENDED PORTION OF THE FORECAST THAT SPREADS OUT TO 323NM DUE TO THE VARIABILITY ASSOCIATED WITH A LAND TRACK.
MODEL DISCUSSION: NUMERICAL MODELS ARE IN TIGHT AGREEMENT UP TO TAU 72 WITH A GRADUAL AND EVEN SPREAD TO 184NM WITH GFS ON THE RIGHT MARGIN AND NVGM AND EEMN ON THE LEFT MARGIN OF THE MODEL ENVELOPE. HOWEVER, RECENT TROCHOIDAL MOTION MAY CONTINUE IN THE NEAR TERM LENDING ONLY MODERATE CONFIDENCE IN THE JTWC TRACK FORECAST THAT IS LAID JUST TO THE RIGHT OF CONW IN SLIGHT FAVOR OF THE GFS SOLUTION. THERE IS LOW CONFIDENCE IN THE EXTENDED PORTION OF THE FORECAST THAT SPREADS OUT TO 323NM DUE TO THE VARIABILITY ASSOCIATED WITH A LAND TRACK.

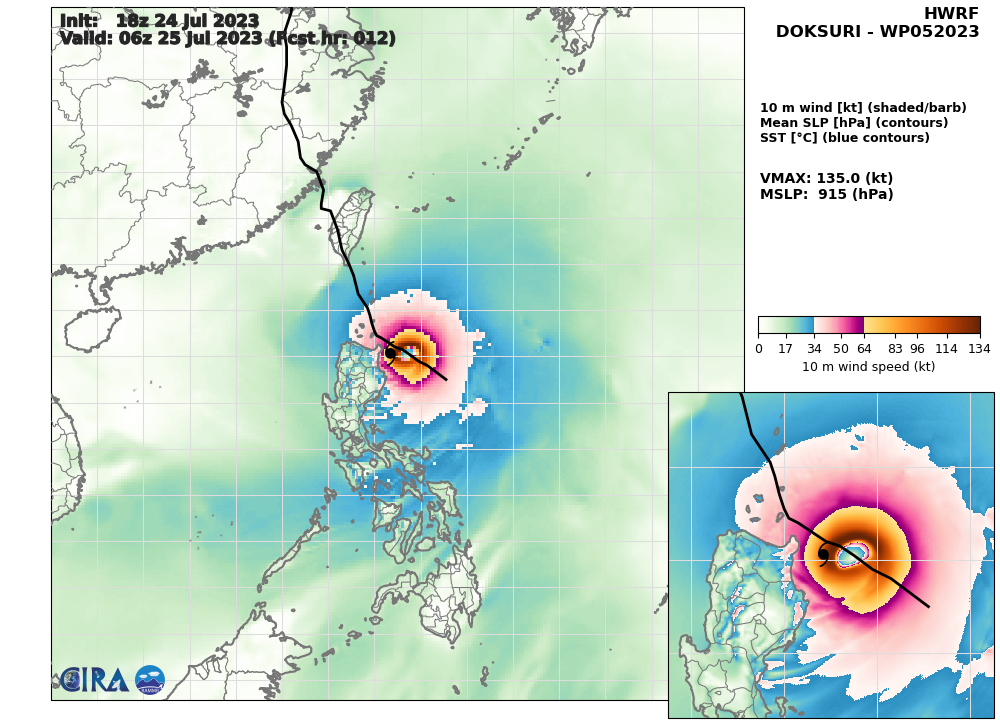

HWRF 10m Wind Speed & Sea Level Pressure AT 24/18UTC: 135 KNOTS AT +12H.

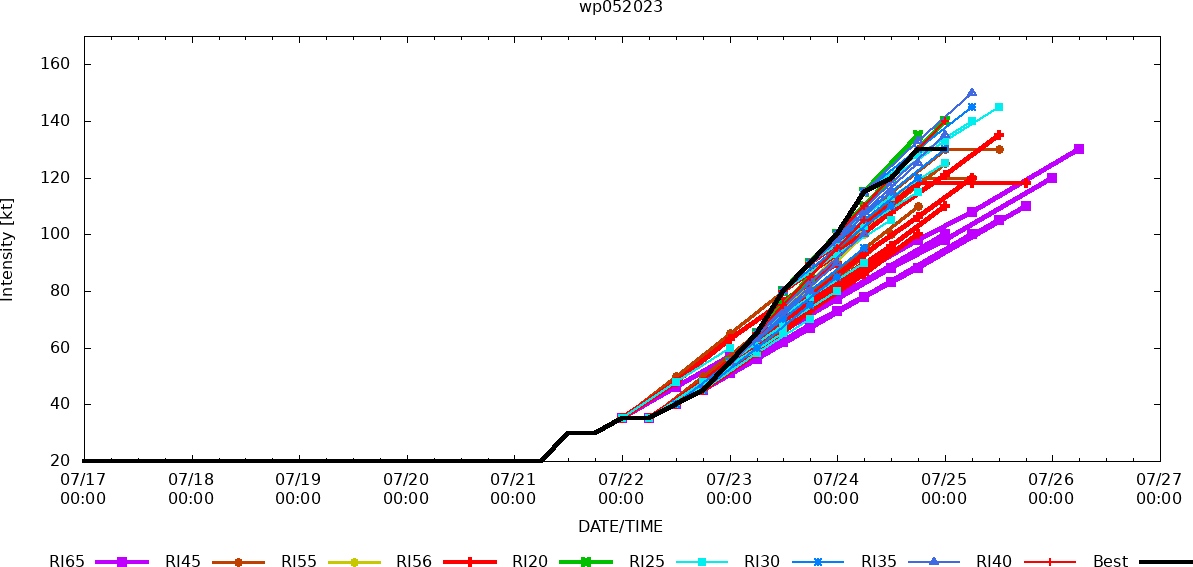

RIPA Forecast AND RIPA STORM TABLE ATTACHED BELOW

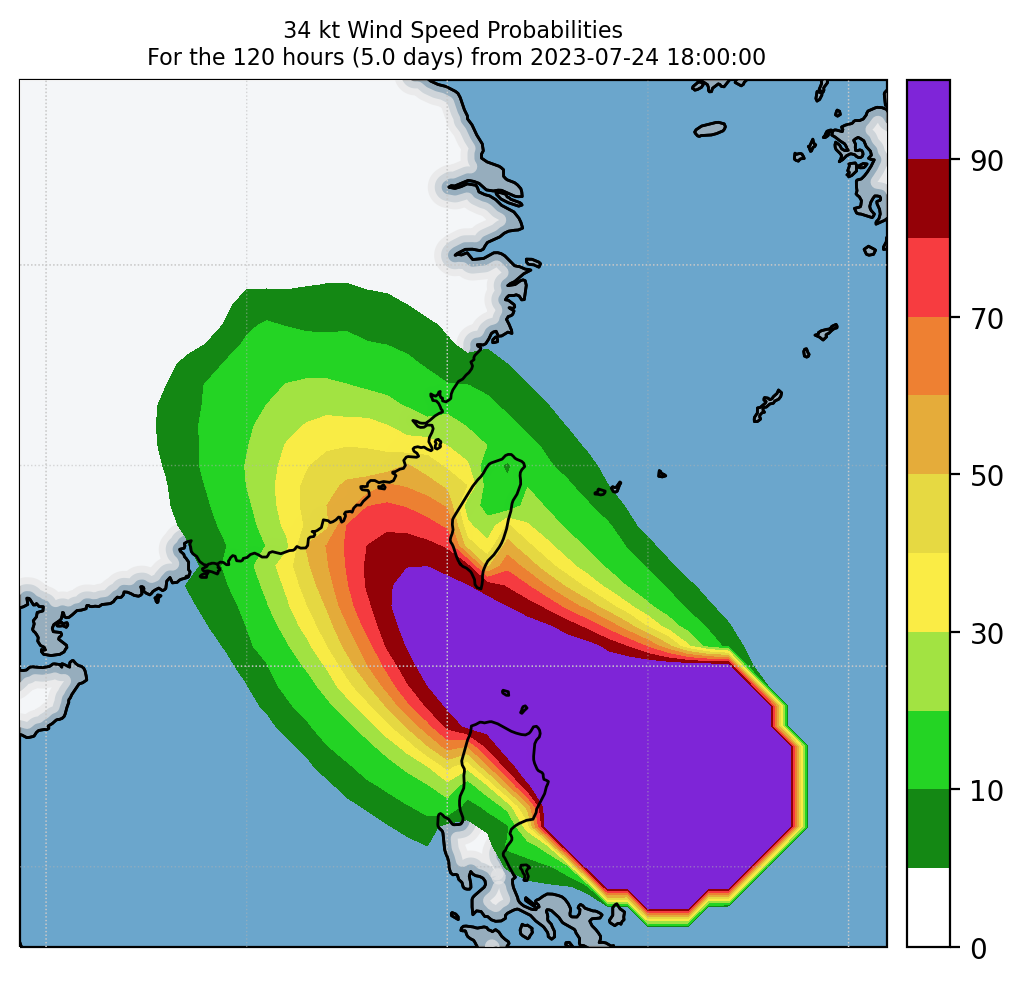

Experimental 34-kt Wind Speed Probabilities

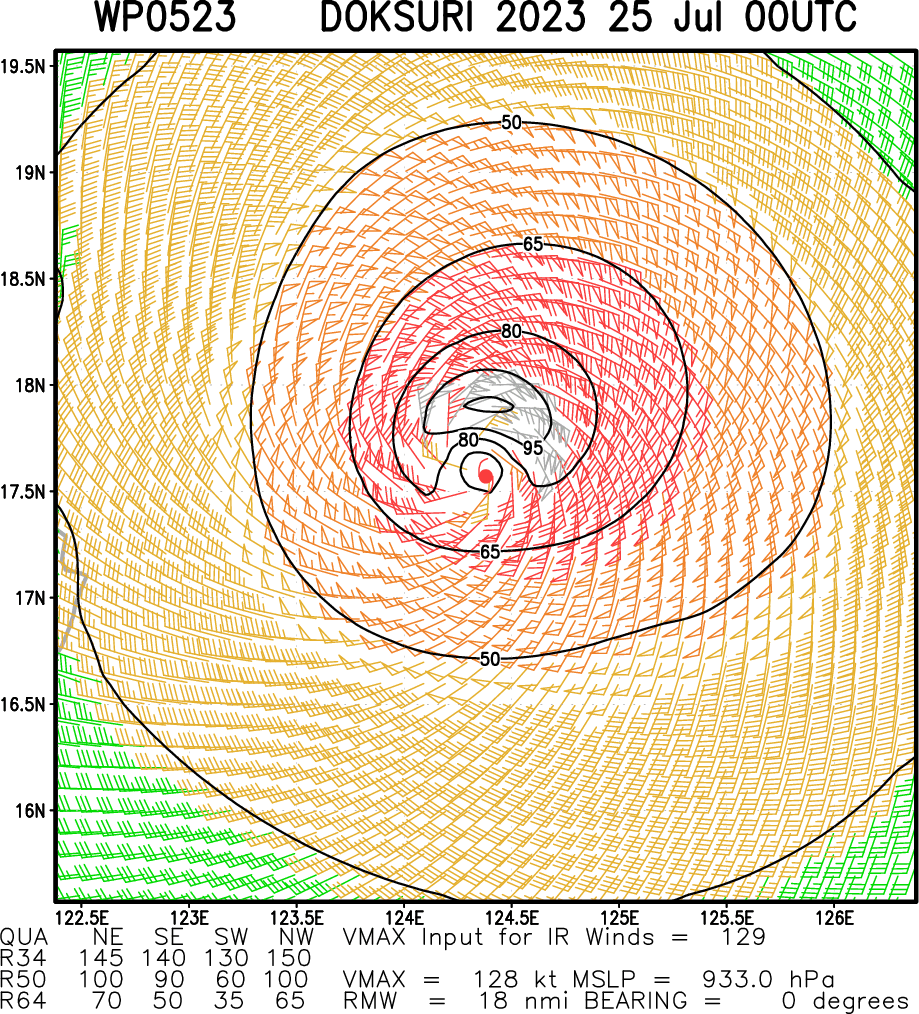

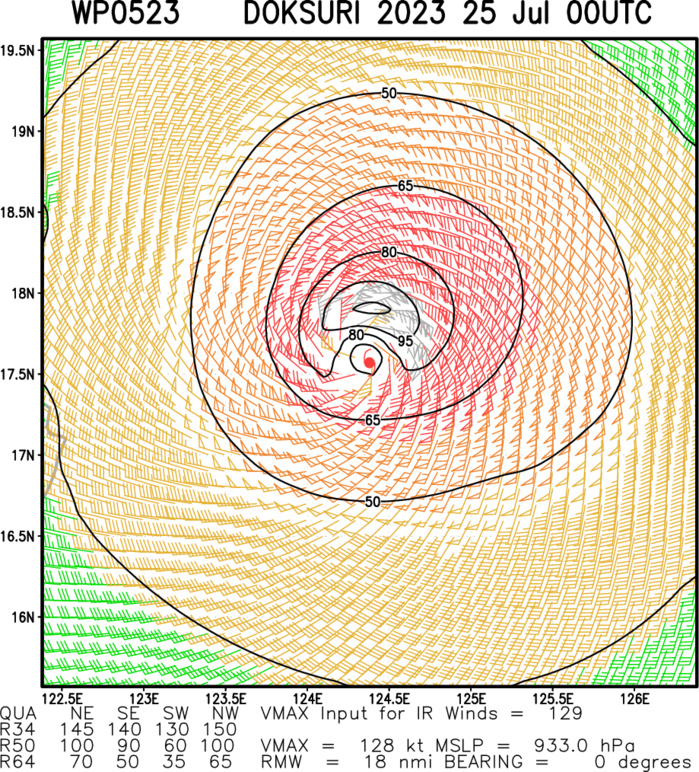

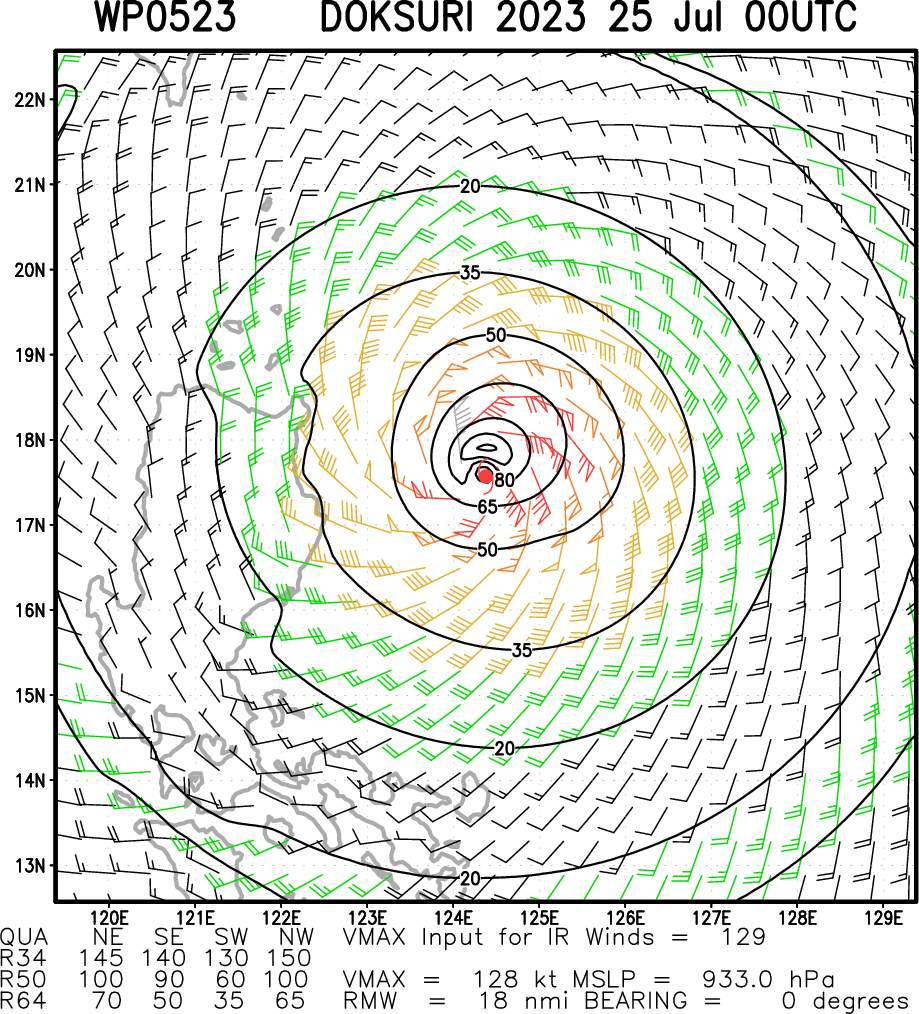

Multiplatform Satellite Surface Wind Analysis (Experimental)

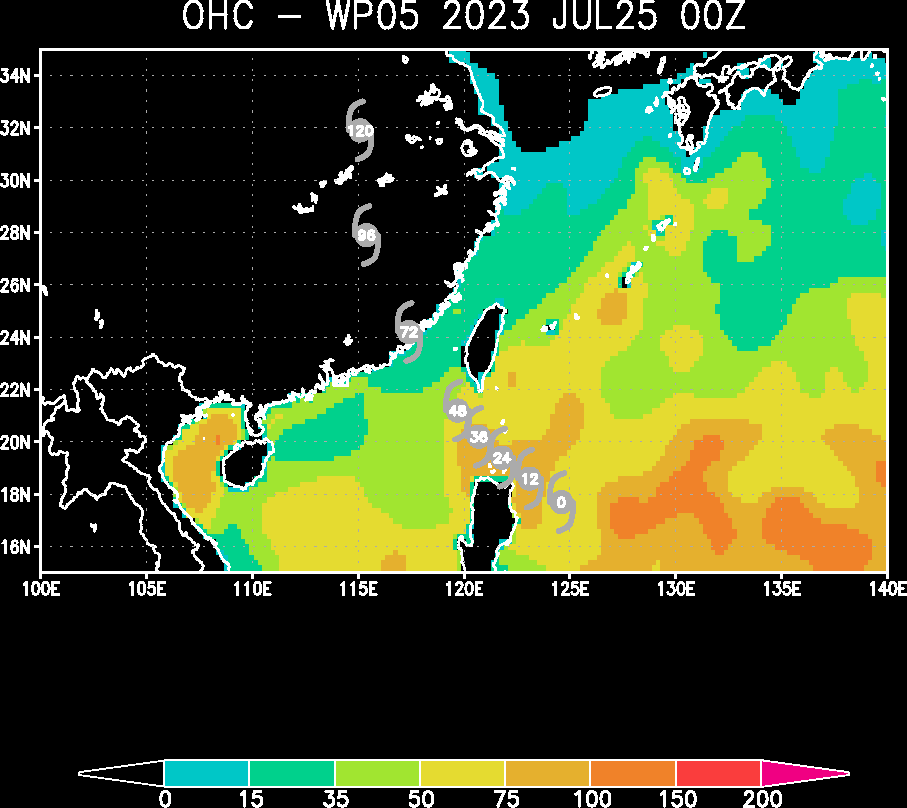

Ocean Heat Content & Forecast Track

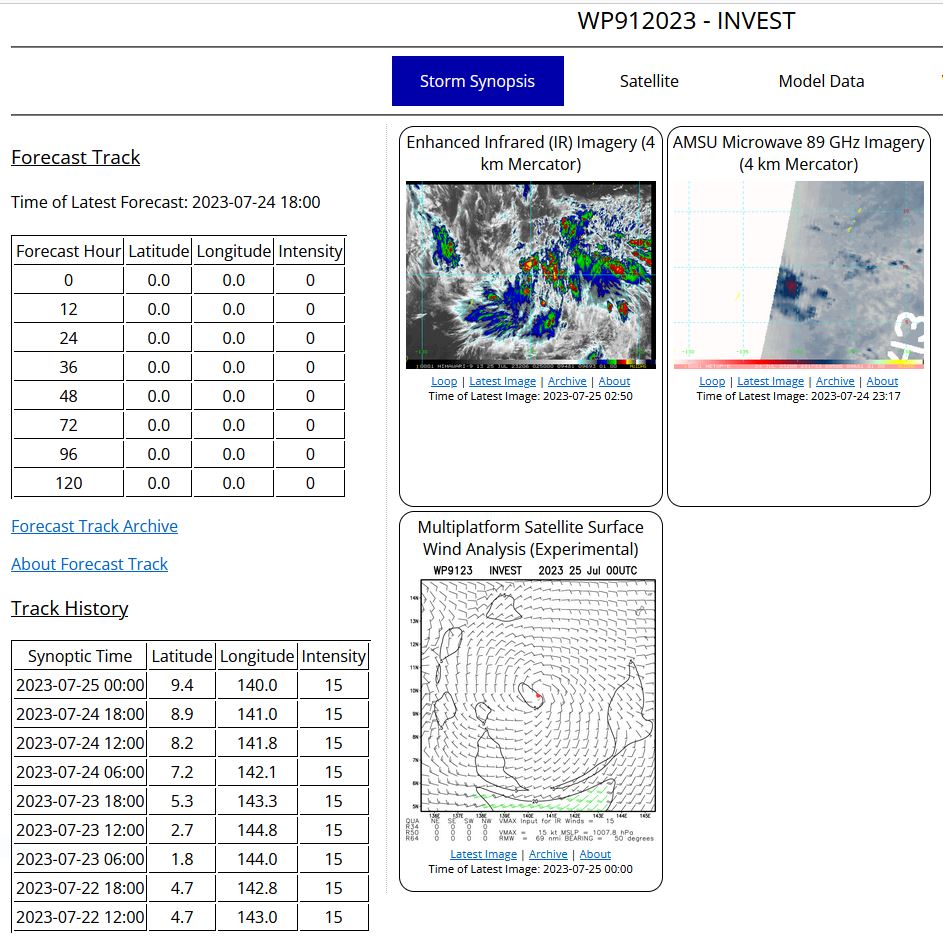

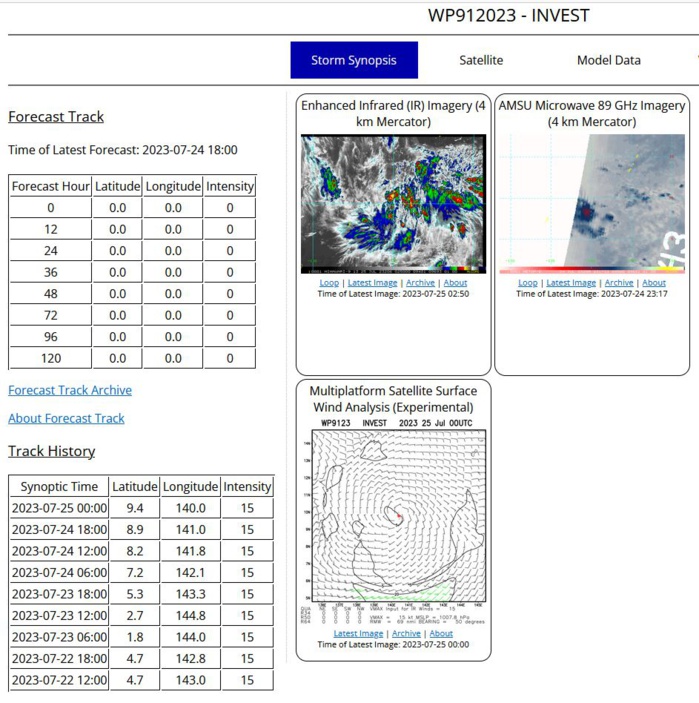

WESTERN NORTH PACIFIC: INVEST 91W. ESTIMATED LOCATION AND INTENSITY AT 25/00UTC. ADVISORY(ABPW) ISSUED AT 250600UTC.

THE AREA OF CONVECTION (INVEST 91W) PREVIOUSLY LOCATED NEAR  5.9N 143.3E IS NOW LOCATED NEAR 8.0N 141.4E, APPROXIMATELY 211 NM EAST- SOUTHEAST OF YAP. ANIMATED MULTISPECTRAL SATELLITE IMAGERY REVEALS A  BROAD, ILL-DEFINED LOW-LEVEL CIRCULATION (LLC) PARTIALLY OBSCURED BY  BROAD FLARING CONVECTION ALONG THE WESTERN AND SOUTHERN PERIPHERIES. A  250035Z ASCAT-C BULLSEYE PASS REVEALS A WEAK BROAD CIRCULATION WITH A  SWATH OF 25-30 KNOT WINDS OFFSET TO THE SOUTHERN SEMICIRCLE.  ENVIRONMENTAL CONDITIONS ARE MARGINAL CHARACTERIZED BY MODERATE (20KT)  VERTICAL WIND SHEAR DUE TO NORTHERLY FLOW FROM STY 05W. SEA SURFACE  TEMPERATURES REMAIN CONDUCIVE AT A WARM 29-30C. GLOBAL MODELS ARE IN  STRONG AGREEMENT THAT 91W WILL STEADILY CONSOLIDATE AS IT TRACKS  GENERALLY NORTH-NORTHWESTWARD OVER THE NEXT 24-48 HOURS. MAXIMUM  SUSTAINED SURFACE WINDS ARE ESTIMATED AT 10 TO 15 KNOTS. MINIMUM SEA  LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1006 MB. THE POTENTIAL FOR THE  DEVELOPMENT OF A SIGNIFICANT TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS  REMAINS LOW.
THE AREA OF CONVECTION (INVEST 91W) PREVIOUSLY LOCATED NEAR 5.9N 143.3E IS NOW LOCATED NEAR 8.0N 141.4E, APPROXIMATELY 211 NM EAST- SOUTHEAST OF YAP. ANIMATED MULTISPECTRAL SATELLITE IMAGERY REVEALS A BROAD, ILL-DEFINED LOW-LEVEL CIRCULATION (LLC) PARTIALLY OBSCURED BY BROAD FLARING CONVECTION ALONG THE WESTERN AND SOUTHERN PERIPHERIES. A 250035Z ASCAT-C BULLSEYE PASS REVEALS A WEAK BROAD CIRCULATION WITH A SWATH OF 25-30 KNOT WINDS OFFSET TO THE SOUTHERN SEMICIRCLE. ENVIRONMENTAL CONDITIONS ARE MARGINAL CHARACTERIZED BY MODERATE (20KT) VERTICAL WIND SHEAR DUE TO NORTHERLY FLOW FROM STY 05W. SEA SURFACE TEMPERATURES REMAIN CONDUCIVE AT A WARM 29-30C. GLOBAL MODELS ARE IN STRONG AGREEMENT THAT 91W WILL STEADILY CONSOLIDATE AS IT TRACKS GENERALLY NORTH-NORTHWESTWARD OVER THE NEXT 24-48 HOURS. MAXIMUM SUSTAINED SURFACE WINDS ARE ESTIMATED AT 10 TO 15 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1006 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS REMAINS LOW.

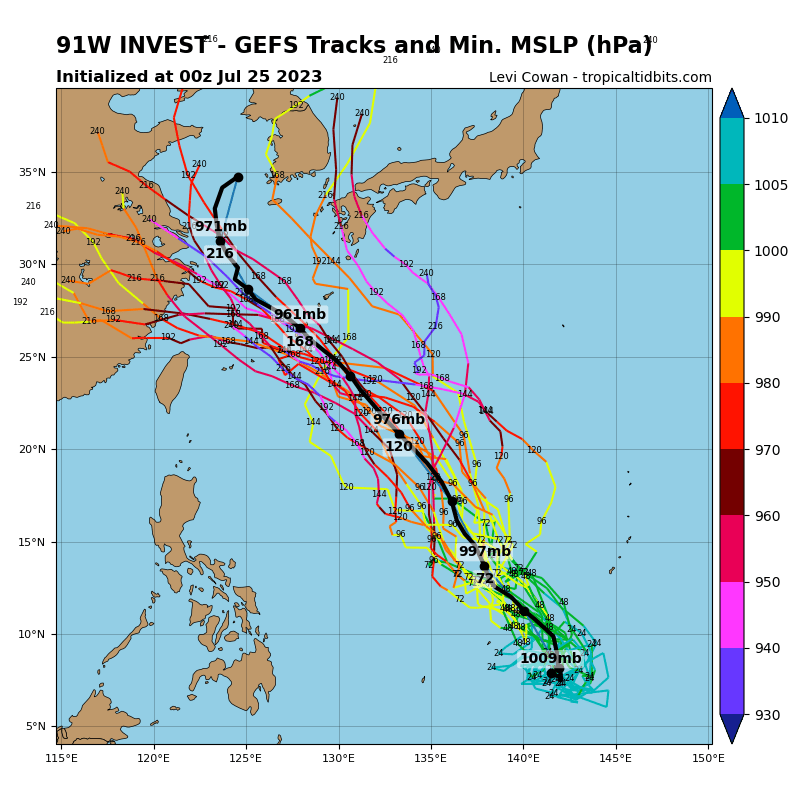

91w_gefs_00z_1.png 91W_gefs_00z.png  (74.19 KB)

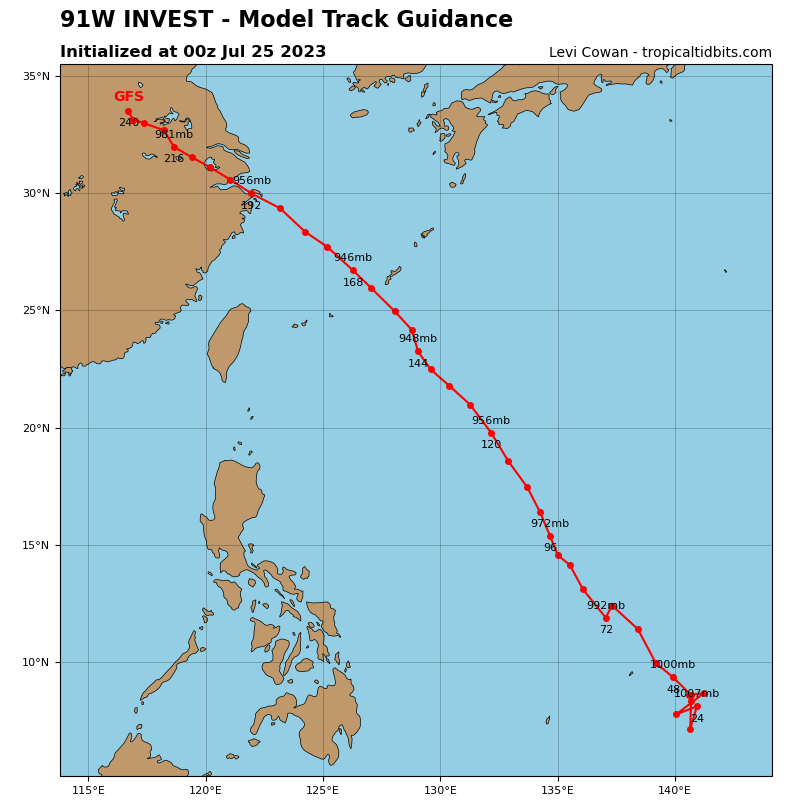

91w_tracks_00z.png 91W_tracks_00z.png  (35.43 KB)

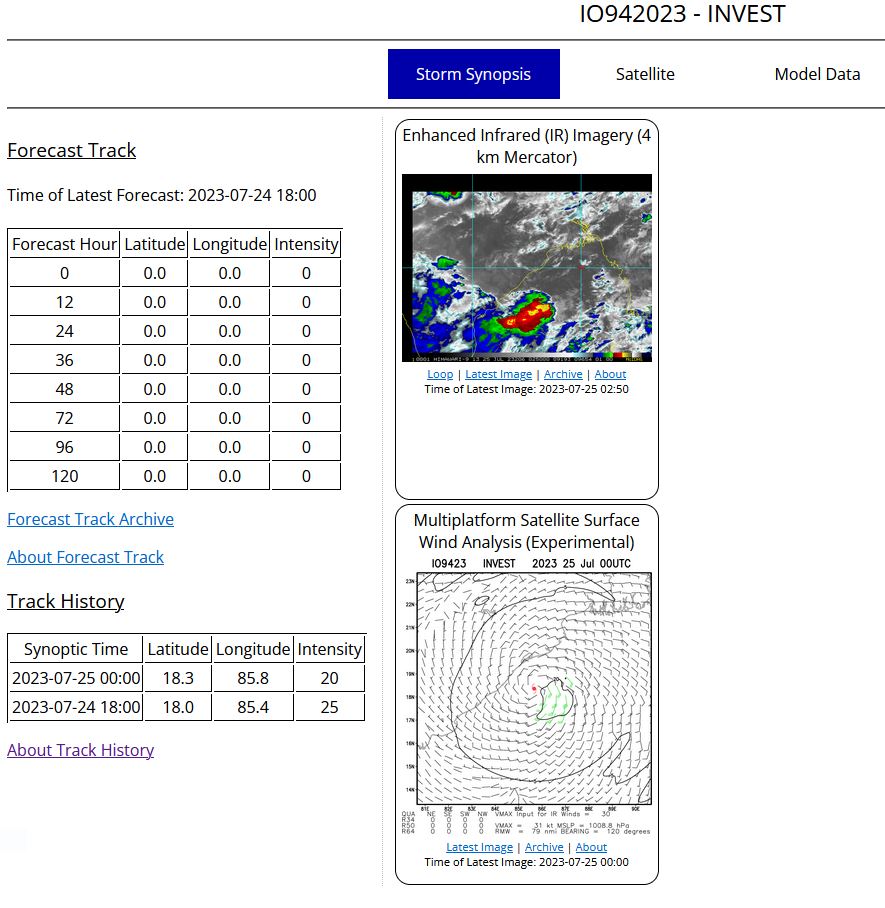

NORTH INDIAN/BAY OF BENGAL: INVEST 94B. ESTIMATED LOCATION AND INTENSITY AT 25/00UTC.

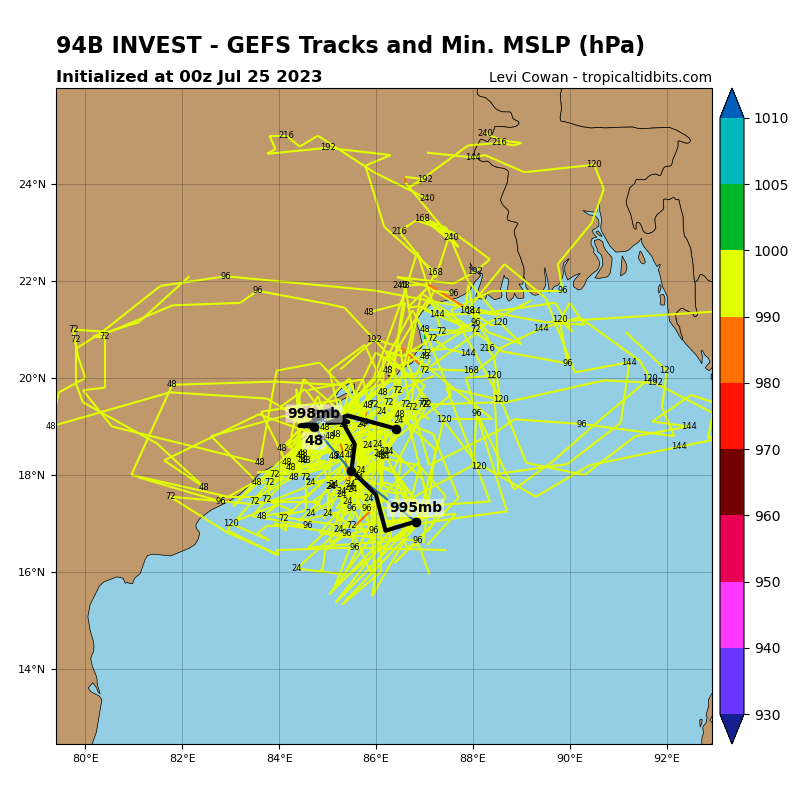

94b_gefs_00z.png 94B_gefs_00z.png  (67.82 KB)

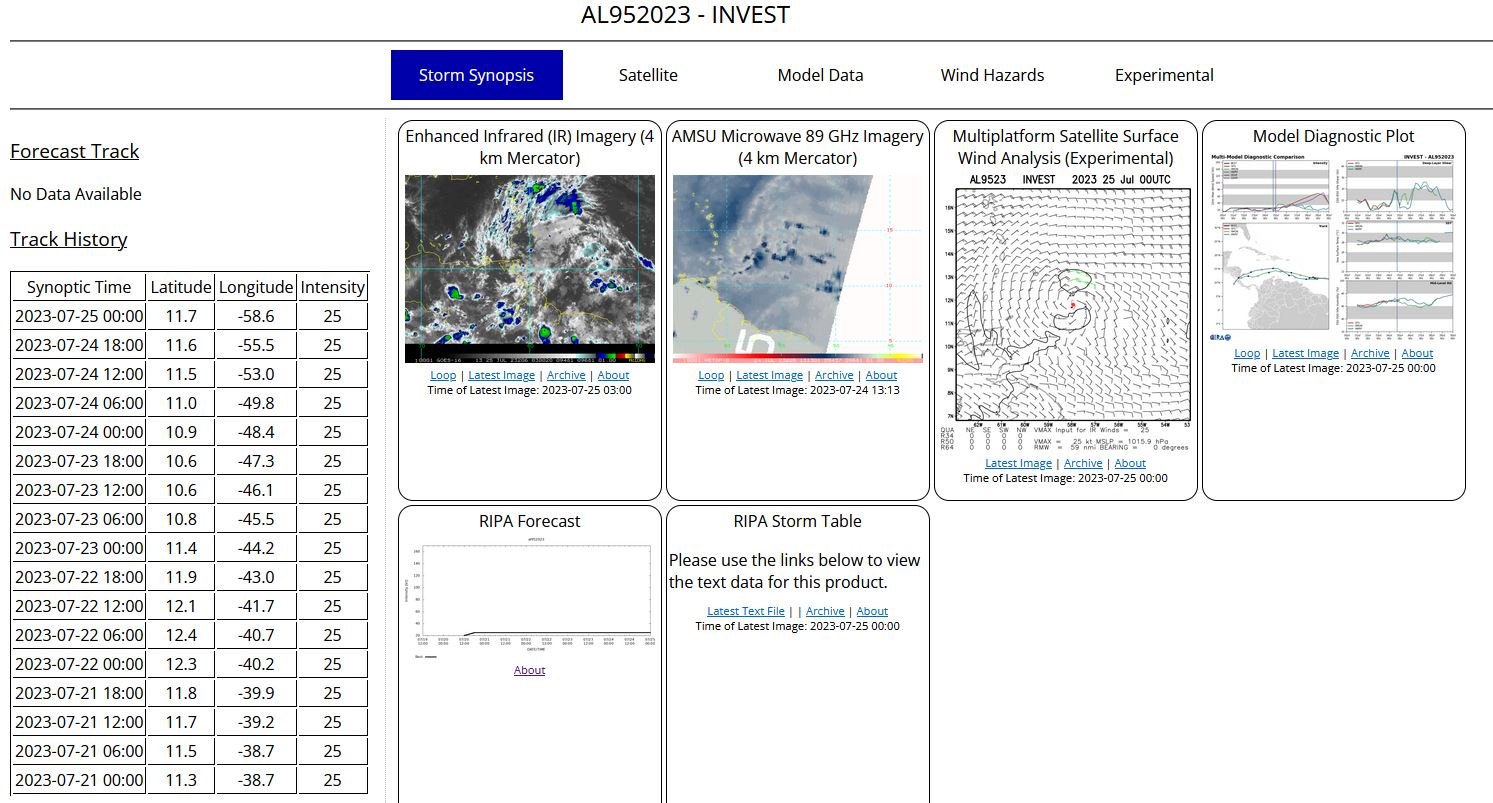

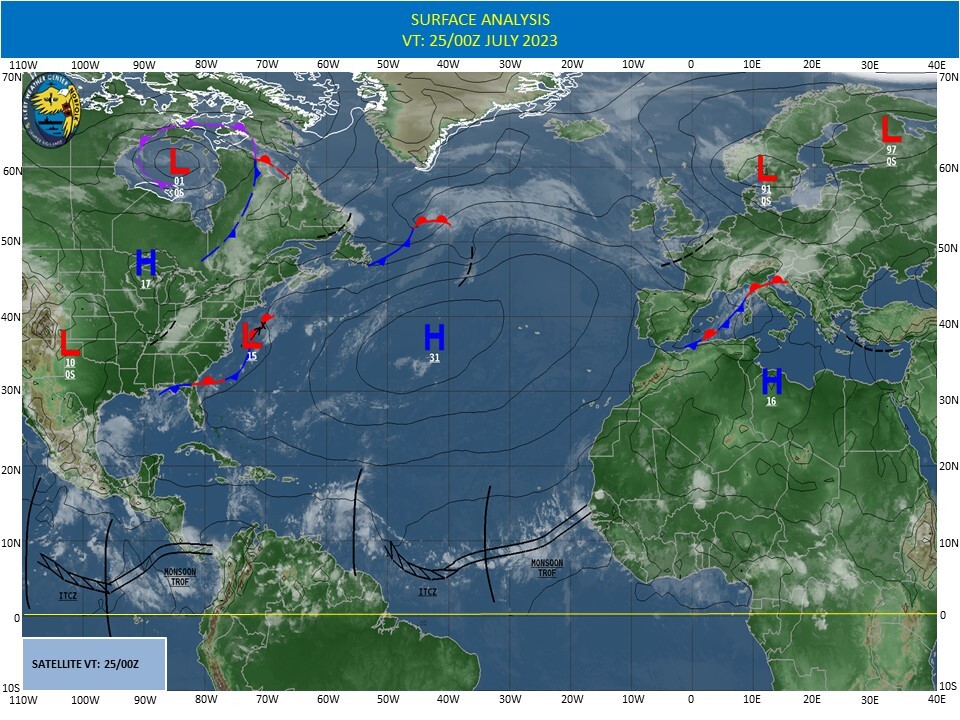

NORTH ATLANTIC OXEAN: INVEST 95L. ESTIMATED LOCATION AND INTENSITY AT 25/00UTC.

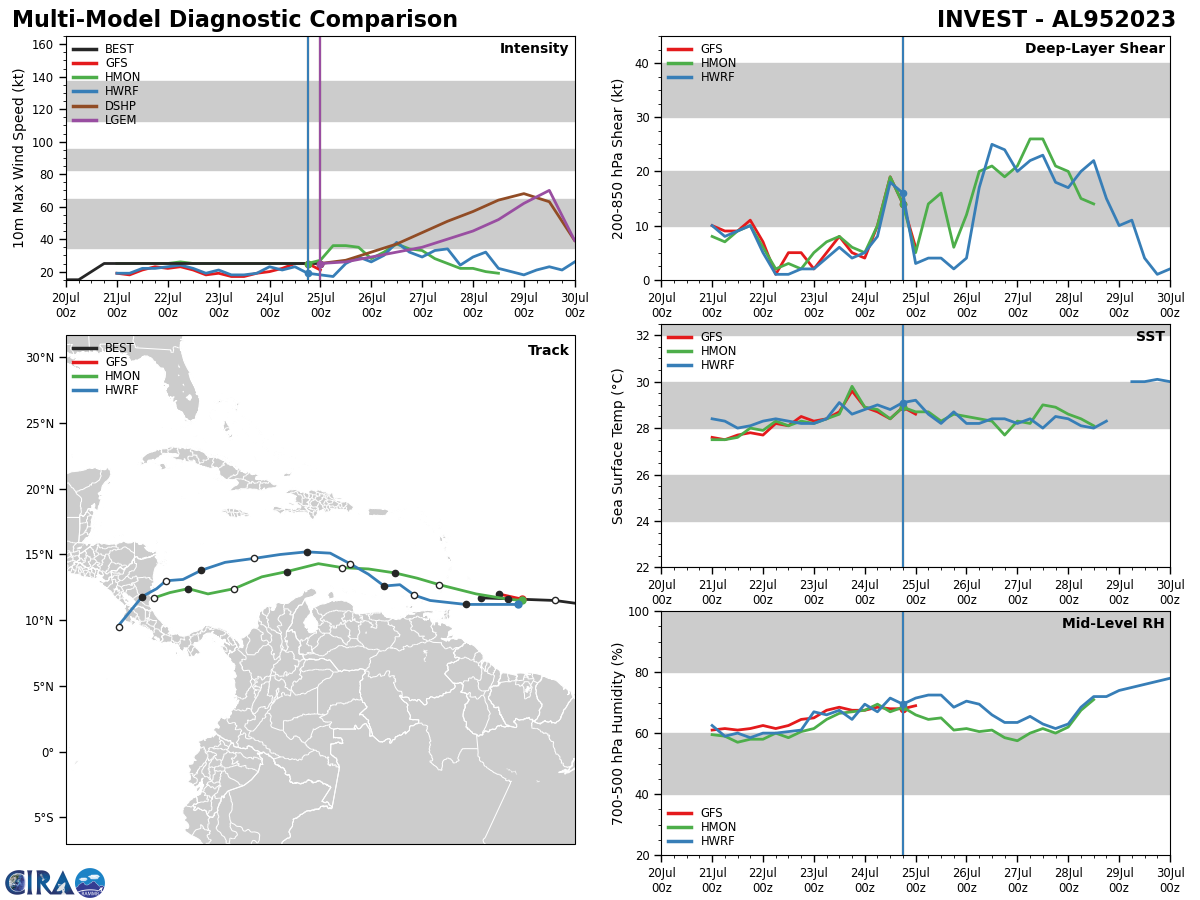

Model Diagnostic Plot


Rédigé par PATRICK HOAREAU le Tuesday, July 25th 2023 à 07:54
