WESTERN NORTH PACIFIC
TS FRANCISCO (09W)
Location: 27.5°N 142.9°E
Maximum Winds: 40 kt ( 75km/h)
Gusts: 50 kt ( 95km/h)
Minimum Central Pressure: 993 mb
WDPN32 PGTW 040300
MSGID/GENADMIN/JOINT TYPHOON WRNCEN PEARL HARBOR HI//
SUBJ/PROGNOSTIC REASONING FOR TROPICAL STORM 09W (FRANCISCO) WARNING
NR 10//
RMKS/
1. FOR METEOROLOGISTS.
2. 6 HOUR SUMMARY AND ANALYSIS.
TROPICAL STORM (TS) 09W (FRANCISCO), LOCATED APPROXIMATELY 44 NM
EAST-NORTHEAST OF CHICHI JIMA, HAS TRACKED NORTHWESTWARD AT 15 KNOTS
OVER THE PAST SIX HOURS. ANIMATED MULTISPECTRAL SATELLITE IMAGERY
REVEALS THE LOW LEVEL CIRCULATION CENTER (LLCC) BECOMING LESS
OBSCURED BY THE CENTRAL DENSE OVERCAST AS SOME RELATIVELY DRY AIR
WRAPS IN TO THE CENTER. THERE IS FAIR CONFIDENCE IN THE INITIAL
POSITION WHICH WAS EXTRAPOLATED FROM A 032107Z SSMIS 89 GHZ
MICROWAVE IMAGE THAT SHOWED A DEEP CONVECTIVE BAND WRAPPING IN FROM
THE SOUTH AND MOSTLY SHALLOW BANDS TO THE NORTH. THE INITIAL
INTENSITY OF 40 KTS FALLS BETWEEN MULTI-AGENCY DVORAK FIXES FROM
T2.5-T3.0 (35-45 KTS). THE ENVIRONMENT IS MARGINALLY FAVORABLE WITH
GOOD POLEWARD OUTFLOW, LOW (10-15 KT) VERTICAL WIND SHEAR (VWS), AND
WARM (28-29 CELSIUS) SEA SURFACE TEMPERATURE (SST) BEING OFFSET BY
DRY AIR ENTRAINMENT FROM AN AREA OF UPPER-LEVEL CONVERGENCE TO THE
SOUTH. TS 09W IS TRACKING ALONG THE SOUTHWEST PERIPHERY OF A
SUBTROPICAL RIDGE (STR).
3. FORECAST REASONING.
A. THERE IS NO CHANGE TO THE OVERALL FORECAST PHILOSOPHY SINCE THE
PREVIOUS PROGNOSTIC REASONING MESSAGE.

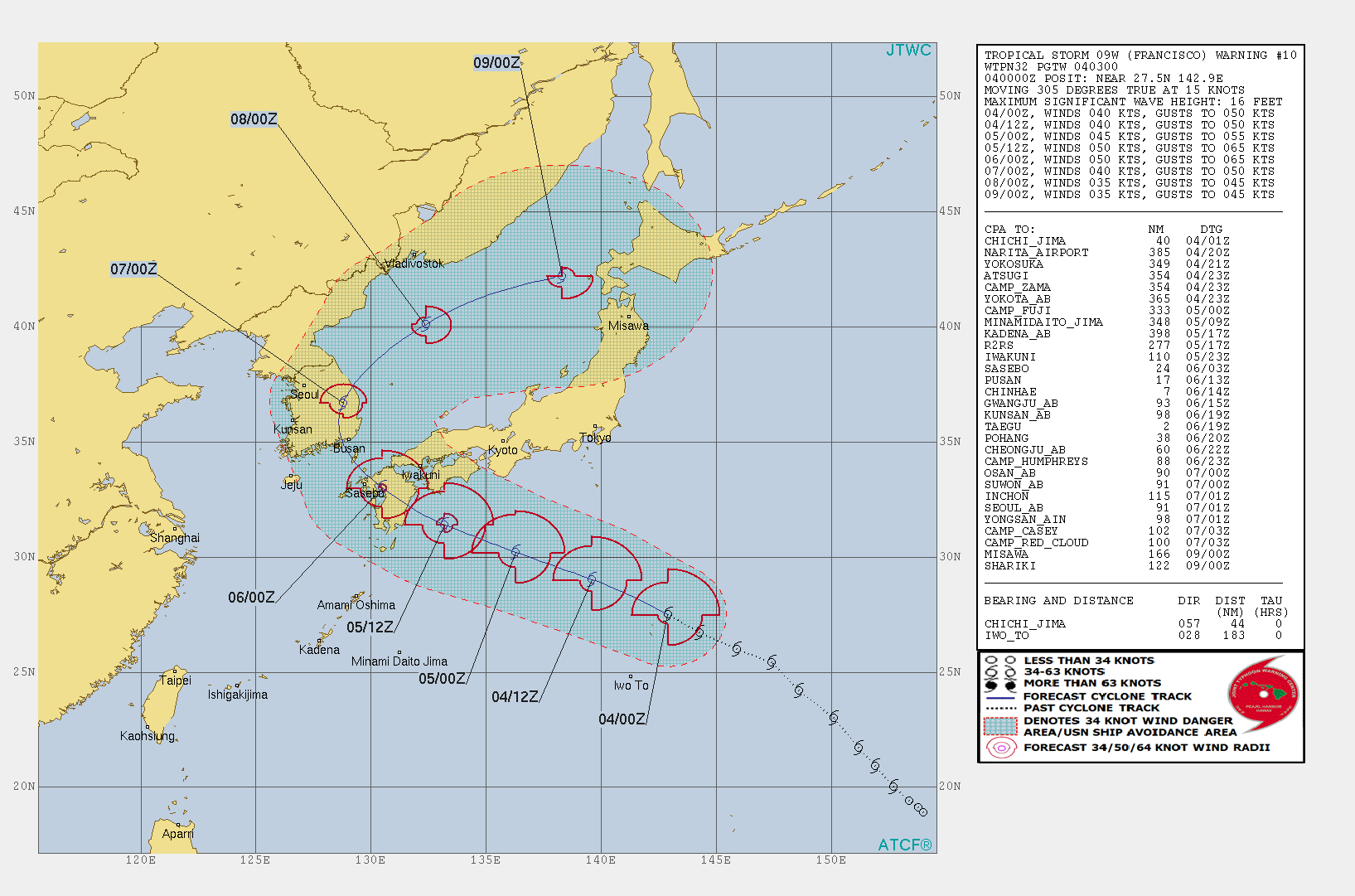

B. THROUGH TAU 48, TS 09W IS FORECAST TO TRACK GENERALLY
NORTHWESTWARD TOWARD SASEBO UNDER THE STEERING INFLUENCE OF THE

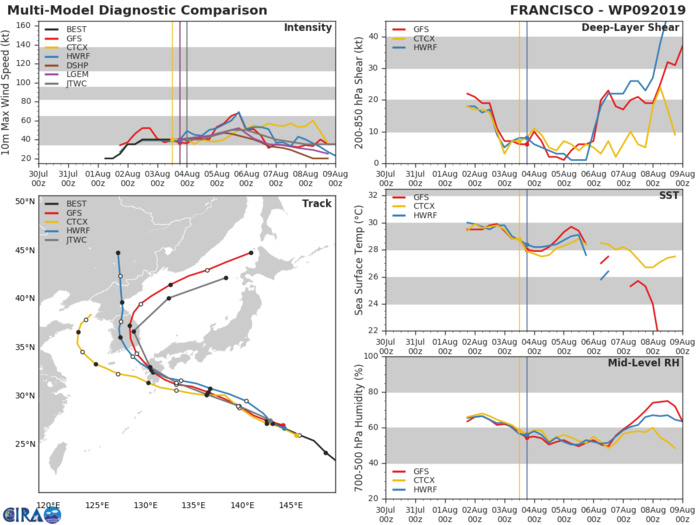

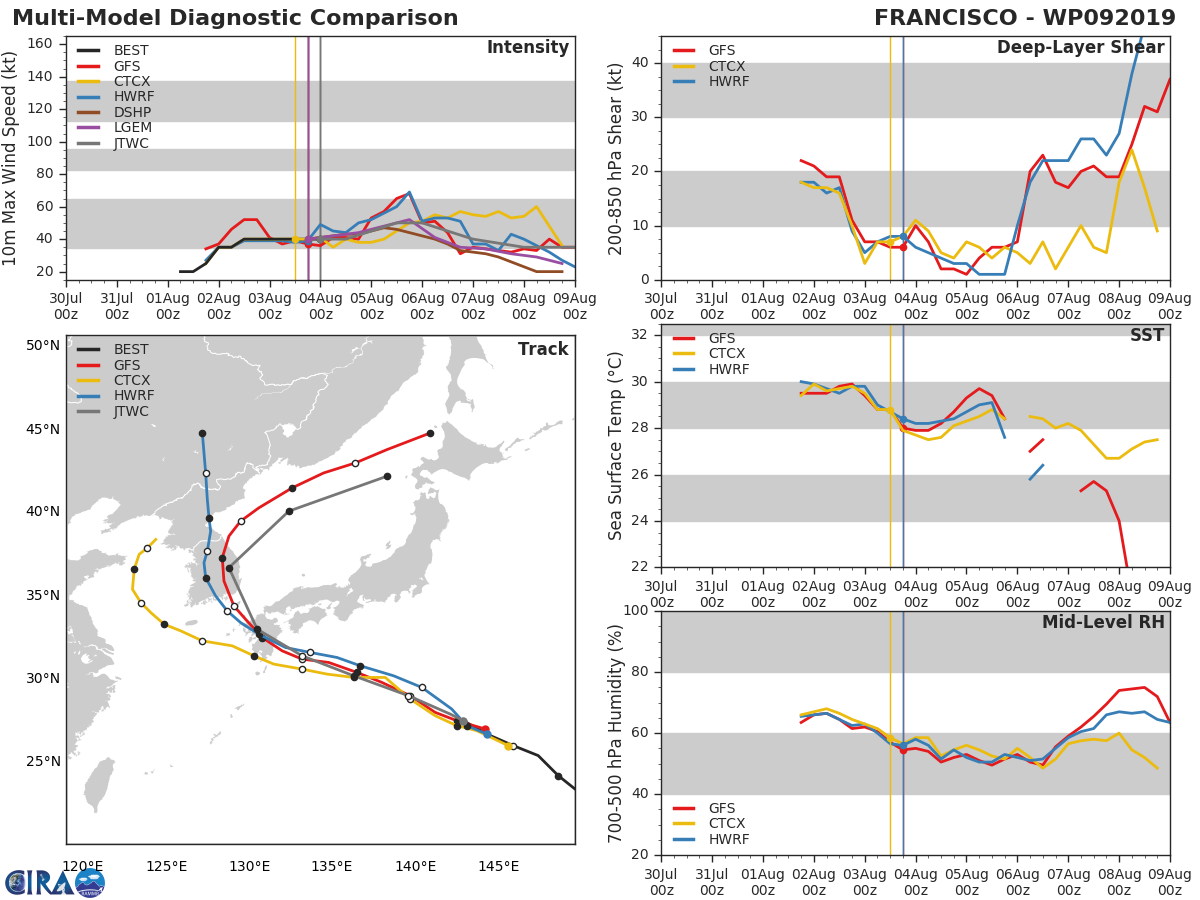

AFOREMENTIONED STR. MODEL GUIDANCE IS IN GOOD AGREEMENT FOR THIS
PORTION OF THE FORECAST WITH THE SPREAD AT 48 HOURS BEING ABOUT 87
NM. AFTER PASSING SASEBO AROUND TAU 48, TS 09W IS EXPECTED TO BEGIN
A GRADUAL POLEWARD TURN AS IT ROUNDS THE STR AXIS. UNTIL LANDFALL
AROUND TAU 40, TS 09W IS EXPECTED TO SLOWLY INTENSIFY TO AROUND 50-
55 KTS AS THE ENVIRONMENT REMAINS MARGINAL. AFTER MAKING LANDFALL,
TS 09W SHOULD WEAKEN OVER KYUSHU DUE TO THE RUGGED TERRAIN. A SECOND
LANDFALL SHOULD OCCUR NEAR BUSAN, KOREA AROUND TAU 60. BASED ON
TIGHT GROUPING OF THE MODEL DATA AND THE STEADY INFLUENCE OF THE
STR, THERE IS HIGH CONFIDENCE IN THIS PORTION OF THE JTWC TRACK
FORECAST.
C. AFTER TAU 72, TS 09W WILL CONTINUE RECURVING AS IT ROUNDS THE
STR AXIS, TRACK ACROSS THE EASTERN SIDE OF SOUTH KOREA, AND PASS
INTO THE SEA OF JAPAN. THROUGHOUT THIS PERIOD, LAND INTERACTION,
INCREASING VWS, AND COOLER SST SHOULD WEAKEN THE SYSTEM. BY TAU 96,
TS 09W WILL BEGIN INTERACTING WITH THE MID-LATITUDE BAROCLINIC ZONE
AND START UNDERGOING EXTRATROPICAL TRANSITION (ETT). ETT SHOULD
COMPLETE PRIOR TO TAU 120. AS THE SYSTEM ROUNDS THE STR AXIS, SPREAD
IN MODEL GUIDANCE INCREASES SIGNIFICANTLY, PRIMARILY DUE TO
DIFFERENCES IN ALONG-TRACK SPEED. FOR THIS REASON, THERE IS LOW
CONFIDENCE IN THE EXTENDED PORTION OF THE JTWC TRACK FORECAST.//
NNNN
Location: 16.1°N 131.6°E
Maximum Winds: 25 kt ( 45/50km/h)
Gusts:
Minimum Central Pressure: 998 mb
WDPN31 PGTW 040300
MSGID/GENADMIN/JOINT TYPHOON WRNCEN PEARL HARBOR HI//
SUBJ/PROGNOSTIC REASONING FOR TROPICAL DEPRESSION 10W (TEN) WARNING
NR 01//
RMKS//
1. FOR METEOROLOGISTS.
2. 6 HOUR SUMMARY AND ANALYSIS.
TROPICAL DEPRESSION (TD) 10W (TEN), LOCATED APPROXIMATELY 659 NM
SOUTH-SOUTHEAST OF KADENA AB, HAS TRACKED EAST-NORTHEASTWARD AT 06
KNOTS OVER THE PAST SIX HOURS. ANIMATED MULTISPECTRAL SATELLITE
IMAGERY (MSI) REVEALS AN AREA EMBEDDED IN A BROAD CIRCULATION WHERE
SUSTAINED CONVECTION APPEARS TO BE CAUSING CONSOLIDATION. THERE IS
VERY LOW CONFIDENCE IN THE INITIAL POSITION, PLACED NEAR THE
APPARENT CONSOLIDATION IN THE MSI IMAGERY AND CONSISTENT WITH A
032009 AMSU 89 GHZ MICROWAVE IMAGE. THE INITIAL INTENSITY OF 25 KTS
IS BASED ON RJTD AND KNES DVORAK CURRENT INTENSITY ESTIMATES OF T1.5
(25 KTS) BUT THERE HAS BEEN A LARGE AREA OF APPROXIMATELY 30 KT
WESTERLY WINDS OVER 100 NM TO THE SOUTH OF THE CURRENT POSITION. THE
ENVIRONMENT IS MARGINAL WITH EXCELLENT EQUATORWARD OUTFLOW AND WARM
(29-30 CELSIUS) SEA SURFACE TEMPERATURE OFFSETTING MODERATE (10-20
KT) VERTICAL WIND SHEAR (VWS). NOTABLY, THERE IS AN ADJACENT AREA OF
FAVORABLE WIND SHEAR JUST NORTH OF THE CURRENT POSITION AND IN THE
PATH OF THE SYSTEM. TD 10W IS DRIFTING GENERALLY POLEWARD UNDER WEAK
STEERING INFLUENCE FROM A SUBTROPICAL RIDGE (STR) THAT EXTENDS FROM
THE NORTH TO THE EAST.
3. FORECAST REASONING.
A. THIS IS THE INITIAL PROGNOSTIC REASONING AND SETS THE FORECAST
PHILOSOPHY. TD 10W IS STILL CONSOLIDATING SO INITIAL UNCERTAINTY IS
HIGH. INTENSITY IS ANTICIPATED TO REACH 35 KTS IN ABOUT 24 HOURS,
NECESSITATING A WARNING.

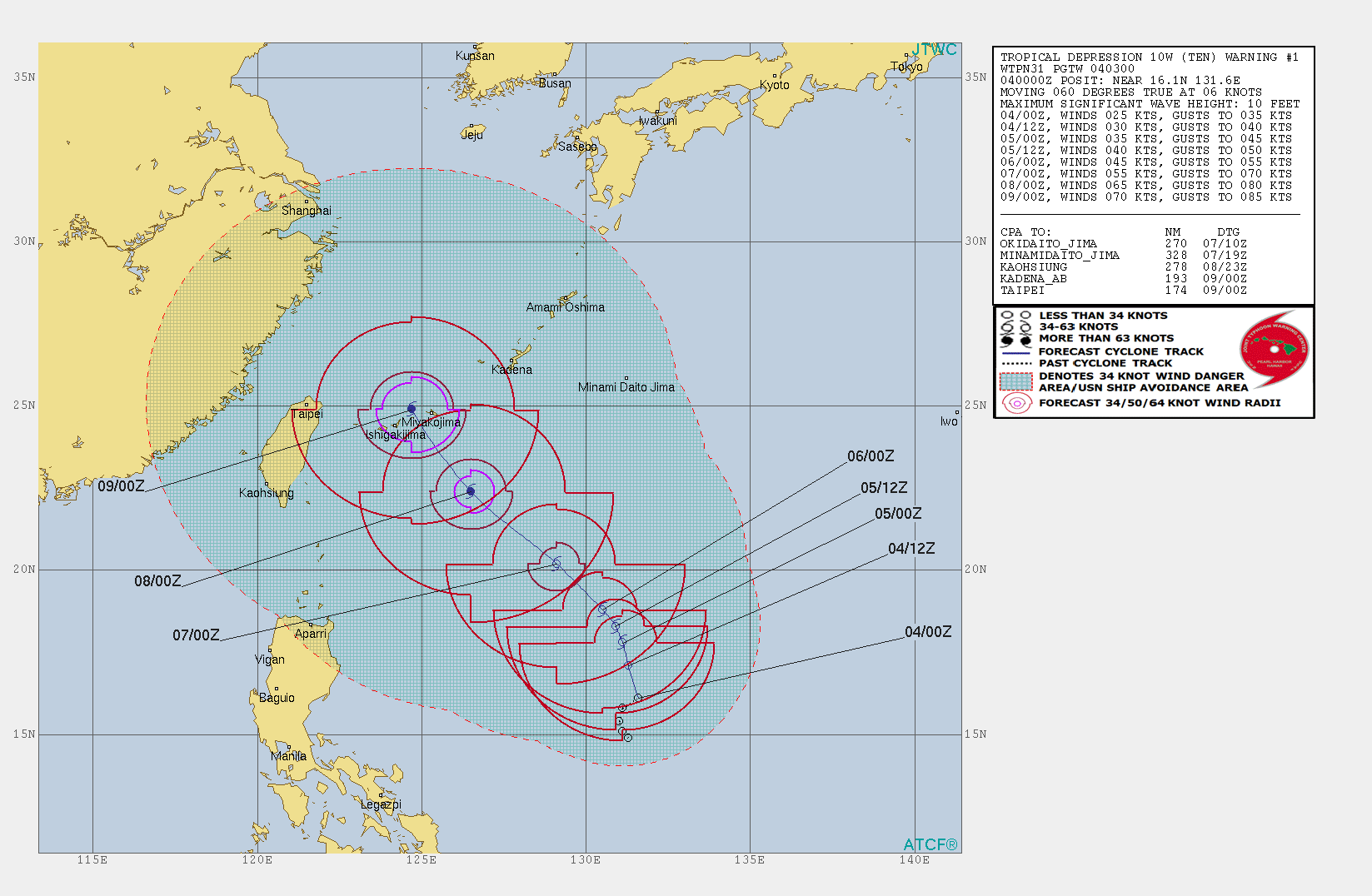

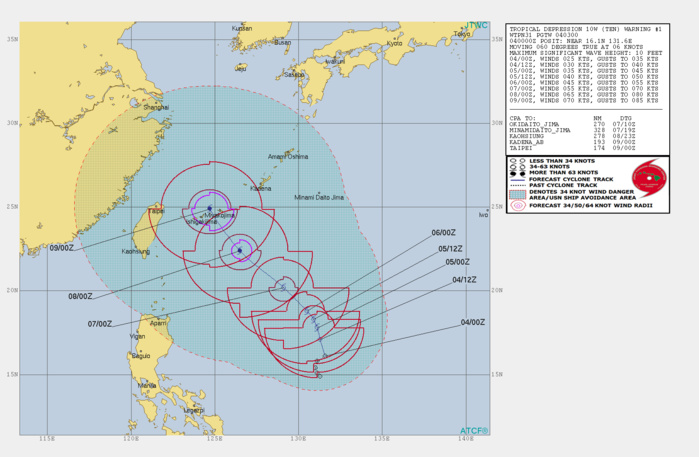

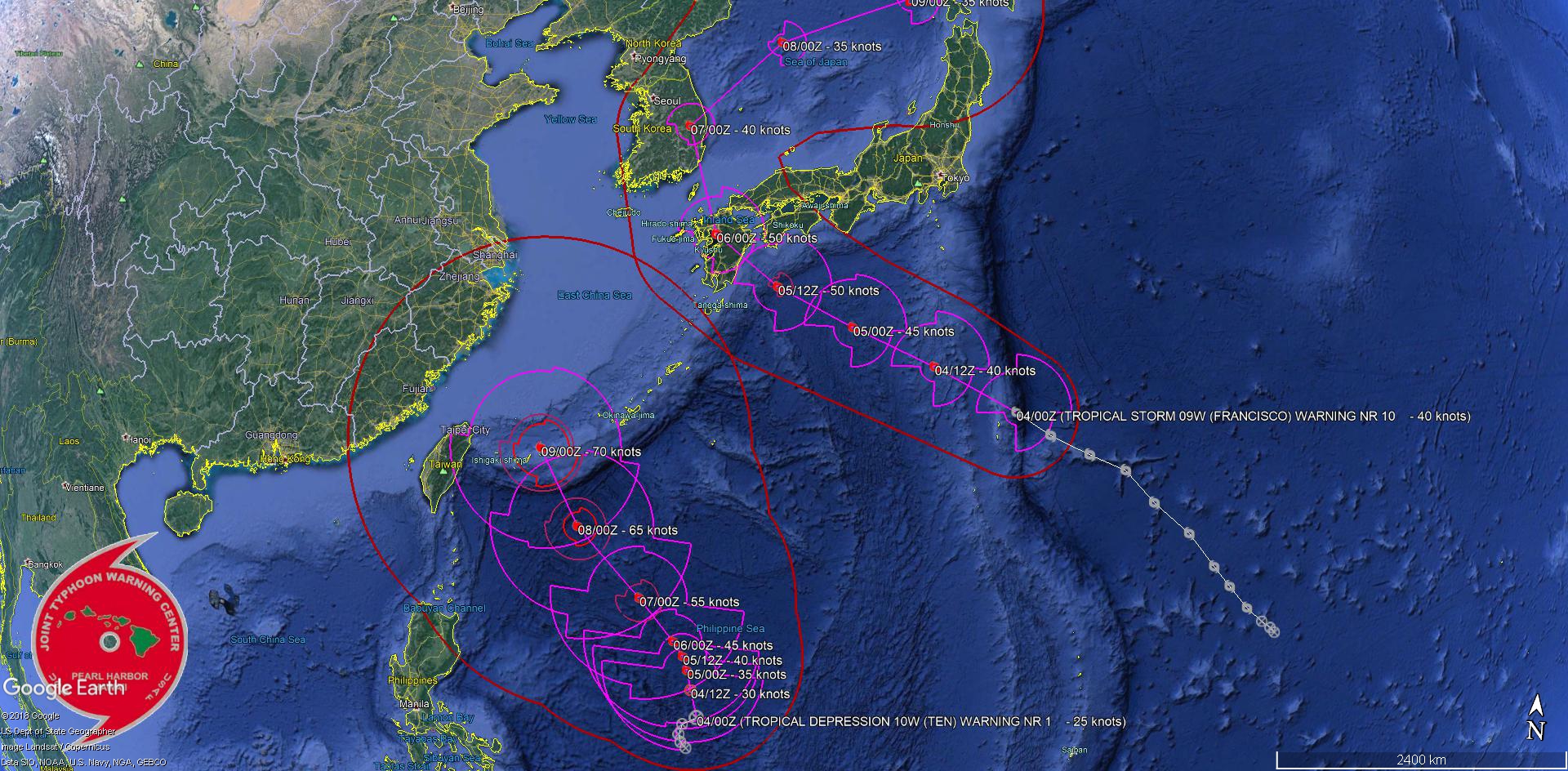

B. THROUGH TAU 48, TD 10W IS EXPECTED TO DRIFT SLOWLY POLEWARD BY
THE EASTERN EXTENSION OF THE STR. BETWEEN TAU 48 AND 72, THE STR
EXTENSION TO THE NORTH WILL TAKE OVER AS THE PRIMARY STEERING
INFLUENCE AND THE TRACK SHOULD SHIFT MORE NORTHWESTWARD. AS TD 10W
MOVES INTO A MORE FAVORABLE VWS REGION, THE CYCLONE IS EXPECTED TO
STEADILY INTENSIFY, REACHING 55 KTS BY TAU 72. MOST OF THE

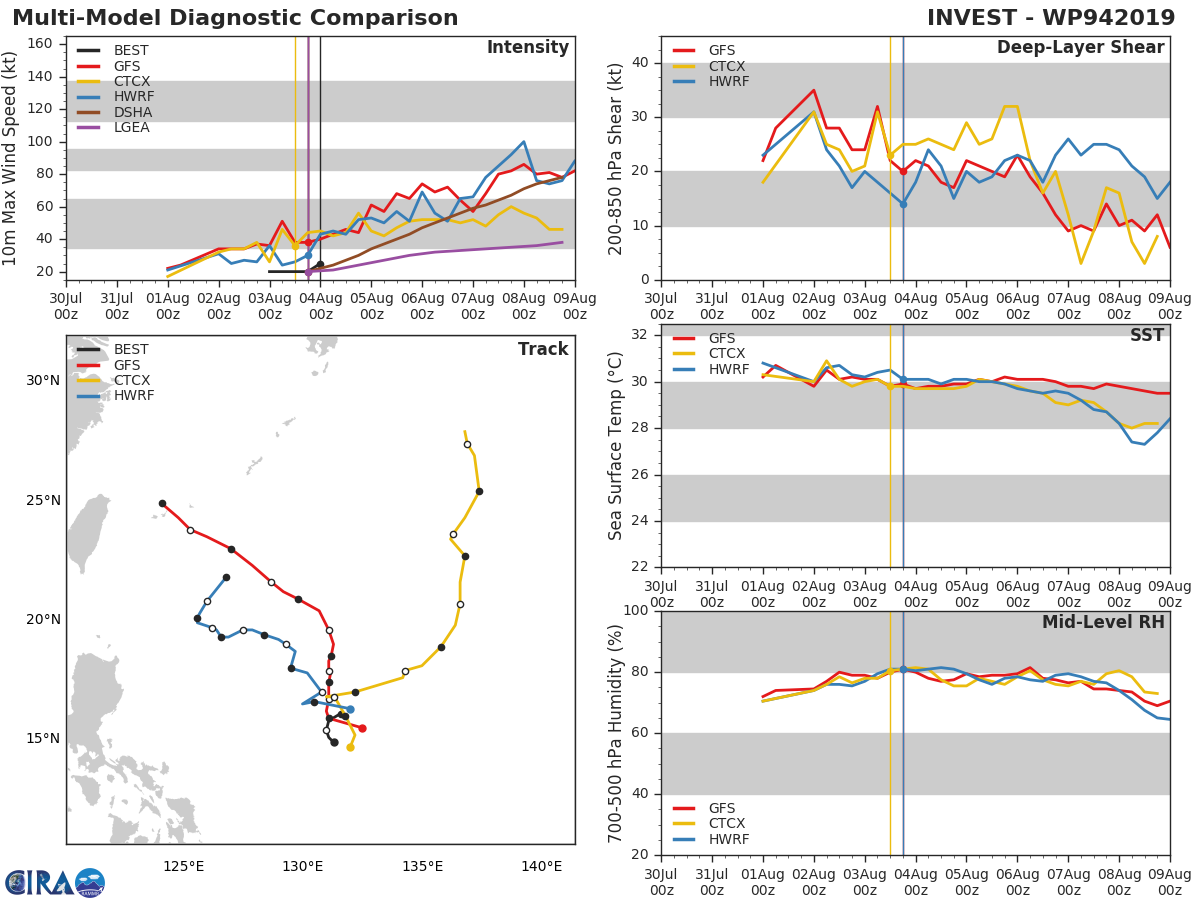

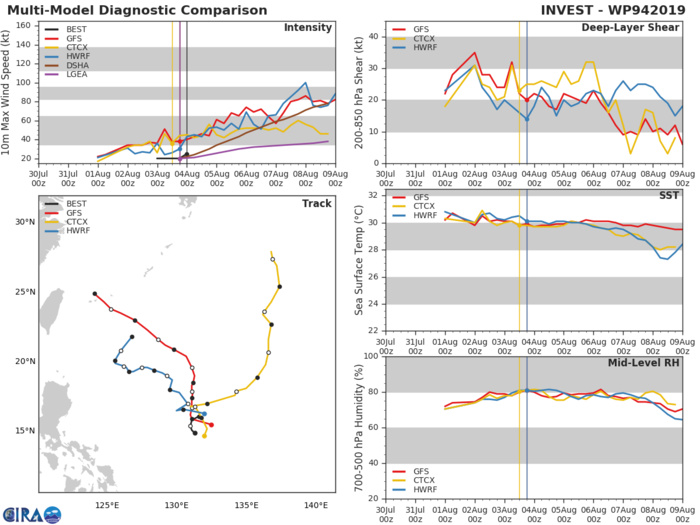

UNCERTAINTY IN THE MODEL GUIDANCE FOR THIS PORTION OF THE FORECAST
IS IN THE EARLY TAUS AS THE MODEL TRACKERS ARE LIKELY HAVING
DIFFICULTY IDENTIFYING THE LLCC IN THE BROADER CIRCULATION. BY TAU
36, NAVGEM STARTS TO APPEAR AS A SOUTHERN OUTLIER RELATIVE TO THE
OTHER MEMBERS. OVERALL, THERE IS VERY LOW CONFIDENCE IN THE EARLY
PORTION OF THE FORECAST, LARGELY OWING TO HIGH UNCERTAINTY IN THE
INITIAL POSITION AND SUBSEQUENT UNCERTAINTY IN THE MODEL TRACK
GUIDANCE.
C. BEYOND TAU 72, TD 10W IS EXPECTED TO CONTINUE ON A
NORTHWESTWARD TRACK ALONG THE SOUTHWEST PERIPHERY OF THE STR AND TO
STEADILY INCREASE INTENSITY TO 70 KTS BY TAU 120. FOR THE MOST PART,
ALL THE INTENSITY GUIDANCE SHOWS A SIMILAR TREND TO THE FORECAST
INTENSITY; HOWEVER, THE ENVELOPE OF POSSIBILITIES IS QUITE LARGE (50-
85 KTS) BY THE END OF THE FORECAST. THE JTWC INTENSITY FORECAST IS
HEDGED JUST ABOVE THE INTENSITY CONSENSUS ONLY DUE TO THE
ENVIRONMENT APPEARING TO REMAIN FAVORABLE FOR THE DURATION OF THE
FORECAST. TRACK GUIDANCE, WITH THE EXCEPTION OF NAVGEM, IS IN FAIR
AGREEMENT BUT CONFIDENCE IN THE EXTENDED FORECAST IS VERY LOW
PRIMARILY DUE TO HIGH UNCERTAINTY IN THE INITIAL POSITION.//
NNNN
TS FRANCISCO (09W)
Location: 27.5°N 142.9°E
Maximum Winds: 40 kt ( 75km/h)
Gusts: 50 kt ( 95km/h)
Minimum Central Pressure: 993 mb
WDPN32 PGTW 040300
MSGID/GENADMIN/JOINT TYPHOON WRNCEN PEARL HARBOR HI//
SUBJ/PROGNOSTIC REASONING FOR TROPICAL STORM 09W (FRANCISCO) WARNING
NR 10//
RMKS/
1. FOR METEOROLOGISTS.
2. 6 HOUR SUMMARY AND ANALYSIS.
TROPICAL STORM (TS) 09W (FRANCISCO), LOCATED APPROXIMATELY 44 NM
EAST-NORTHEAST OF CHICHI JIMA, HAS TRACKED NORTHWESTWARD AT 15 KNOTS
OVER THE PAST SIX HOURS. ANIMATED MULTISPECTRAL SATELLITE IMAGERY
REVEALS THE LOW LEVEL CIRCULATION CENTER (LLCC) BECOMING LESS
OBSCURED BY THE CENTRAL DENSE OVERCAST AS SOME RELATIVELY DRY AIR
WRAPS IN TO THE CENTER. THERE IS FAIR CONFIDENCE IN THE INITIAL
POSITION WHICH WAS EXTRAPOLATED FROM A 032107Z SSMIS 89 GHZ
MICROWAVE IMAGE THAT SHOWED A DEEP CONVECTIVE BAND WRAPPING IN FROM
THE SOUTH AND MOSTLY SHALLOW BANDS TO THE NORTH. THE INITIAL
INTENSITY OF 40 KTS FALLS BETWEEN MULTI-AGENCY DVORAK FIXES FROM
T2.5-T3.0 (35-45 KTS). THE ENVIRONMENT IS MARGINALLY FAVORABLE WITH
GOOD POLEWARD OUTFLOW, LOW (10-15 KT) VERTICAL WIND SHEAR (VWS), AND
WARM (28-29 CELSIUS) SEA SURFACE TEMPERATURE (SST) BEING OFFSET BY
DRY AIR ENTRAINMENT FROM AN AREA OF UPPER-LEVEL CONVERGENCE TO THE
SOUTH. TS 09W IS TRACKING ALONG THE SOUTHWEST PERIPHERY OF A
SUBTROPICAL RIDGE (STR).
3. FORECAST REASONING.
A. THERE IS NO CHANGE TO THE OVERALL FORECAST PHILOSOPHY SINCE THE
PREVIOUS PROGNOSTIC REASONING MESSAGE.
B. THROUGH TAU 48, TS 09W IS FORECAST TO TRACK GENERALLY
NORTHWESTWARD TOWARD SASEBO UNDER THE STEERING INFLUENCE OF THE
AFOREMENTIONED STR. MODEL GUIDANCE IS IN GOOD AGREEMENT FOR THIS
PORTION OF THE FORECAST WITH THE SPREAD AT 48 HOURS BEING ABOUT 87
NM. AFTER PASSING SASEBO AROUND TAU 48, TS 09W IS EXPECTED TO BEGIN
A GRADUAL POLEWARD TURN AS IT ROUNDS THE STR AXIS. UNTIL LANDFALL
AROUND TAU 40, TS 09W IS EXPECTED TO SLOWLY INTENSIFY TO AROUND 50-
55 KTS AS THE ENVIRONMENT REMAINS MARGINAL. AFTER MAKING LANDFALL,
TS 09W SHOULD WEAKEN OVER KYUSHU DUE TO THE RUGGED TERRAIN. A SECOND
LANDFALL SHOULD OCCUR NEAR BUSAN, KOREA AROUND TAU 60. BASED ON
TIGHT GROUPING OF THE MODEL DATA AND THE STEADY INFLUENCE OF THE
STR, THERE IS HIGH CONFIDENCE IN THIS PORTION OF THE JTWC TRACK
FORECAST.
C. AFTER TAU 72, TS 09W WILL CONTINUE RECURVING AS IT ROUNDS THE
STR AXIS, TRACK ACROSS THE EASTERN SIDE OF SOUTH KOREA, AND PASS
INTO THE SEA OF JAPAN. THROUGHOUT THIS PERIOD, LAND INTERACTION,
INCREASING VWS, AND COOLER SST SHOULD WEAKEN THE SYSTEM. BY TAU 96,
TS 09W WILL BEGIN INTERACTING WITH THE MID-LATITUDE BAROCLINIC ZONE
AND START UNDERGOING EXTRATROPICAL TRANSITION (ETT). ETT SHOULD
COMPLETE PRIOR TO TAU 120. AS THE SYSTEM ROUNDS THE STR AXIS, SPREAD
IN MODEL GUIDANCE INCREASES SIGNIFICANTLY, PRIMARILY DUE TO
DIFFERENCES IN ALONG-TRACK SPEED. FOR THIS REASON, THERE IS LOW
CONFIDENCE IN THE EXTENDED PORTION OF THE JTWC TRACK FORECAST.//
NNNN
Location: 16.1°N 131.6°E
Maximum Winds: 25 kt ( 45/50km/h)
Gusts:
Minimum Central Pressure: 998 mb
WDPN31 PGTW 040300
MSGID/GENADMIN/JOINT TYPHOON WRNCEN PEARL HARBOR HI//
SUBJ/PROGNOSTIC REASONING FOR TROPICAL DEPRESSION 10W (TEN) WARNING
NR 01//
RMKS//
1. FOR METEOROLOGISTS.
2. 6 HOUR SUMMARY AND ANALYSIS.
TROPICAL DEPRESSION (TD) 10W (TEN), LOCATED APPROXIMATELY 659 NM
SOUTH-SOUTHEAST OF KADENA AB, HAS TRACKED EAST-NORTHEASTWARD AT 06
KNOTS OVER THE PAST SIX HOURS. ANIMATED MULTISPECTRAL SATELLITE
IMAGERY (MSI) REVEALS AN AREA EMBEDDED IN A BROAD CIRCULATION WHERE
SUSTAINED CONVECTION APPEARS TO BE CAUSING CONSOLIDATION. THERE IS
VERY LOW CONFIDENCE IN THE INITIAL POSITION, PLACED NEAR THE
APPARENT CONSOLIDATION IN THE MSI IMAGERY AND CONSISTENT WITH A
032009 AMSU 89 GHZ MICROWAVE IMAGE. THE INITIAL INTENSITY OF 25 KTS
IS BASED ON RJTD AND KNES DVORAK CURRENT INTENSITY ESTIMATES OF T1.5
(25 KTS) BUT THERE HAS BEEN A LARGE AREA OF APPROXIMATELY 30 KT
WESTERLY WINDS OVER 100 NM TO THE SOUTH OF THE CURRENT POSITION. THE
ENVIRONMENT IS MARGINAL WITH EXCELLENT EQUATORWARD OUTFLOW AND WARM
(29-30 CELSIUS) SEA SURFACE TEMPERATURE OFFSETTING MODERATE (10-20
KT) VERTICAL WIND SHEAR (VWS). NOTABLY, THERE IS AN ADJACENT AREA OF
FAVORABLE WIND SHEAR JUST NORTH OF THE CURRENT POSITION AND IN THE
PATH OF THE SYSTEM. TD 10W IS DRIFTING GENERALLY POLEWARD UNDER WEAK
STEERING INFLUENCE FROM A SUBTROPICAL RIDGE (STR) THAT EXTENDS FROM
THE NORTH TO THE EAST.
3. FORECAST REASONING.
A. THIS IS THE INITIAL PROGNOSTIC REASONING AND SETS THE FORECAST
PHILOSOPHY. TD 10W IS STILL CONSOLIDATING SO INITIAL UNCERTAINTY IS
HIGH. INTENSITY IS ANTICIPATED TO REACH 35 KTS IN ABOUT 24 HOURS,
NECESSITATING A WARNING.
B. THROUGH TAU 48, TD 10W IS EXPECTED TO DRIFT SLOWLY POLEWARD BY
THE EASTERN EXTENSION OF THE STR. BETWEEN TAU 48 AND 72, THE STR
EXTENSION TO THE NORTH WILL TAKE OVER AS THE PRIMARY STEERING
INFLUENCE AND THE TRACK SHOULD SHIFT MORE NORTHWESTWARD. AS TD 10W
MOVES INTO A MORE FAVORABLE VWS REGION, THE CYCLONE IS EXPECTED TO
STEADILY INTENSIFY, REACHING 55 KTS BY TAU 72. MOST OF THE
UNCERTAINTY IN THE MODEL GUIDANCE FOR THIS PORTION OF THE FORECAST
IS IN THE EARLY TAUS AS THE MODEL TRACKERS ARE LIKELY HAVING
DIFFICULTY IDENTIFYING THE LLCC IN THE BROADER CIRCULATION. BY TAU
36, NAVGEM STARTS TO APPEAR AS A SOUTHERN OUTLIER RELATIVE TO THE
OTHER MEMBERS. OVERALL, THERE IS VERY LOW CONFIDENCE IN THE EARLY
PORTION OF THE FORECAST, LARGELY OWING TO HIGH UNCERTAINTY IN THE
INITIAL POSITION AND SUBSEQUENT UNCERTAINTY IN THE MODEL TRACK
GUIDANCE.
C. BEYOND TAU 72, TD 10W IS EXPECTED TO CONTINUE ON A
NORTHWESTWARD TRACK ALONG THE SOUTHWEST PERIPHERY OF THE STR AND TO
STEADILY INCREASE INTENSITY TO 70 KTS BY TAU 120. FOR THE MOST PART,
ALL THE INTENSITY GUIDANCE SHOWS A SIMILAR TREND TO THE FORECAST
INTENSITY; HOWEVER, THE ENVELOPE OF POSSIBILITIES IS QUITE LARGE (50-
85 KTS) BY THE END OF THE FORECAST. THE JTWC INTENSITY FORECAST IS
HEDGED JUST ABOVE THE INTENSITY CONSENSUS ONLY DUE TO THE
ENVIRONMENT APPEARING TO REMAIN FAVORABLE FOR THE DURATION OF THE
FORECAST. TRACK GUIDANCE, WITH THE EXCEPTION OF NAVGEM, IS IN FAIR
AGREEMENT BUT CONFIDENCE IN THE EXTENDED FORECAST IS VERY LOW
PRIMARILY DUE TO HIGH UNCERTAINTY IN THE INITIAL POSITION.//
NNNN
09W: WARNING 10
10W: WARNING 1
04/03UTC
04/00UTC
04/00UTC
09W: TRACK AND INTENSITY GUIDANCE
10W: TRACK AND INTENSITY GUIDANCE
