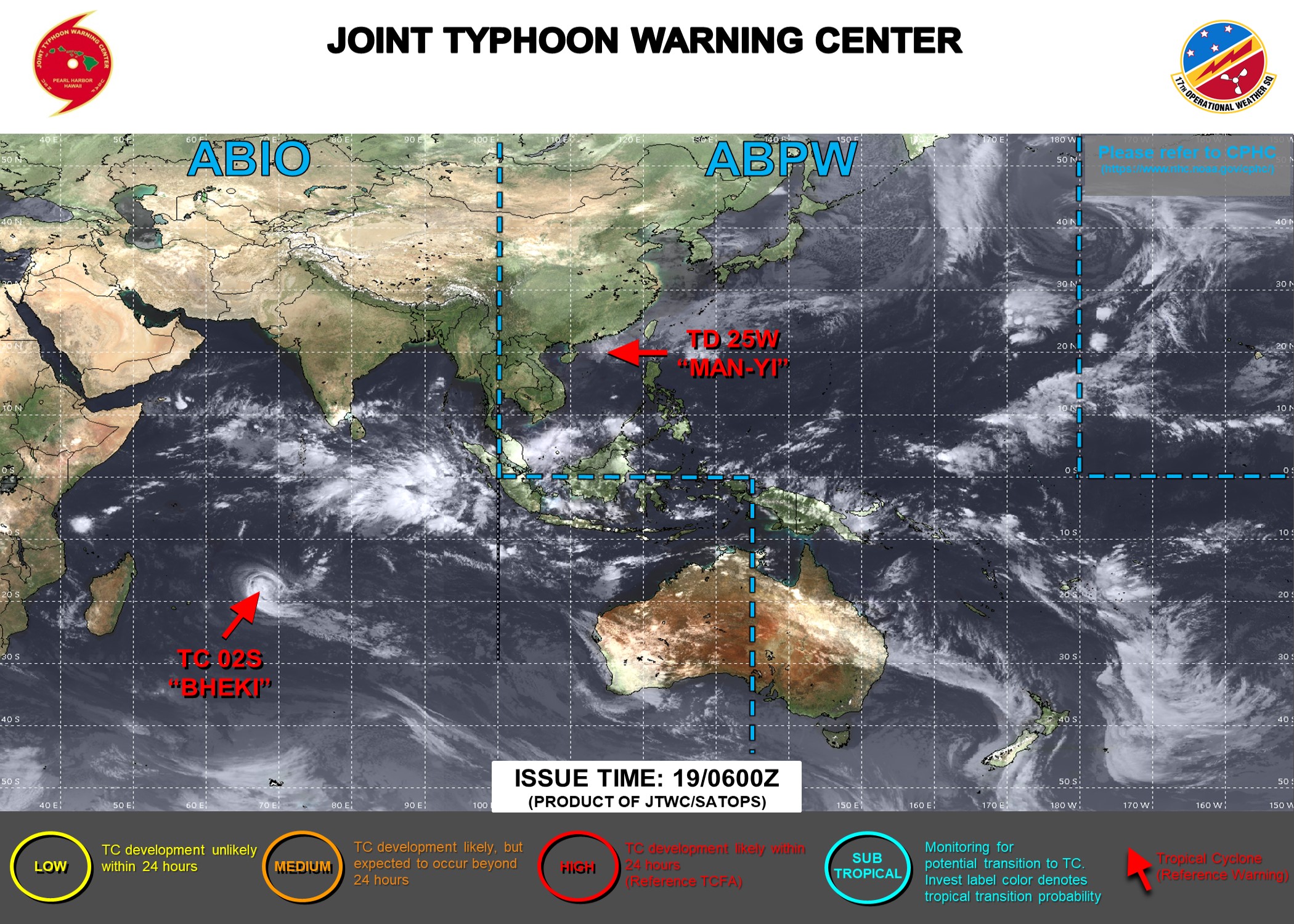

Former Super Typhoon 25W(MAN-YI) dissipating//TC 02S(BHEKI) peaked at CAT 4 US gradually weakening approaching MASCARENE Islands//1909utc

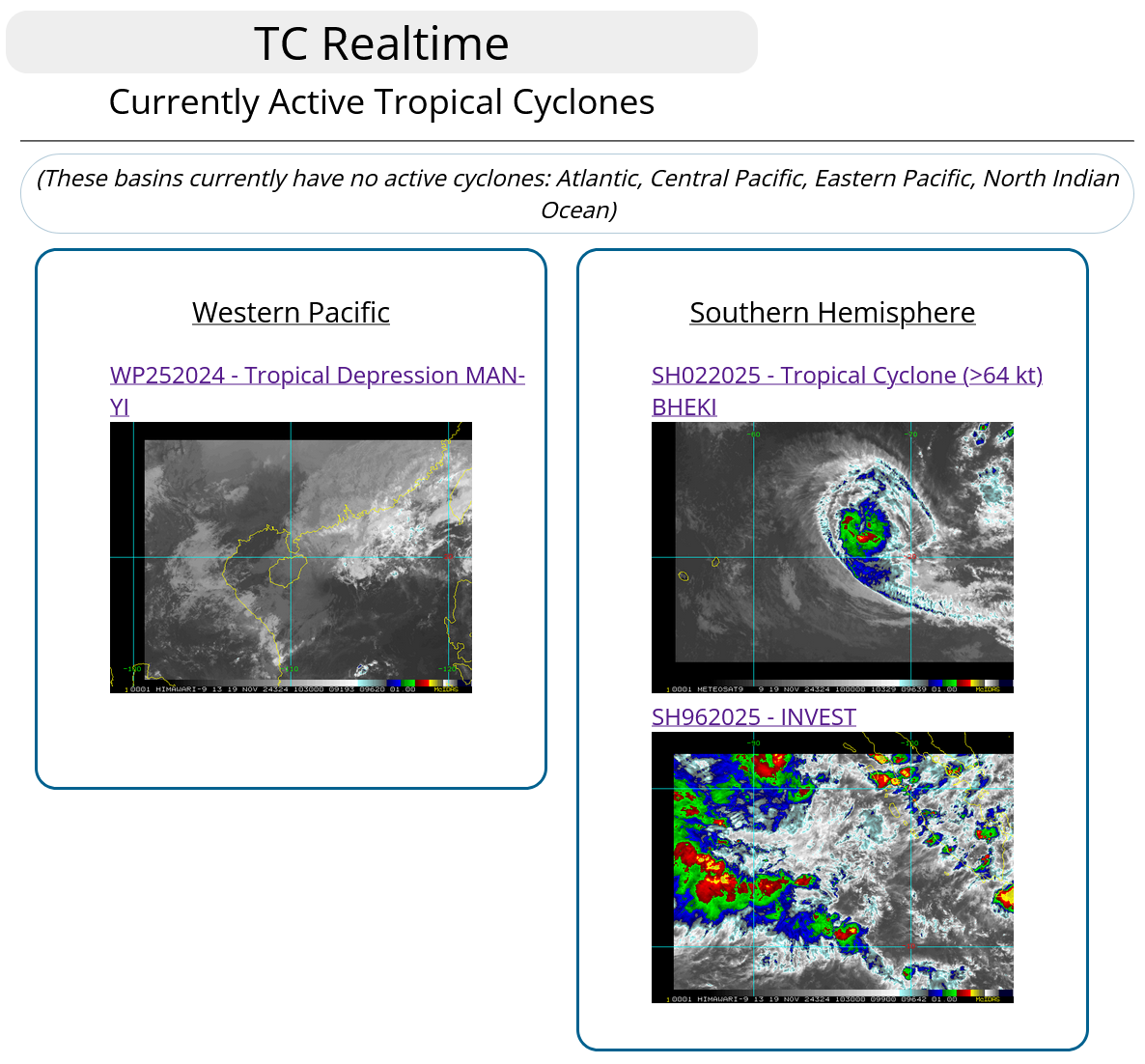

CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON 25W. 12HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ARE ISSUED ON 02S.
JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON 25W. 12HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ARE ISSUED ON 02S.

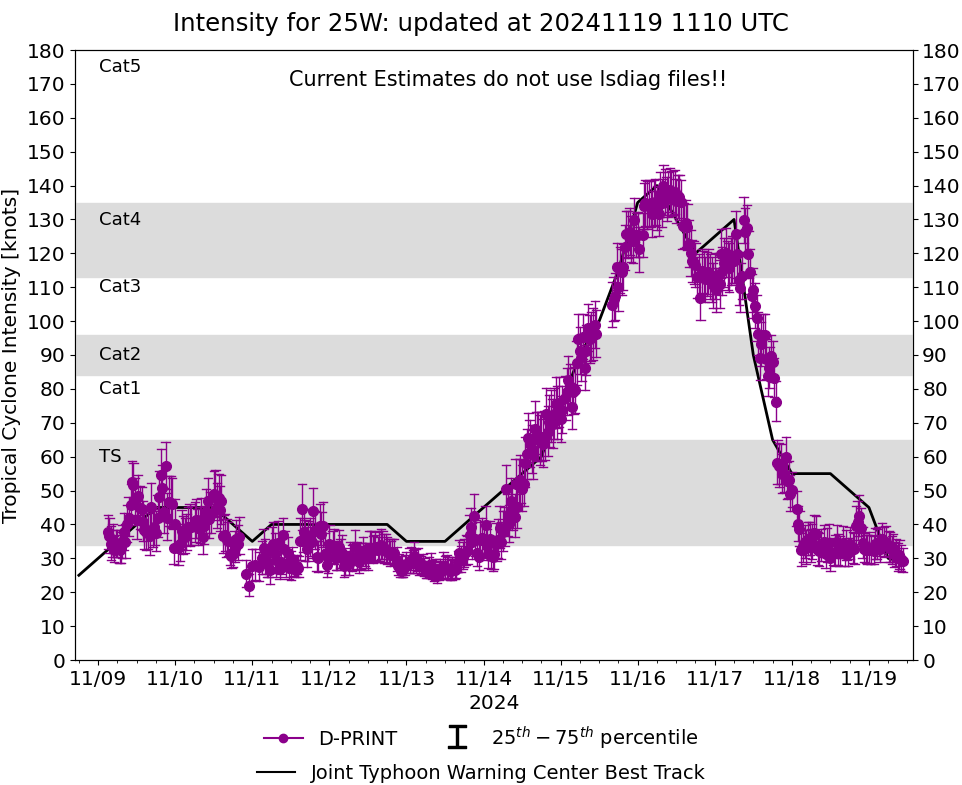

WESTERN NORTH PACIFIC: TD 25W(MAN-YI). 19/06UTC ESTIMATED INTENSITY IS 30 KNOTS: - 25 KNOTS OVER 24 HOURS

2524111700 150N1229E 125
2524111706 158N1219E 130
2524111712 166N1207E  90
2524111718 176N1194E  65
2524111800 182N1182E  55
2524111806 184N1169E  55
2524111812 185N1159E  55
2524111818 185N1152E  50
2524111900 189N1141E  45
2524111906 188N1130E  30

WARNING 42 ISSUED AT 19/09UTC

Former Super Typhoon 25W(MAN-YI) dissipating//TC 02S(BHEKI) peaked at CAT 4 US gradually weakening approaching MASCARENE Islands//1909utc

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) SHOWS THE LOW LEVEL CIRCULATION CENTER (LLCC) HAS BECOME MOSTLY EXPOSED AND EMBEDDED IN THE STRATOCUMULUS FIELD ASSOCIATED WITH THE NORTHEASTERLY COLD SURGE AS THE CENTRAL CLOUD COVER HAS GREATLY ERODED AND SHEARED NORTHEASTWARD. THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON THE MOSTLY EXPOSED LLCC. THE INITIAL INTENSITY IS ALSO ASSESSED WITH HIGH CONFIDENCE BASED ON OVERALL ASSESSMENT OF WEAKENING TREND IN AGENCY DVORAK AND AUTOMATED ESTIMATES. ANALYSIS INDICATES AN UNFAVORABLE ENVIRONMENT WITH HIGH VERTICAL WIND SHEAR, COOLING SST, AND COLD NORTHEASTERLY SURGE OFFSET SLIGHTLY BY THE STRONG POLEWARD OUTFLOW.
SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) SHOWS THE LOW LEVEL CIRCULATION CENTER (LLCC) HAS BECOME MOSTLY EXPOSED AND EMBEDDED IN THE STRATOCUMULUS FIELD ASSOCIATED WITH THE NORTHEASTERLY COLD SURGE AS THE CENTRAL CLOUD COVER HAS GREATLY ERODED AND SHEARED NORTHEASTWARD. THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON THE MOSTLY EXPOSED LLCC. THE INITIAL INTENSITY IS ALSO ASSESSED WITH HIGH CONFIDENCE BASED ON OVERALL ASSESSMENT OF WEAKENING TREND IN AGENCY DVORAK AND AUTOMATED ESTIMATES. ANALYSIS INDICATES AN UNFAVORABLE ENVIRONMENT WITH HIGH VERTICAL WIND SHEAR, COOLING SST, AND COLD NORTHEASTERLY SURGE OFFSET SLIGHTLY BY THE STRONG POLEWARD OUTFLOW.

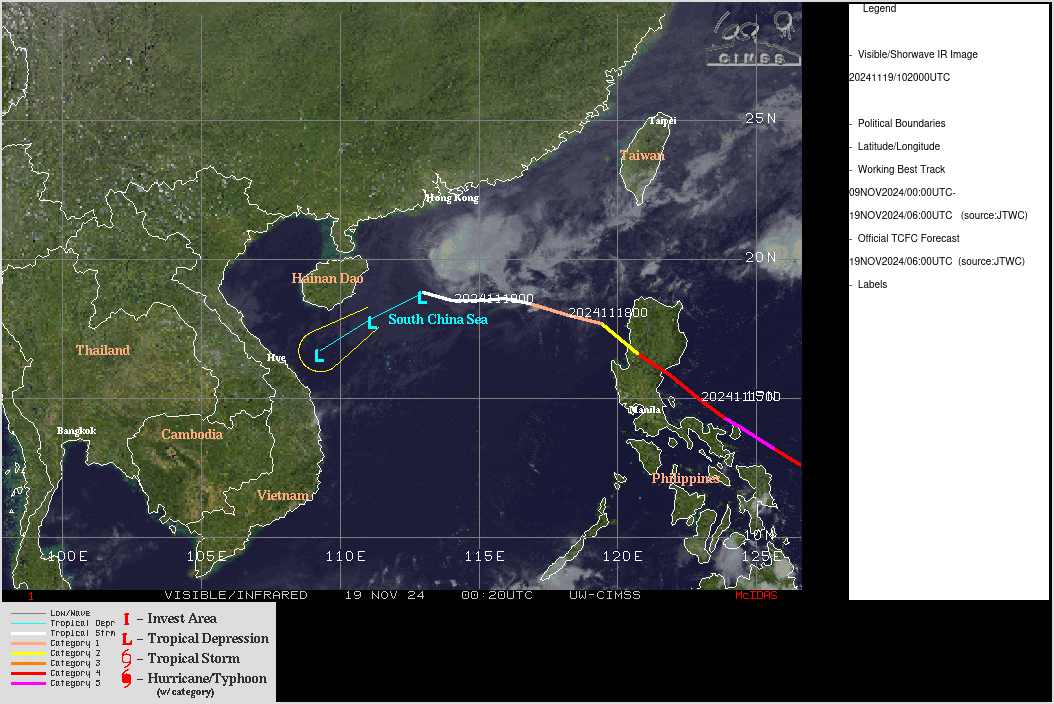

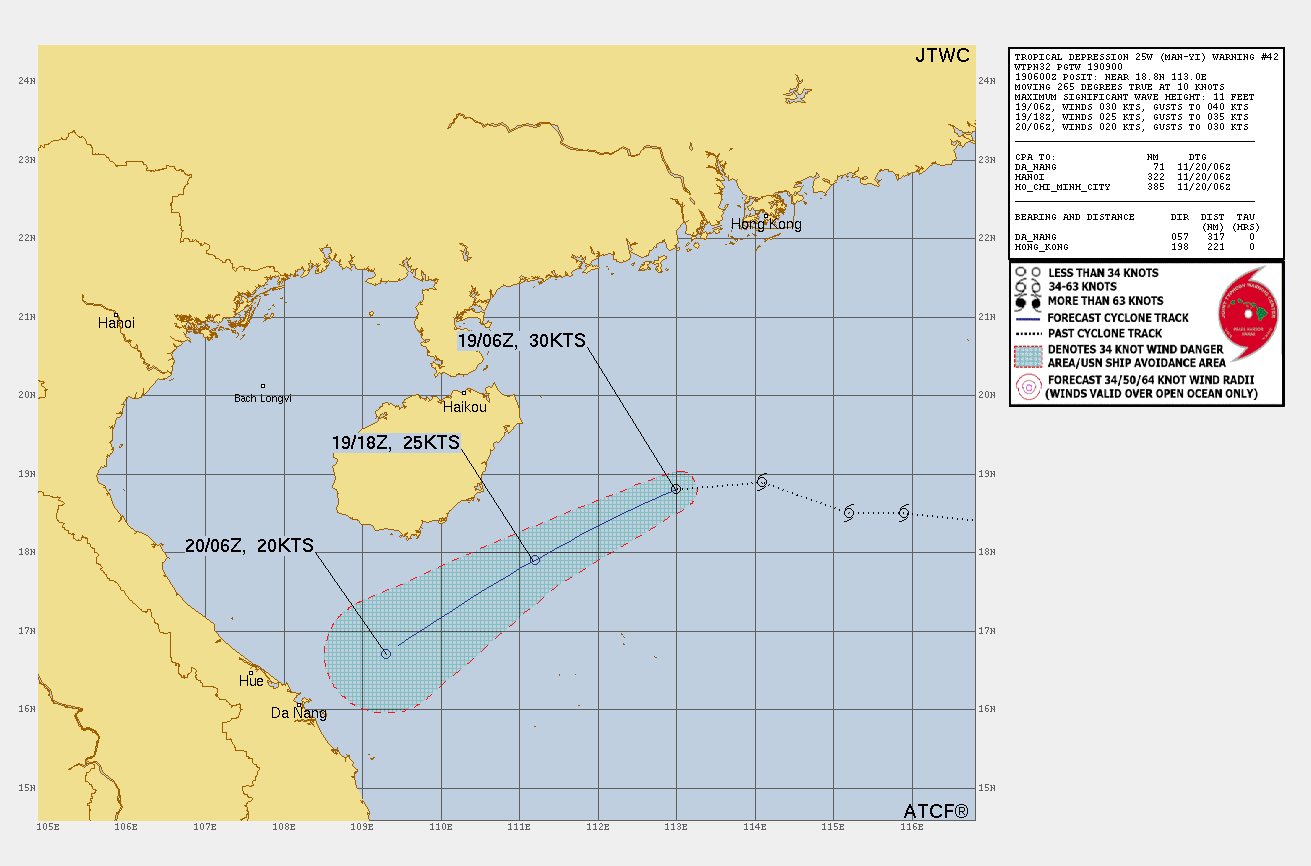

TC Warning Graphic

FORECAST REASONING.  SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING.  FORECAST DISCUSSION: TD 25W WILL TRACK SOUTHWESTWARD UNDER THE STEERING INFLUENCE OF THE 850MB RIDGE TO THE NORTHWEST. THE UNFAVORABLE ENVIRONMENT WILL FURTHER ERODE THE SYSTEM, LEADING TO DISSIPATION BY TAU 24, LIKELY SOONER.
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TD 25W WILL TRACK SOUTHWESTWARD UNDER THE STEERING INFLUENCE OF THE 850MB RIDGE TO THE NORTHWEST. THE UNFAVORABLE ENVIRONMENT WILL FURTHER ERODE THE SYSTEM, LEADING TO DISSIPATION BY TAU 24, LIKELY SOONER.

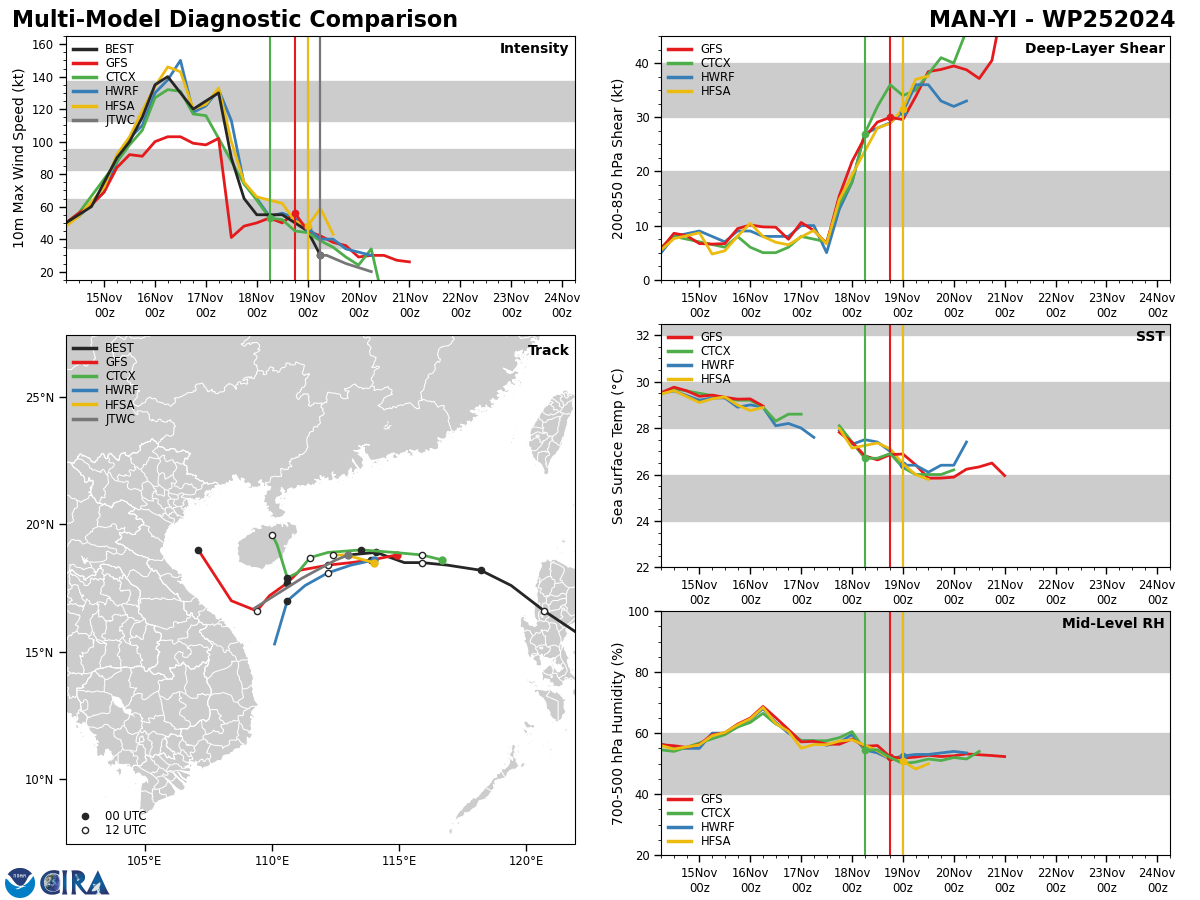

Model Diagnostic Plot

MODEL DISCUSSION: NUMERICAL MODELS ARE IN GOOD AGREEMENT WITH; HOWEVER, DUE TO THE POTENTIAL EARLY DISSIPATION, THERE IS ONLY MEDIUM CONFIDENCE IN THE JTWC TRACK AND INTENSITY FORECASTS.
MODEL DISCUSSION: NUMERICAL MODELS ARE IN GOOD AGREEMENT WITH; HOWEVER, DUE TO THE POTENTIAL EARLY DISSIPATION, THERE IS ONLY MEDIUM CONFIDENCE IN THE JTWC TRACK AND INTENSITY FORECASTS.

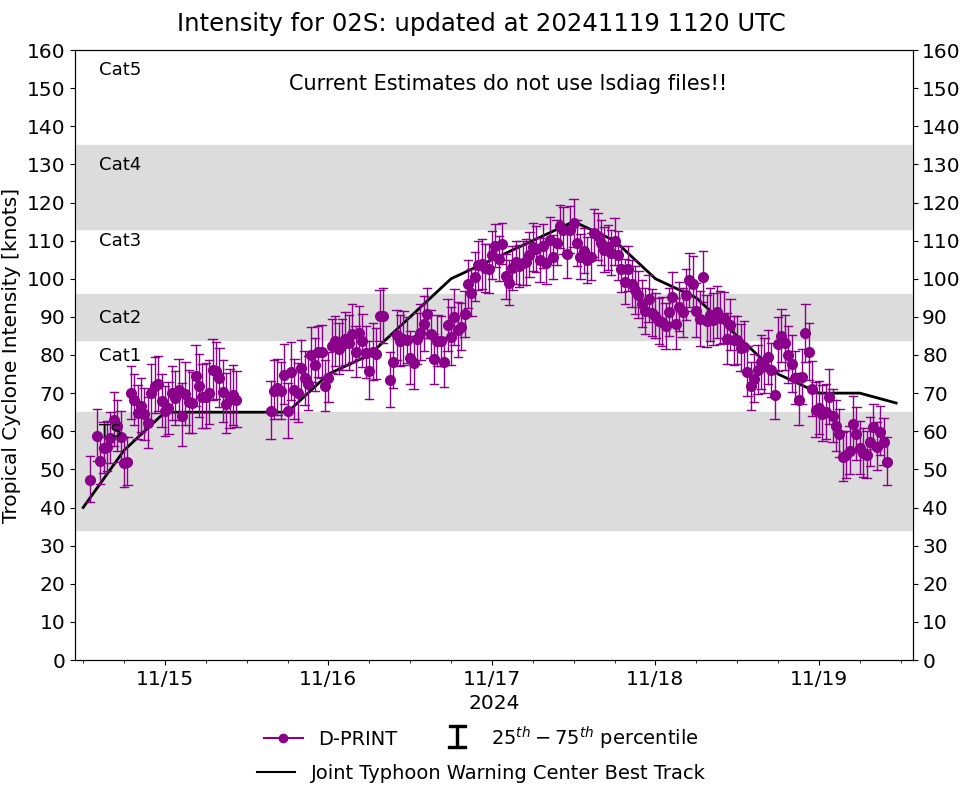

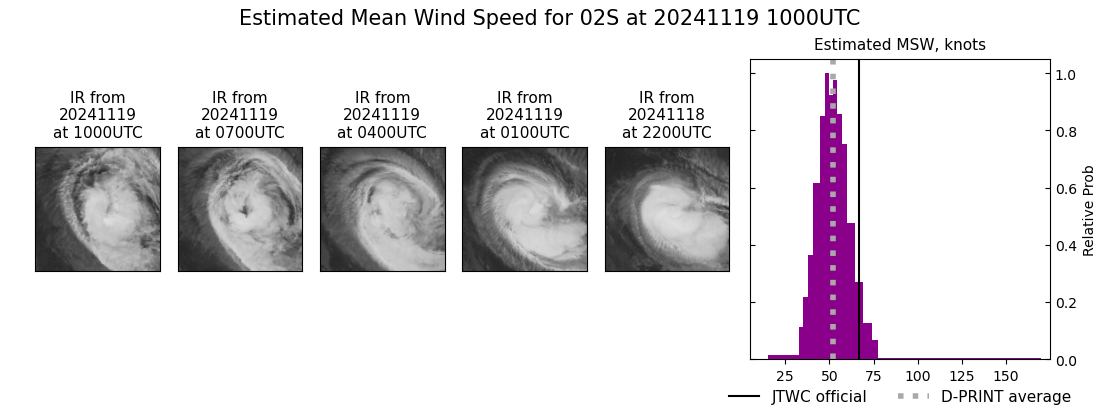

SOUTHERN HEMISPHERE/SOUTH INDIAN OCEAN: TC 02S(BHEKI). 19/06UTC ESTIMATED INTENSITY IS 70 KNOTS/CAT 1 US: - 25 KNOTS OVER 24 HOURS

0224111700 154S 712E 105
0224111706 160S 706E 110
0224111712 164S 702E 115
0224111718 167S 698E 110
0224111800 171S 695E 100
0224111806 173S 693E  95
0224111812 175S 690E  85
0224111818 176S 685E  75
0224111900 177S 677E  70
0224111906 180S 670E  70

WARNING 11 ISSUED AT 19/09UTC

Former Super Typhoon 25W(MAN-YI) dissipating//TC 02S(BHEKI) peaked at CAT 4 US gradually weakening approaching MASCARENE Islands//1909utc

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED

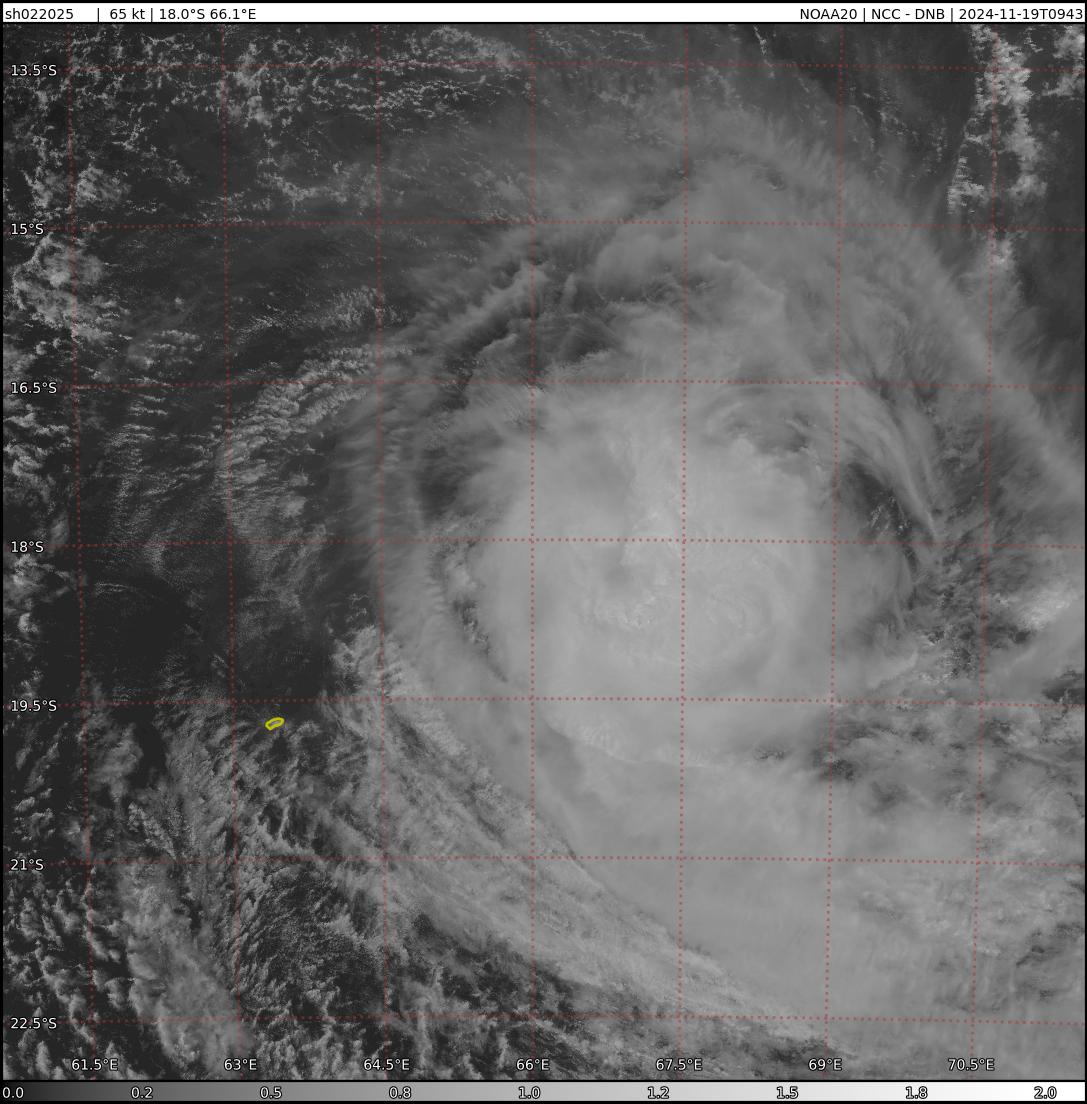

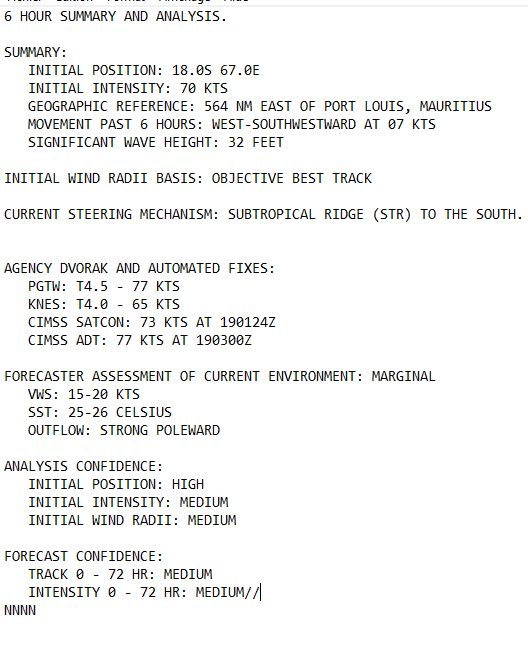

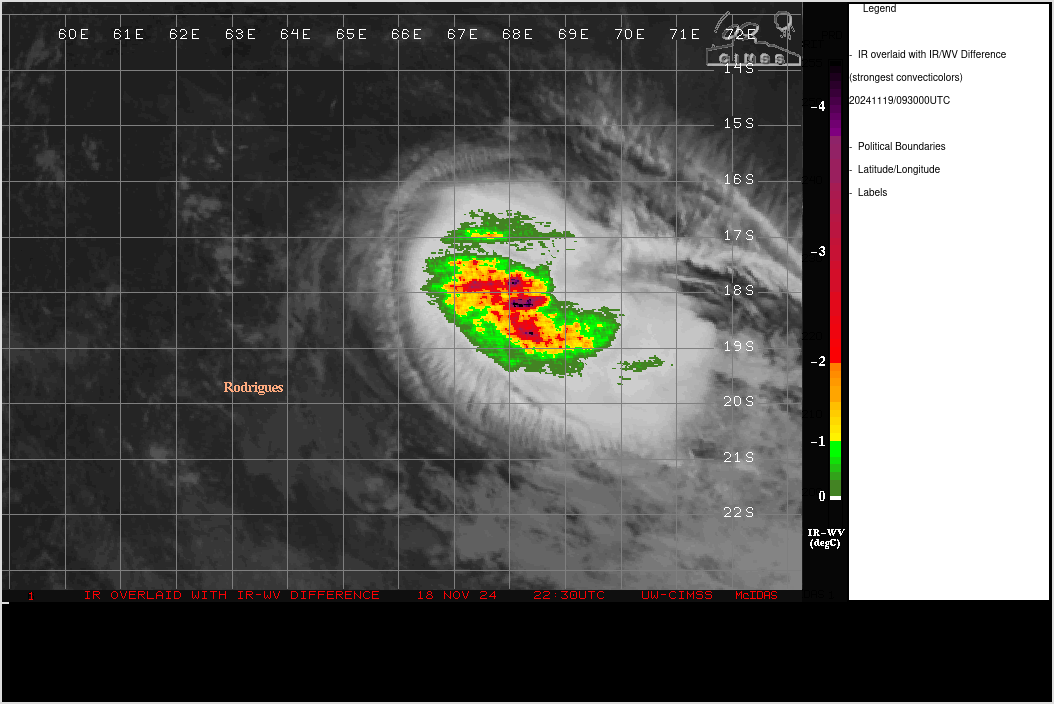

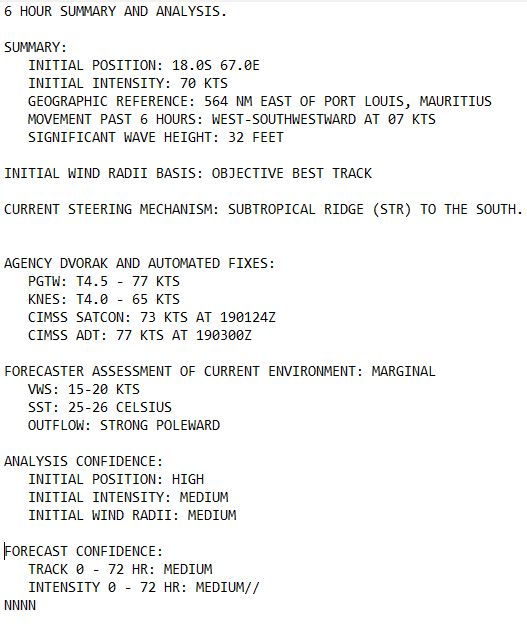

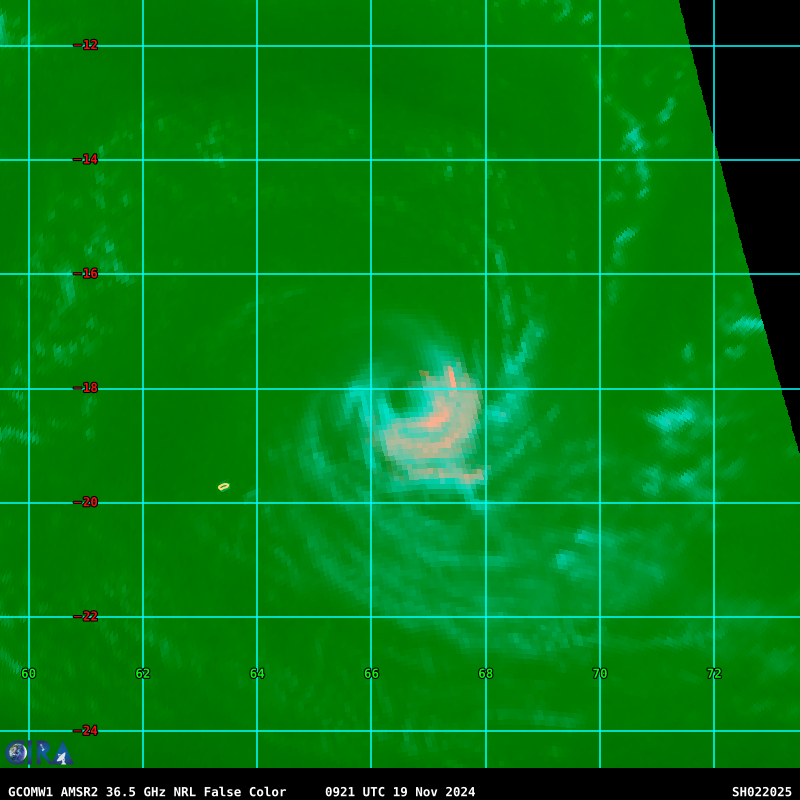

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY SHOWS THE SYSTEM HAS MAINTAINED DEEP CONVECTION OVER THE CENTRAL CLOUD COVER THAT HAS FORMED A RAGGED 20 BY 28 NM OBLONG EYE. THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON THE EYE. THE INITIAL INTENSITY OF 70 KTS IS ASSESSED WITH MEDIUM CONFIDENCE BASED ON OVERALL ASSESSMENT OF AGENCY  DVORAK AND AUTOMATED INTENSITY ESTIMATES AND REFLECTS THE SUSTAINED 6-HR CONVECTIVE SIGNATURE AND CONSISTENT WITH THE PRESENCE OF AN EYE FEATURE. ANALYSIS INDICATES A MARGINAL ENVIRONMENT WITH STRONG VENTILATION OFFSET BY COOL WATERS AND MODERATE VERTICAL WIND SHEAR (VWS).
SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY SHOWS THE SYSTEM HAS MAINTAINED DEEP CONVECTION OVER THE CENTRAL CLOUD COVER THAT HAS FORMED A RAGGED 20 BY 28 NM OBLONG EYE. THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON THE EYE. THE INITIAL INTENSITY OF 70 KTS IS ASSESSED WITH MEDIUM CONFIDENCE BASED ON OVERALL ASSESSMENT OF AGENCY DVORAK AND AUTOMATED INTENSITY ESTIMATES AND REFLECTS THE SUSTAINED 6-HR CONVECTIVE SIGNATURE AND CONSISTENT WITH THE PRESENCE OF AN EYE FEATURE. ANALYSIS INDICATES A MARGINAL ENVIRONMENT WITH STRONG VENTILATION OFFSET BY COOL WATERS AND MODERATE VERTICAL WIND SHEAR (VWS).

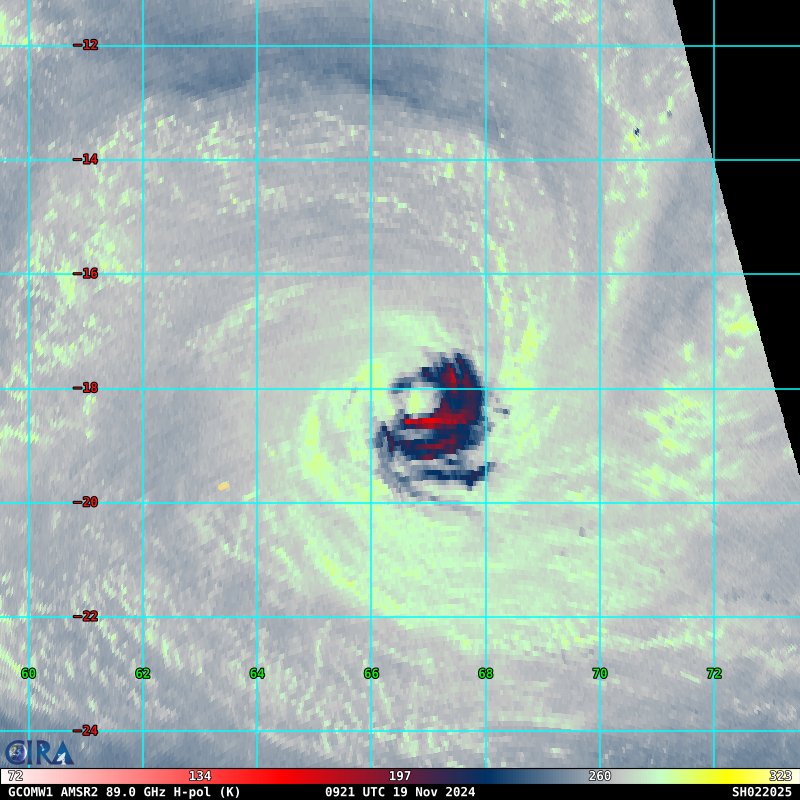

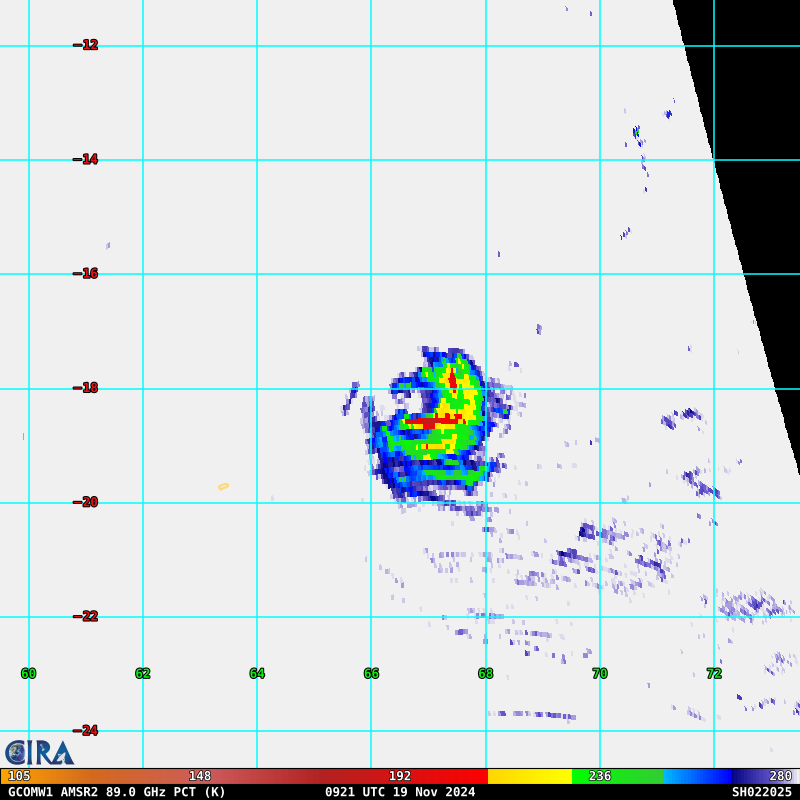

85 – 92 GHz Brightness Temperature

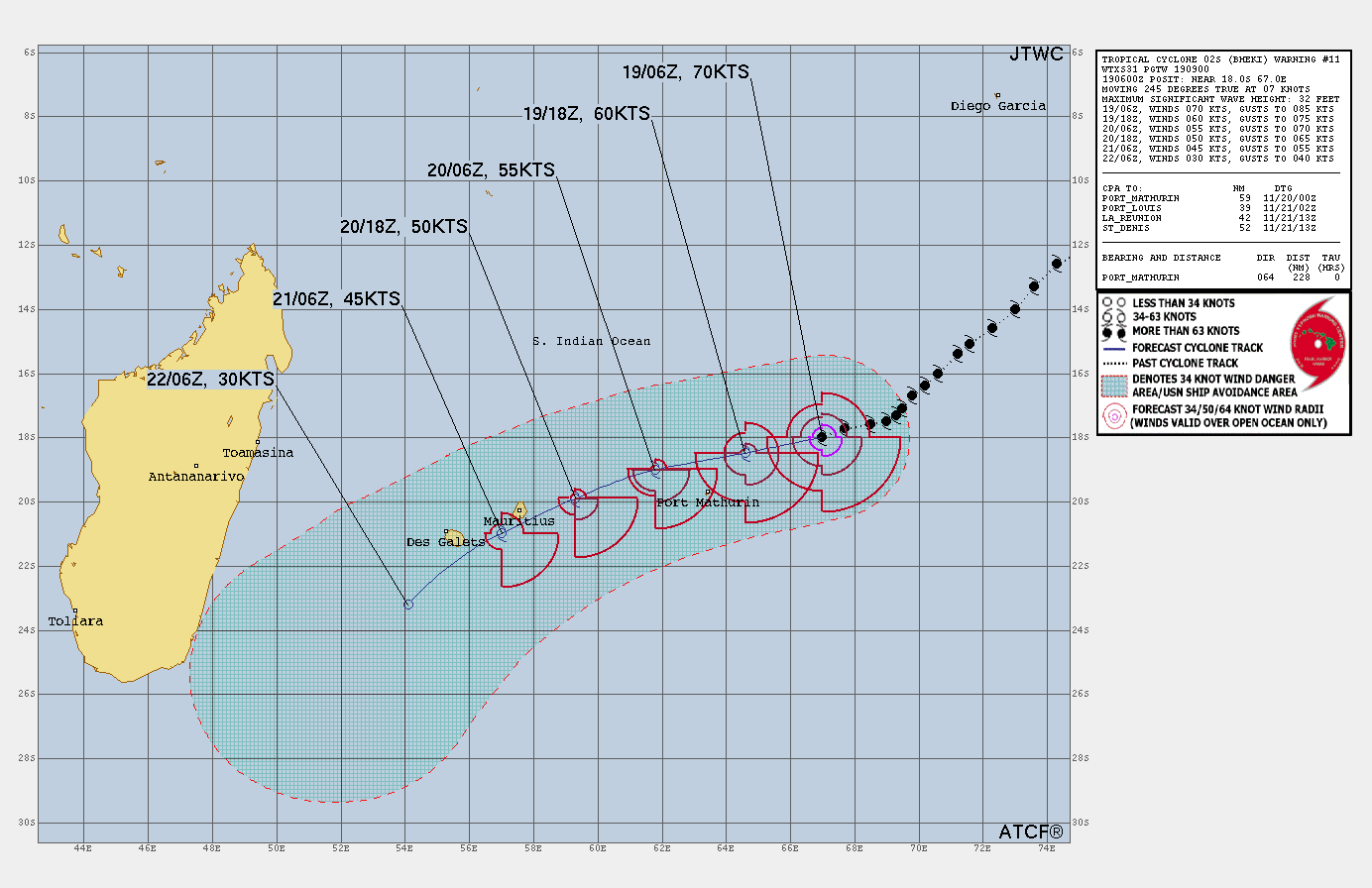

TC Warning Graphic

FORECAST REASONING.  SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING.  FORECAST DISCUSSION: TC 02S WILL TRACK WEST-SOUTHWESTWARD UNDER THE STR TO THE SOUTH UP TO TAU 48, THEN SOUTHWESTWARD AS IT BEGINS TO ROUND THE WESTERN RIM OF THE STR. THE ENVIRONMENT WILL BECOME UNSTABLE DUE TO INCREASING VWS AND COOL (25-26C) SST, OFFSET ONLY BY THE STRONG POLEWARD OUTFLOW, LEADING TO A GRADUAL WEAKENING AND EVENTUAL DISSIPATION BY TAU 72 AFTER IT PASSES LA REUNION.
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TC 02S WILL TRACK WEST-SOUTHWESTWARD UNDER THE STR TO THE SOUTH UP TO TAU 48, THEN SOUTHWESTWARD AS IT BEGINS TO ROUND THE WESTERN RIM OF THE STR. THE ENVIRONMENT WILL BECOME UNSTABLE DUE TO INCREASING VWS AND COOL (25-26C) SST, OFFSET ONLY BY THE STRONG POLEWARD OUTFLOW, LEADING TO A GRADUAL WEAKENING AND EVENTUAL DISSIPATION BY TAU 72 AFTER IT PASSES LA REUNION.

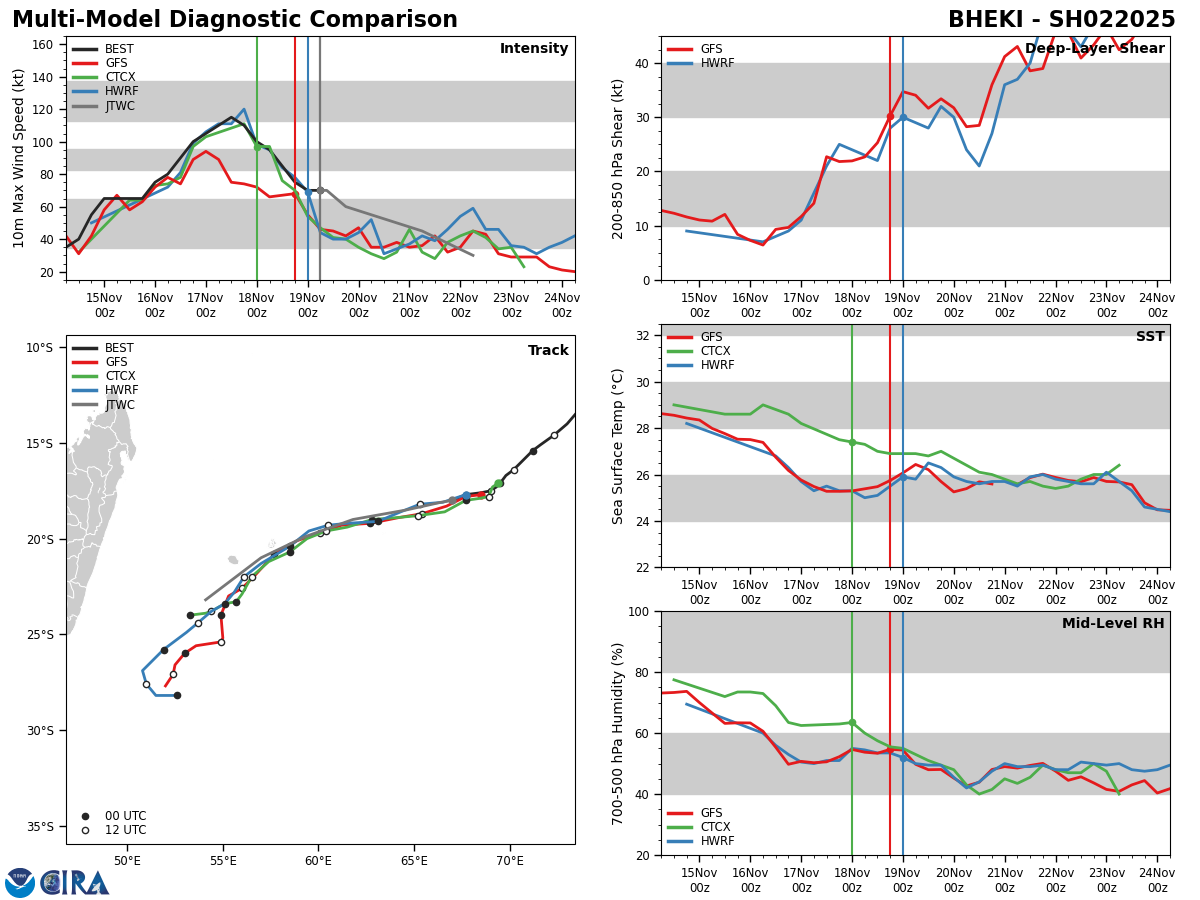

Model Diagnostic Plot

MODEL DISCUSSION: NUMERICAL MODELS ARE IN OVERALL GOOD AGREEMENT WITH AN EVEN AND GRADUAL SPREAD TO 190NM BY TAU 72, LENDING MEDIUM CONFIDENCE TO THE JTWC TRACK FORECAST.
MODEL DISCUSSION: NUMERICAL MODELS ARE IN OVERALL GOOD AGREEMENT WITH AN EVEN AND GRADUAL SPREAD TO 190NM BY TAU 72, LENDING MEDIUM CONFIDENCE TO THE JTWC TRACK FORECAST.

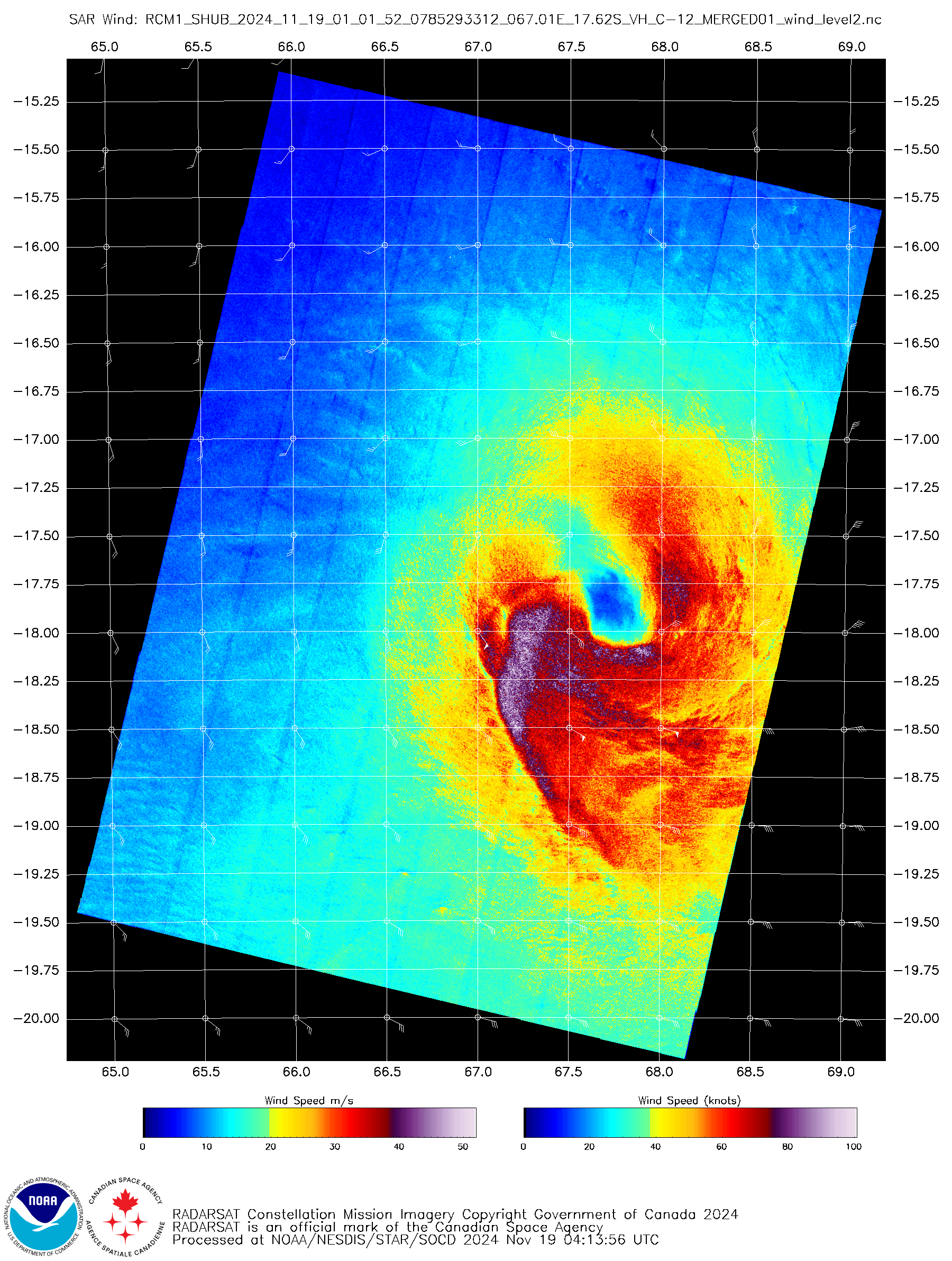

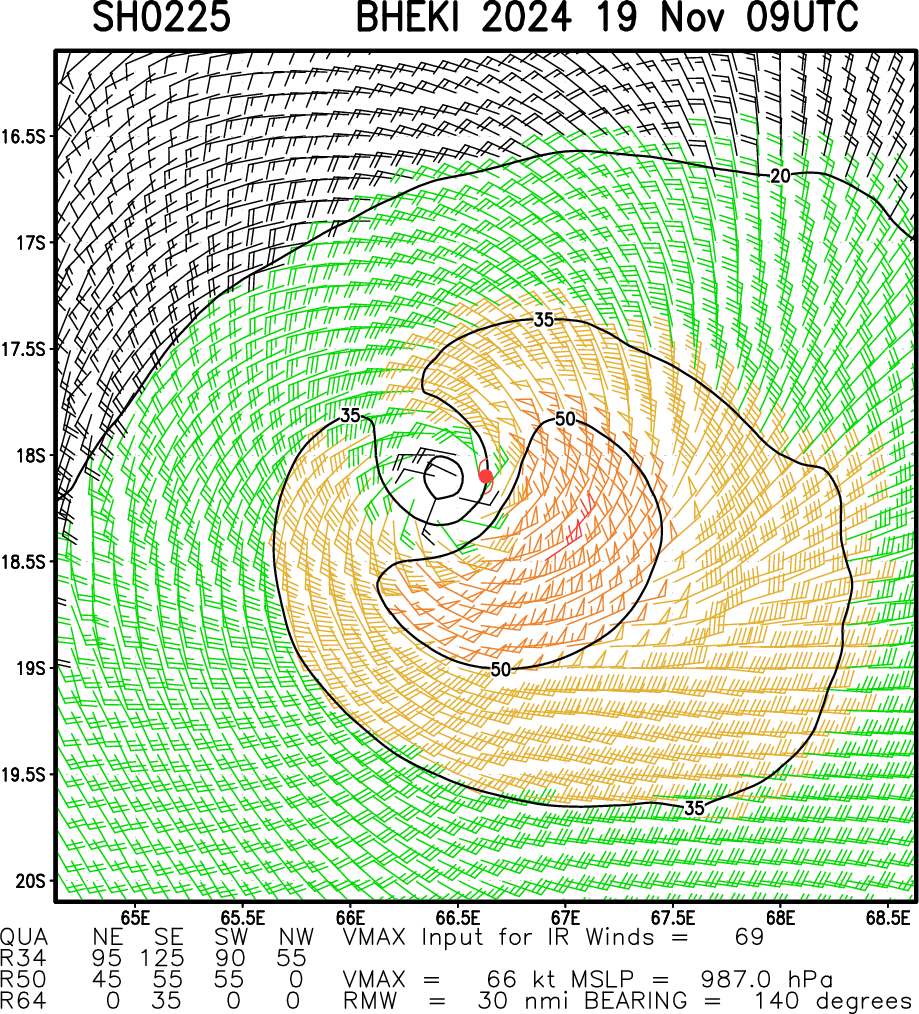

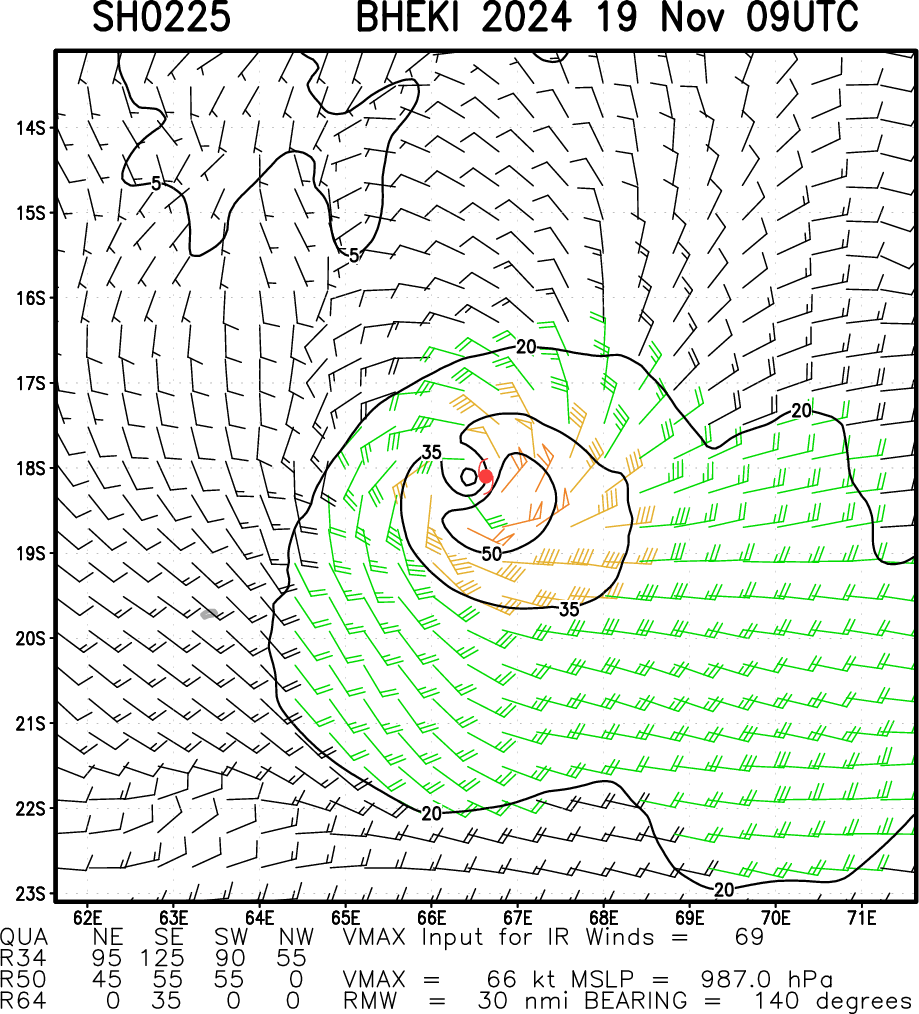

Multiplatform Satellite Surface Wind Analysis (Experimental)

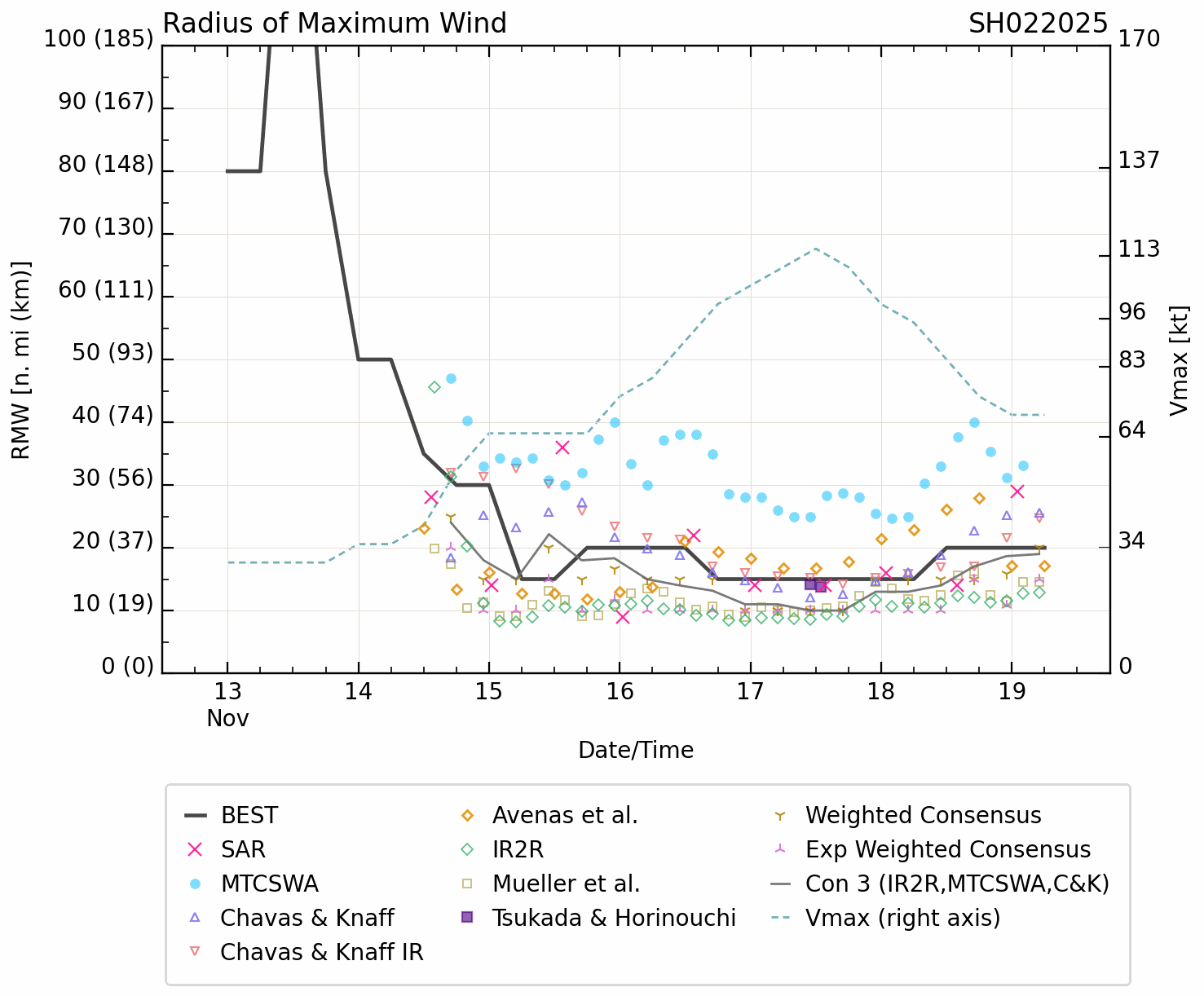

Radius of Maximum Wind (RMW


Platform: RCM-1 Acquisition Date: 2024-11-19 01:01:52 UTC

Platform: RCM-1 Acquisition Date: 2024-11-19 01:01:52 UTC Storm Name: SH022025 / BHEKI Storm ID: SH02 Storm Center Longitude: 67.730 Storm Center Latitude: -17.848 Incidence Angle (Degrees): 40.748 Quadrant 1 NE VMax (kts): 75.37 Quadrant 2 SE VMax (kts): 84.51 Quadrant 3 SW VMax (kts): 86.47 Quadrant 4 NW VMax (kts): 66.03 RMax (nmi): 17.00 - 30.00
Platform: RCM-1 Acquisition Date: 2024-11-19 01:01:52 UTC Storm Name: SH022025 / BHEKI Storm ID: SH02 Storm Center Longitude: 67.730 Storm Center Latitude: -17.848 Incidence Angle (Degrees): 40.748 Quadrant 1 NE VMax (kts): 75.37 Quadrant 2 SE VMax (kts): 84.51 Quadrant 3 SW VMax (kts): 86.47 Quadrant 4 NW VMax (kts): 66.03 RMax (nmi): 17.00 - 30.00


19/0830UTC SATELLITE ANALYSIS

TPXS10 PGTW 190853

A. TROPICAL CYCLONE 02S (BHEKI)

B. 19/0830Z

C. 18.14S

D. 66.84E

E. THREE/MET9

F. T3.5/4.5/W1.0/24HRS  STT: W0.5/03HRS

G. IR/EIR/VIS/MSI

H. REMARKS: 11A/PBO RAGGED EYE/ANMTN. EYE EMBEDDED 55NM IN CDO
YIELDS AN E# OF 5.5. SUBTRACTED 1.0 FOR A RAGGED EYE TO YIELD A DT
OF 4.5. MET YIELDS 3.5. PT YIELDS 4.0. DBO MET.

I. ADDITIONAL POSITIONS: NONE


   SWANSON

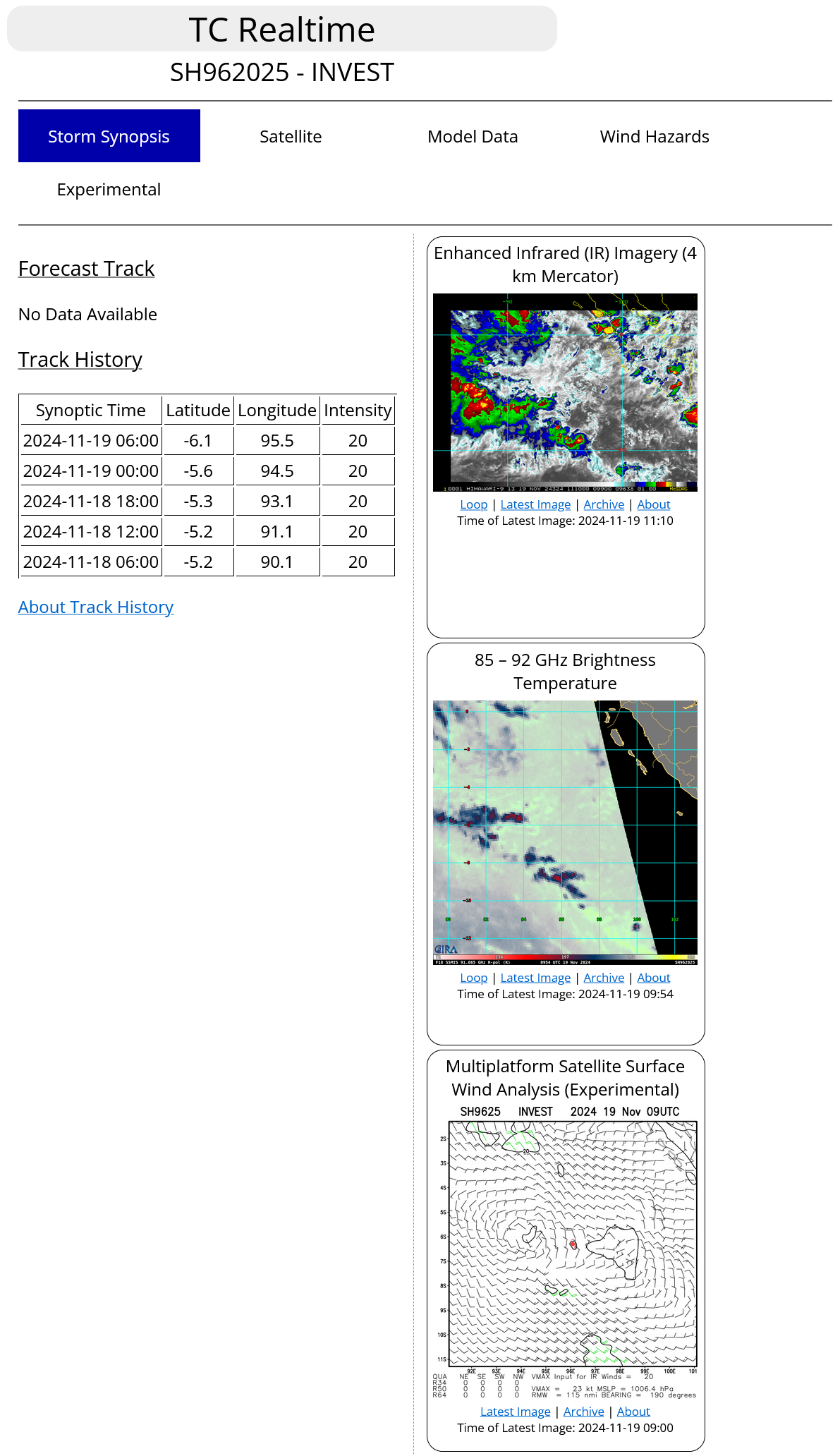

SOUTHERN HEMISPHERE/SOUTH INDIAN OCEAN: INVEST 96S
