CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED
JTWC IS ISSUING 6HOURLY WARNINGS ON 11W, ON 01C AND ON 07E. 3HOURLY SATELLITE BULLETINS ARE ISSUED ON 11W AND 01C.

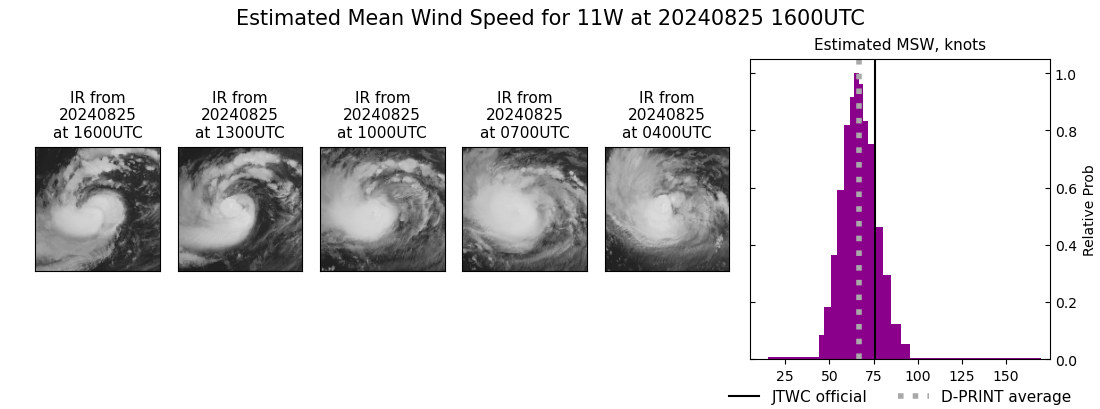

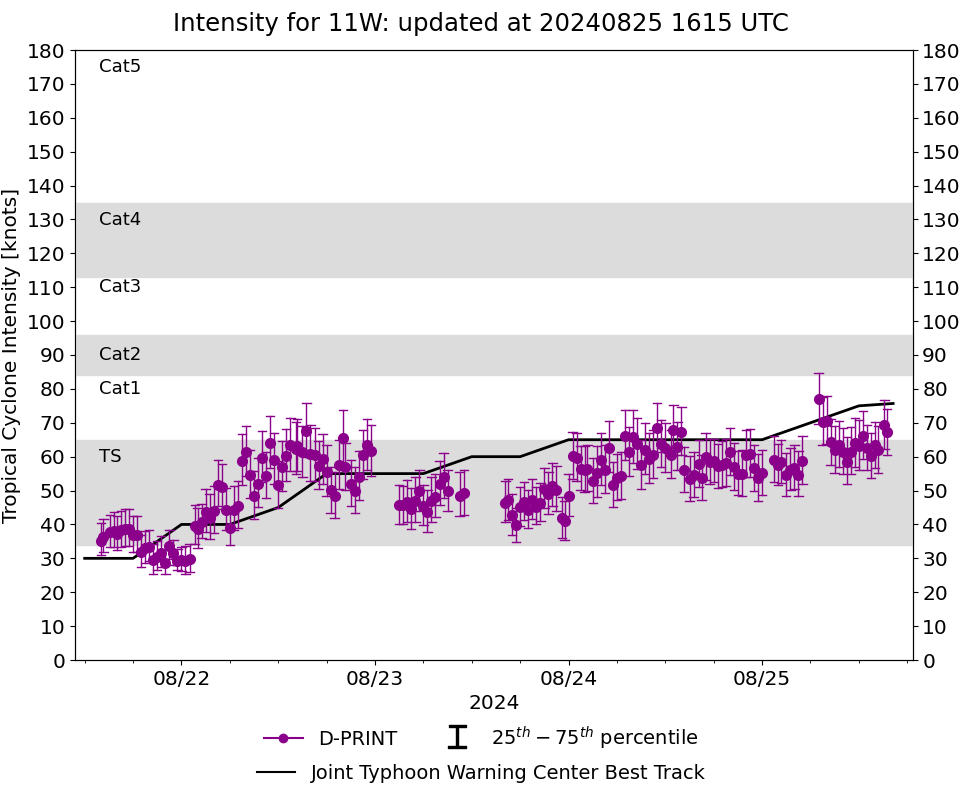

WESTERN NORTH PACIFIC: TY 11W(SHANSHAN). 25/12UTC ESTIMATED INTENSITY IS 75 KNOTS/CAT 1 US: + 10 KNOTS OVER 24H
1124082306 179N1412E 55
1124082312 182N1414E 60
1124082318 188N1413E 60
1124082400 199N1412E 65
1124082406 211N1411E 65
1124082412 225N1407E 65
1124082418 241N1399E 65
1124082500 250N1389E 65
1124082506 259N1378E 70
1124082512 266N1366E 75
1124082312 182N1414E 60
1124082318 188N1413E 60
1124082400 199N1412E 65
1124082406 211N1411E 65
1124082412 225N1407E 65
1124082418 241N1399E 65
1124082500 250N1389E 65
1124082506 259N1378E 70
1124082512 266N1366E 75
WARNING 17 ISSUED AT 2515UTC

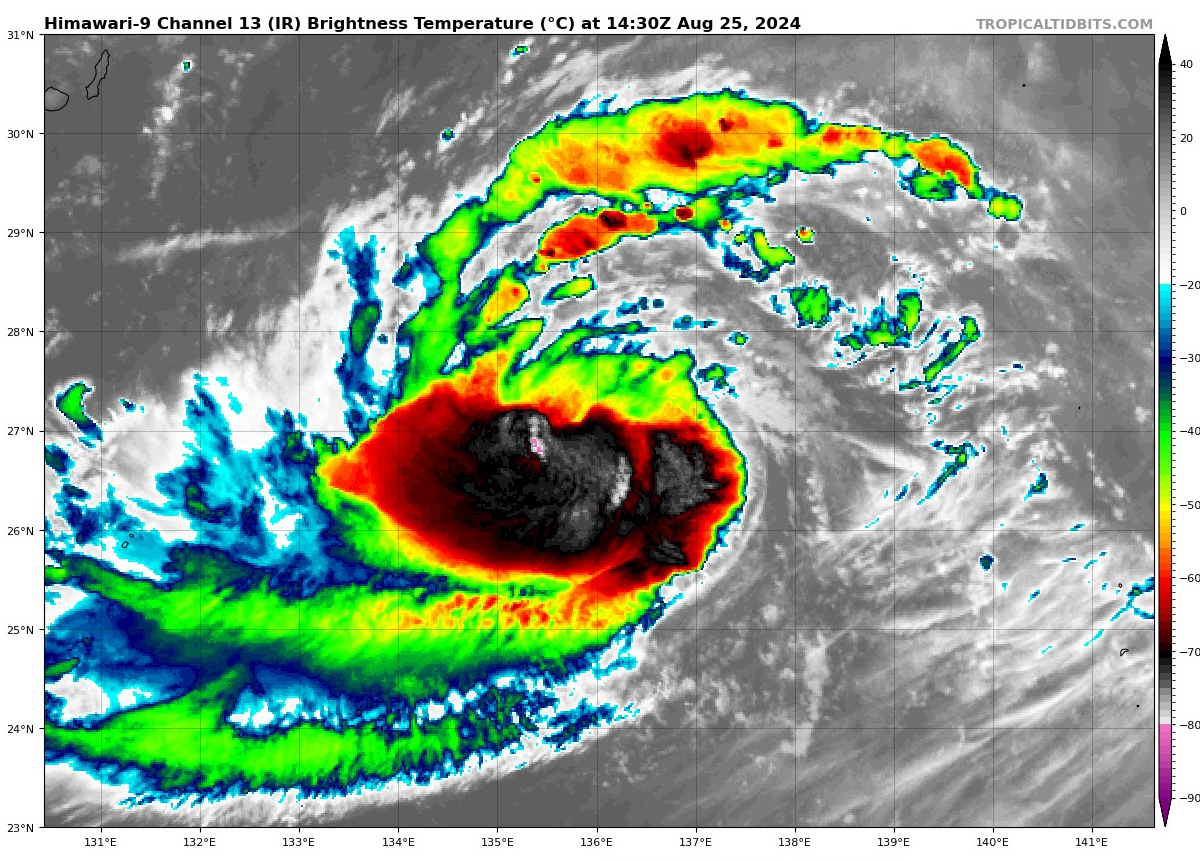

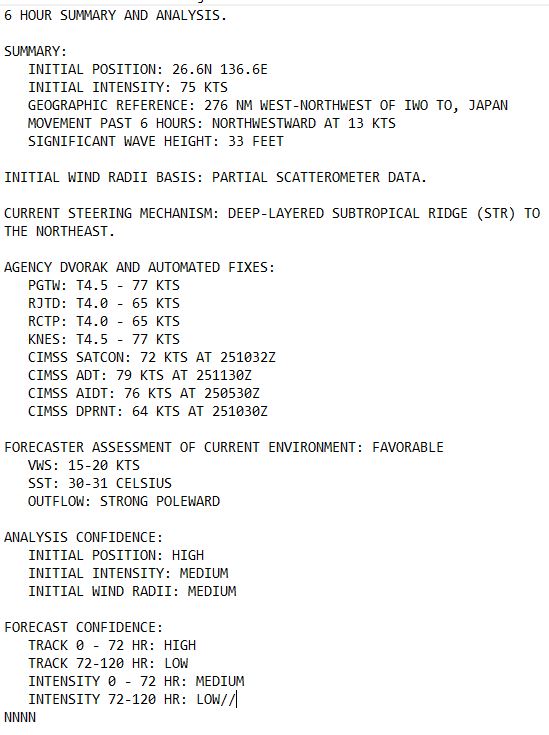

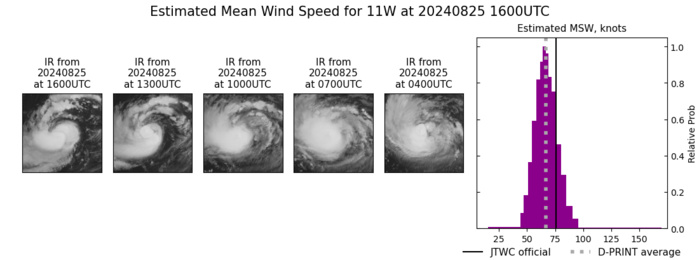

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED ENHANCED INFRARED (EIR) SATELLITE IMAGERY SHOWS A MEDIUM-SIZED SYSTEM THAT CONTINUED TO SLOWLY CONSOLIDATE AS EVIDENCED BY COOLING CONVECTIVE TOPS OVER THE COLD DENSE OVERCAST (CDO) THAT HAS RECENTLY DEVELOPED A PINHOLE EYE. A ROBUST POLEWARD OUTFLOW, A TUTT CELL AND DRY AIR INTRUSION ALONG THE WESTERN FLANK ARE ALSO EVIDENT ON THE EIR LOOP. THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON THE PINHOLE EYE, ADJUSTED FOR A SLIGHT FORWARD TILT AND LINED UP WITH A MICROWAVE EYE ON THE 250857Z SSMIS IMAGE. THE INITIAL INTENSITY OF 75KTS IS ALSO ASSESSED WITH HIGH CONFIDENCE BASED ON THE HIGH END OF AGENCY AND OBJECTIVE DVORAK ESTIMATES AND REFLECTS THE IMPROVED 6-HR EIR SIGNATURE. ANALYSIS INDICATES A FAVORABLE ENVIRONMENT WITH WARM ALONG-TRACK SST AND A STRONG, EFFICIENT VENTILATION ALOFT OFFSET BY MODERATE RELATIVE VWS, SUBSIDENCE FROM THE TUTT CELL TO THE WEST, AND COLD DRY AIR INTRUSION AT THE LOWER LEVELS.

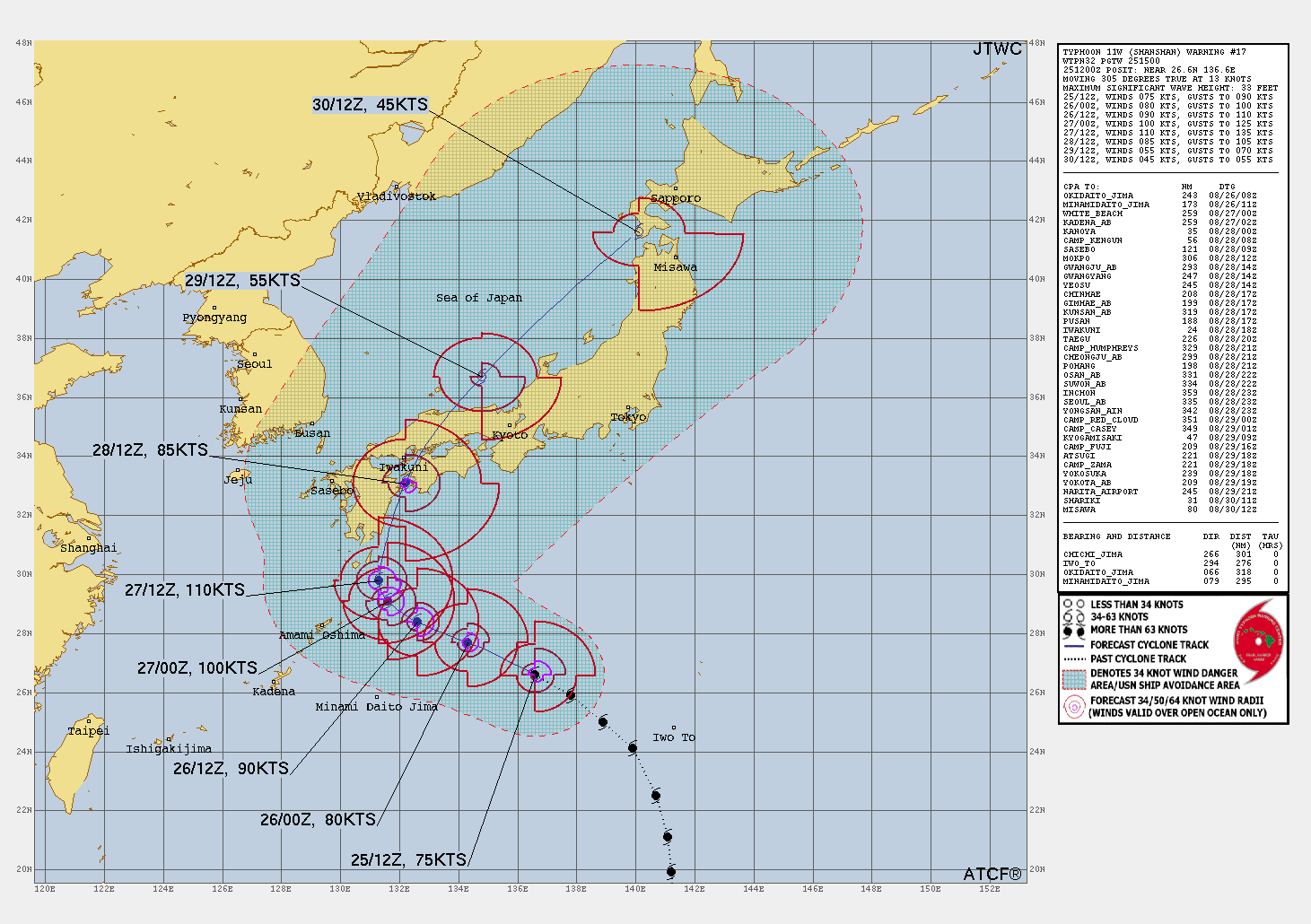

TC Warning Graphic
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TYPHOON SHANSHAN WILL CONTINUE ON A FISHBONE NORTHWESTWARD TRACK AS THE STEERING STR BUILDS. AFTER TAU 36, IT WILL TURN MORE NORTHWARD AS IT CRESTS THE STR AXIS AND AFTER TAU 48, ACCELERATE NORTHEASTWARD ON THE POLEWARD SIDE OF THE STR AND BY TAU 72, MAKE LANDFALL OVER SHIKOKU THEN TRACK ACROSS HONSHU AND EXIT INTO THE SEA OF JAPAN (SOJ) AROUND TAU 90. BY TAU 120, IT WILL MAKE LANDFALL OVER THE SOUTHERN TIP OF HOKKAIDO. THE FAVORABLE ENVIRONMENT WILL FUEL A GRADUAL INTENSIFICATION TO A PEAK OF 110KTS BY TAU 48 AS THE POLEWARD OUTFLOW, ENHANCED BY THE STRONG WESTERLIES, IS AMPLIFIED. AFTERWARD, LAND INTERACTION, INCREASING VWS, AND COOLER SST IN THE SOJ WILL RAPIDLY ERODE THE SYSTEM DOWN TO 45KTS BY TAU 120. CONCURRENTLY BY TAU 72, TY 11W WILL BEGIN EXTRA-TROPICAL TRANSITION (ETT) AS IT ENTERS THE COLD BAROCLINIC ZONE AND BECOME A STRONG GALE-FORCE COLD CORE LOW WITH AN EXPANDING WIND FIELD BY TAU 120.

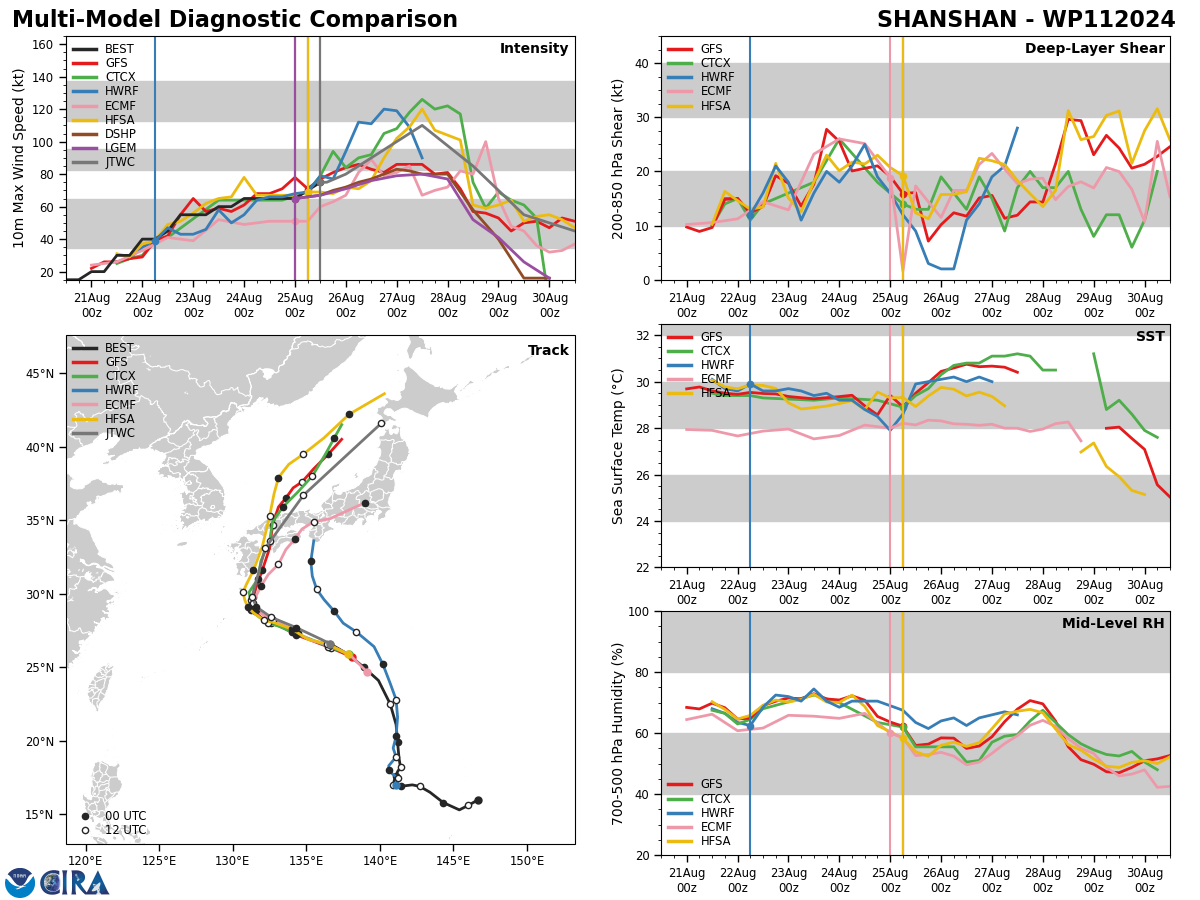

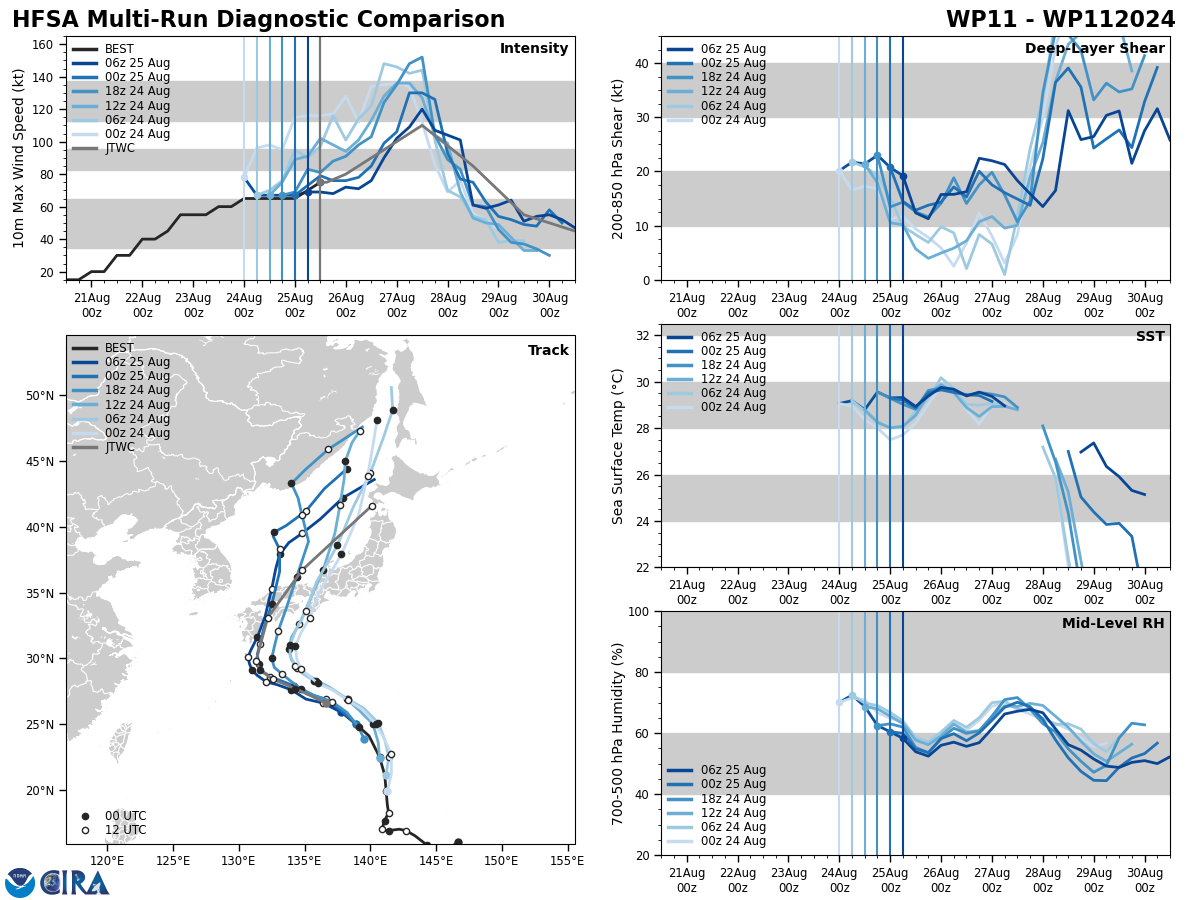

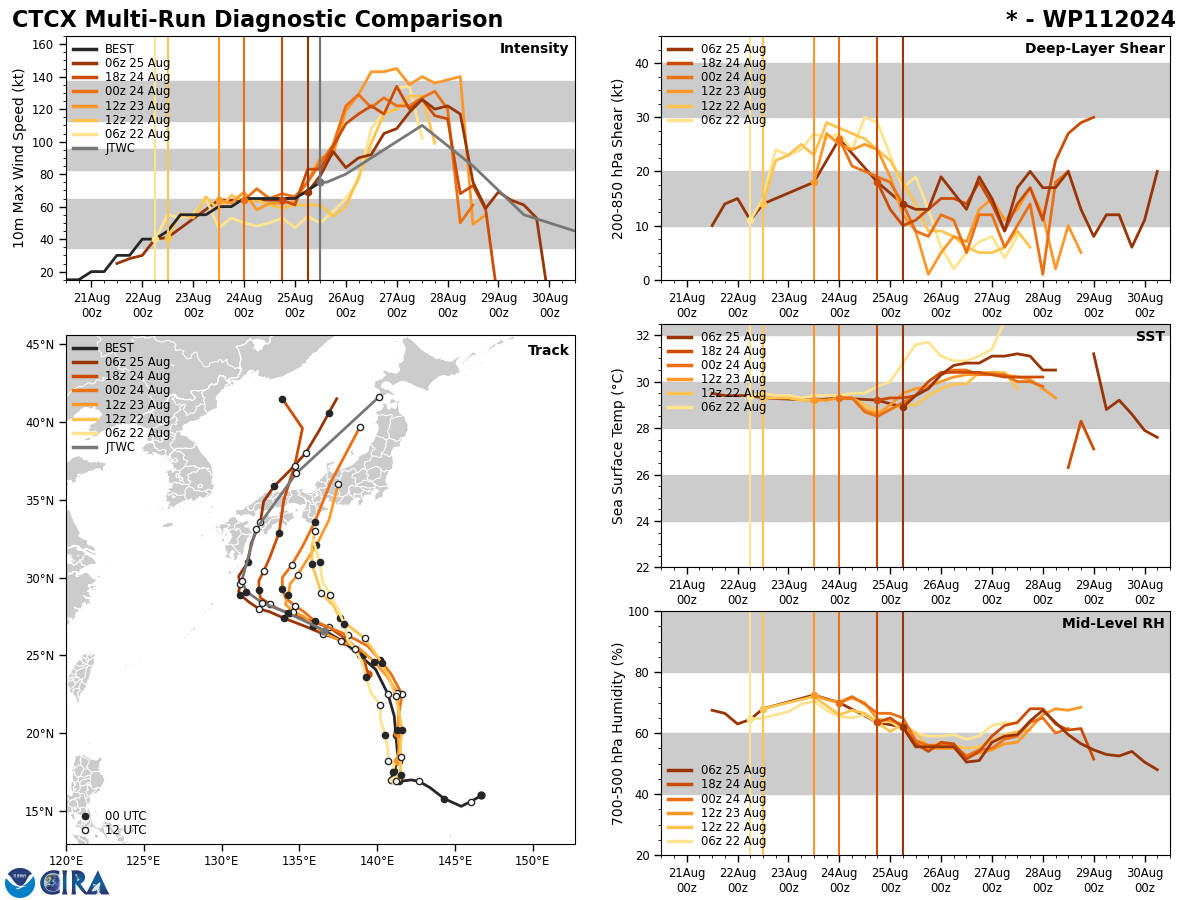

Model Diagnostic Plot
MODEL DISCUSSION: NUMERICAL MODELS ARE IN TIGHT AGREEMENT WITH A GRADUAL AND EVEN SPREAD TO A MERE 100NM BY TAU 72, LENDING HIGH CONFIDENCE TO THE NEAR- TO MID-PORTION OF THE JTWC TRACK FORECAST AND MEDIUM CONFIDENCE TO THE INTENSITY FORECAST. AFTERWARD, THE MODEL ENVELOPE SPREADS OUT UNEVENLY TO 234NM BY TAU 120. THIS WIDE RANGE PLUS THE VARIABILITY ASSOCIATED WITH LAND INTERACTION AND ETT LEND LOW CONFIDENCE TO THE EXTENDED PORTION OF THE TRACK AND INTENSITY FORECASTS.
(287.22 KB)

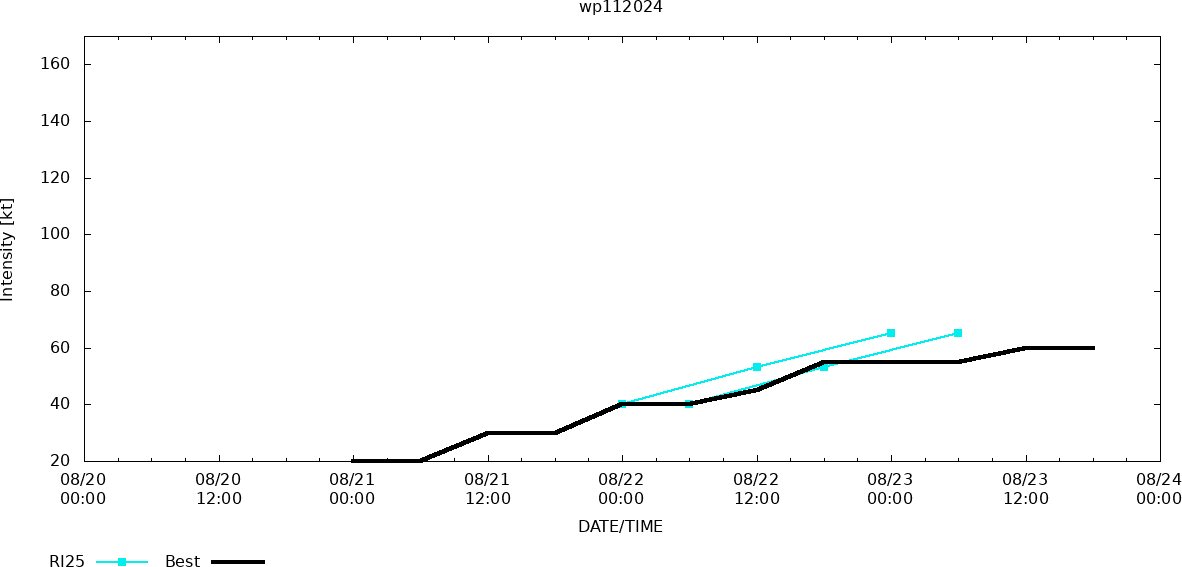

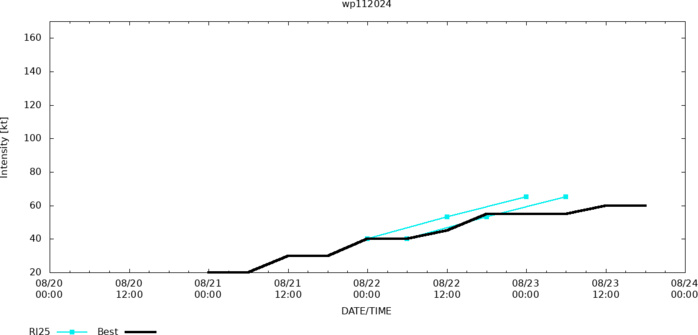

Rapid Intensification Guidance

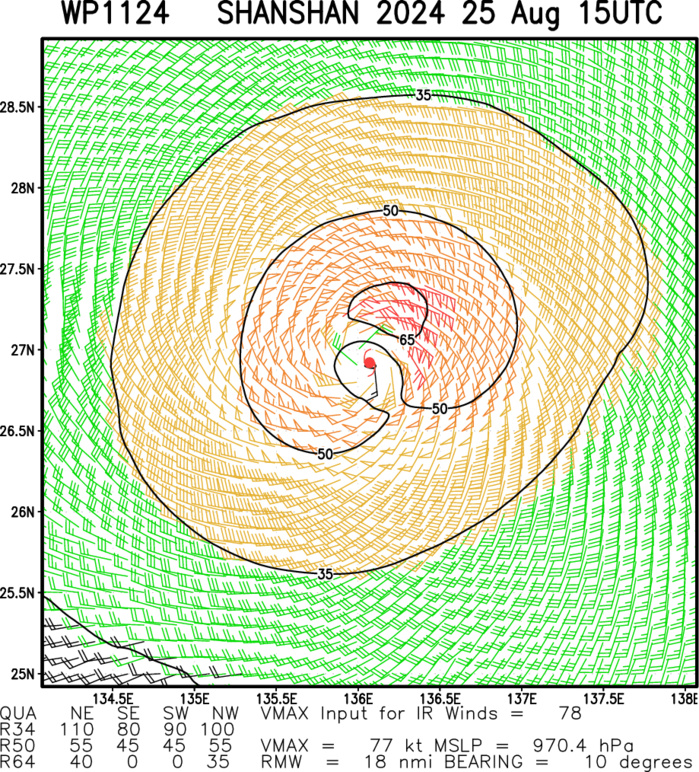

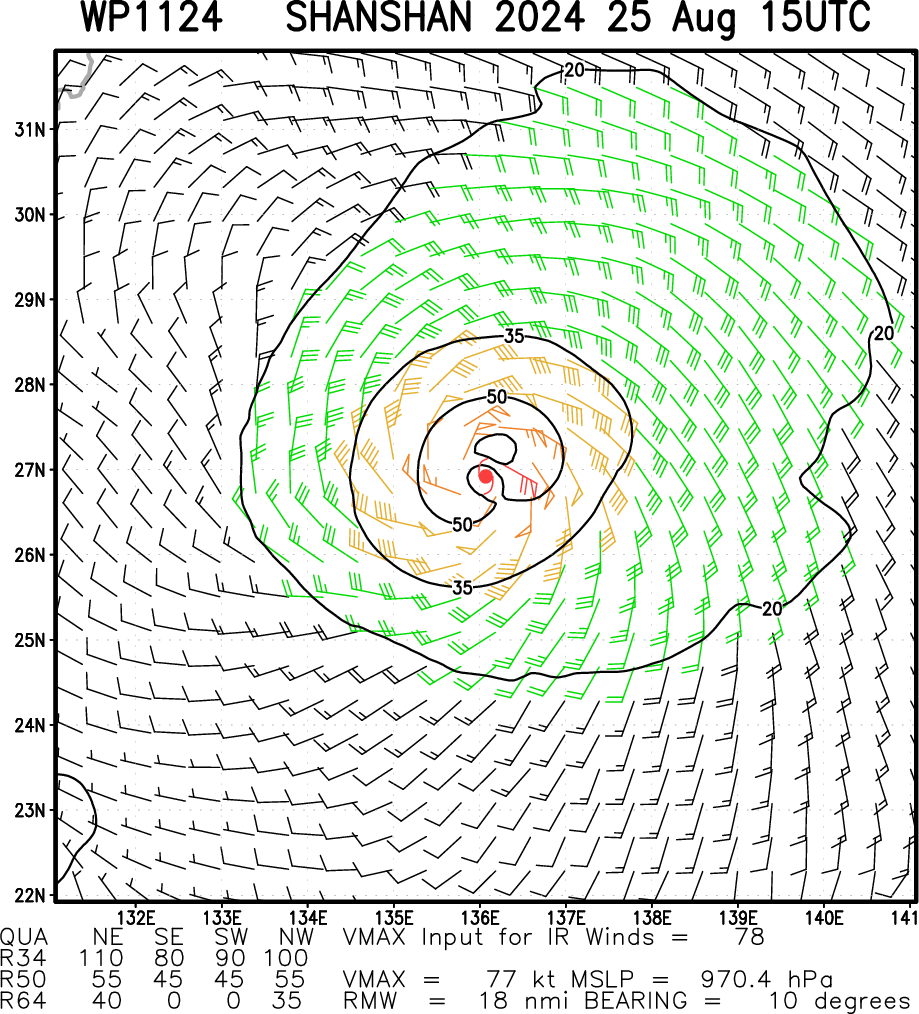

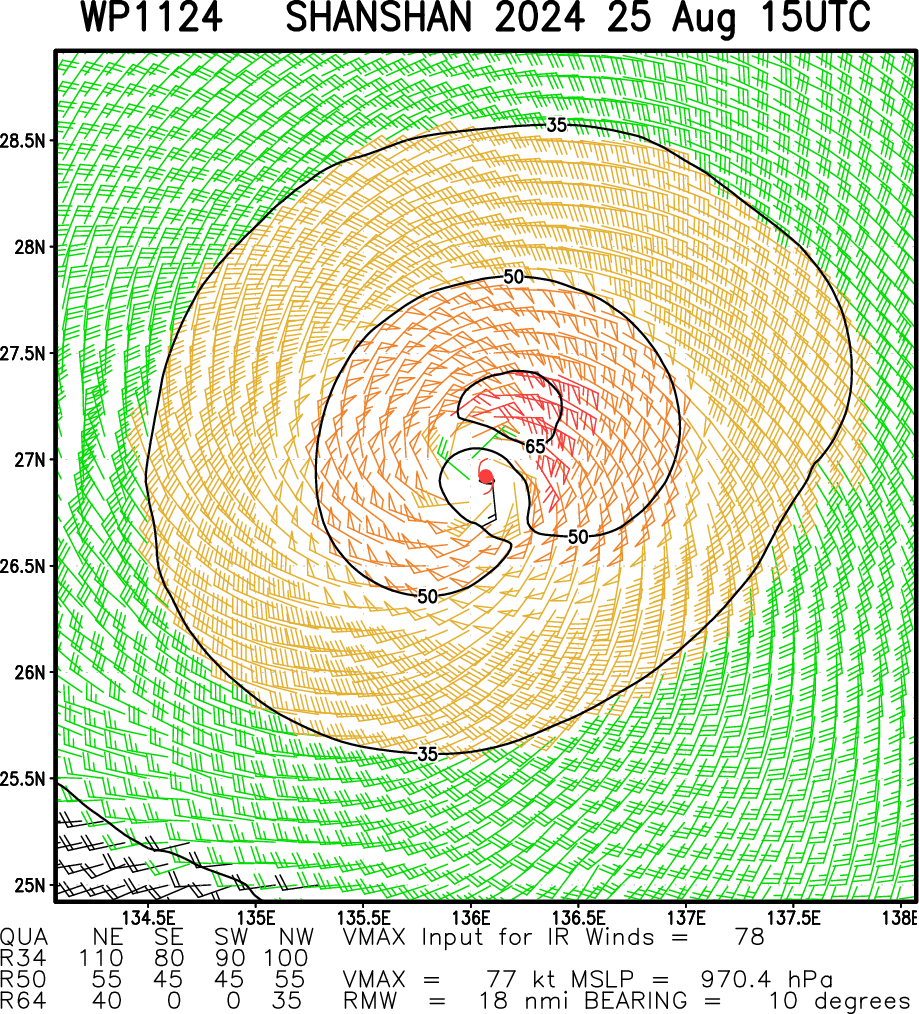

Multiplatform Satellite Surface Wind Analysis (Experimental)
25/1430UTC DVORAK ANALYSIS
TPPN10 PGTW 251502
A. TYPHOON 11W (SHANSHAN)
B. 25/1430Z
C. 27.02N
D. 135.87E
E. THREE/GK2A
F. T4.5/4.5/D1.0/24HRS STT: S0.0/03HRS
G. IR/EIR
H. REMARKS: 30A/PBO CDO OR EMB CNTR POS W MICROWAVE/ANMTN. LLCC
EMBEDDED IN MG YIELDS A CF OF 4.0. ADDED 0.5 FOR BF TO YIELD A DT
OF 4.5. MET YIELDS A 4.0. PT YIELDS A 4.5. DBO DT.
I. ADDITIONAL POSITIONS:
25/1137Z 26.50N 136.57E AMSU
LINDGREN
A. TYPHOON 11W (SHANSHAN)
B. 25/1430Z
C. 27.02N
D. 135.87E
E. THREE/GK2A
F. T4.5/4.5/D1.0/24HRS STT: S0.0/03HRS
G. IR/EIR
H. REMARKS: 30A/PBO CDO OR EMB CNTR POS W MICROWAVE/ANMTN. LLCC
EMBEDDED IN MG YIELDS A CF OF 4.0. ADDED 0.5 FOR BF TO YIELD A DT
OF 4.5. MET YIELDS A 4.0. PT YIELDS A 4.5. DBO DT.
I. ADDITIONAL POSITIONS:
25/1137Z 26.50N 136.57E AMSU
LINDGREN

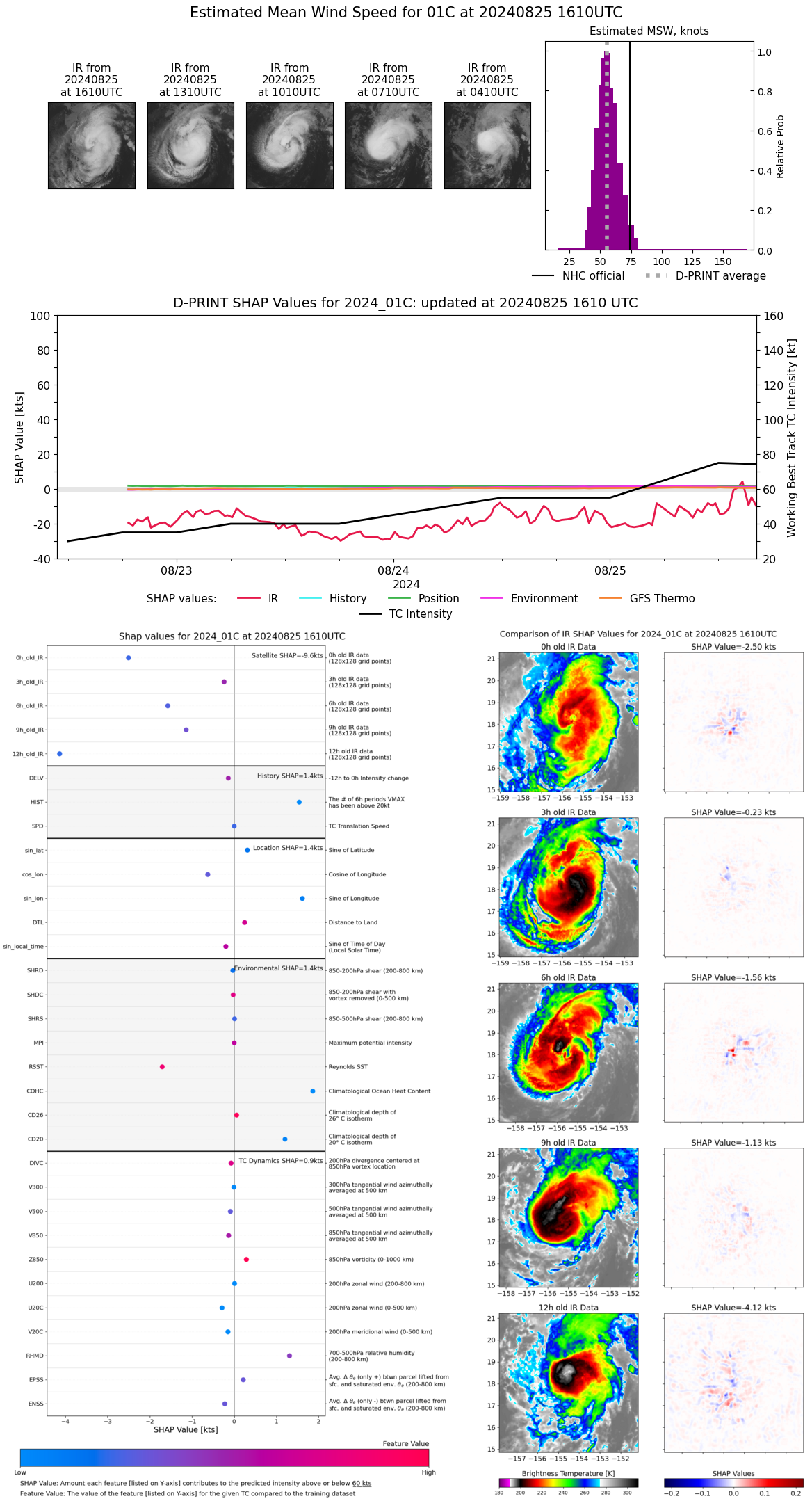

CENTRAL NORTH PACIFIC: HU 01C(HONE). 2512UTC ESTIMATED INTENSITY IS 75 KNOTS/CAT 1 US: + 20 KNOTS OVER 24 HOURS
0124082300 158N1429W 35
0124082306 159N1441W 40
0124082312 162N1455W 40
0124082318 166N1470W 40
0124082400 168N1486W 45
0124082406 172N1499W 50
0124082412 174N1513W 55
0124082418 176N1526W 55
0124082500 179N1538W 55
0124082506 181N1548W 65
0124082512 181N1557W 75
0124082306 159N1441W 40
0124082312 162N1455W 40
0124082318 166N1470W 40
0124082400 168N1486W 45
0124082406 172N1499W 50
0124082412 174N1513W 55
0124082418 176N1526W 55
0124082500 179N1538W 55
0124082506 181N1548W 65
0124082512 181N1557W 75

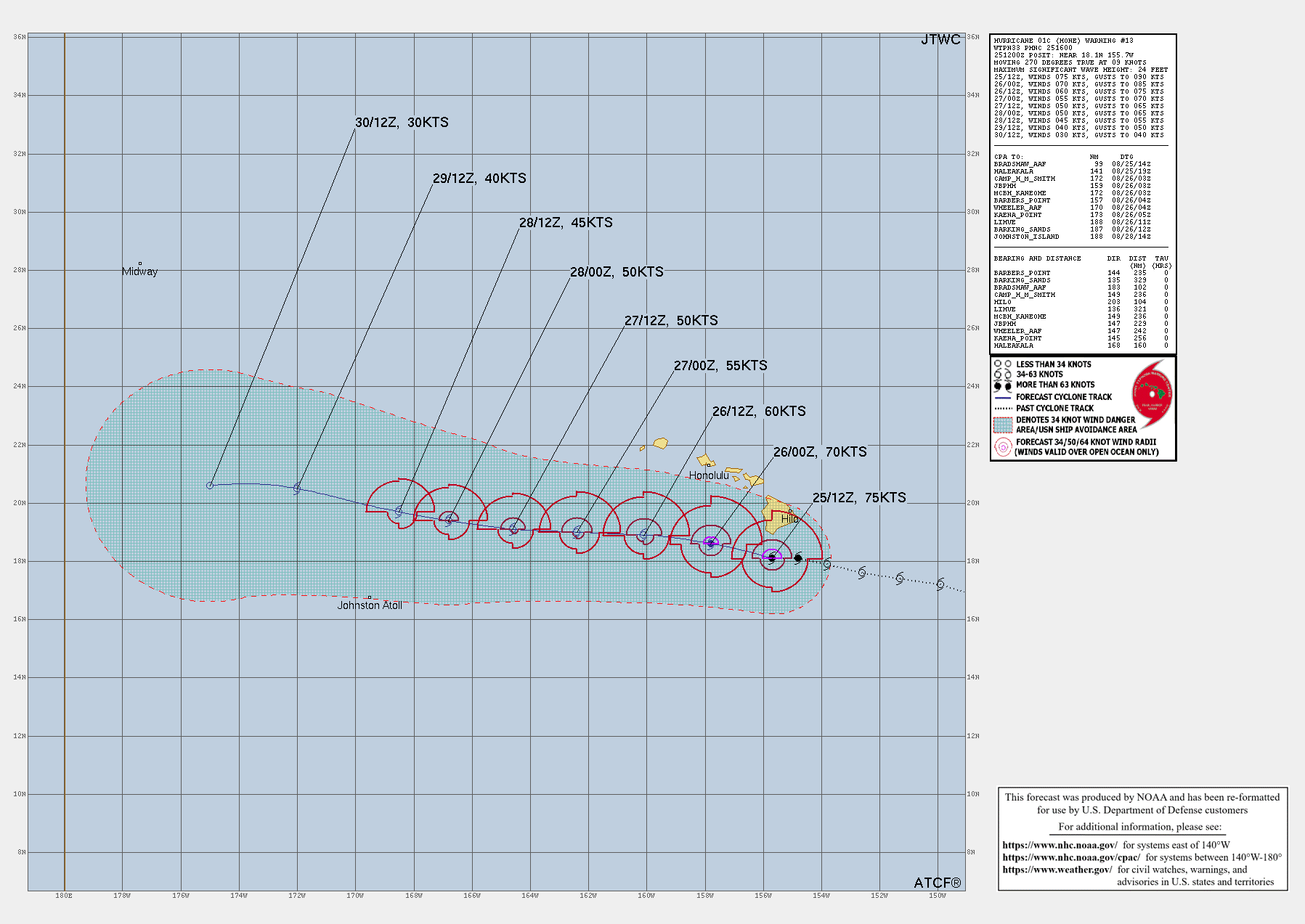

TC Warning Graphic

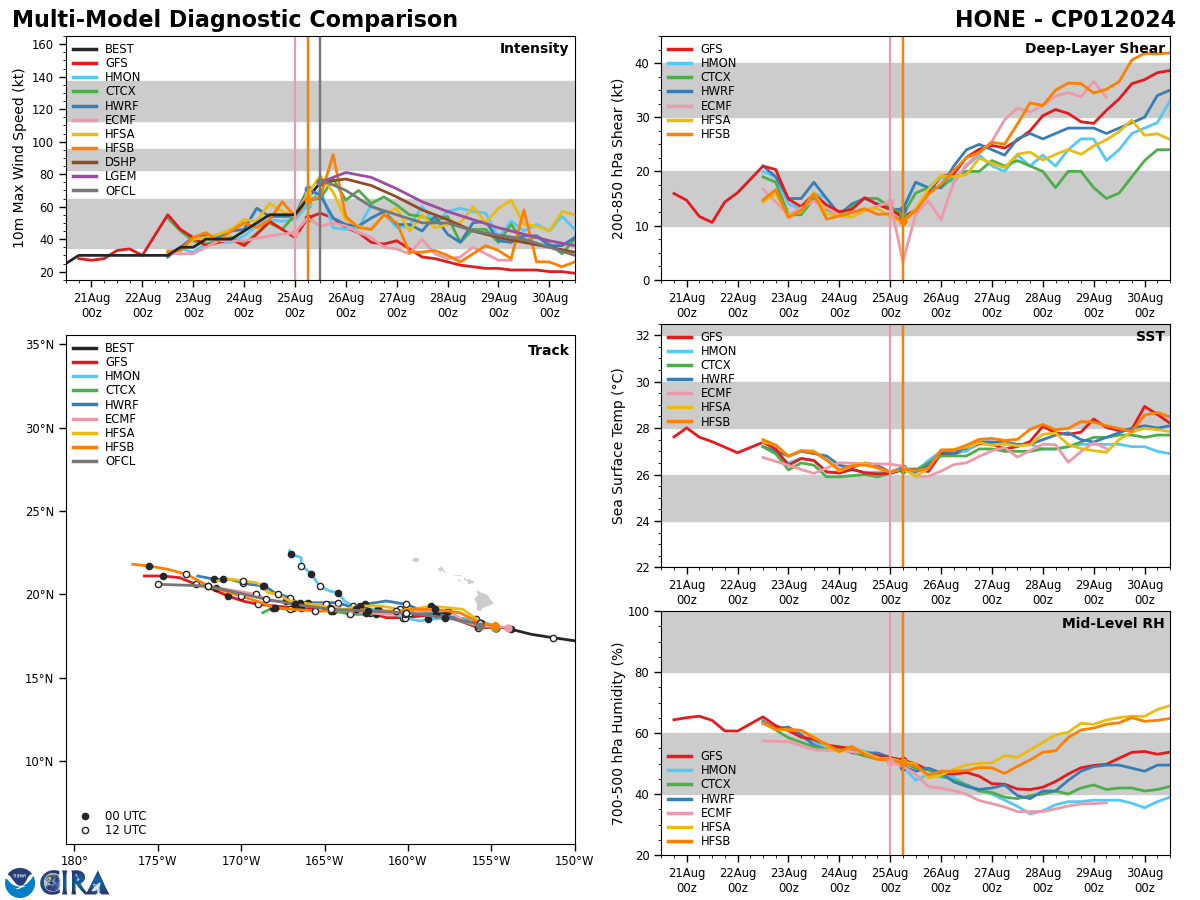

Model Diagnostic Plot

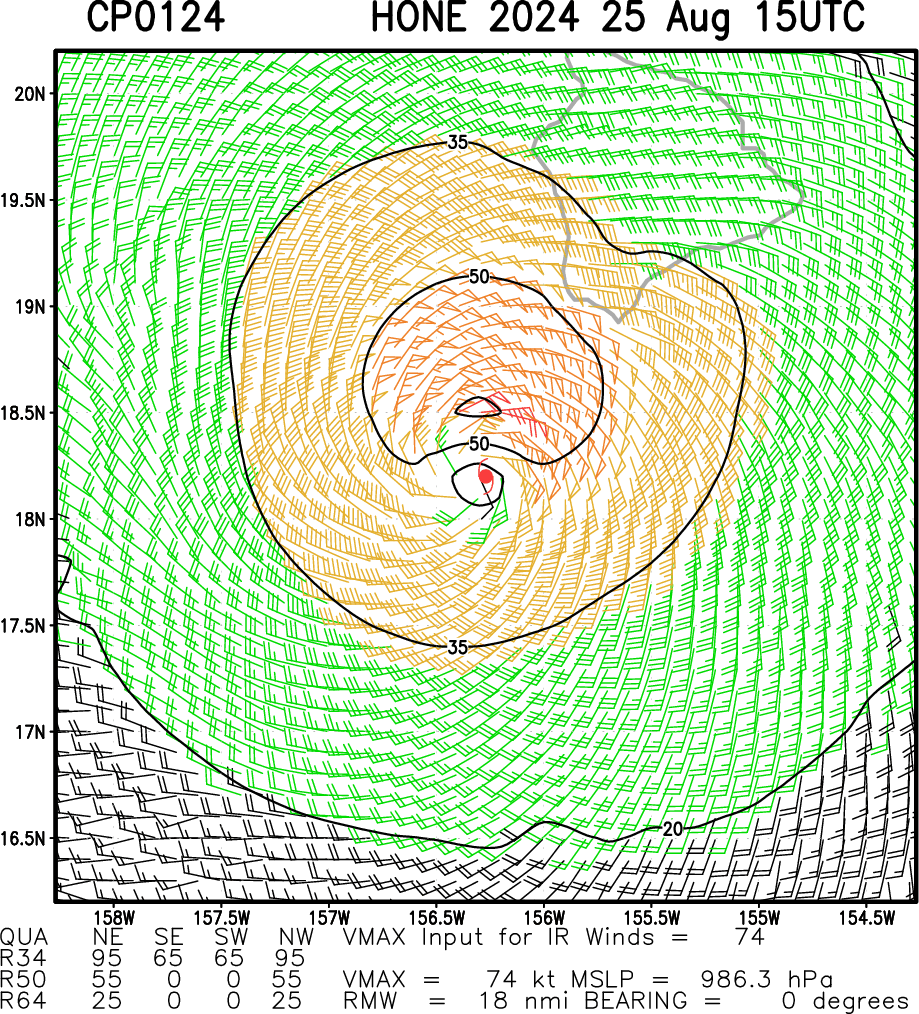

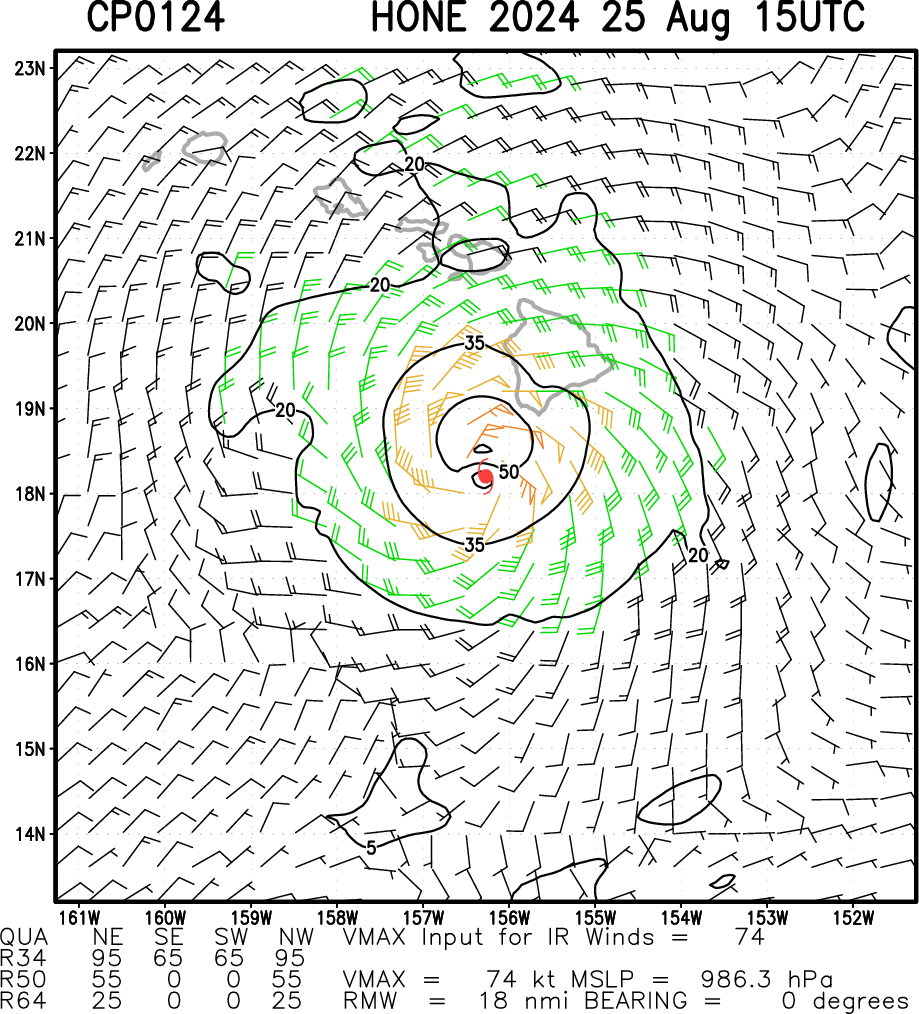

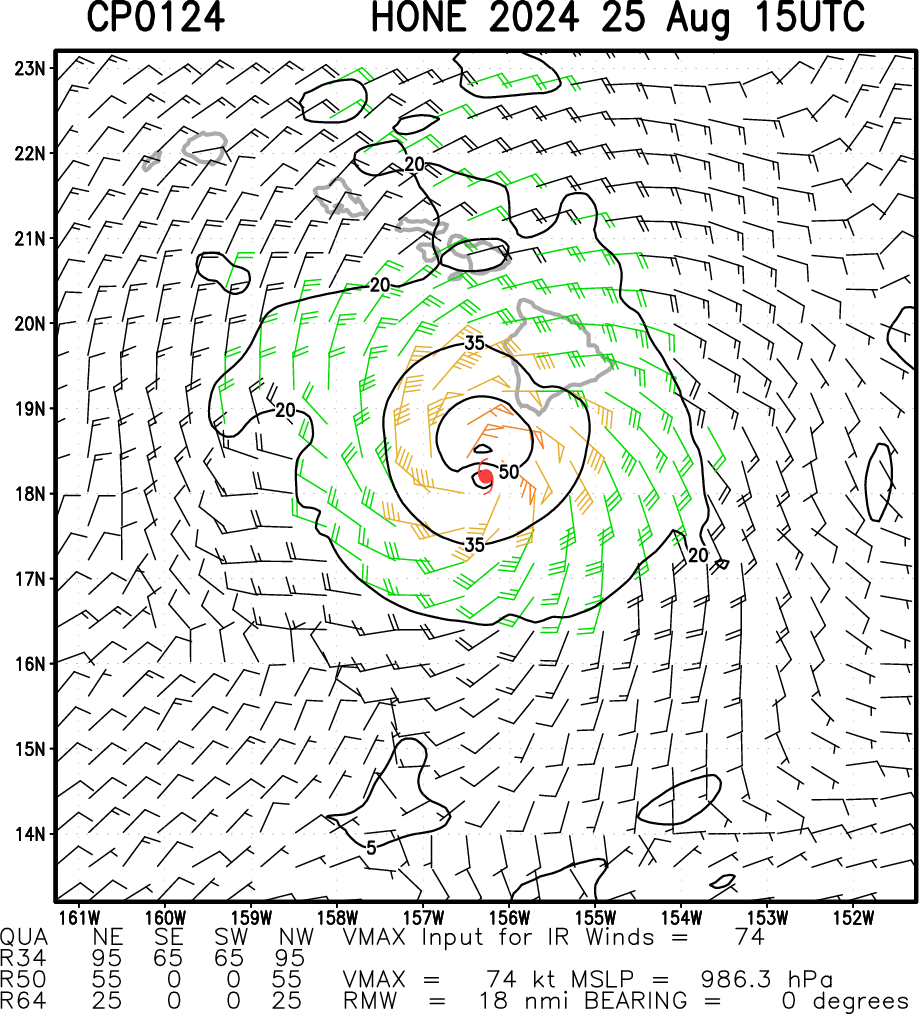

Multiplatform Satellite Surface Wind Analysis (Experimental)
25/14UTC DVORAK ANALYSIS
TPPZ01 PGTW 251412
A. HURRICANE 01C (HONE)
B. 25/1400Z
C. 18.36N
D. 155.87W
E. THREE/GOES18
F. T4.0/4.0/D1.0/24HRS STT: D0.5/03HRS
G. IR/EIR
H. REMARKS: 13A/PBO TIGHTLY CURVED BNDG/ANMTN. CNVCTN WRAPS 1.2 ON
LOG10 SPIRAL YIELDING A DT OF 4.0. MET YIELDS 4.0. PT YIELDS 4.0.
DBO DT.
I. ADDITIONAL POSITIONS: NONE
LINDGREN
A. HURRICANE 01C (HONE)
B. 25/1400Z
C. 18.36N
D. 155.87W
E. THREE/GOES18
F. T4.0/4.0/D1.0/24HRS STT: D0.5/03HRS
G. IR/EIR
H. REMARKS: 13A/PBO TIGHTLY CURVED BNDG/ANMTN. CNVCTN WRAPS 1.2 ON
LOG10 SPIRAL YIELDING A DT OF 4.0. MET YIELDS 4.0. PT YIELDS 4.0.
DBO DT.
I. ADDITIONAL POSITIONS: NONE
LINDGREN

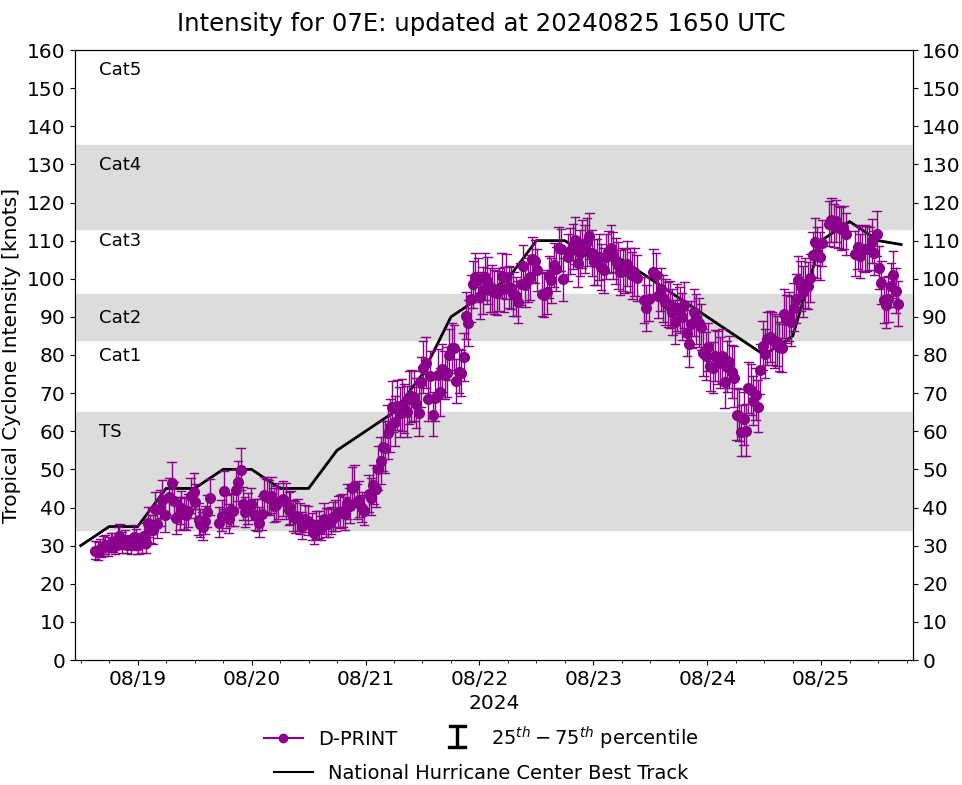

EASTERN NORTH PACIFIC: HU 07E(GILMA). 2512UTC ESTIMATED INTENSITY IS 110 KNOTS/CAT 3 US: + 30 KNOTS OVER 24 HOURS
0724082206 165N1239W 100
0724082212 167N1242W 110
0724082218 169N1247W 110
0724082300 172N1252W 105
0724082306 173N1258W 105
0724082312 173N1264W 100
0724082318 172N1272W 95
0724082400 174N1280W 90
0724082406 175N1289W 85
0724082412 175N1296W 80
0724082418 176N1305W 85
0724082500 177N1314W 110
0724082506 179N1321W 115
0724082512 179N1331W 110
0724082212 167N1242W 110
0724082218 169N1247W 110
0724082300 172N1252W 105
0724082306 173N1258W 105
0724082312 173N1264W 100
0724082318 172N1272W 95
0724082400 174N1280W 90
0724082406 175N1289W 85
0724082412 175N1296W 80
0724082418 176N1305W 85
0724082500 177N1314W 110
0724082506 179N1321W 115
0724082512 179N1331W 110

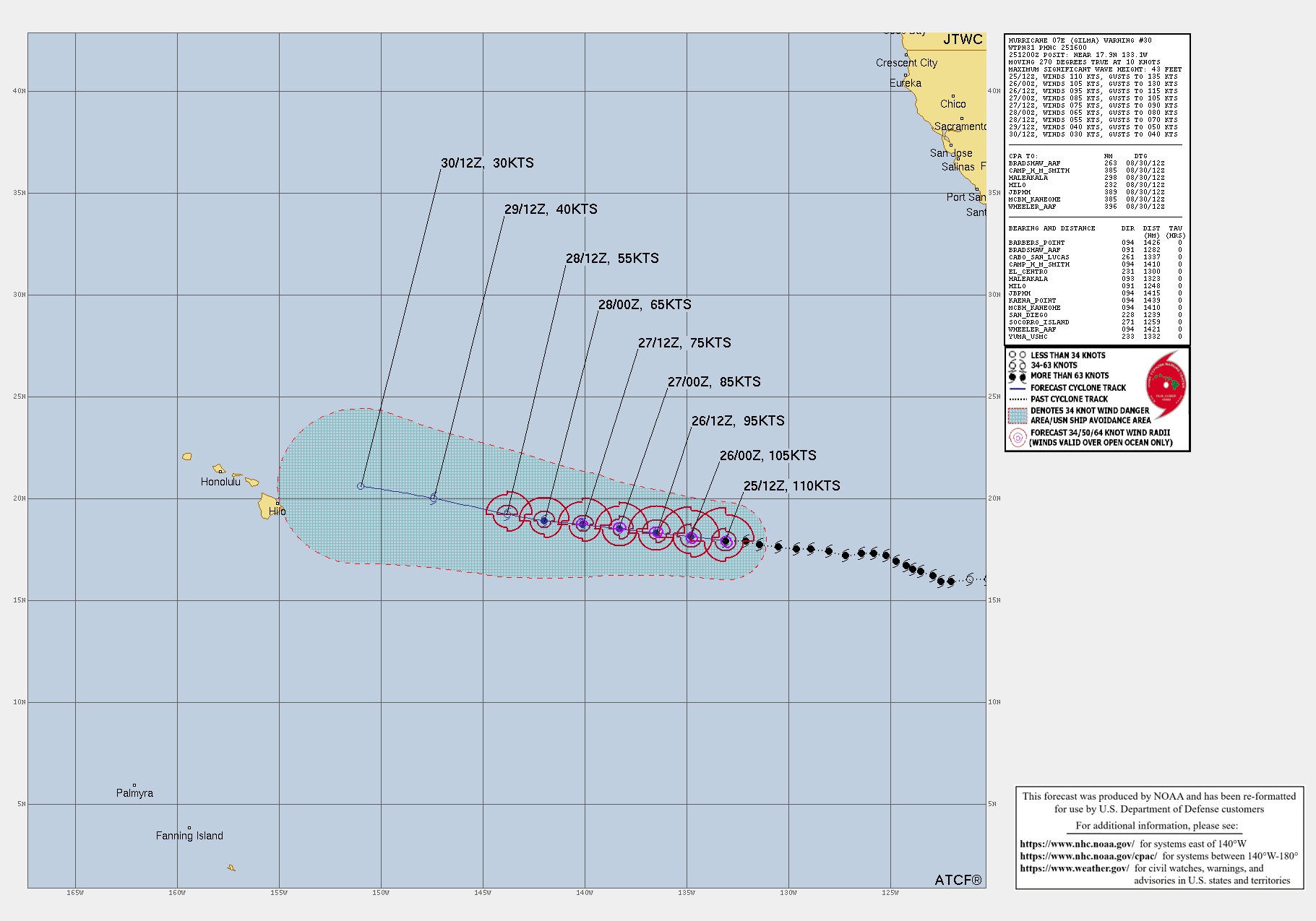

TC Warning Graphic

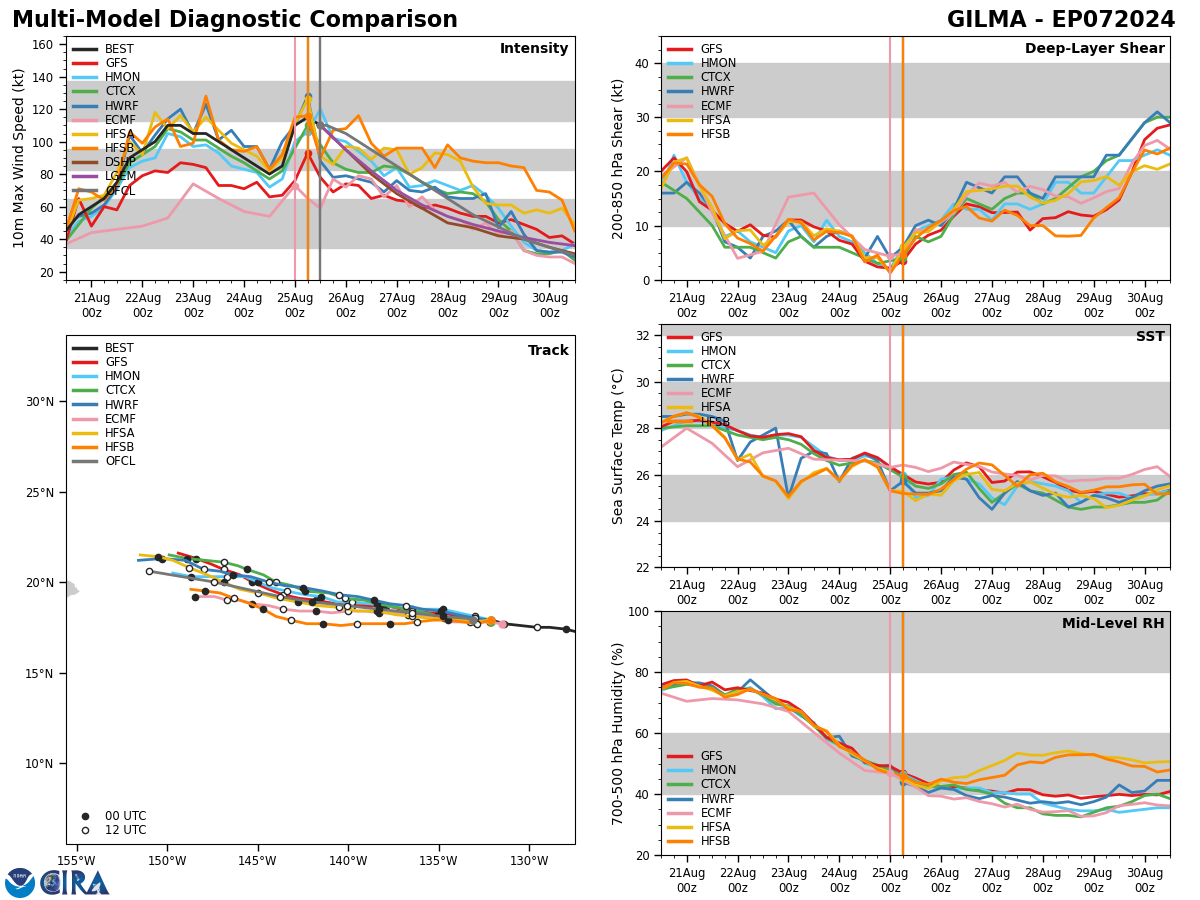

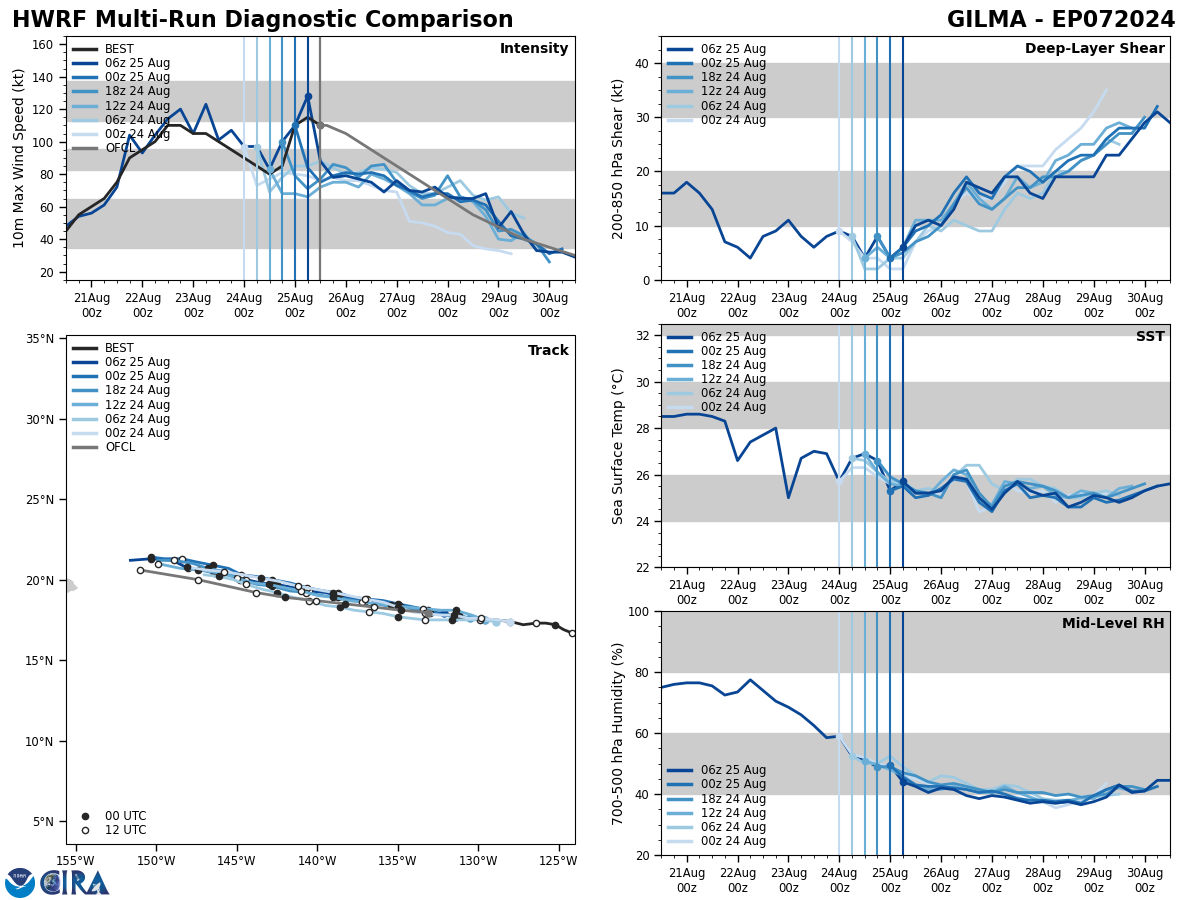

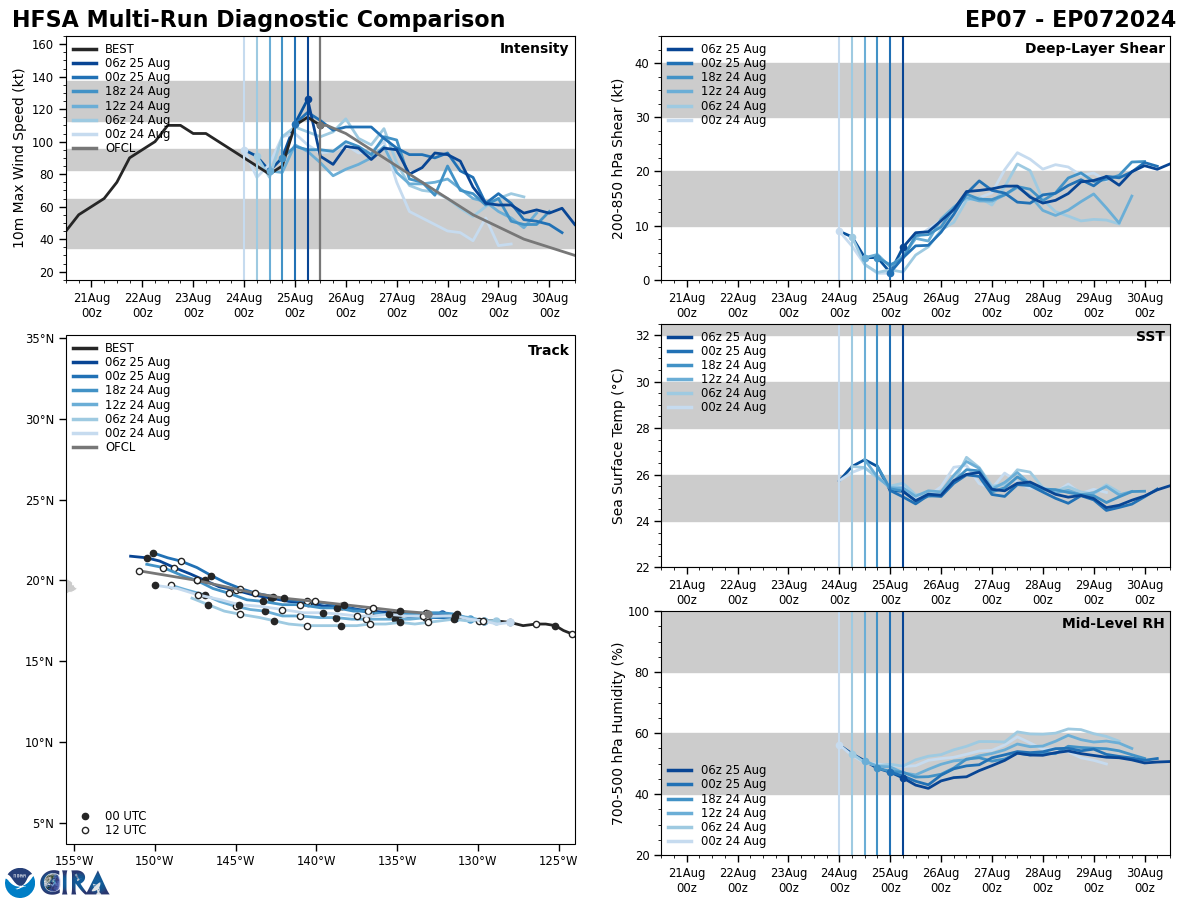

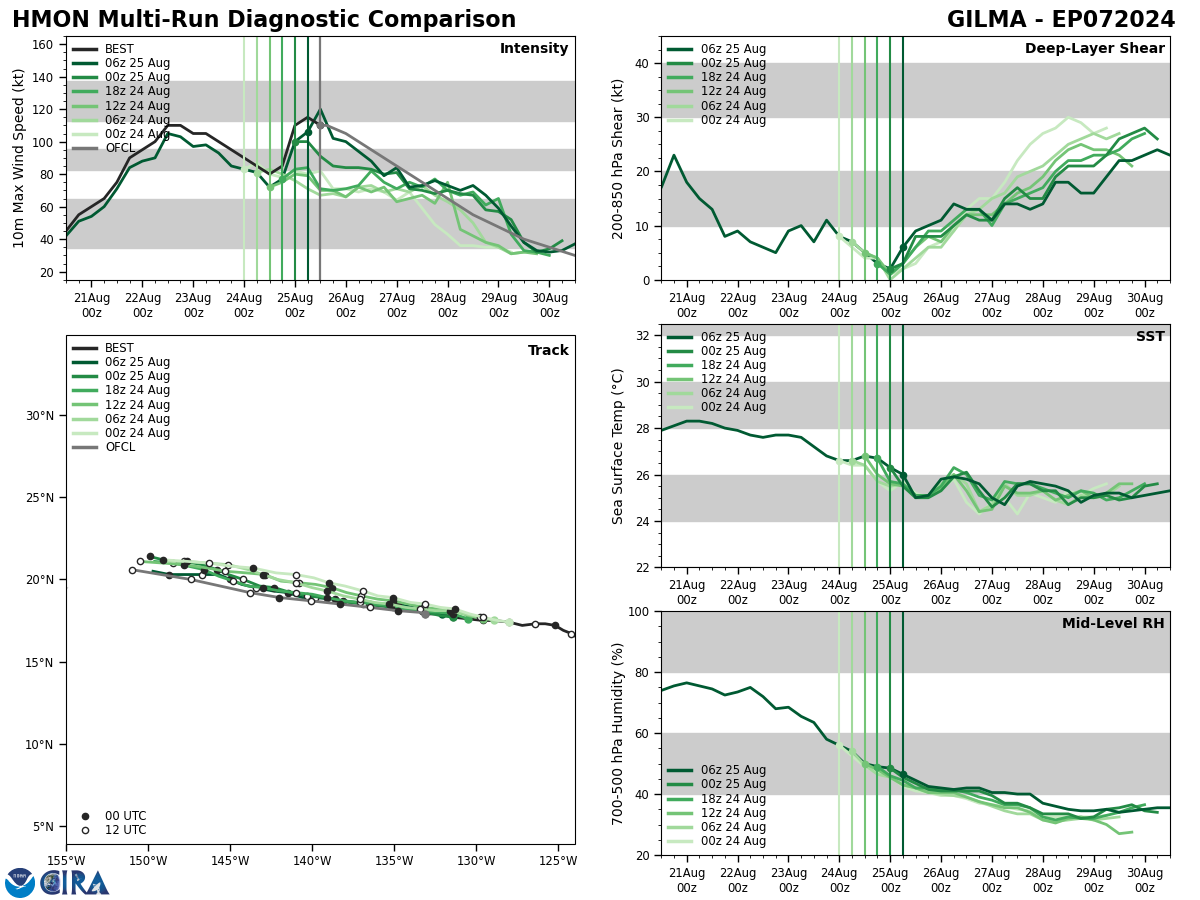

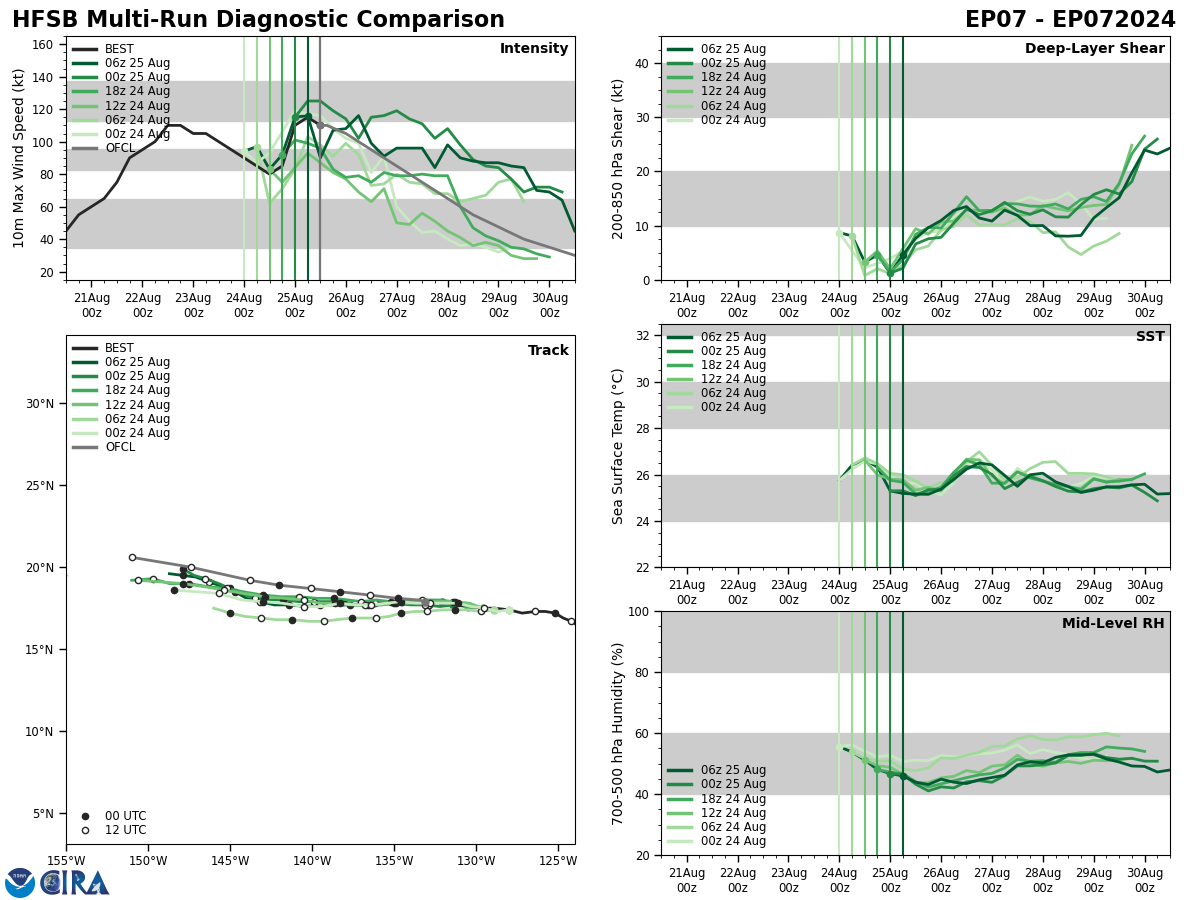

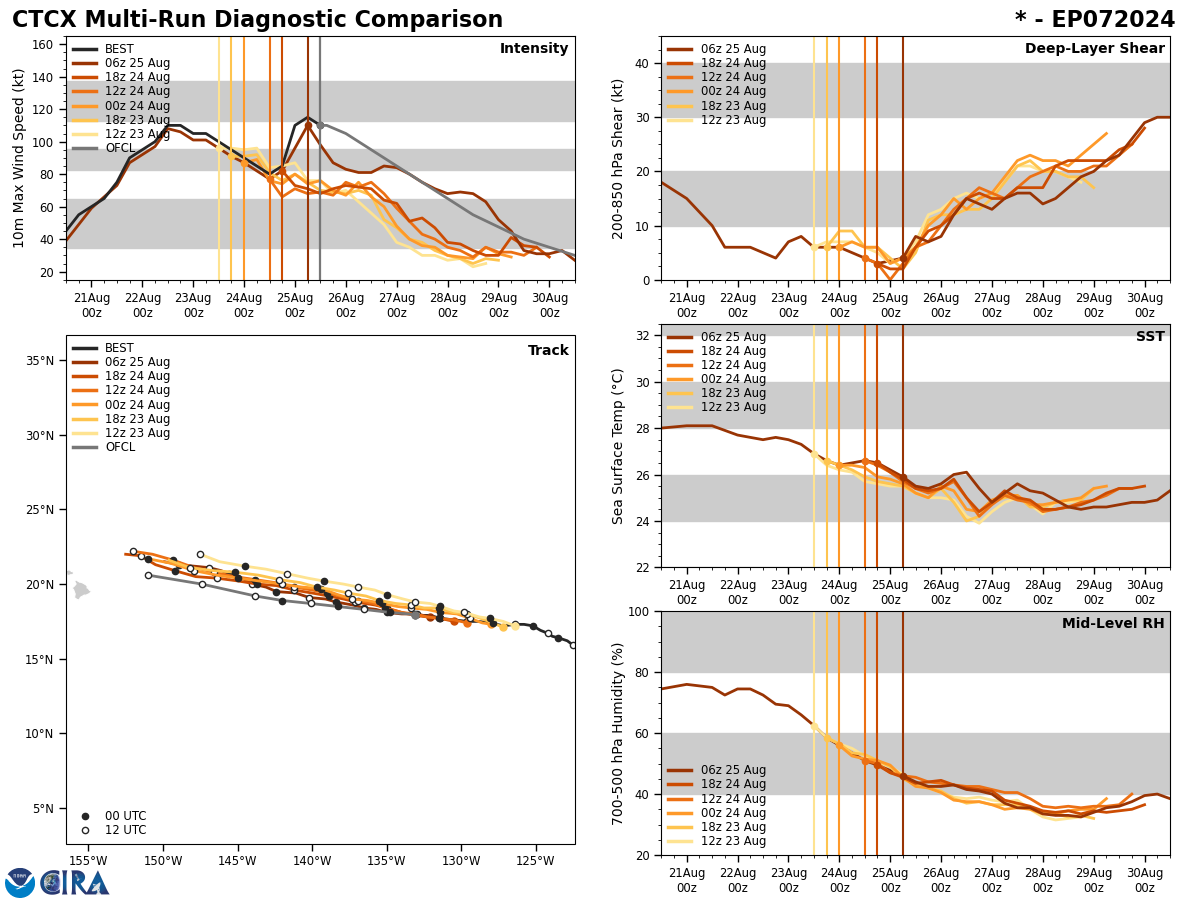

Model Diagnostic Plot
(216.18 KB)

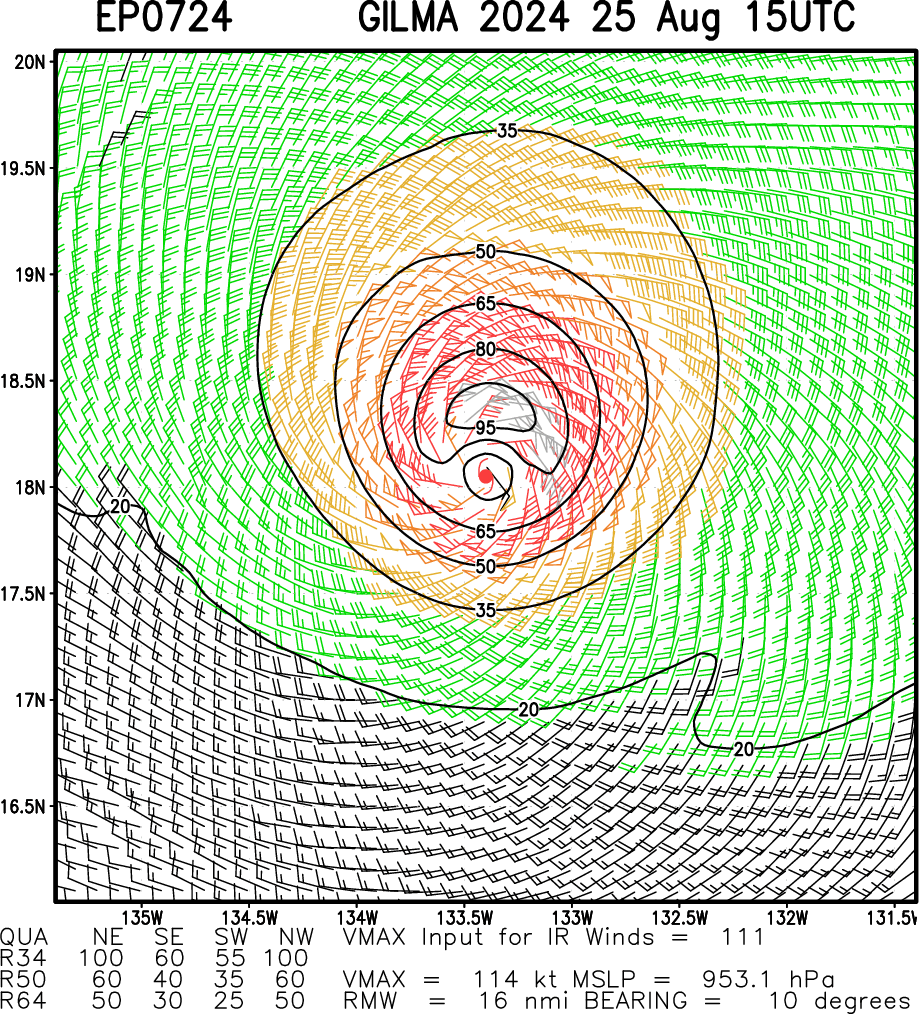

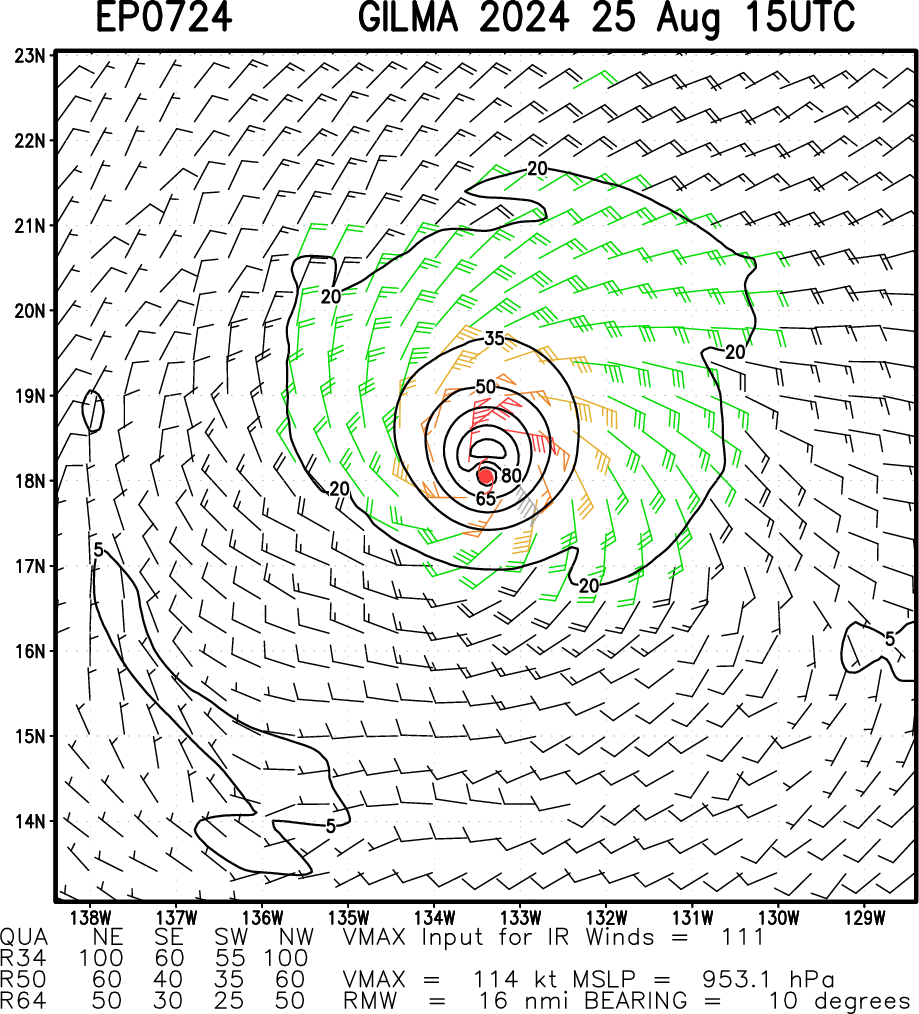

Multiplatform Satellite Surface Wind Analysis (Experimental)

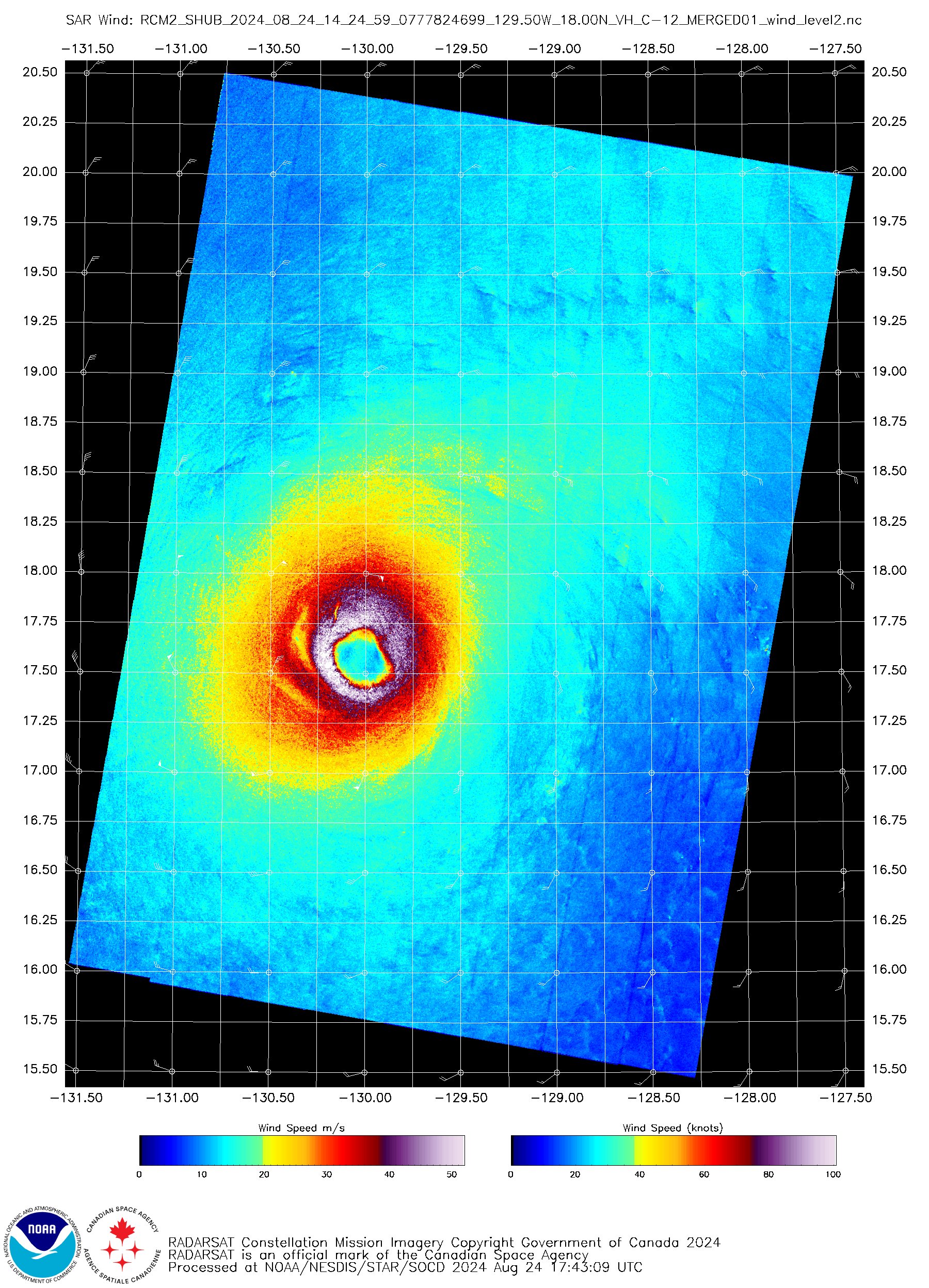

2024 0824 1424UTC RCM-2, STAR Synthetic Aperture Radar 3KM Wind Speed Analysis 105 KNOTS(1 MINUTE)

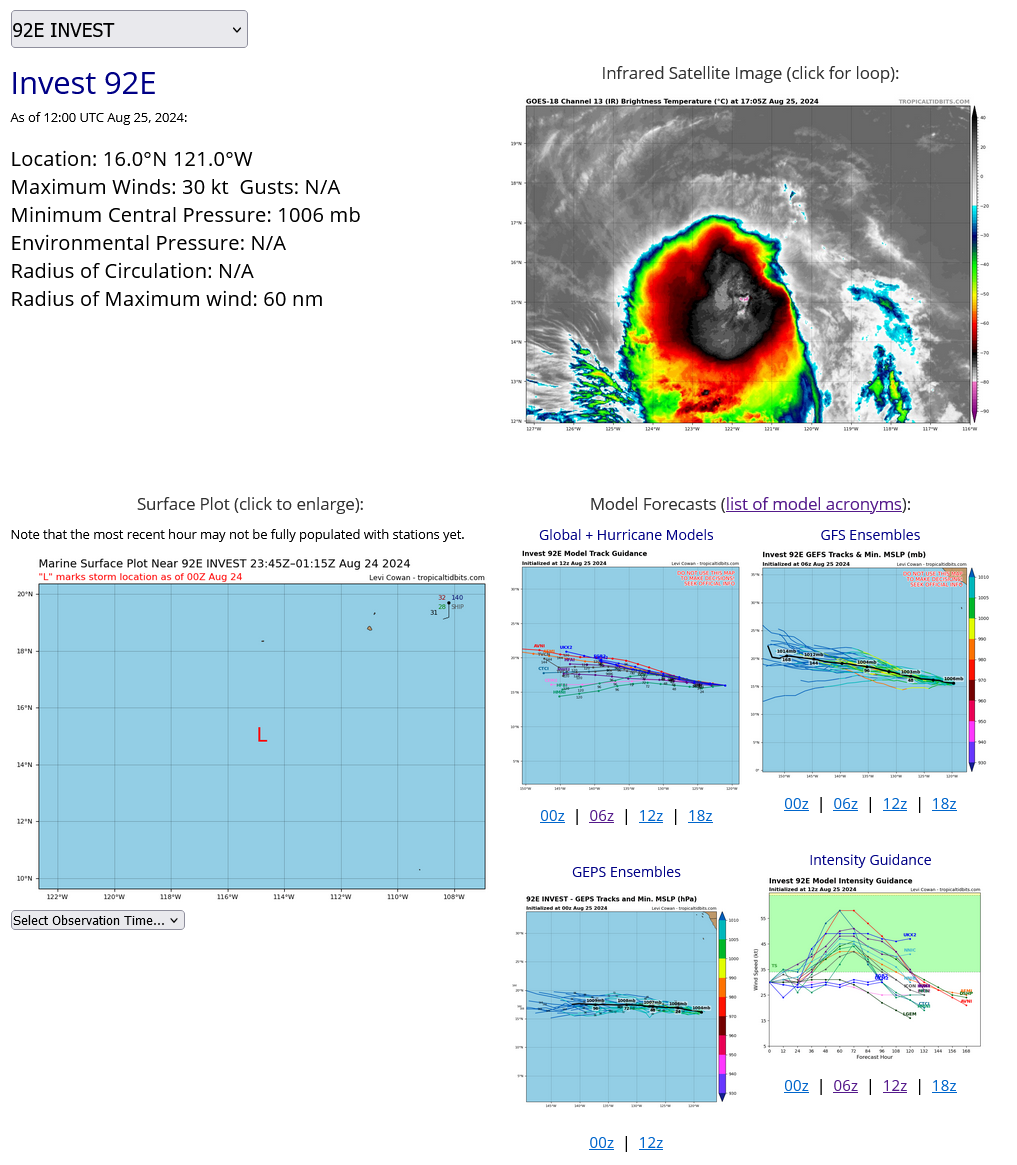

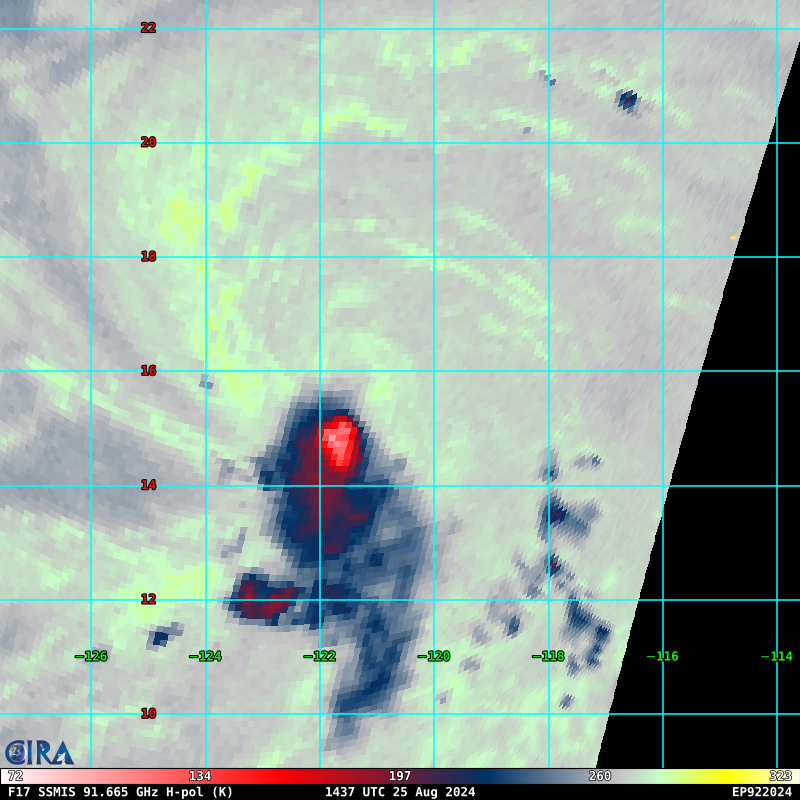

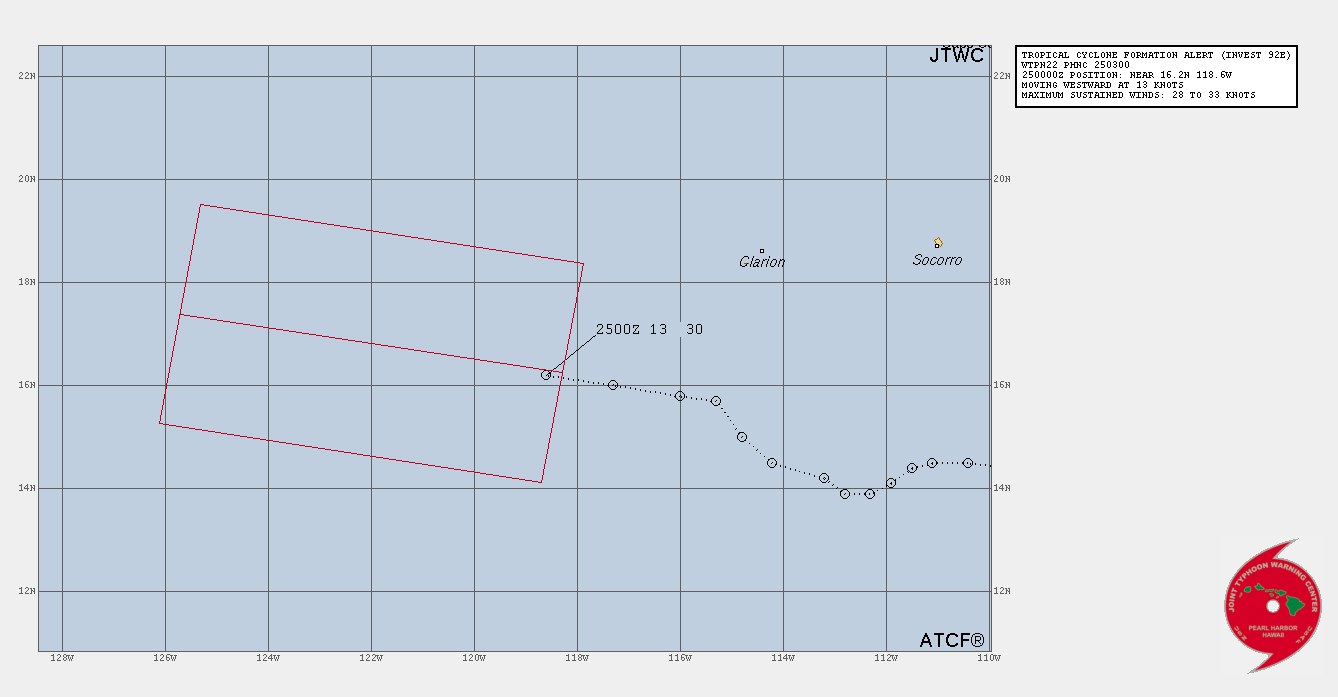

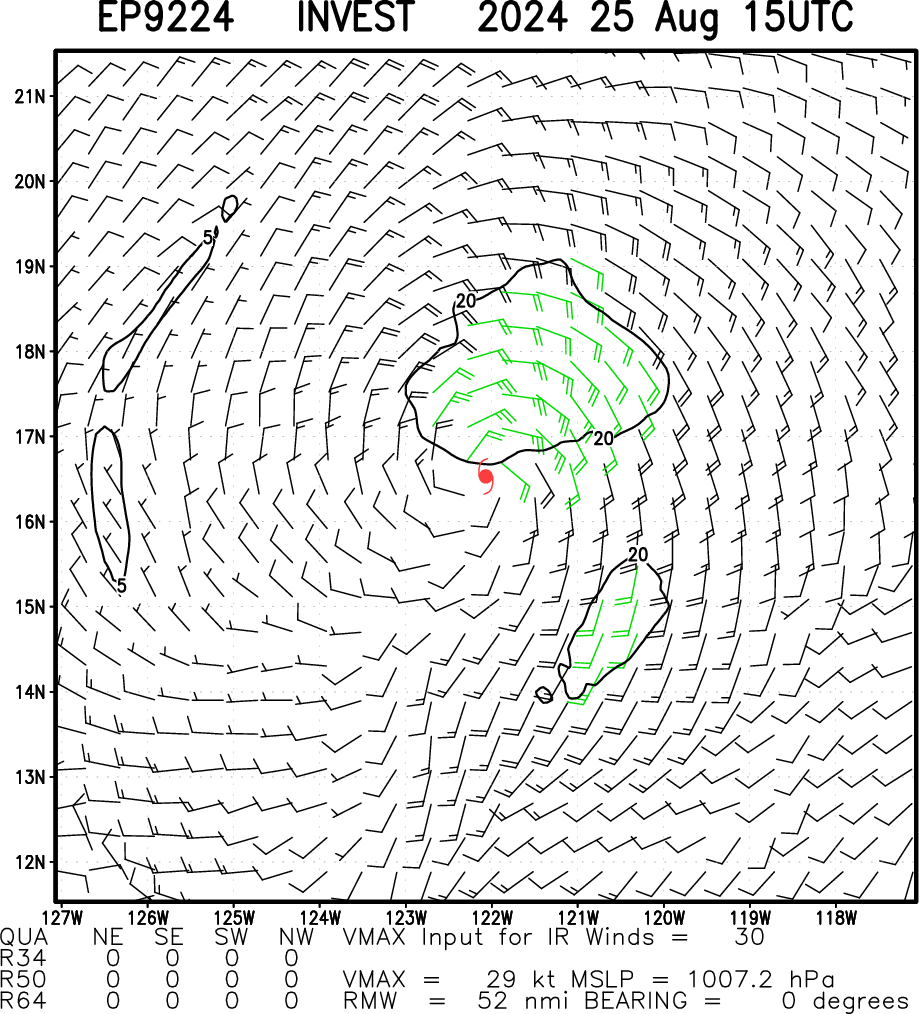

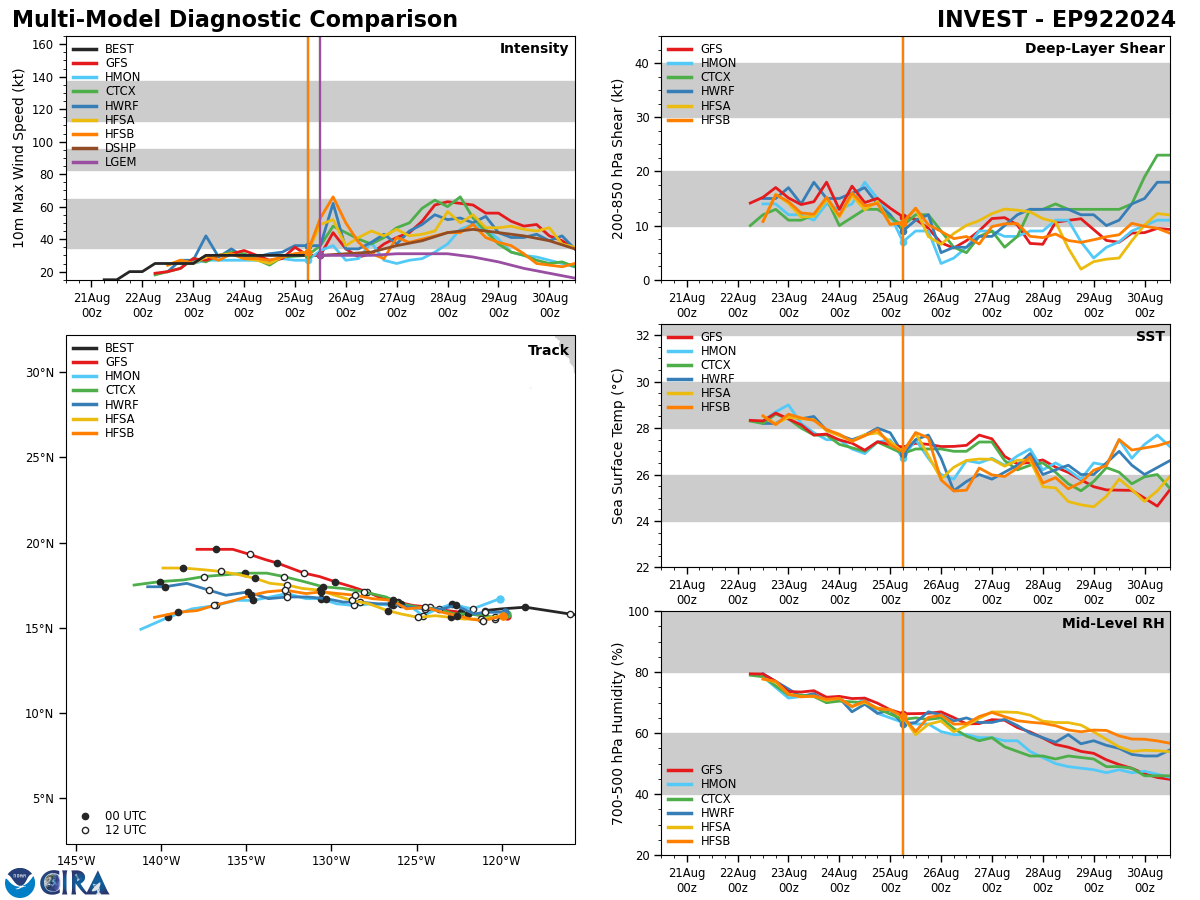

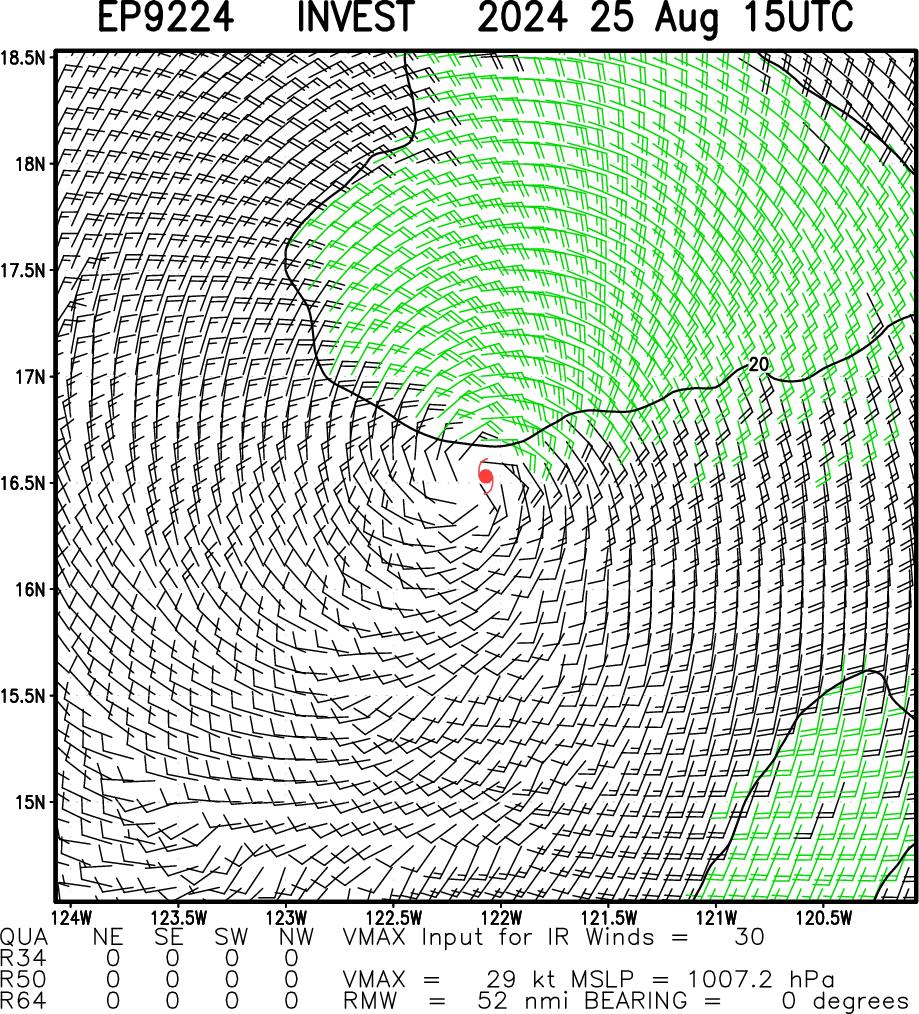

EASTERN NORTH PACIFIC: INVEST 92E. 2512UTC ESTIMATED LOCATION AND INTENSITY
9224082106 143N1078W 15
9224082112 143N1086W 15
9224082118 144N1095W 20
9224082200 145N1104W 20
9224082206 145N1111W 25
9224082212 144N1115W 25
9224082218 141N1119W 25
9224082300 139N1123W 25
9224082306 139N1128W 30
9224082312 142N1132W 30
9224082318 145N1142W 30
9224082400 150N1148W 30
9224082406 157N1153W 30
9224082412 158N1160W 30
9224082418 160N1173W 30
9224082500 162N1186W 30
9224082506 163N1200W 30
9224082512 160N1210W 30
9224082112 143N1086W 15
9224082118 144N1095W 20
9224082200 145N1104W 20
9224082206 145N1111W 25
9224082212 144N1115W 25
9224082218 141N1119W 25
9224082300 139N1123W 25
9224082306 139N1128W 30
9224082312 142N1132W 30
9224082318 145N1142W 30
9224082400 150N1148W 30
9224082406 157N1153W 30
9224082412 158N1160W 30
9224082418 160N1173W 30
9224082500 162N1186W 30
9224082506 163N1200W 30
9224082512 160N1210W 30
