Typhoon 04W(TALIM) peaking and crossing LEIZHOU peninsula landfall near VIETNAM/CHINA border shortly after 24h//Invest 98W//1703utc



CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

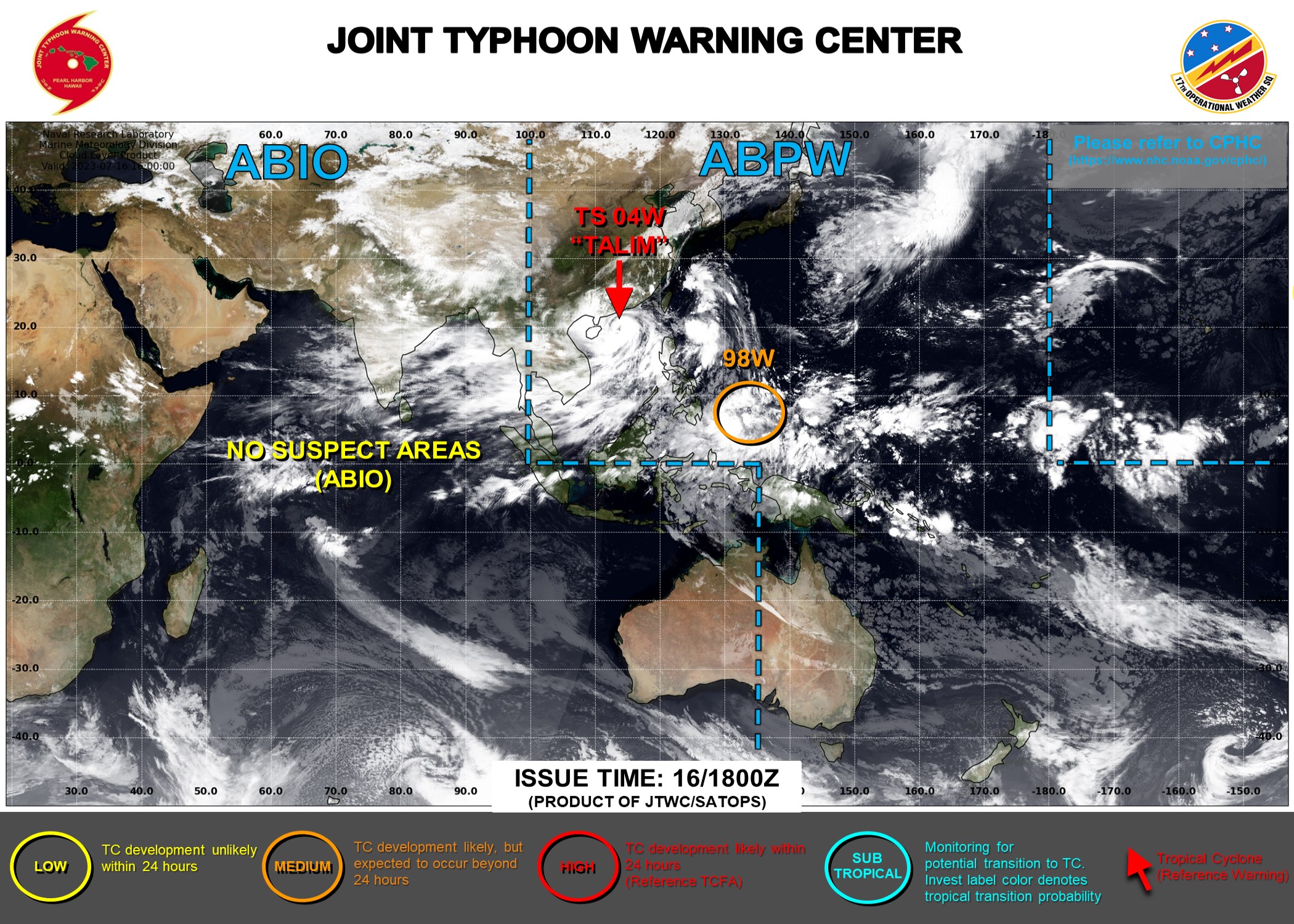

JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON TY 04W(TALIM).
JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON TY 04W(TALIM).

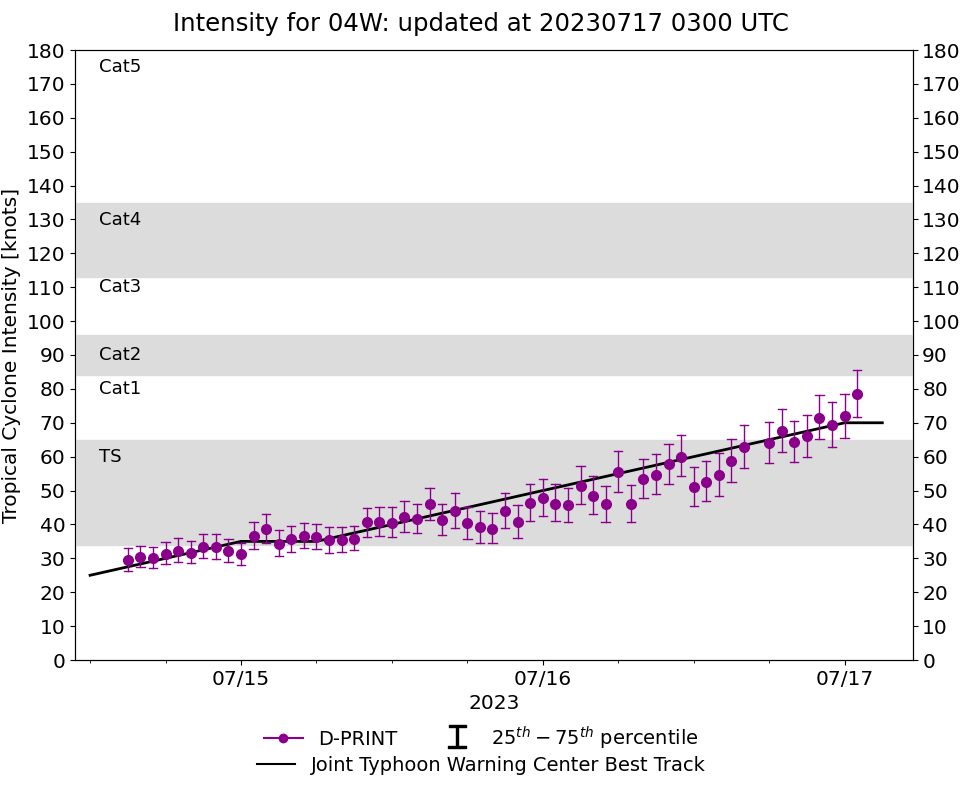

WESTERN NORTH PACIFIC: TY 04W(TALIM). WARNING 11 ISSUED AT 170300UTC. CURRENT ESTIMATED INTENSITY IS 70 KNOTS/CAT 1 US: +20 KNOTS/24H.

0423071518 188N1169E  45
0423071600 191N1164E  50
0423071606 193N1158E  55
0423071612 195N1148E  60
0423071618 197N1141E  65
0423071700 202N1131E  70

Typhoon 04W(TALIM) peaking and crossing LEIZHOU peninsula landfall near VIETNAM/CHINA border shortly after 24h//Invest 98W//1703utc

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED.

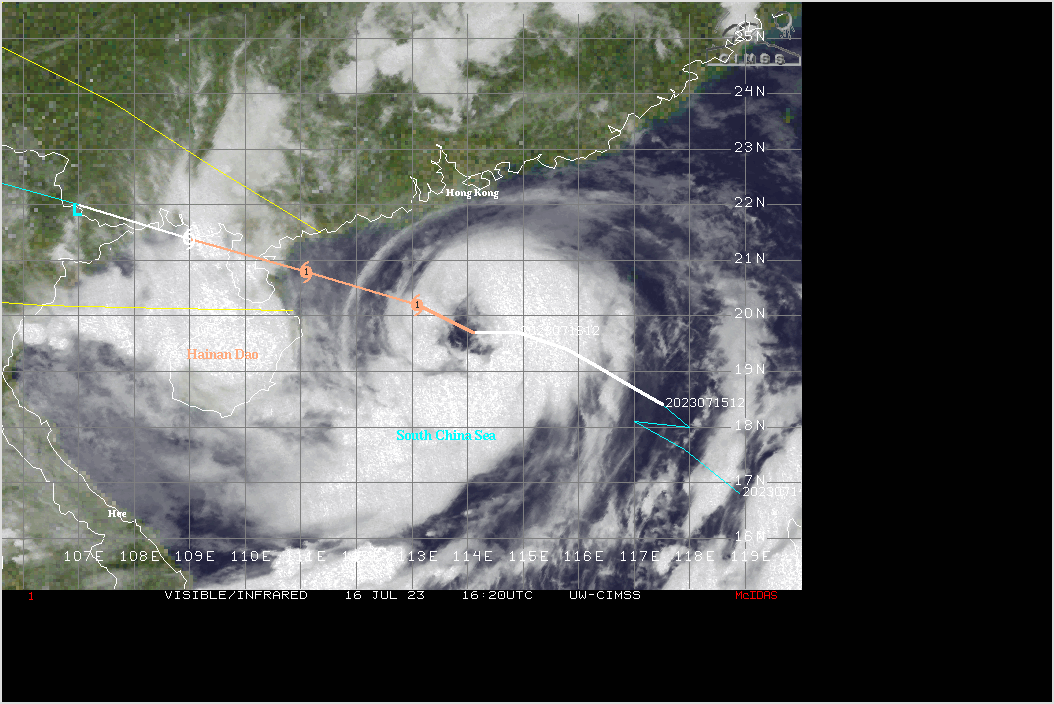

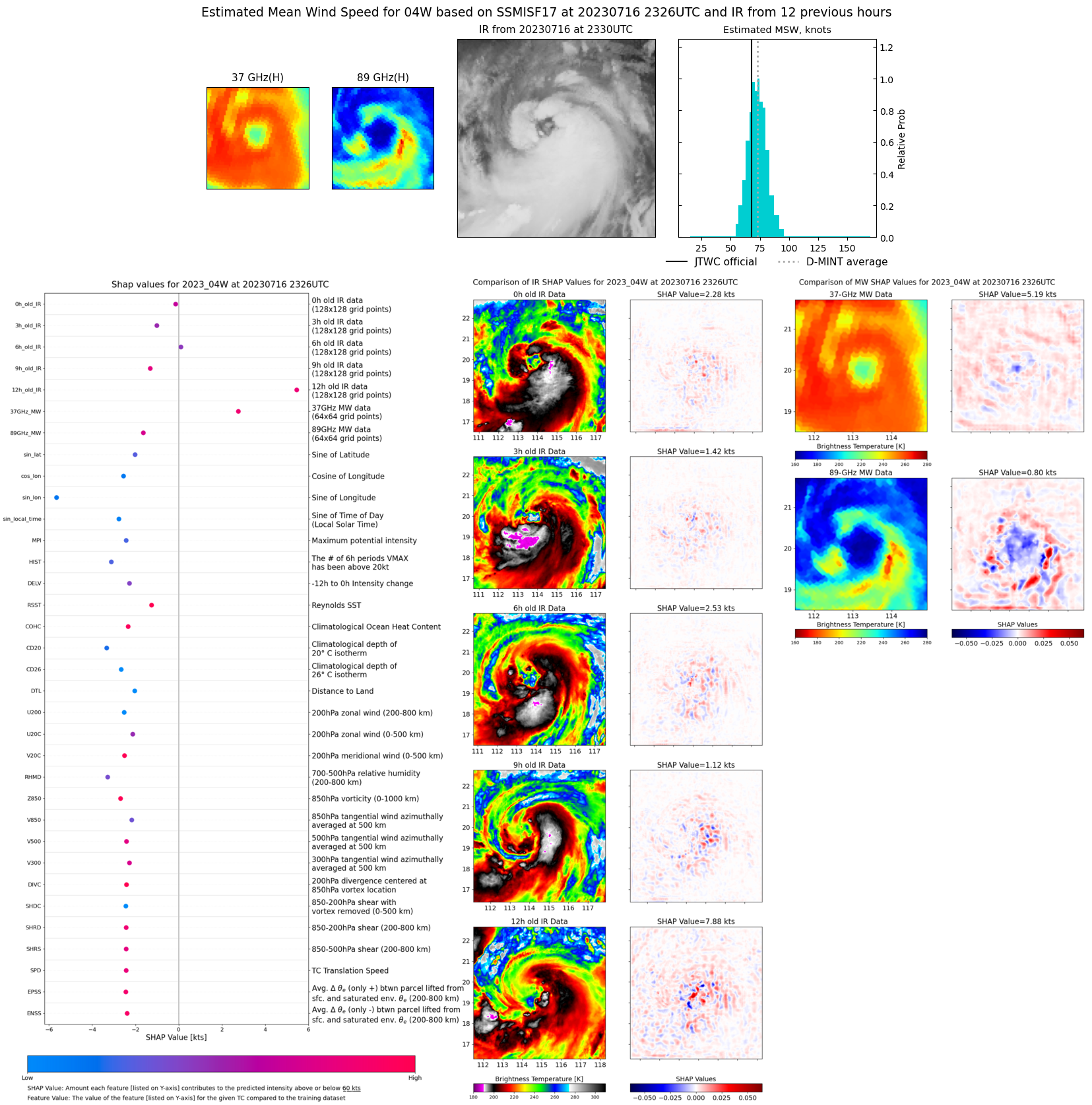

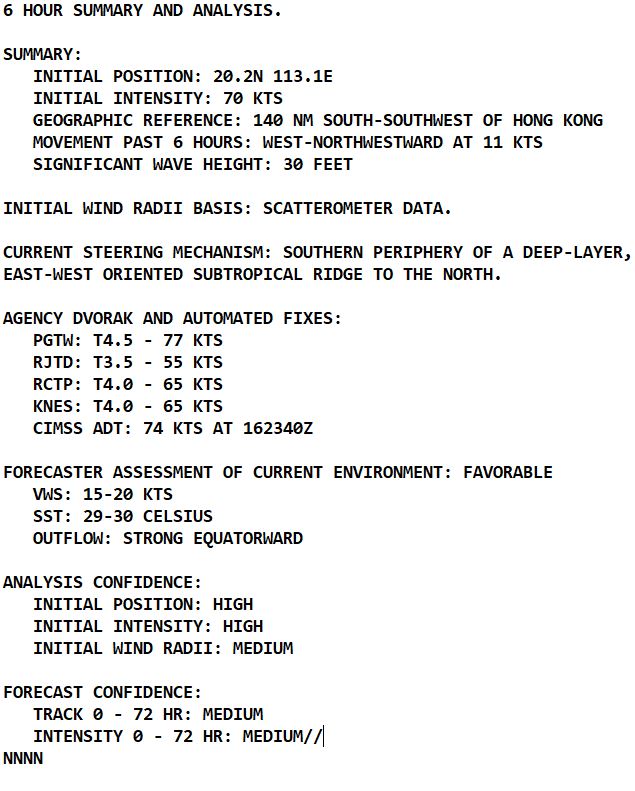

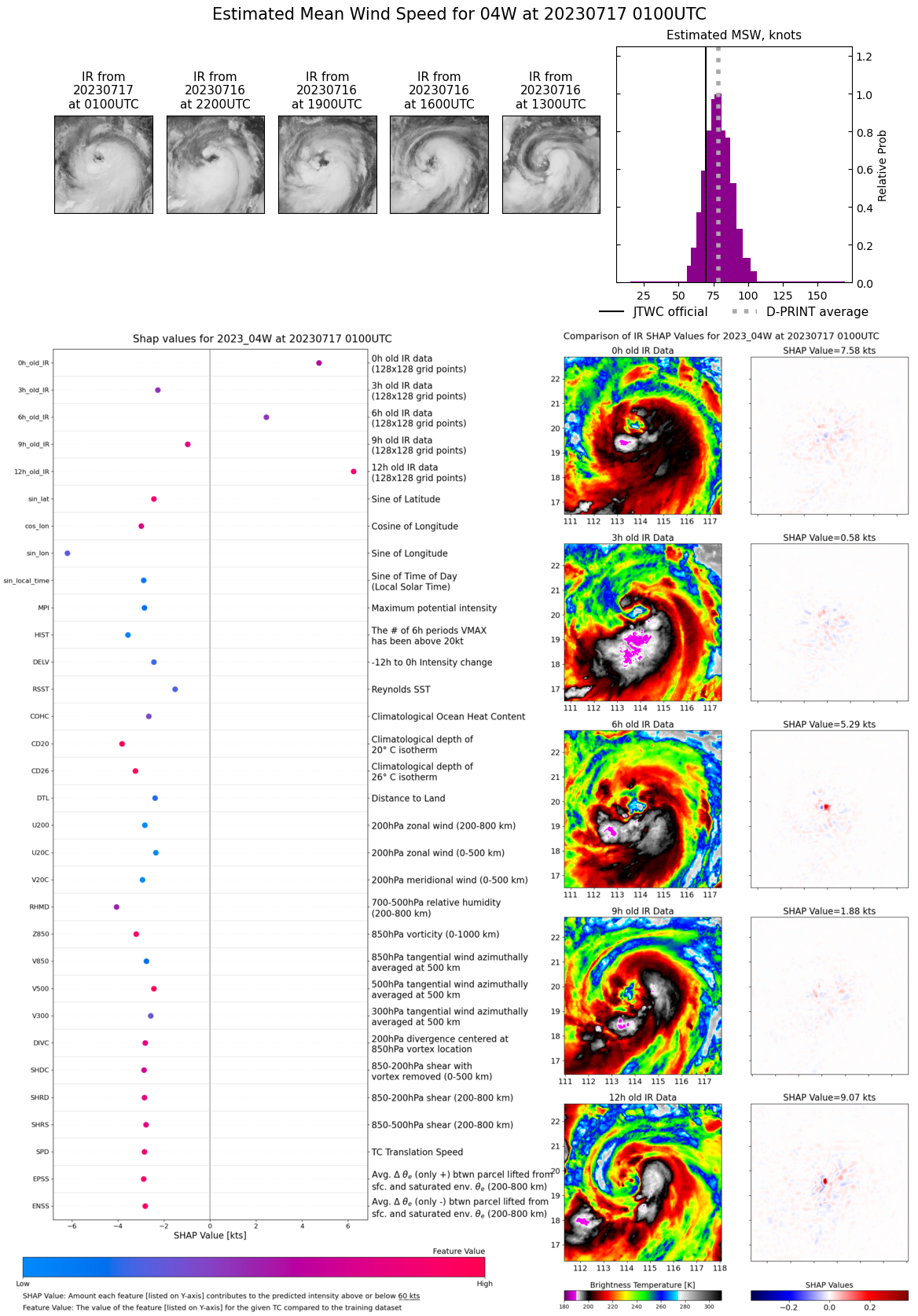

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) SHOWS A LARGE SYSTEM (400+ NM ACROSS) IN THE SOUTH CHINA SEA (SCS) THAT CONTINUED TO IMPROVE AS ITS EXPANSIVE RAIN BANDS WRAPPED TIGHTER INTO THE RAGGED BUT DEFINED 30-NM EYE. THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON THE EYE FEATURE AND LINED UP WITH THE MICROWAVE EYE FROM THE 162324Z SSMIS IMAGE. THE INITIAL INTENSITY OF 70KTS IS ALSO PLACED WITH HIGH CONFIDENCE BASED ON OVERALL ASSESSMENT OF AGENCY AND AUTOMATED DVORAK ESTIMATES AND REFLECTS THE 6-HR IMPROVEMENT. ANALYSIS INDICATES A FAVORABLE ENVIRONMENT WITH STRONG EQUATORWARD OUTFLOW AND WARM SST IN THE SCS OFFSETTING THE LOW-MEDIUM  VWS.
SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) SHOWS A LARGE SYSTEM (400+ NM ACROSS) IN THE SOUTH CHINA SEA (SCS) THAT CONTINUED TO IMPROVE AS ITS EXPANSIVE RAIN BANDS WRAPPED TIGHTER INTO THE RAGGED BUT DEFINED 30-NM EYE. THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON THE EYE FEATURE AND LINED UP WITH THE MICROWAVE EYE FROM THE 162324Z SSMIS IMAGE. THE INITIAL INTENSITY OF 70KTS IS ALSO PLACED WITH HIGH CONFIDENCE BASED ON OVERALL ASSESSMENT OF AGENCY AND AUTOMATED DVORAK ESTIMATES AND REFLECTS THE 6-HR IMPROVEMENT. ANALYSIS INDICATES A FAVORABLE ENVIRONMENT WITH STRONG EQUATORWARD OUTFLOW AND WARM SST IN THE SCS OFFSETTING THE LOW-MEDIUM VWS.

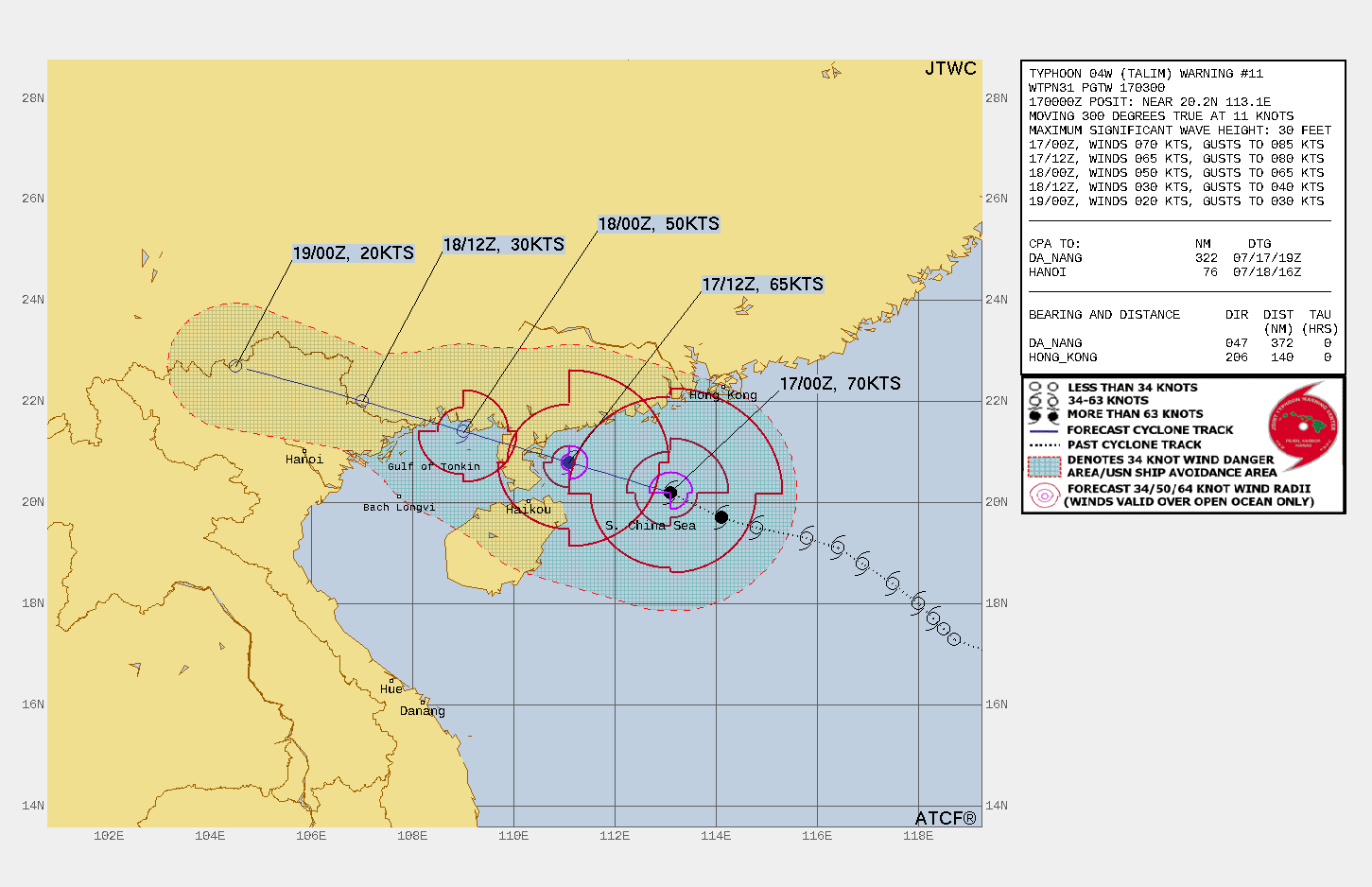

TC Warning Graphic

FORECAST REASONING.  SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING.  FORECAST DISCUSSION: TYPHOON TALIM WILL CONTINUE TO TRACK GENERALLY WEST-NORTHWESTWARD UNDER THE STEERING INFLUENCE OF THE STR OVER THE WARM SCS, MAKE LANDFALL ON THE LEIZHOU PENINSULA NEAR ZHANJIANG AROUND TAU 15, THEN CROSS THE GULF OF TONKIN BEFORE MAKING A FINAL LANDFALL NEAR THE VIETNAM-CHINA BORDER AROUND TAU 27. TY 04W HAS PEAKED INTENSITY AND WILL NOW GRADUALLY THEN RAPIDLY ERODE MOSTLY DUE TO LAND INTERACTION WITH RUGGED TERRAIN AND INCREASING VWS, LEADING TO DISSIPATION BY TAU 72 AS IT TRACKS OVER NORTHERN VIETNAM.
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TYPHOON TALIM WILL CONTINUE TO TRACK GENERALLY WEST-NORTHWESTWARD UNDER THE STEERING INFLUENCE OF THE STR OVER THE WARM SCS, MAKE LANDFALL ON THE LEIZHOU PENINSULA NEAR ZHANJIANG AROUND TAU 15, THEN CROSS THE GULF OF TONKIN BEFORE MAKING A FINAL LANDFALL NEAR THE VIETNAM-CHINA BORDER AROUND TAU 27. TY 04W HAS PEAKED INTENSITY AND WILL NOW GRADUALLY THEN RAPIDLY ERODE MOSTLY DUE TO LAND INTERACTION WITH RUGGED TERRAIN AND INCREASING VWS, LEADING TO DISSIPATION BY TAU 72 AS IT TRACKS OVER NORTHERN VIETNAM.

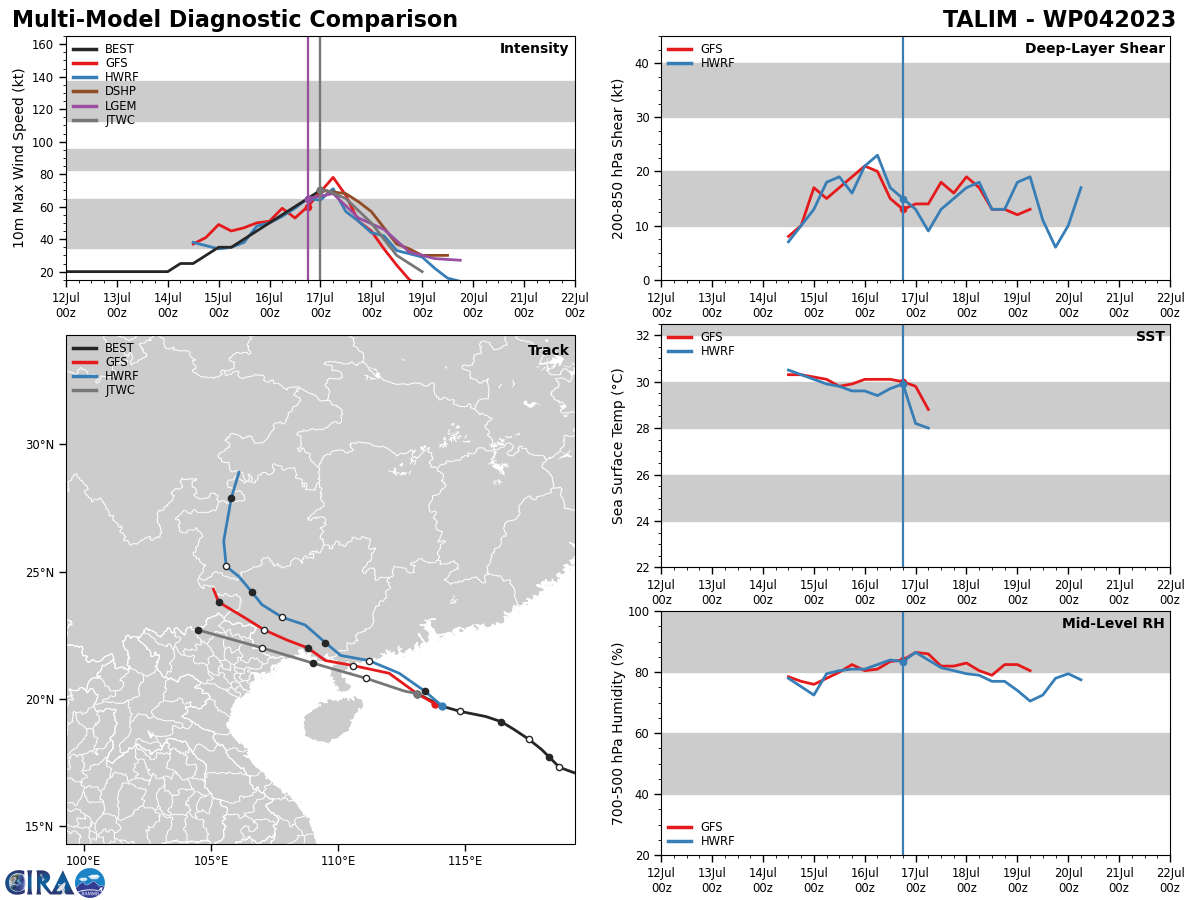

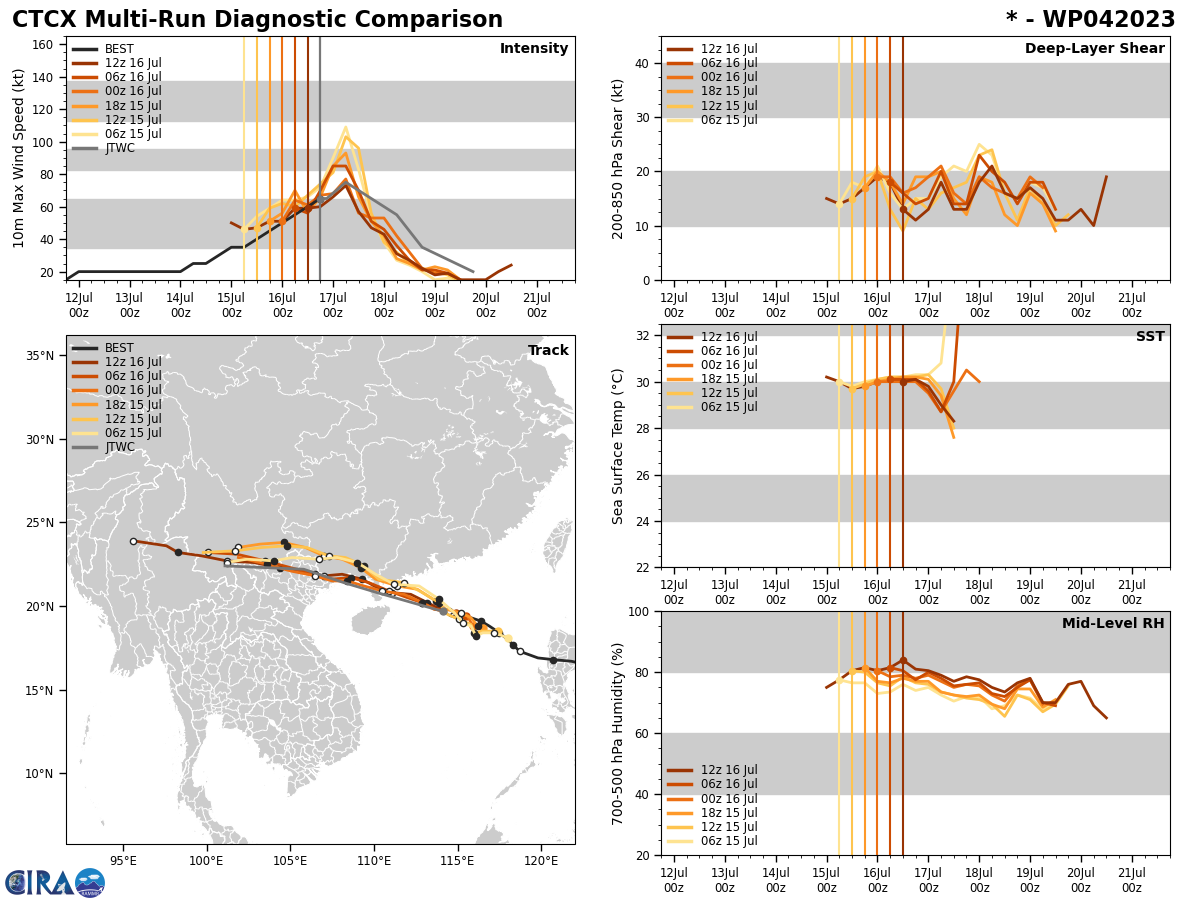

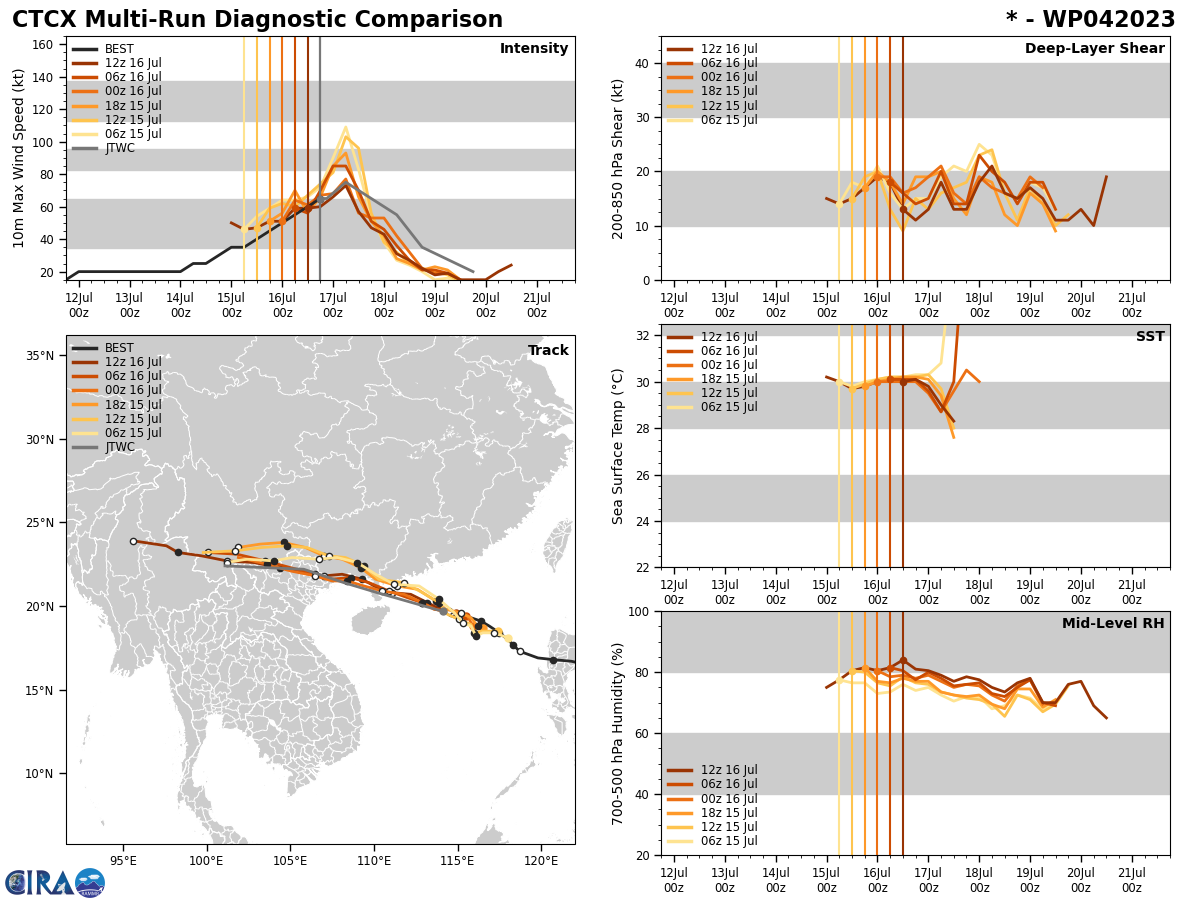

Model Diagnostic Plot

MODEL DISCUSSION: THERE IS OVERALL GOOD AGREEMENT AMONG THE NUMERICAL TRACK MODELS WITH AN EVEN AND GRADUAL SPREAD TO A 141NM BY TAU 48. IN VIEW OF THIS AND GIVEN THE UNCERTAINTIES IN A LAND TRACK, THERE IS OVERALL MEDIUM CONFIDENCE IN THE JTWC TRACK AND INTENSITY FORECASTS.
MODEL DISCUSSION: THERE IS OVERALL GOOD AGREEMENT AMONG THE NUMERICAL TRACK MODELS WITH AN EVEN AND GRADUAL SPREAD TO A 141NM BY TAU 48. IN VIEW OF THIS AND GIVEN THE UNCERTAINTIES IN A LAND TRACK, THERE IS OVERALL MEDIUM CONFIDENCE IN THE JTWC TRACK AND INTENSITY FORECASTS.

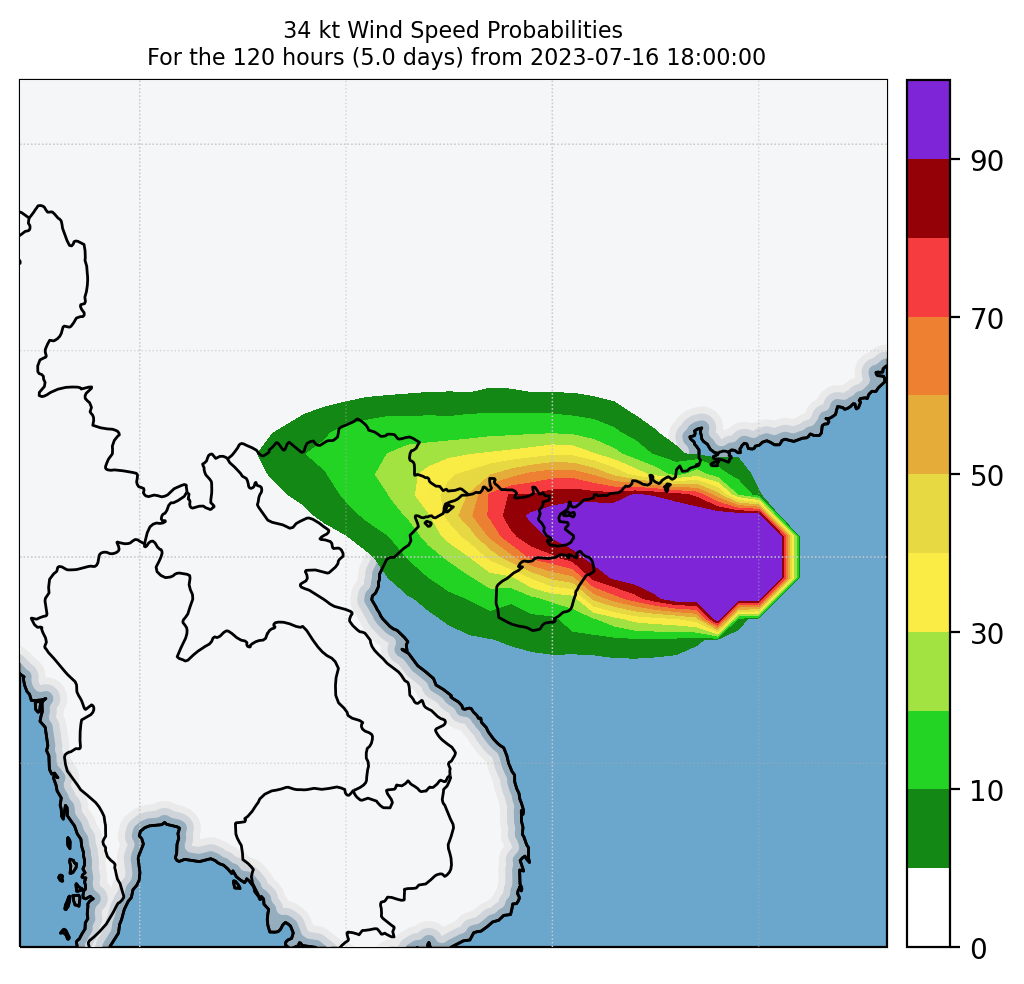

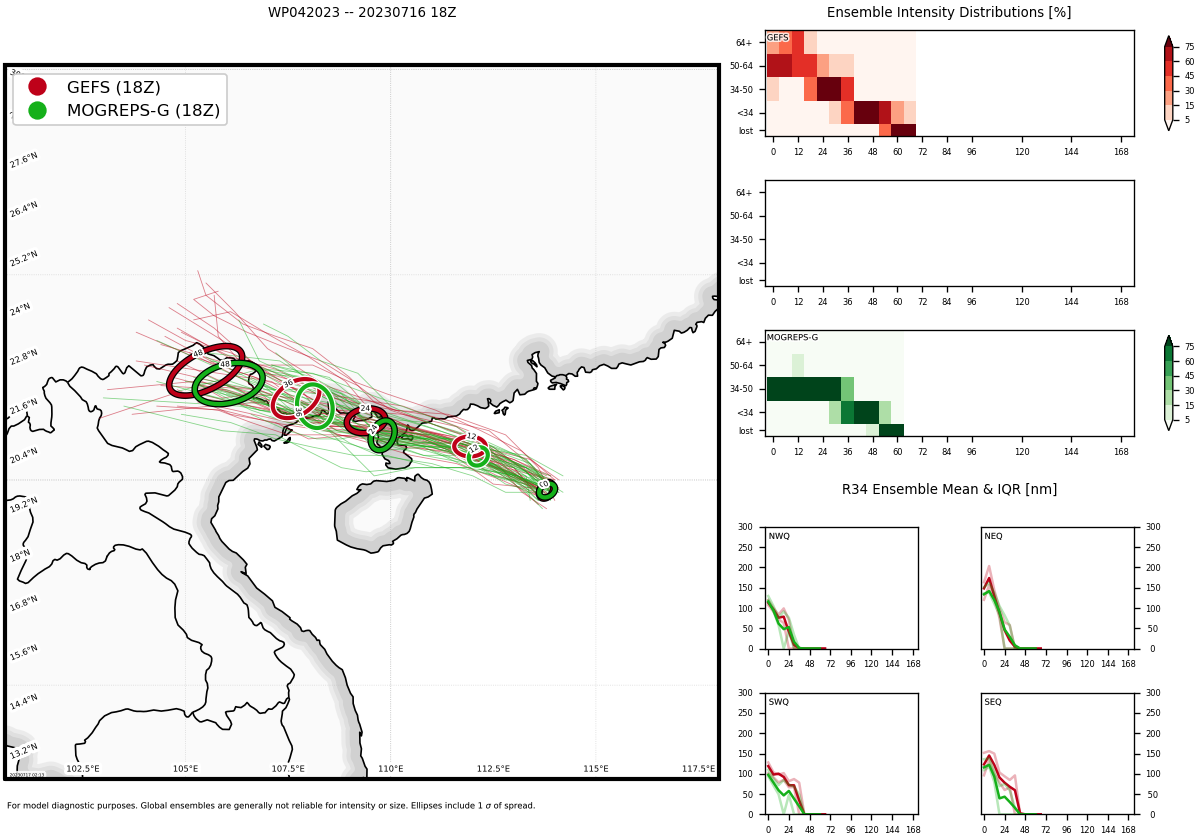

Experimental 34-kt Wind Speed Probabilities

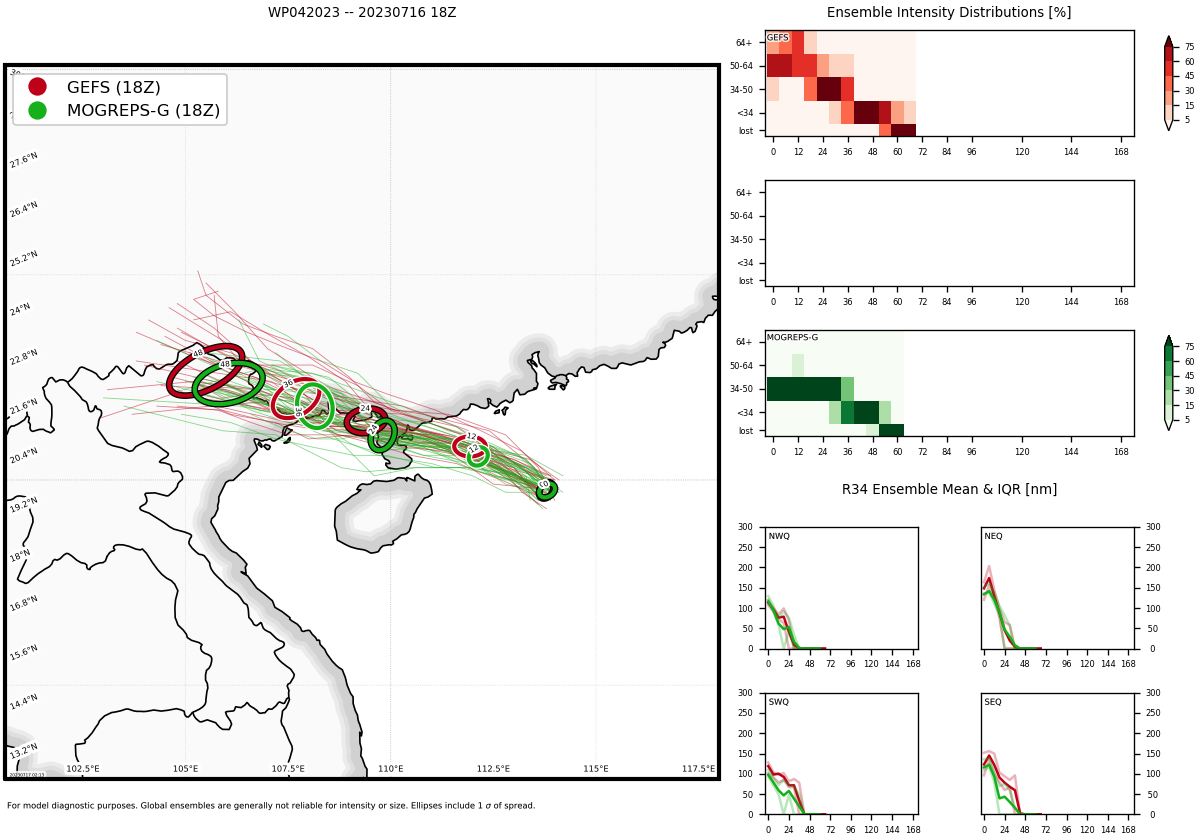

Model Diagnostic Plot

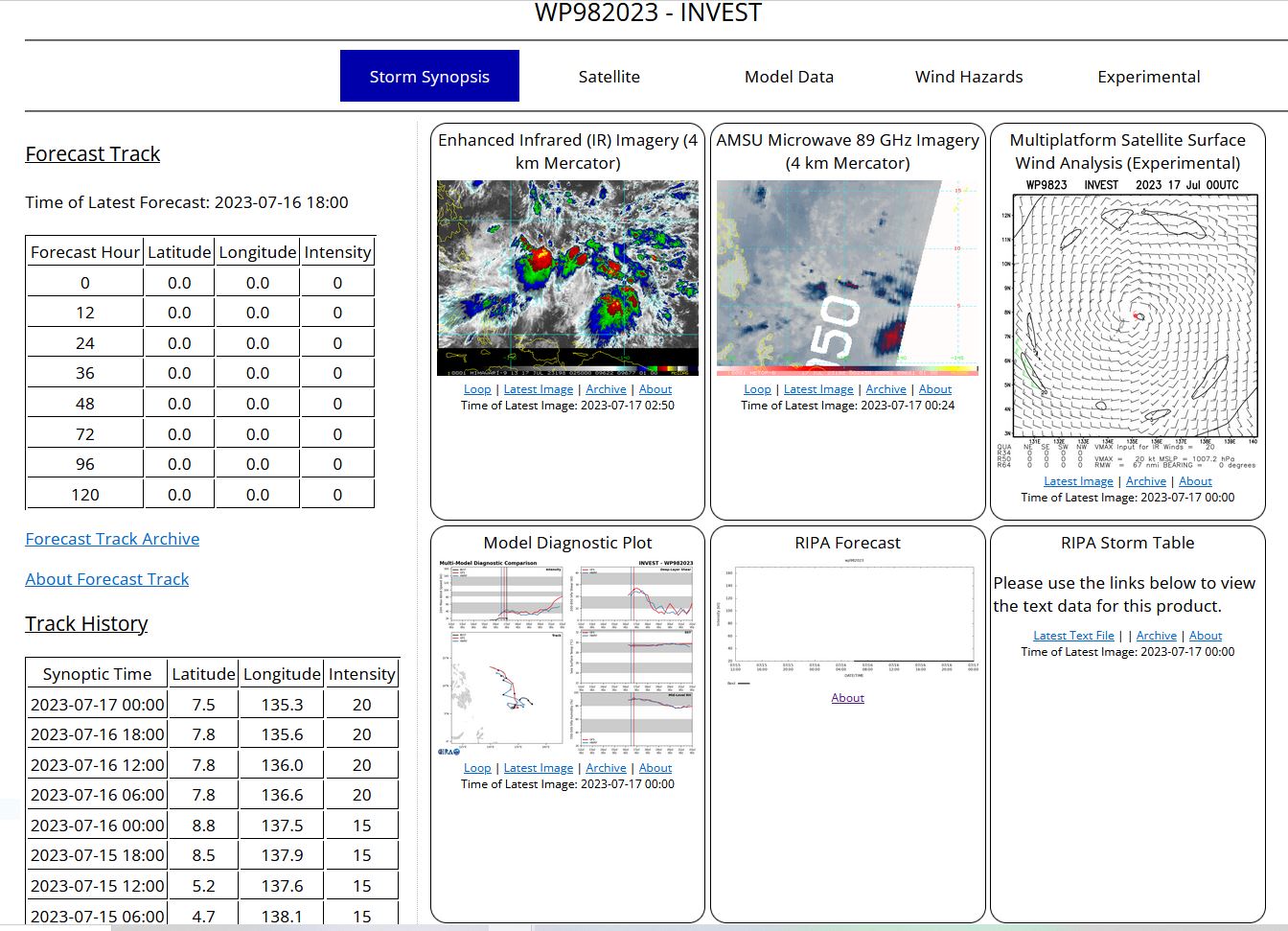

WESTERN NORTH PACIFIC: INVEST 98W. ESTIMATED LOCATION AND INTENSITY AT 17/0000UTC. ADVISORY(ABPW) ISSUED AT 170600UTC.

THE AREA OF CONVECTION (INVEST 98W) PREVIOUSLY LOCATED NEAR  7.8N 136.6E IS NOW LOCATED NEAR 7.4N 137.4E, APPROXIMATELY 164 NM EAST OF  PALAU. ANIMATED MULTISPECTRAL SATELLITE IMAGERY REVEALS A BROAD LOW LEVEL  CIRCULATION (LLC) PARTIALLY OBSCURED BY DEEP BROAD CONVECTION ALONG THE  SOUTHERN SEMICIRCLE. A 170001Z ASCAT-C BULLSEYE PASS REVEALS A DEFINED  BUT ELONGATED CIRCULATION WITH FEW 15 KNOT WINDS ALONG THE EAST- NORTHEASTERN PERIPHERY AND A LARGER SWATH OF 15-20 KNOT WINDS OFFSET  FURTHER SOUTH OF LLC. ENVIRONMENTAL ANALYSIS REVEALS MARGINALLY FAVORABLE  CONDITIONS CHARACTERIZED BY MODERATE EQUATORWARD OUTFLOW ALOFT OFFSET BY  LOW TO MODERATE (15-20KT) VERTICAL WIND SHEAR. SEA SURFACE TEMPERATURES  REMAIN CONDUCIVE AT A WARM 29-30C. GLOBAL MODELS ARE IN AGREEMENT THAT  INVEST 98W WILL STEADILY DEVELOP AS IT REMAINS QUASI-STATIONARY BEFORE  PROPAGATING NORTHWARD AROUND TAU 48.  MAXIMUM SUSTAINED SURFACE WINDS ARE  ESTIMATED AT 15 TO 20 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO  BE NEAR 1004 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT  TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS REMAINS MEDIUM.
THE AREA OF CONVECTION (INVEST 98W) PREVIOUSLY LOCATED NEAR 7.8N 136.6E IS NOW LOCATED NEAR 7.4N 137.4E, APPROXIMATELY 164 NM EAST OF PALAU. ANIMATED MULTISPECTRAL SATELLITE IMAGERY REVEALS A BROAD LOW LEVEL CIRCULATION (LLC) PARTIALLY OBSCURED BY DEEP BROAD CONVECTION ALONG THE SOUTHERN SEMICIRCLE. A 170001Z ASCAT-C BULLSEYE PASS REVEALS A DEFINED BUT ELONGATED CIRCULATION WITH FEW 15 KNOT WINDS ALONG THE EAST- NORTHEASTERN PERIPHERY AND A LARGER SWATH OF 15-20 KNOT WINDS OFFSET FURTHER SOUTH OF LLC. ENVIRONMENTAL ANALYSIS REVEALS MARGINALLY FAVORABLE CONDITIONS CHARACTERIZED BY MODERATE EQUATORWARD OUTFLOW ALOFT OFFSET BY LOW TO MODERATE (15-20KT) VERTICAL WIND SHEAR. SEA SURFACE TEMPERATURES REMAIN CONDUCIVE AT A WARM 29-30C. GLOBAL MODELS ARE IN AGREEMENT THAT INVEST 98W WILL STEADILY DEVELOP AS IT REMAINS QUASI-STATIONARY BEFORE PROPAGATING NORTHWARD AROUND TAU 48. MAXIMUM SUSTAINED SURFACE WINDS ARE ESTIMATED AT 15 TO 20 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1004 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS REMAINS MEDIUM.

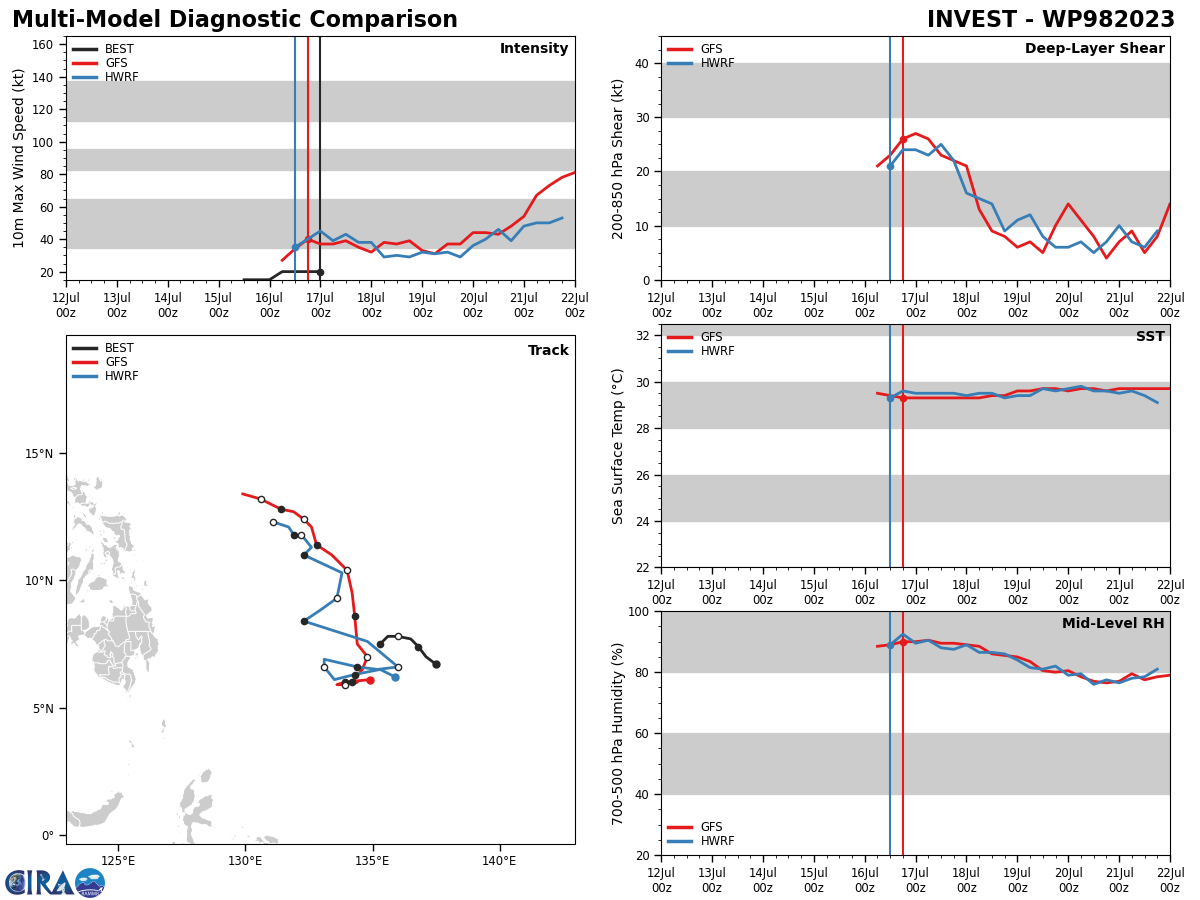

Model Diagnostic Plot

GLOBAL MODELS ARE IN AGREEMENT THAT  INVEST 98W WILL STEADILY DEVELOP AS IT REMAINS QUASI-STATIONARY BEFORE  PROPAGATING NORTHWARD AROUND TAU 48.
GLOBAL MODELS ARE IN AGREEMENT THAT INVEST 98W WILL STEADILY DEVELOP AS IT REMAINS QUASI-STATIONARY BEFORE PROPAGATING NORTHWARD AROUND TAU 48.

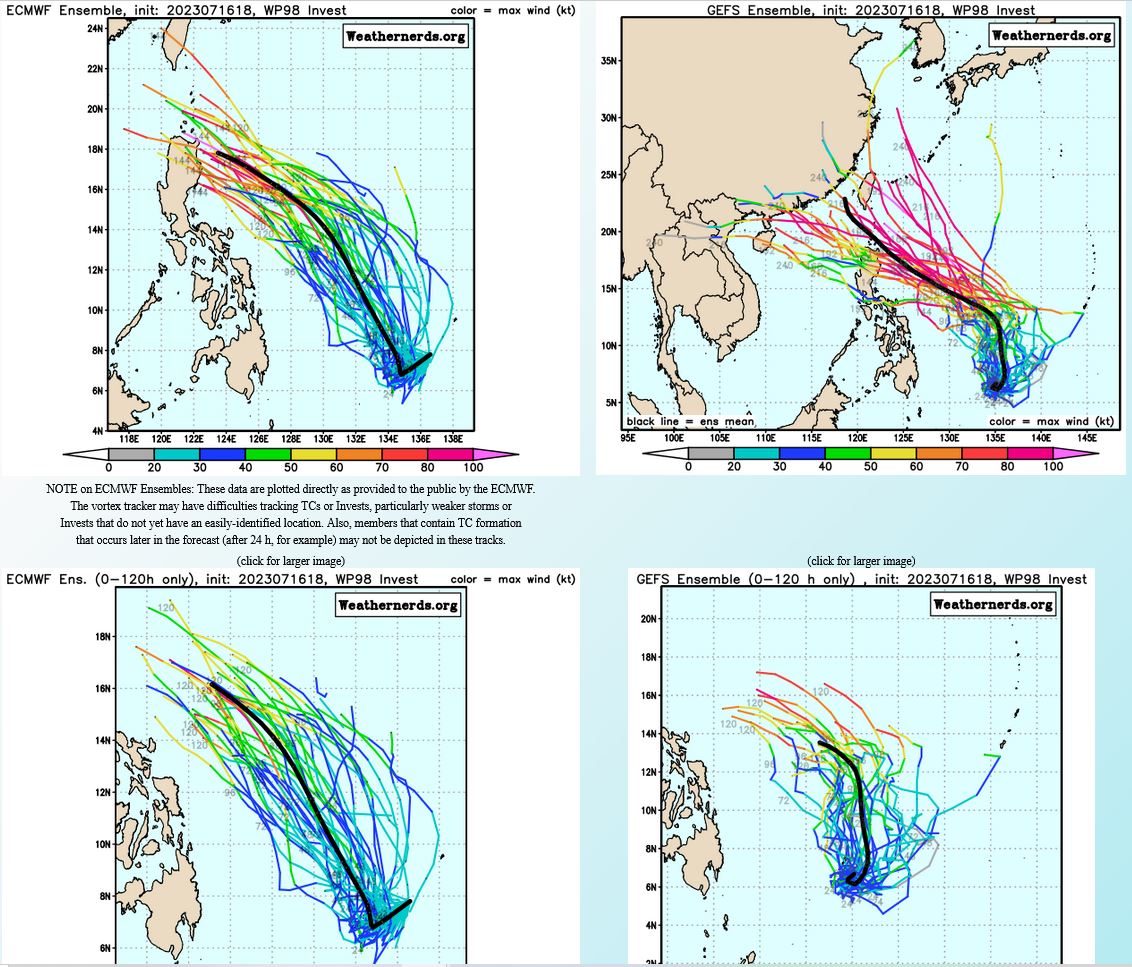

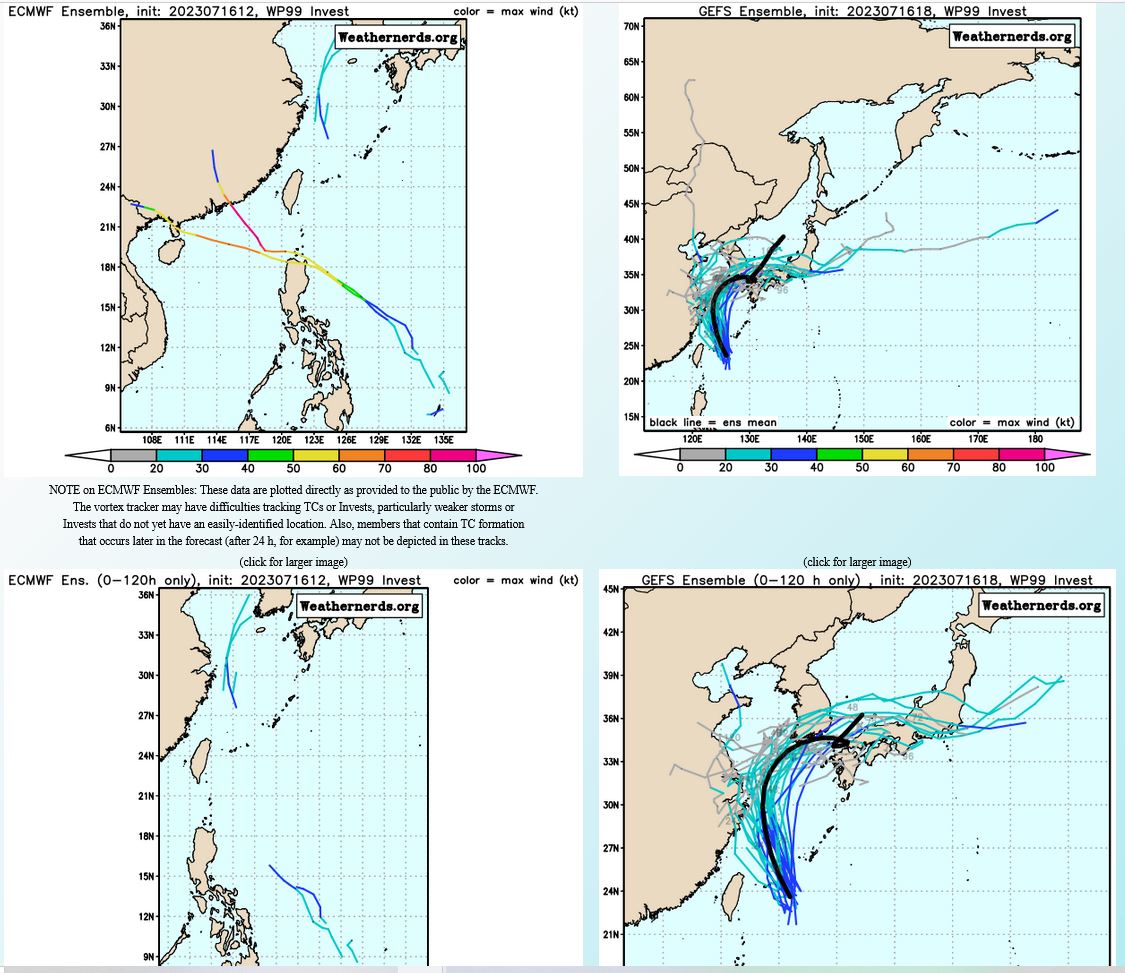

Ensemble Forecasts

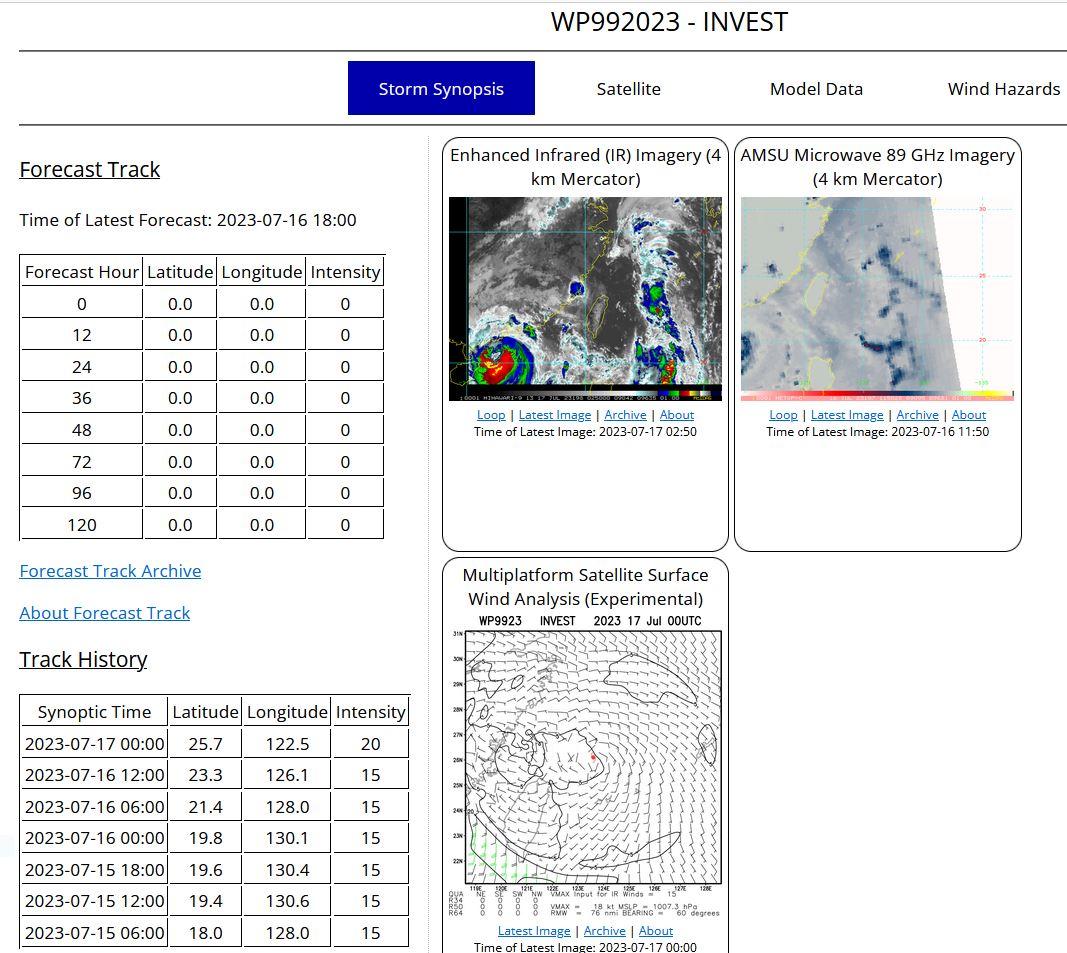

WESTERN NORTH PACIFIC: INVEST 99W. ESTIMATED LOCATION AND INTENSITY AT 17/0000UTC.

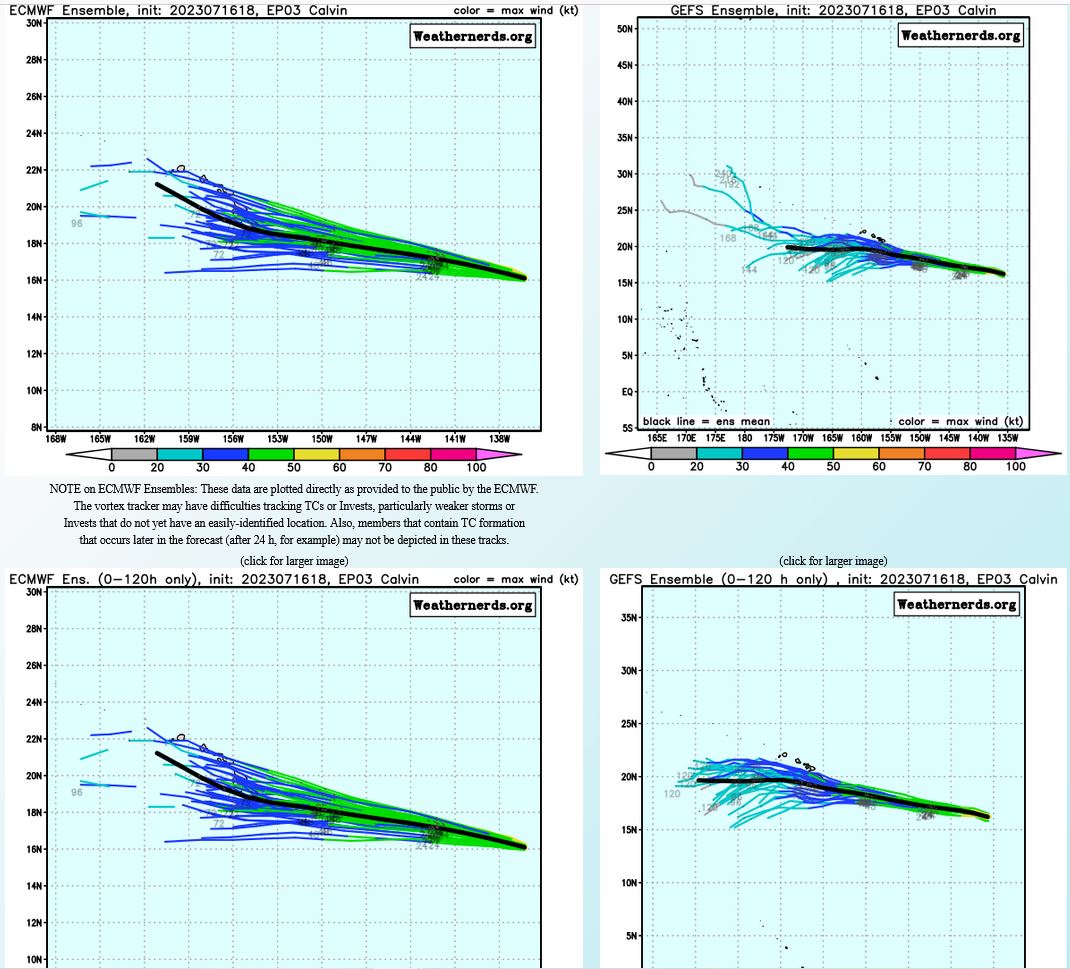

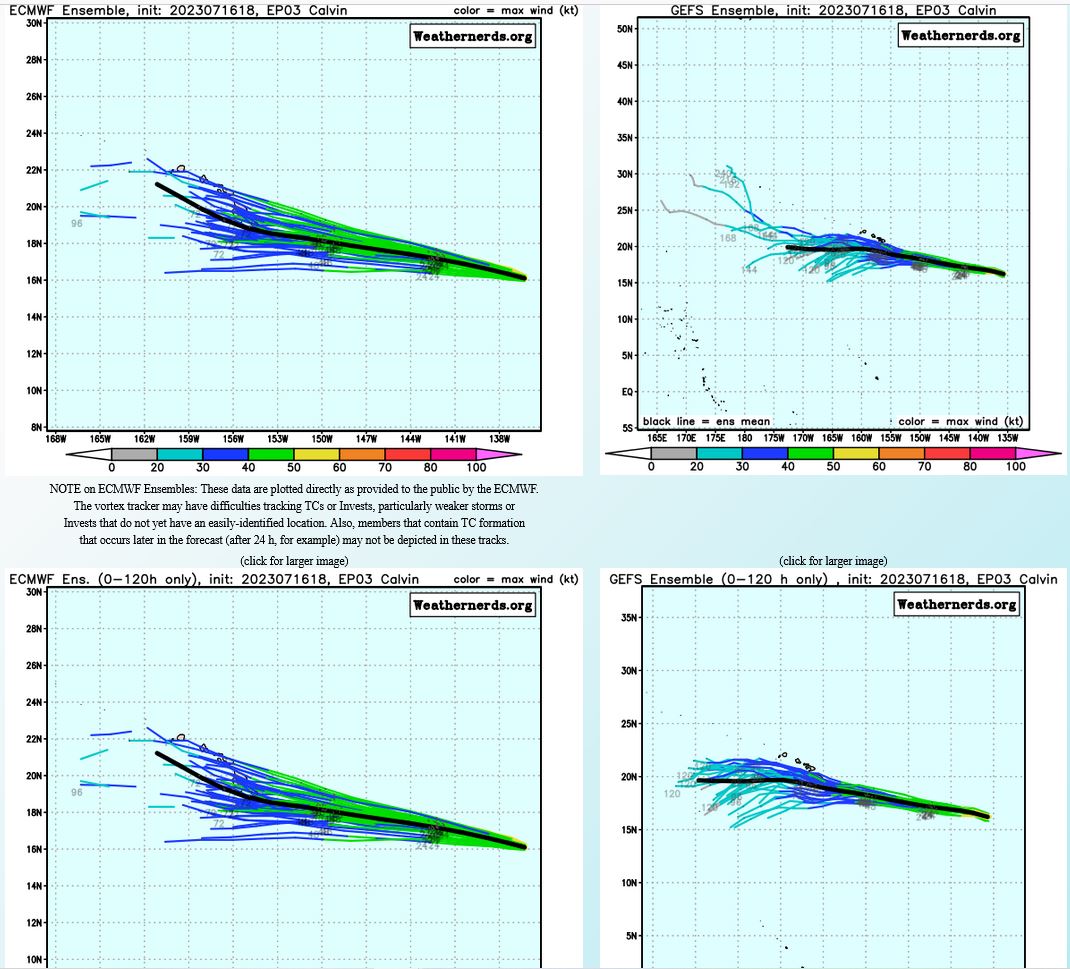

Ensemble Forecasts

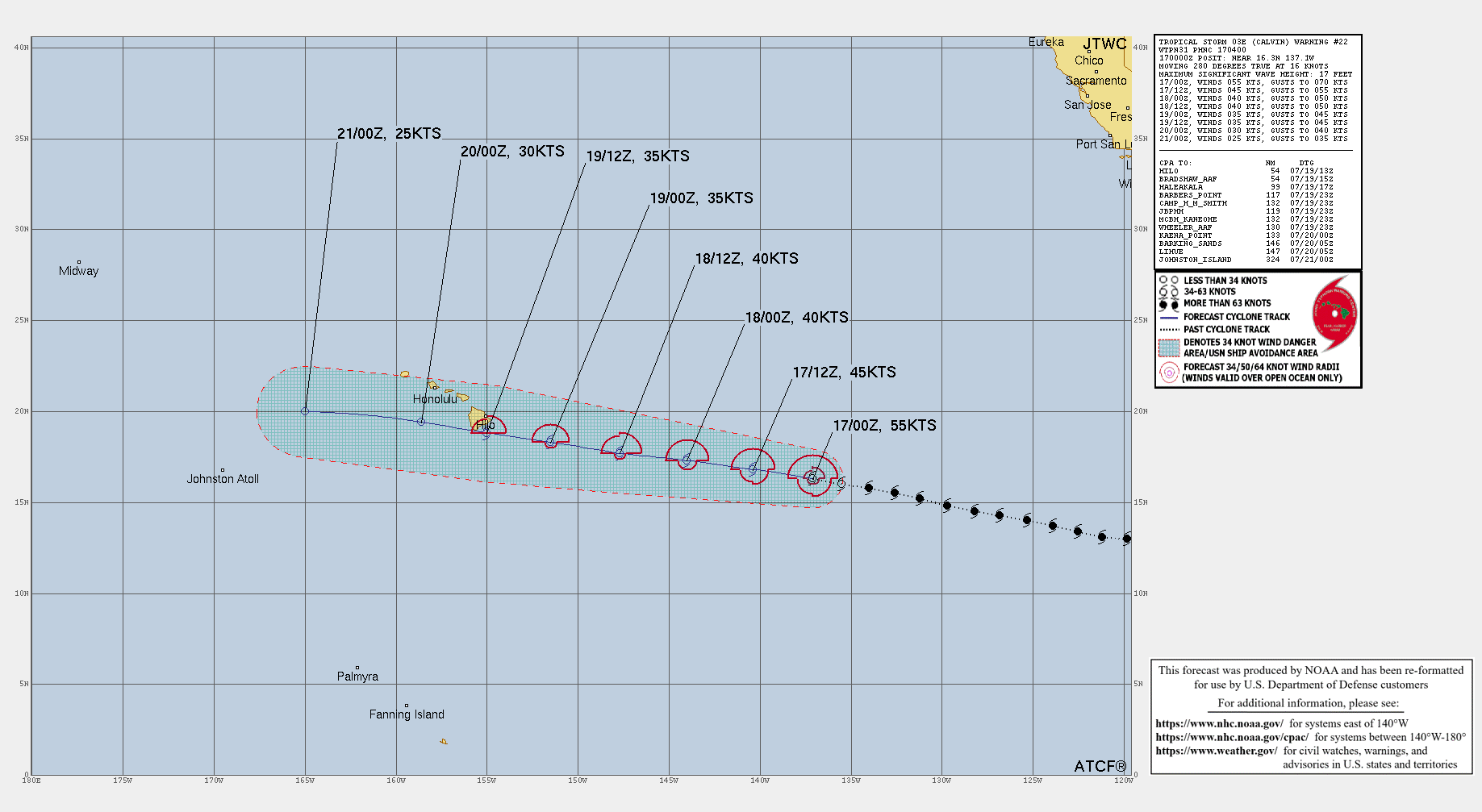

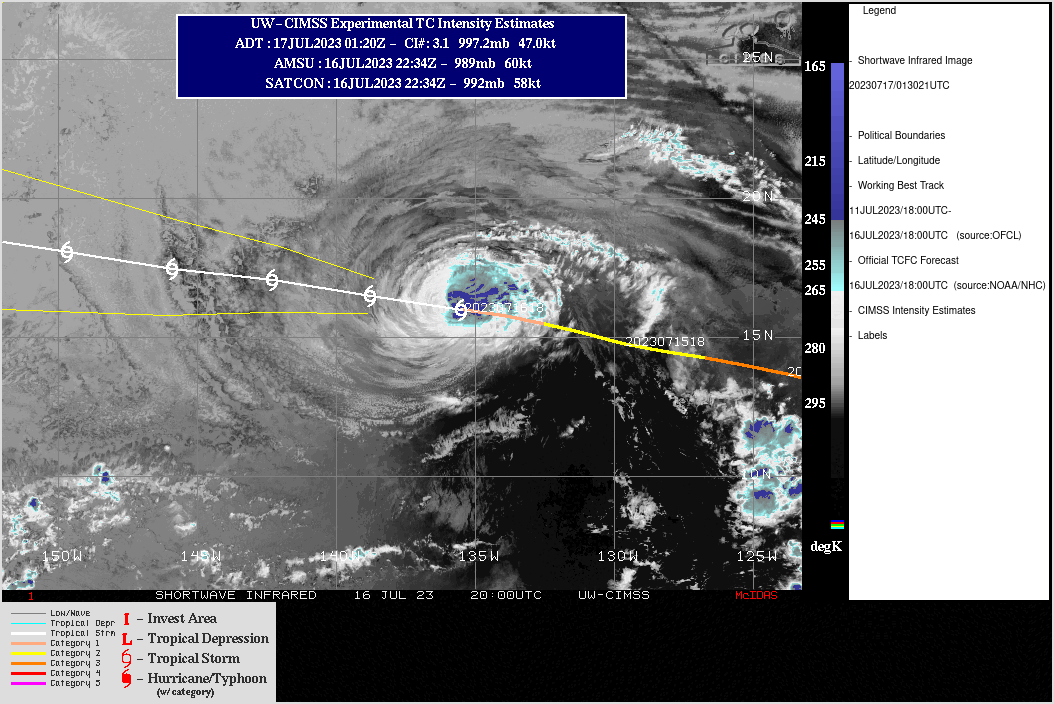

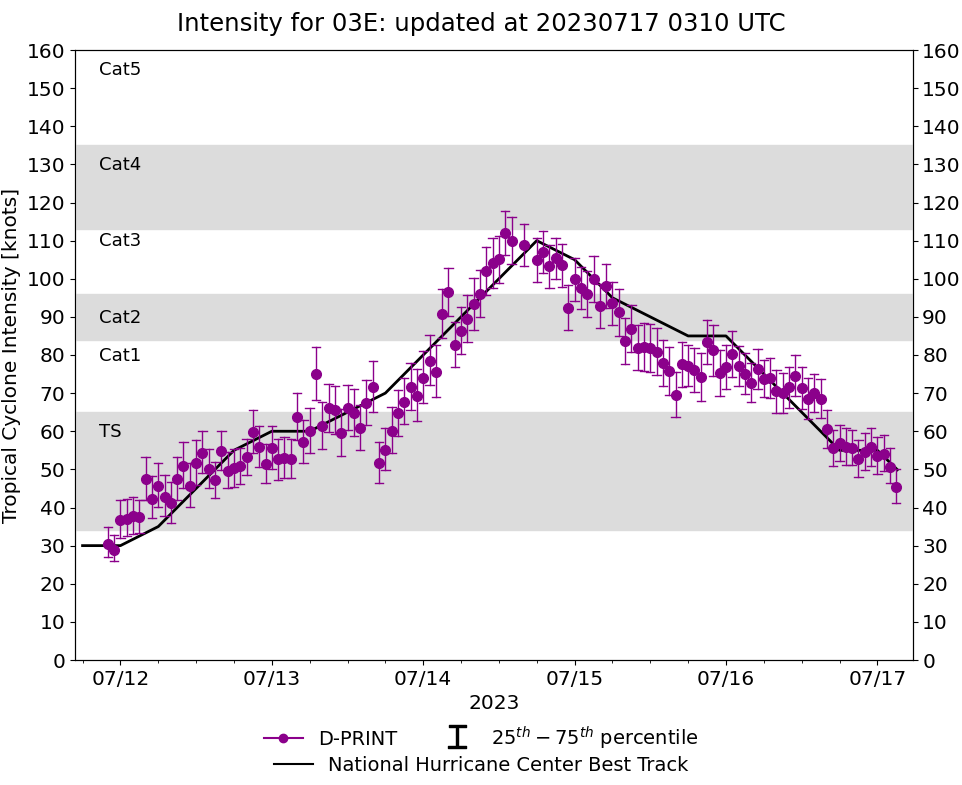

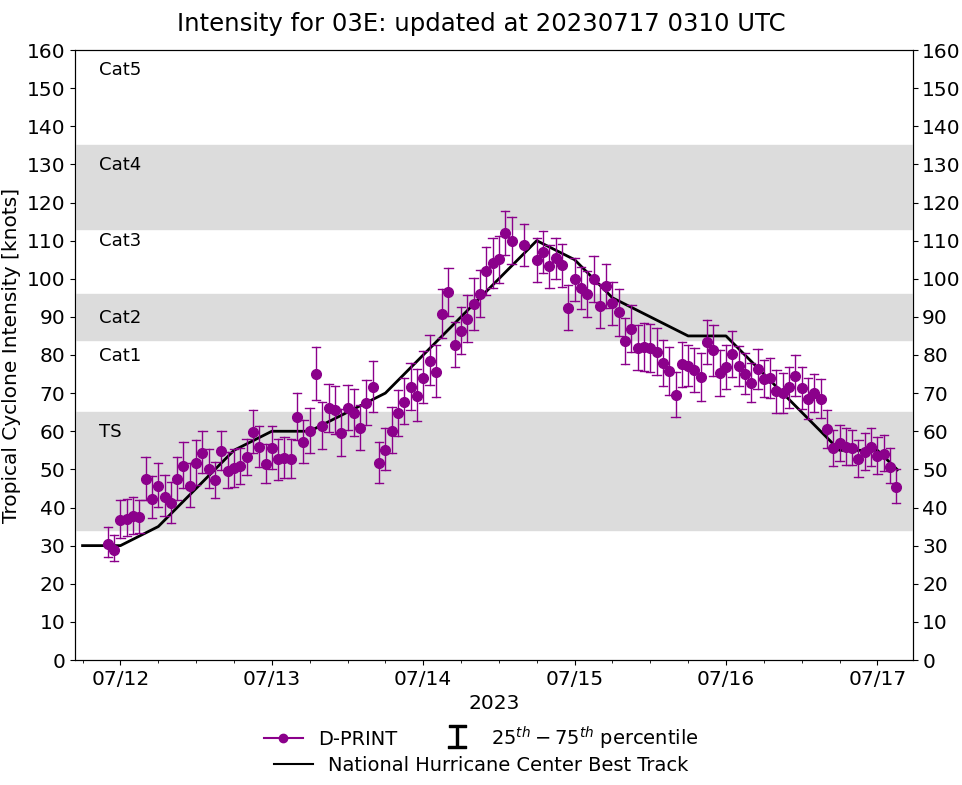

EASTERN NORTH PACIFIC: TS 03E(CALVIN). WARNING 22 ISSUED AT 170400UTC. ESTIMATED INTENSITY IS 55 KNOTS: -30 KNOTS/24H.

0323071518 148N1297W  85
0323071600 152N1312W  85
0323071606 155N1326W  75
0323071612 158N1340W  65
0323071618 160N1355W  55
0323071700 163N1371W  55

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED.

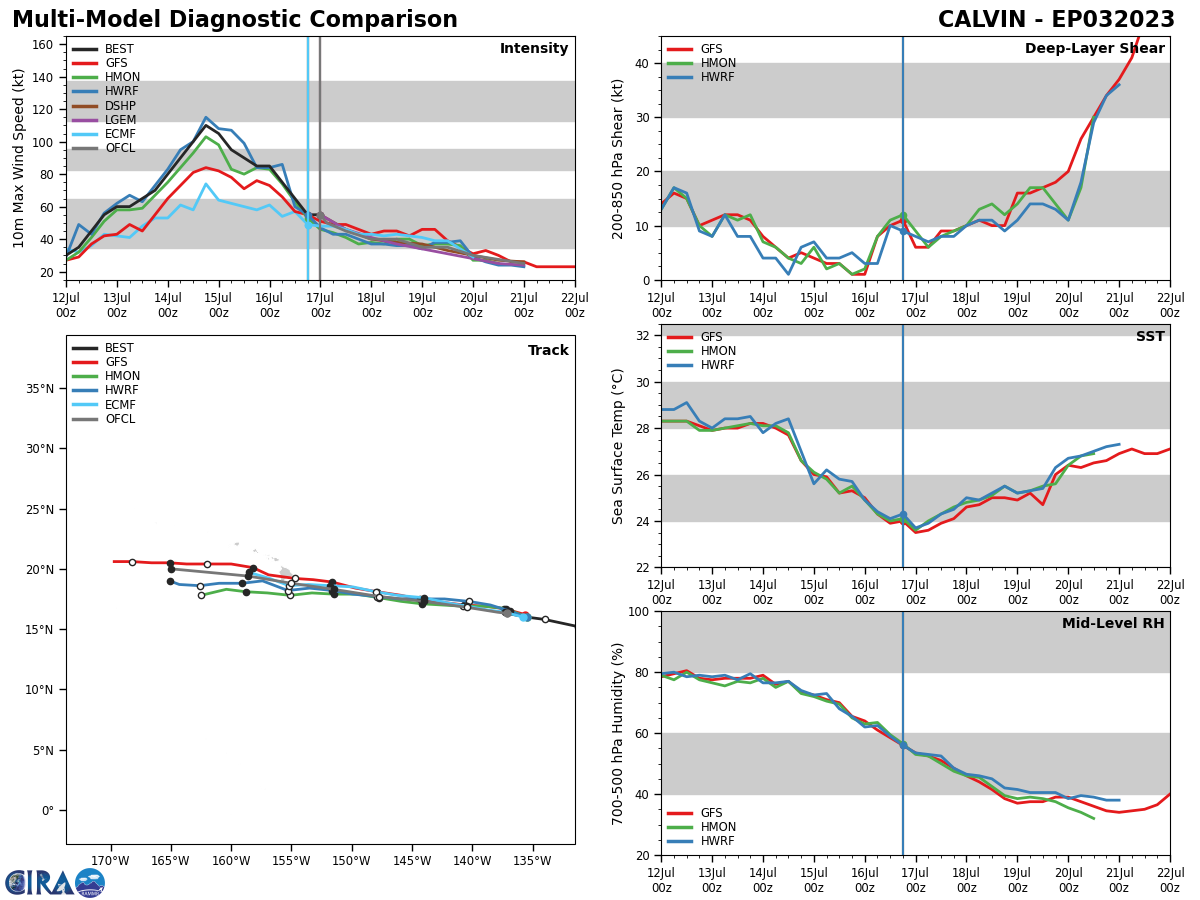

Model Diagnostic Plot

captureg03e.jpg CaptureG03E.JPG  (185.05 KB)

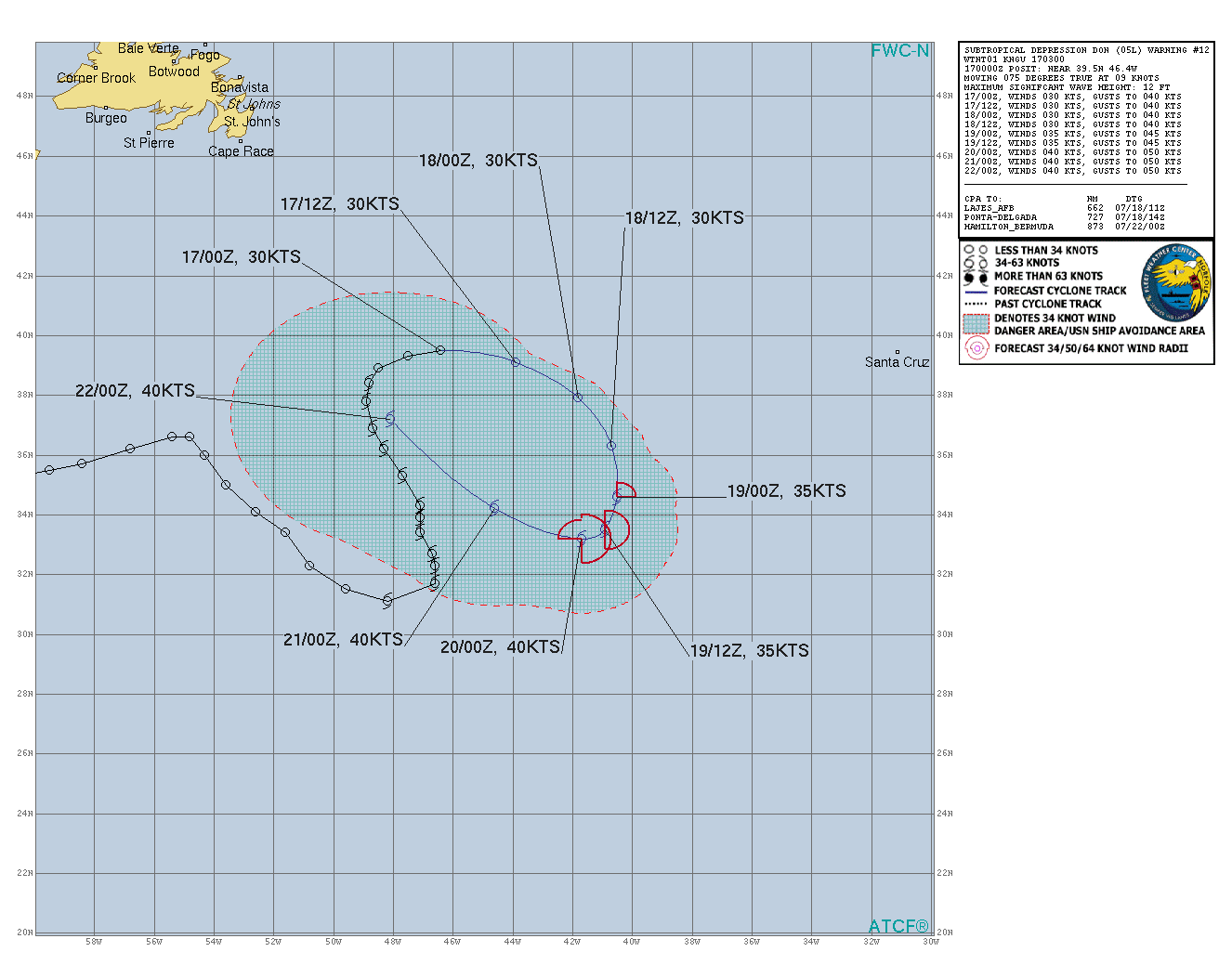

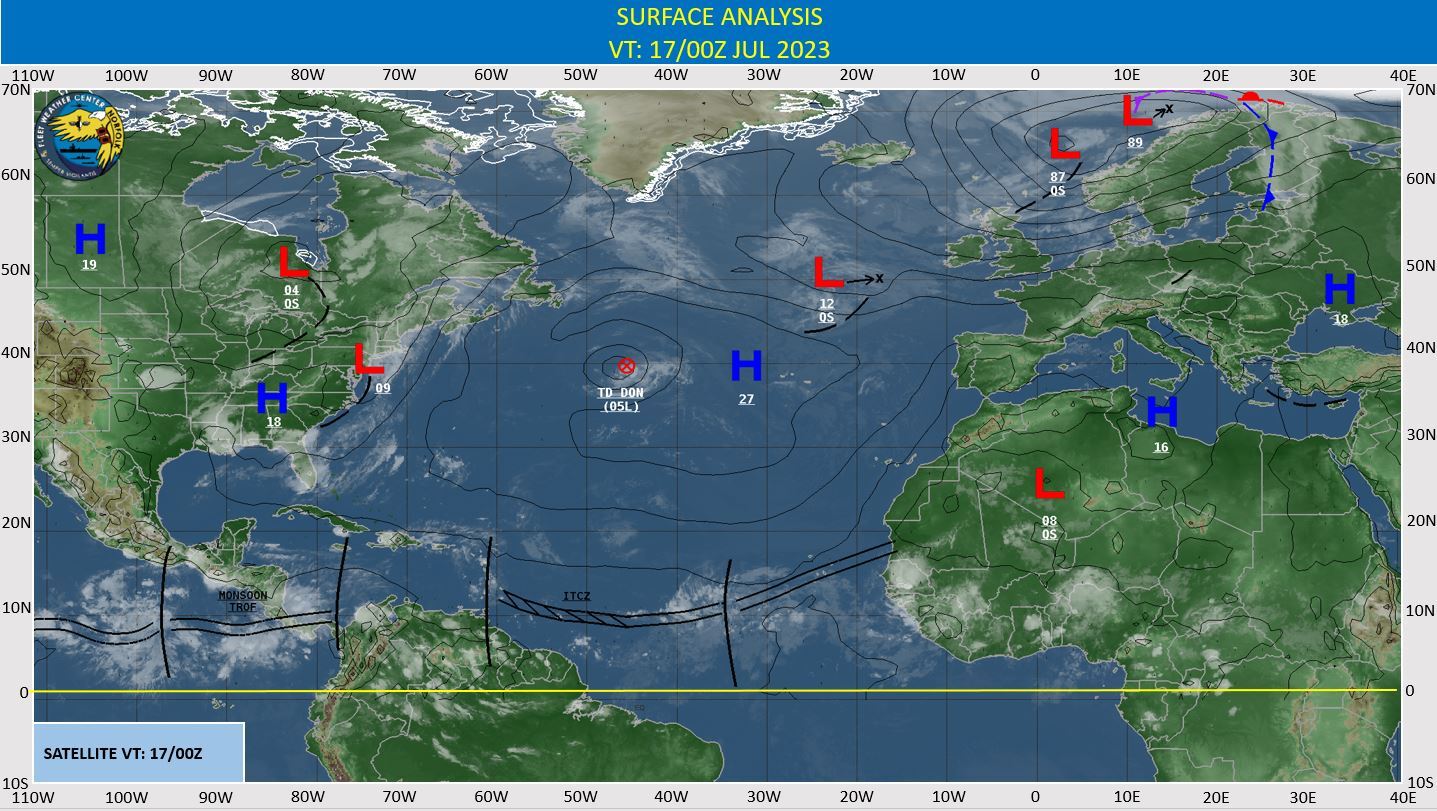

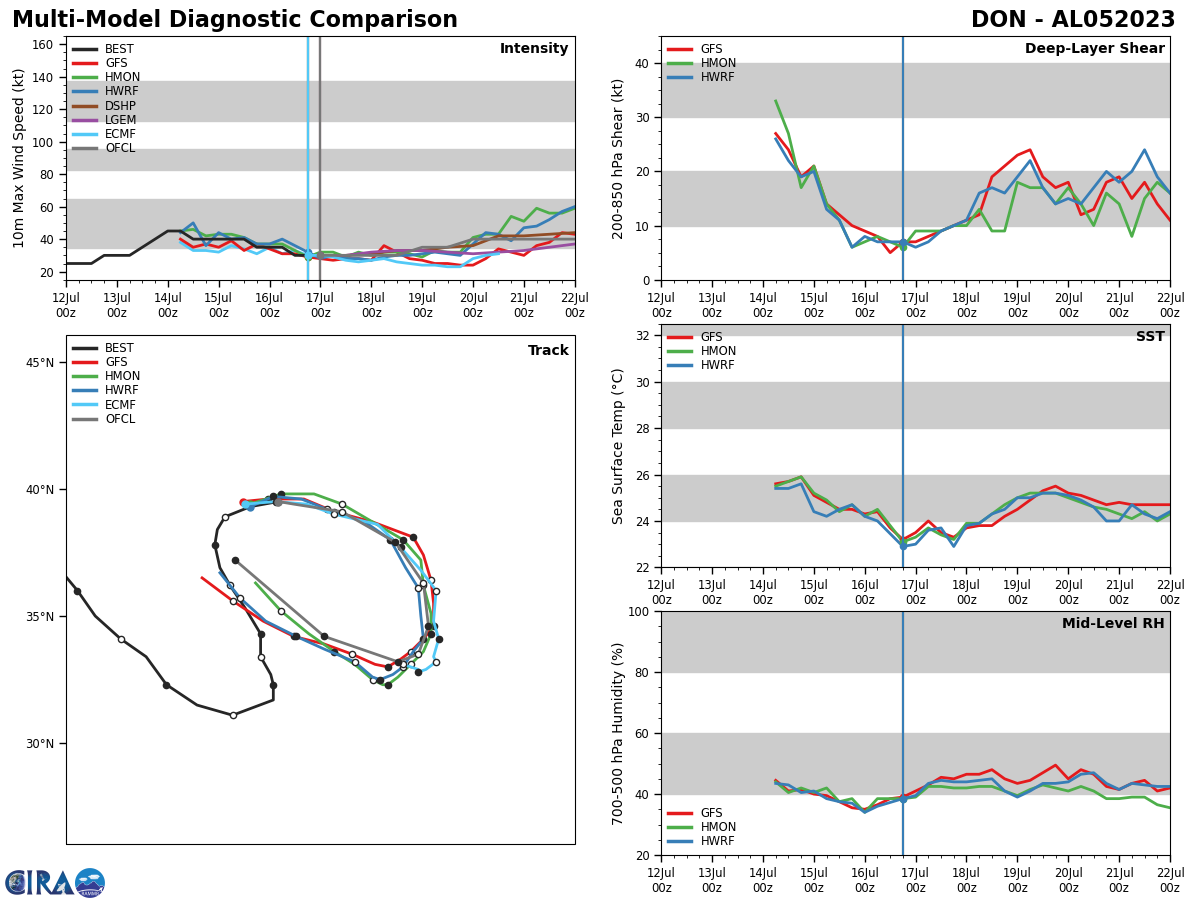

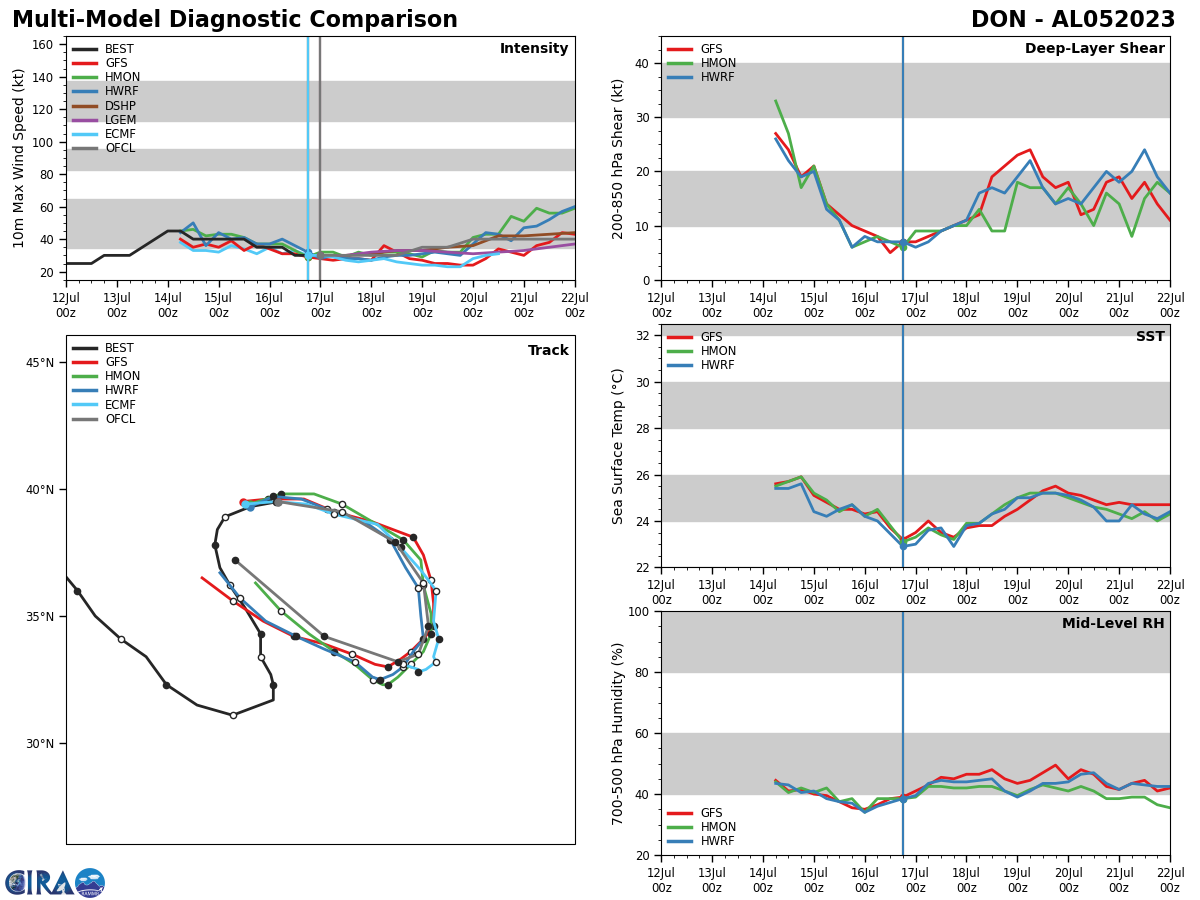

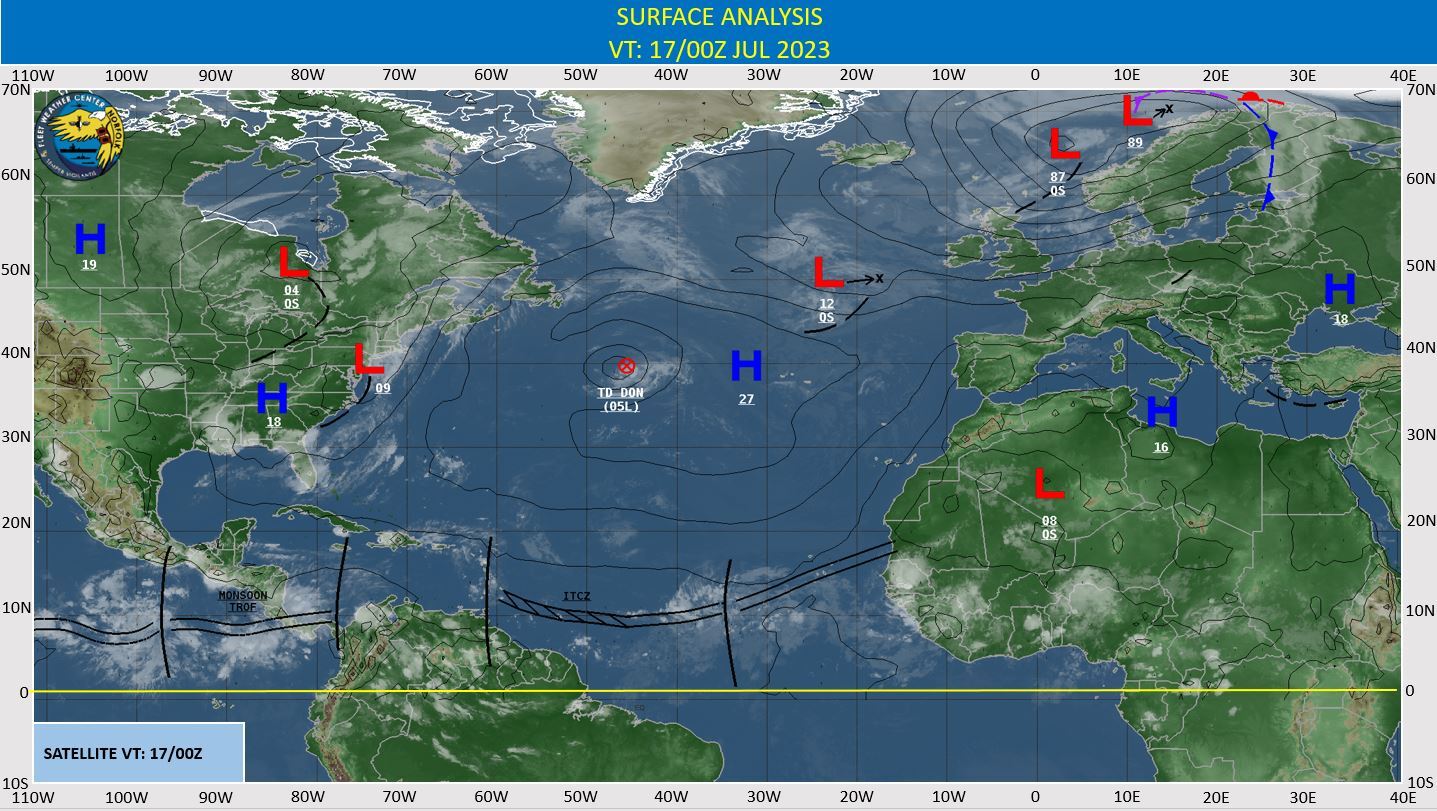

NORTH ATLANTIC OCEAN: SD 05L(DON). WARNING 12 ISSUED AT 170300UTC. CURRENT ESTIMATED INTENSITY IS 30 KNOTS.

0523071518 369N 487W  35
0523071600 378N 489W  35
0523071606 384N 488W  35
0523071612 389N 485W  30
0523071618 393N 475W  30
0523071700 395N 464W  30


Rédigé par PATRICK HOAREAU le Monday, July 17th 2023 à 07:47
