Typhoon 01W(EWINIAR) +45knots last 24h to peak at CAT 3 US within 24h//TC 01B(REMAL) landfall//10 Day ECWMF Storm Tracks//2706utc



CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

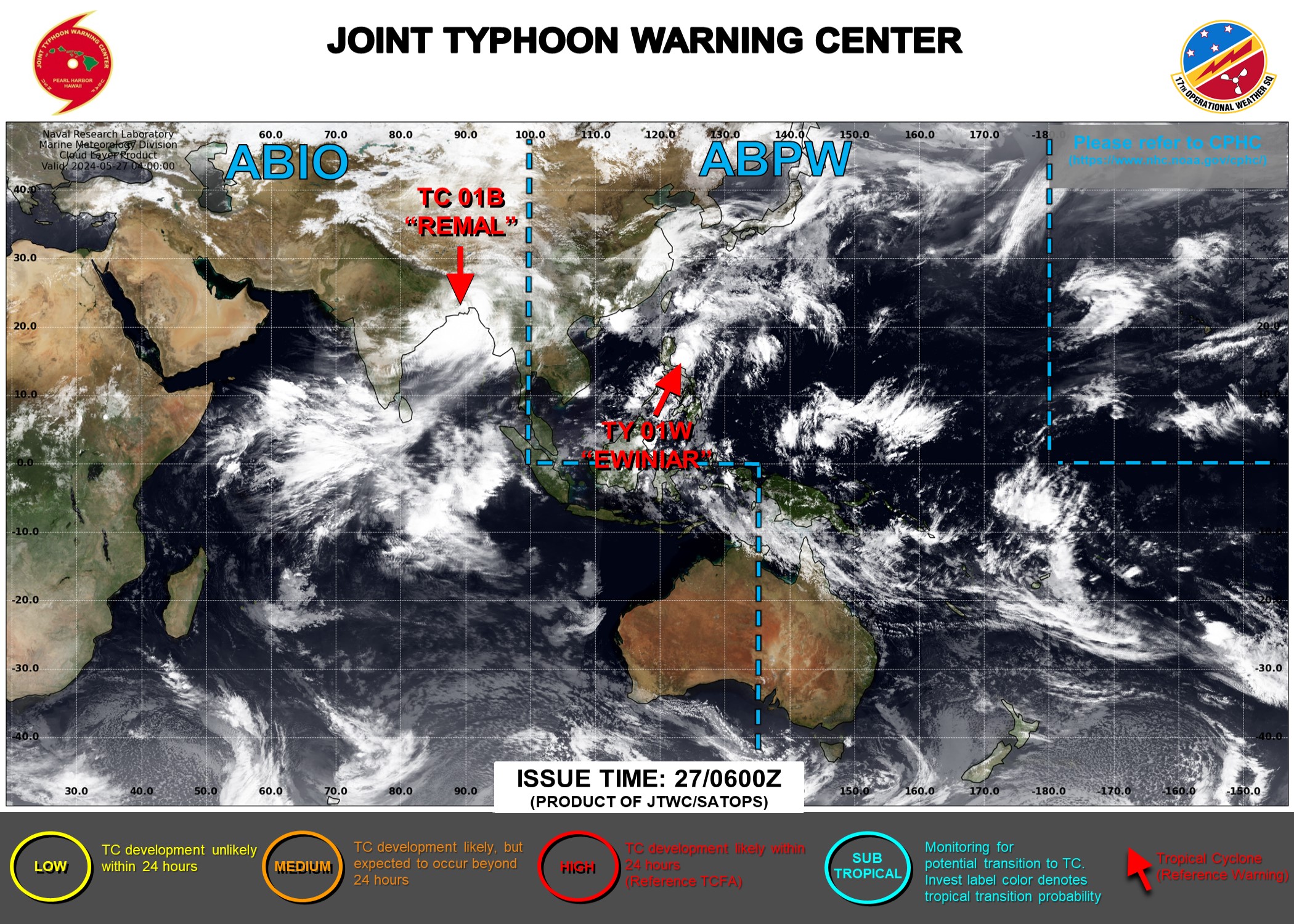

JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON 01W. 3HOURLY SATELLITE BULLETINS ARE ISSUED ON 01B OVERLAND REMNANTS
JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON 01W. 3HOURLY SATELLITE BULLETINS ARE ISSUED ON 01B OVERLAND REMNANTS

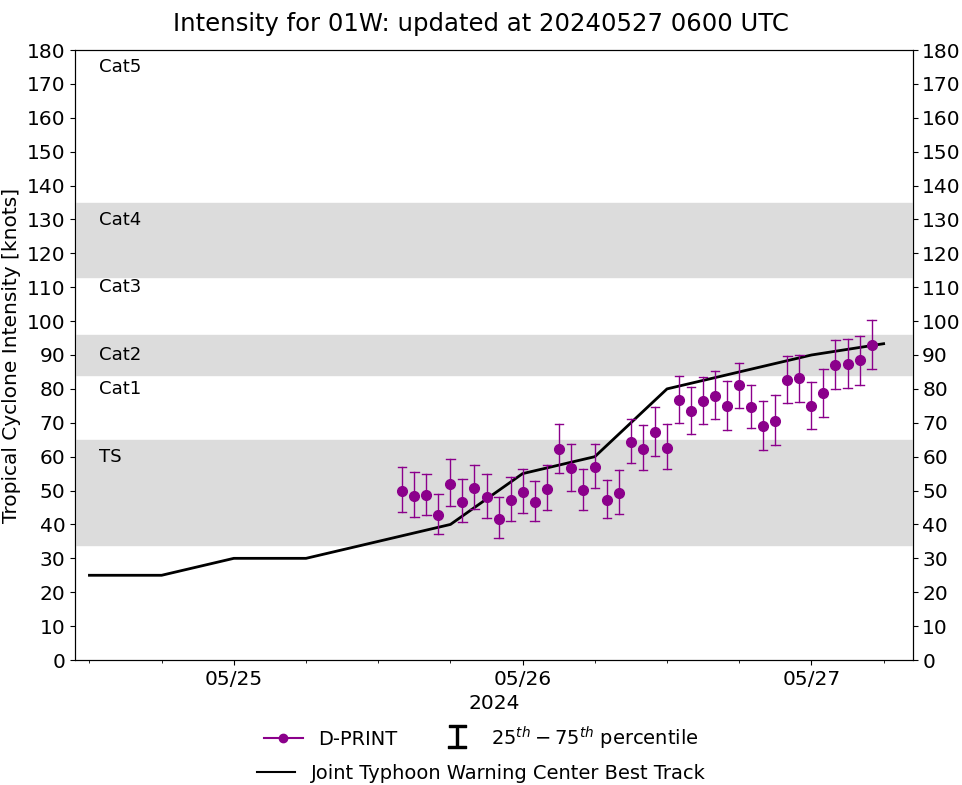

WESTERN NORTH PACIFIC: TY 01W(EWINIAR). ESTIMATED LOCATION AND INTENSITY AT 27/03UTC. INTENSITY IS 90 KNOTS/CAT 2 US:+45 KNOTS OVER 24H

0124052500 122N1238E  30
0124052506 128N1230E  30
0124052512 135N1222E  35
0124052518 138N1218E  40
0124052600 141N1214E  55
0124052606 145N1218E  60
0124052612 149N1223E  80
0124052618 155N1225E  85
0124052700 158N1228E  90

WARNING 10 ISSUED AT 27/03UTC

Typhoon 01W(EWINIAR) +45knots last 24h to peak at CAT 3 US within 24h//TC 01B(REMAL) landfall//10 Day ECWMF Storm Tracks//2706utc

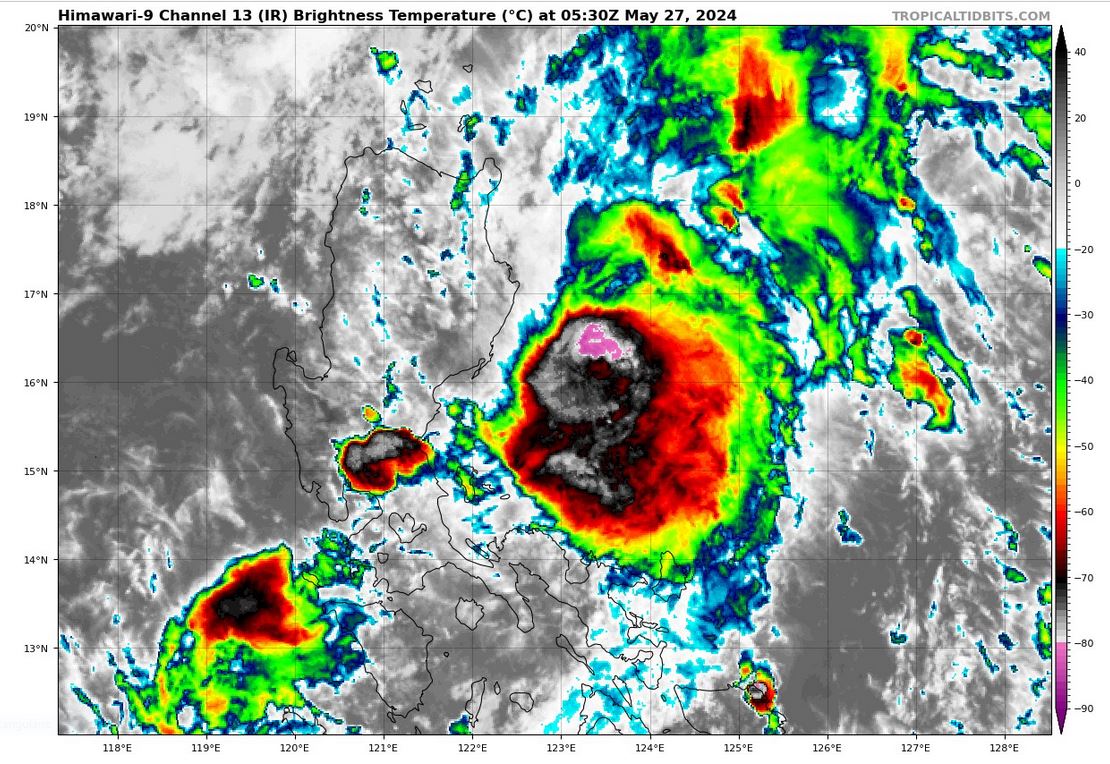

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED

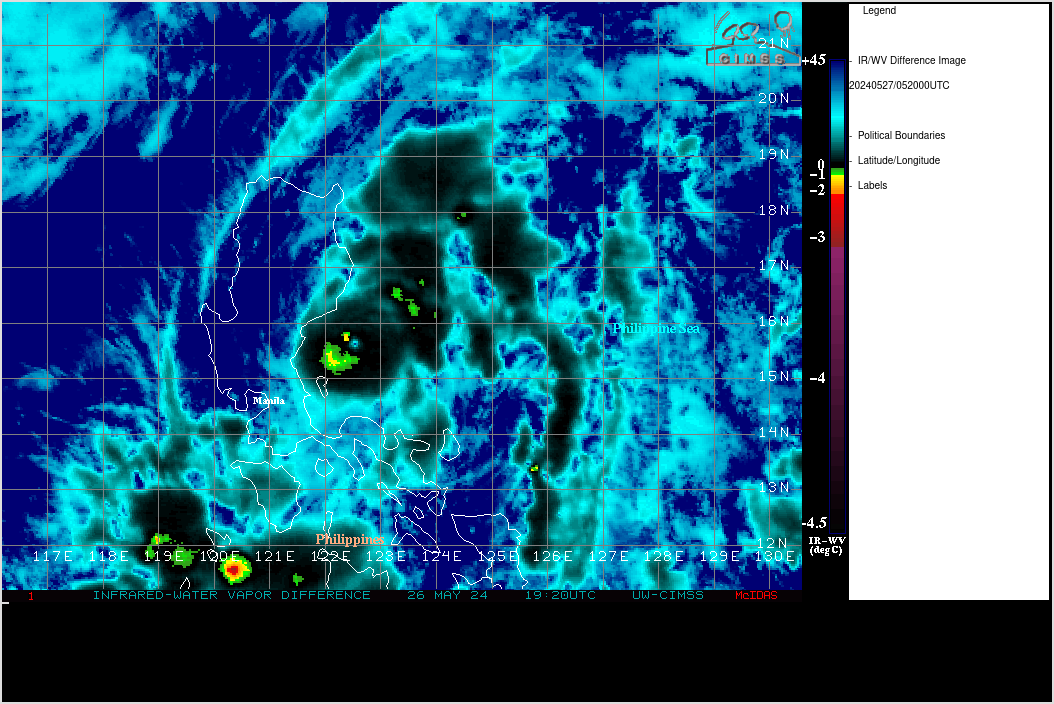

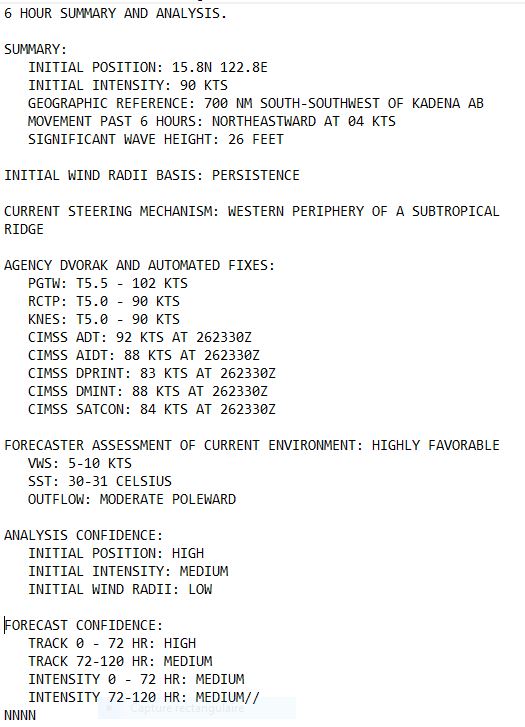

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) DEPICTS TYPHOON (TY) 01W (EWINIAR) EXHIBITING A FURTHER CONSOLIDATING STRUCTURE, WITH  DEEP CONVECTIVE BANDING PREVALENT MOSTLY IN THE NORTHEASTERN QUADRANT.  THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON A 270000Z  HIMAWARI 1KM VISIBLE SATELLITE IMAGE. IN ANIMATED IMAGERY, THE ONCE  EVIDENT PINHOLE EYE FEATURE HAS OBSCURED, PRESENTING A DIMPLE IN THE  CIRRUS CANOPY OVERHEAD OF THE LLCC. THE OVERALL ENVIRONMENT IS  ASSESSED AS HIGHLY FAVORABLE, WITH PERSISTING POLEWARD OUTFLOW ALOFT, VERY WARM (30-31C) SEA SURFACE TEMPERATURES, AND LOW (5-10 KTS) VERTICAL WIND SHEAR. THE INITIAL  INTENSITY OF 90 KTS IS ASSESSED WITH MEDIUM CONFIDENCE BASED ON  SUBJECTIVE AND OBJECTIVE INTENSITY ESTIMATES LISTED BELOW.
SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) DEPICTS TYPHOON (TY) 01W (EWINIAR) EXHIBITING A FURTHER CONSOLIDATING STRUCTURE, WITH DEEP CONVECTIVE BANDING PREVALENT MOSTLY IN THE NORTHEASTERN QUADRANT. THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON A 270000Z HIMAWARI 1KM VISIBLE SATELLITE IMAGE. IN ANIMATED IMAGERY, THE ONCE EVIDENT PINHOLE EYE FEATURE HAS OBSCURED, PRESENTING A DIMPLE IN THE CIRRUS CANOPY OVERHEAD OF THE LLCC. THE OVERALL ENVIRONMENT IS ASSESSED AS HIGHLY FAVORABLE, WITH PERSISTING POLEWARD OUTFLOW ALOFT, VERY WARM (30-31C) SEA SURFACE TEMPERATURES, AND LOW (5-10 KTS) VERTICAL WIND SHEAR. THE INITIAL INTENSITY OF 90 KTS IS ASSESSED WITH MEDIUM CONFIDENCE BASED ON SUBJECTIVE AND OBJECTIVE INTENSITY ESTIMATES LISTED BELOW.

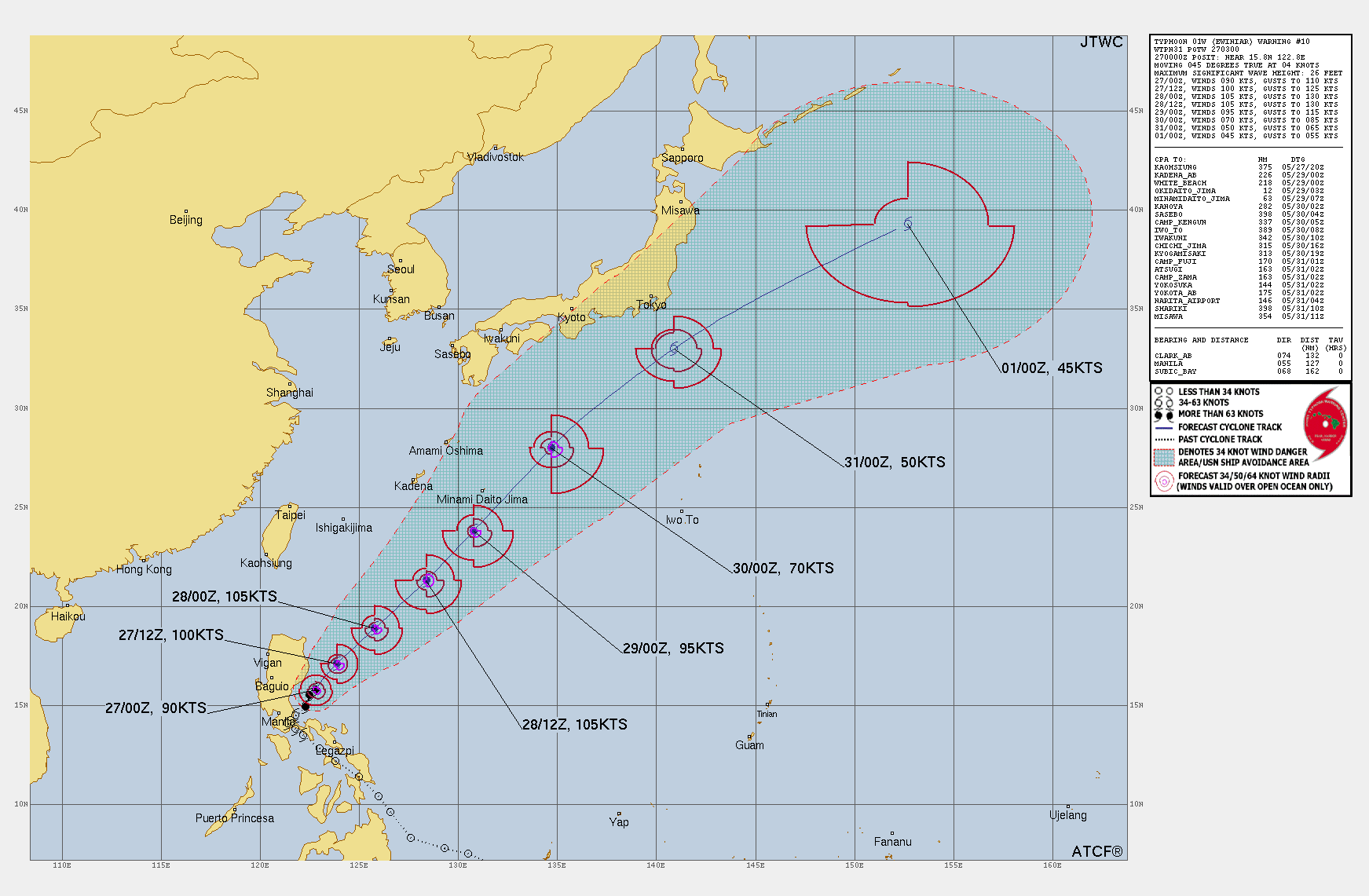

TC Warning Graphic

FORECAST REASONING.  SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING.  FORECAST DISCUSSION: TY 01W IS FORECAST TO CONTINUE TRACKING NORTH-NORTHEASTWARD, STEERED BY A SUBTROPICAL RIDGE (STR) LOCATED EAST OF THE LLCC FROM TAU 00 TO TAU 12, FOLLOWED BY A SLIGHT TURN TO A MORE NORTHEASTWARD TRACK FROM TAU 12 TO TAU 120. INTENSITY IS FORECAST TO CONTINUE INCREASING UNTIL TAU 24, DUE TO THE AFOREMENTIONED HIGHLY FAVORABLE ENVIRONMENT. AFTER TAU 36, OCEAN HEAT  CONTENT SHARPLY DECREASES AND SEA SURFACE TEMPERATURES FALL BELOW 26C  BY TAU 72. VERTICAL WIND SHEAR IS EXPECTED TO INCREASE TO 33 KTS BY  TAU 96 AS THE SYSTEM BEGINS EXTRATROPICAL TRANSITION. TY 01W IS  FORECAST TO COMPLETE EXTRATROPICAL TRANSITION NO LATER THAN TAU 120.
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TY 01W IS FORECAST TO CONTINUE TRACKING NORTH-NORTHEASTWARD, STEERED BY A SUBTROPICAL RIDGE (STR) LOCATED EAST OF THE LLCC FROM TAU 00 TO TAU 12, FOLLOWED BY A SLIGHT TURN TO A MORE NORTHEASTWARD TRACK FROM TAU 12 TO TAU 120. INTENSITY IS FORECAST TO CONTINUE INCREASING UNTIL TAU 24, DUE TO THE AFOREMENTIONED HIGHLY FAVORABLE ENVIRONMENT. AFTER TAU 36, OCEAN HEAT CONTENT SHARPLY DECREASES AND SEA SURFACE TEMPERATURES FALL BELOW 26C BY TAU 72. VERTICAL WIND SHEAR IS EXPECTED TO INCREASE TO 33 KTS BY TAU 96 AS THE SYSTEM BEGINS EXTRATROPICAL TRANSITION. TY 01W IS FORECAST TO COMPLETE EXTRATROPICAL TRANSITION NO LATER THAN TAU 120.

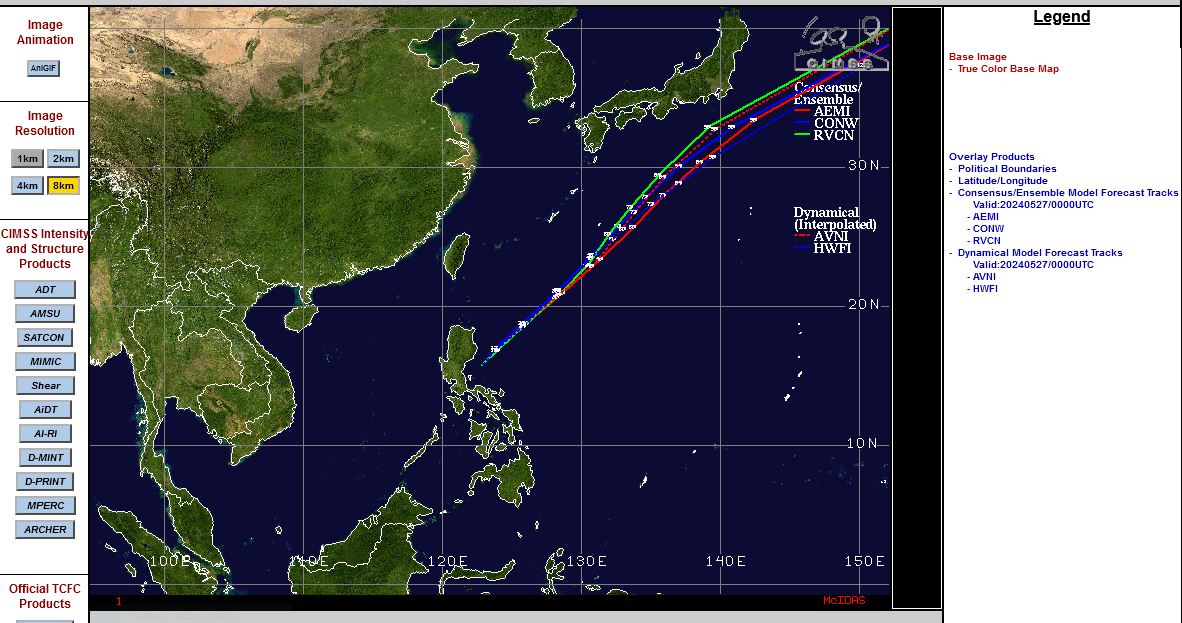

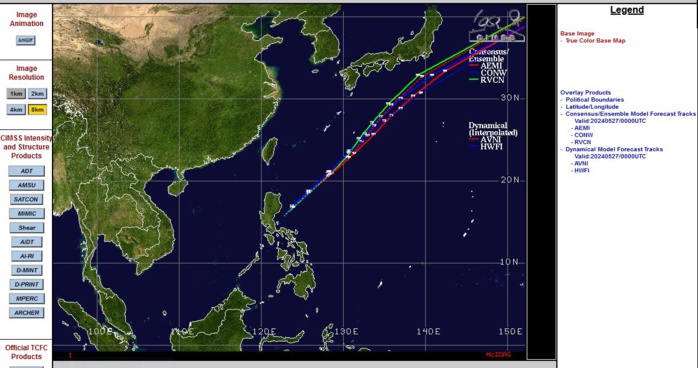

Consensus/Ensemble Model Forecast Tracks

MODEL DISCUSSION: GLOBAL NUMERICAL MODEL GUIDANCE EXHIBITS GOOD TRACK AGREEMENT, WITH A CROSS-TRACK SPREAD OF 128NM AT TAU 72 WITH THE EXCEPTION OF JAPANESE GLOBAL SPECTRAL MODEL SHOWING A SLIGHTLY MORE EASTERLY TRACK. BEYOND TAU 72, MODELS DIVERGE MAINLY IN REGARD TO SPEED ASSESSMENT, WITH A 415NM ALONG-TRACK SPREAD BY TAU 120 BETWEEN NAVGEM AND ECMWF ENSEMBLE MEAN. MODEL GUIDANCE EXHIBITS GOOD AGREEMENT ON INTENSITY, SHOWING INTENSIFICATION TO A PEAK OF 105 KTS AT TAU 24. FOLLOWING A BRIEF SUSTAINMENT PERIOD TO TAU 36, A WEAKENING TREND ONSETS AS THE ENVIRONMENT BECOMES UNFAVORABLE.  RAPID INTENSIFICATION (RI) AIDS HAVE DECREASED IN PROBABILITY OF OCCURRENCE, WITH ONE CAVEAT FOR COAMPS TC, WHICH IS ASSESSING RI PROBABILITY AT 40 PERCENT LIKELIHOOD OF OCCURRENCE BETWEEN TAU 12 AND  TAU 36.
MODEL DISCUSSION: GLOBAL NUMERICAL MODEL GUIDANCE EXHIBITS GOOD TRACK AGREEMENT, WITH A CROSS-TRACK SPREAD OF 128NM AT TAU 72 WITH THE EXCEPTION OF JAPANESE GLOBAL SPECTRAL MODEL SHOWING A SLIGHTLY MORE EASTERLY TRACK. BEYOND TAU 72, MODELS DIVERGE MAINLY IN REGARD TO SPEED ASSESSMENT, WITH A 415NM ALONG-TRACK SPREAD BY TAU 120 BETWEEN NAVGEM AND ECMWF ENSEMBLE MEAN. MODEL GUIDANCE EXHIBITS GOOD AGREEMENT ON INTENSITY, SHOWING INTENSIFICATION TO A PEAK OF 105 KTS AT TAU 24. FOLLOWING A BRIEF SUSTAINMENT PERIOD TO TAU 36, A WEAKENING TREND ONSETS AS THE ENVIRONMENT BECOMES UNFAVORABLE. RAPID INTENSIFICATION (RI) AIDS HAVE DECREASED IN PROBABILITY OF OCCURRENCE, WITH ONE CAVEAT FOR COAMPS TC, WHICH IS ASSESSING RI PROBABILITY AT 40 PERCENT LIKELIHOOD OF OCCURRENCE BETWEEN TAU 12 AND TAU 36.

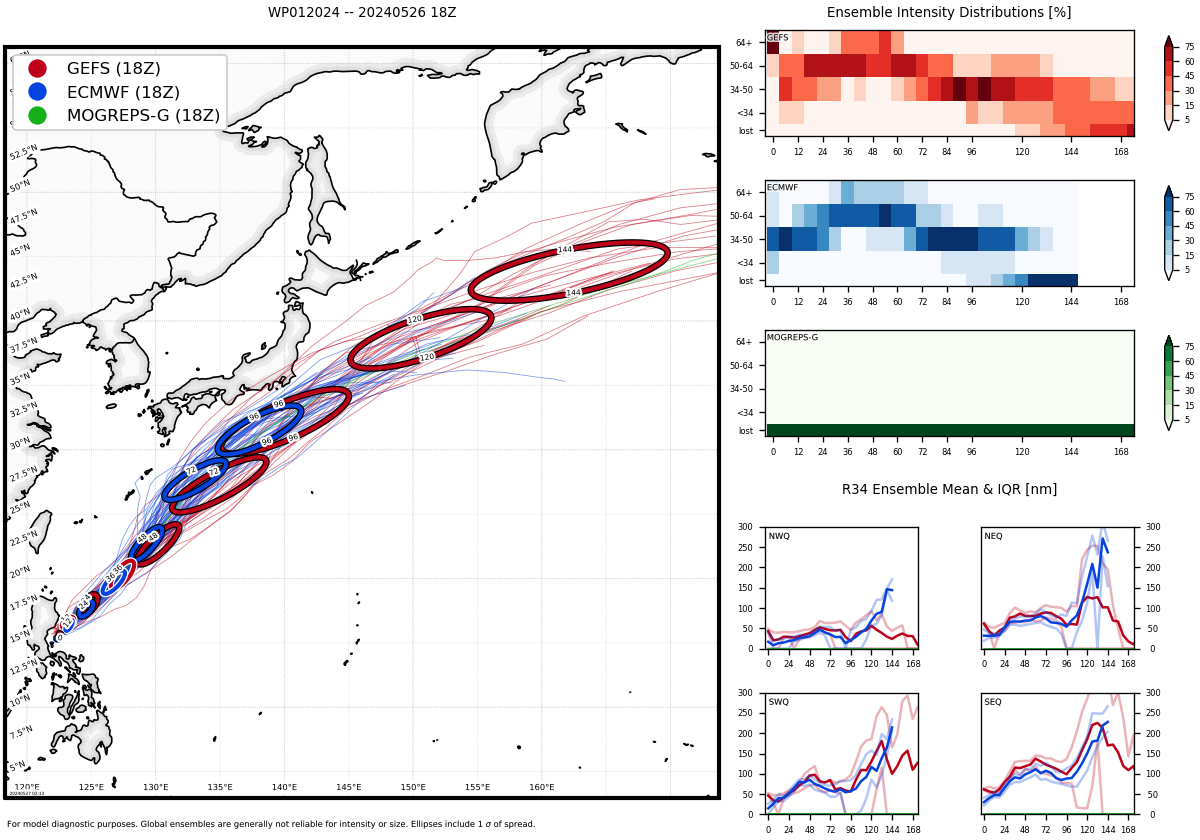

Ensemble Track Ellipses

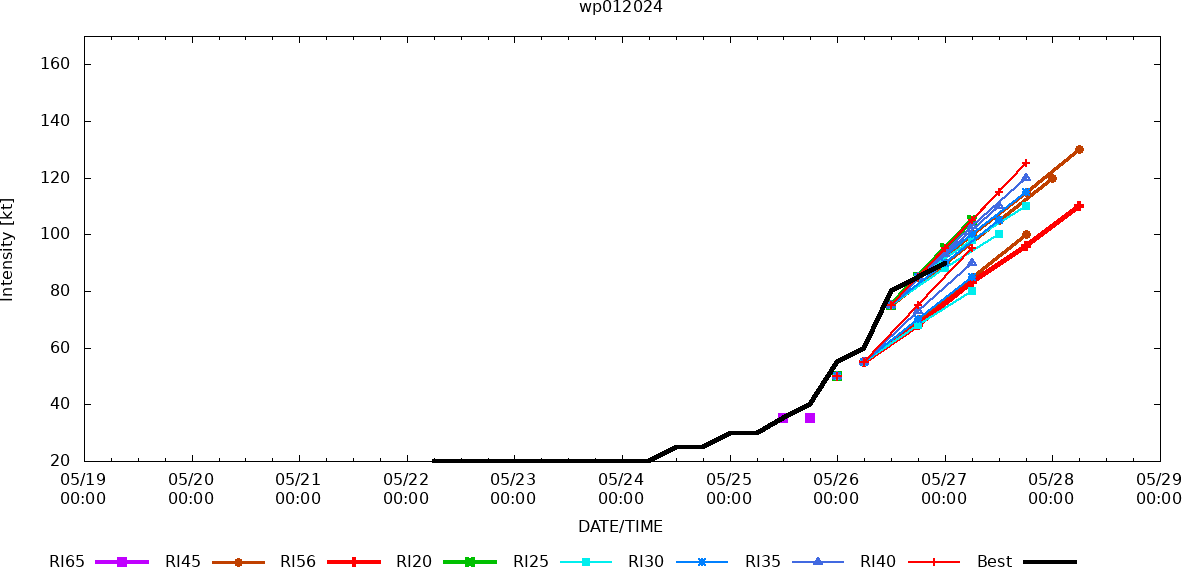

Rapid Intensification Guidance

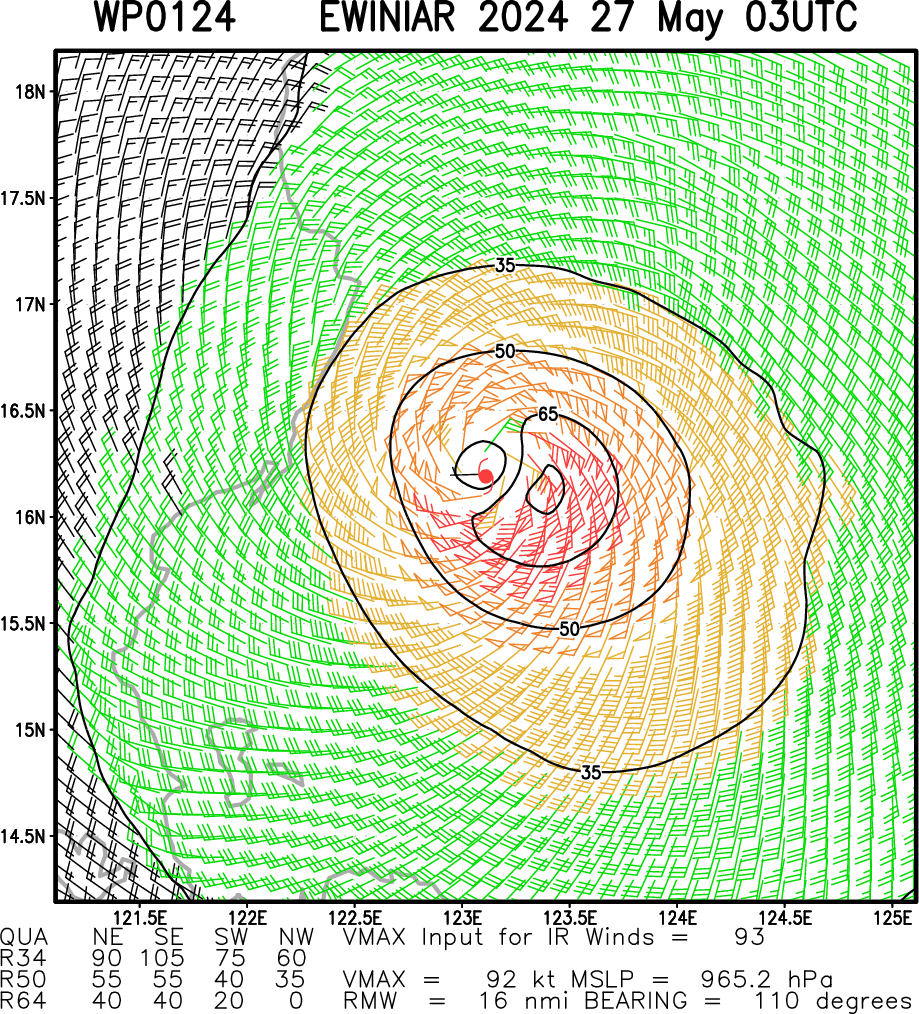

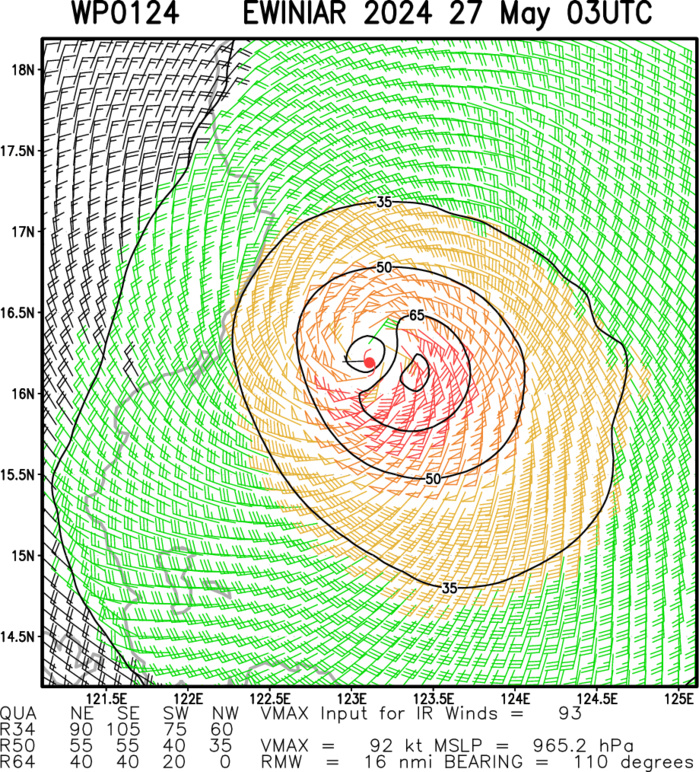

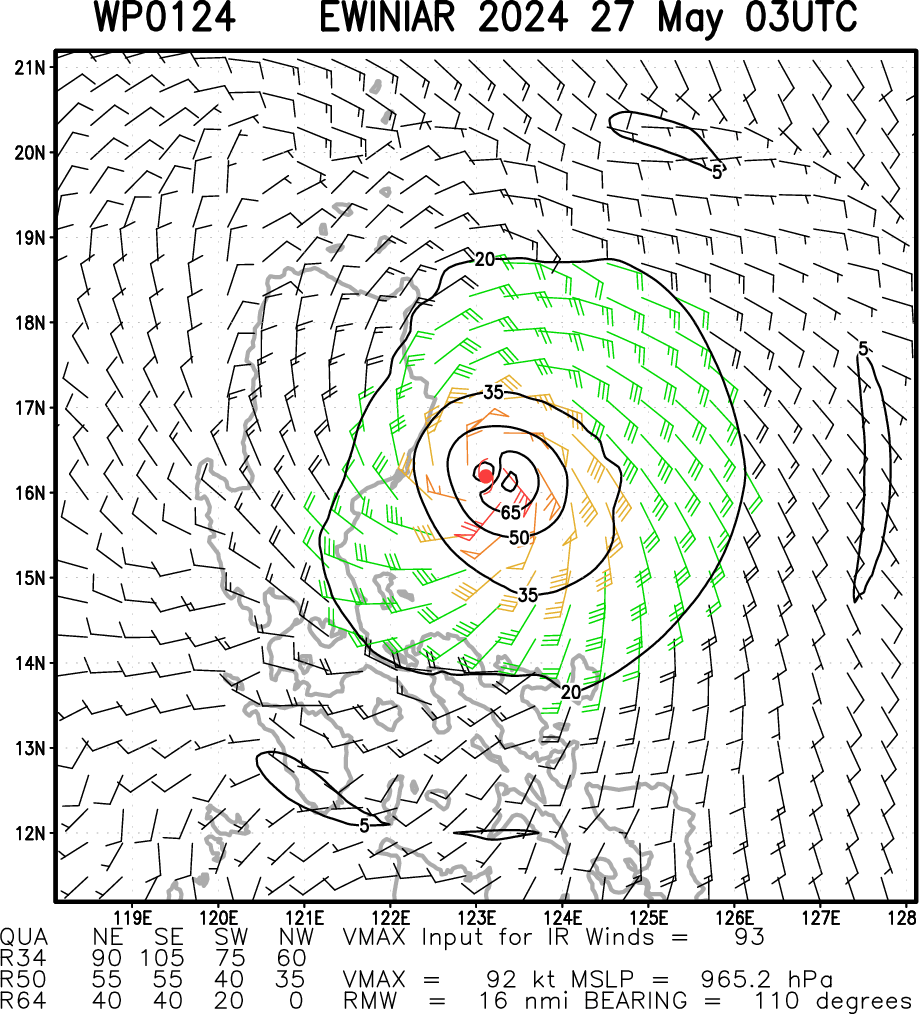

Multiplatform Satellite Surface Wind Analysis (Experimenta


UPDATED SATELLITE BULLETIN AT 27/0530UTC

TPPN10 PGTW 270548

A. TYPHOON 01W (EWINIAR)

B. 27/0530Z

C. 16.17N

D. 123.57E

E. FIVE/GK2A

F. T5.0/5.5/D2.0/21HRS  STT: S0.0/03HRS

G. IR/EIR/VIS/MSI

H. REMARKS: 44A/PBO LARGE CDO/ANMTN. WELL-DEFINED CDO OF 140NM IN
DIAMETER YIELDS A DT OF 5.0. MET YIELDS 4.5. PT YIELDS 5.0. DBO DT.

I. ADDITIONAL POSITIONS: NONE


   SWANSON

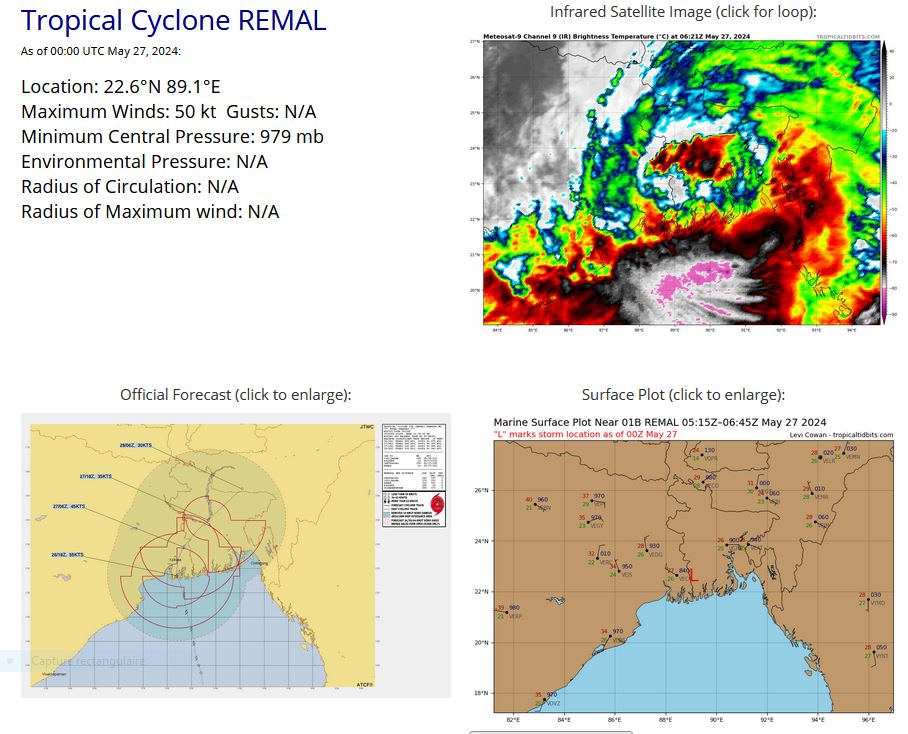

NORTH INDIAN OCEAN/OVER-LAND: TC 01B(REMAL).ESTIMATED LOCATION AND INTENSITY AT 27/00UTC.ESTIMATED PEAK INTENSITY WAS 55 KNOTS.

0124052312 136N 866E  20
0124052318 143N 876E  20
0124052400 149N 884E  20
0124052406 157N 891E  25
0124052412 164N 894E  25
0124052418 170N 895E  25
0124052500 177N 894E  25
0124052506 180N 893E  30
0124052512 183N 892E  35
0124052518 189N 891E  35
0124052600 195N 890E  45
0124052606 202N 888E  55
0124052612 209N 887E  55
0124052618 217N 884E  55

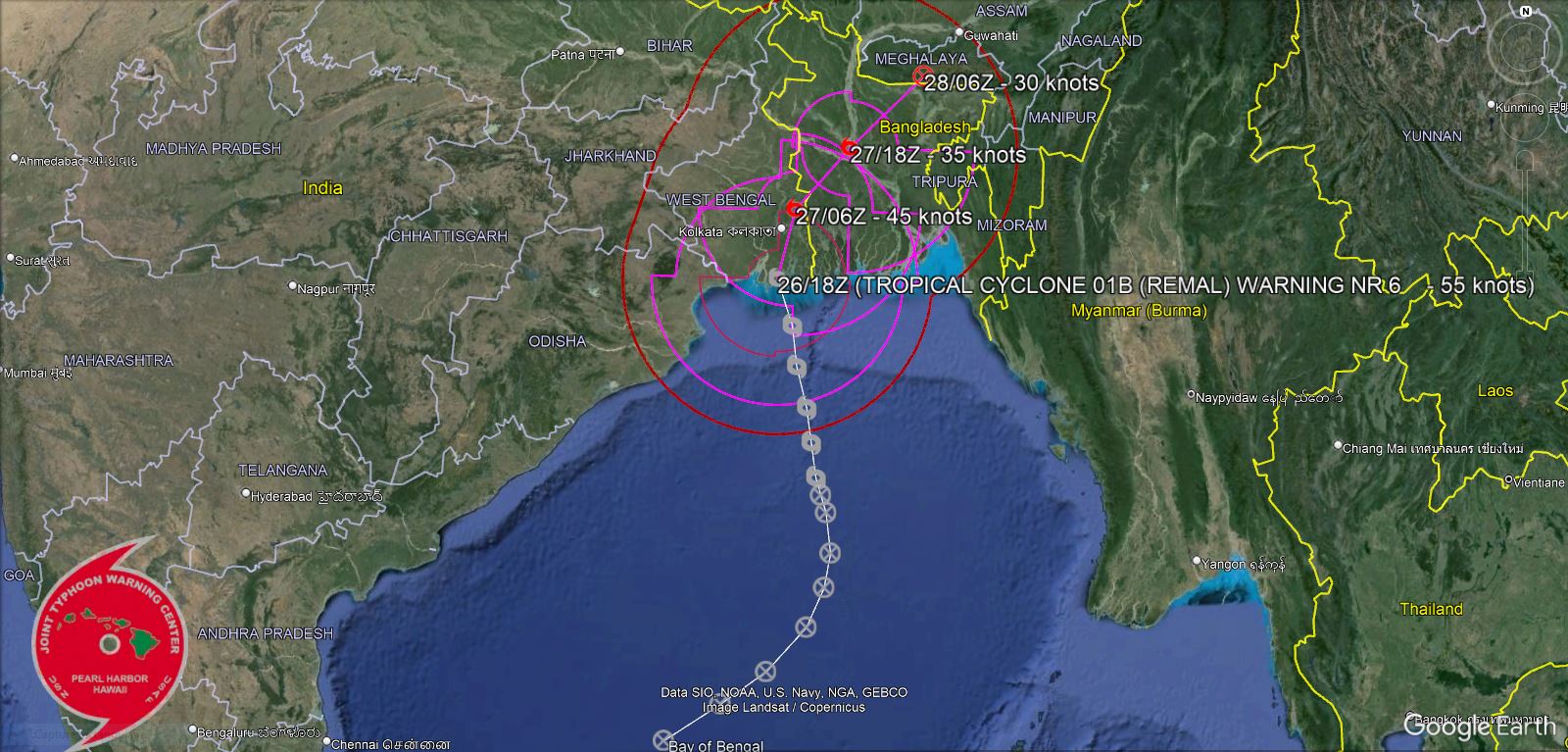

OBSERVED TRACK: GOOGLE EARTH OVERLAY

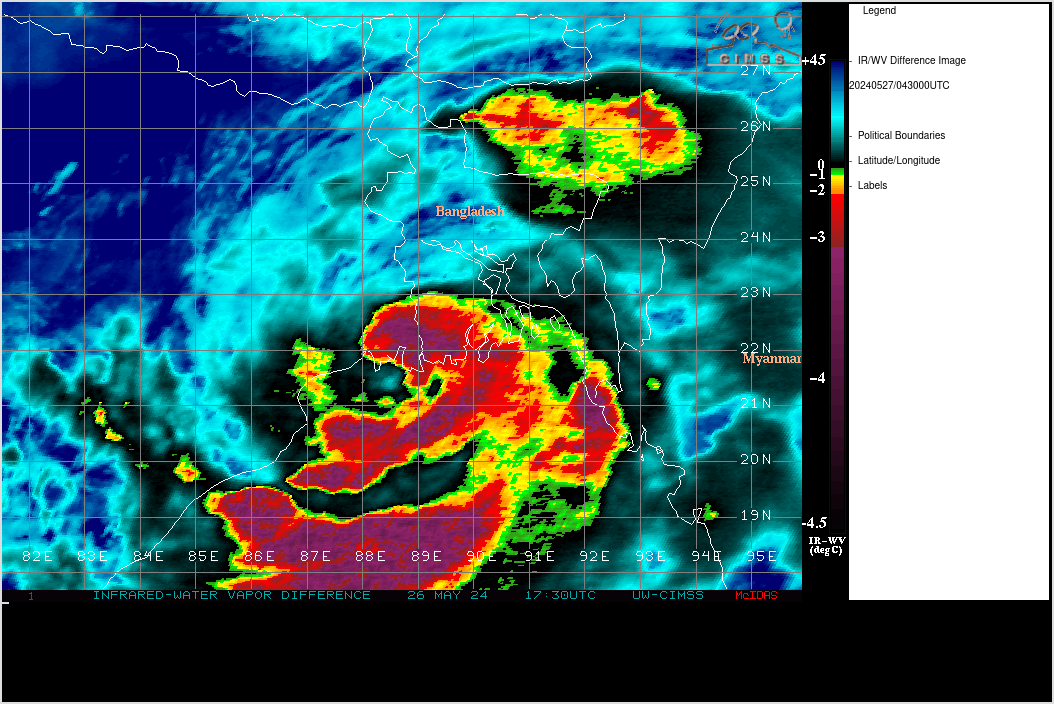

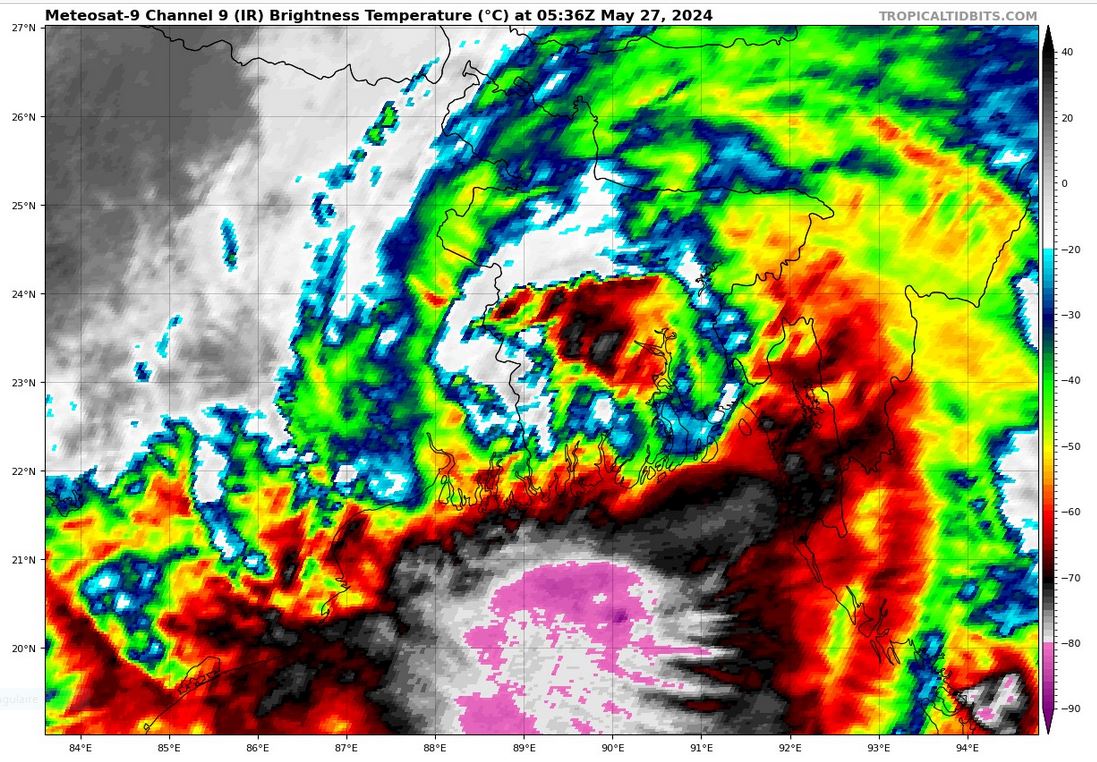

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED

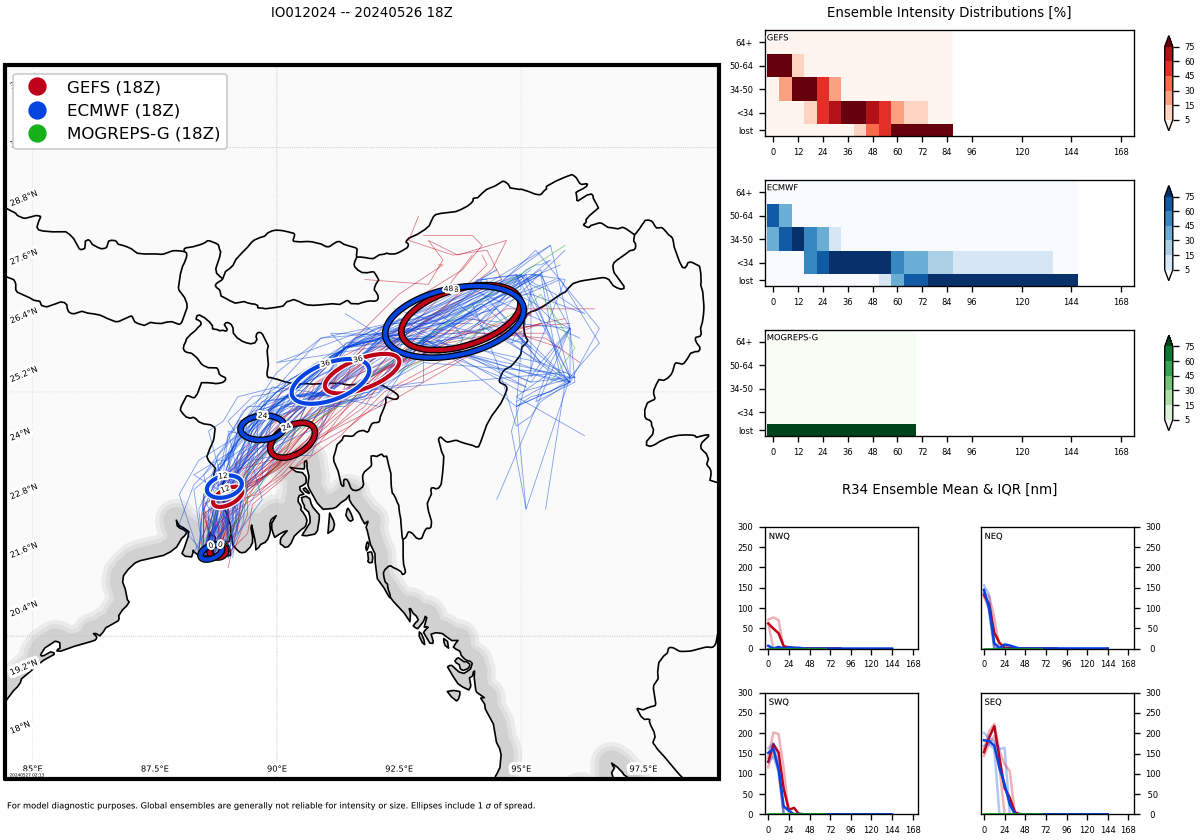

Ensemble Track Ellipses

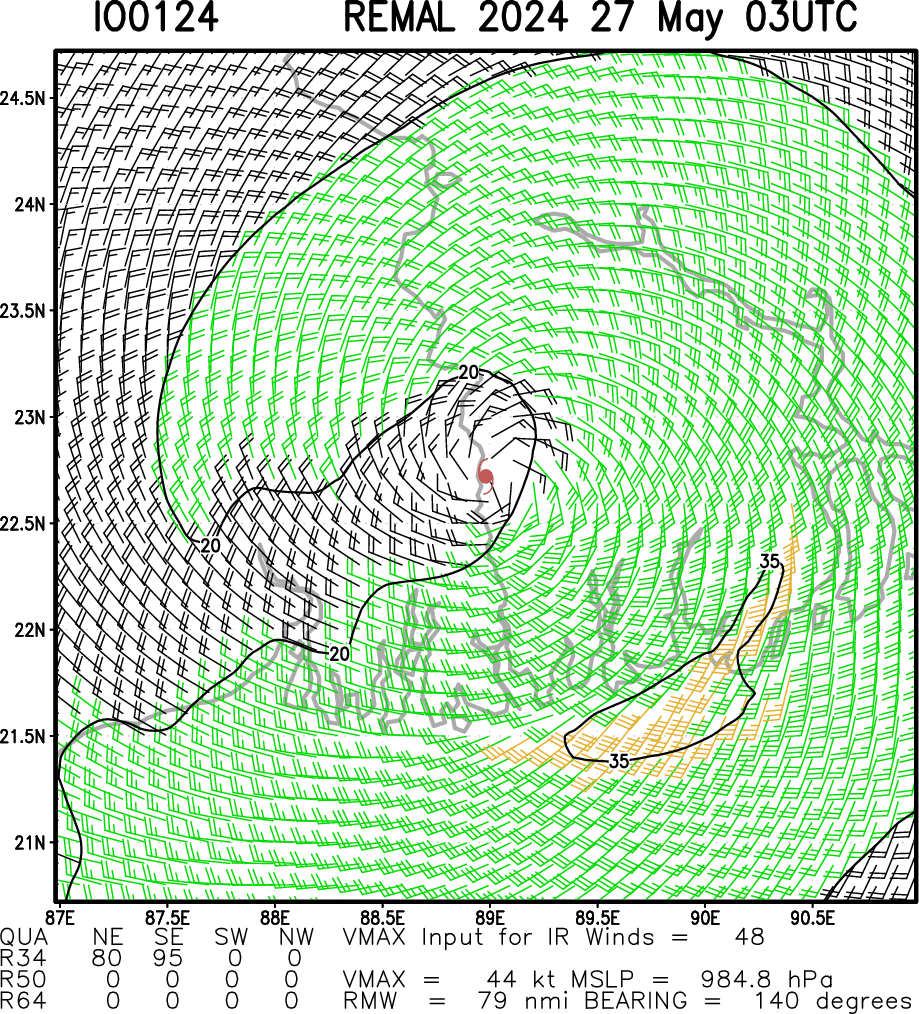

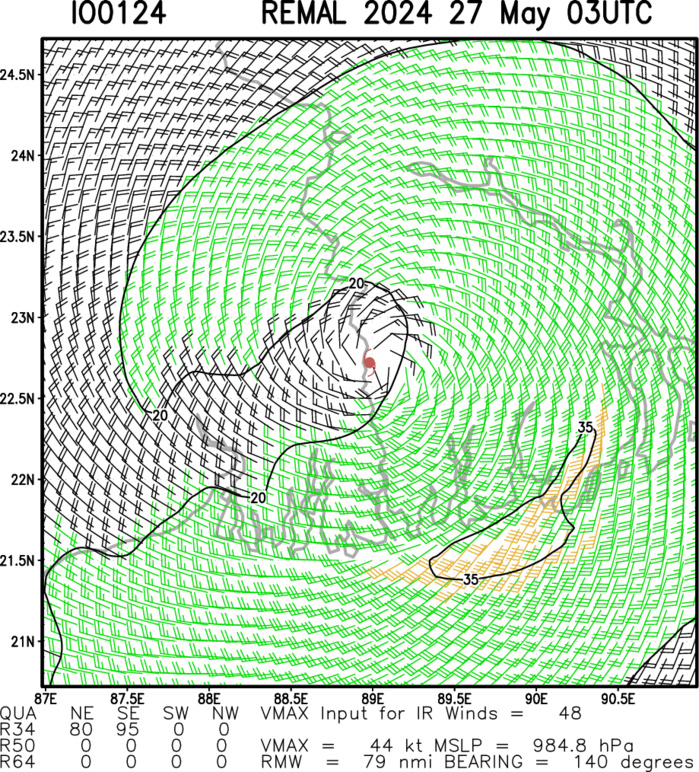

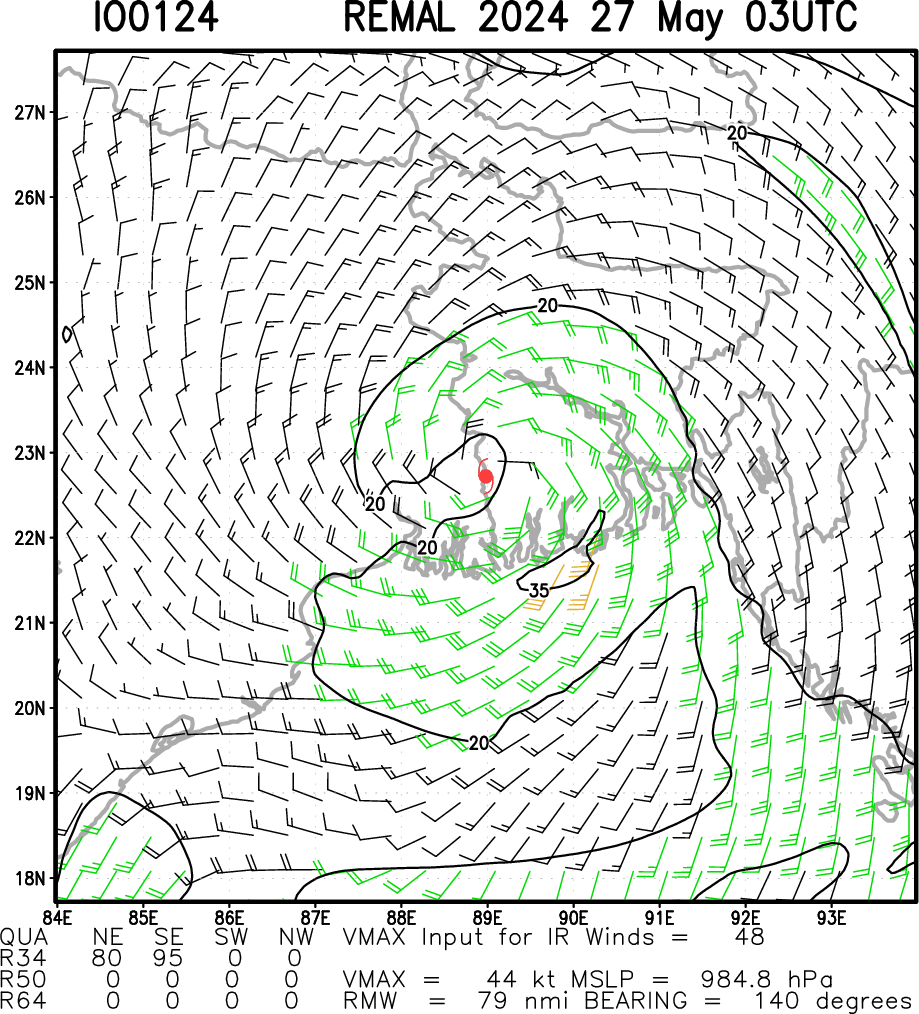

Multiplatform Satellite Surface Wind Analysis (Experimental)


UPDATED SATELLITE BULLETIN AT 27/0530UTC

TPIO10 PGTW 270552

A. TROPICAL CYCLONE 01B (REMAL)

B. 27/0530Z

C. 23.22N

D. 88.92E

E. FIVE/GOES-IO

F. N/A

G. IR/EIR/VIS/MSI

H. REMARKS: 40A/PBO SBC/ANMTN. DVORAK VALUES UNAVAILABLE DUE TO
LLCC OVER LAND.

I. ADDITIONAL POSITIONS: NONE


   SWANSON

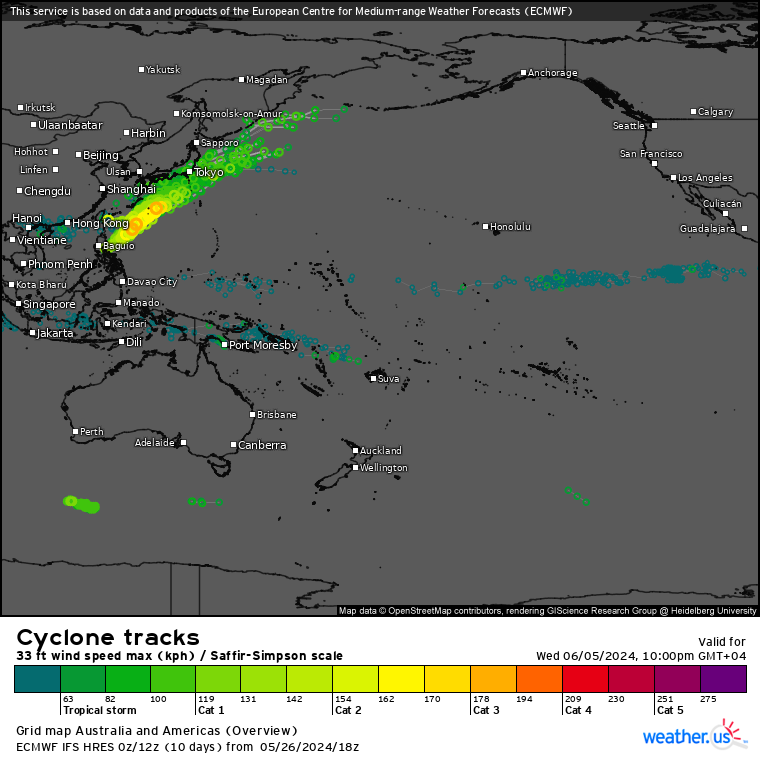

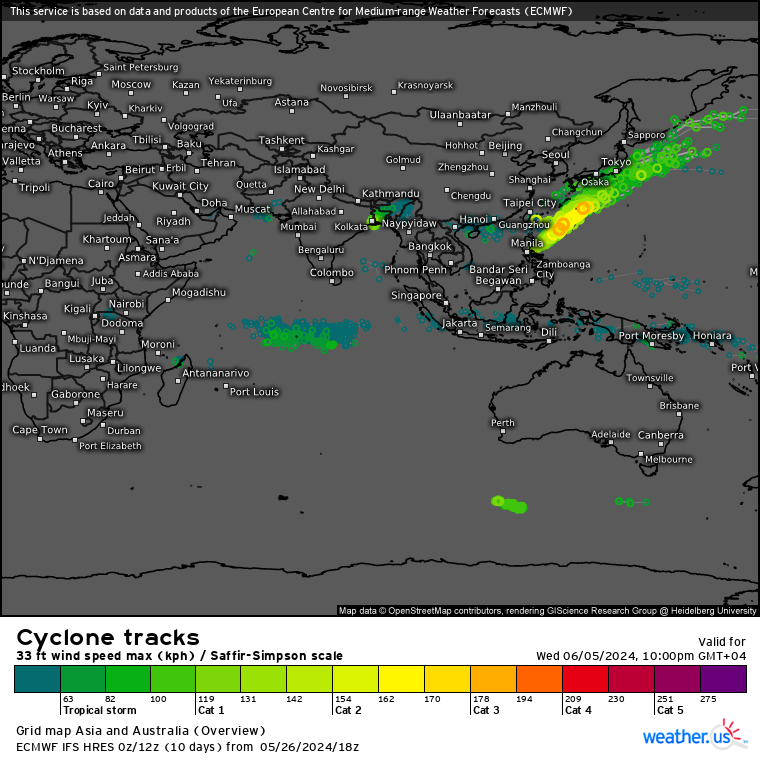

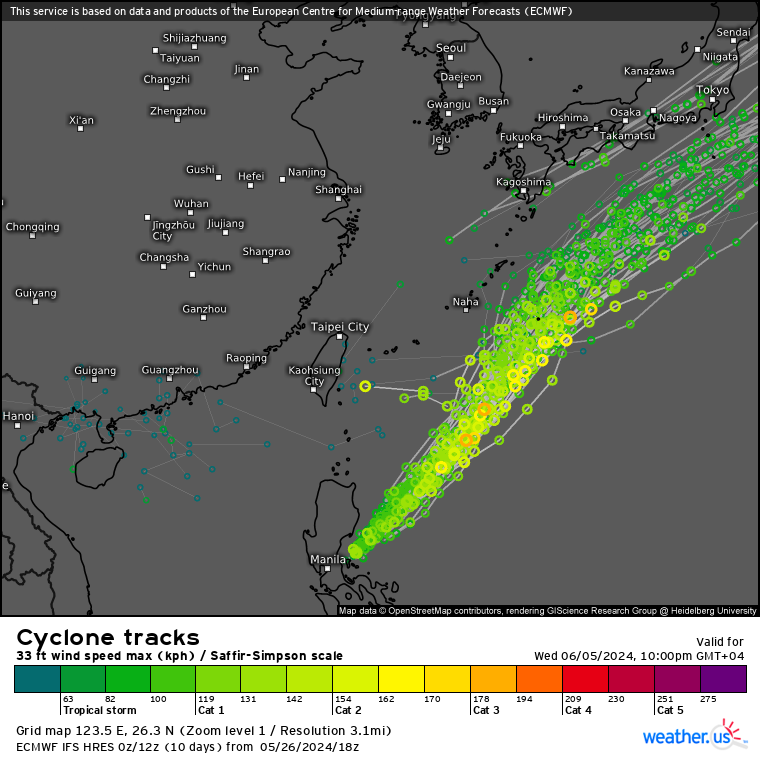

ECMWF Storm Tracks (Ensemble) : 05/27 18UTC+ 10 DAYS


ECMWF Storm Tracks (Ensemble) : 05/27 18UTC+ 10 DAYS


ECMWF Storm Tracks (Ensemble) : 05/27 18UTC+ 10 DAYS



Rédigé par PATRICK HOAREAU le Monday, May 27th 2024 à 11:10
