CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

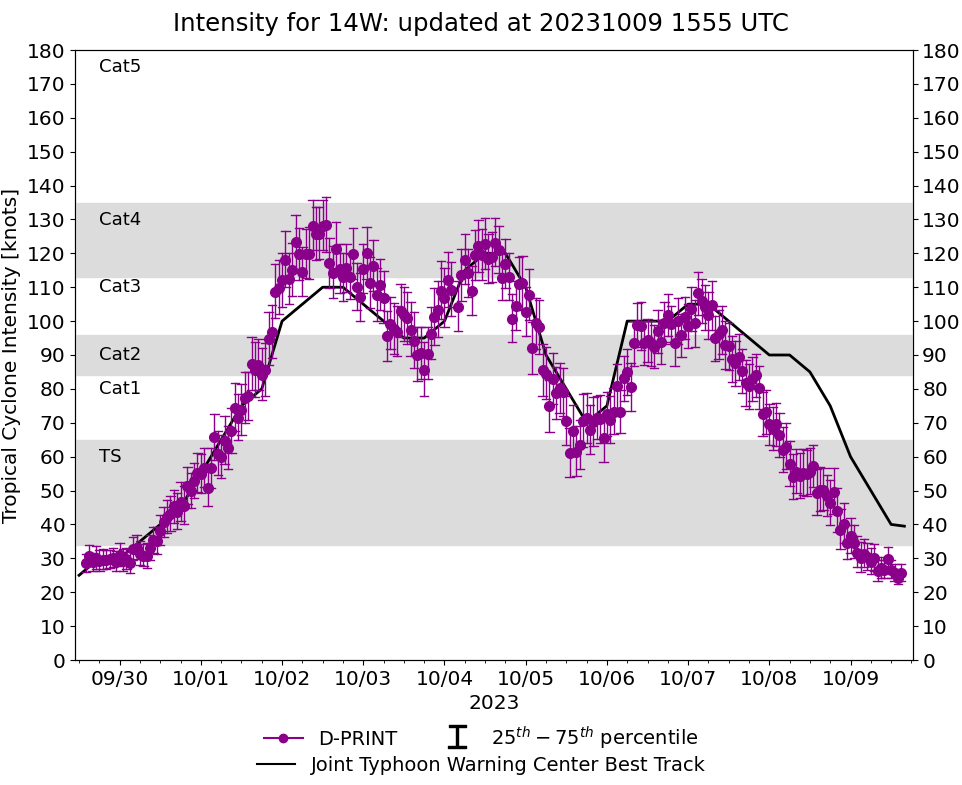

WESTERN NORTH PACIFIC: TS 14W(KOINU). CURRENT ESTIMATED INTENSITY IS 40 KNOTS: -45 KNOTS/24H.
1423100606 217N1169E 100
1423100612 214N1163E 100
1423100618 212N1157E 100
1423100700 211N1154E 105
1423100706 212N1152E 105
1423100712 213N1151E 100
1423100718 214N1149E 95
1423100800 215N1146E 90
1423100806 216N1143E 90
1423100812 217N1140E 85
1423100818 217N1136E 75
1423100900 217N1132E 60
1423100906 214N1128E 50
1423100912 211N1125E 40
1423100612 214N1163E 100
1423100618 212N1157E 100
1423100700 211N1154E 105
1423100706 212N1152E 105
1423100712 213N1151E 100
1423100718 214N1149E 95
1423100800 215N1146E 90
1423100806 216N1143E 90
1423100812 217N1140E 85
1423100818 217N1136E 75
1423100900 217N1132E 60
1423100906 214N1128E 50
1423100912 211N1125E 40

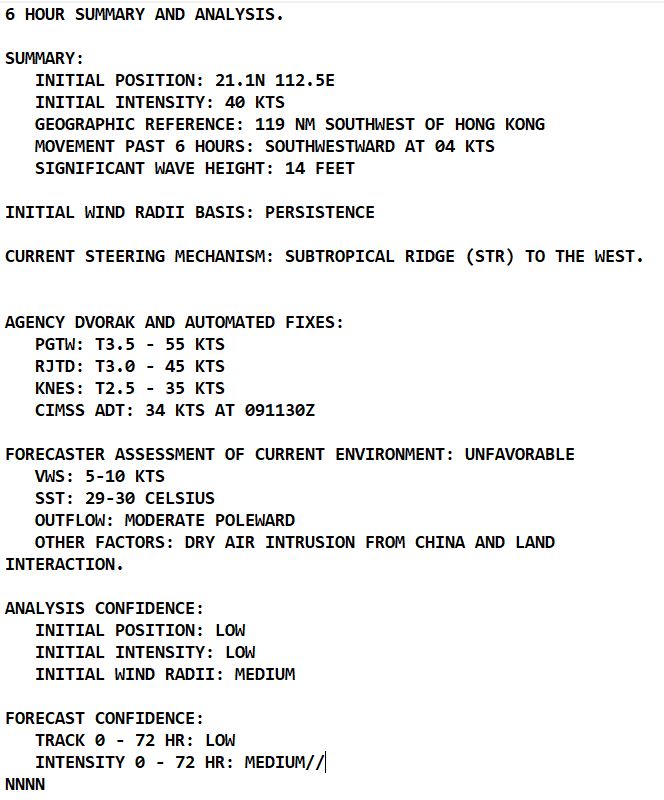

WARNING 41 ISSUED AT 09/15UTC.
SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED ENHANCED INFRARED (EIR) SATELLITE IMAGERY SHOWS THE SYSTEM CONTINUED TO RAPIDLY DETERIORATE AS THE CENTRAL CONVECTION ERODED AND FEEDER BANDS UNRAVELED. THE INITIAL POSITION IS PLACED WITH LOW CONFIDENCE BASED EXTRAPOLATION OF A RAGGED REMNANT OF THE LOW LEVEL CIRCULATI0N ON A COMPOSITE RADAR LOOP. THE INITIAL INTENSITY IS ASSESSED WITH LOW CONFIDENCE BASED ON OVERALL ASSESSMENT OF AGENCY AND AUTOMATED DVORAK ESTIMATES AND REFLECTS THE 6-HR DEGRADED CONVECTIVE STRUCTURE.

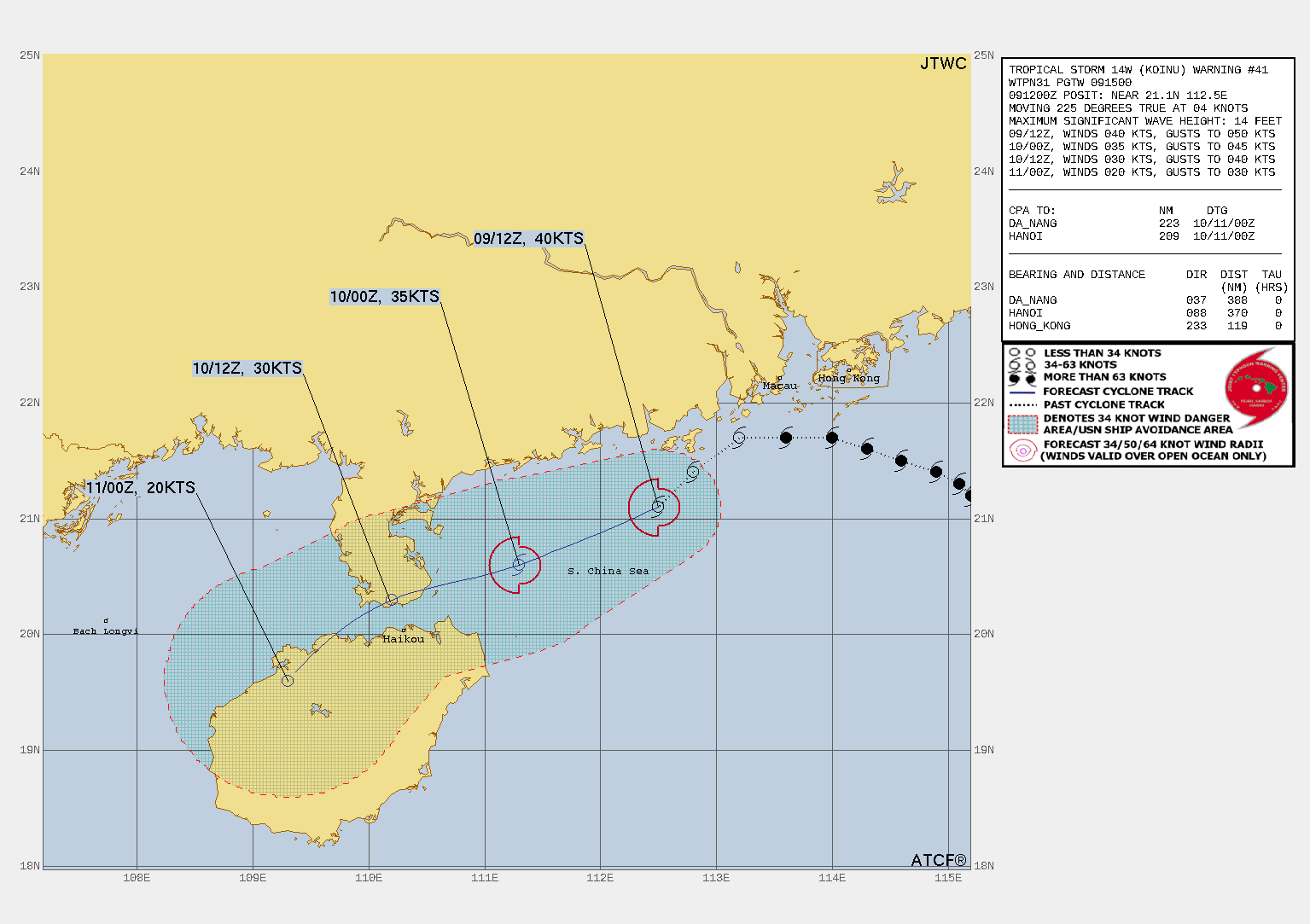

TC Warning Graphic
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TS KOINU WILL DRIFT SOUTHWESTWARD UNDER THE STEERING INFLUENCE OF THE STR TO THE WEST. THE UNFAVORABLE ENVIRONMENT, EXACERBATED BY LANDFALL INTO LEIZHOU PENINSULA THEN FINALLY INTO HAINAN WILL RAPIDLY ERODE THE SYSTEM TO DISSIPATION BY TAU 36.

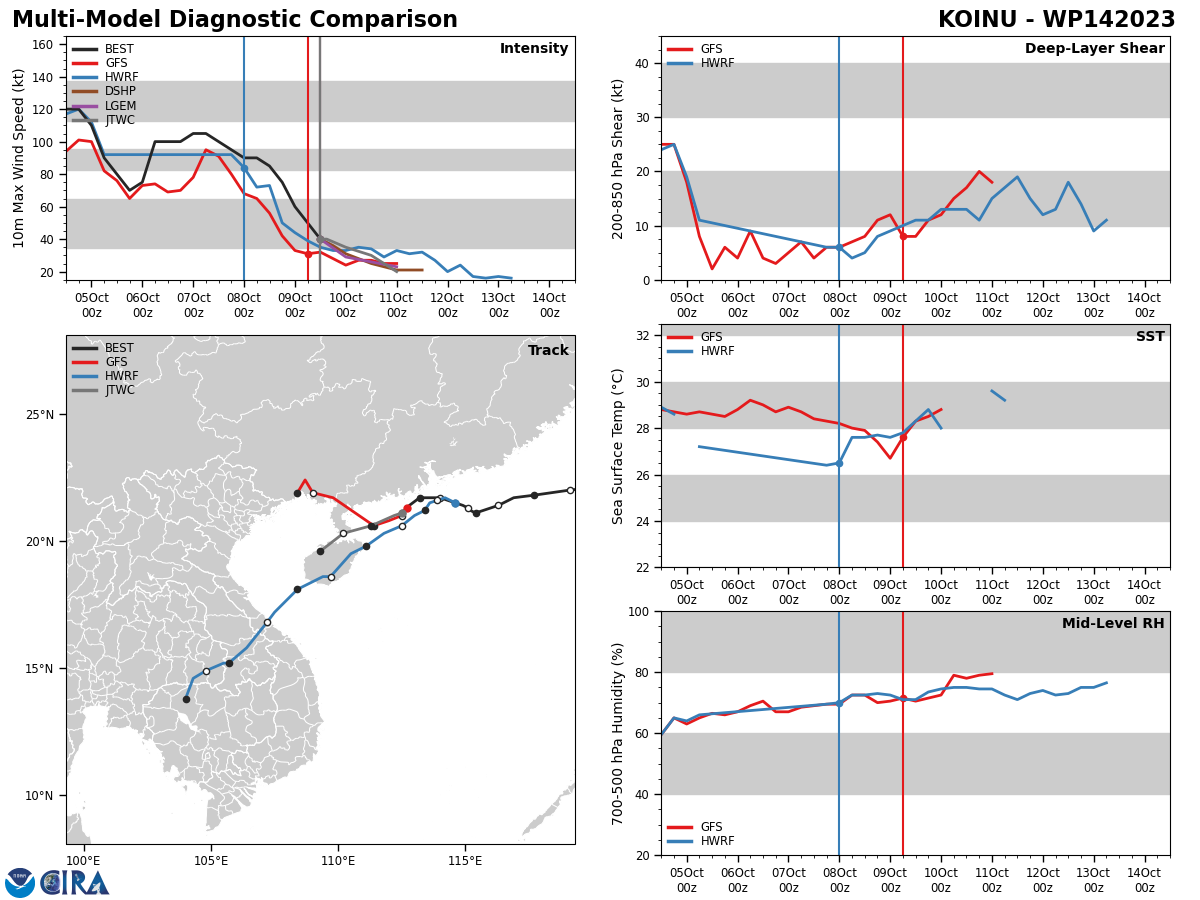

Model Diagnostic Plot
MODEL DISCUSSION: NUMERICAL MODELS ARE WIDELY SPREAD AND ERRATIC, LENDING LOW CONFIDENCE TO THE JTWC TRACK FORECAST.

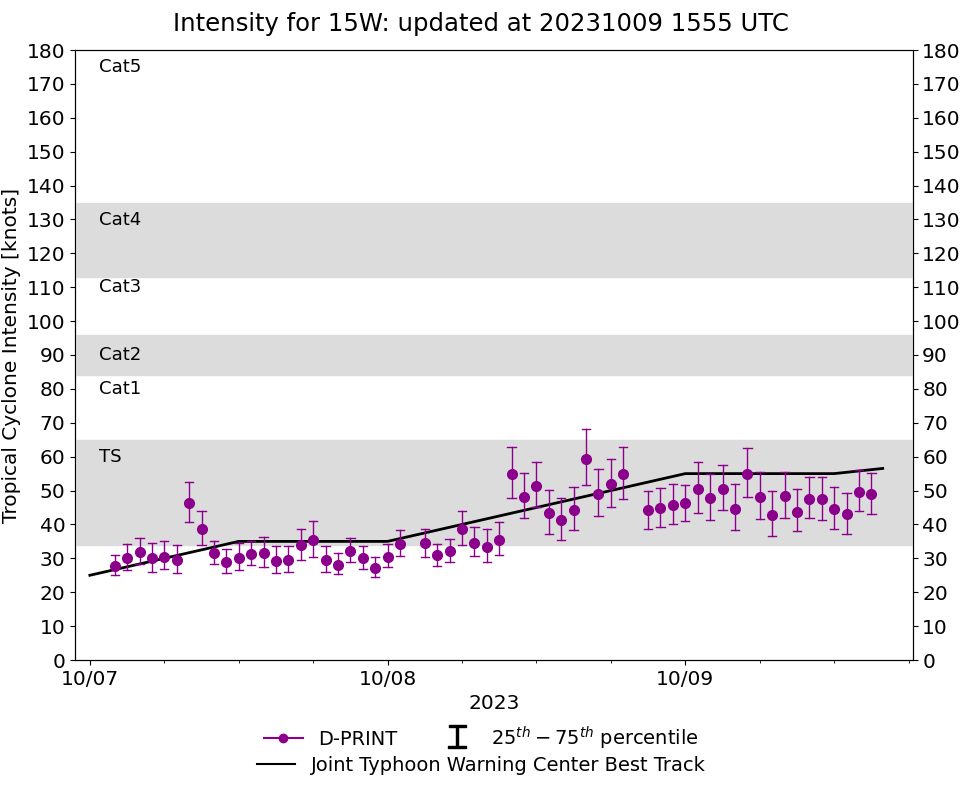

WESTERN NORTH PACIFIC: TS 15WBOLAVEN). CURRENT ESTIMATED INTENSITY IS 55 KNOTS: +10 KNOTS/24H.
1523100518 73N1567E 15
1523100600 80N1565E 15
1523100606 85N1563E 20
1523100612 89N1561E 20
1523100618 92N1555E 20
1523100700 92N1550E 25
1523100706 90N1546E 30
1523100712 91N1541E 35
1523100718 93N1537E 35
1523100800 95N1532E 35
1523100806 99N1527E 40
1523100812 101N1520E 45
1523100818 104N1511E 50
1523100900 108N1503E 55
1523100906 112N1494E 55
1523100912 120N1485E 55
1523100600 80N1565E 15
1523100606 85N1563E 20
1523100612 89N1561E 20
1523100618 92N1555E 20
1523100700 92N1550E 25
1523100706 90N1546E 30
1523100712 91N1541E 35
1523100718 93N1537E 35
1523100800 95N1532E 35
1523100806 99N1527E 40
1523100812 101N1520E 45
1523100818 104N1511E 50
1523100900 108N1503E 55
1523100906 112N1494E 55
1523100912 120N1485E 55
WARNING 11 ISSUED AT 09/15UTC.

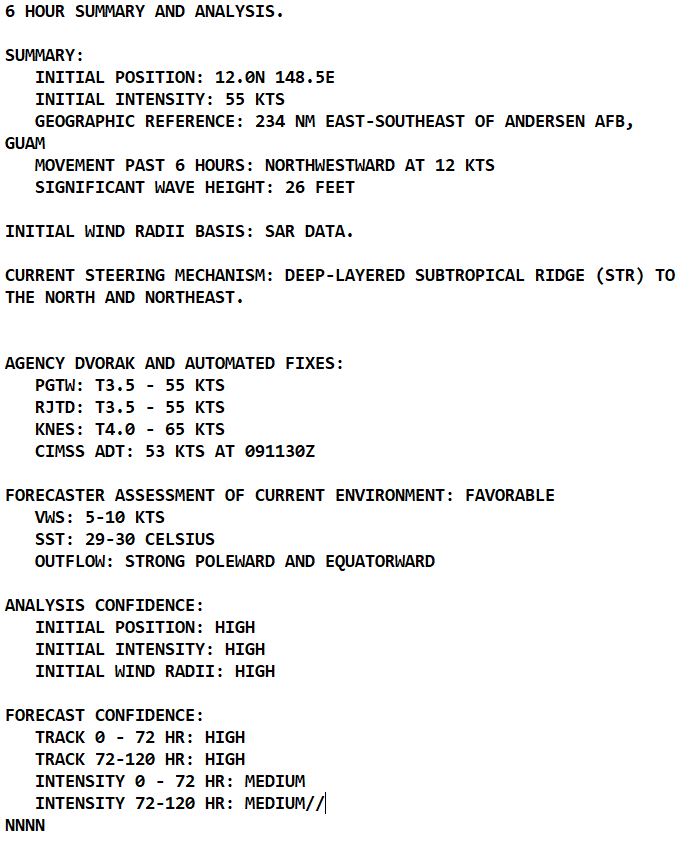

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED ENHANCED INFRARED (EIR) SATELLITE IMAGERY SHOWS THE SYSTEM HAS MAINTAINED DEEP FLARING CENTRAL CONVECTION WITH FORMATIVE BANDS INTERSECTING TOWARD AN OBSCURED LOW LEVEL CIRCULATION CENTER (LLCC). THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON A 091114Z PARTIAL ASCAT PASS AND CORROBORATED BY A DOPPLER RADAR FIX FROM NWS WFO GUAM. THE INITIAL INTENSITY IS ALSO PLACED WITH HIGH CONFIDENCE BASED ON THE ASCAT IMAGE AND A RECENT SAR PASS AND SUPPORTED BY AGENCY AND AUTOMATED DVORAK ESTIMATES AND REFLECTS THE OVERALL 6-HR SUSTAINED CONVECTIVE STRUCTURE.

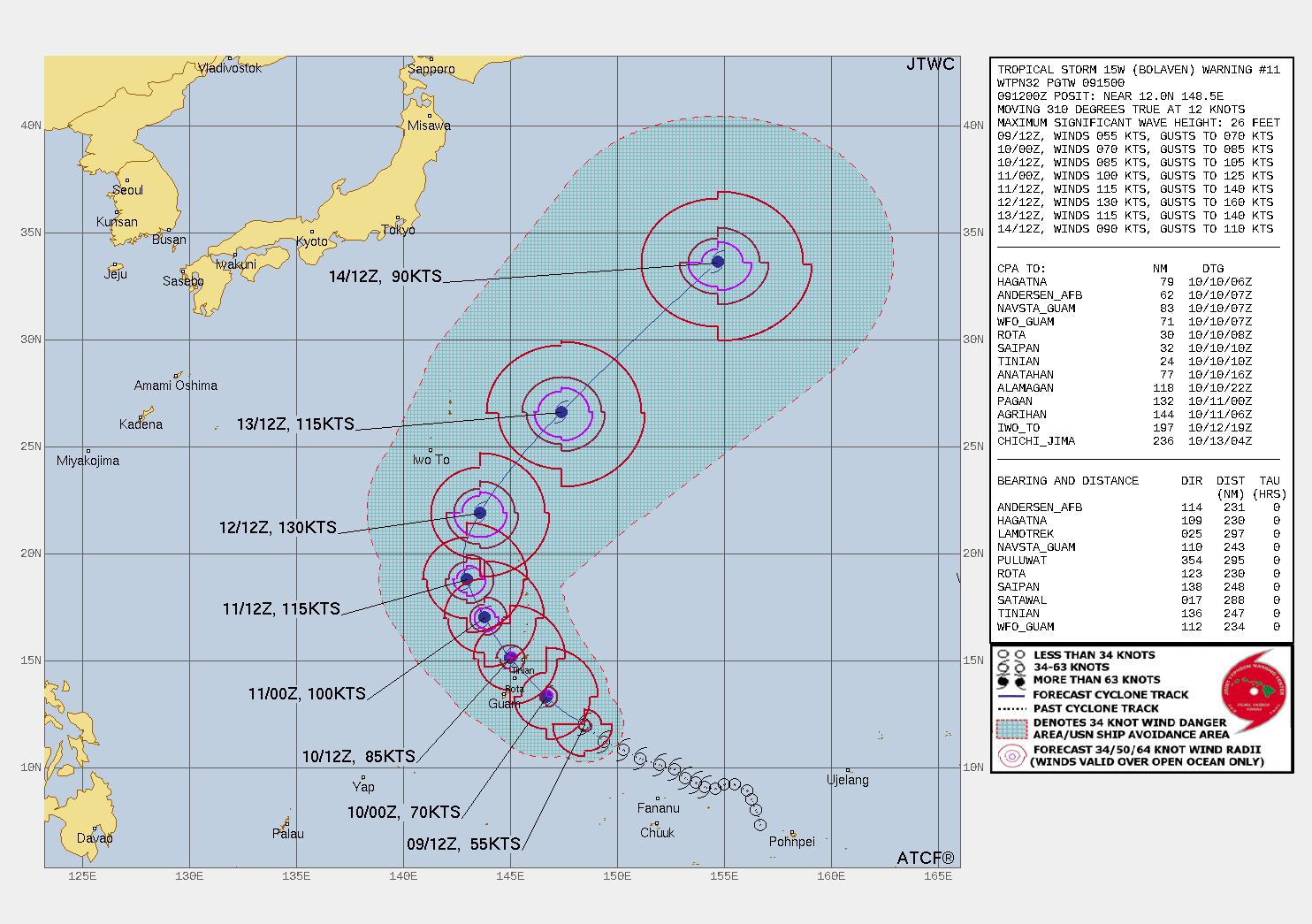

TC Warning Graphic

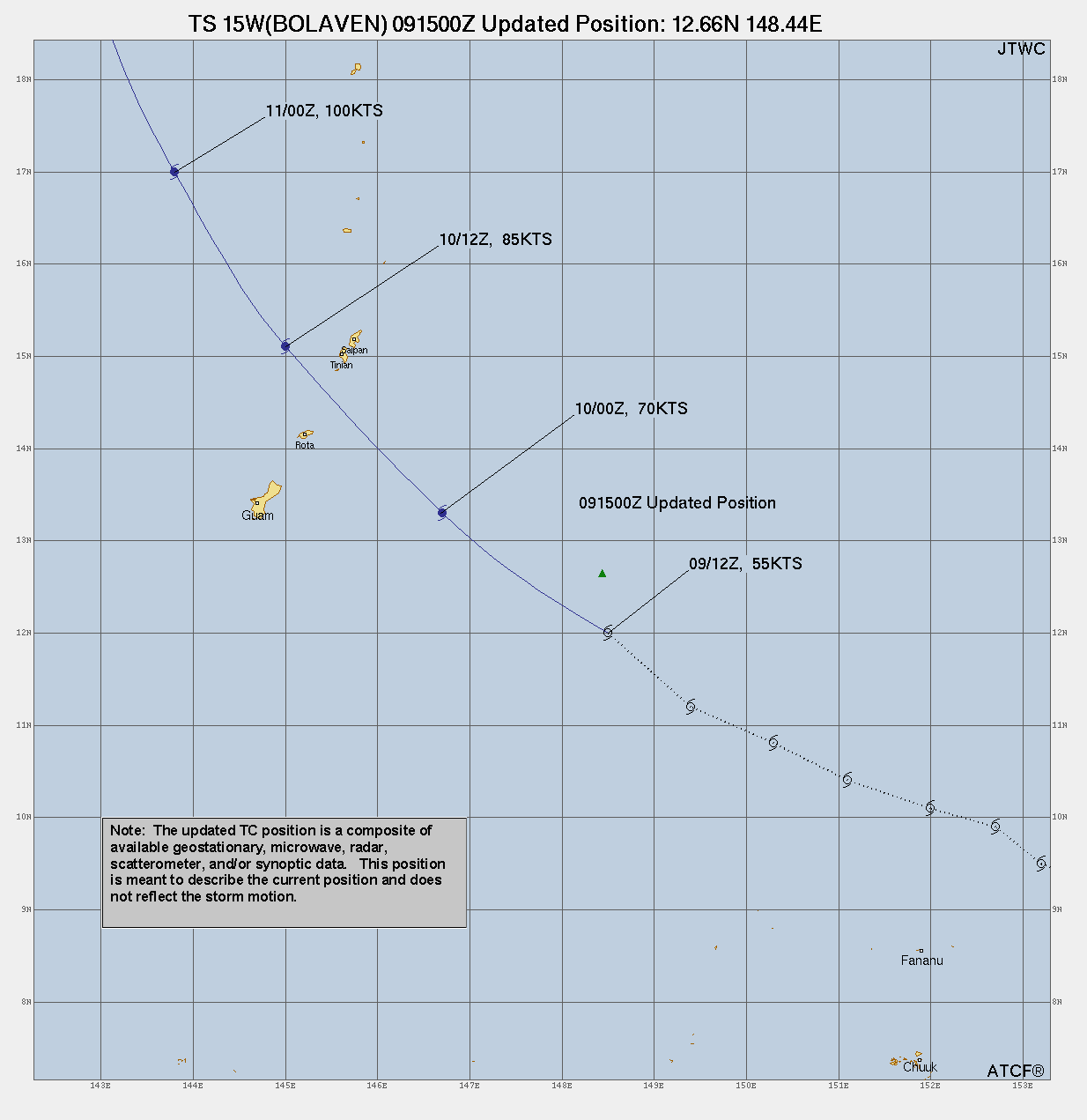

FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TS 15W WILL TRACK NORTHWESTWARD UNDER THE STEERING INFLUENCE OF AN EXTENSION THE STR TO THE NORTHEAST AND WILL COME TO WITHIN 62NM OF ANDERSEN AFB AROUND 100700Z AS IT TRACKS NORTHEAST OF GUAM. AFTER TAU 36, THE STR TO THE NORTH WILL RECEDE EASTWARD, ASSUME STEERING AND DRIVE THE SYSTEM NORTHWARD TOWARD IWO TO. THE FAVORABLE ENVIRONMENT WILL FUEL A STEADY THEN RAPID INTENSIFICATION AS THE CYCLONE ROUNDS THE STR AXIS, FUELED BY INCREASING POLEWARD OUTFLOW AHEAD OF A MID-LATITUDE TROUGH APPROACHING FROM THE NORTHWEST, AND BY TAU 72 WILL PEAK AT 125KTS. AFTERWARD, INCREASING VWS AND COOLING SST WILL RAPIDLY ERODE THE SYSTEM DOWN TO 90KTS BY TAU 120. ALSO, AROUND TAU 96, BOLAVEN WILL BEGIN EXTRA-TROPICAL TRANSITION, AND BY TAU 120, WILL TRANSFORM INTO A HURRICANE-FORCE COLD-CORE LOW.

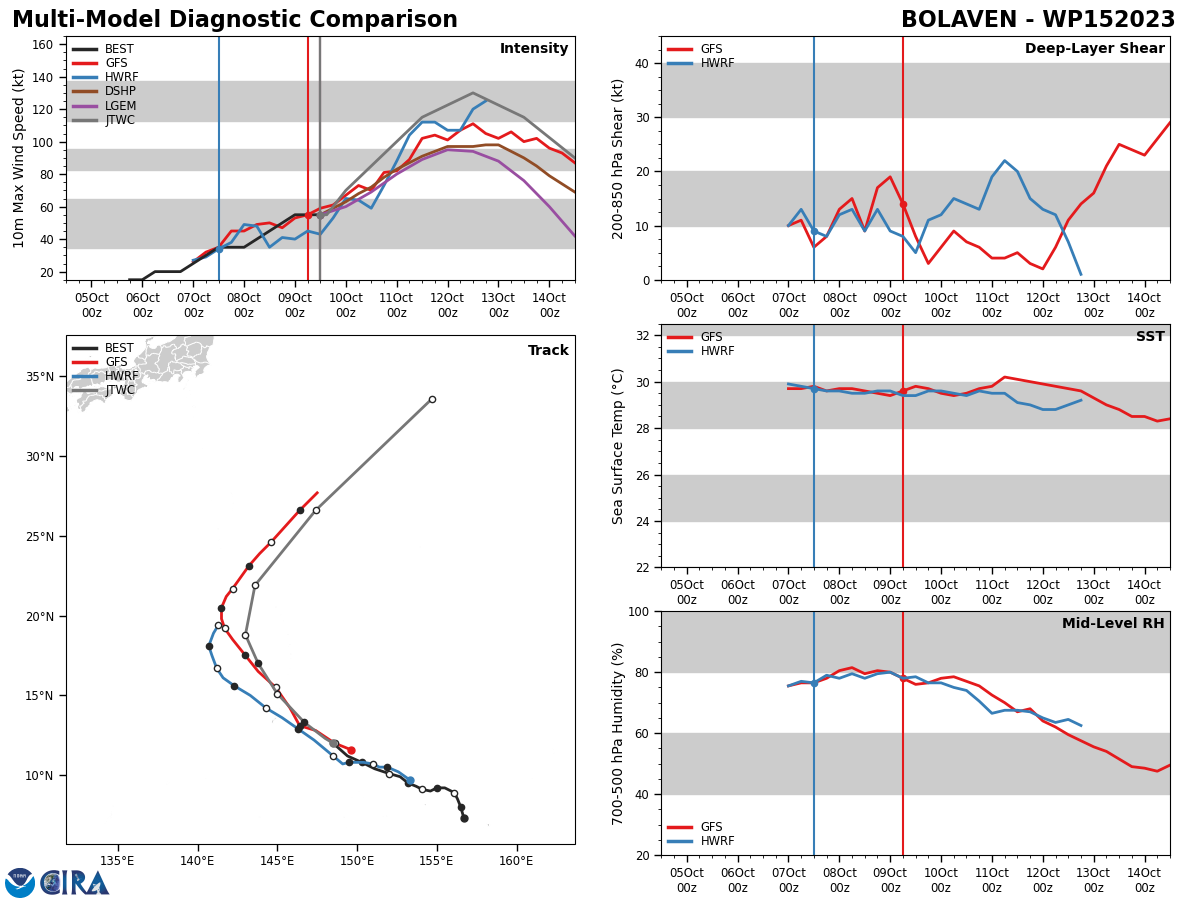

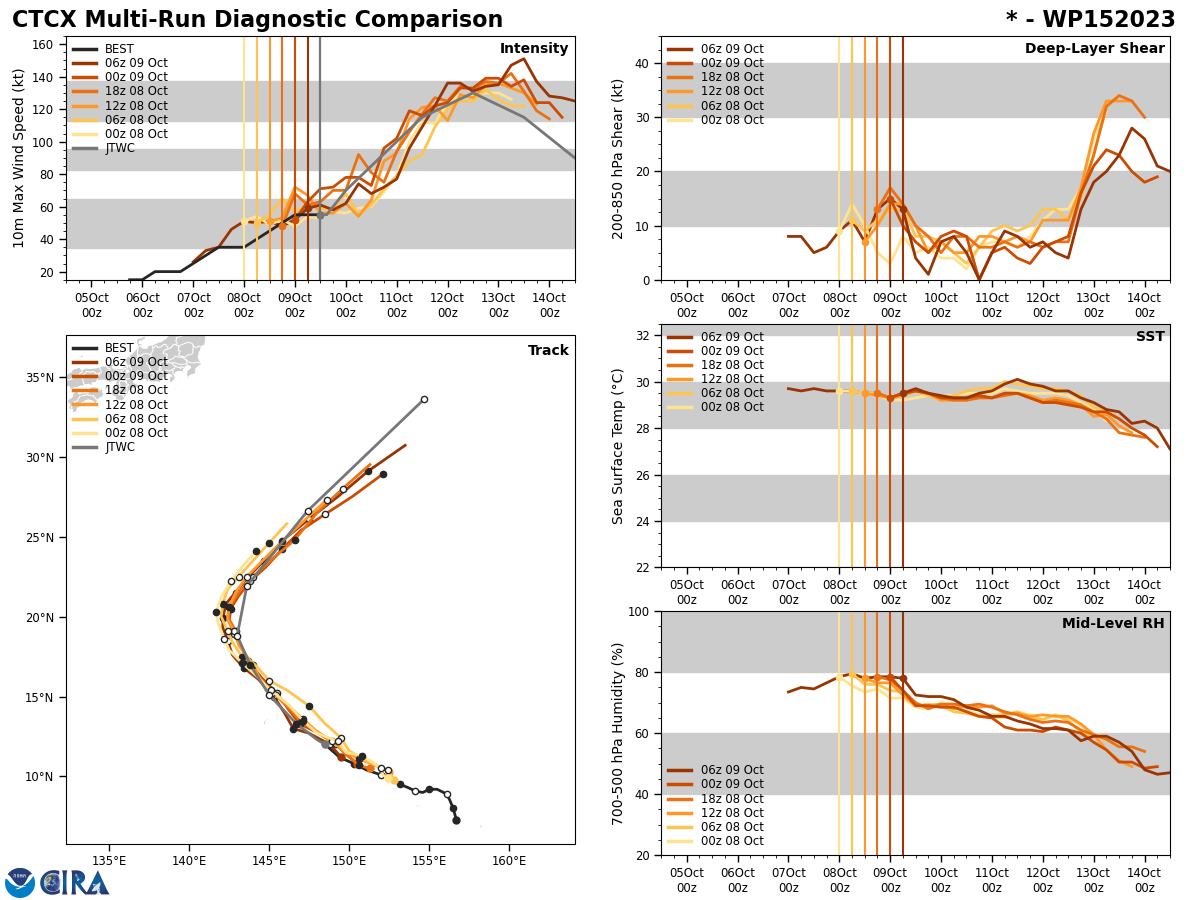

Model Diagnostic Plot
MODEL DISCUSSION: NUMERICAL MODELS ARE IN VERY TIGHT AGREEMENT WITH A GRADUAL AND EVEN SPREAD TO A MERE 135NM BY TAU 72 THEN TO 165NM BY TAU 120, LENDING HIGH CONFIDENCE TO THE JTWC TRACK. THERE IS ONLY MEDIUM CONFIDENCE IN THE INTENSITY FORECAST DUE TO UNCERTAINTIES RELATED TO RAPID INTENSIFICATION.

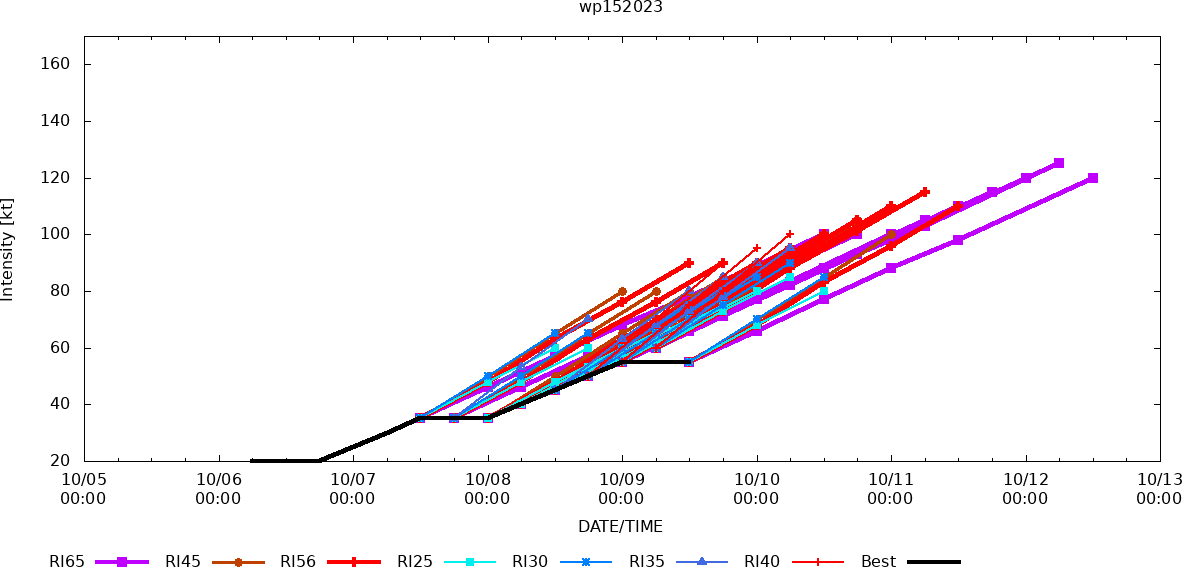

RIPA Forecast
RCM-1, STAR Synthetic Aperture Radar 3KM Wind Speed Analysis 2023 10 09 0822UTC MAXIMUM 1 MINUTE WINDS: 55 KNOTS

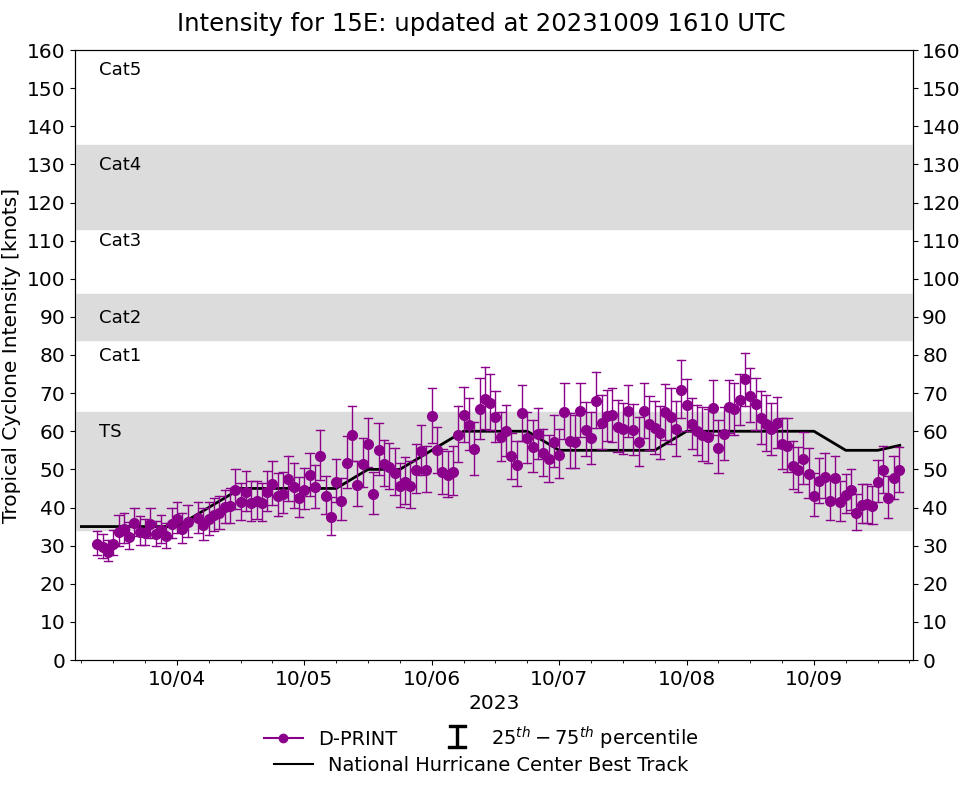

EASTERN NORTH PACIFIC: TS 15E(LIDIA). CURRENT ESTIMATED INTENSITY IS 55 KNOTS:- 5 KNOTS/24H.
1523100700 161N1113W 55
1523100706 161N1117W 55
1523100712 160N1120W 55
1523100718 159N1123W 55
1523100800 160N1124W 60
1523100806 163N1125W 60
1523100812 167N1128W 60
1523100818 173N1128W 60
1523100900 178N1127W 60
1523100906 181N1126W 55
1523100912 183N1121W 55
1523100706 161N1117W 55
1523100712 160N1120W 55
1523100718 159N1123W 55
1523100800 160N1124W 60
1523100806 163N1125W 60
1523100812 167N1128W 60
1523100818 173N1128W 60
1523100900 178N1127W 60
1523100906 181N1126W 55
1523100912 183N1121W 55

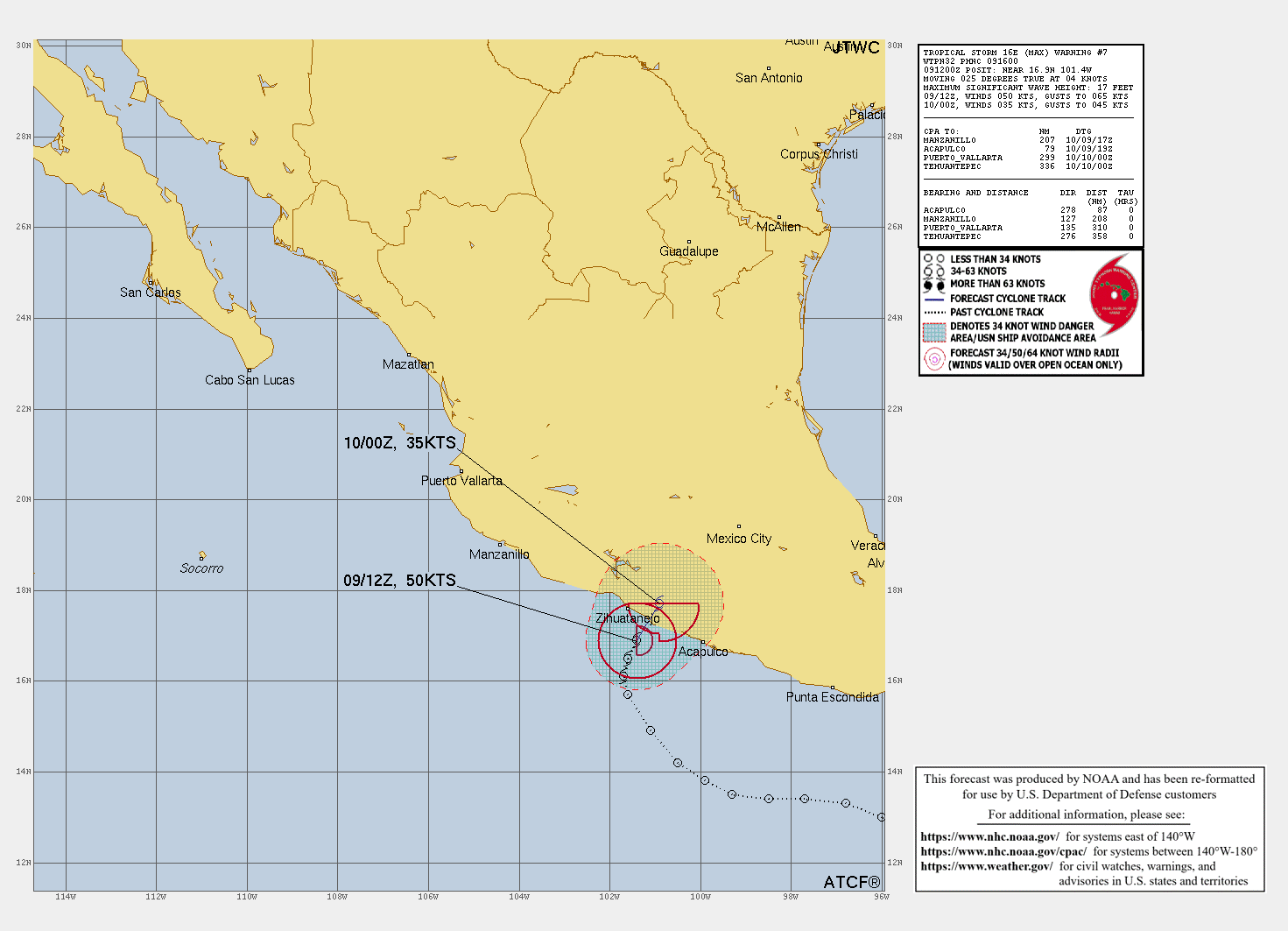

TC Warning Graphic

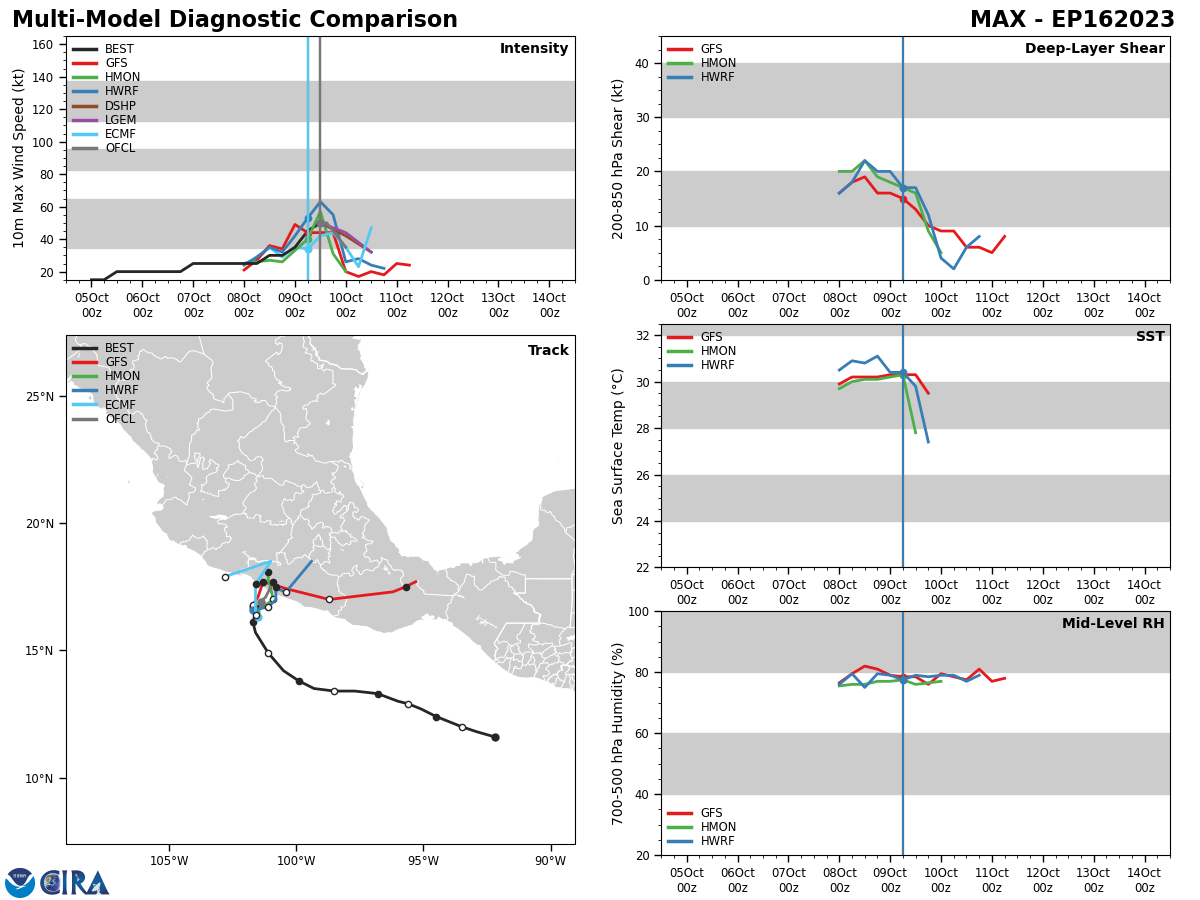

Model Diagnostic Plot
RCM-2, STAR Synthetic Aperture Radar 3KM Wind Speed Analysis 2023 10 09 1320UTC MAXIMUM 1 MINUTE WINDS: 71 KNOTS

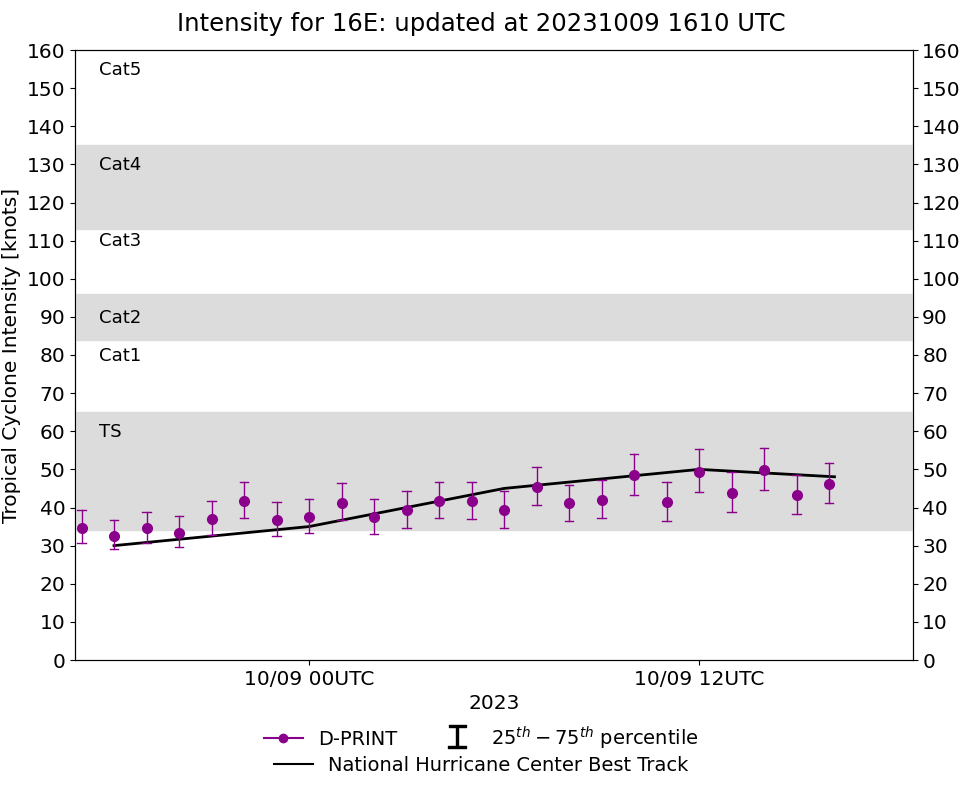

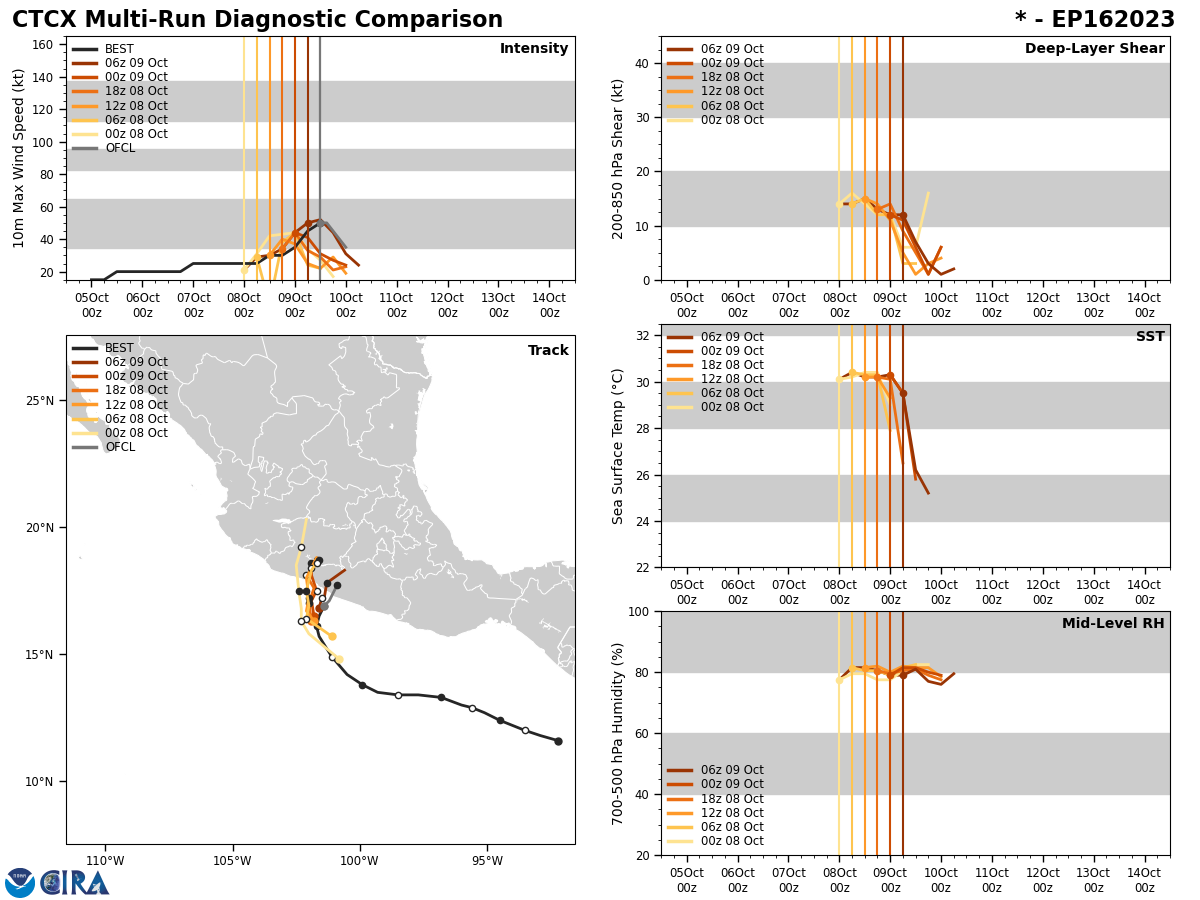

EASTERN NORTH PACIFIC: TS 16E(MAX). CURRENT ESTIMATED INTENSITY IS 50 KNOTS:+ 20 KNOTS/24H.
1623100500 116N 922W 15
1623100506 118N 929W 15
1623100512 120N 935W 20
1623100518 122N 940W 20
1623100600 124N 945W 20
1623100606 127N 951W 20
1623100612 129N 956W 20
1623100618 130N 960W 20
1623100700 133N 968W 25
1623100706 134N 977W 25
1623100712 134N 985W 25
1623100718 135N 993W 25
1623100800 138N 999W 25
1623100806 142N1005W 25
1623100812 149N1011W 30
1623100818 157N1016W 30
1623100900 161N1017W 35
1623100906 165N1016W 45
1623100912 169N1014W 50
1623100506 118N 929W 15
1623100512 120N 935W 20
1623100518 122N 940W 20
1623100600 124N 945W 20
1623100606 127N 951W 20
1623100612 129N 956W 20
1623100618 130N 960W 20
1623100700 133N 968W 25
1623100706 134N 977W 25
1623100712 134N 985W 25
1623100718 135N 993W 25
1623100800 138N 999W 25
1623100806 142N1005W 25
1623100812 149N1011W 30
1623100818 157N1016W 30
1623100900 161N1017W 35
1623100906 165N1016W 45
1623100912 169N1014W 50
