CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

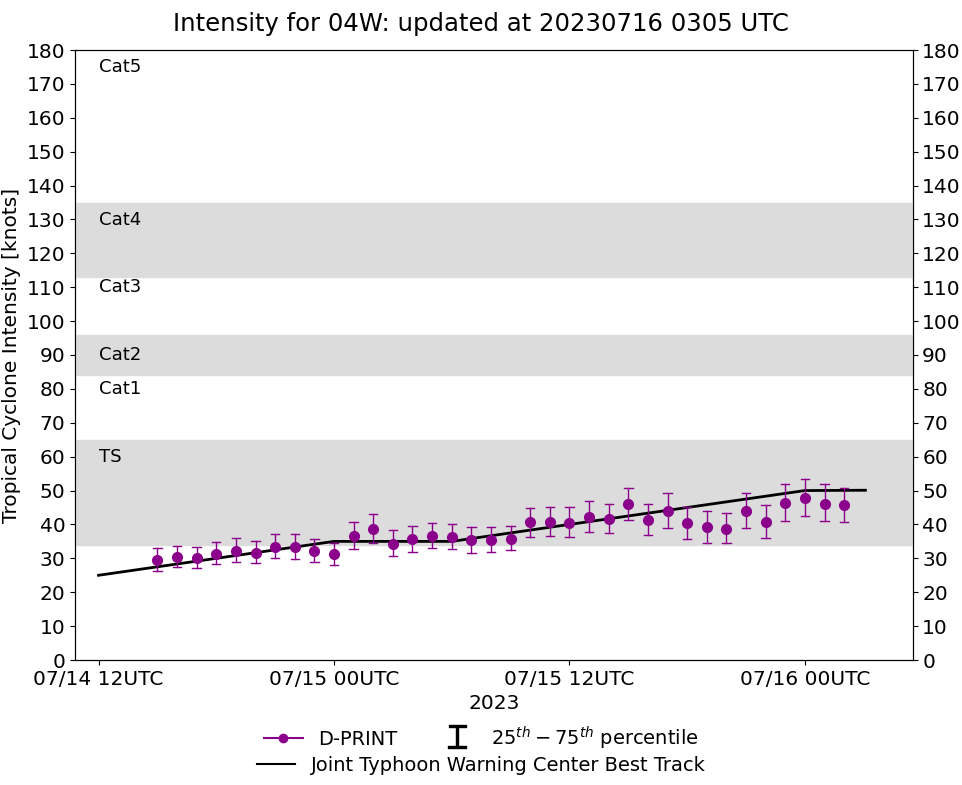

WESTERN NORTH PACIFIC: TS 04W(TALIM). WARNING 7 ISSUED AT 160300UTC. CURRENT ESTIMATED INTENSITY IS 50 KNOTS: +15 KNOTS/24H.
0423071418 175N1184E 30
0423071500 177N1183E 35
0423071506 180N1180E 35
0423071512 184N1175E 40
0423071518 187N1170E 45
0423071600 191N1163E 50
0423071500 177N1183E 35
0423071506 180N1180E 35
0423071512 184N1175E 40
0423071518 187N1170E 45
0423071600 191N1163E 50
CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED.

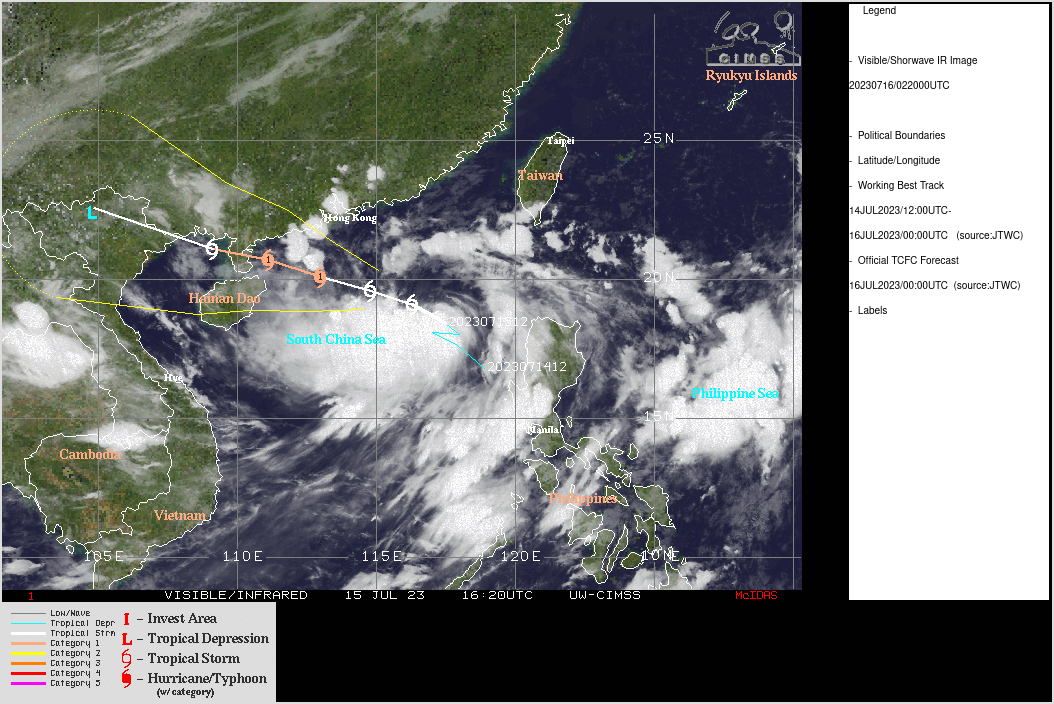

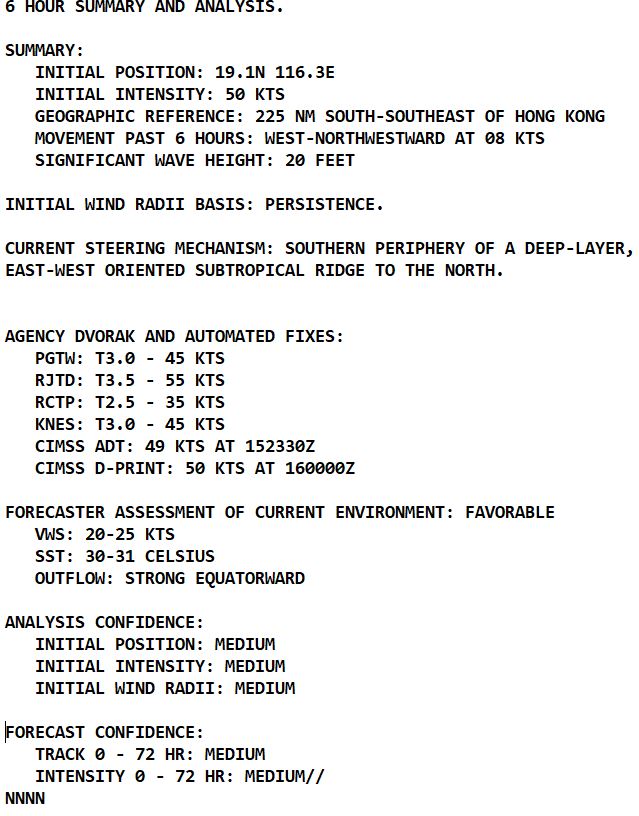

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) SHOWS A LARGE SYSTEM (400+ NM ACROSS) IN THE SOUTH CHINA SEA (SCS) THAT CONTINUED TO SLOWLY CONSOLIDATE AS ITS EXPANSIVE RAIN BANDS WRAPPED TIGHTER INTO THE LOW LEVEL CIRCULATION (LLC) THAT HAS BECOME PARTLY EXPOSED ALONG THE NORTHERN PERIPHERIES. THE INITIAL POSITION IS PLACED WITH MEDIUM CONFIDENCE BY EXTRAPOLATING LOW CLOUD LINES INTO THE NOW PARTLY EXPOSED LLC. THE INITIAL INTENSITY IS ALSO ASSESSED WITH MEDIUM CONFIDENCE BASED ON THE OVERALL ASSESSMENT OF AGENCY AND AUTOMATED DVORAK ESTIMATES AND REFLECTS THE 6-HR CONVECTIVE AND WRAP IMPROVEMENTS. ANALYSIS INDICATES A FAVORABLE ENVIRONMENT WITH STRONG EQUATORWARD OUTFLOW AND WARM SST IN THE SOUTH CHINA SEA (SCS) OFFSETTING THE MEDIUM TO HIGH VWS.

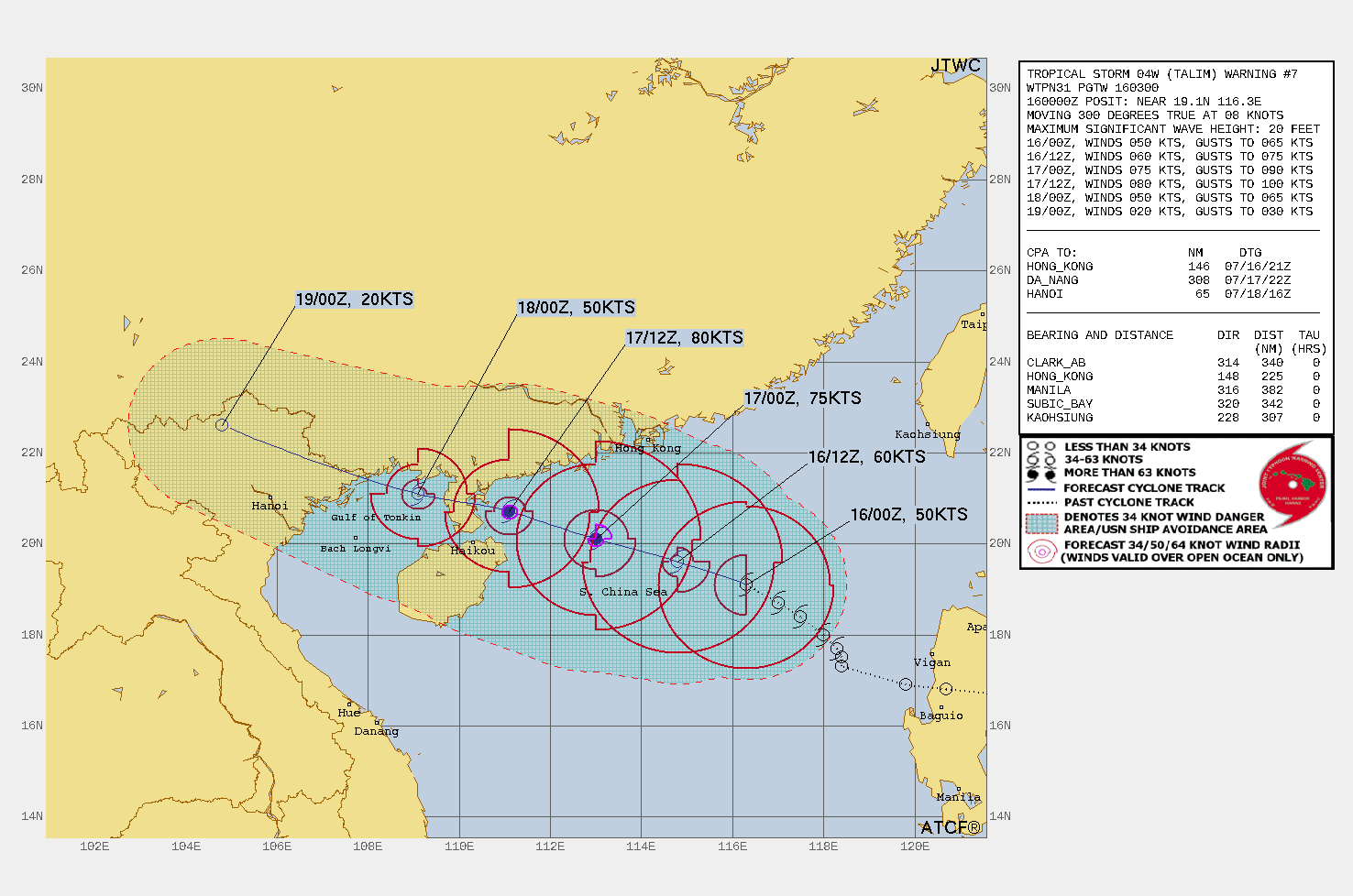

TC Warning Graphic
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TS TALIM WILL CONTINUE TO TRACK GENERALLY WEST-NORTHWESTWARD UNDER THE STEERING INFLUENCE OF THE STR OVER THE WARM SCS, MAKE LANDFALL ON THE LEIZHOU PENINSULA NEAR ZHANJIANG AFTER TAU 36, THEN CROSS THE GULF OF TONKIN BEFORE MAKING A FINAL LANDFALL OVER NORTHERN VIETNAM AROUND TAU 54. THE OVERALL FAVORABLE ENVIRONMENT WILL FUEL INTENSIFICATION TO 80KTS BY TAU 36 PRIOR TO INITIAL LANDFALL. LAND INTERACTION WITH RUGGED TERRAIN AND INCREASING VWS WILL MOSTLY BE RESPONSIBLE FOR THE GRADUAL THEN RAPID EROSION AFTER TAU 36, LEADING TO DISSIPATION BY TAU 72 AS IT TRACKS OVER NORTHERN VIETNAM.

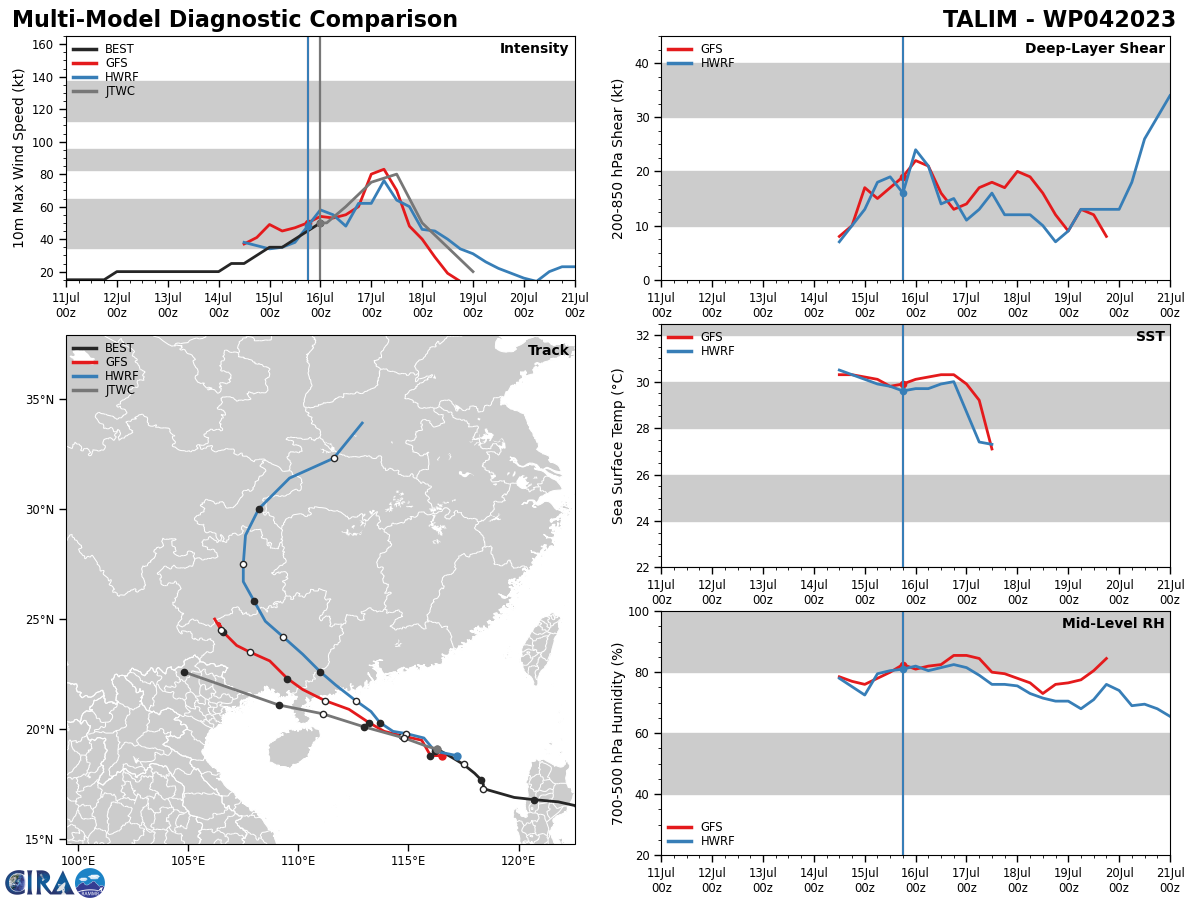

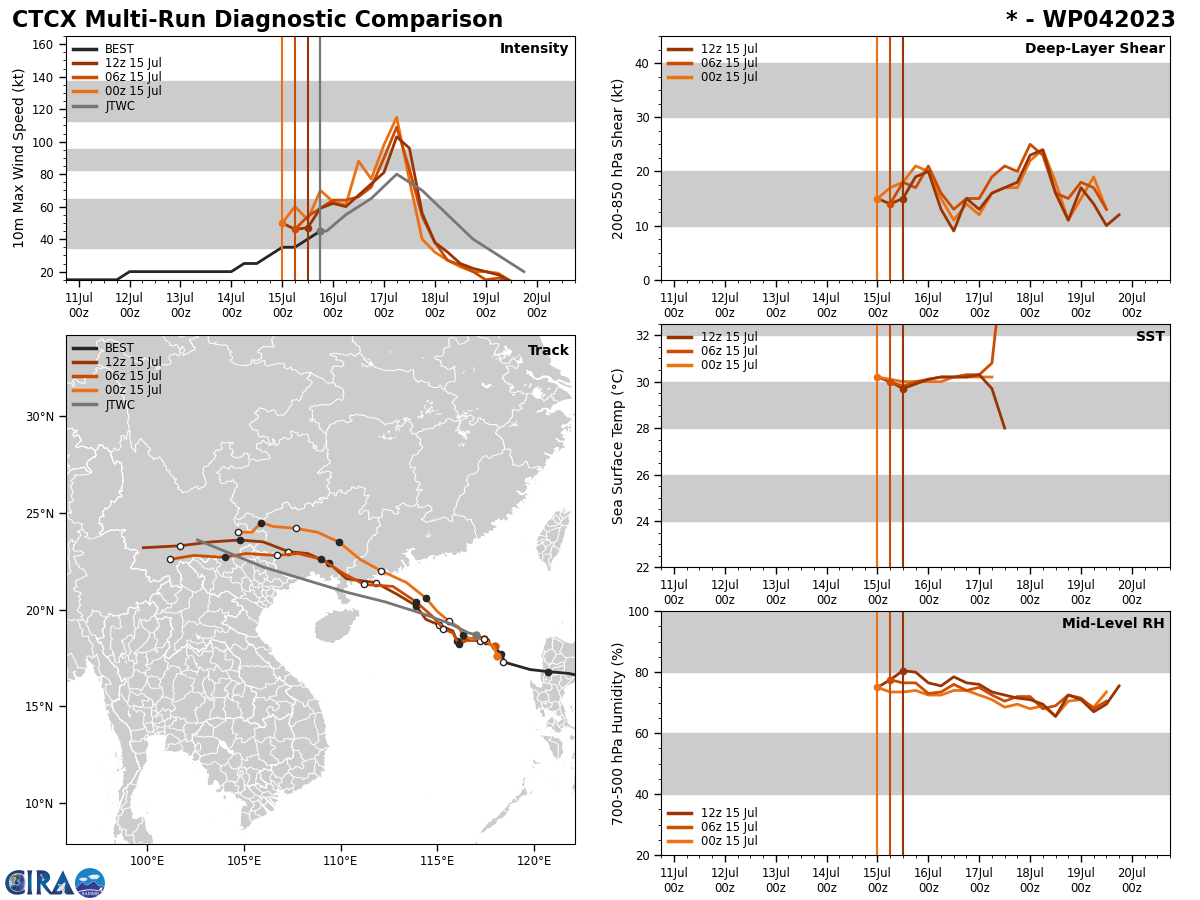

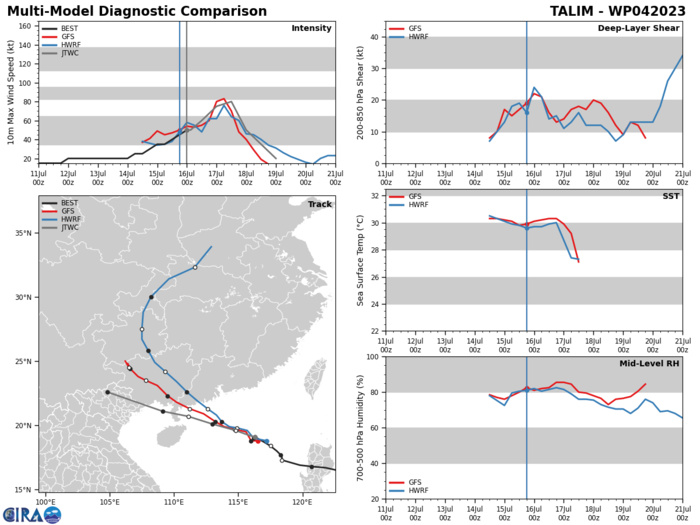

Model Diagnostic Plot
MODEL DISCUSSION: MODEL DISCUSSION: THERE IS OVERALL GOOD AGREEMENT AMONG THE NUMERICAL TRACK MODELS WITH AN EVEN AND GRADUAL SPREAD TO A 265NM BY TAU 48, THEN TO OVER 400NM BY TAU 72. IN VIEW OF THIS AND GIVEN THE UNCERTAINTIES IN A LAND TRACK, THERE IS OVERALL MEDIUM CONFIDENCE IN THE JTWC TRACK AND INTENSITY FORECASTS.
(256.7 KB)
Multiplatform Satellite Surface Wind Analysis (Experimental)

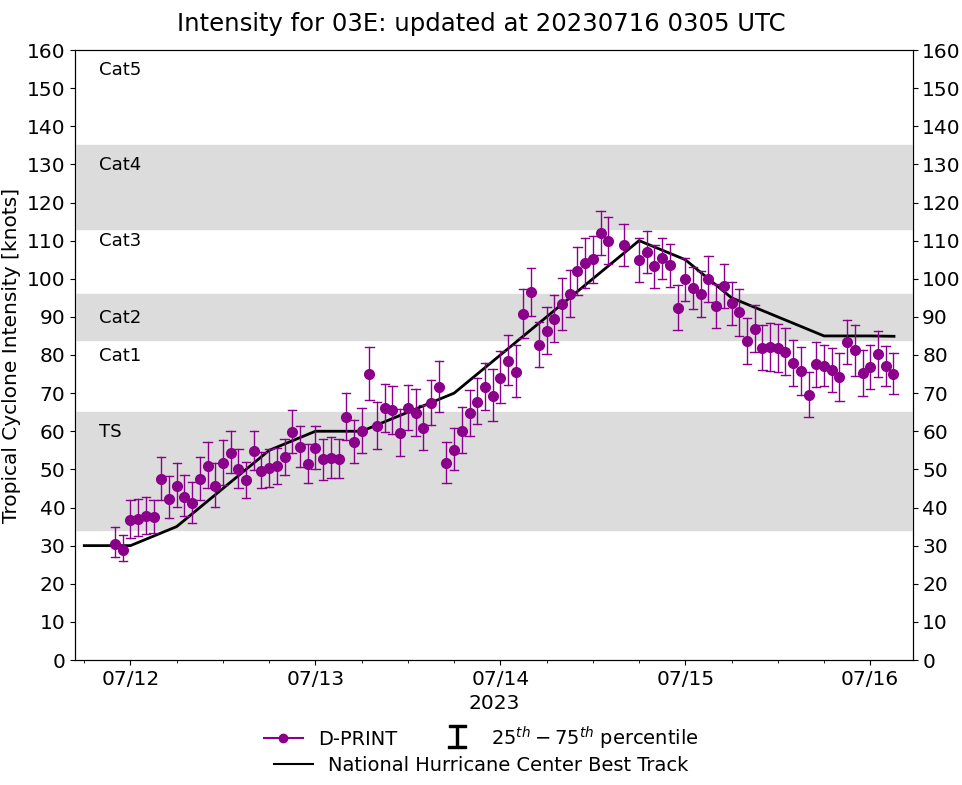

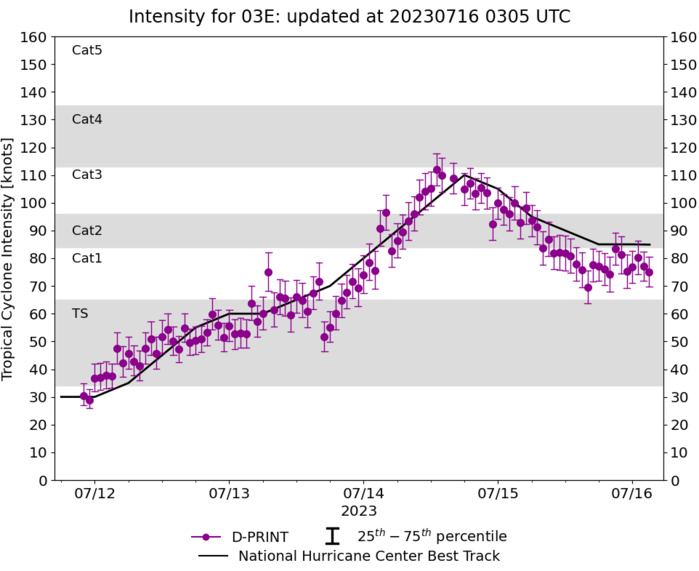

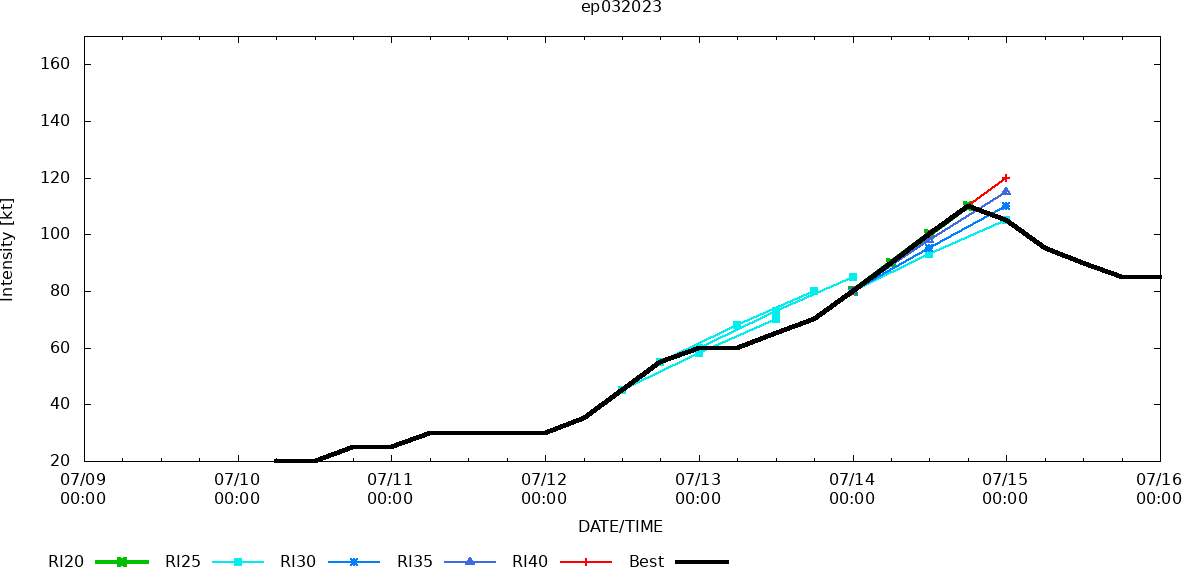

EASTERN NORTH PACIFIC: HU 03E(CALVIN). WARNING 18 ISSUED AT 160400UTC. ESTIMATED INTENSITY WAS 85 KNOTS/ CAT 2 US: -20 KNOTS/24H.
0323071418 137N1239W 110
0323071500 140N1253W 105
0323071506 143N1268W 95
0323071512 145N1282W 90
0323071518 148N1297W 85
0323071600 152N1312W 85
0323071500 140N1253W 105
0323071506 143N1268W 95
0323071512 145N1282W 90
0323071518 148N1297W 85
0323071600 152N1312W 85

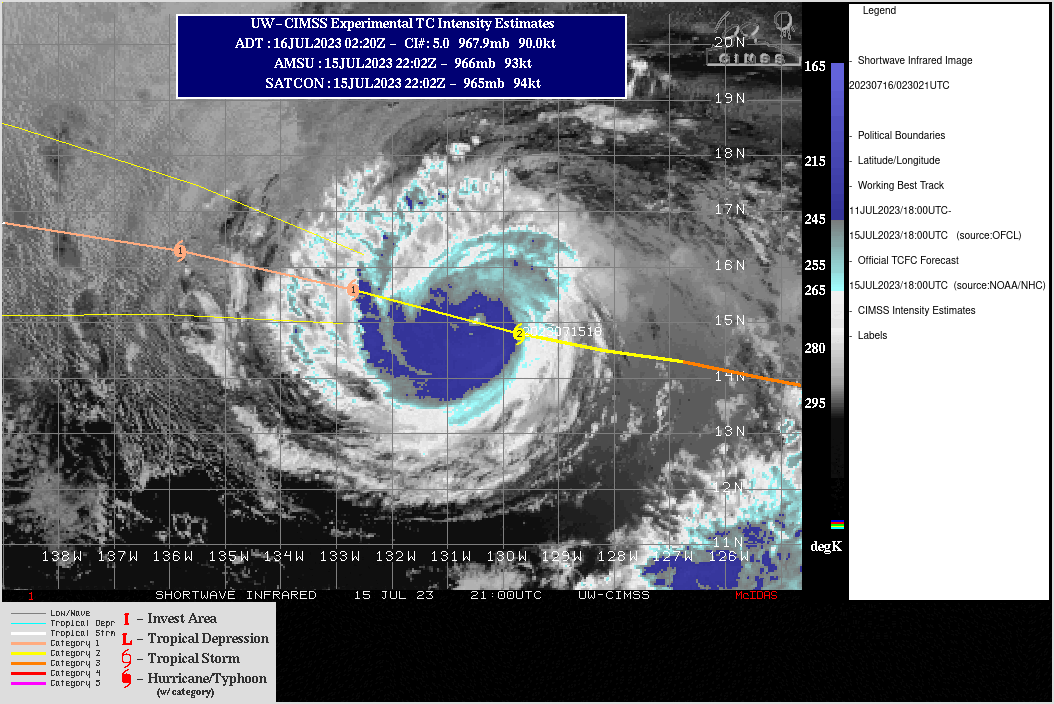

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED.

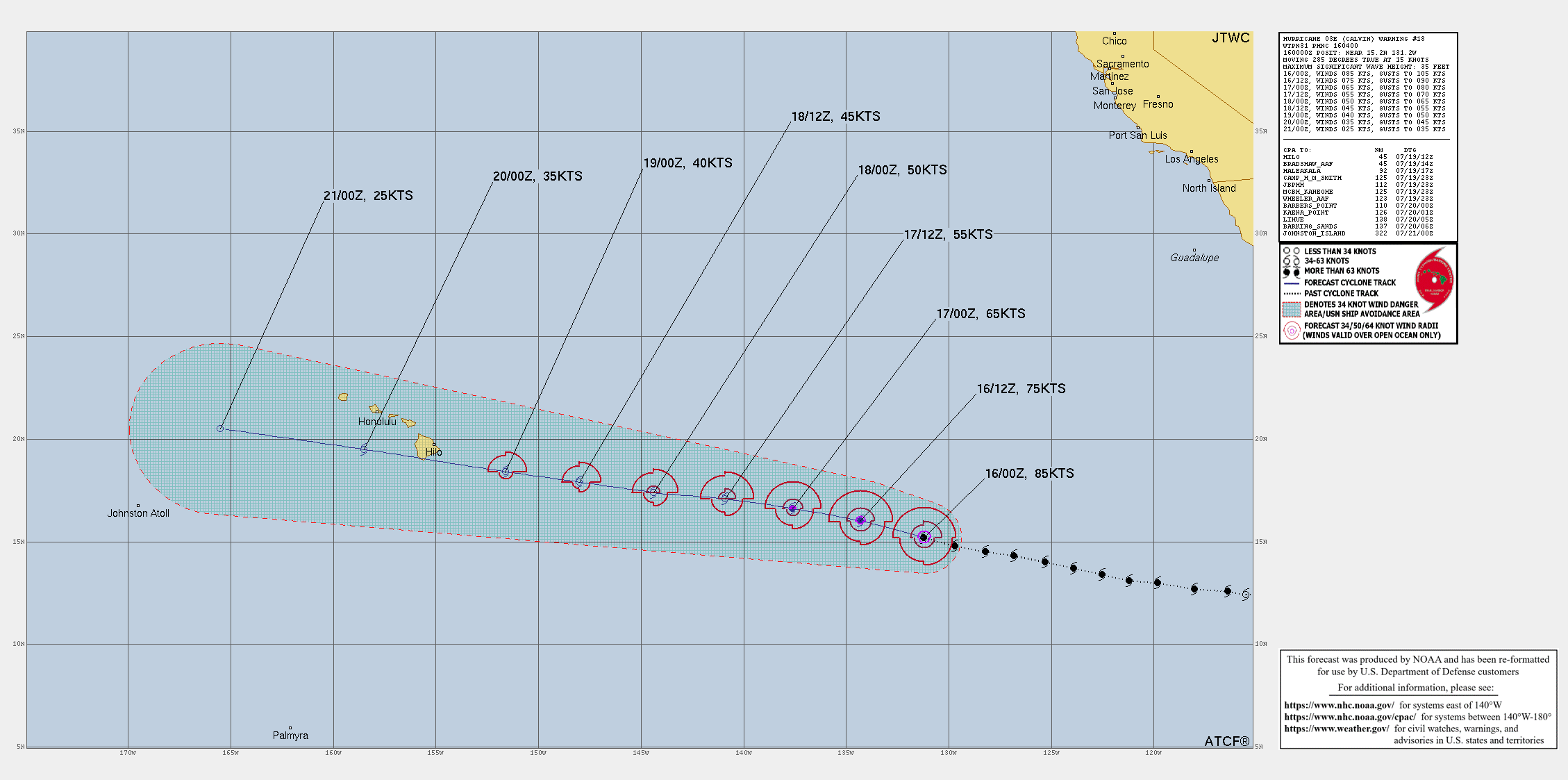

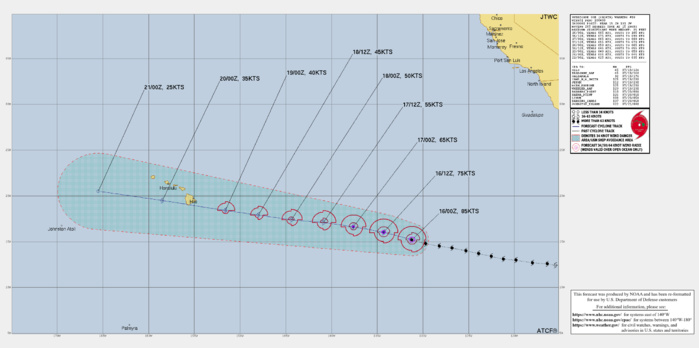

TC Warning Graphic

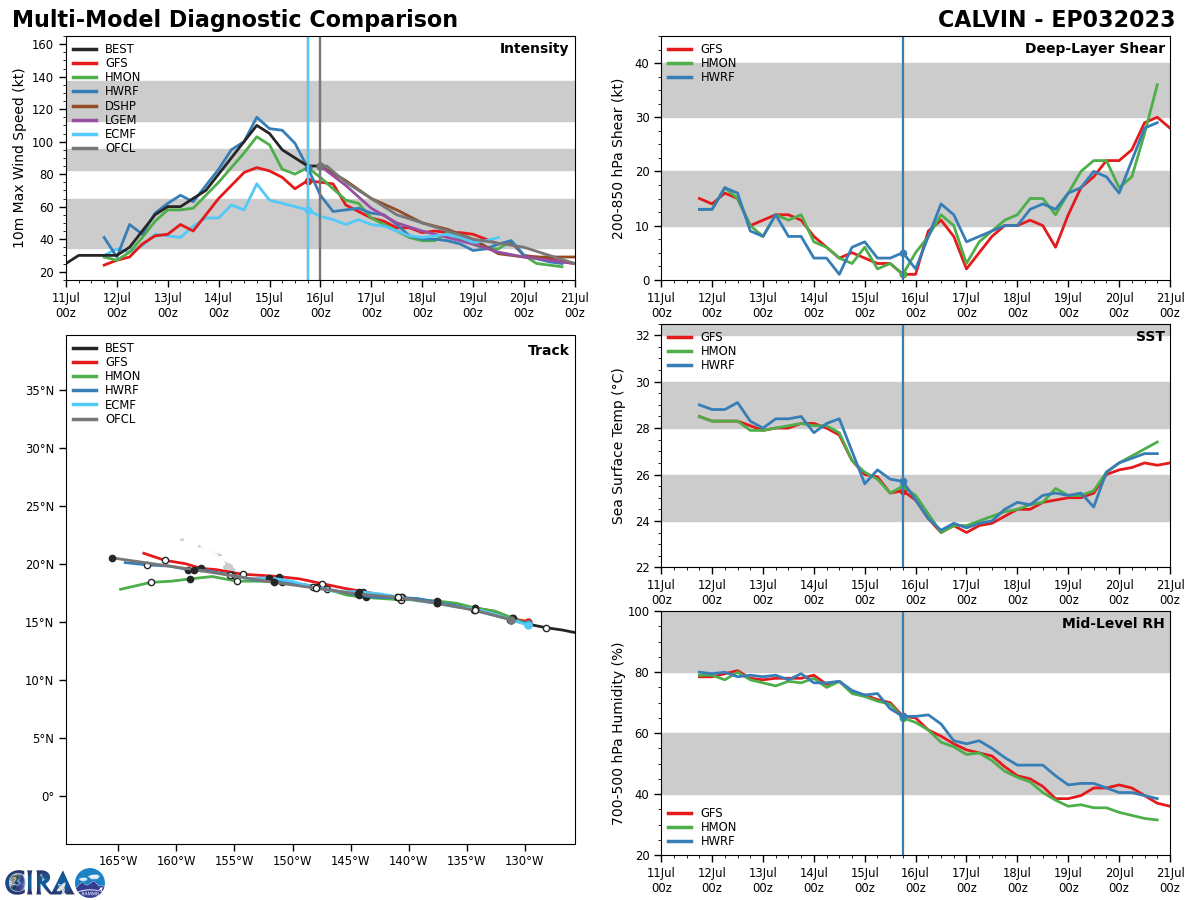

Model Diagnostic Plot
(10.05 KB)
2023ep03_ripastbl_202307160000.txt (2.17 KB)
2023ep03_ripastbl_202307160000.txt (2.17 KB)
Multiplatform Satellite Surface Wind Analysis (Experimental)

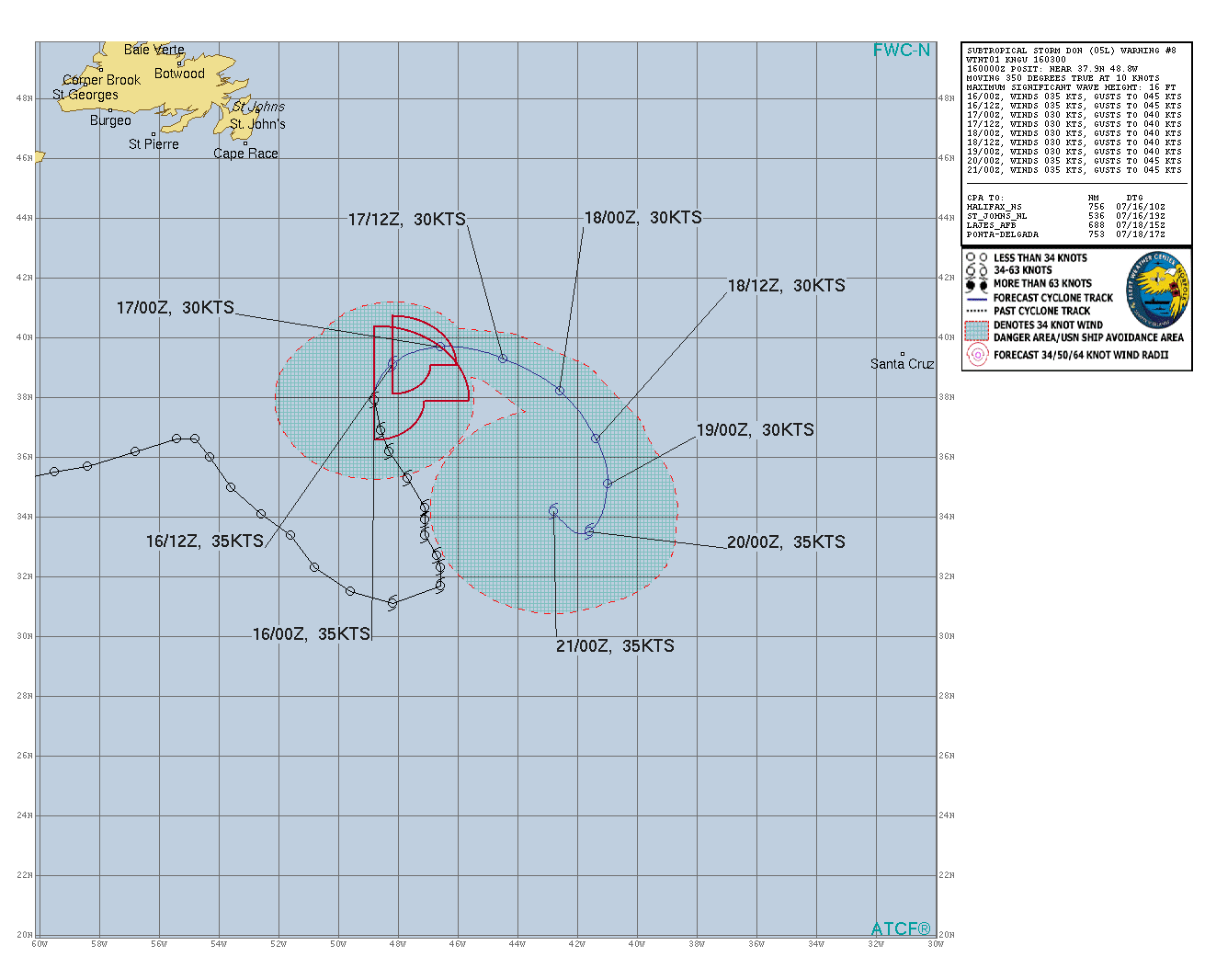

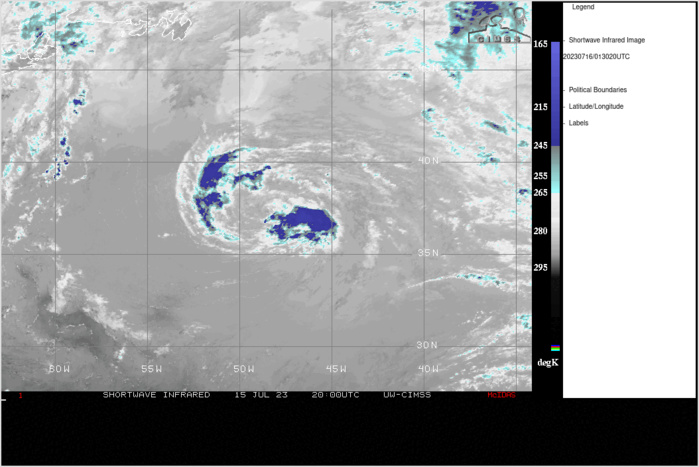

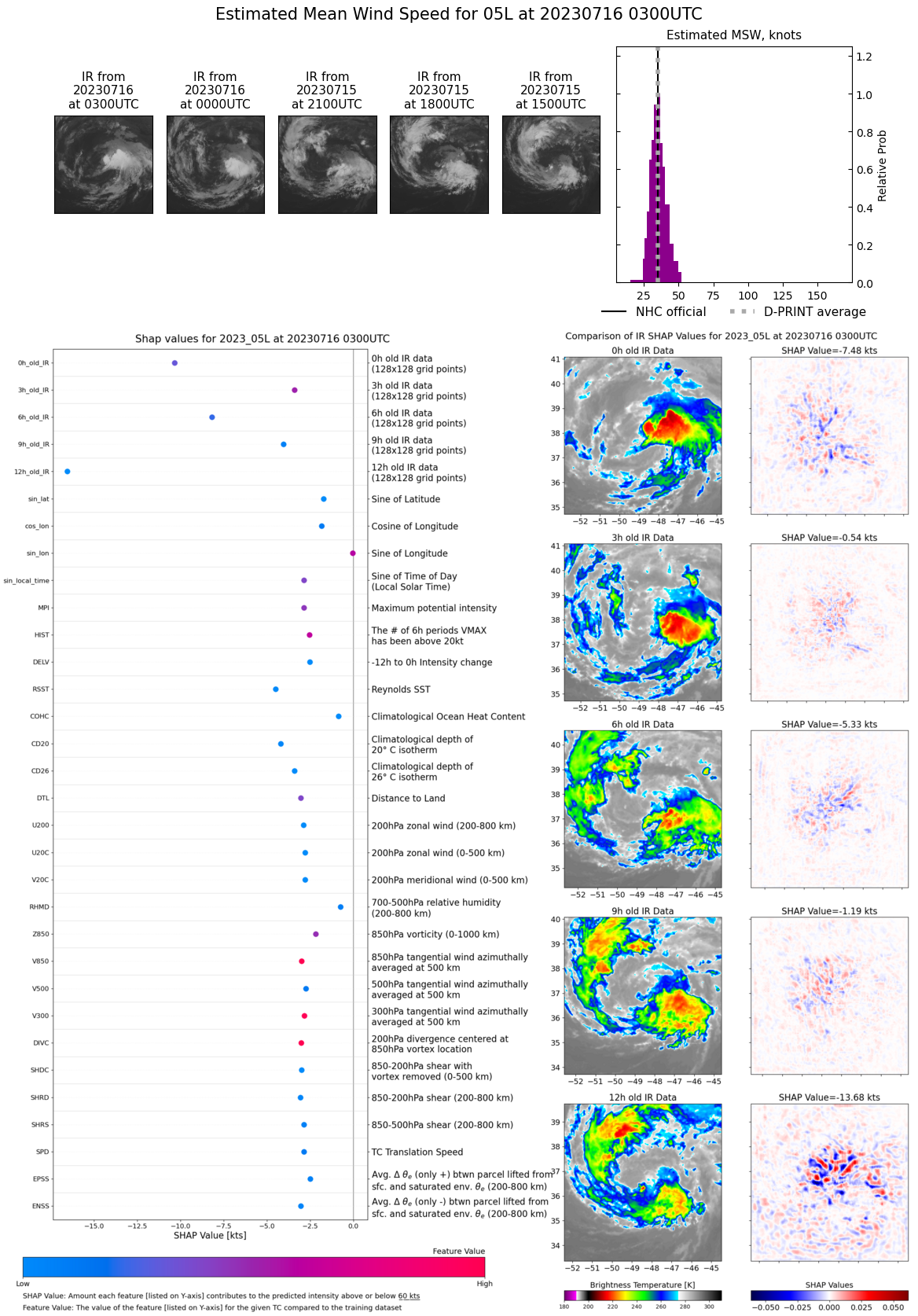

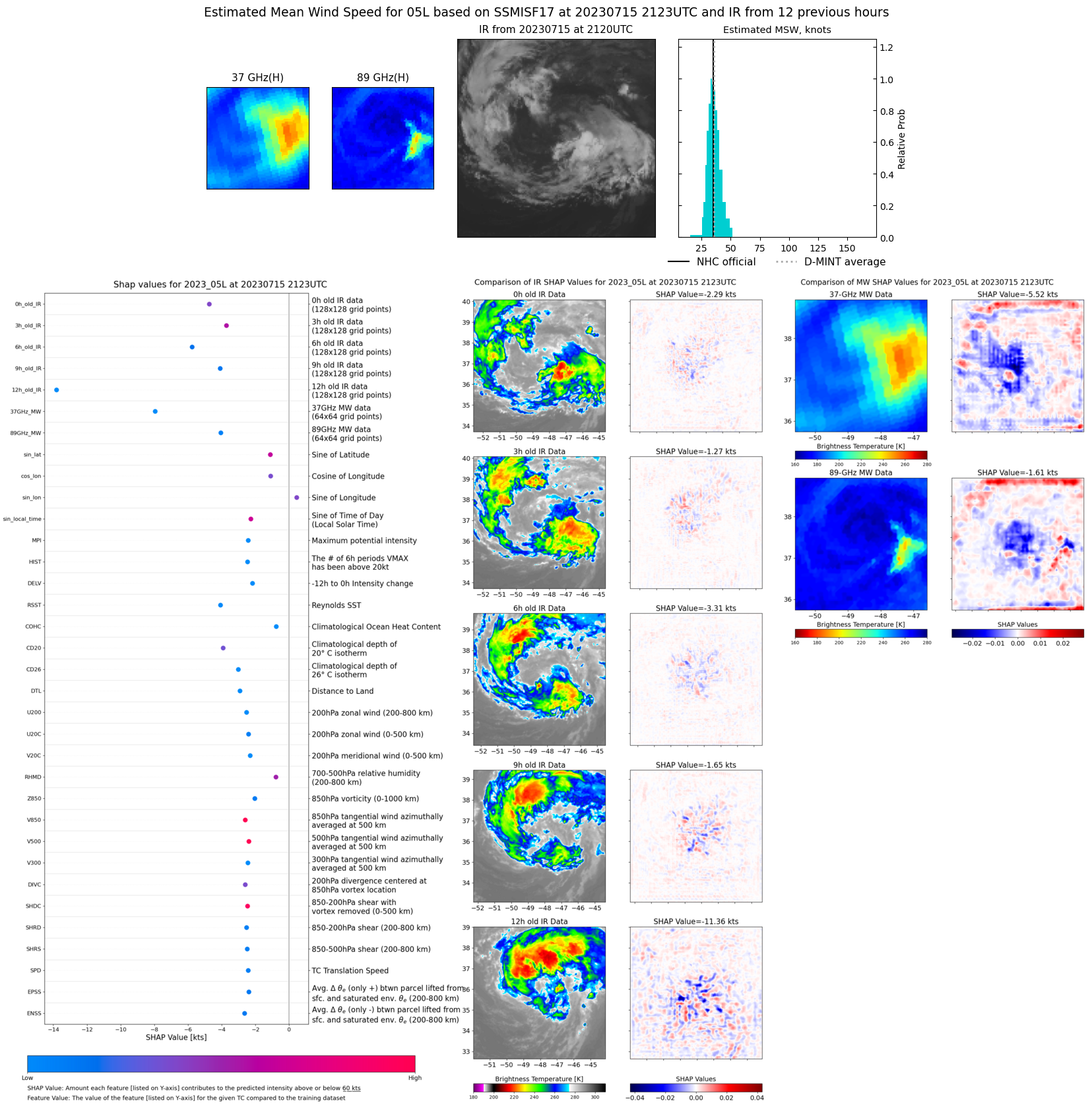

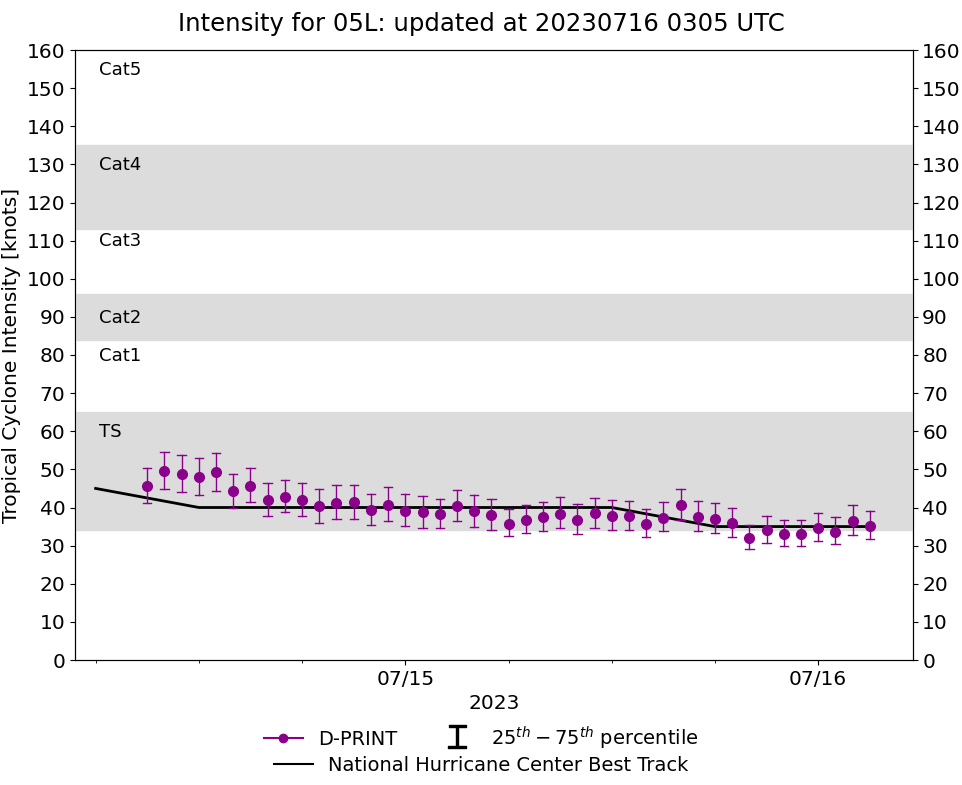

NORTH ATLANTIC OCEAN: SS 05L(DON). WARNING 8 ISSUED AT 160300UTC. CURRENT ESTIMATED INTENSITY IS 35 KNOTS.
0523071418 339N 471W 40
0523071500 343N 471W 40
0523071506 353N 477W 40
0523071512 362N 483W 40
0523071518 369N 486W 35
0523071600 379N 488W 35
0523071500 343N 471W 40
0523071506 353N 477W 40
0523071512 362N 483W 40
0523071518 369N 486W 35
0523071600 379N 488W 35
