TS 01W forecast to reach Typhoon Intensity within 48h//TC 01B(REMAL) intensifying to make landfall by 24h//10 Day ECMWF Storm Tracks//2521utc

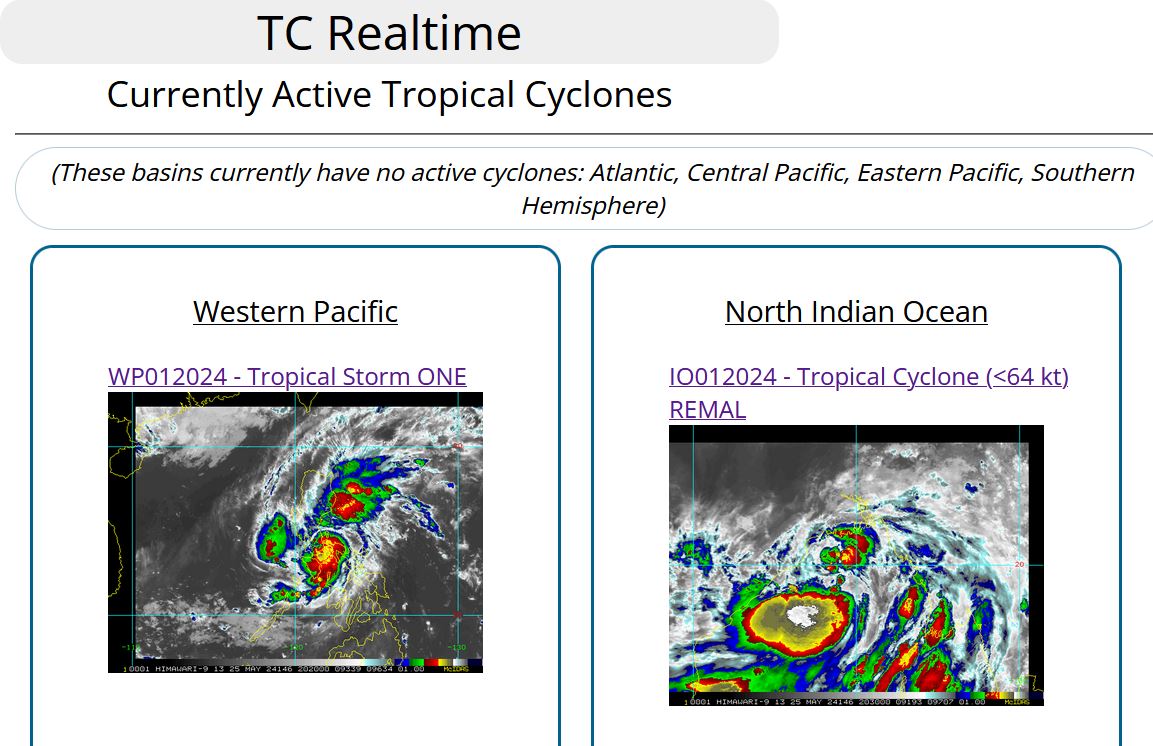

CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

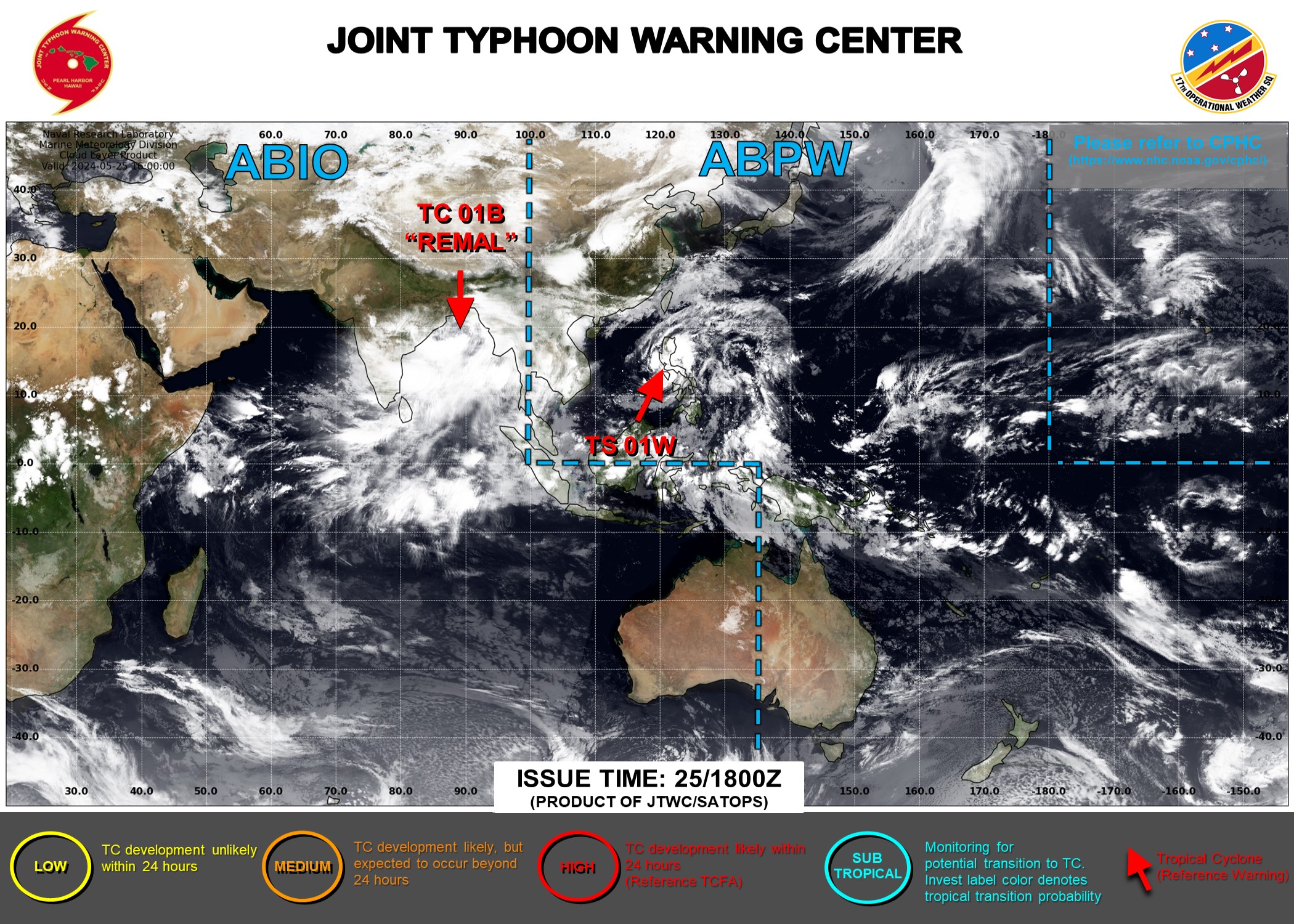

JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON 01W AND ON 01B.
JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON 01W AND ON 01B.


WESTERN NORTH PACIFIC: TS 01W. ESTIMATED LOCATION AND INTENSITY AT 25/21UTC. INTENSITY IS 35 KNOTS:+10 KNOTS OVER 24H

0124051912  29N1456E  15
0124051918  29N1447E  15
0124052000  30N1438E  15
0124052006  33N1428E  15
0124052012  36N1418E  15
0124052018  40N1404E  15
0124052100  44N1390E  15
0124052106  46N1379E  15
0124052112  48N1370E  15
0124052118  50N1363E  15
0124052200  52N1358E  15
0124052206  50N1354E  20
0124052212  49N1350E  20
0124052218  49N1344E  20
0124052300  53N1336E  20
0124052306  66N1327E  20
0124052312  75N1305E  20
0124052318  78N1293E  20
0124052400  83N1276E  20
0124052406  96N1266E  20
0124052412 104N1260E  25
0124052418 114N1250E  25
0124052500 122N1238E  30
0124052506 128N1230E  30
0124052512 135N1222E  35
0124052518 139N1219E  35

WARNING 5 ISSUED AT 25/21UTC

TS 01W forecast to reach Typhoon Intensity within 48h//TC 01B(REMAL) intensifying to make landfall by 24h//10 Day ECMWF Storm Tracks//2521utc

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED

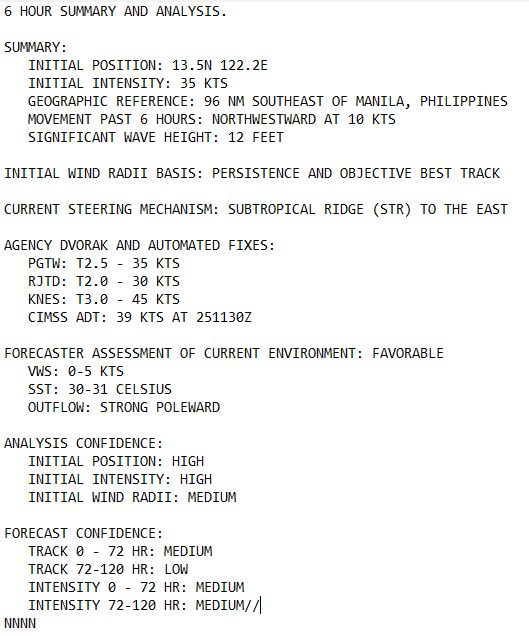

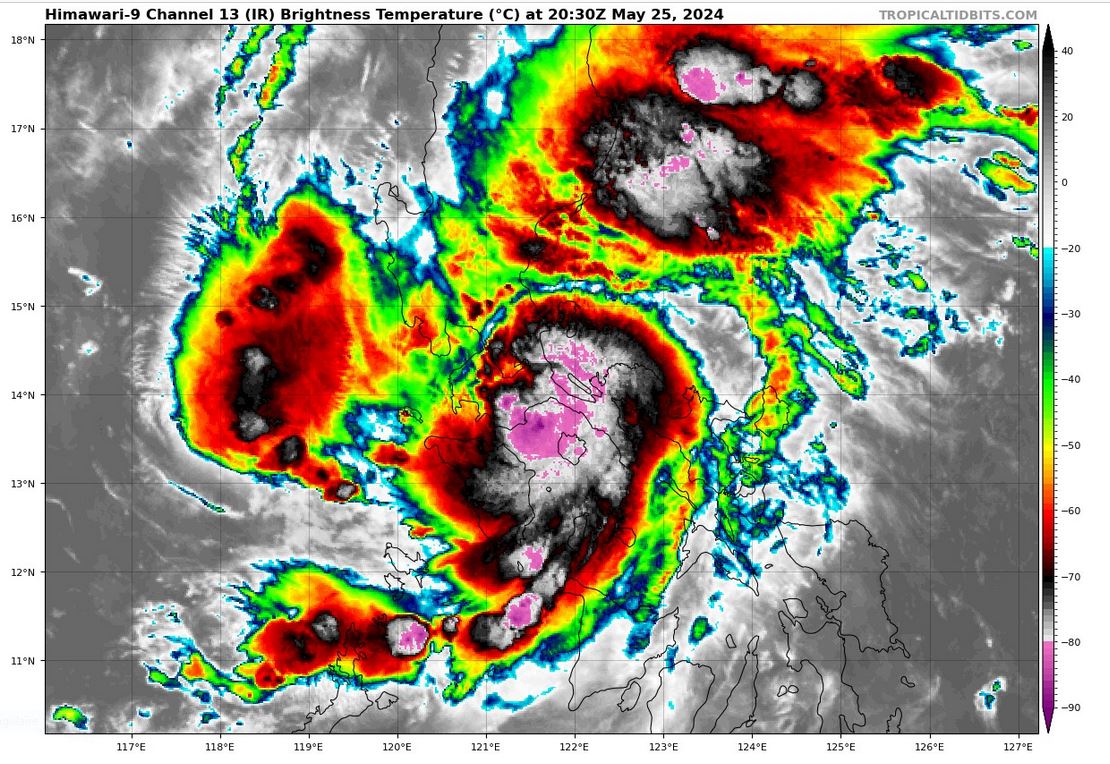

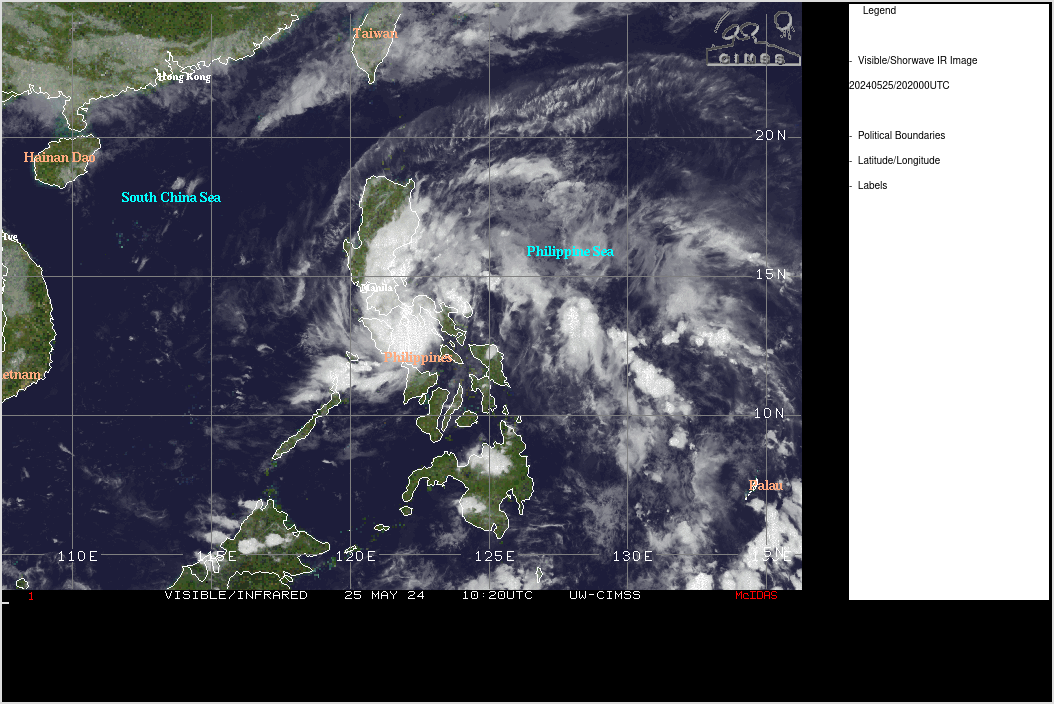

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED ENHANCED INFRARED (EIR) SATELLITE IMAGERY DEPICTS PERSISTENT CONVECTION OBSCURING THE LOW-LEVEL CIRCULATION CENTER (LLCC) WITH CONVECTIVE BANDS WRAPPING IN FROM BOTH THE NORTHWEST AND SOUTHEAST. THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON RADAR IMAGERY DEPICTING THE CIRCULATION IN THE VICINITY OF BOHOL ISLAND, PHILIPPINES. THE INITIAL INTENSITY OF 35 KTS IS ASSESSED WITH HIGH CONFIDENCE BASED ON THE AGENCY AND OBJECTIVE FIXES LISTED BELOW.
SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED ENHANCED INFRARED (EIR) SATELLITE IMAGERY DEPICTS PERSISTENT CONVECTION OBSCURING THE LOW-LEVEL CIRCULATION CENTER (LLCC) WITH CONVECTIVE BANDS WRAPPING IN FROM BOTH THE NORTHWEST AND SOUTHEAST. THE INITIAL POSITION IS PLACED WITH HIGH CONFIDENCE BASED ON RADAR IMAGERY DEPICTING THE CIRCULATION IN THE VICINITY OF BOHOL ISLAND, PHILIPPINES. THE INITIAL INTENSITY OF 35 KTS IS ASSESSED WITH HIGH CONFIDENCE BASED ON THE AGENCY AND OBJECTIVE FIXES LISTED BELOW.

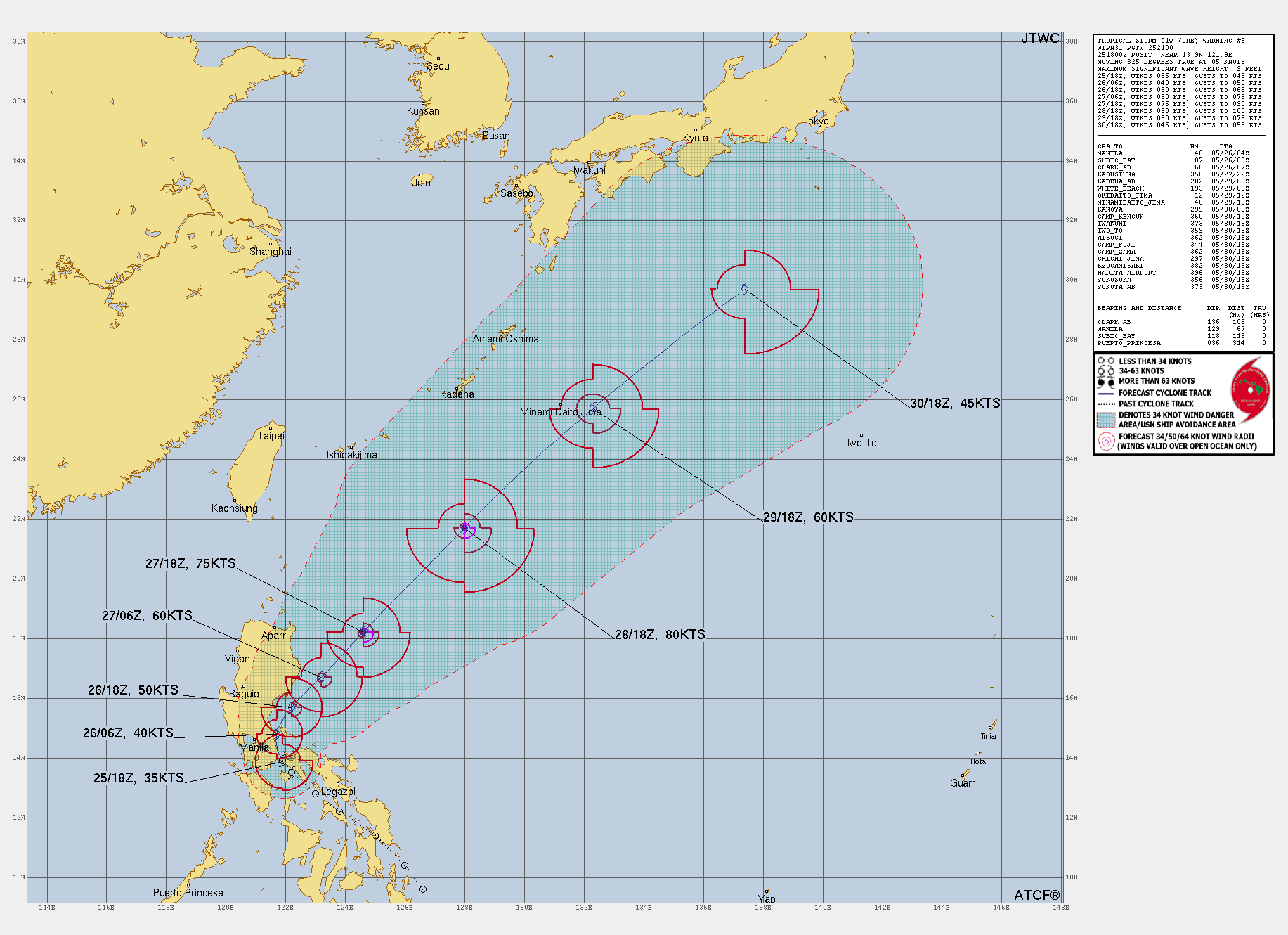

TC Warning Graphic

FORECAST REASONING.  SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING.  FORECAST DISCUSSION: TROPICAL STORM 01W WILL CONTINUE TO ROUND THE STR TO THE EAST OVER THE NEXT 24 HOURS, TRACKING NORTHWESTWARD INITIALLY BEFORE CURVING NORTHEASTWARD. AS THE STR ACQUIRES A NORTHEAST-SOUTHWEST ORIENTATION, THE SYSTEM WILL TRACK NORTHEASTWARD THROUGH THE REMAINDER OF THE FORECAST. TS 01W WILL BEGIN TO INTERACT WITH A MID-LATITUDE TROUGH BETWEEN TAU 96-120 AND COMMENCE EXTRATROPICAL TRANSITION. FOR THE NEXT 24 HOURS THE SYSTEM WILL GRADUALLY INTENSIFY WITH INTERMITTENT LAND INTERACTION WHILE IN THE VICINITY OF THE PHILIPPINE ISLANDS. ONCE COMPLETELY OVER WATER, THE SYSTEM WILL QUICKLY INTENSIFY IN AN ENVIRONMENT OF LOW TO MODERATE SHEAR, GOOD POLEWARD OUTFLOW, AND WARM SEA SURFACE TEMPERATURES. AS THE SYSTEM BEGINS TO INTERACT WITH THE UPPER-LEVEL TROUGH BETWEEN TAU 48 AND TAU 72, AND LATER WITH THE AFOREMENTIONED  MID-LATITUDE TROUGH, THE ENVIRONMENT WILL BECOME UNFAVORABLE WITH SHEAR INCREASING SIGNIFICANTLY AND COOLER ALONG-TRACK SSTS  POLEWARD OF 26N.
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TROPICAL STORM 01W WILL CONTINUE TO ROUND THE STR TO THE EAST OVER THE NEXT 24 HOURS, TRACKING NORTHWESTWARD INITIALLY BEFORE CURVING NORTHEASTWARD. AS THE STR ACQUIRES A NORTHEAST-SOUTHWEST ORIENTATION, THE SYSTEM WILL TRACK NORTHEASTWARD THROUGH THE REMAINDER OF THE FORECAST. TS 01W WILL BEGIN TO INTERACT WITH A MID-LATITUDE TROUGH BETWEEN TAU 96-120 AND COMMENCE EXTRATROPICAL TRANSITION. FOR THE NEXT 24 HOURS THE SYSTEM WILL GRADUALLY INTENSIFY WITH INTERMITTENT LAND INTERACTION WHILE IN THE VICINITY OF THE PHILIPPINE ISLANDS. ONCE COMPLETELY OVER WATER, THE SYSTEM WILL QUICKLY INTENSIFY IN AN ENVIRONMENT OF LOW TO MODERATE SHEAR, GOOD POLEWARD OUTFLOW, AND WARM SEA SURFACE TEMPERATURES. AS THE SYSTEM BEGINS TO INTERACT WITH THE UPPER-LEVEL TROUGH BETWEEN TAU 48 AND TAU 72, AND LATER WITH THE AFOREMENTIONED MID-LATITUDE TROUGH, THE ENVIRONMENT WILL BECOME UNFAVORABLE WITH SHEAR INCREASING SIGNIFICANTLY AND COOLER ALONG-TRACK SSTS POLEWARD OF 26N.

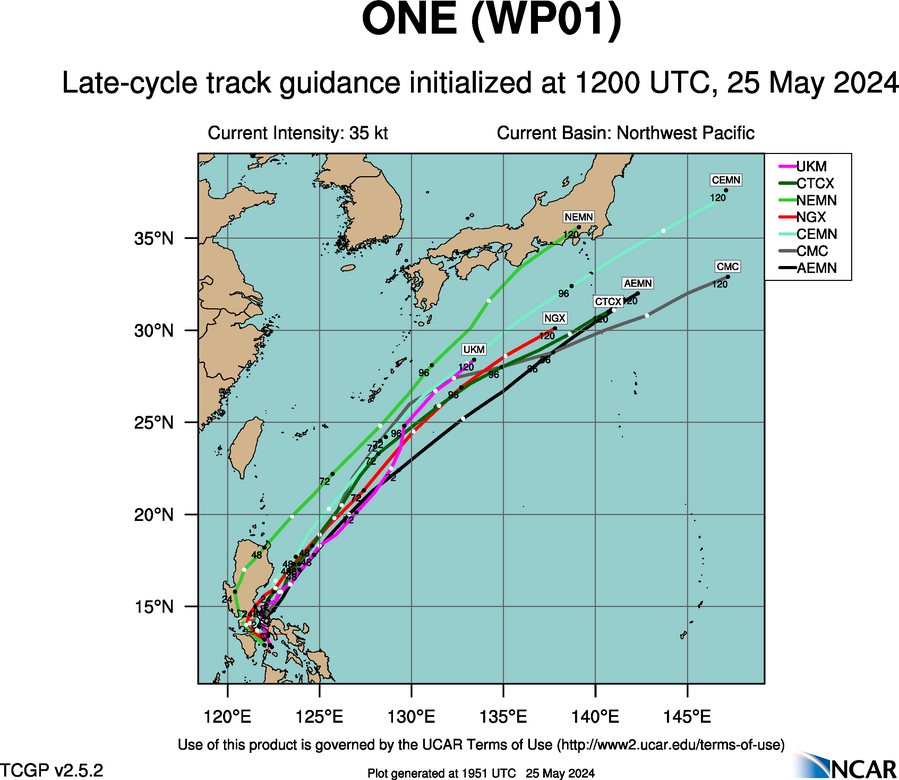

MODEL DISCUSSION: DETERMINISTIC MODEL GUIDANCE DEPICTIONS OF TS 01W INITIALLY ROUNDING THE STR TO THE EAST VARY. ECMWF DEPICTS A SLOWER TRACK, INTERACTING MORE WITH LAND THAN DEPICTED IN THE GFS SOLUTION, WHICH SPEEDS THE SYSTEM OUT OVER WATER QUICKLY. OVER TIME DIFFERENCES IN NEAR-TERM STORM SPEED BETWEEN ECMWF AND GFS SOLUTIONS, AS WELL AS DIFFERING DEPICTIONS OF THE INTERACTION BETWEEN THE SYSTEM AND A MID-LATITUDE TROUGH BETWEEN TAU 96-120, LEAD TO A VERY LARGE ALONG-TRACK SPREAD, ULTIMATELY 950NM BETWEEN ECMWF AND GFS BY TAU 120. HOWEVER, ENSEMBLE GUIDANCE REVEALS A BROAD ALONG-TRACK SPREAD WITH DISTINCT GROUPINGS OF FASTER AND SLOWER TRACKS IN BOTH THE GEFS AND EC-EPS MEMBERS, HIGHLIGHTING THE UNCERTAINTY OF TRACK SPEEDS WITHIN THE MODEL GUIDANCE. THE INTENSITY GUIDANCE CONSISTENTLY FORECASTS INTENSIFICATION THROUGH TAU 72 AND WEAKENING OCCURRING AFTER TAU 72 DUE TO INTERACTION WITH AN UPPER-LEVEL TROUGH FOLLOWED BY THE MID-LATITUDE TROUGH AND PASSAGE OVER COOLER SSTS.
MODEL DISCUSSION: DETERMINISTIC MODEL GUIDANCE DEPICTIONS OF TS 01W INITIALLY ROUNDING THE STR TO THE EAST VARY. ECMWF DEPICTS A SLOWER TRACK, INTERACTING MORE WITH LAND THAN DEPICTED IN THE GFS SOLUTION, WHICH SPEEDS THE SYSTEM OUT OVER WATER QUICKLY. OVER TIME DIFFERENCES IN NEAR-TERM STORM SPEED BETWEEN ECMWF AND GFS SOLUTIONS, AS WELL AS DIFFERING DEPICTIONS OF THE INTERACTION BETWEEN THE SYSTEM AND A MID-LATITUDE TROUGH BETWEEN TAU 96-120, LEAD TO A VERY LARGE ALONG-TRACK SPREAD, ULTIMATELY 950NM BETWEEN ECMWF AND GFS BY TAU 120. HOWEVER, ENSEMBLE GUIDANCE REVEALS A BROAD ALONG-TRACK SPREAD WITH DISTINCT GROUPINGS OF FASTER AND SLOWER TRACKS IN BOTH THE GEFS AND EC-EPS MEMBERS, HIGHLIGHTING THE UNCERTAINTY OF TRACK SPEEDS WITHIN THE MODEL GUIDANCE. THE INTENSITY GUIDANCE CONSISTENTLY FORECASTS INTENSIFICATION THROUGH TAU 72 AND WEAKENING OCCURRING AFTER TAU 72 DUE TO INTERACTION WITH AN UPPER-LEVEL TROUGH FOLLOWED BY THE MID-LATITUDE TROUGH AND PASSAGE OVER COOLER SSTS.

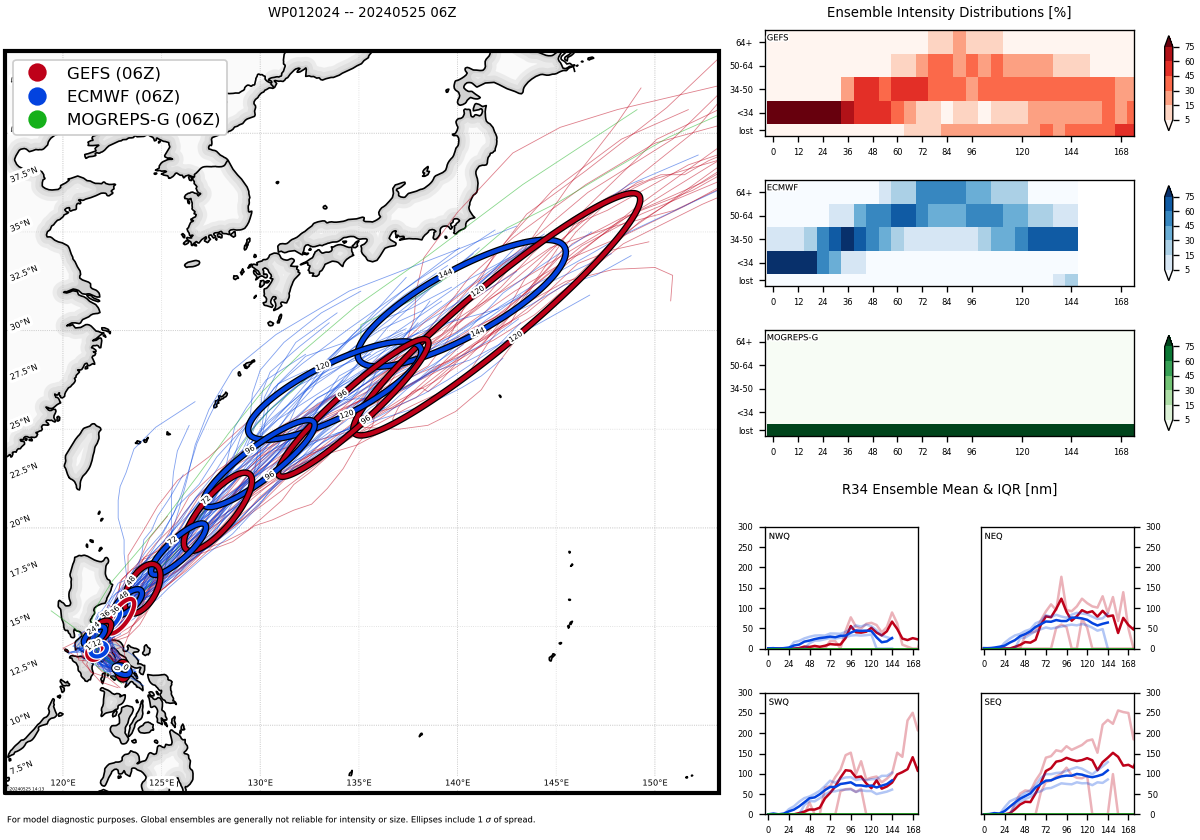

Ensemble Track Ellipses

Ensemble Track Ellipses
Ensemble Track Ellipses

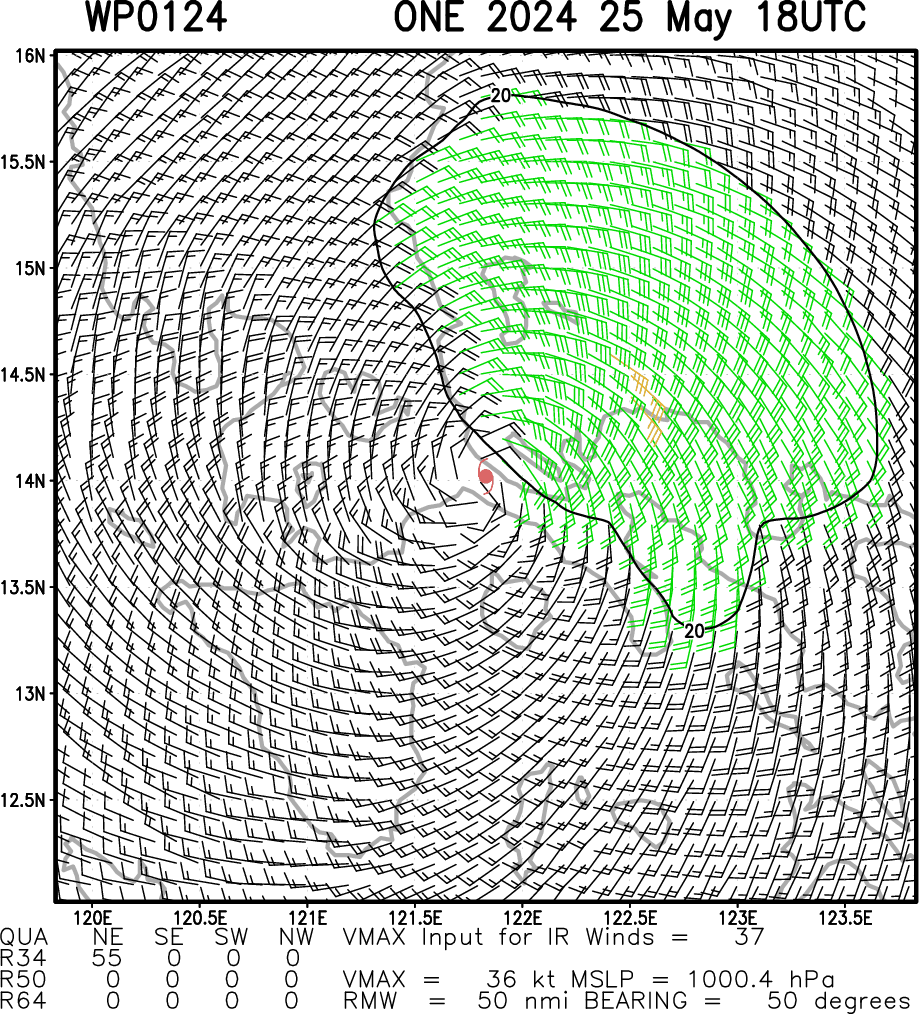

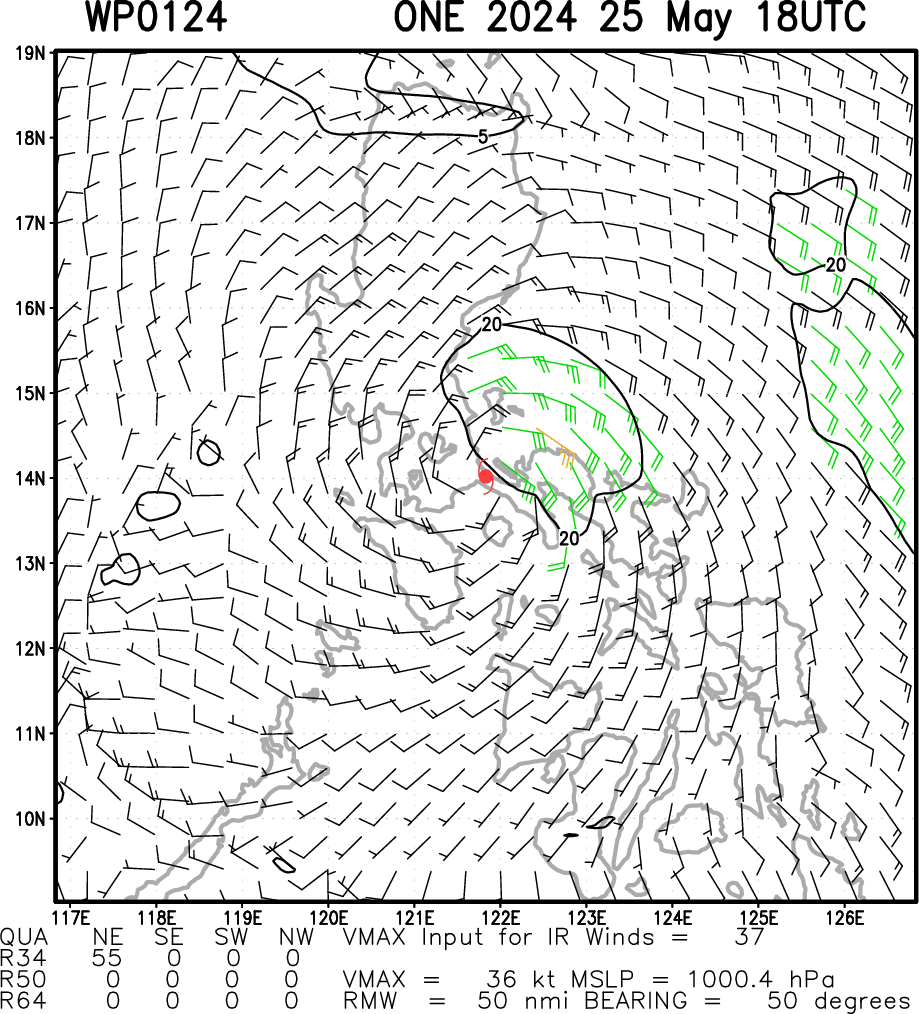

Multiplatform Satellite Surface Wind Analysis (Experimental)


UPDATED SATELLITE BULLETIN AT 25/2030UTC

TPPN10 PGTW 252102

A. TROPICAL STORM 01W (NW OF MINDANAO)

B. 25/2030Z

C. 13.99N

D. 121.73E

E. FIVE/GK2A

F. N/A

G. IR/EIR

H. REMARKS: 38A/PBO SBC/ANMTN. DVORAK VALUES UNAVAILABLE DUE TO
LLCC OVER LAND.

I. ADDITIONAL POSITIONS: NONE


   CVACH

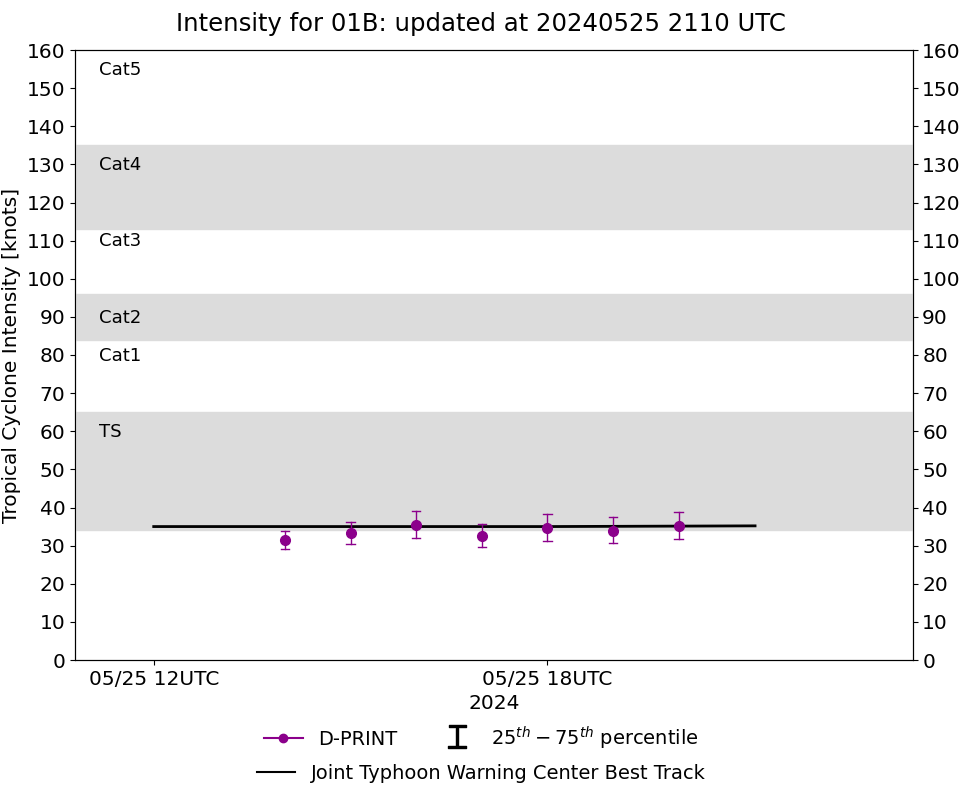

NORTH INDIAN OCEAN/BAY OF BENGAL: TC 01B(REMAL).ESTIMATED LOCATION AND INTENSITY AT 25/21UTC. INTENSITY IS 35 KNOTS:+10 KNOTS OVER 24H

0124052106 114N 804E  15
0124052112 119N 807E  15
0124052118 125N 810E  15
0124052200 129N 815E  15
0124052206 130N 819E  15
0124052212 131N 824E  15
0124052218 131N 832E  15
0124052300 132N 847E  20
0124052306 134N 859E  20
0124052312 136N 866E  20
0124052318 143N 876E  20
0124052400 149N 884E  20
0124052406 157N 891E  25
0124052412 164N 894E  25
0124052418 170N 895E  25
0124052500 177N 894E  25
0124052506 180N 893E  30
0124052512 183N 892E  35
0124052518 188N 891E  35

WARNING 2 ISSUED AT 25/21UTC

TS 01W forecast to reach Typhoon Intensity within 48h//TC 01B(REMAL) intensifying to make landfall by 24h//10 Day ECMWF Storm Tracks//2521utc

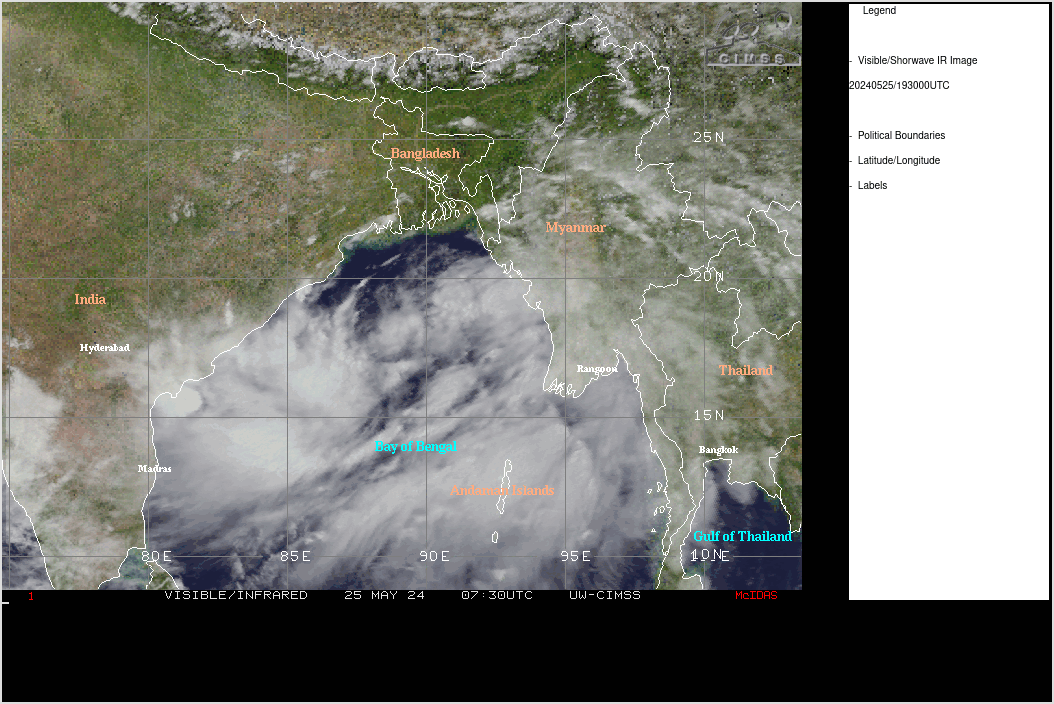

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED

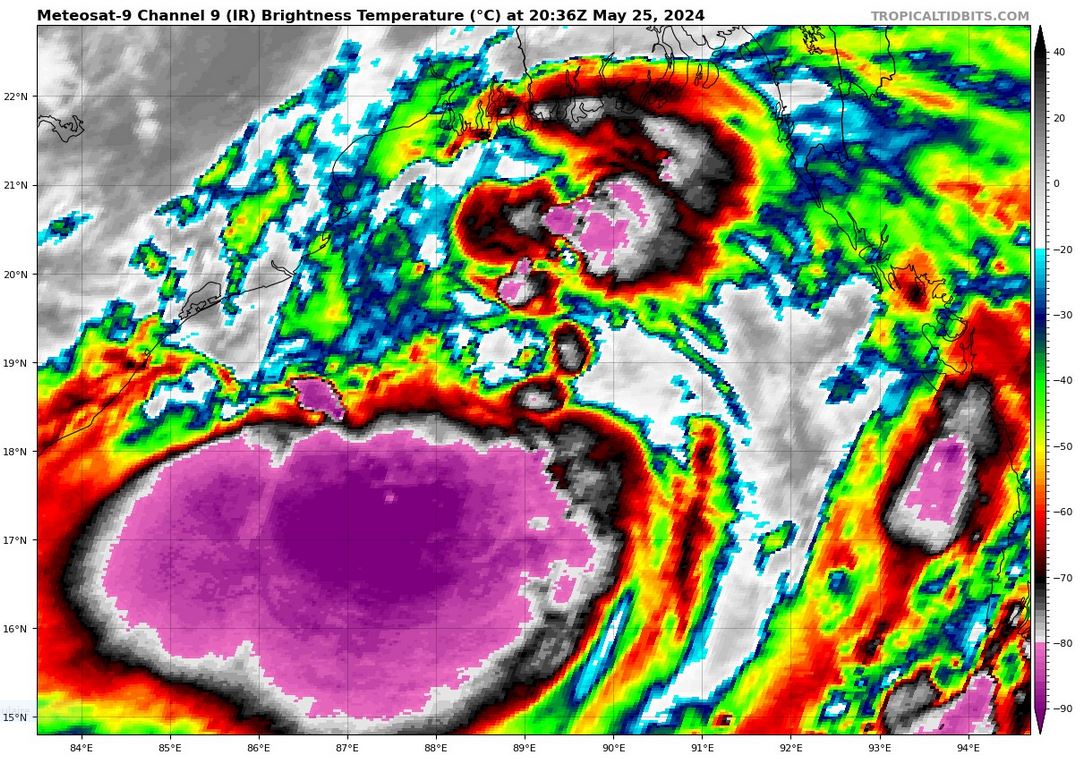

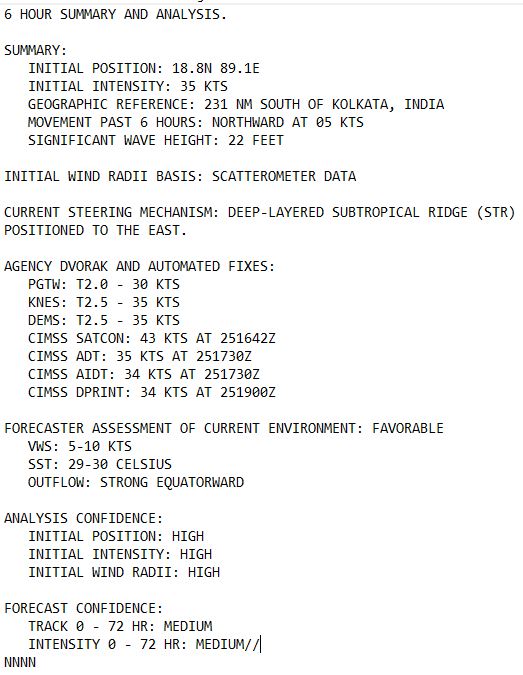

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED ENHANCED INFRARED (EIR) SATELLITE IMAGERY AND A 251538Z MHS 89 GHZ MICROWAVE IMAGE DEPICT A SLOWLY CONSOLIDATING, BROAD SYSTEM, WITH INTENSE CONVECTIVE BANDING OVER THE SOUTHERN SEMICIRCLE  AND WEAK, FRAGMENTED BANDING OVER THE EASTERN SEMICIRCLE. A 251539Z  ASCAT-B BULLSEYE IMAGE SHOWS A DEFINED CIRCULATION CENTER, WHICH  SUPPORTS THE INITIAL POSITION WITH HIGH CONFIDENCE, AND NEAR GALE- FORCE WINDS CONFINED TO THE EASTERN SEMICIRCLE. ENVIRONMENTAL  CONDITIONS REMAIN FAVORABLE WITH STRONG EQUATORWARD OUTFLOW, LOW  VERTICAL WIND SHEAR AND WARM SST VALUES OF 29-30 C. THE INITIAL  INTENSITY OF 35 KTS IS ASSESSED WITH HIGH CONFIDENCE BASED ON THE  RECENT ASCAT DATA AND THE KNES, DEMS DVORAK ESTIMATES. ADDITIONALLY,  THE 251730Z ADT, AIDT AND DPRINT OBJECTIVE DVORAK ESTIMATES OF 34-35  KNOTS SUPPORT THE INITIAL INTENSITY ASSESSMENT.
SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED ENHANCED INFRARED (EIR) SATELLITE IMAGERY AND A 251538Z MHS 89 GHZ MICROWAVE IMAGE DEPICT A SLOWLY CONSOLIDATING, BROAD SYSTEM, WITH INTENSE CONVECTIVE BANDING OVER THE SOUTHERN SEMICIRCLE AND WEAK, FRAGMENTED BANDING OVER THE EASTERN SEMICIRCLE. A 251539Z ASCAT-B BULLSEYE IMAGE SHOWS A DEFINED CIRCULATION CENTER, WHICH SUPPORTS THE INITIAL POSITION WITH HIGH CONFIDENCE, AND NEAR GALE- FORCE WINDS CONFINED TO THE EASTERN SEMICIRCLE. ENVIRONMENTAL CONDITIONS REMAIN FAVORABLE WITH STRONG EQUATORWARD OUTFLOW, LOW VERTICAL WIND SHEAR AND WARM SST VALUES OF 29-30 C. THE INITIAL INTENSITY OF 35 KTS IS ASSESSED WITH HIGH CONFIDENCE BASED ON THE RECENT ASCAT DATA AND THE KNES, DEMS DVORAK ESTIMATES. ADDITIONALLY, THE 251730Z ADT, AIDT AND DPRINT OBJECTIVE DVORAK ESTIMATES OF 34-35 KNOTS SUPPORT THE INITIAL INTENSITY ASSESSMENT.

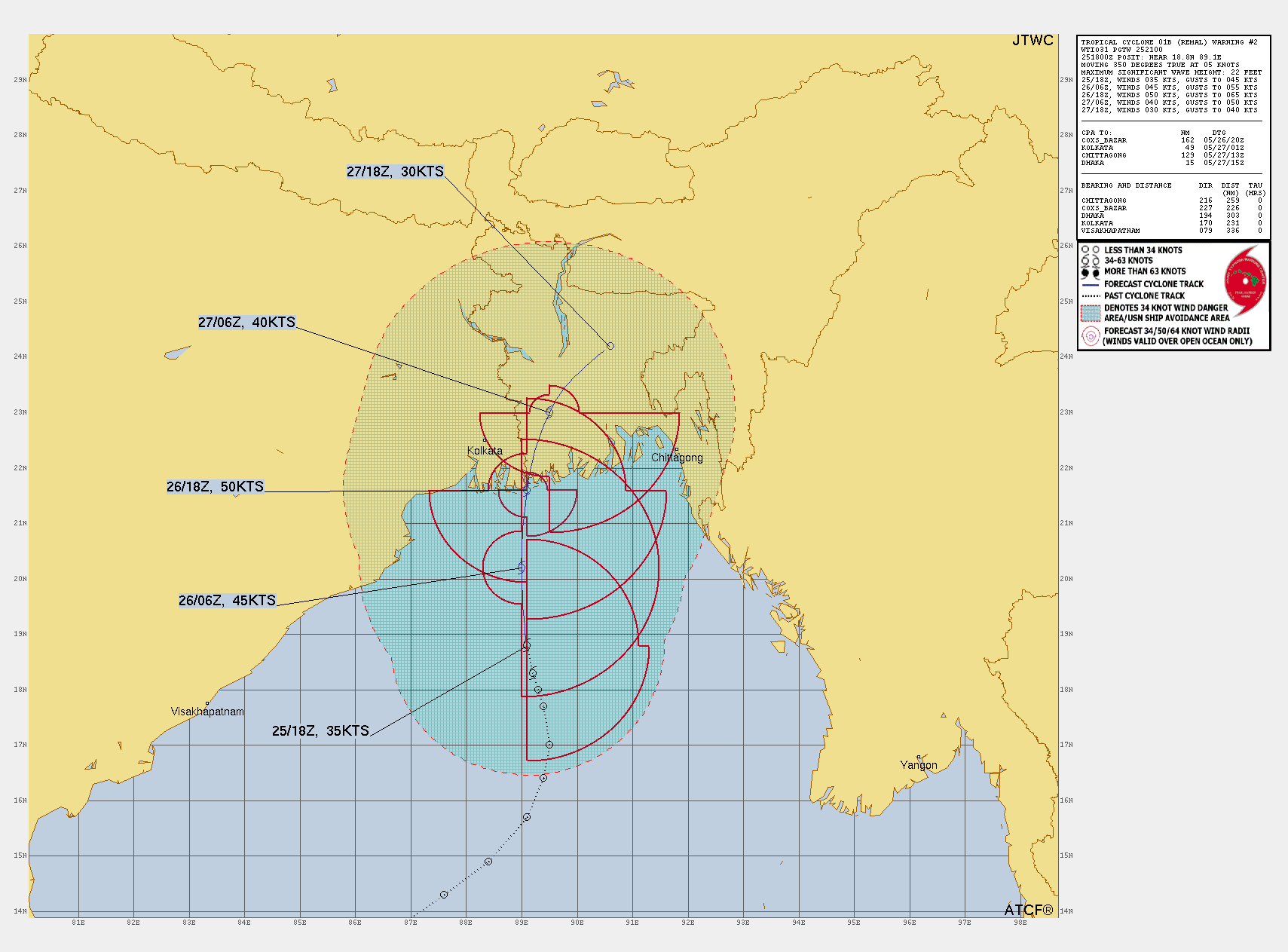

TC Warning Graphic

FORECAST REASONING.  SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING.  FORECAST DISCUSSION: TROPICAL CYCLONE (TC) 01B IS FORECAST TO TRACK NORTHWARD THROUGH TAU 24, MAKING LANDFALL NEAR THE BORDER REGION OF INDIA AND BANGLADESH AT TAU 24. DUE TO THE FAVORABLE ENVIRONMENTAL CONDITIONS, THE SYSTEM IS EXPECTED TO INTENSIFY STEADILY THROUGH TAU 24 WITH A PEAK INTENSITY OF 50 KNOTS AT TAU 24. THE SYSTEM WILL LIKELY REMAIN STRONG THROUGH TAU 30 AS IT TRACKS INLAND OVER THE WARM, WET DELTA REGION. AFTER TAU 30, THE SYSTEM WILL TURN NORTHEASTWARD ALONG THE NORTHWEST PERIPHERY OF THE STR WHILE RAPIDLY DISSIPATING. DUE TO THE BROAD NATURE OF THE SYSTEM, HEAVY RAINFALL AND THE STRONGEST WINDS ARE EXPECTED TO BE DISPLACED AWAY FROM THE CENTER.
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TROPICAL CYCLONE (TC) 01B IS FORECAST TO TRACK NORTHWARD THROUGH TAU 24, MAKING LANDFALL NEAR THE BORDER REGION OF INDIA AND BANGLADESH AT TAU 24. DUE TO THE FAVORABLE ENVIRONMENTAL CONDITIONS, THE SYSTEM IS EXPECTED TO INTENSIFY STEADILY THROUGH TAU 24 WITH A PEAK INTENSITY OF 50 KNOTS AT TAU 24. THE SYSTEM WILL LIKELY REMAIN STRONG THROUGH TAU 30 AS IT TRACKS INLAND OVER THE WARM, WET DELTA REGION. AFTER TAU 30, THE SYSTEM WILL TURN NORTHEASTWARD ALONG THE NORTHWEST PERIPHERY OF THE STR WHILE RAPIDLY DISSIPATING. DUE TO THE BROAD NATURE OF THE SYSTEM, HEAVY RAINFALL AND THE STRONGEST WINDS ARE EXPECTED TO BE DISPLACED AWAY FROM THE CENTER.

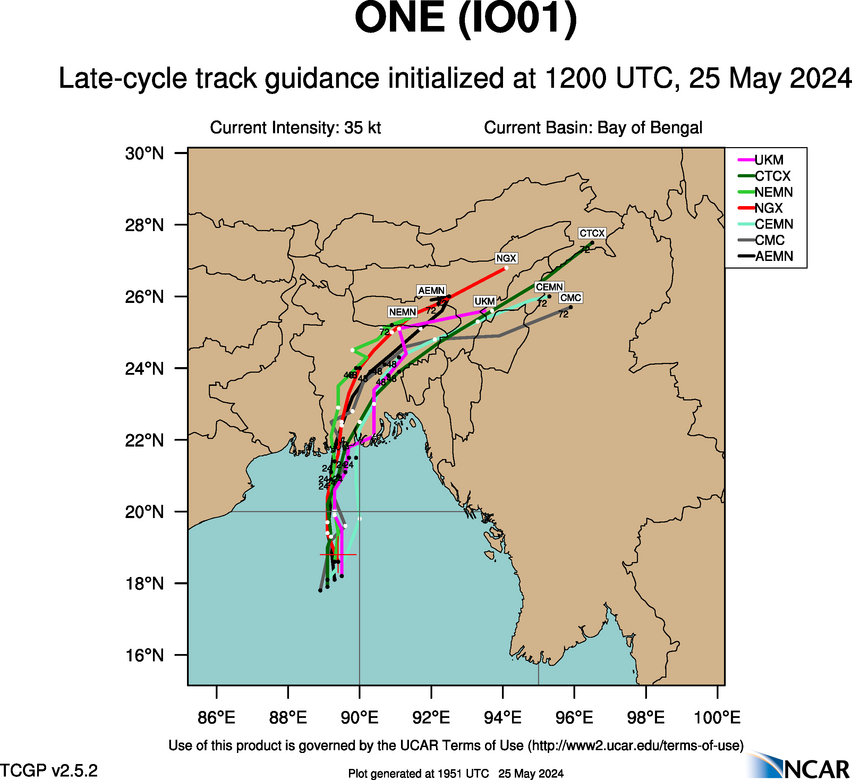

MODEL DISCUSSION: NUMERICAL MODEL GUIDANCE IS IN FAIR AGREEMENT WITH A CROSS-TRACK SPREAD OF 96 NM AT TAU 24, DIVERGING FURTHER AS THE SYSTEM RECURVES NORTHEASTWARD. RELIABLE INTENSITY GUIDANCE INDICATES A LARGE SPREAD IN PEAK INTENSITY VALUES FROM 50 TO 65 KNOTS. THE JTWC INTENSITY FORECAST IS POSITIONED CLOSE TO THE JTWC INTENSITY CONSENSUS, NEAR THE COAMPS-TC (GFS BOUNDARY CONDITIONS) AND  HAFS-A PEAK INTENSITY VALUES. THE 251200Z COAMPS-TC INTENSITY ENSEMBLE INDICATES A LOW PROBABILITY OF RAPID INTENSIFICATION WITH A 20-30 PERCENT PROBABILITY THROUGH TAU 18. THE LATEST EPS AND GEFS ENSEMBLES INDICATE A SIMILAR SPREAD OF SOLUTIONS LENDING MEDIUM OVERALL CONFIDENCE TO THE JTWC TRACK FORECAST.
MODEL DISCUSSION: NUMERICAL MODEL GUIDANCE IS IN FAIR AGREEMENT WITH A CROSS-TRACK SPREAD OF 96 NM AT TAU 24, DIVERGING FURTHER AS THE SYSTEM RECURVES NORTHEASTWARD. RELIABLE INTENSITY GUIDANCE INDICATES A LARGE SPREAD IN PEAK INTENSITY VALUES FROM 50 TO 65 KNOTS. THE JTWC INTENSITY FORECAST IS POSITIONED CLOSE TO THE JTWC INTENSITY CONSENSUS, NEAR THE COAMPS-TC (GFS BOUNDARY CONDITIONS) AND HAFS-A PEAK INTENSITY VALUES. THE 251200Z COAMPS-TC INTENSITY ENSEMBLE INDICATES A LOW PROBABILITY OF RAPID INTENSIFICATION WITH A 20-30 PERCENT PROBABILITY THROUGH TAU 18. THE LATEST EPS AND GEFS ENSEMBLES INDICATE A SIMILAR SPREAD OF SOLUTIONS LENDING MEDIUM OVERALL CONFIDENCE TO THE JTWC TRACK FORECAST.

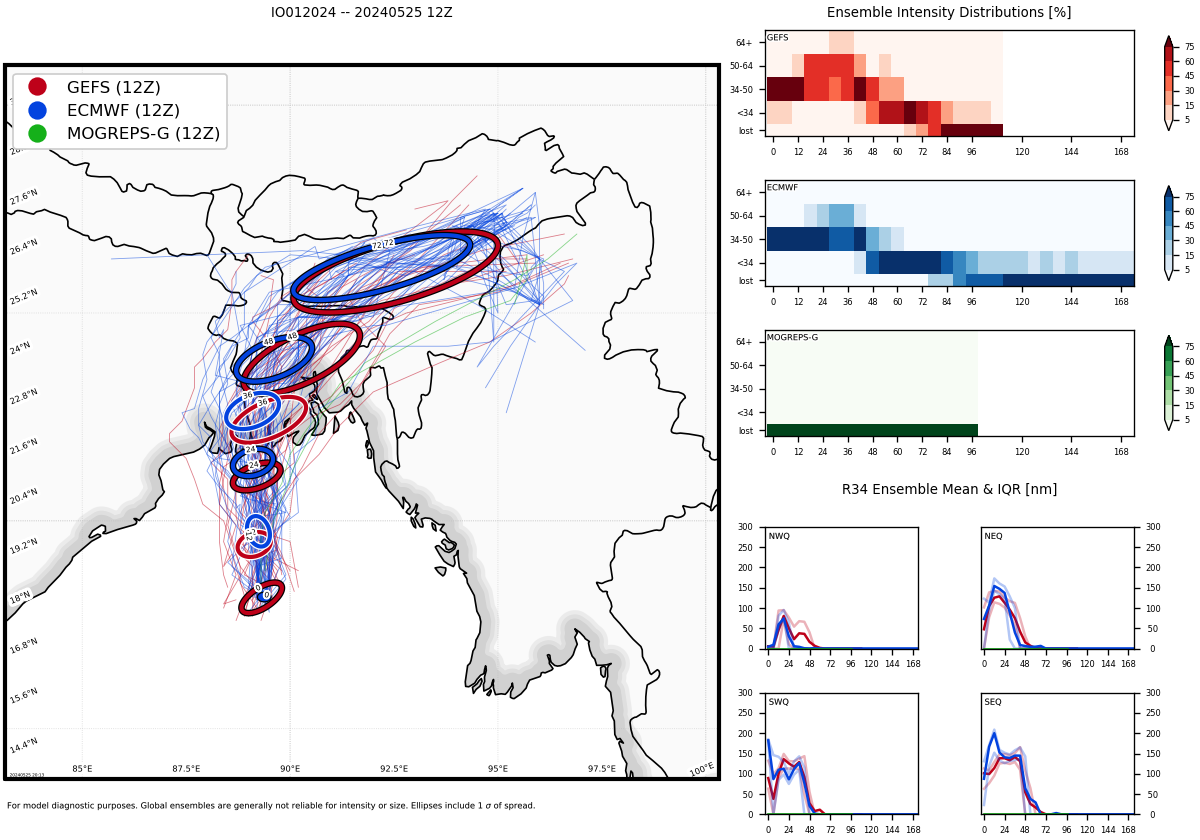

Ensemble Track Ellipses

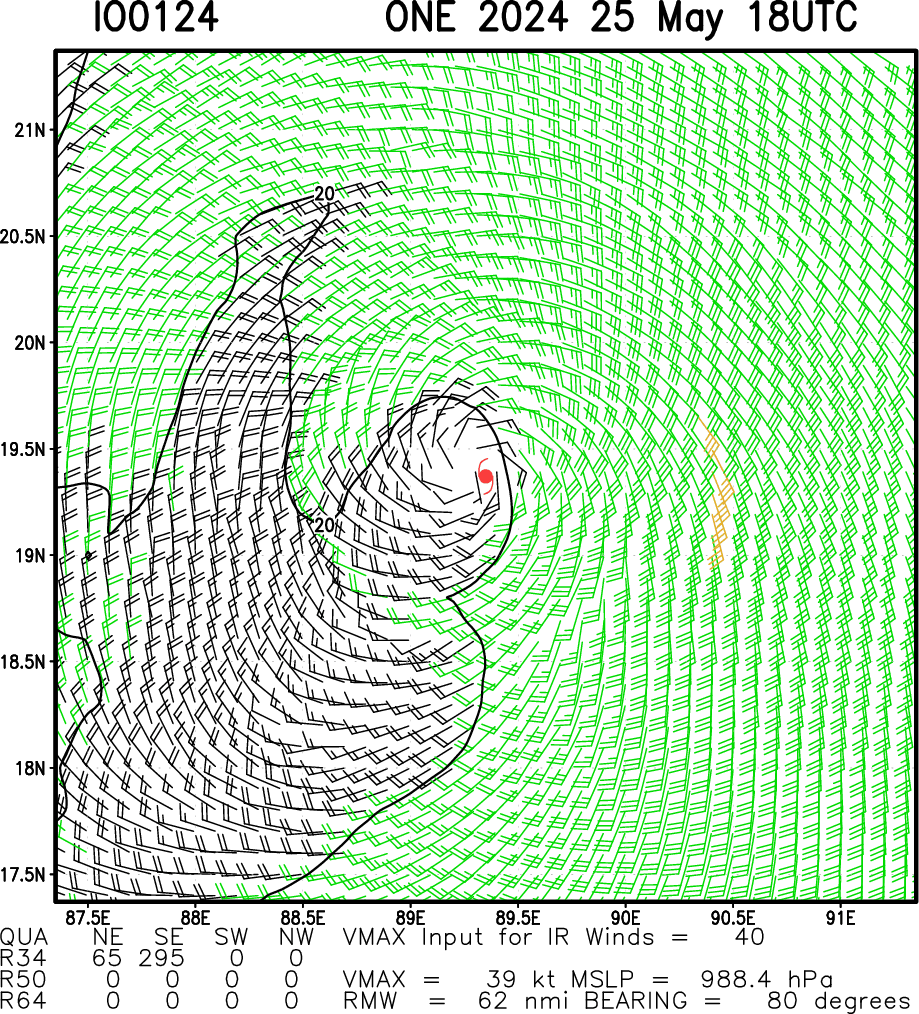

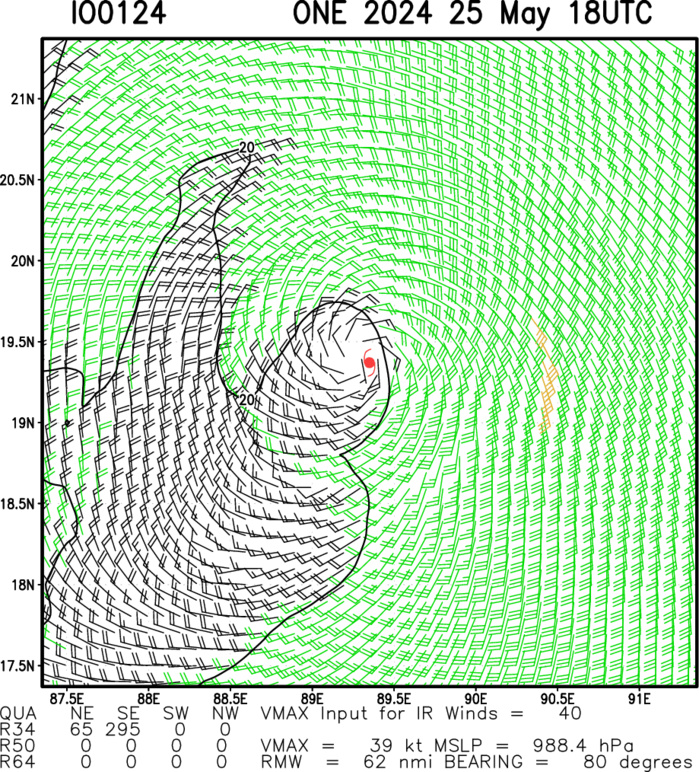

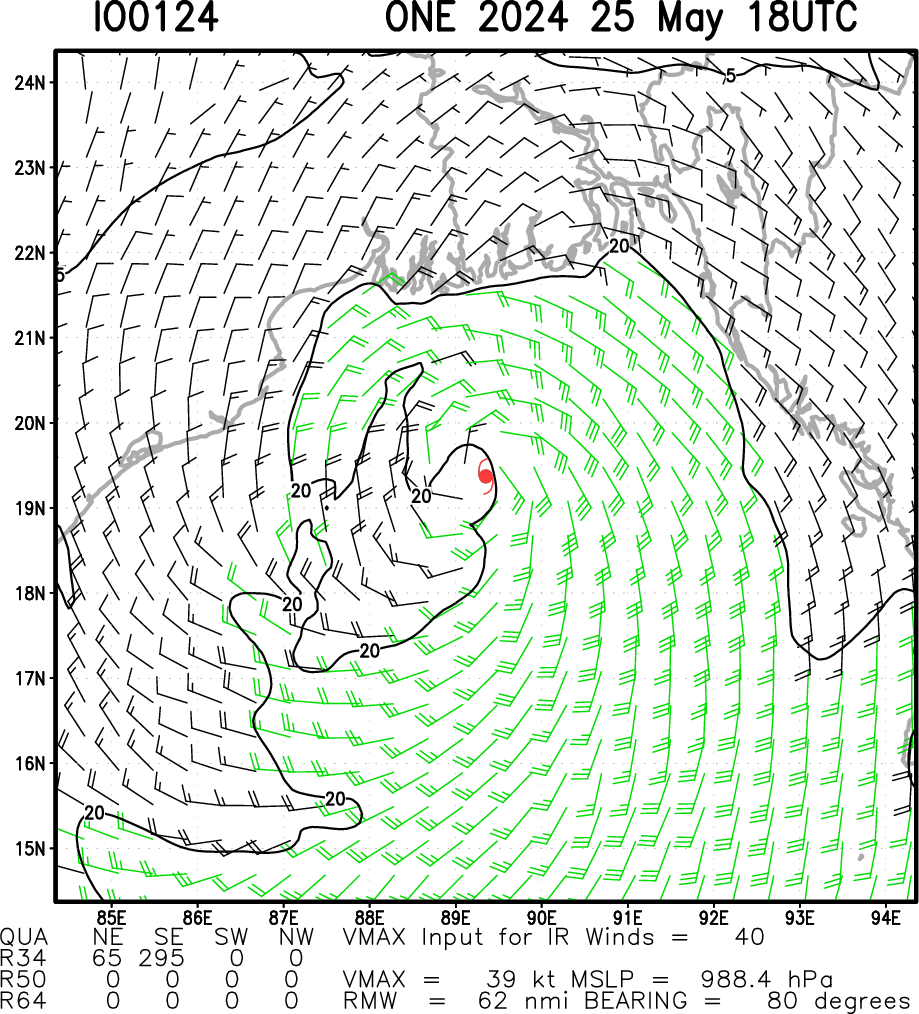

Multiplatform Satellite Surface Wind Analysis (Experimental)


UPDATED SATELLITE BULLETIN AT 25/2030UTC

TPIO10 PGTW 252105

A. TROPICAL CYCLONE 01B (REMAL)

B. 25/2030Z

C. 19.45N

D. 88.91E

E. FIVE/GK2A

F. T2.5/2.5/D1.5/24HRS  STT: D0.5/03HRS

G. IR/EIR

H. REMARKS: 38A/PBO SBC/ANMTN. CNVCTN WRAPS .4 ON LOG10 SPIRAL
YIELDING A DT OF 2.5. PT AGREES. MET YIELDS 2.0. DBO DT.

I. ADDITIONAL POSITIONS: NONE


   CVACH

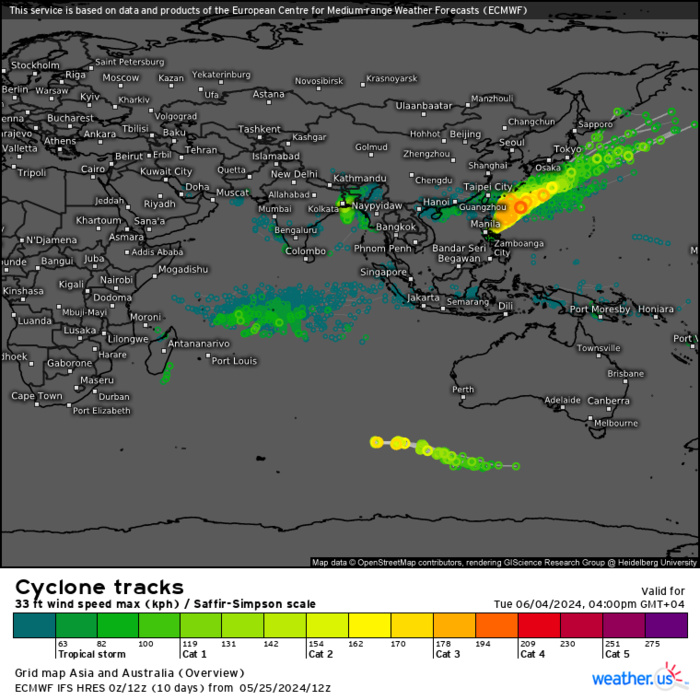

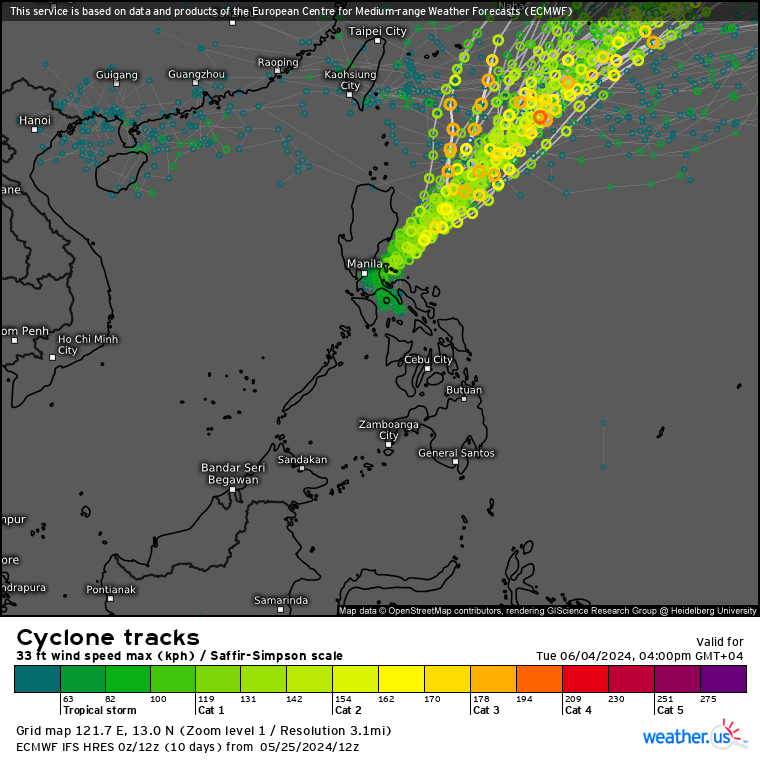

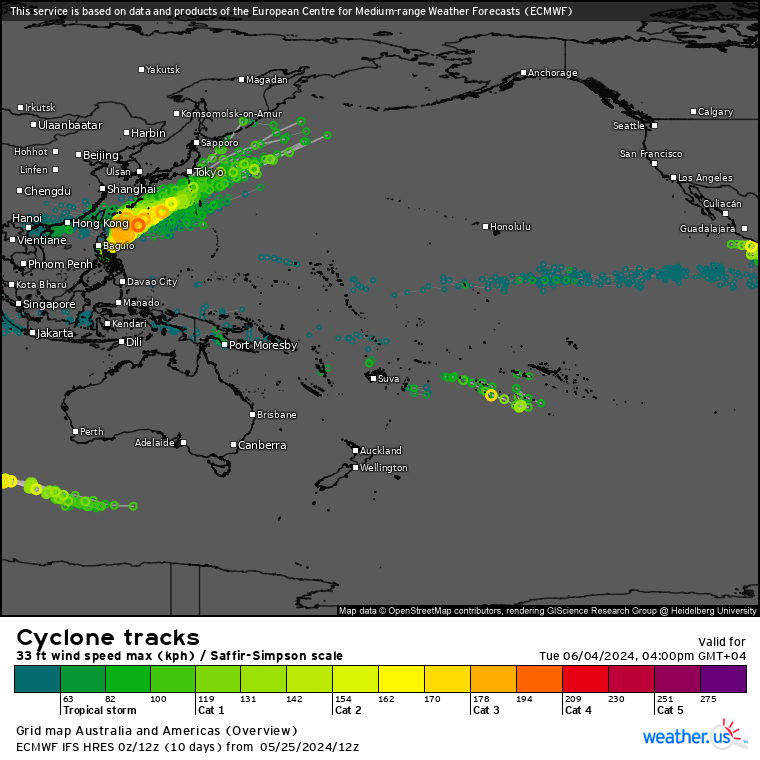

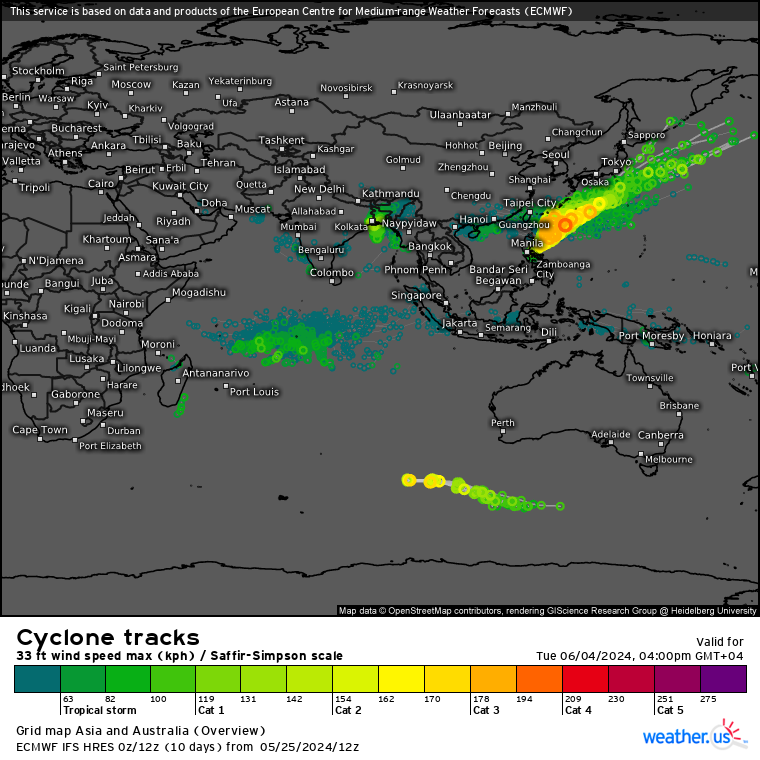

ECMWF Storm Tracks (Ensemble) : 05/25 12UTC+ 10 DAYS


ECMWF Storm Tracks (Ensemble) : 05/25 12UTC+ 10 DAYS


ECMWF Storm Tracks (Ensemble) : 05/25 12UTC+ 10 DAYS



Rédigé par PATRICK HOAREAU le Sunday, May 26th 2024 à 01:37
