TD 02W(MALIKSI) making landfall//01W(EWINIAR) extratropical//INVEST 94S// ECMWF 10 Day Strom Tracks//3115utc



CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

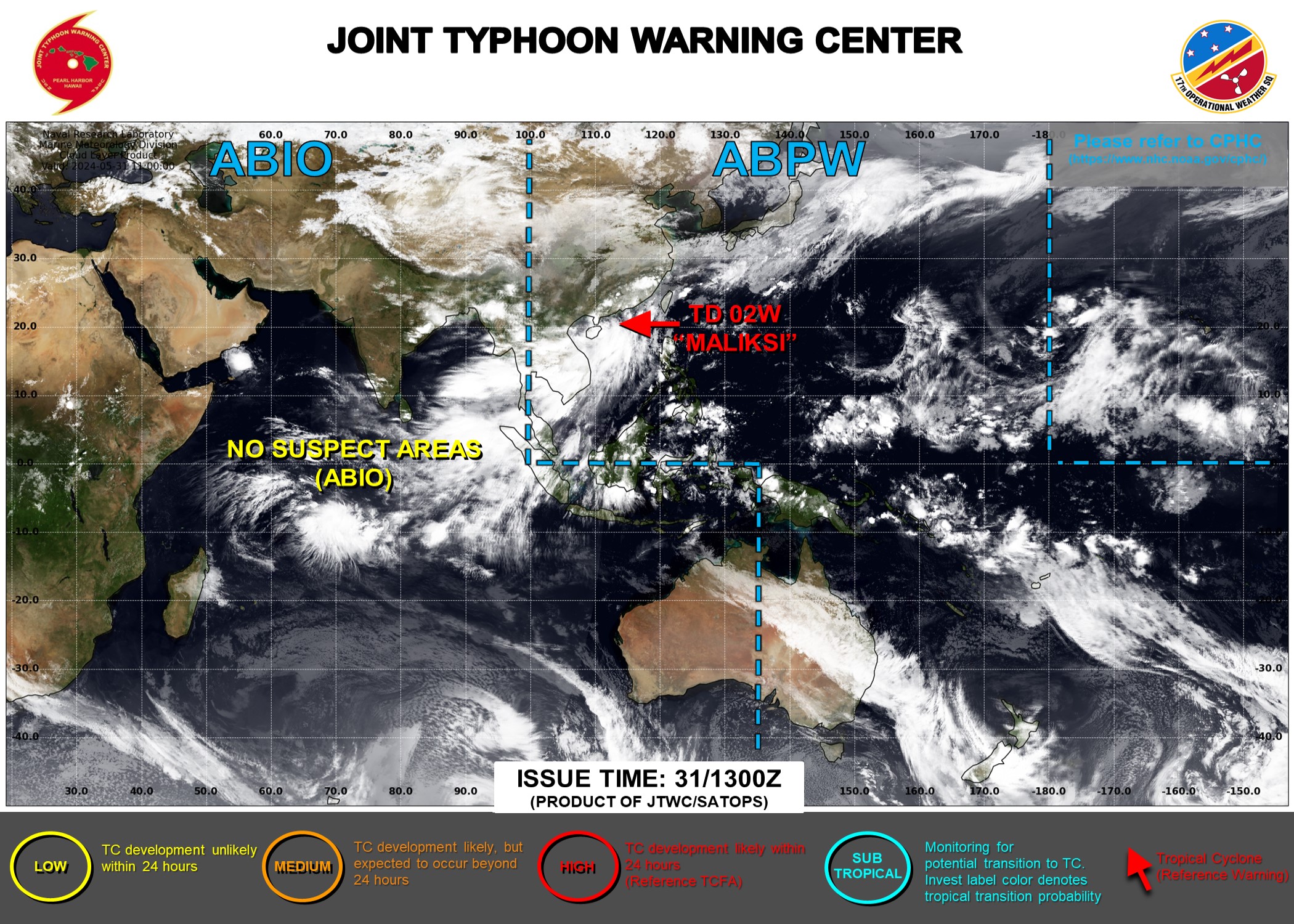

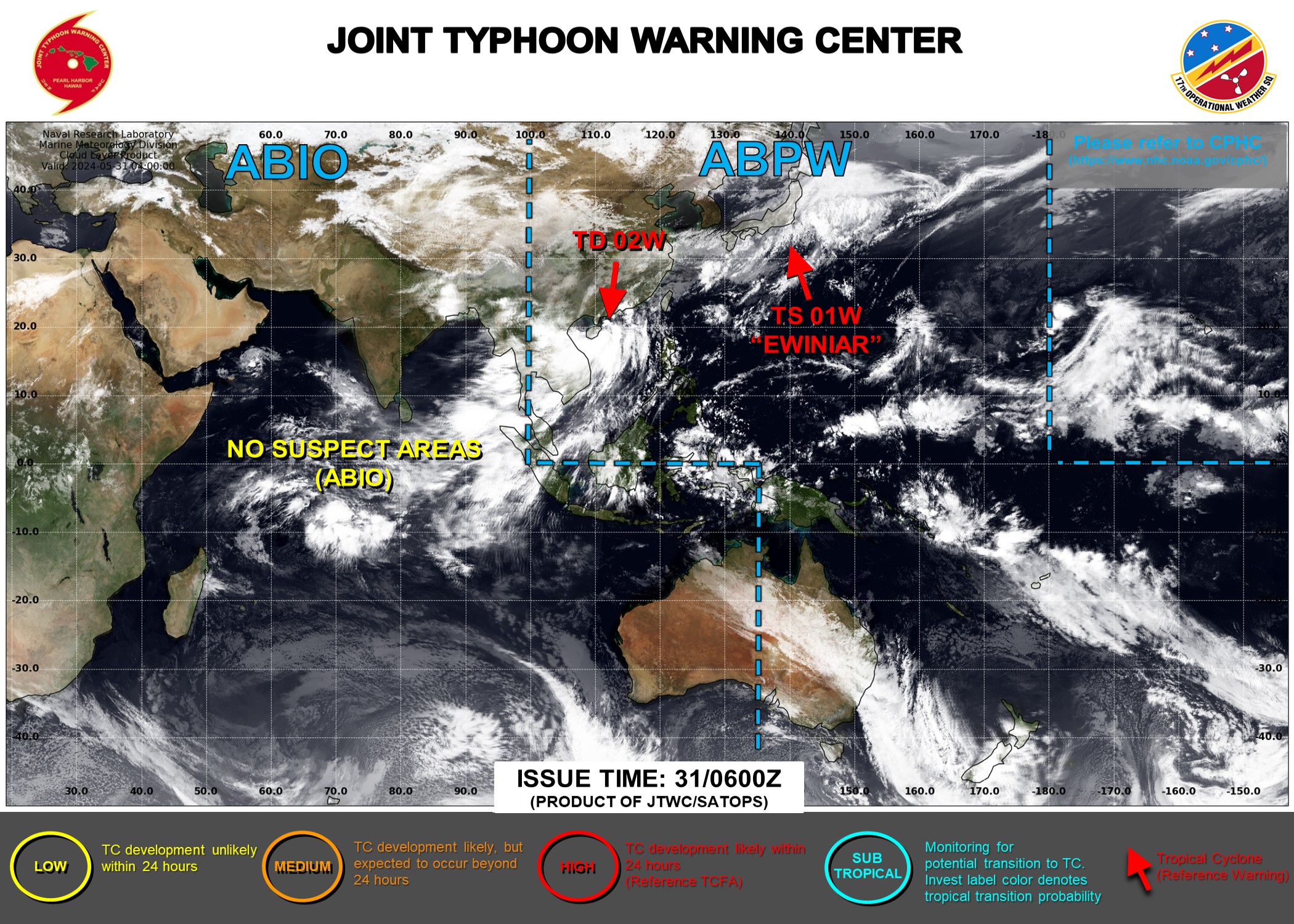

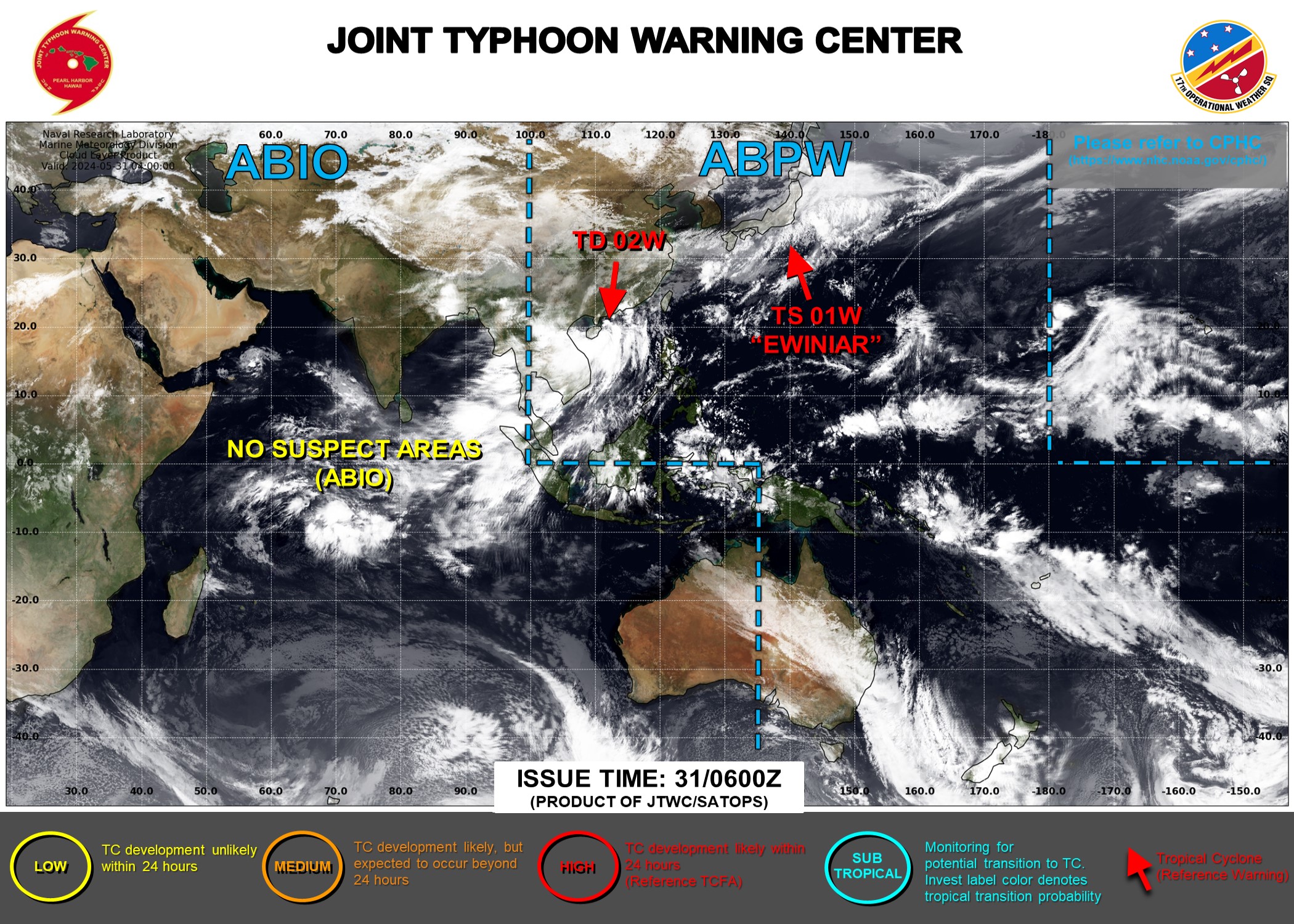

JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON 02W AND 3HOURLY SATELLITE BULLETINS ON INVEST 94S
JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON 02W AND 3HOURLY SATELLITE BULLETINS ON INVEST 94S

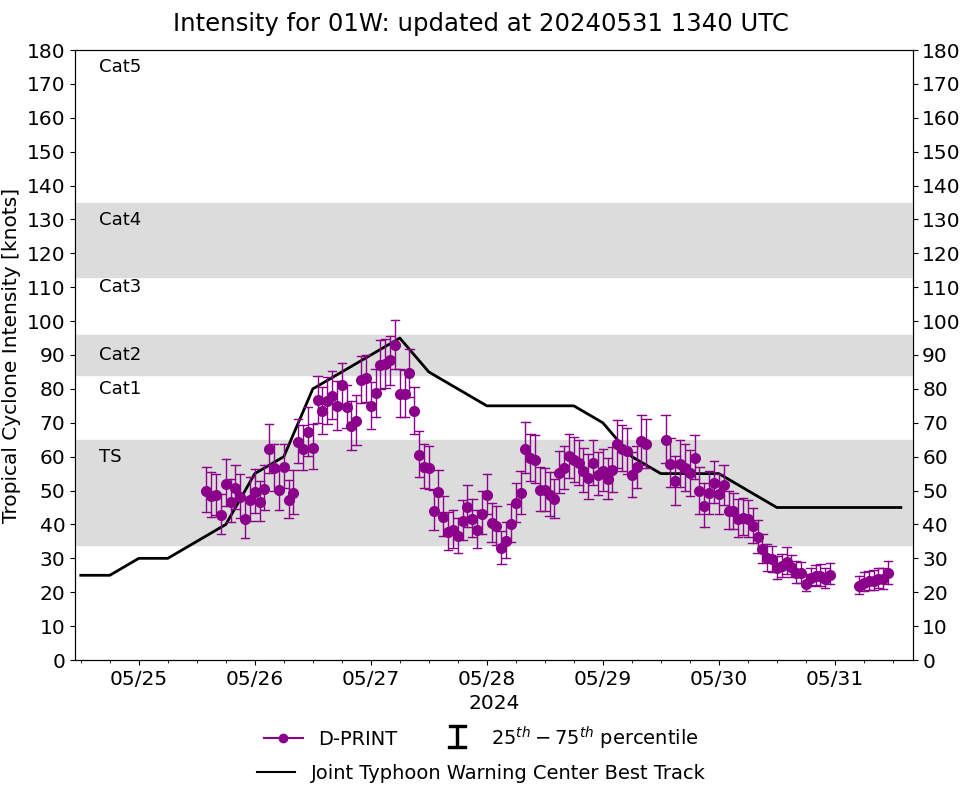

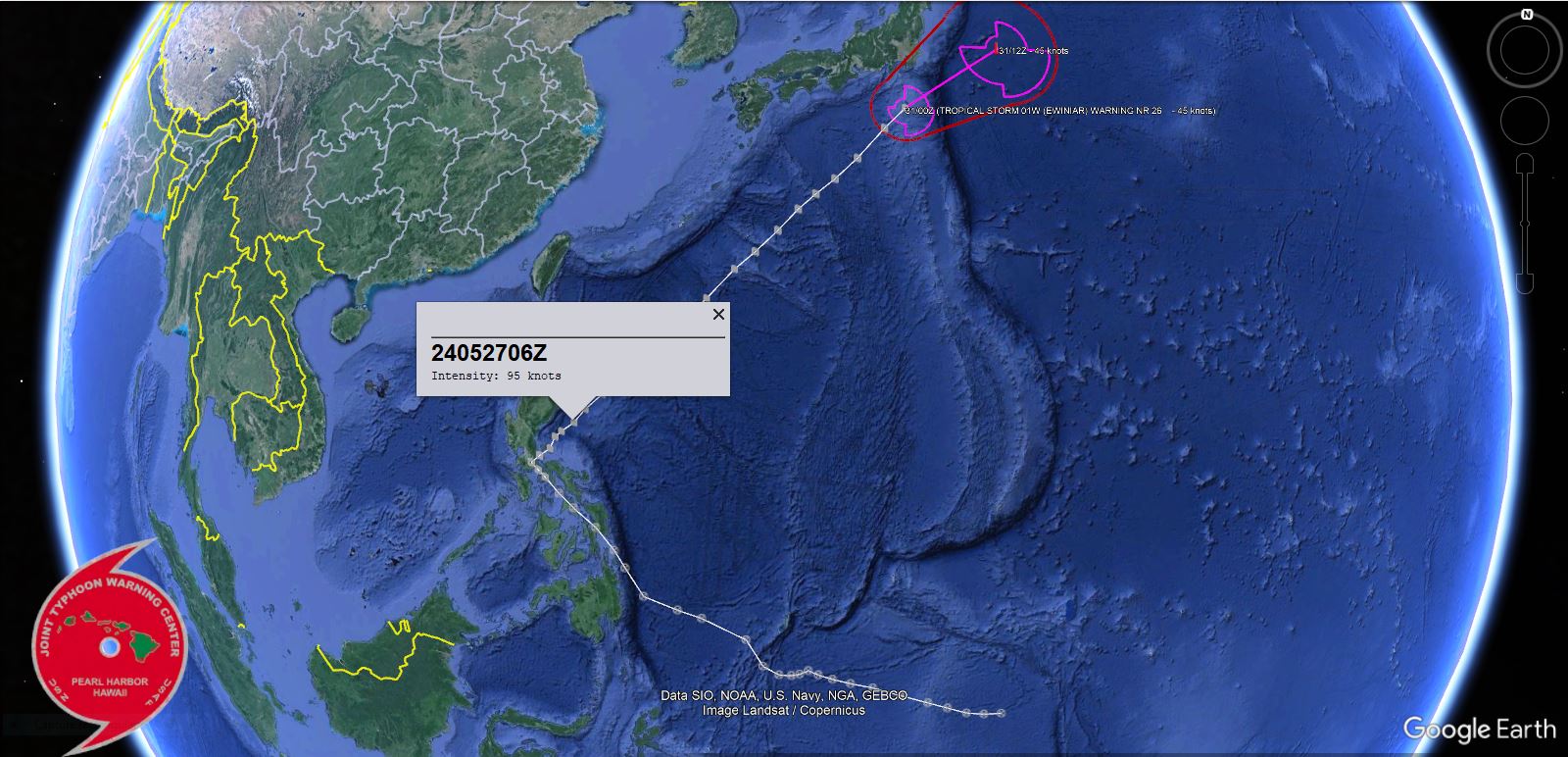

WESTERN NORTH PACIFIC: 01W(EWINIAR) IS NOW EXTRATROPICAL. PEAK INTENSITY WITHIN THE TROPICS WAS 95 KNOTS/CAT 2 US.

0124051912  29N1456E  15
0124051918  29N1447E  15
0124052000  30N1438E  15
0124052006  33N1428E  15
0124052012  36N1418E  15
0124052018  40N1404E  15
0124052100  44N1390E  15
0124052106  46N1379E  15
0124052112  48N1370E  15
0124052118  50N1363E  15
0124052200  52N1358E  15
0124052206  50N1354E  20
0124052212  49N1350E  20
0124052218  49N1344E  20
0124052300  53N1336E  20
0124052306  66N1327E  20
0124052312  75N1305E  20
0124052318  78N1293E  20
0124052400  83N1276E  20
0124052406  96N1266E  20
0124052412 104N1260E  25
0124052418 114N1250E  25
0124052500 122N1238E  30
0124052506 128N1230E  30
0124052512 135N1222E  35
0124052518 138N1218E  40
0124052600 141N1214E  55
0124052606 145N1218E  60
0124052612 149N1223E  80
0124052618 155N1225E  85
0124052700 158N1228E  90
0124052706 163N1234E  95
0124052712 170N1239E  85
0124052718 178N1247E  80
0124052800 185N1255E  75
0124052806 199N1268E  75
0124052812 213N1281E  75
0124052818 228N1295E  75
0124052900 243N1308E  70
0124052906 252N1318E  60
0124052912 263N1329E  55
0124052918 274N1339E  55
0124053000 282N1348E  55
0124053006 290N1358E  50
0124053012 301N1370E  45
0124053018 317N1385E  45
0124053100 328N1397E  45
0124053106 342N1428E  45

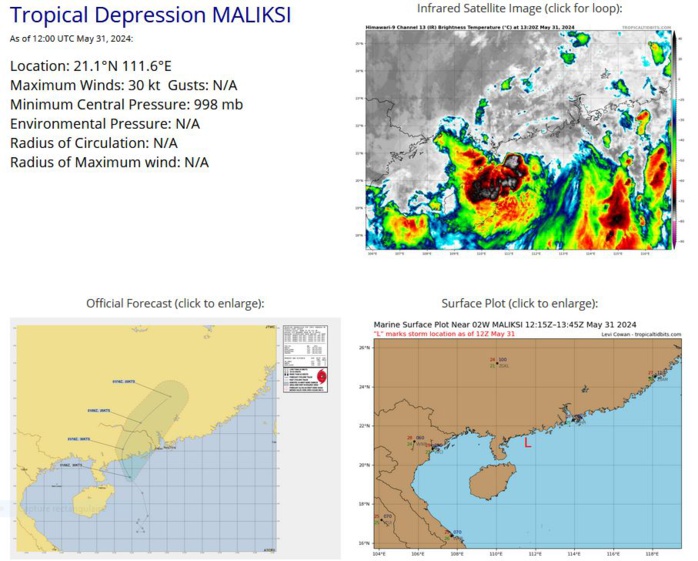

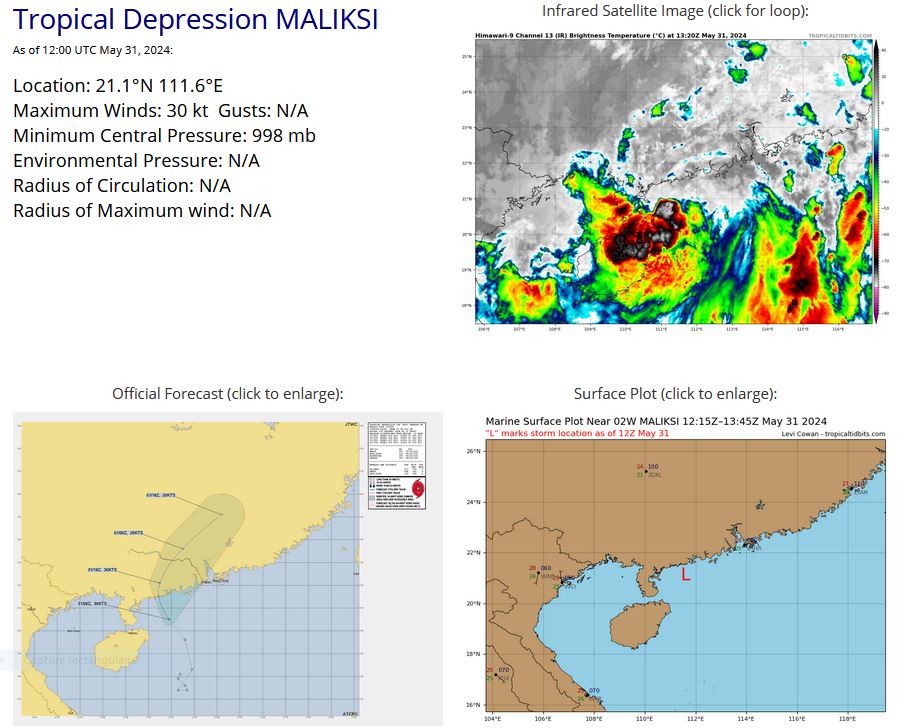

WESTERN NORTH PACIFIC/SOUTH CHINA SEA: TD 02W(MALIKSI). ESTIMATED LOCATION AND INTENSITY AT 31/12UTC. INTENSITY IS 30 KNOTS

0224052912 181N1124E  15
0224052918 179N1123E  15
0224053000 176N1126E  15
0224053006 174N1127E  20
0224053012 174N1123E  20
0224053018 183N1129E  25
0224053100 196N1126E  30
0224053106 205N1119E  30
0224053112 211N1116E  30


WARNING 3 ISSUED AT 31/15UTC

TD 02W(MALIKSI) making landfall//01W(EWINIAR) extratropical//INVEST 94S// ECMWF 10 Day Strom Tracks//3115utc



CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED

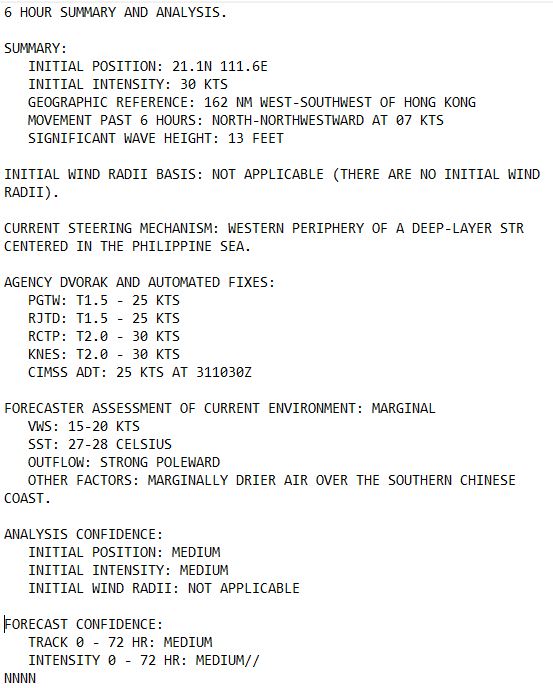

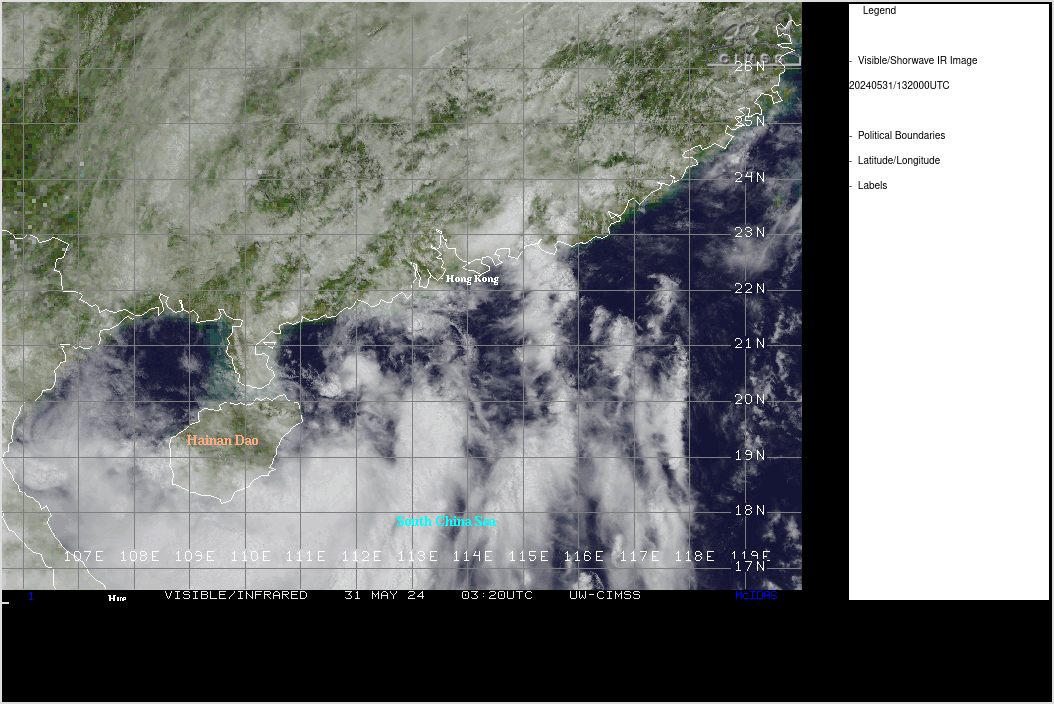

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED ENHANCED INFRARED (EIR) SATELLITE IMAGERY DEPICTS A SLOWLY CONSOLIDATING, BUT STILL RATHER DISORGANIZED SYSTEM, APPROACHING THE COAST OF SOUTHERN CHINA. NO MAJOR CHANGES HAVE BEEN OBSERVED OVER THE PAS SIX HOURS, WITH MULTIPLE LOW-LEVEL VORTICES STILL CIRCLING AROUND ONE ANOTHER, WHILE THE LARGER CIRCULATION TRACKS NORTHWARD. RECENT ANIMATED RADAR DATA PROVIDES THE BEST VIEW OF THE LOW-LEVEL STRUCTURE AND REVEALS AT LEAST TWO SPINNERS ROTATING ABOUT A CENTROID, WITH WELL-DEFINED SPIRAL RAINBANDS STRETCHING ACROSS NORTHERN HAINAN AND UP THE EASTERN SIDE OF THE LOW LEVEL CIRCULATION CENTER (LLCC). THE INITIAL POSITION IS PLACED IN THE CENTROID OF THE MULTIPLE VORTICES, ASSESSED WITH MEDIUM CONFIDENCE. THE INITIAL INTENSITY OF 30 KNOTS IS ALSO ASSESSED WITH MEDIUM CONFIDENCE, IN LINE WITH THE HIGHER END DVORAK CURRENT INTENSITY ESTIMATES OF T2.0 FROM KNES AND RCTP, AND THE DMINT ESTIMATE OF 28 KNOTS. SURFACE OBSERVATIONS FROM YANGJIAN AND SHANGCHUAN DAO (NORTH AND NORTHEAST OF THE LLCC RESPECTIVELY) ARE IN THE 10-15 KNOT RANGE, SUPPORTING THE FACT THAT THE HIGHEST WINDS ARE CONFINED TO THE SOUTH AND SOUTHEASTERN QUADRANT OF THE CIRCULATION CENTER. ANALYSIS REVEALS A MARGINAL ENVIRONMENT CHARACTERIZED BY WARM (27-28C) WATERS, WHICH WHILE STILL WARM ENOUGH TO SUPPORT DEVELOPMENT, HAVE STEADILY COOLED AS THE SYSTEM APPROACHES THE COAST, AND STRONG POLEWARD OUTFLOW OFFSET BY LOW TO MODERATE NORTHEASTERLY VWS. THE SYSTEM IS MOVING NORTHWESTWARD ALONG THE WESTERN SIDE OF A DEEP SUBTROPICAL RIDGE (STR) TO THE EAST.
SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED ENHANCED INFRARED (EIR) SATELLITE IMAGERY DEPICTS A SLOWLY CONSOLIDATING, BUT STILL RATHER DISORGANIZED SYSTEM, APPROACHING THE COAST OF SOUTHERN CHINA. NO MAJOR CHANGES HAVE BEEN OBSERVED OVER THE PAS SIX HOURS, WITH MULTIPLE LOW-LEVEL VORTICES STILL CIRCLING AROUND ONE ANOTHER, WHILE THE LARGER CIRCULATION TRACKS NORTHWARD. RECENT ANIMATED RADAR DATA PROVIDES THE BEST VIEW OF THE LOW-LEVEL STRUCTURE AND REVEALS AT LEAST TWO SPINNERS ROTATING ABOUT A CENTROID, WITH WELL-DEFINED SPIRAL RAINBANDS STRETCHING ACROSS NORTHERN HAINAN AND UP THE EASTERN SIDE OF THE LOW LEVEL CIRCULATION CENTER (LLCC). THE INITIAL POSITION IS PLACED IN THE CENTROID OF THE MULTIPLE VORTICES, ASSESSED WITH MEDIUM CONFIDENCE. THE INITIAL INTENSITY OF 30 KNOTS IS ALSO ASSESSED WITH MEDIUM CONFIDENCE, IN LINE WITH THE HIGHER END DVORAK CURRENT INTENSITY ESTIMATES OF T2.0 FROM KNES AND RCTP, AND THE DMINT ESTIMATE OF 28 KNOTS. SURFACE OBSERVATIONS FROM YANGJIAN AND SHANGCHUAN DAO (NORTH AND NORTHEAST OF THE LLCC RESPECTIVELY) ARE IN THE 10-15 KNOT RANGE, SUPPORTING THE FACT THAT THE HIGHEST WINDS ARE CONFINED TO THE SOUTH AND SOUTHEASTERN QUADRANT OF THE CIRCULATION CENTER. ANALYSIS REVEALS A MARGINAL ENVIRONMENT CHARACTERIZED BY WARM (27-28C) WATERS, WHICH WHILE STILL WARM ENOUGH TO SUPPORT DEVELOPMENT, HAVE STEADILY COOLED AS THE SYSTEM APPROACHES THE COAST, AND STRONG POLEWARD OUTFLOW OFFSET BY LOW TO MODERATE NORTHEASTERLY VWS. THE SYSTEM IS MOVING NORTHWESTWARD ALONG THE WESTERN SIDE OF A DEEP SUBTROPICAL RIDGE (STR) TO THE EAST.

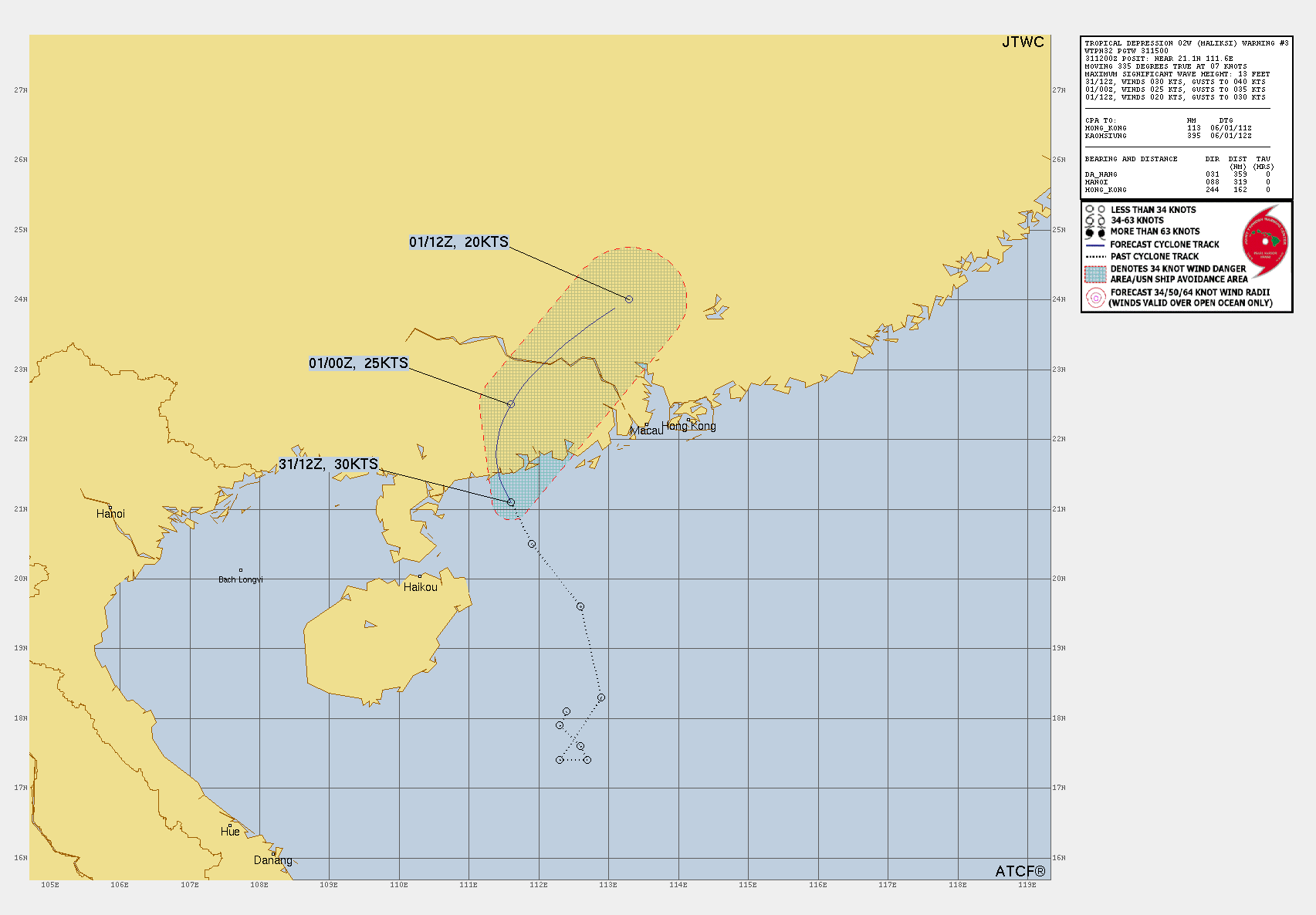

TC Warning Graphic

FORECAST REASONING.  SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING.  FORECAST DISCUSSION: TROPICAL DEPRESSION (TD) 02W (MALIKSI) WILL CONTINUE TO TRACK NORTH-NORTHWESTWARD OVER THE NEXT 12 HOURS, MAKING LANDFALL ALONG THE SOUTHERN CHINESE COAST WITHIN THE NEXT FEW HOURS. ELEVATED TERRAIN FEATURES NEAR THE ANTICIPATED LANDFALL POINT WILL LEAD TO THE SLOWDOWN IN THE TRACK SPEED AS THE SYSTEM BEGINS TO MOVE INLAND, WITH SOME MODELS SUGGESTING THE LLCC MAY GET STUCK ALONG THE COAST THROUGH TAU 12. BUT IN GENERAL, THE FORECAST CALLS FOR THE SYSTEM TO TURN MORE NORTH THEN NORTHEASTWARD AS THE STEERING RIDGE BUILDS OVER THE PHILIPPINES AND INTO THE SOUTH CHINA SEA. BY THE END OF THE SHORT FORECAST PERIOD, THE SYSTEM WILL BE TRACKING PARALLEL THE SOUTHEAST COAST OF CHINA, TURNING ONTO A MORE EASTWARD TRACK BEYOND TAU 24. DUE TO THE COOLING SSTS ALONG THE COAST, CONTINUED NORTHEASTERLY MID-LEVEL SHEAR AND THE LACK OF TIME OVER WATER, THE SYSTEM IS NOT EXPECTED TO INTENSIFY PRIOR TO LANDFALL. CONSISTENT WITH THE PREVIOUS FORECAST, IT IS POSSIBLE THAT POCKETS OF GALE-FORCE WINDS MAY DEVELOP IN THE SOUTHEASTERN QUADRANT IN THE ENHANCED GRADIENT AS THE STR BUILDS INTO THE SOUTH CHINA SEA. ONCE THE SYSTEM MAKES LANDFALL, EVEN IF IT STALLS ALONG THE COAST, FRICTIONAL EFFECTS WILL SERVE TO RAPIDLY AND WEAKEN AND DISSIPATE THE VORTEX BY TAU 24.
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TROPICAL DEPRESSION (TD) 02W (MALIKSI) WILL CONTINUE TO TRACK NORTH-NORTHWESTWARD OVER THE NEXT 12 HOURS, MAKING LANDFALL ALONG THE SOUTHERN CHINESE COAST WITHIN THE NEXT FEW HOURS. ELEVATED TERRAIN FEATURES NEAR THE ANTICIPATED LANDFALL POINT WILL LEAD TO THE SLOWDOWN IN THE TRACK SPEED AS THE SYSTEM BEGINS TO MOVE INLAND, WITH SOME MODELS SUGGESTING THE LLCC MAY GET STUCK ALONG THE COAST THROUGH TAU 12. BUT IN GENERAL, THE FORECAST CALLS FOR THE SYSTEM TO TURN MORE NORTH THEN NORTHEASTWARD AS THE STEERING RIDGE BUILDS OVER THE PHILIPPINES AND INTO THE SOUTH CHINA SEA. BY THE END OF THE SHORT FORECAST PERIOD, THE SYSTEM WILL BE TRACKING PARALLEL THE SOUTHEAST COAST OF CHINA, TURNING ONTO A MORE EASTWARD TRACK BEYOND TAU 24. DUE TO THE COOLING SSTS ALONG THE COAST, CONTINUED NORTHEASTERLY MID-LEVEL SHEAR AND THE LACK OF TIME OVER WATER, THE SYSTEM IS NOT EXPECTED TO INTENSIFY PRIOR TO LANDFALL. CONSISTENT WITH THE PREVIOUS FORECAST, IT IS POSSIBLE THAT POCKETS OF GALE-FORCE WINDS MAY DEVELOP IN THE SOUTHEASTERN QUADRANT IN THE ENHANCED GRADIENT AS THE STR BUILDS INTO THE SOUTH CHINA SEA. ONCE THE SYSTEM MAKES LANDFALL, EVEN IF IT STALLS ALONG THE COAST, FRICTIONAL EFFECTS WILL SERVE TO RAPIDLY AND WEAKEN AND DISSIPATE THE VORTEX BY TAU 24.

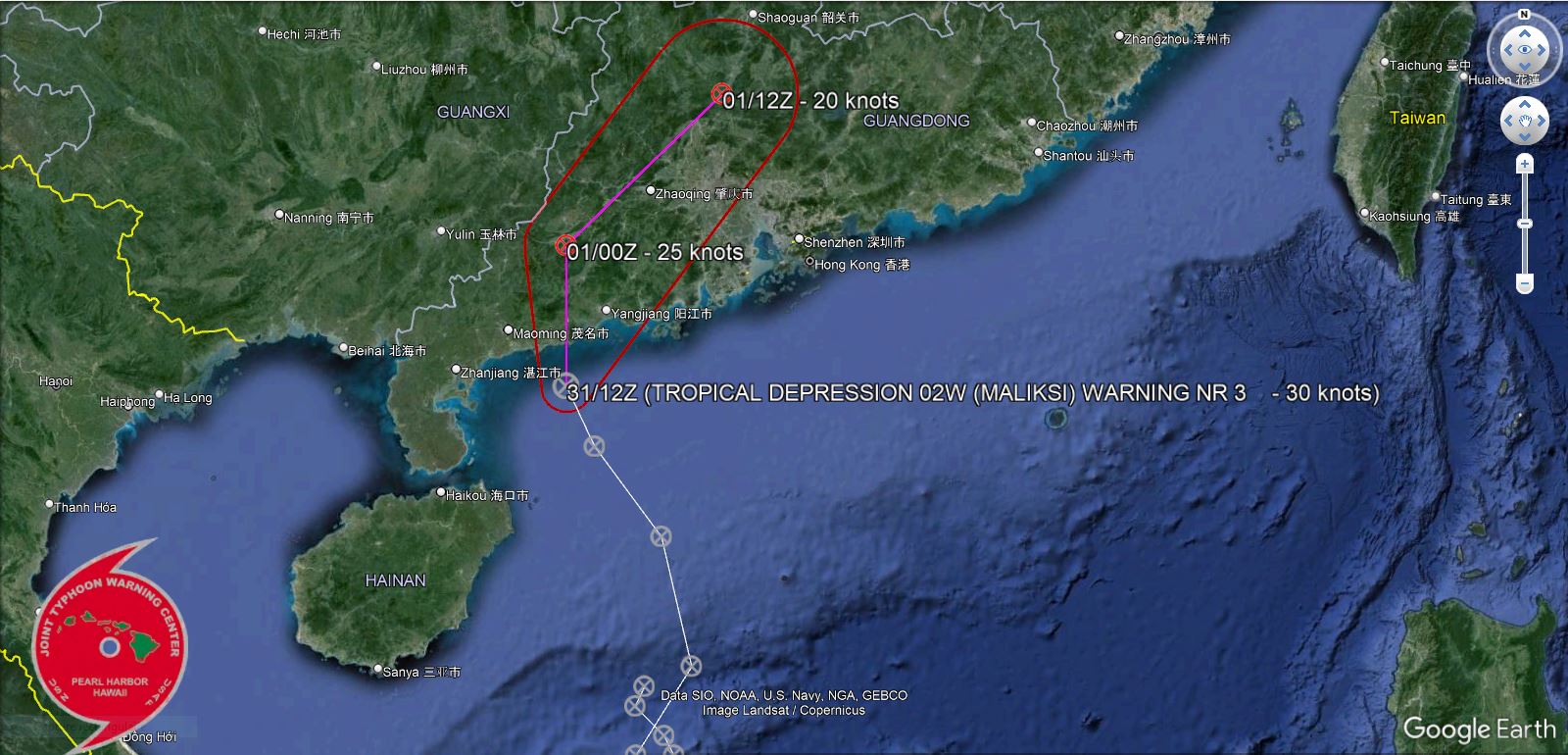

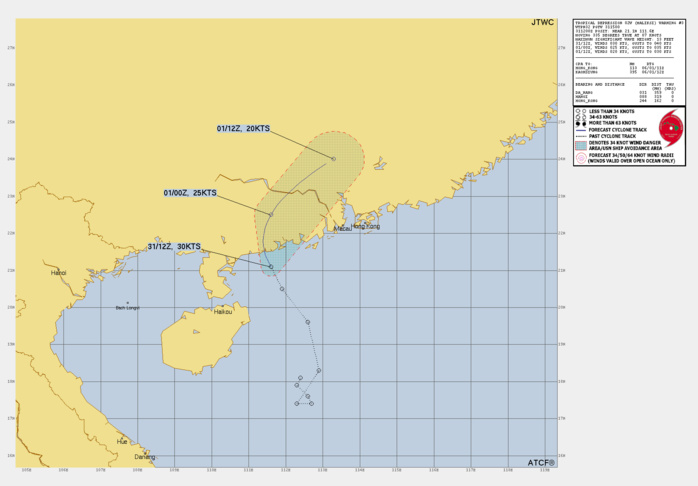

FORECAST LANDFALL MAP

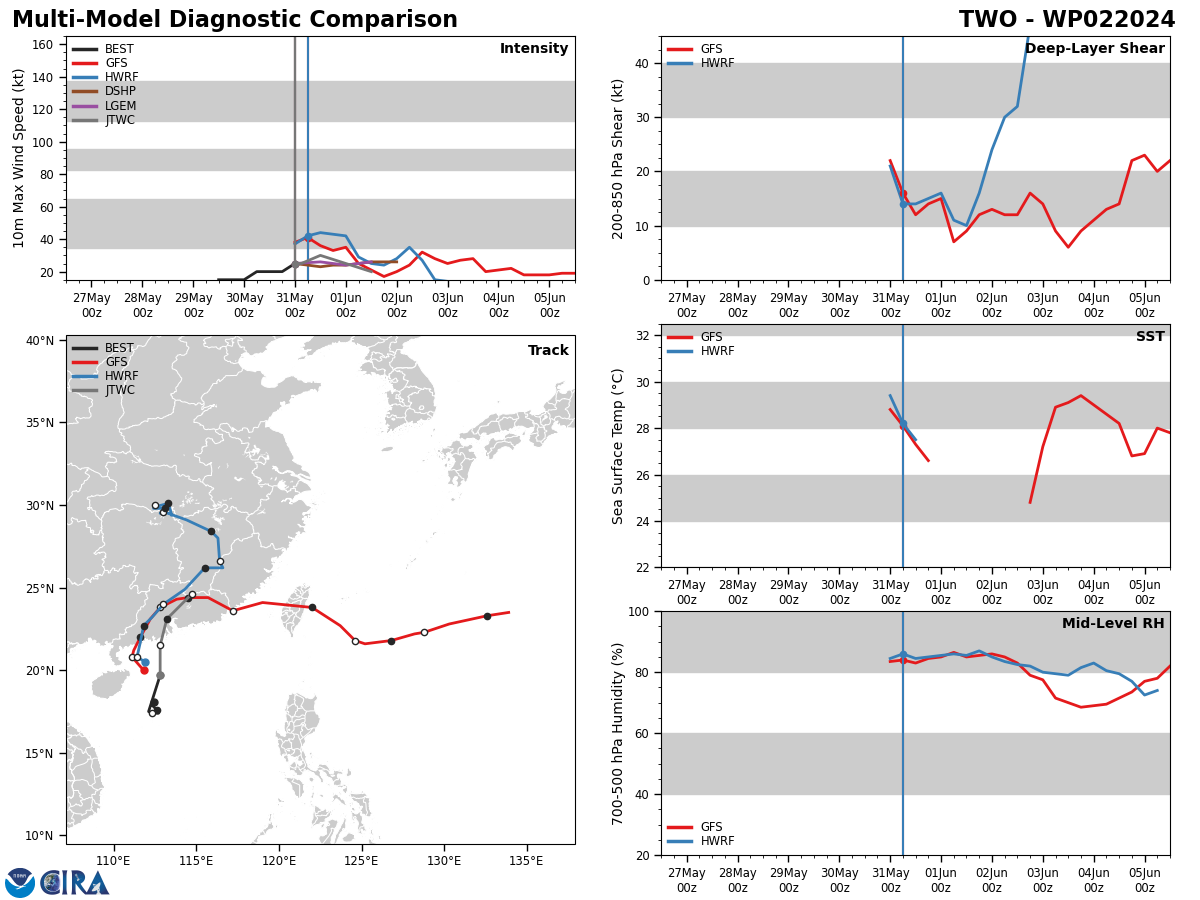

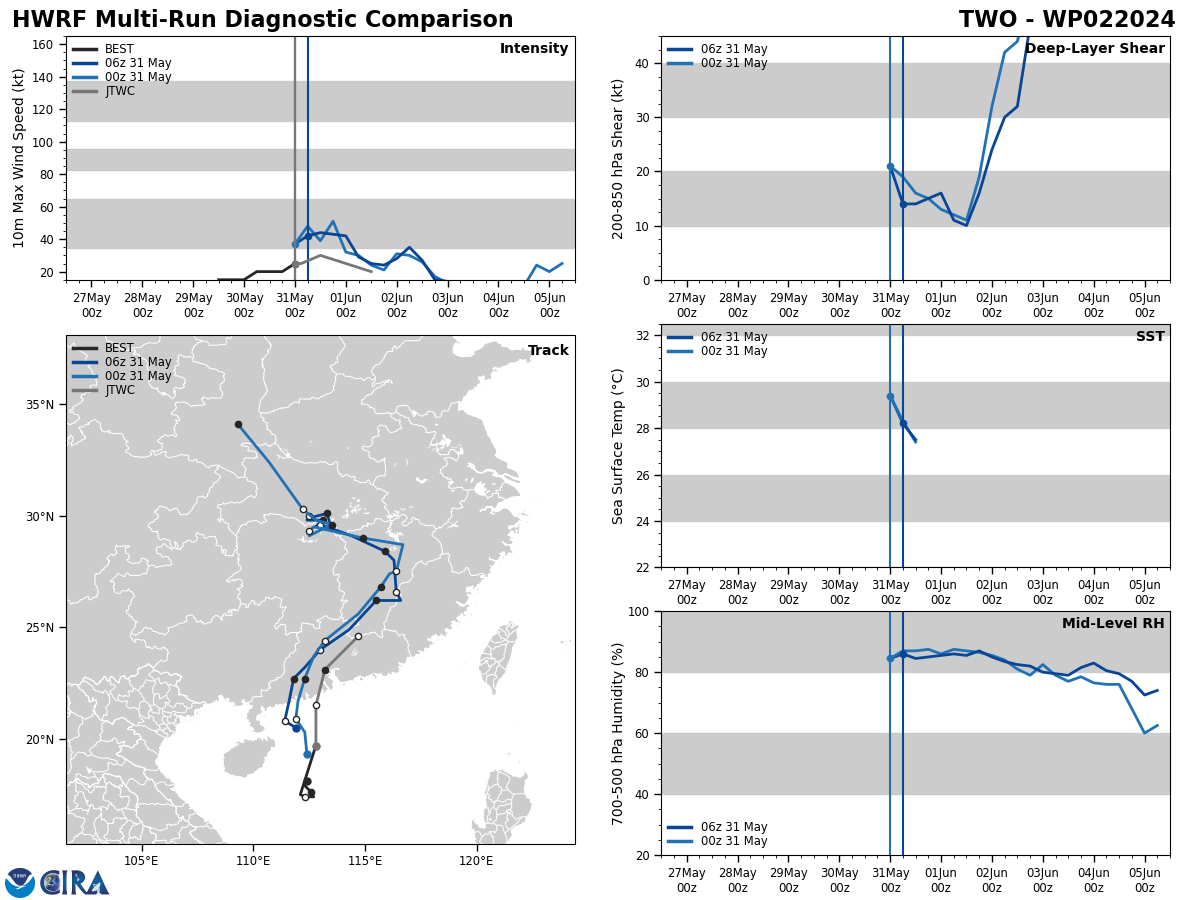

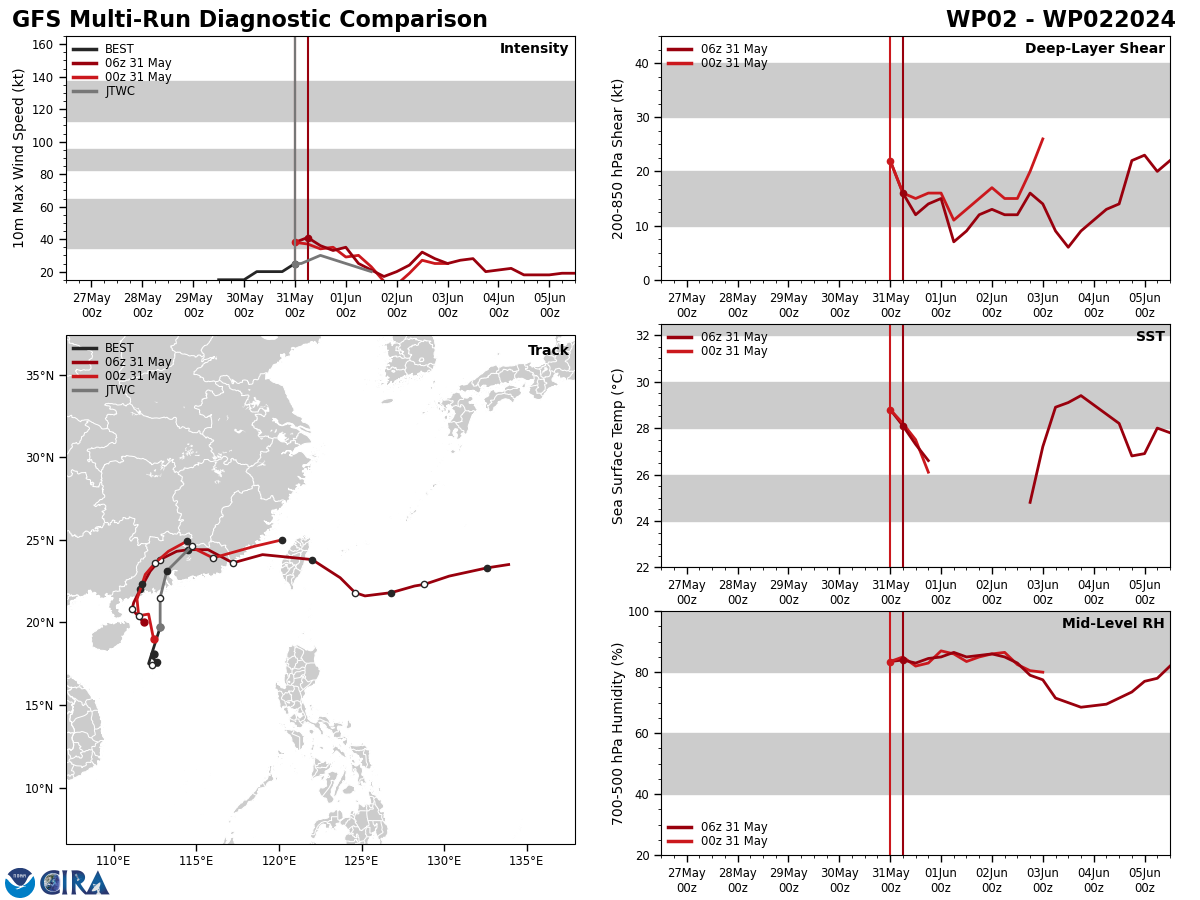

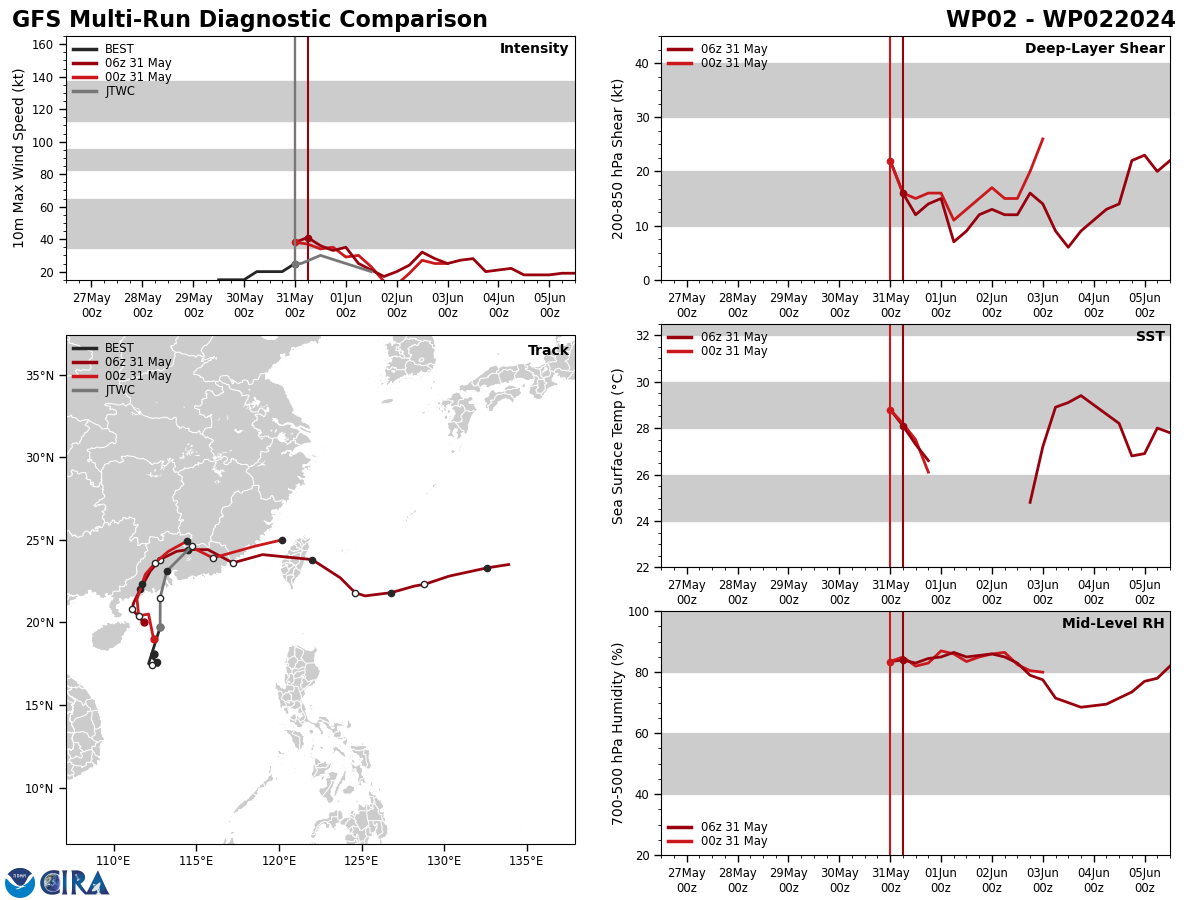

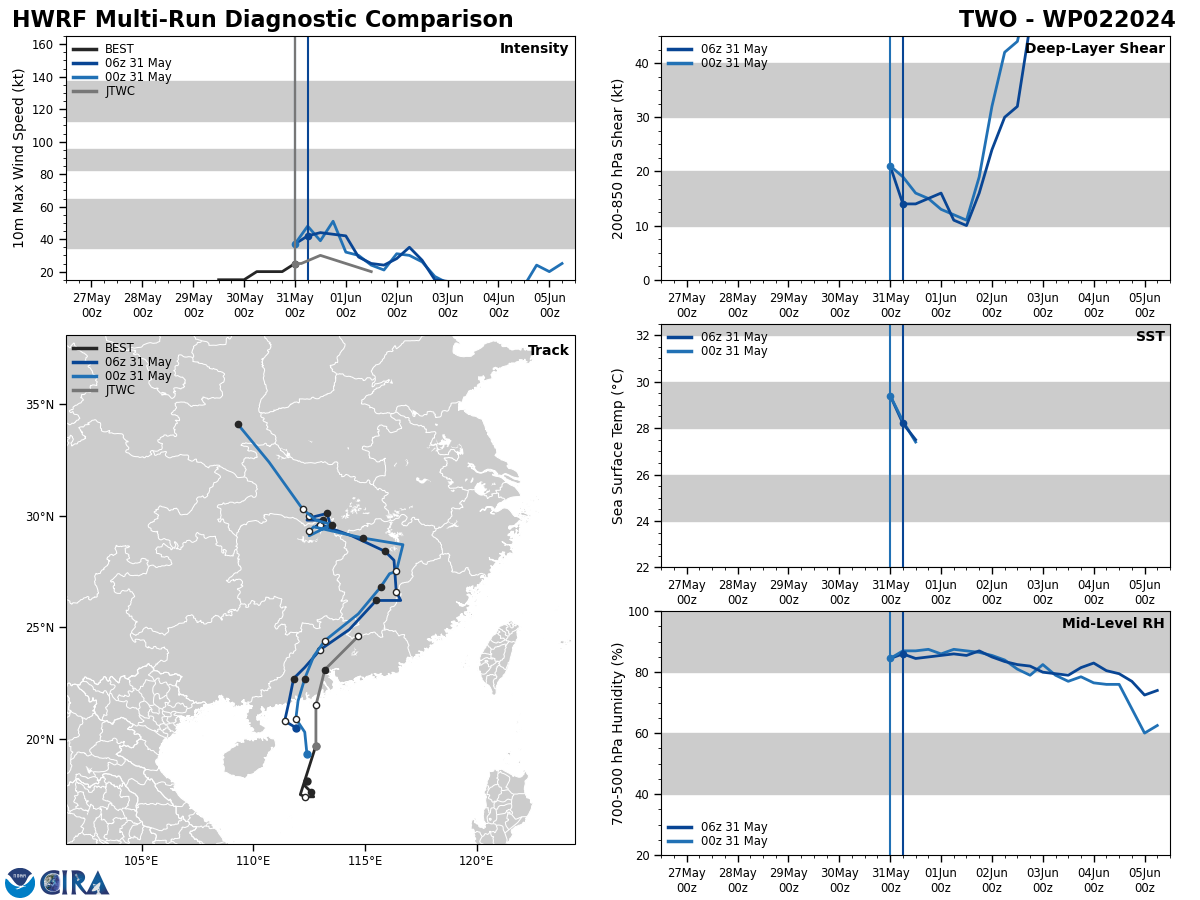

Model Diagnostic Plot

MODEL DISCUSSION: DETERMINISTIC AND ENSEMBLE TRACK GUIDANCE IS IN GOOD AGREEMENT THAT THE SYSTEM WILL TRACK GENERALLY NORTHWARD, AND TURN NORTHEASTWARD AFTER MOVING INLAND. AS MENTIONED ABOVE, SOME OF THE GLOBAL MODEL FIELDS, GFS IN PARTICULAR, SUGGEST THE LOW-LEVEL VORTEX WILL STALL ALONG THE COASTLINE AS IT RUNS INTO THE HIGHER TERRAIN. BUT OVERALL, THE BULK OF THE MODELS ARE IN AGREEMENT THAT THE VORTEX WILL CONTINUE ON ITS MERRY WAY INTO SOUTHERN CHINA. THE JTWC TRACK FORECAST LIES ON THE NORTHERN EDGE OF THE GUIDANCE ENVELOPE WITH MEDIUM CONFIDENCE. INTENSITY GUIDANCE IS IN GOOD AGREEMENT ON RAPID WEAKENING AFTER LANDFALL, THOUGH THE HWRF CONTINUES TO SHOW A SHARP SPIKE UP TO NEAR 40 KNOTS PRIOR TO LANDFALL. THE JTWC FORECAST IS CONSISTENT WITH THE CONSENSUS MEAN WITH MEDIUM CONFIDENCE.
MODEL DISCUSSION: DETERMINISTIC AND ENSEMBLE TRACK GUIDANCE IS IN GOOD AGREEMENT THAT THE SYSTEM WILL TRACK GENERALLY NORTHWARD, AND TURN NORTHEASTWARD AFTER MOVING INLAND. AS MENTIONED ABOVE, SOME OF THE GLOBAL MODEL FIELDS, GFS IN PARTICULAR, SUGGEST THE LOW-LEVEL VORTEX WILL STALL ALONG THE COASTLINE AS IT RUNS INTO THE HIGHER TERRAIN. BUT OVERALL, THE BULK OF THE MODELS ARE IN AGREEMENT THAT THE VORTEX WILL CONTINUE ON ITS MERRY WAY INTO SOUTHERN CHINA. THE JTWC TRACK FORECAST LIES ON THE NORTHERN EDGE OF THE GUIDANCE ENVELOPE WITH MEDIUM CONFIDENCE. INTENSITY GUIDANCE IS IN GOOD AGREEMENT ON RAPID WEAKENING AFTER LANDFALL, THOUGH THE HWRF CONTINUES TO SHOW A SHARP SPIKE UP TO NEAR 40 KNOTS PRIOR TO LANDFALL. THE JTWC FORECAST IS CONSISTENT WITH THE CONSENSUS MEAN WITH MEDIUM CONFIDENCE.



TC Ensemble Forecasts

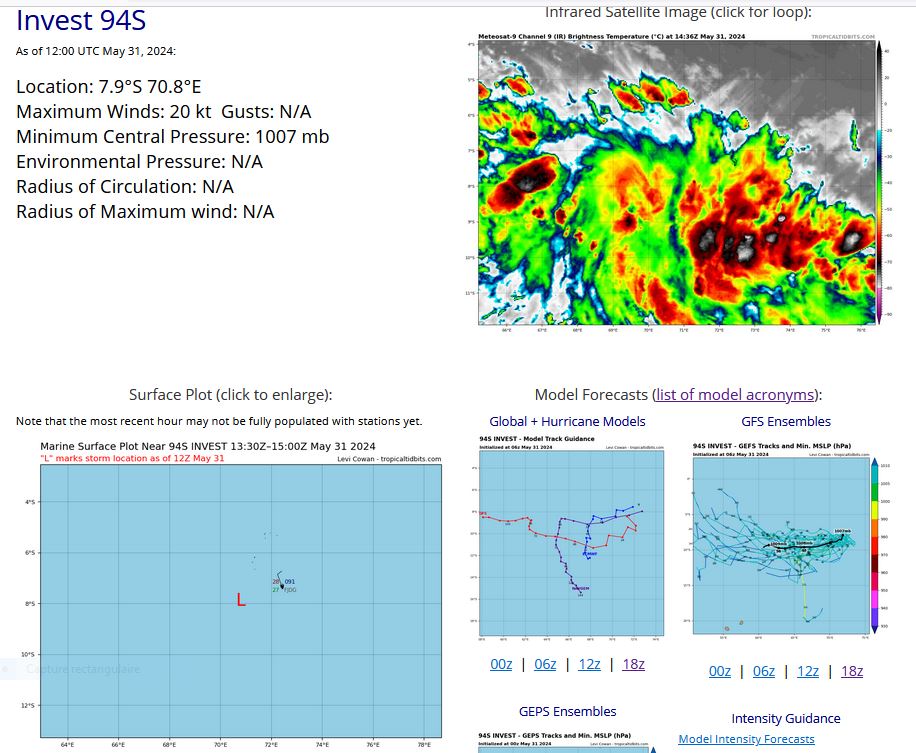

SOUTHERN HEMISPHERE/SOUTH INDIAN OCEAN: INVEST 94S. ESTIMATED LOCATION AND INTENSITY AT 31/12UTC. INTENSITY IS 20 KNOTS

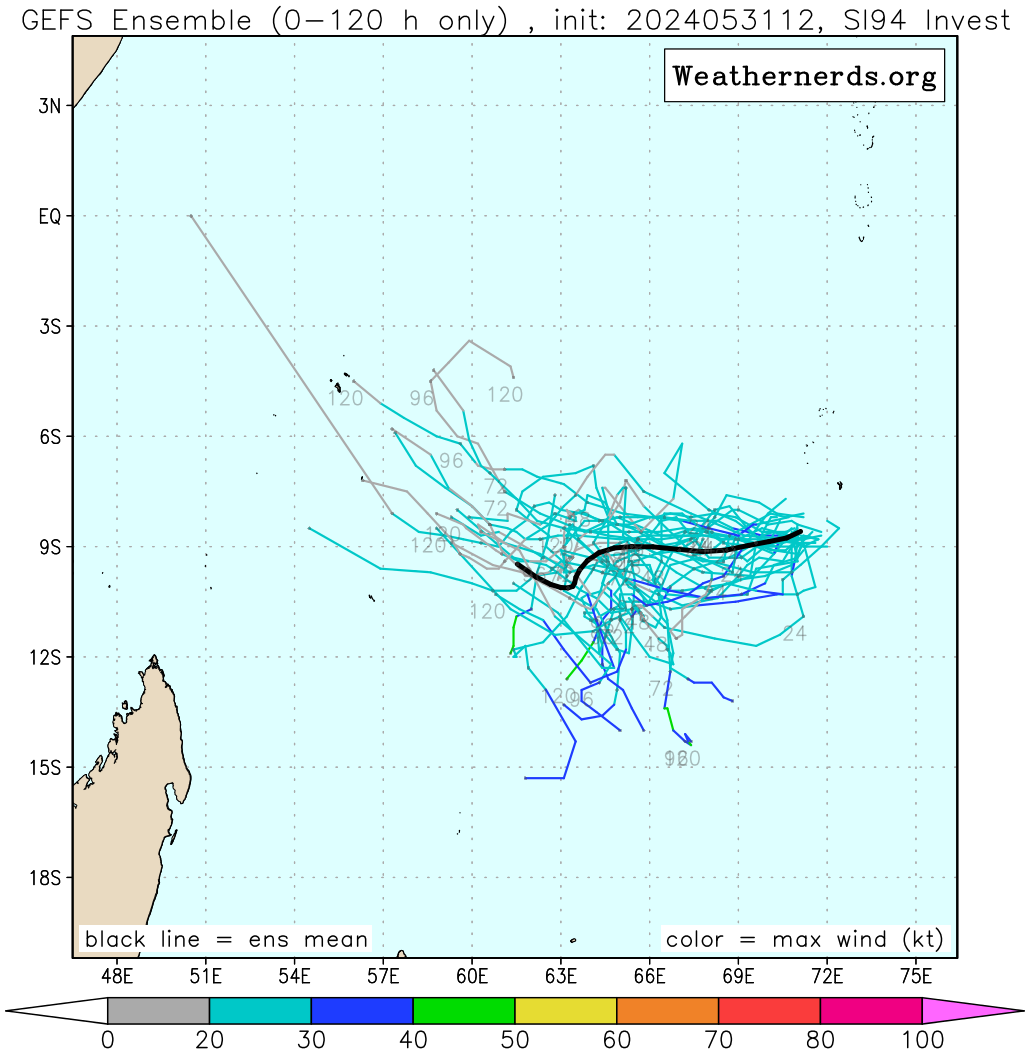

GFS ENSEMBLE: +120H

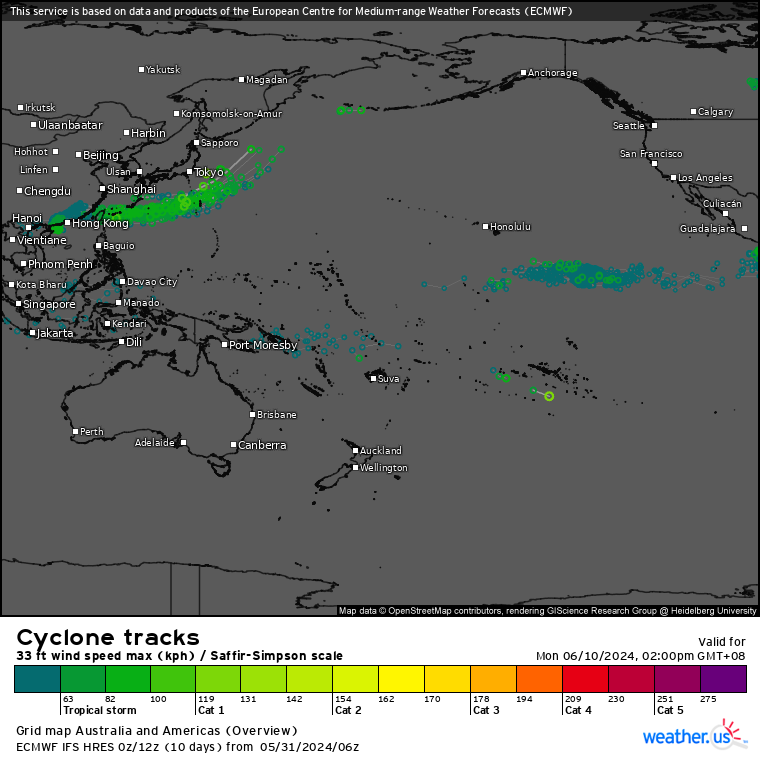

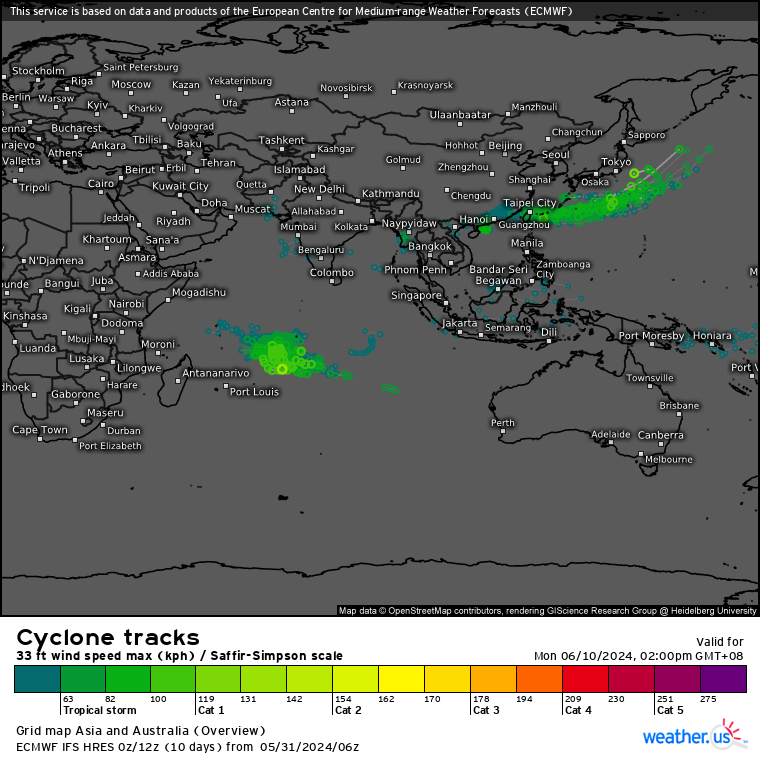

ECMWF Storm Tracks (Ensemble) : 05/31 00UTC+ 10 DAYS




ECMWF Storm Tracks (Ensemble) : 05/31 00UTC+ 10 DAYS



Rédigé par PATRICK HOAREAU le Friday, May 31st 2024 à 18:28
