CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED
SOUTH INDIAN OCEAN: TC 24S(IALY). ESTIMATED LOCATION AND INTENSITY AT 19/00UTC. INTENSITY IS 55 KNOTS:+15 KNOTS OVER 24H
2424051400 90S 543E 20
2424051406 96S 538E 20
2424051412 91S 530E 25
2424051418 85S 529E 25
2424051500 80S 524E 25
2424051506 79S 528E 30
2424051512 82S 530E 30
2424051518 81S 531E 30
2424051600 83S 531E 30
2424051606 86S 529E 35
2424051612 91S 525E 40
2424051618 91S 522E 40
2424051700 91S 518E 40
2424051706 90S 510E 45
2424051712 88S 504E 40
2424051718 85S 499E 40
2424051800 80S 492E 40
2424051806 79S 486E 40
2424051812 79S 478E 45
2424051818 77S 471E 50
2424051900 75S 466E 55
2424051406 96S 538E 20
2424051412 91S 530E 25
2424051418 85S 529E 25
2424051500 80S 524E 25
2424051506 79S 528E 30
2424051512 82S 530E 30
2424051518 81S 531E 30
2424051600 83S 531E 30
2424051606 86S 529E 35
2424051612 91S 525E 40
2424051618 91S 522E 40
2424051700 91S 518E 40
2424051706 90S 510E 45
2424051712 88S 504E 40
2424051718 85S 499E 40
2424051800 80S 492E 40
2424051806 79S 486E 40
2424051812 79S 478E 45
2424051818 77S 471E 50
2424051900 75S 466E 55
WARNING 6 ISSUED AT 19/03UTC
CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED
TC Warning Graphic

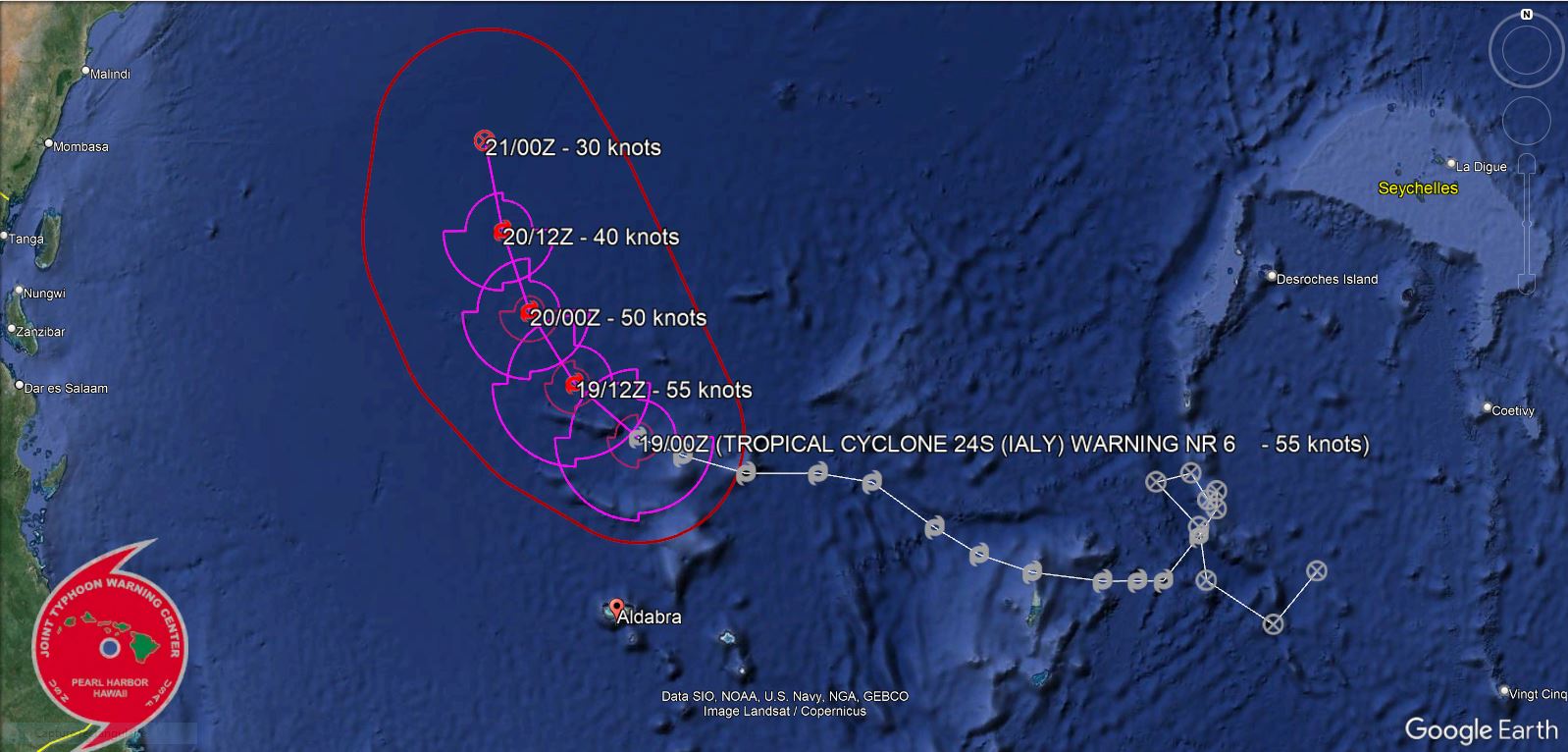

Google Earth Overlay

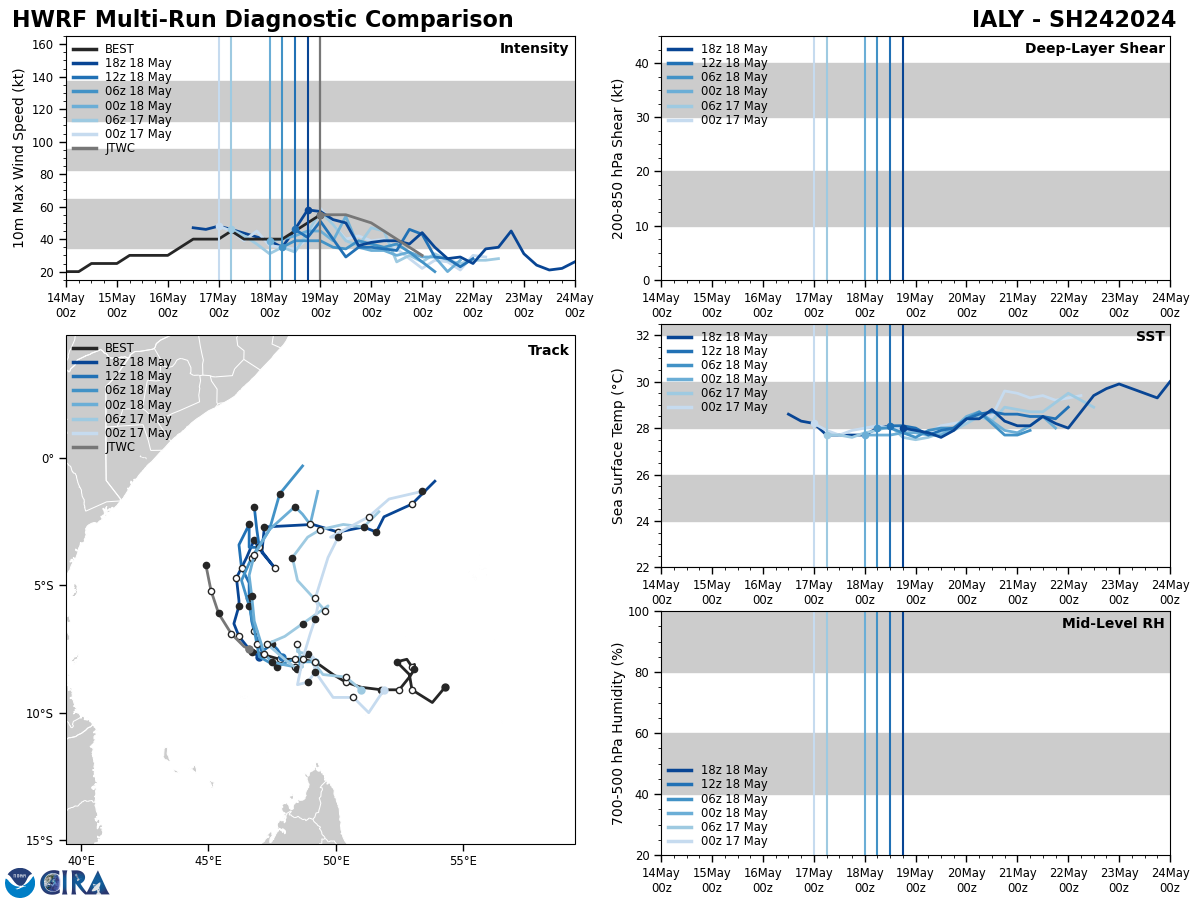

Model Diagnostic Plot
(183.24 KB)

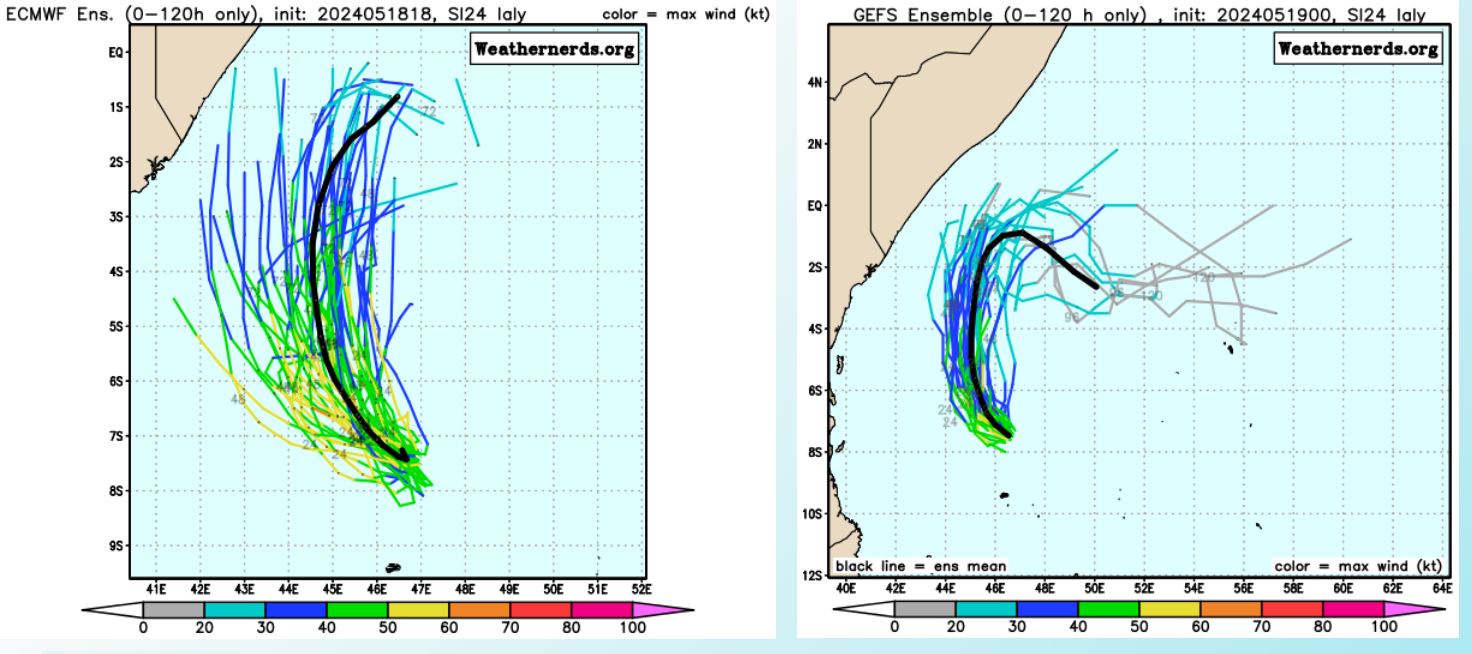

TC Ensemble Forecasts: 120H

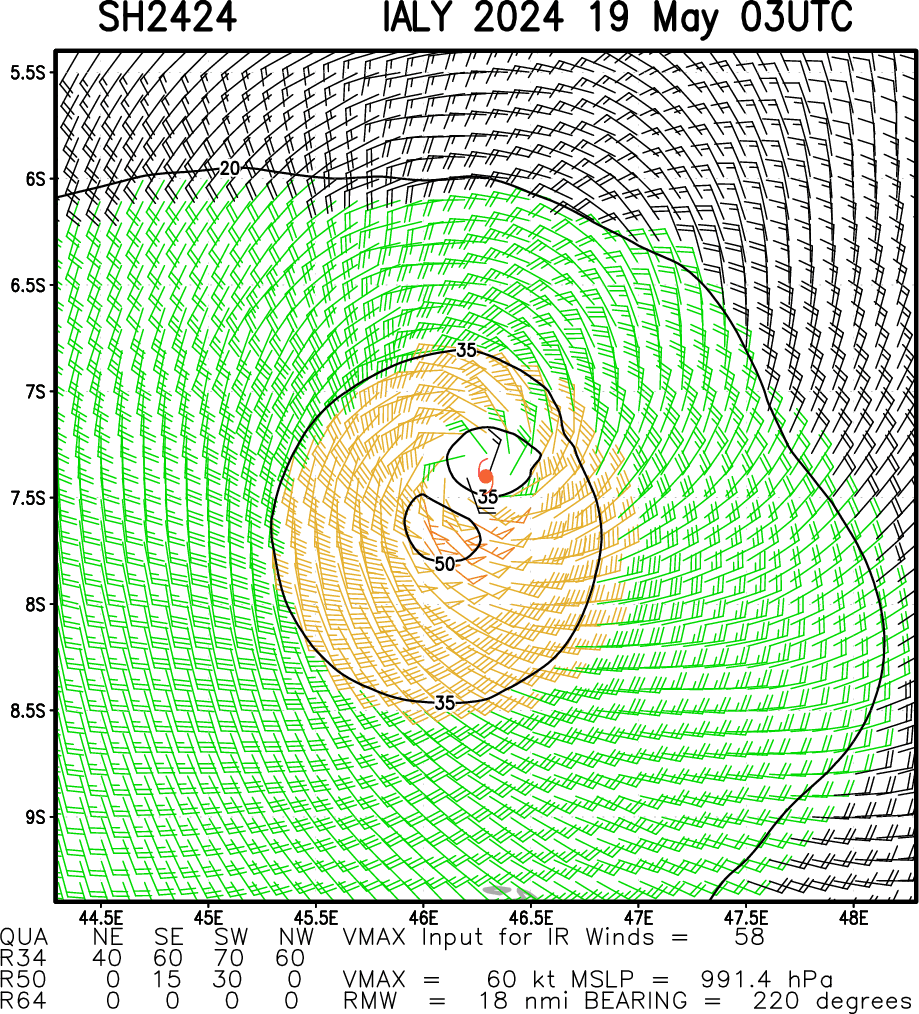

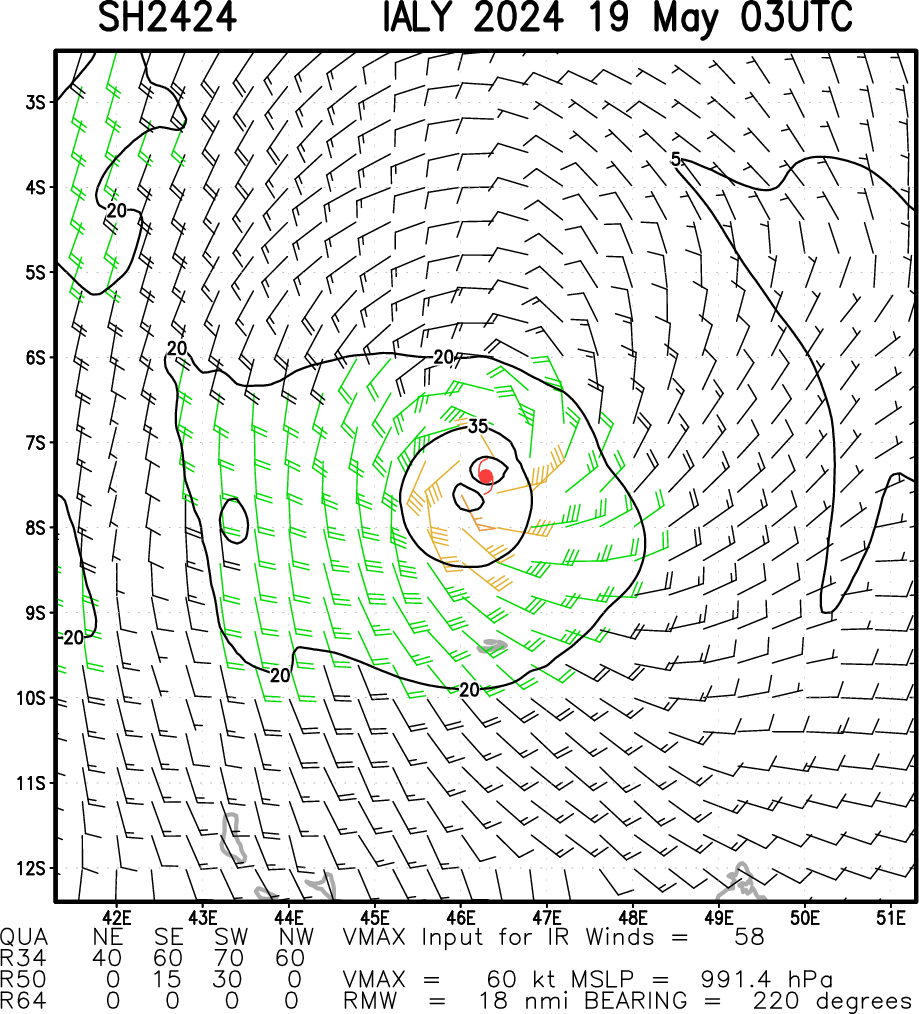

Multiplatform Satellite Surface Wind Analysis (Experimental)

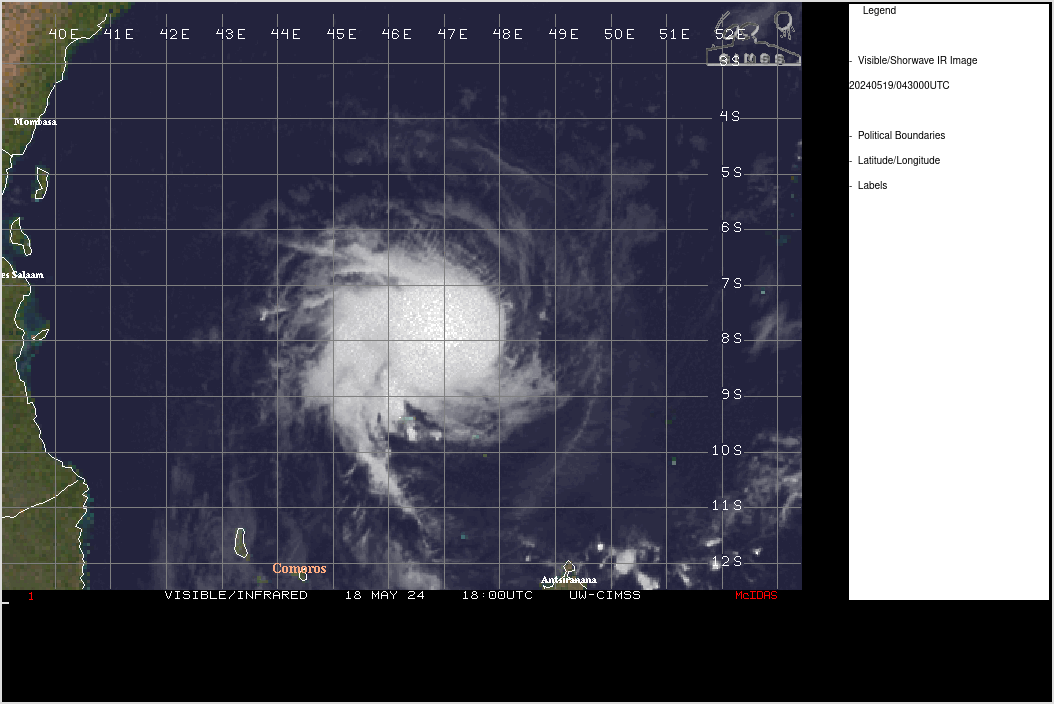

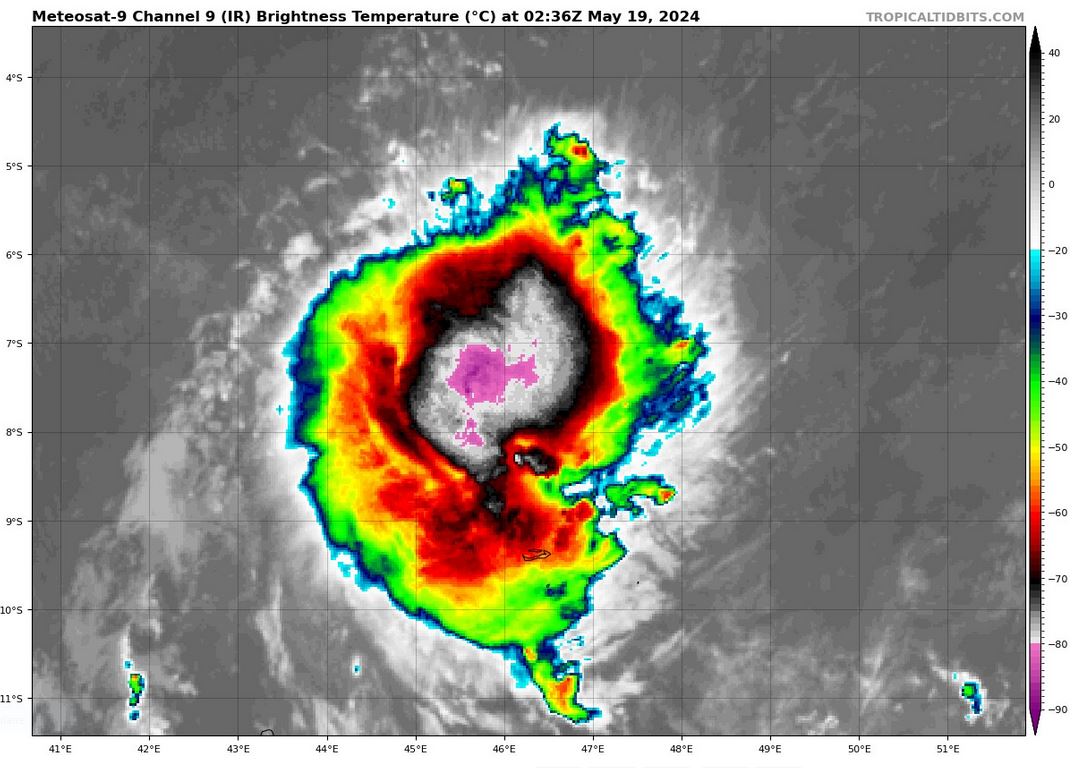

UPDATED SATELLITE BULLETIN AT 19/0530UTC
TPXS10 PGTW 190551
A. TROPICAL CYCLONE 24S (IALY)
B. 19/0530Z
C. 7.39S
D. 45.87E
E. FIVE/MET9
F. T3.5/3.5/D1.0/24HRS STT: S0.0/03HRS
G. IR/EIR/VIS/MSI
H. REMARKS: 40A/PBO SBC/ANMTN. CNVCTN WRAPS .7 ON LOG10 SPIRAL
YIELDING A DT OF 3.0. MET AND PT YIELD 3.5. DBO PT.
I. ADDITIONAL POSITIONS: NONE
SWANSON
A. TROPICAL CYCLONE 24S (IALY)
B. 19/0530Z
C. 7.39S
D. 45.87E
E. FIVE/MET9
F. T3.5/3.5/D1.0/24HRS STT: S0.0/03HRS
G. IR/EIR/VIS/MSI
H. REMARKS: 40A/PBO SBC/ANMTN. CNVCTN WRAPS .7 ON LOG10 SPIRAL
YIELDING A DT OF 3.0. MET AND PT YIELD 3.5. DBO PT.
I. ADDITIONAL POSITIONS: NONE
SWANSON

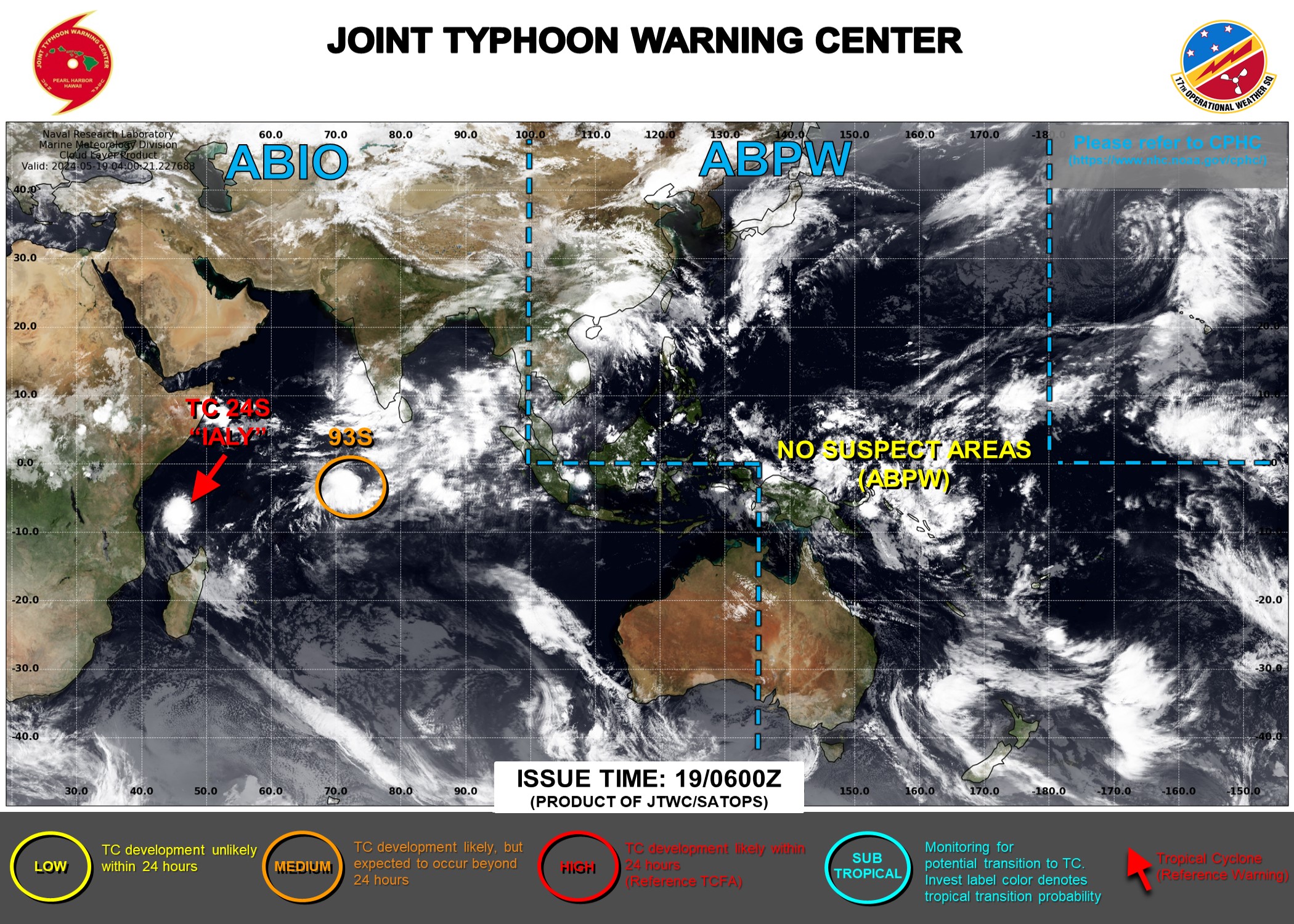

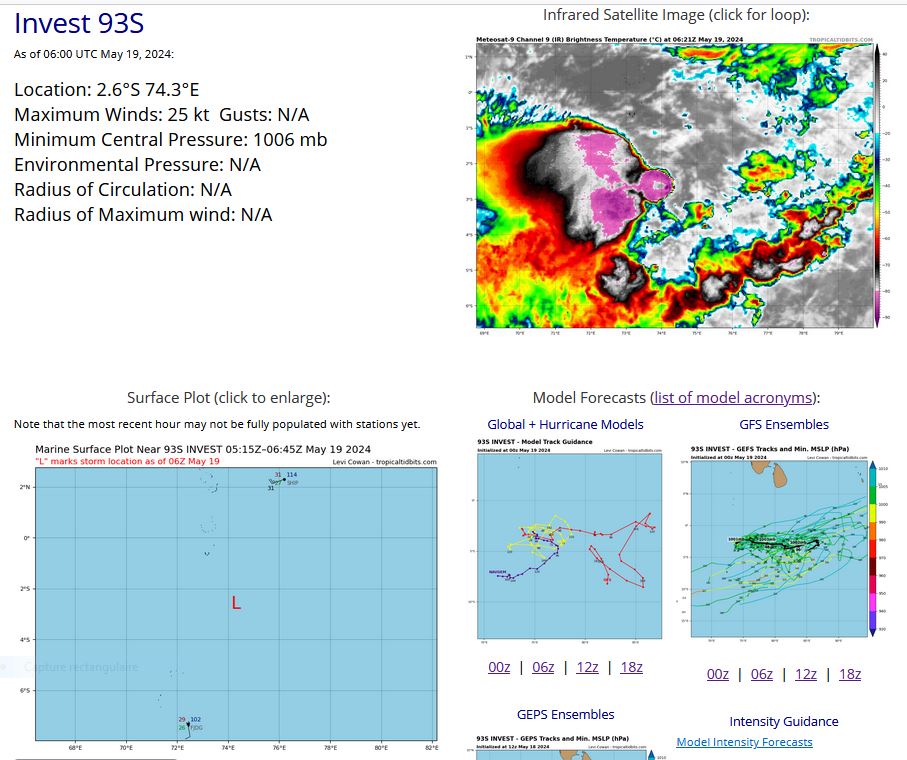

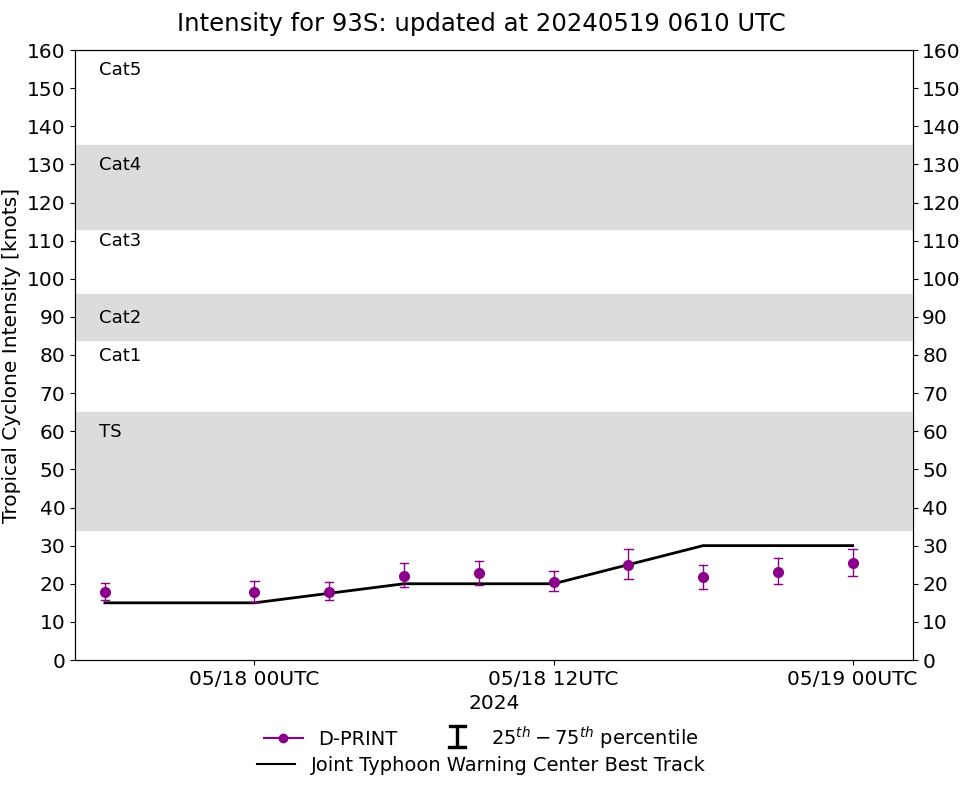

SOUTH INDIAN OCEAN: INVEST 93S. ESTIMATED LOCATION AND INTENSITY AT 19/06UTC. INTENSITY IS 25 KNOTS : +5 KNOTS OVER 24H.ADVISORY(ABIO) ISSUED AT 18/18UTC
THE AREA OF CONVECTION (INVEST 93S) PREVIOUSLY LOCATED NEAR 1.9S 72.9E IS NOW LOCATED NEAR 2.6S 74.0E, APPROXIMATELY 303 NM NORTH- NORTHEAST OF DIEGO GARCIA. ANIMATED ENHANCED INFRARED (EIR) SATELLITE IMAGERY AND AN 181323Z SSMIS 91GHZ IMAGE DEPICT A BROAD LOW LEVEL CLOSED CIRCULATION (LLC) WITH FLARING DEEP CONVECTION SHEARED OVER THE SOUTHWESTERN PERIPHERY OF THE LLC. AN 181622Z ASCAT-B PARTIAL IMAGE INDICATES 25 TO 30 KNOT WESTERLIES ALONG THE NORTHWESTERN FLANK. ENVIRONMENTAL ANALYSIS REVEALS AN UNFAVORABLE ENVIRONMENT FOR DEVELOPMENT WITH HIGH (40-50KTS) VWS AND EASTERLY DIFFLUENT FLOW, OFFSET BY WARM SEA SURFACE TEMPERATURES (29-30C). GLOBAL DETERMINISTIC MODELS ARE IN GOOD AGREEMENT THAT INVEST 93S WILL CONTINUE TO STRENGTHEN OVER THE NEXT 24-48 HOURS AS IT TRACKS EASTWARD. MAXIMUM SUSTAINED SURFACE WINDS ARE ESTIMATED AT 25 TO 30 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1005 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS IS UPGRADED TO MEDIUM. (2) NO OTHER SUSPECT AREAS.
CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED

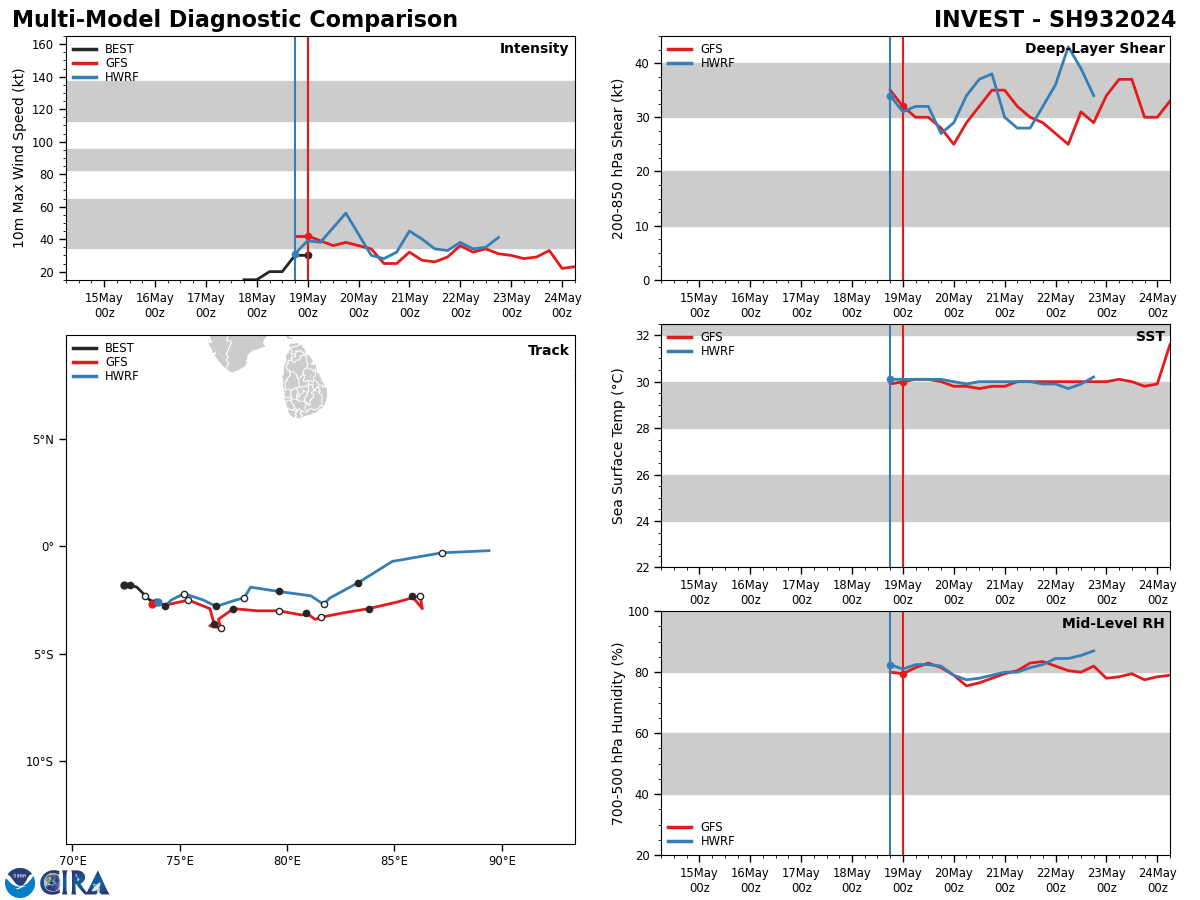

Model Diagnostic Plot
GLOBAL DETERMINISTIC MODELS ARE IN GOOD AGREEMENT THAT INVEST 93S WILL CONTINUE TO STRENGTHEN OVER THE NEXT 24-48 HOURS AS IT TRACKS EASTWARD.
TC Ensemble Forecasts: 120H

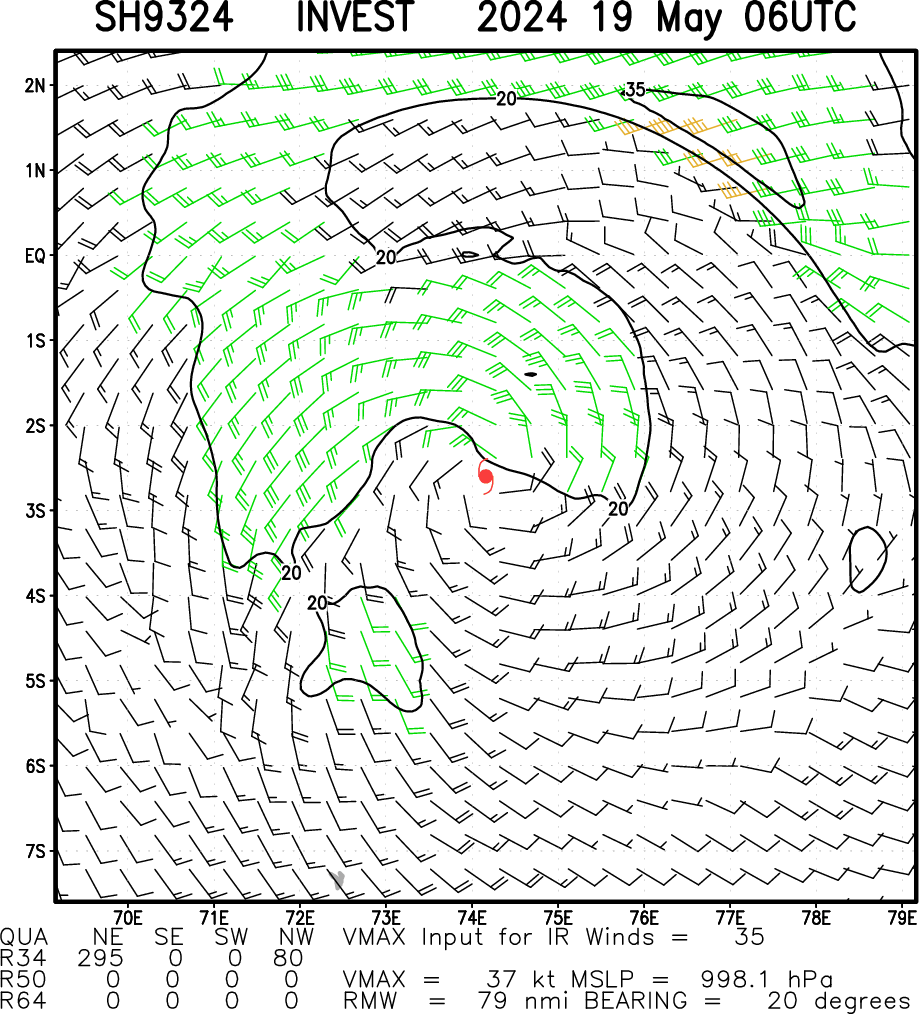

Multiplatform Satellite Surface Wind Analysis (Experimental)

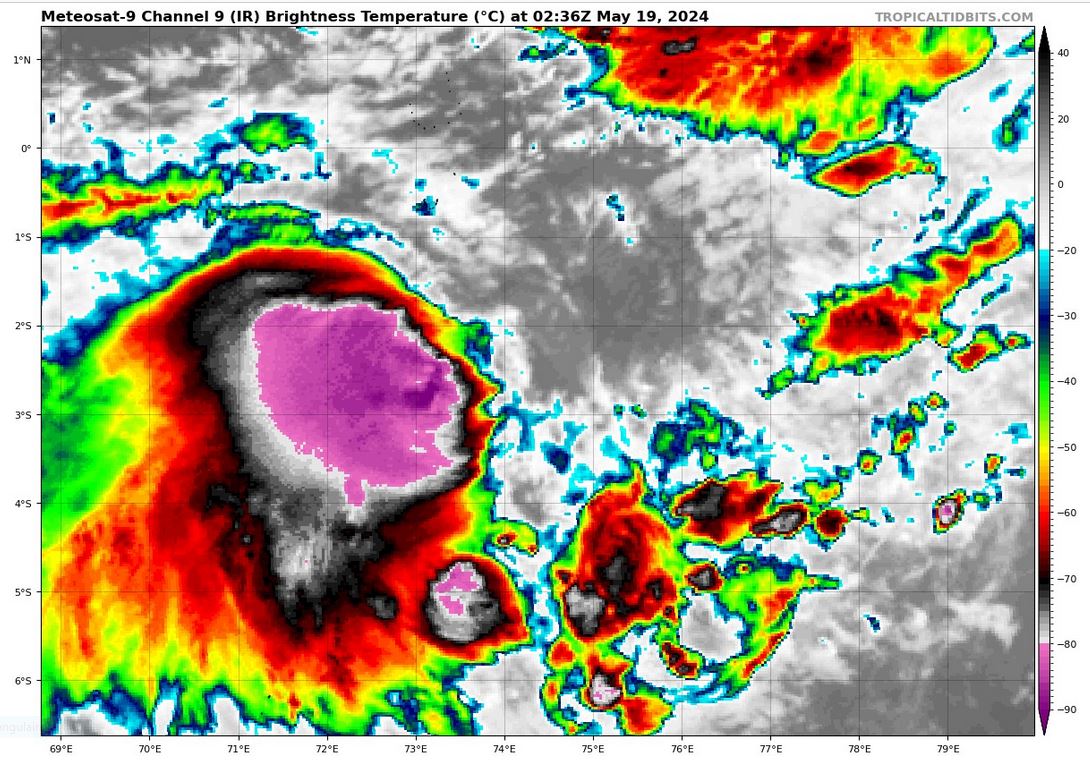

UPDATED SATELLITE BULLETIN AT 19/0530UTC
TPXS11 PGTW 190556
A. TROPICAL DISTURBANCE 93S (N OF DIEGO GARCIA)
B. 19/0530Z
C. 2.57S
D. 74.24E
E. FIVE/MET9
F. T1.5/1.5/D0.5/24HRS STT: S0.0/03HRS
G. IR/EIR/VIS/MSI
H. REMARKS: 49A/PBO PTLY XPSD LLCC/ANMTN. LOOSELY DEFINED CLOUD
LINES LOCATED NEAR OR UNDER COLD OVERCAST YIELD A DT OF 1.5. MET
YIELDS 2.0. PT YIELDS 1.5. DBO DT.
I. ADDITIONAL POSITIONS:
19/0126Z 2.67S 73.90E GPMI
SWANSON
A. TROPICAL DISTURBANCE 93S (N OF DIEGO GARCIA)
B. 19/0530Z
C. 2.57S
D. 74.24E
E. FIVE/MET9
F. T1.5/1.5/D0.5/24HRS STT: S0.0/03HRS
G. IR/EIR/VIS/MSI
H. REMARKS: 49A/PBO PTLY XPSD LLCC/ANMTN. LOOSELY DEFINED CLOUD
LINES LOCATED NEAR OR UNDER COLD OVERCAST YIELD A DT OF 1.5. MET
YIELDS 2.0. PT YIELDS 1.5. DBO DT.
I. ADDITIONAL POSITIONS:
19/0126Z 2.67S 73.90E GPMI
SWANSON
