South China Sea: TS 04W forecast to reach Typhoon intensity by 24h//HU 03E(CALVIN) peaked at CAT 3 US// SS 05L(DON)//1506utc

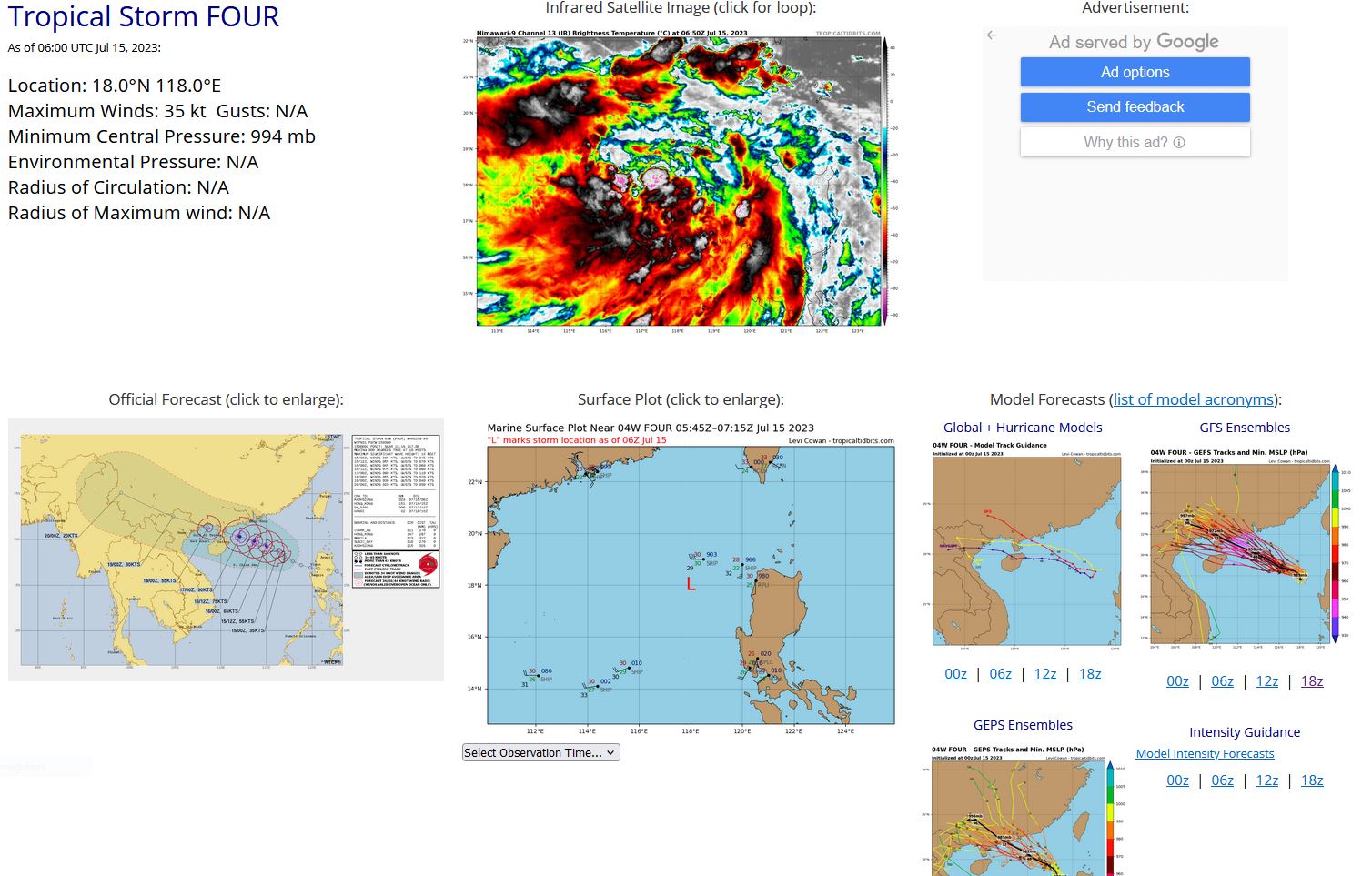

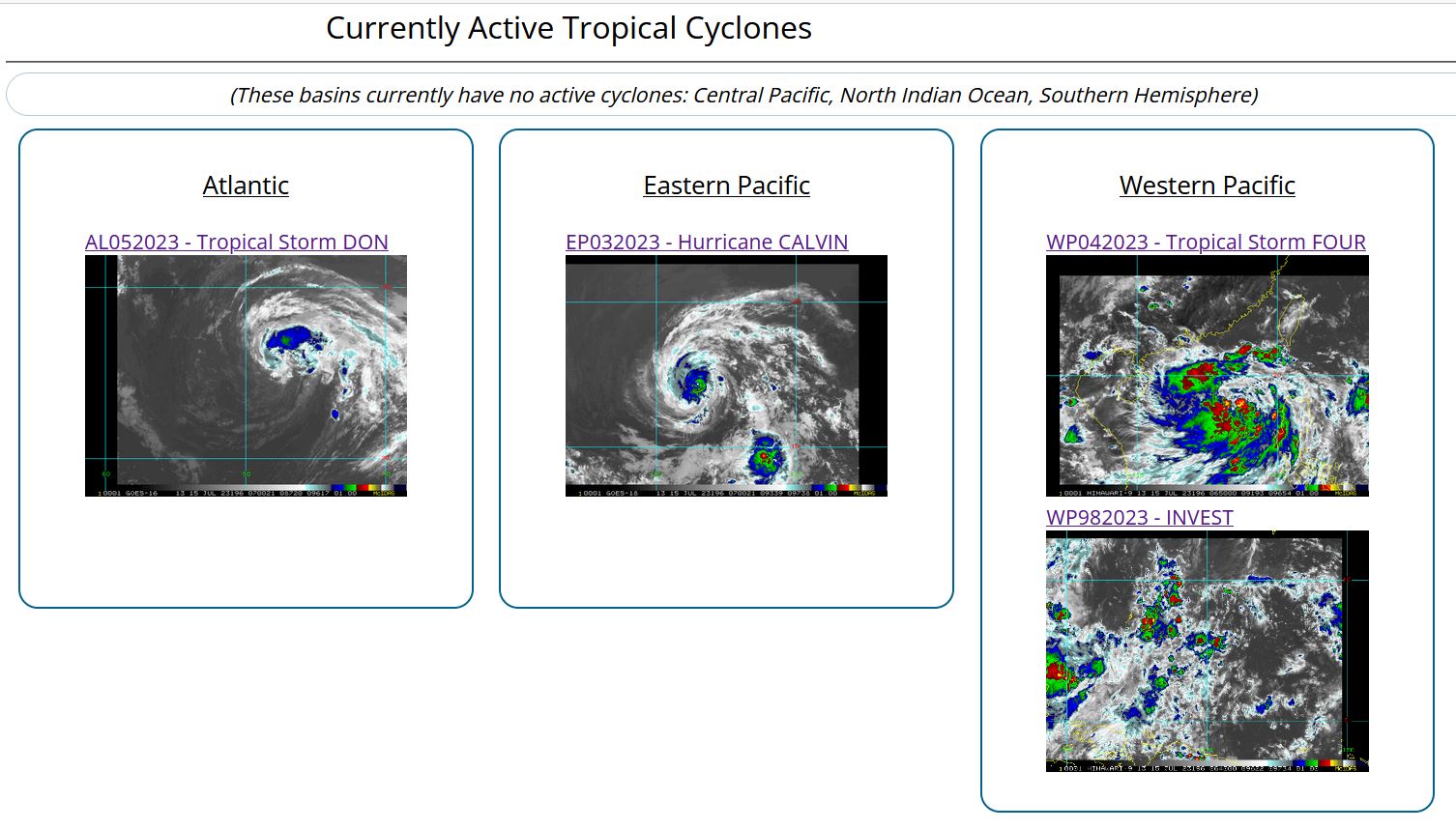

CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

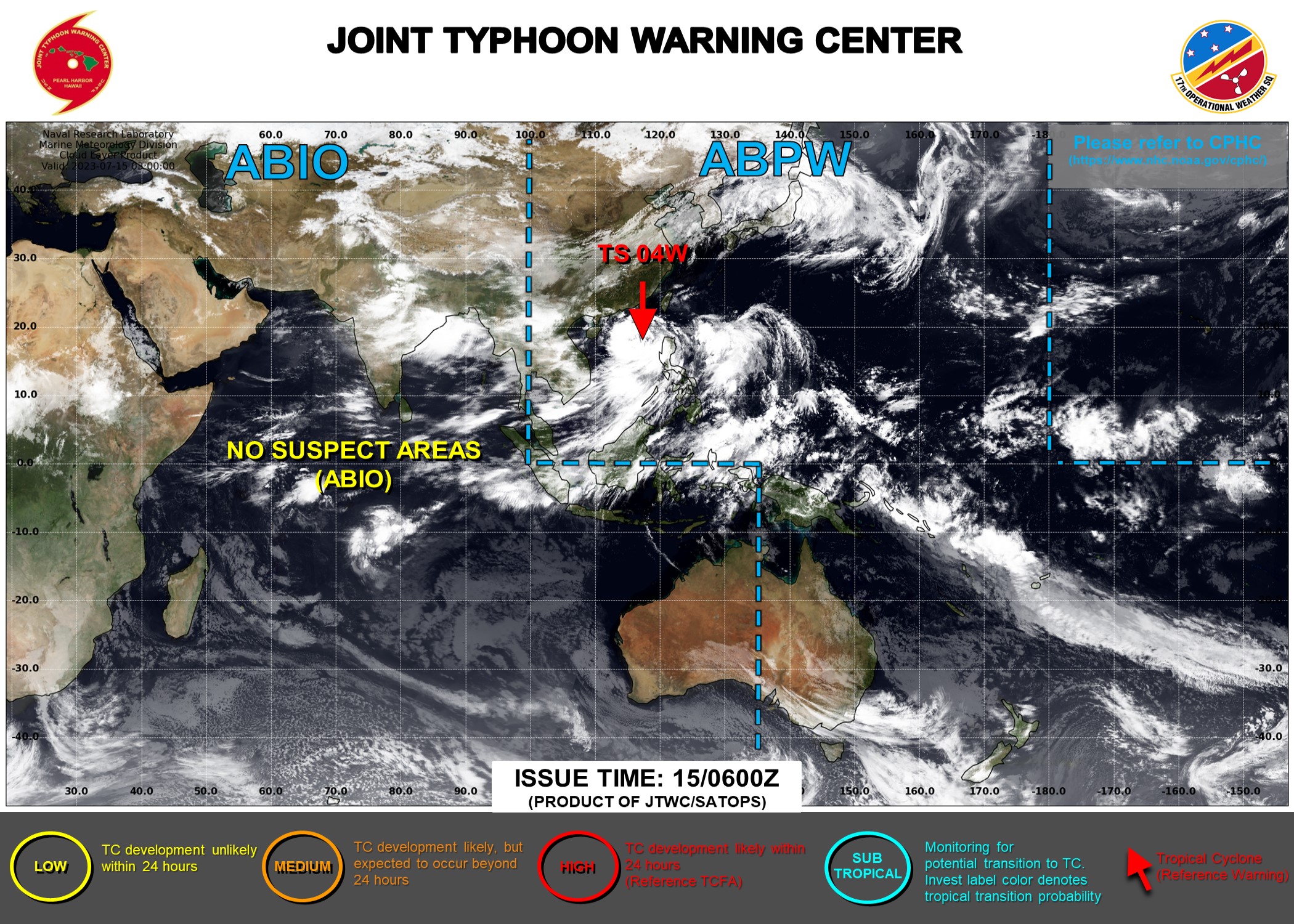

JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON TS 04W.
JTWC IS ISSUING 6HOURLY WARNINGS AND 3HOURLY SATELLITE BULLETINS ON TS 04W.


WESTERN NORTH PACIFIC: TS 04W. ESTIMATED LOCATION AND INTENSITY AT 150600UTC.


WARNING 3 ISSUED AT 150300UTC.

0423070912 109N1308E  15
0423070918 109N1318E  15
0423071000 109N1326E  15
0423071006 116N1322E  15
0423071012 117N1308E  15
0423071018 118N1292E  15
0423071100 125N1283E  15
0423071106 129N1277E  15
0423071112 133N1270E  15
0423071118 136N1264E  15
0423071200 139N1261E  20
0423071206 145N1254E  20
0423071212 150N1248E  20
0423071218 152N1241E  20
0423071300 155N1236E  20
0423071306 161N1234E  20
0423071312 165N1227E  20
0423071318 167N1218E  20
0423071400 168N1207E  20
0423071406 169N1198E  25
0423071412 172N1188E  25
0423071418 176N1179E  30
0423071500 181N1170E  35

South China Sea: TS 04W forecast to reach Typhoon intensity by 24h//HU 03E(CALVIN) peaked at CAT 3 US// SS 05L(DON)//1506utc

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED.

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) SHOWS A LARGE SYSTEM (440NM+ ACROSS) IN THE SOUTH CHINA SEA (SCS) THAT CONTINUED TO CONSOLIDATE AND HAS INTENSIFIED INTO A TROPICAL STORM WITH ITS  BROAD RAIN BANDS TRAILING SOUTHWESTWARD ALL THE WAY TO BORNEO. THE  INITIAL POSITION IS PLACED WITH MEDIUM CONFIDENCE BASED ON A RAGGED  BUT DEFINED LLC FEATURE IN THE 142155Z SSMIS, THE INTENSITY IS  ASSESSED WITH HIGH CONFIDENCE FROM THE PGTW AND D-PRINT DVORAK  ESTIMATES AND REFLECTS THE 6-HR CONVECTIVE AND WRAP IMPROVEMENTS.  ANALYSIS INDICATES A FAVORABLE ENVIRONMENT WITH STRONG POLEWARD  OUTFLOW, LOW VWS ALOFT, AND WARM SST IN THE SOUTH CHINA SEA (SCS).  THE SYSTEM IS ALSO TAPPING INTO A POLEWARD OUTFLOW CHANNEL EMANATING  FROM A TUTT TO THE NORTHWEST, ALSO EVIDENT IN THE EIR LOOP.
SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) SHOWS A LARGE SYSTEM (440NM+ ACROSS) IN THE SOUTH CHINA SEA (SCS) THAT CONTINUED TO CONSOLIDATE AND HAS INTENSIFIED INTO A TROPICAL STORM WITH ITS BROAD RAIN BANDS TRAILING SOUTHWESTWARD ALL THE WAY TO BORNEO. THE INITIAL POSITION IS PLACED WITH MEDIUM CONFIDENCE BASED ON A RAGGED BUT DEFINED LLC FEATURE IN THE 142155Z SSMIS, THE INTENSITY IS ASSESSED WITH HIGH CONFIDENCE FROM THE PGTW AND D-PRINT DVORAK ESTIMATES AND REFLECTS THE 6-HR CONVECTIVE AND WRAP IMPROVEMENTS. ANALYSIS INDICATES A FAVORABLE ENVIRONMENT WITH STRONG POLEWARD OUTFLOW, LOW VWS ALOFT, AND WARM SST IN THE SOUTH CHINA SEA (SCS). THE SYSTEM IS ALSO TAPPING INTO A POLEWARD OUTFLOW CHANNEL EMANATING FROM A TUTT TO THE NORTHWEST, ALSO EVIDENT IN THE EIR LOOP.

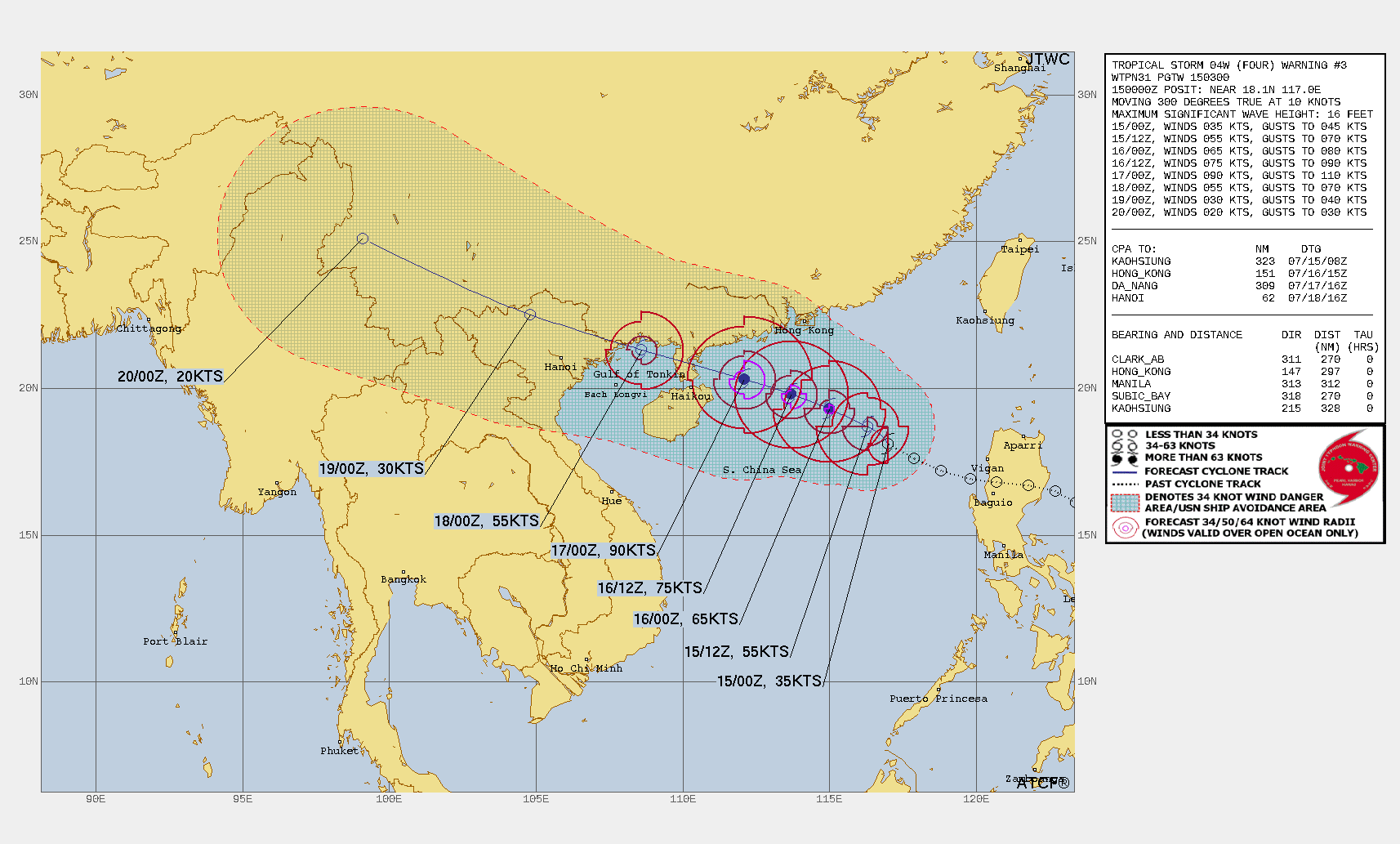

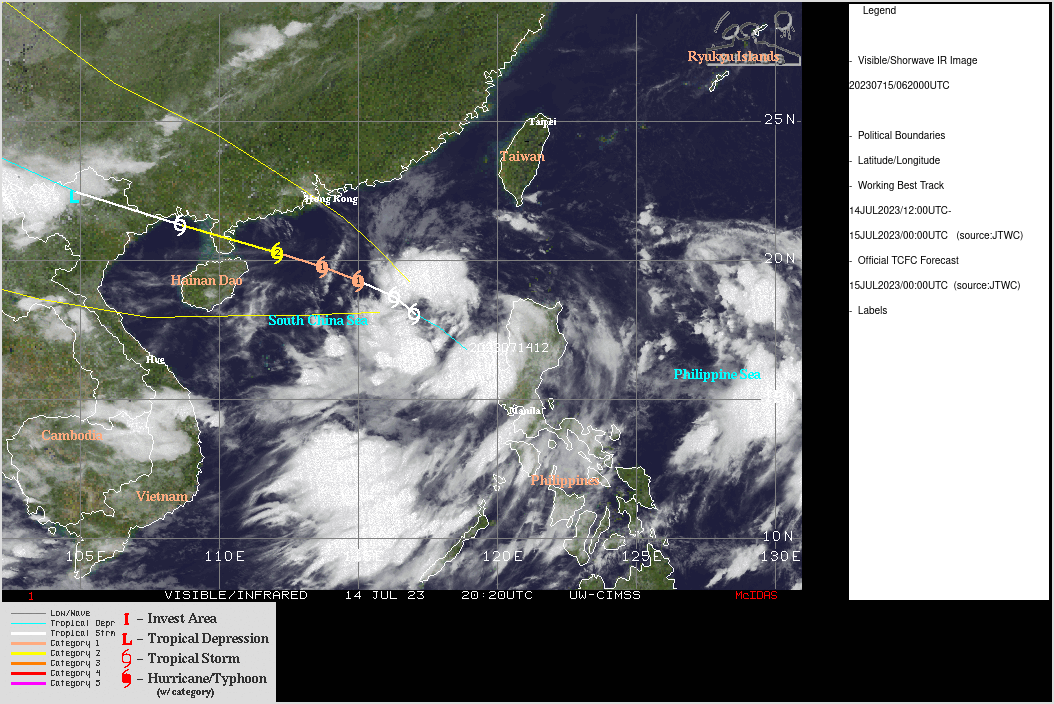

TC Warning Graphic

FORECAST REASONING.  SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING.  FORECAST DISCUSSION: TD 04W WILL CONTINUE TO TRACK GENERALLY WEST-NORTHWESTWARD UNDER THE STEERING INFLUENCE OF THE STR, OVER THE  WARM SCS, MAKE LANDFALL ON THE LEIZHOU PENINSULA NEAR ZHANJIANG  BEFORE TAU 60, AND CROSS THE GULF OF TONKIN BEFORE MAKING A FINAL  LANDFALL ALONG THE VIETNAM-CHINA BORDER AFTER TAU 72. THE FAVORABLE  ENVIRONMENT WILL FUEL SIGNIFICANT INTENSIFICATION TO A PEAK OF 90KTS  AT TAU 48. LAND INTERACTION WITH RUGGED TERRAIN WILL MOSTLY BE  RESPONSIBLE FOR THE GRADUAL THEN RAPID EROSION AFTER TAU 48, LEADING  TO DISSIPATION BY TAU 120 AS IT TRACKS DEEP INTO THE CHINESE  INTERIOR.
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TD 04W WILL CONTINUE TO TRACK GENERALLY WEST-NORTHWESTWARD UNDER THE STEERING INFLUENCE OF THE STR, OVER THE WARM SCS, MAKE LANDFALL ON THE LEIZHOU PENINSULA NEAR ZHANJIANG BEFORE TAU 60, AND CROSS THE GULF OF TONKIN BEFORE MAKING A FINAL LANDFALL ALONG THE VIETNAM-CHINA BORDER AFTER TAU 72. THE FAVORABLE ENVIRONMENT WILL FUEL SIGNIFICANT INTENSIFICATION TO A PEAK OF 90KTS AT TAU 48. LAND INTERACTION WITH RUGGED TERRAIN WILL MOSTLY BE RESPONSIBLE FOR THE GRADUAL THEN RAPID EROSION AFTER TAU 48, LEADING TO DISSIPATION BY TAU 120 AS IT TRACKS DEEP INTO THE CHINESE INTERIOR.

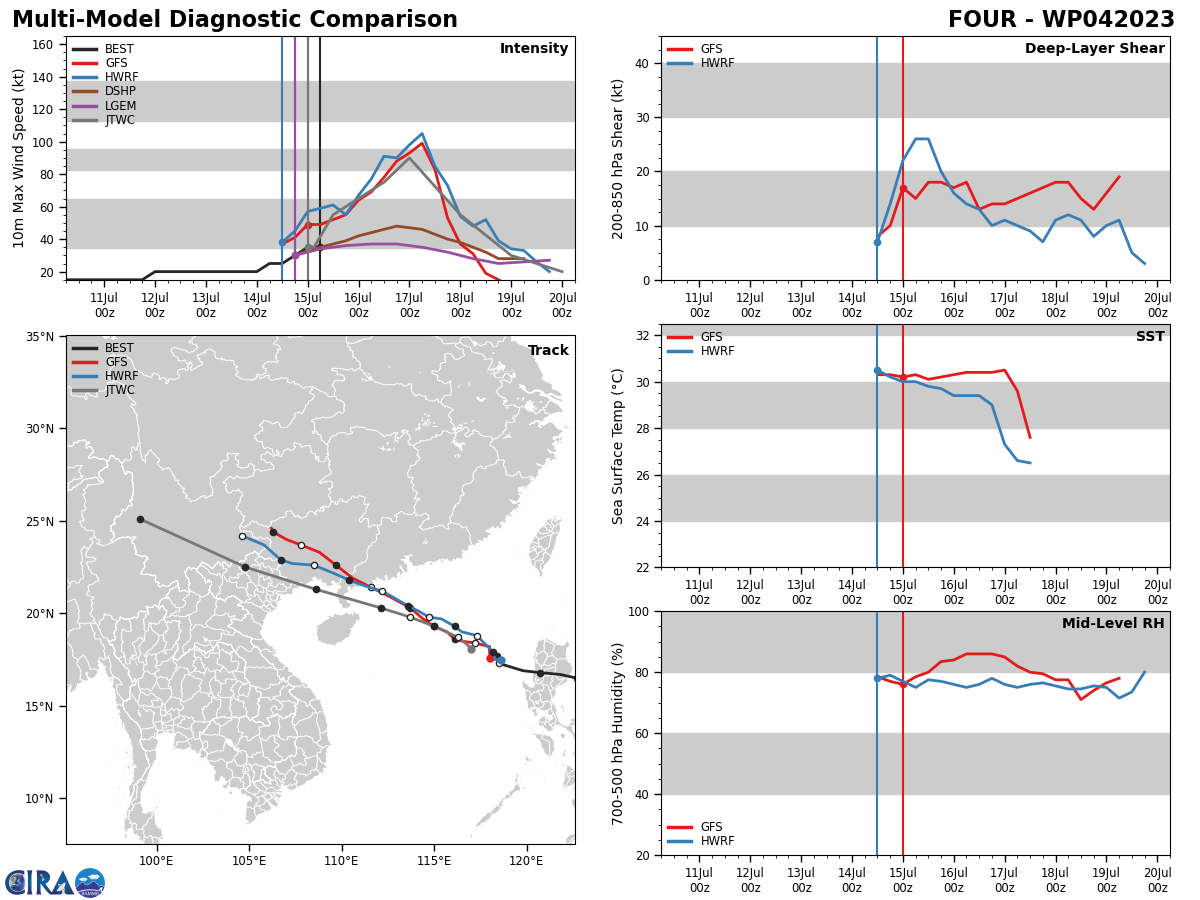

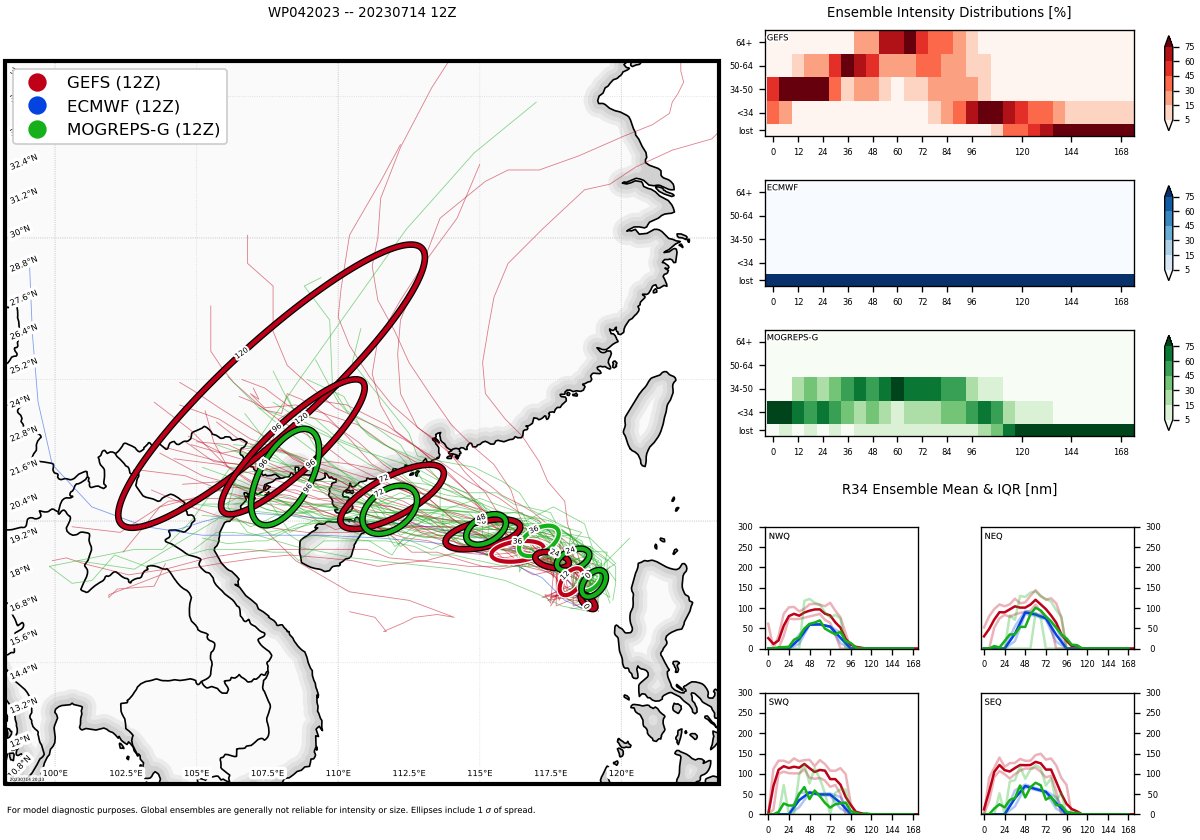

Model Diagnostic Plot

MODEL DISCUSSION: THERE IS OVERALL GOOD AGREEMENT AMONG THE NUMERICAL TRACK MODELS WITH AN EVEN AND GRADUAL SPREAD TO A MERE  158NM BY TAU 72. AFTERWARD, THE TRACKERS SIGNIFICANTLY SPREAD OUT TO  670NM+ BY TAU 120, AN INDICATION OF A WEAK VORTEX, LENDING MEDIUM  CONFIDENCE IN THE JTWC TRACK AND INTENSITY FORECASTS UP TO TAU 72, THEN LOW CONFIDENCE AFTERWARD.
MODEL DISCUSSION: THERE IS OVERALL GOOD AGREEMENT AMONG THE NUMERICAL TRACK MODELS WITH AN EVEN AND GRADUAL SPREAD TO A MERE 158NM BY TAU 72. AFTERWARD, THE TRACKERS SIGNIFICANTLY SPREAD OUT TO 670NM+ BY TAU 120, AN INDICATION OF A WEAK VORTEX, LENDING MEDIUM CONFIDENCE IN THE JTWC TRACK AND INTENSITY FORECASTS UP TO TAU 72, THEN LOW CONFIDENCE AFTERWARD.

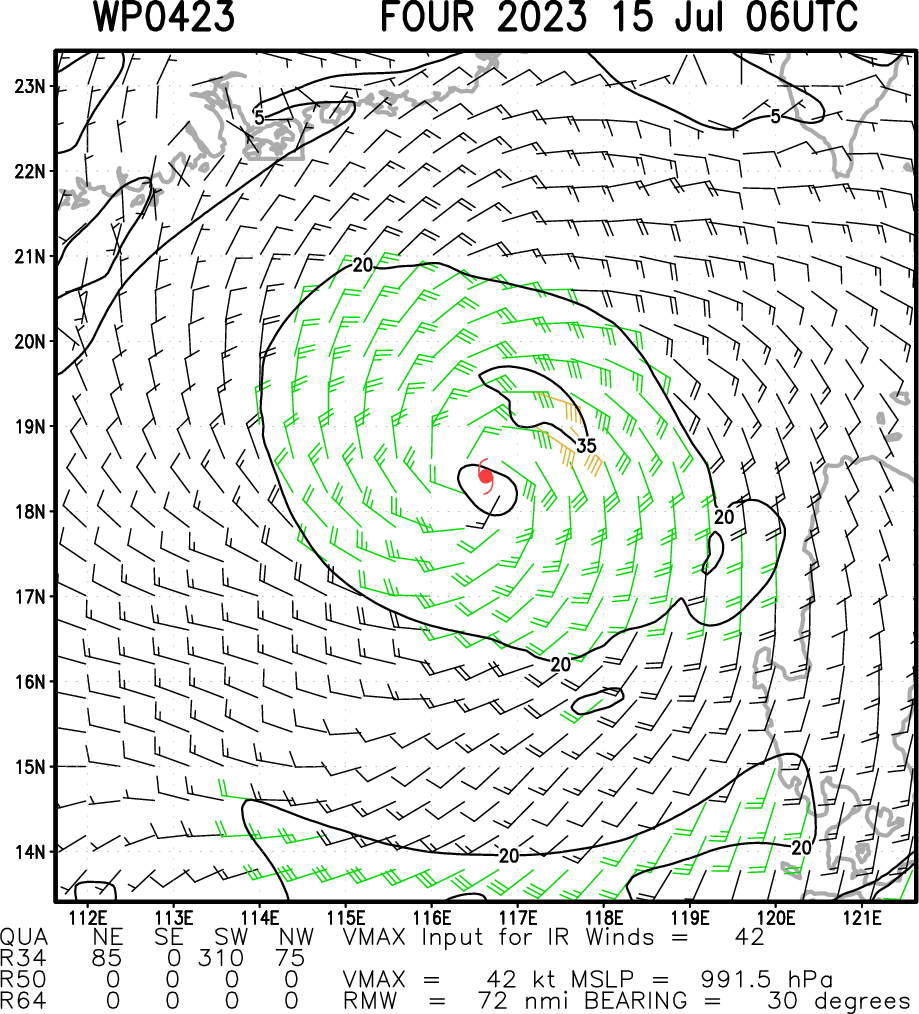

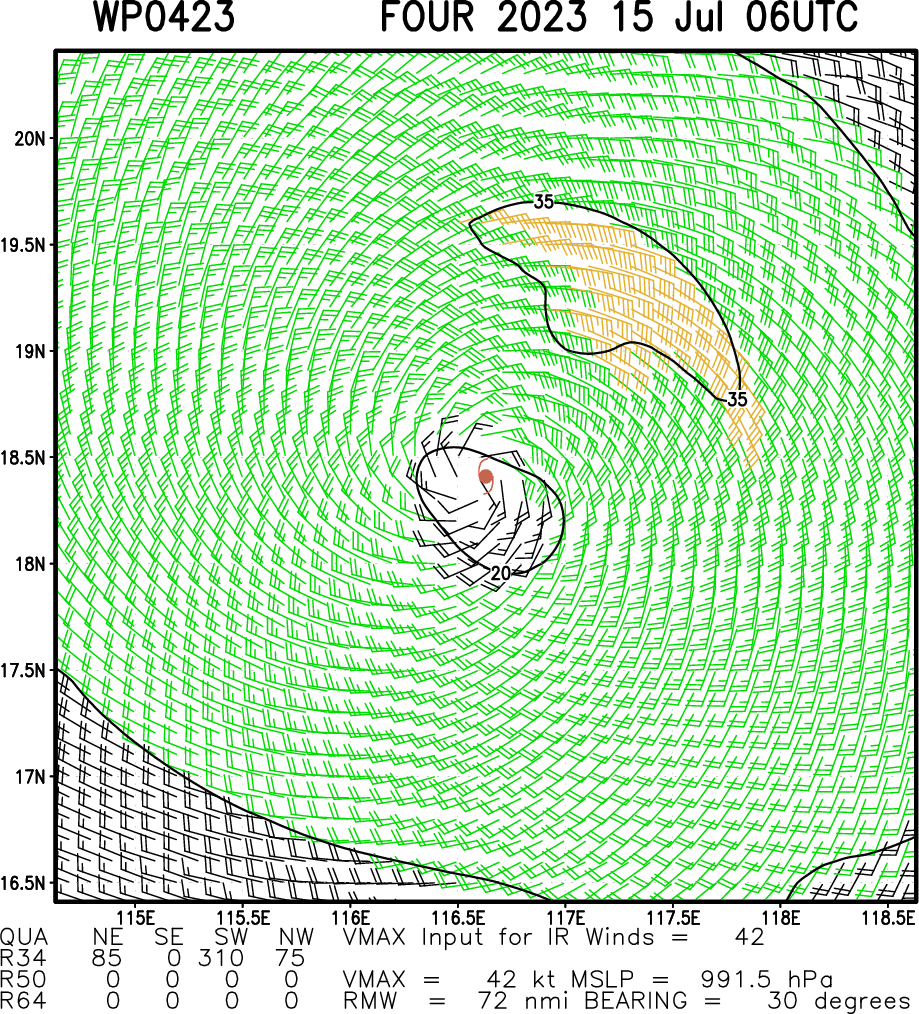

Multiplatform Satellite Surface Wind Analysis (Experimental)

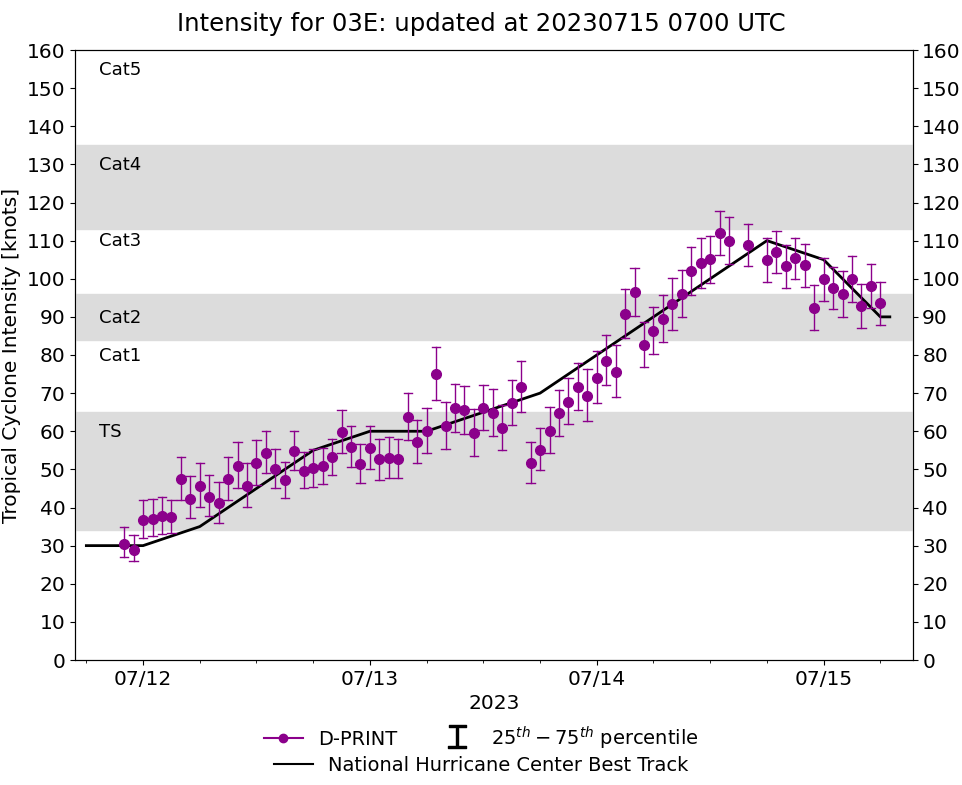

EASTERN NORTH PACIFIC: HU 03E(CALVIN). WARNING 14 ISSUED AT 150400UTC. ESTIMATED INTENSITY WAS 105 KNOTS/ CAT 3 US.

0323070900  96N 932W  15
0323070906  96N 940W  15
0323070912  97N 947W  15
0323070918  98N 955W  15
0323071000 100N 966W  15
0323071006 102N 977W  20
0323071012 102N 989W  20
0323071018 105N1002W  25
0323071100 107N1019W  25
0323071106 111N1033W  30
0323071112 117N1050W  30
0323071118 124N1071W  30
0323071200 124N1086W  30
0323071206 125N1100W  35
0323071212 126N1115W  45
0323071218 127N1130W  55
0323071300 125N1143W  60
0323071306 124N1155W  60
0323071312 126N1164W  65
0323071318 127N1180W  70
0323071400 130N1198W  80
0323071406 131N1212W  90
0323071412 134N1225W 100
0323071418 137N1239W 110
0323071500 140N1253W 105

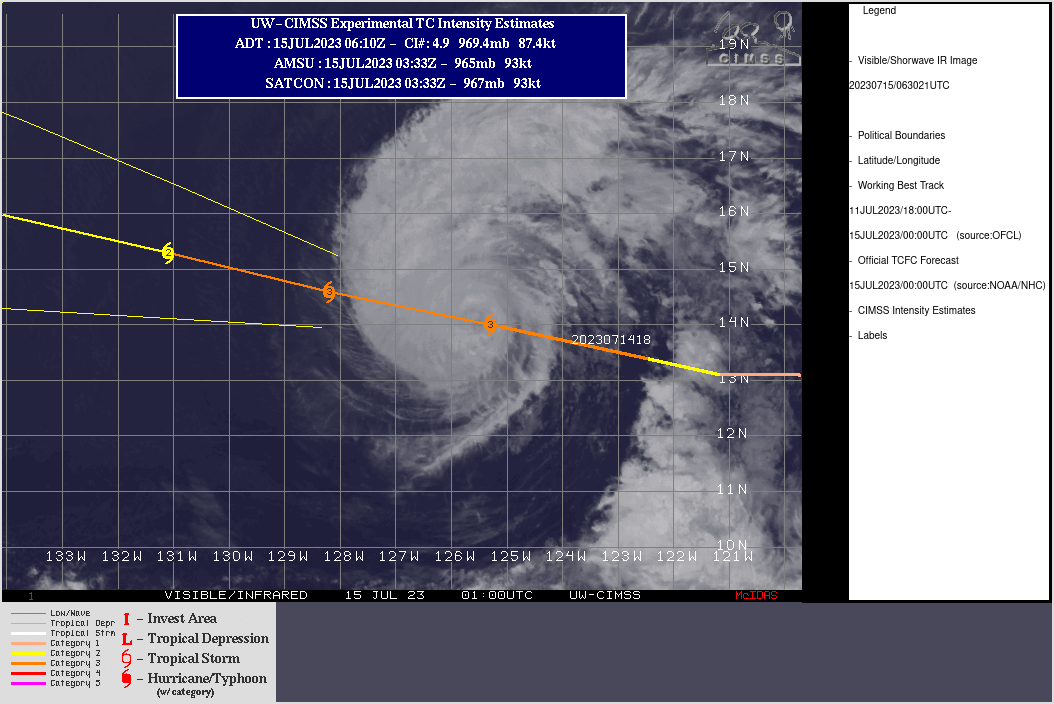

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED.

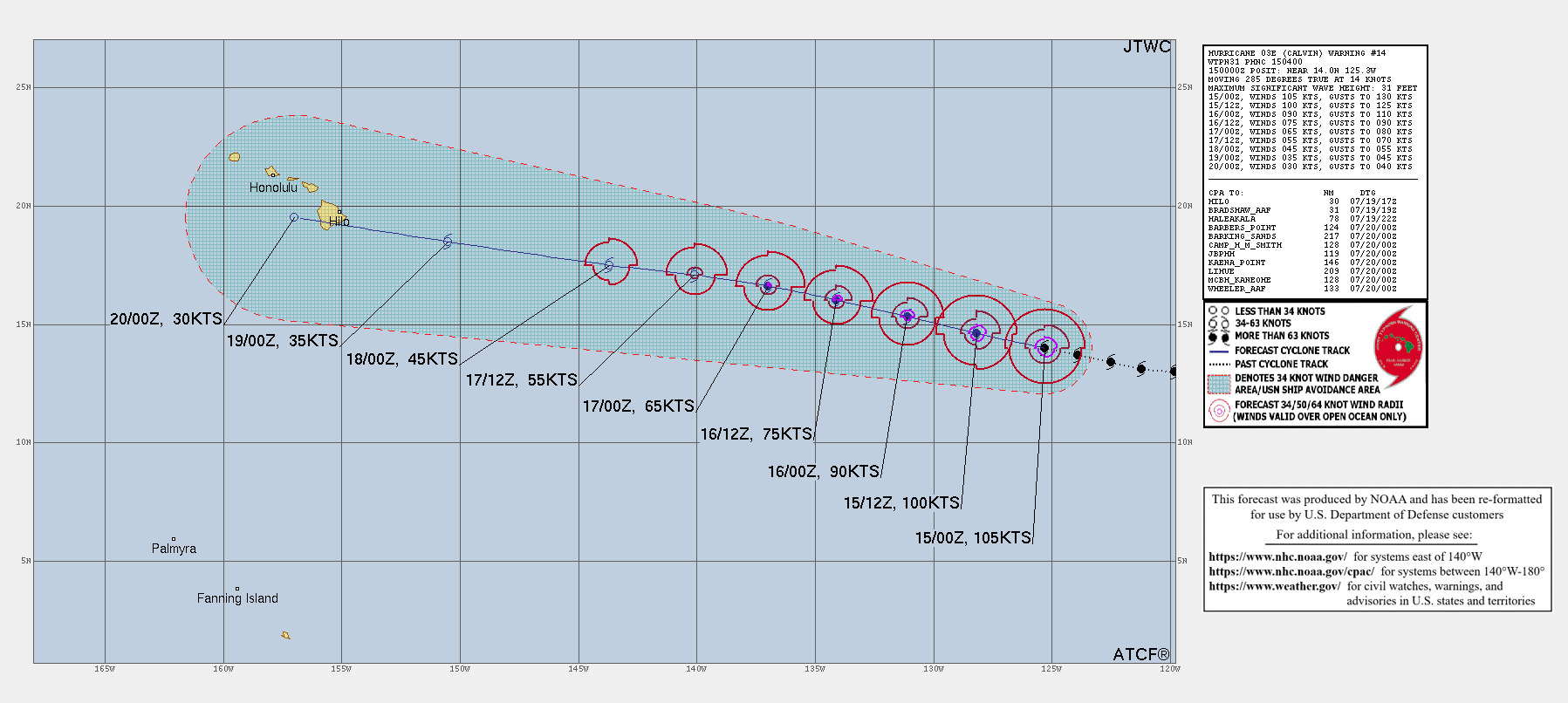

TC Warning Graphic

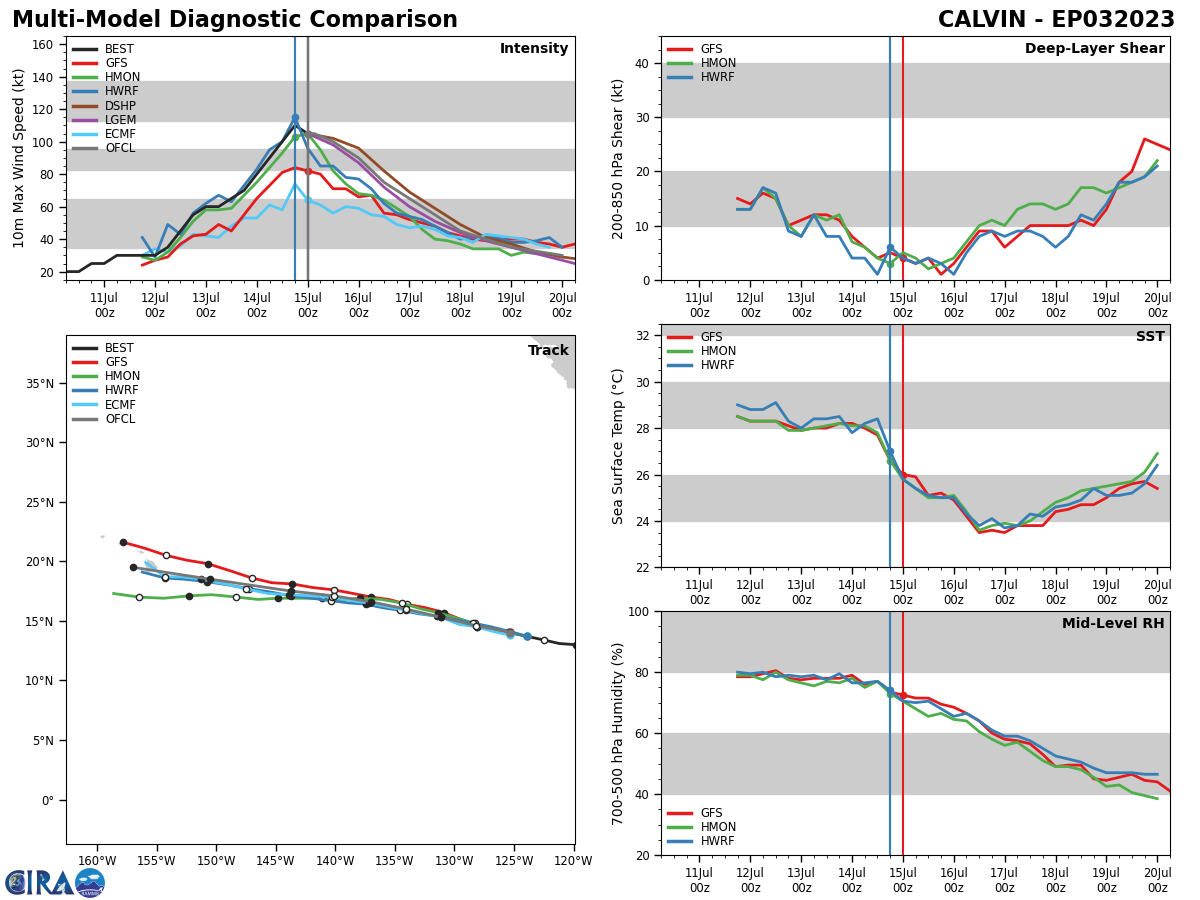

Model Diagnostic Plot

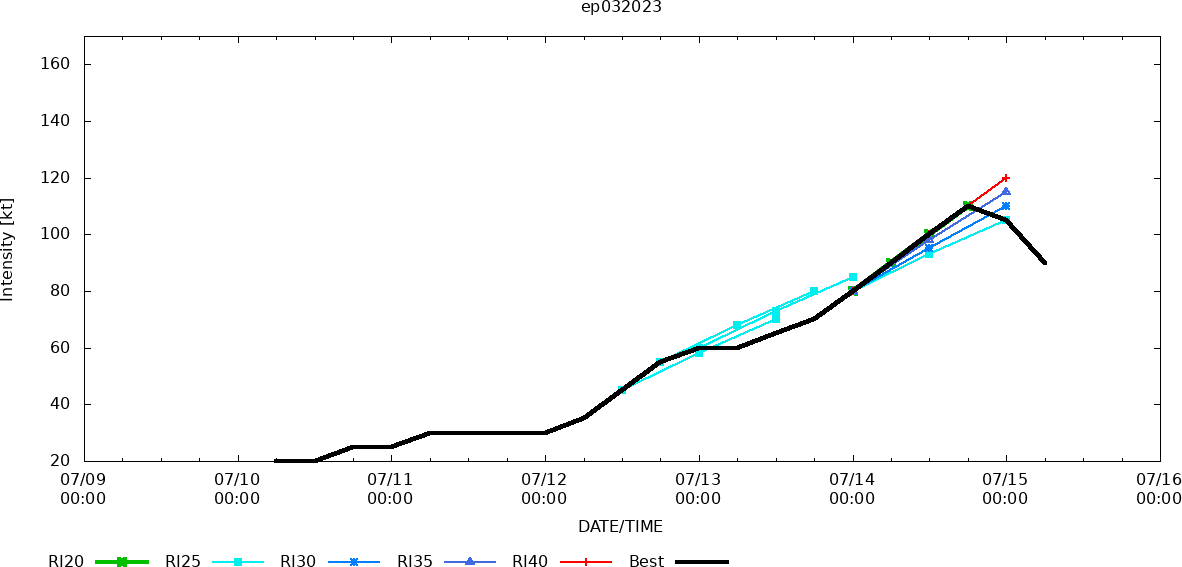

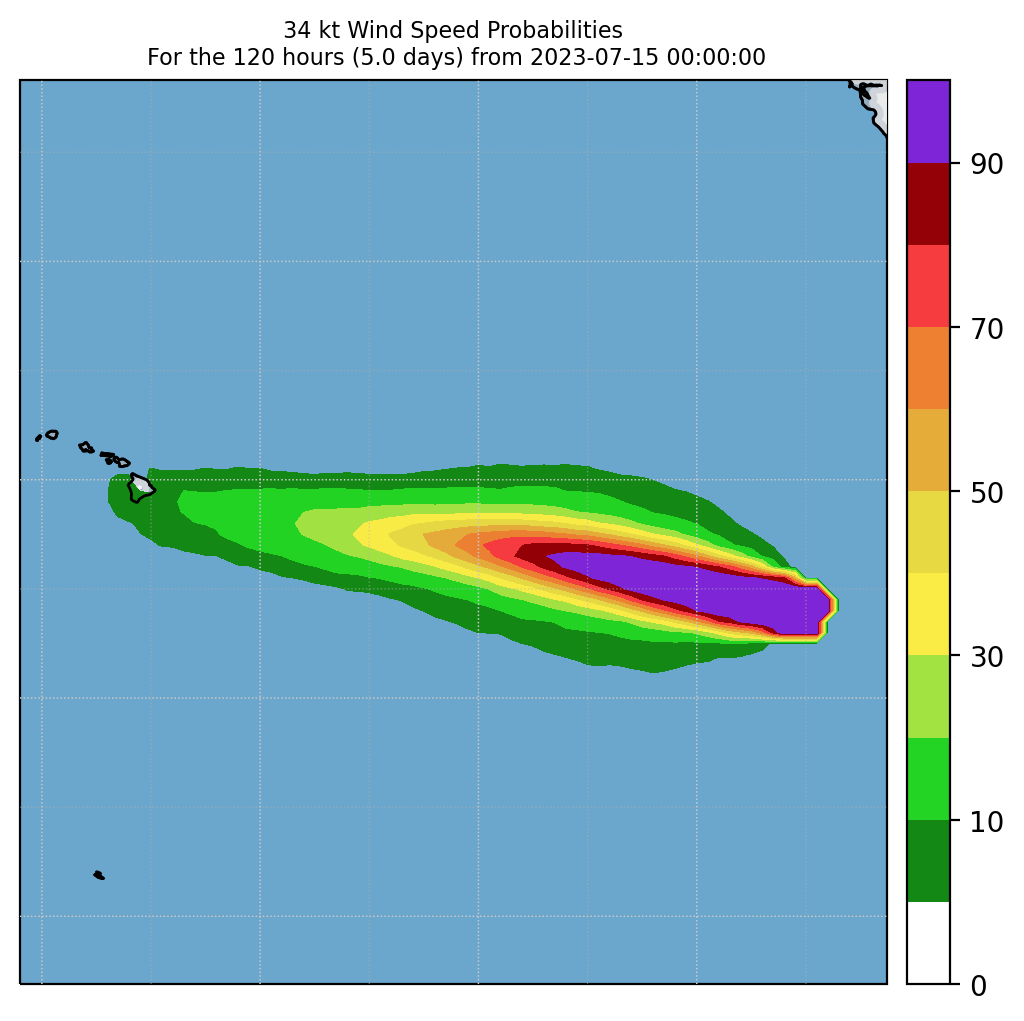

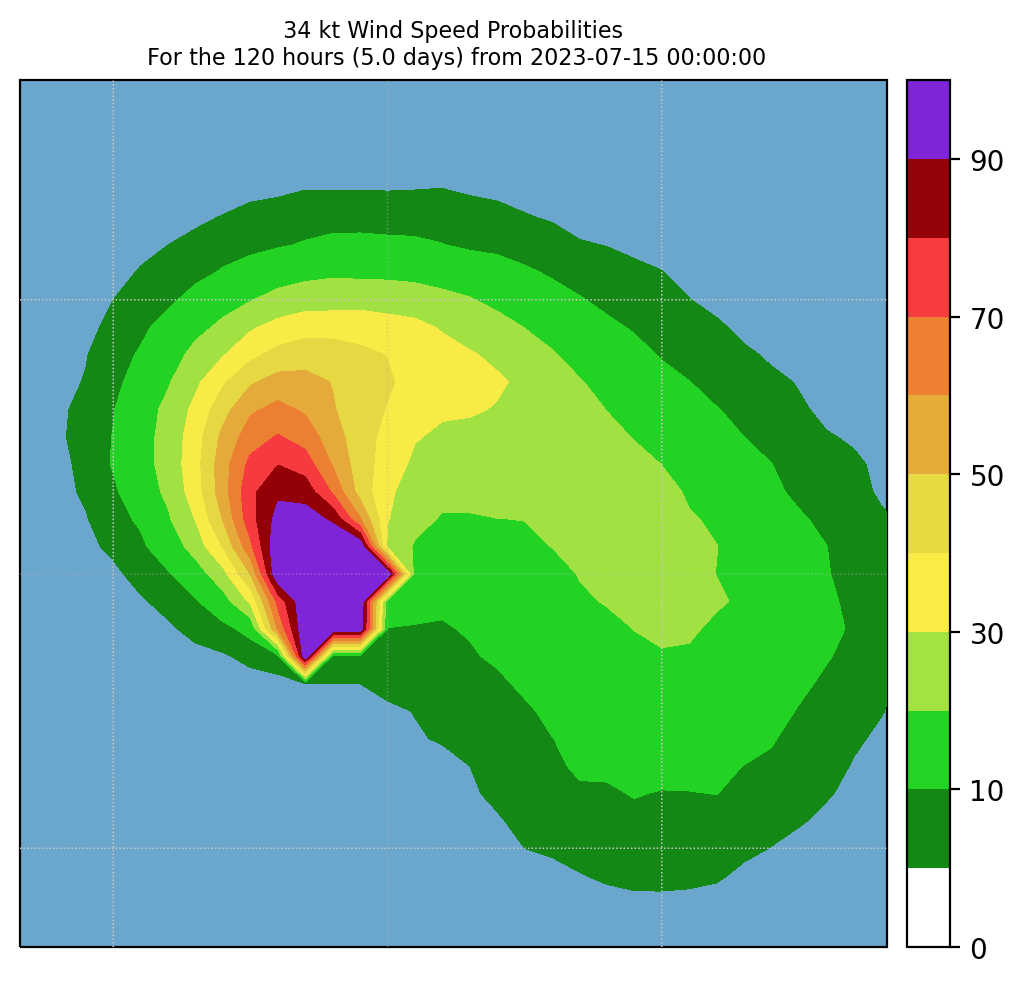

RIPA Forecast AND RIPA STORM TABLE ATTACHED BELOW

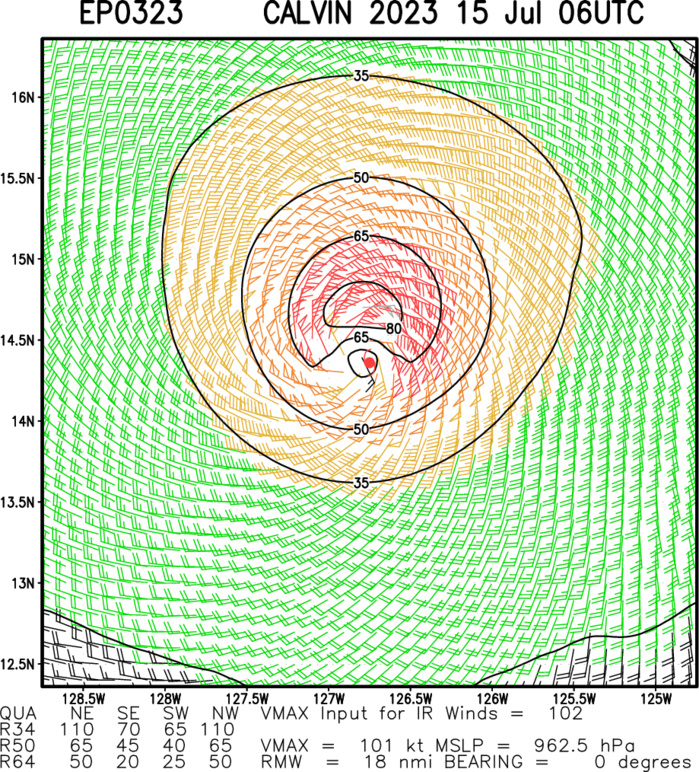

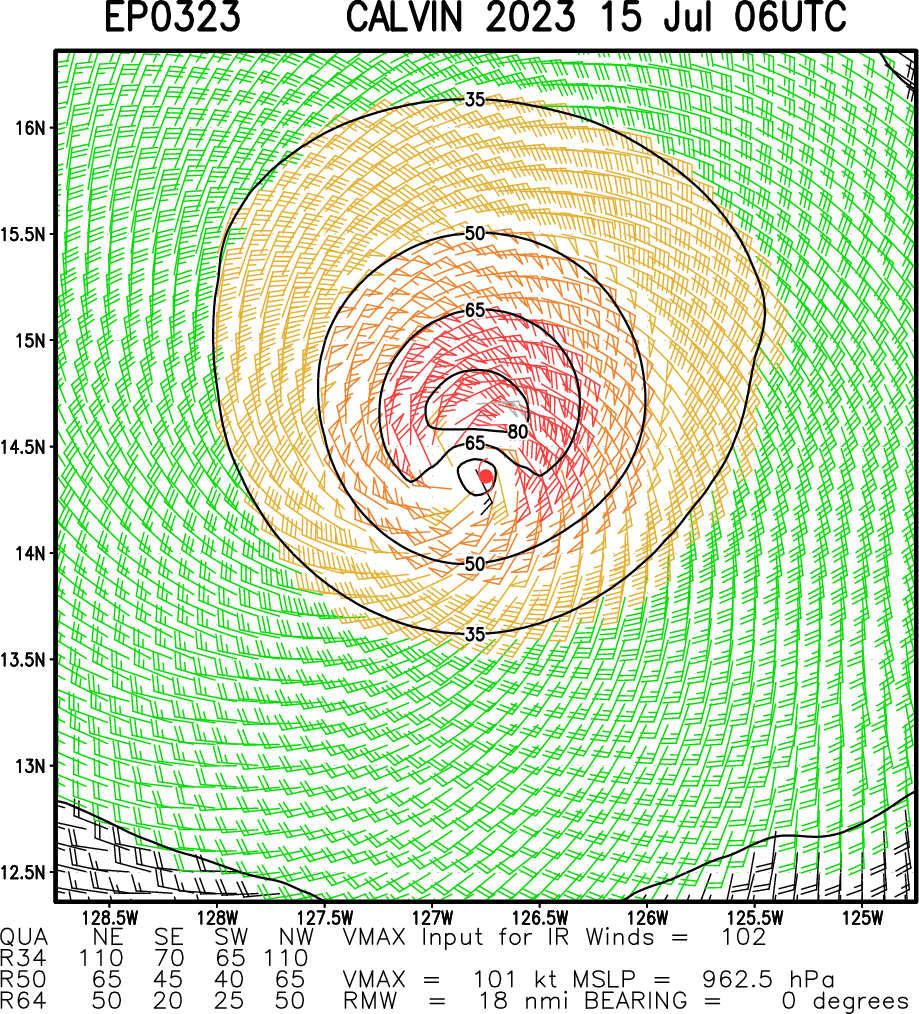

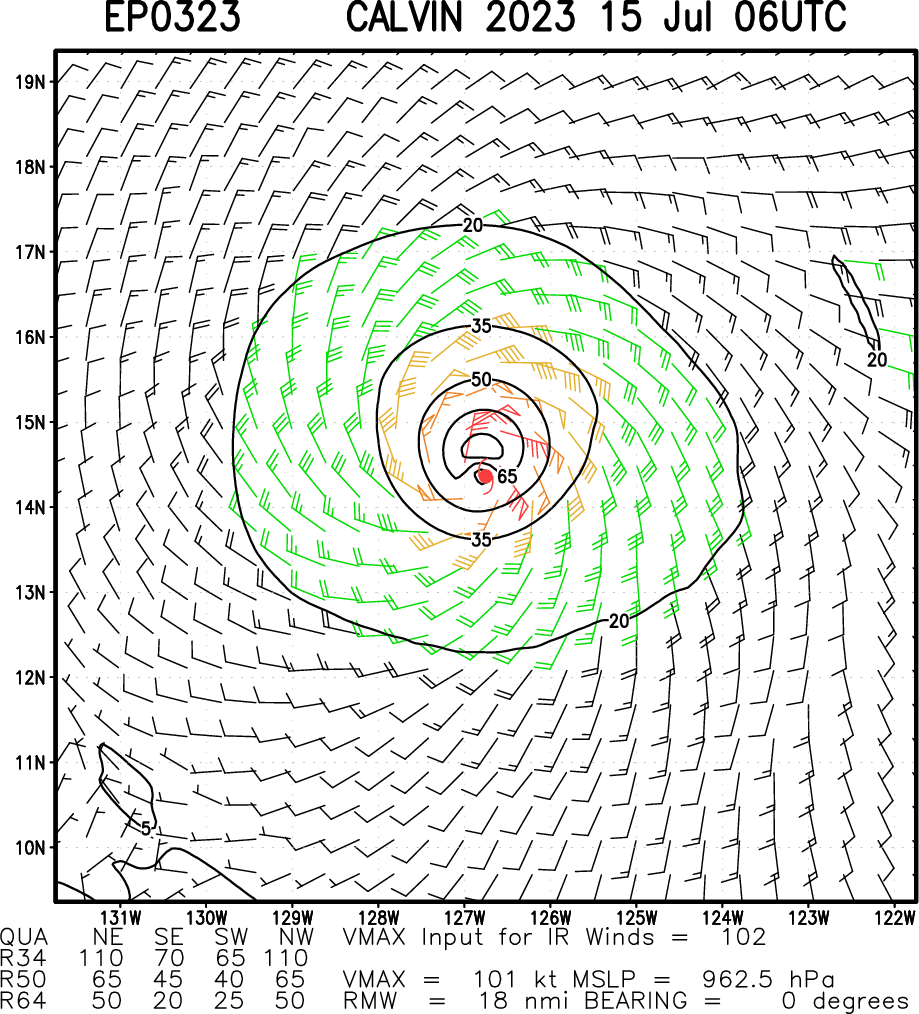

Multiplatform Satellite Surface Wind Analysis (Experimental)

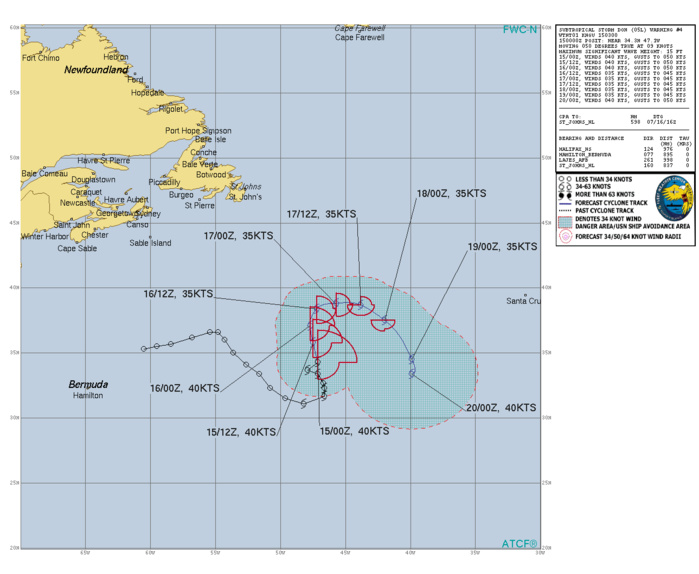

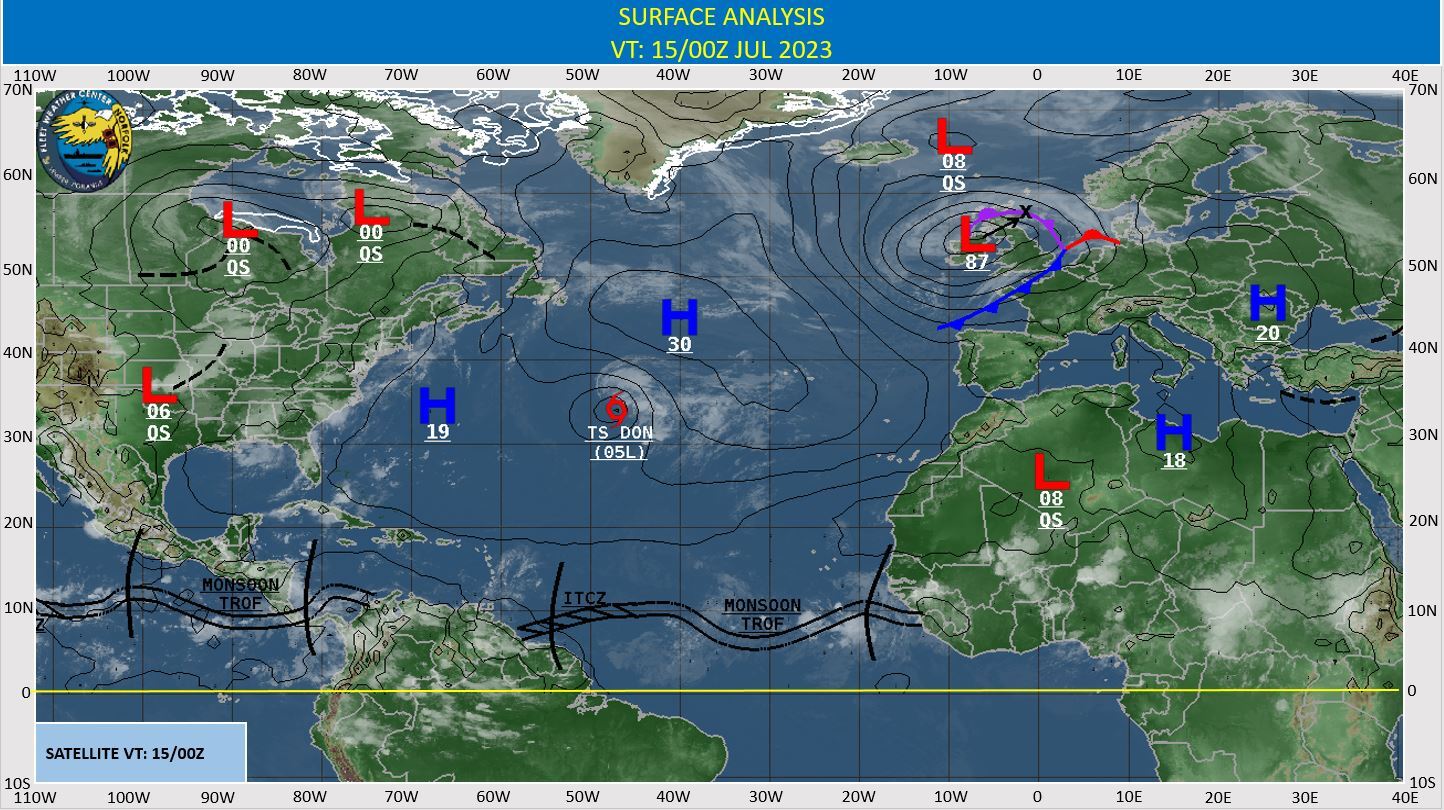

NORTH ATLANTIC OCEAN: SS 05L(DON). WARNING 4 ISSUED AT 150300UTC. ESTIMATED INTENSITY WAS 40 KNOTS.

0523071012 353N 605W  15
0523071018 355N 595W  15
0523071100 357N 584W  15
0523071106 362N 568W  15
0523071112 366N 554W  25
0523071118 366N 548W  25
0523071200 360N 543W  25
0523071206 350N 536W  25
0523071212 341N 526W  25
0523071218 334N 516W  30
0523071300 323N 508W  30
0523071306 315N 496W  30
0523071312 311N 482W  35
0523071318 317N 466W  40
0523071400 323N 466W  45
0523071406 327N 467W  45
0523071412 334N 471W  40
0523071418 337N 479W  40
0523071500 343N 471W  40

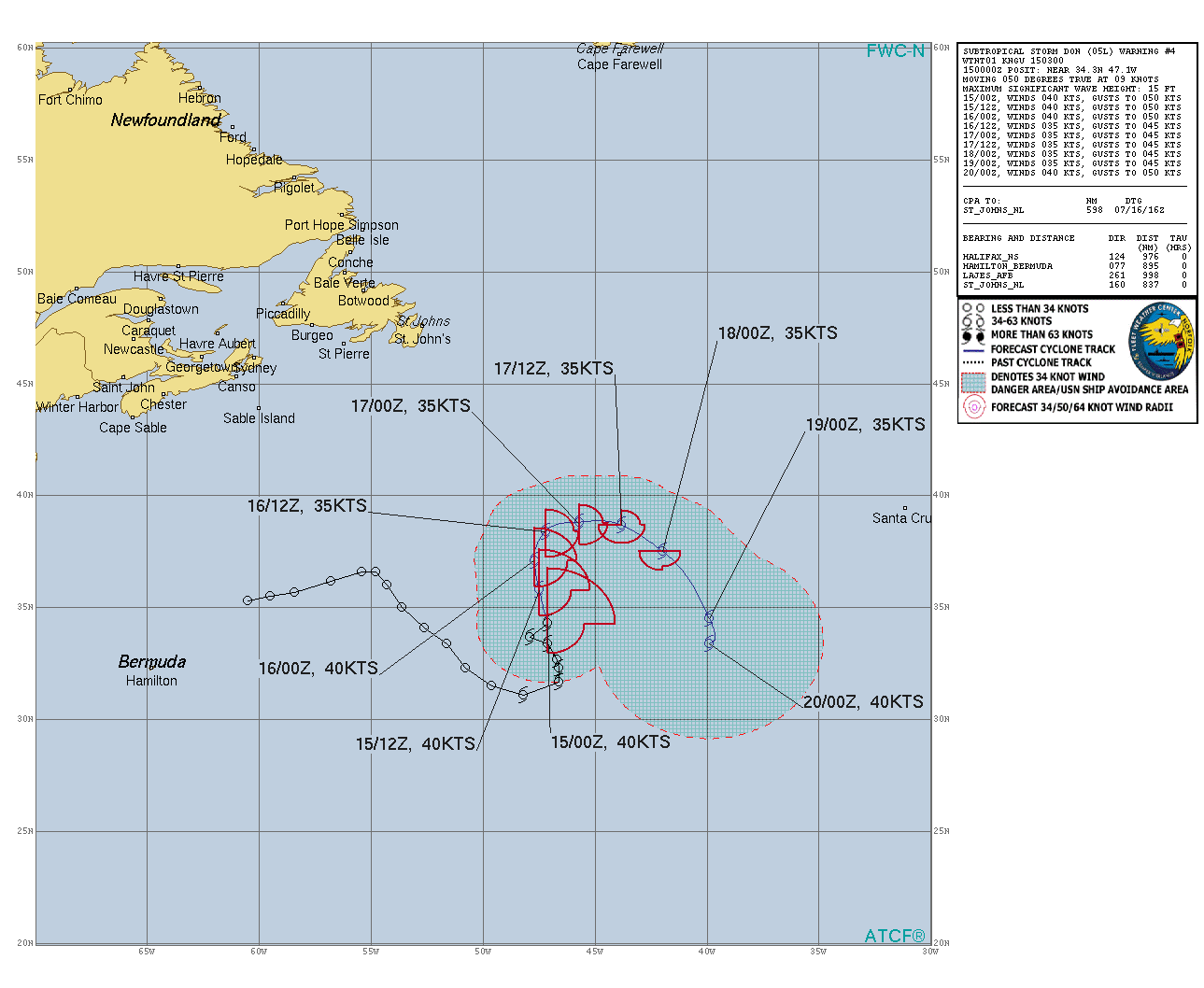

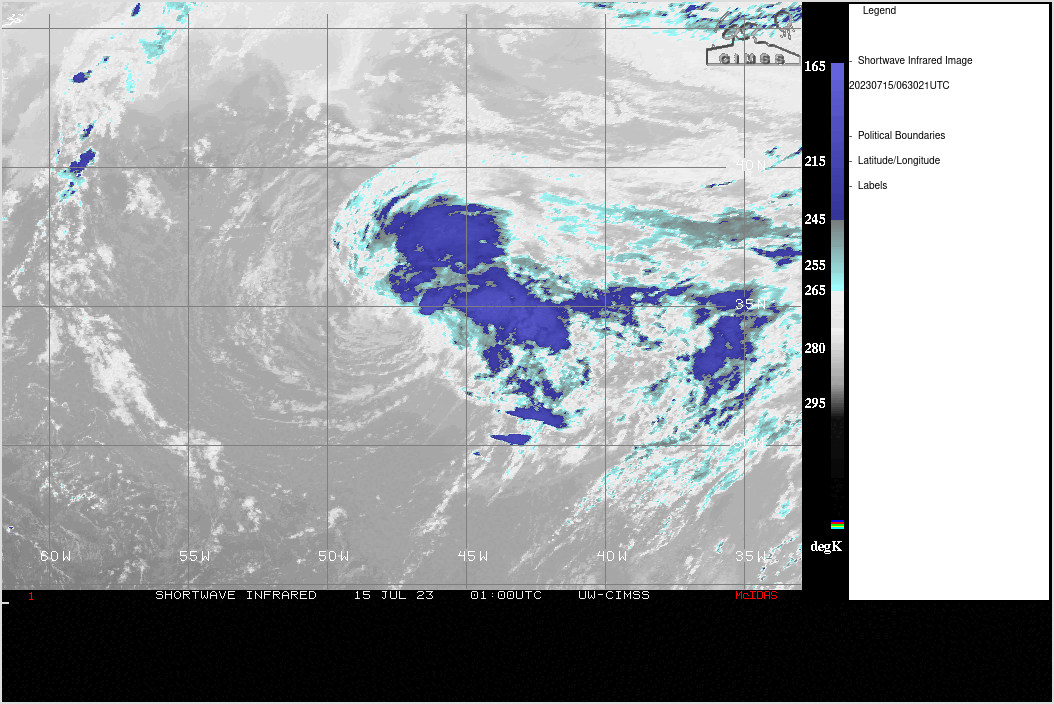

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED.

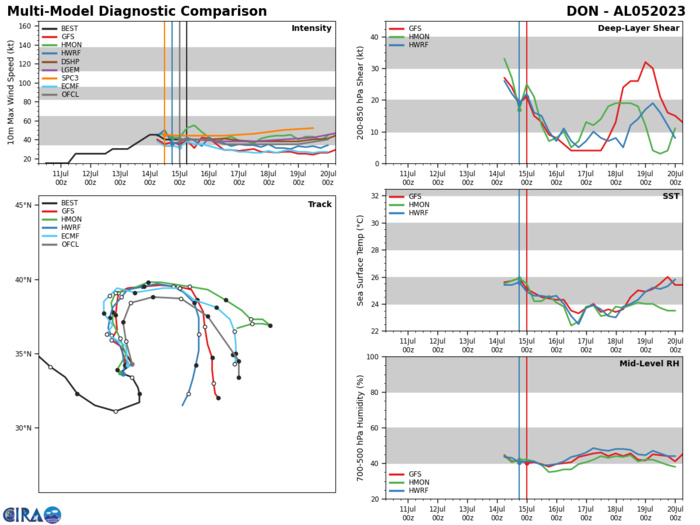

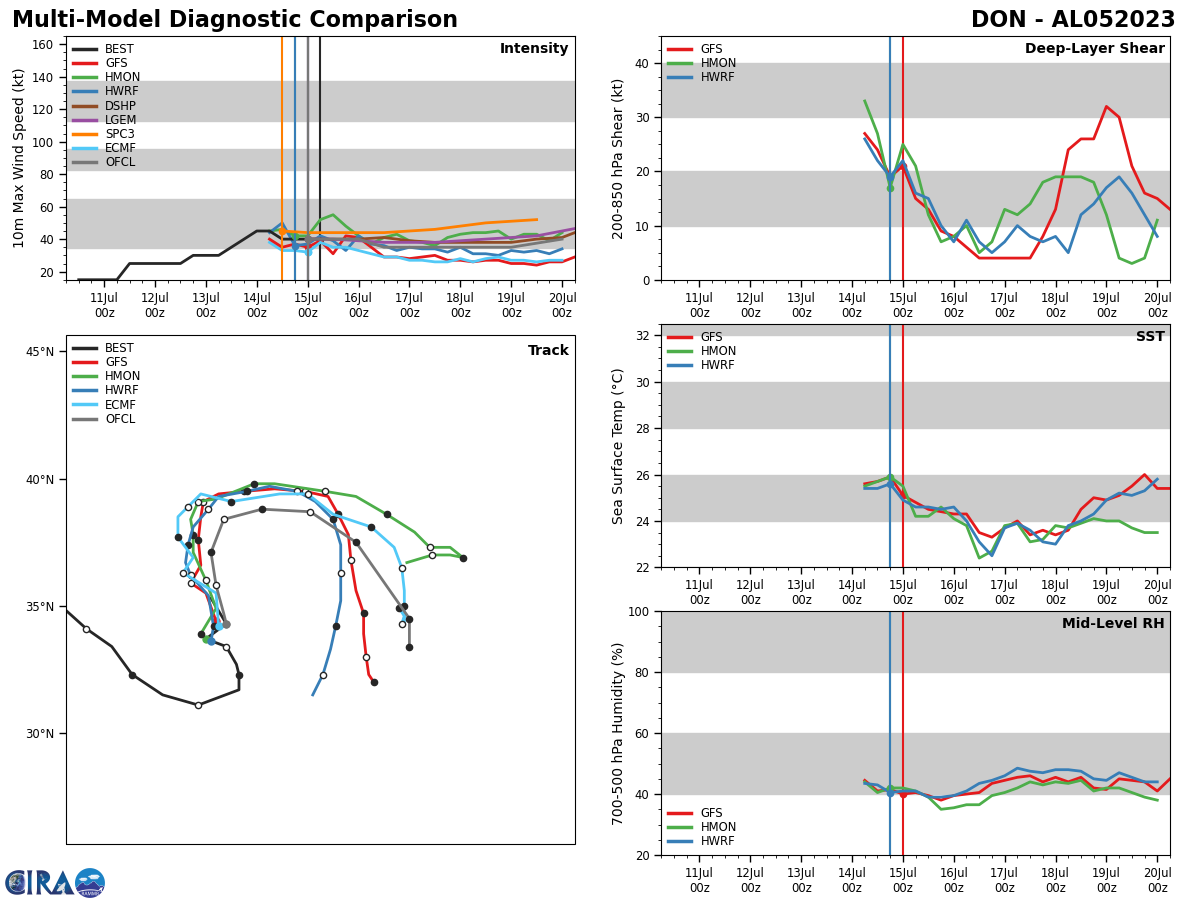

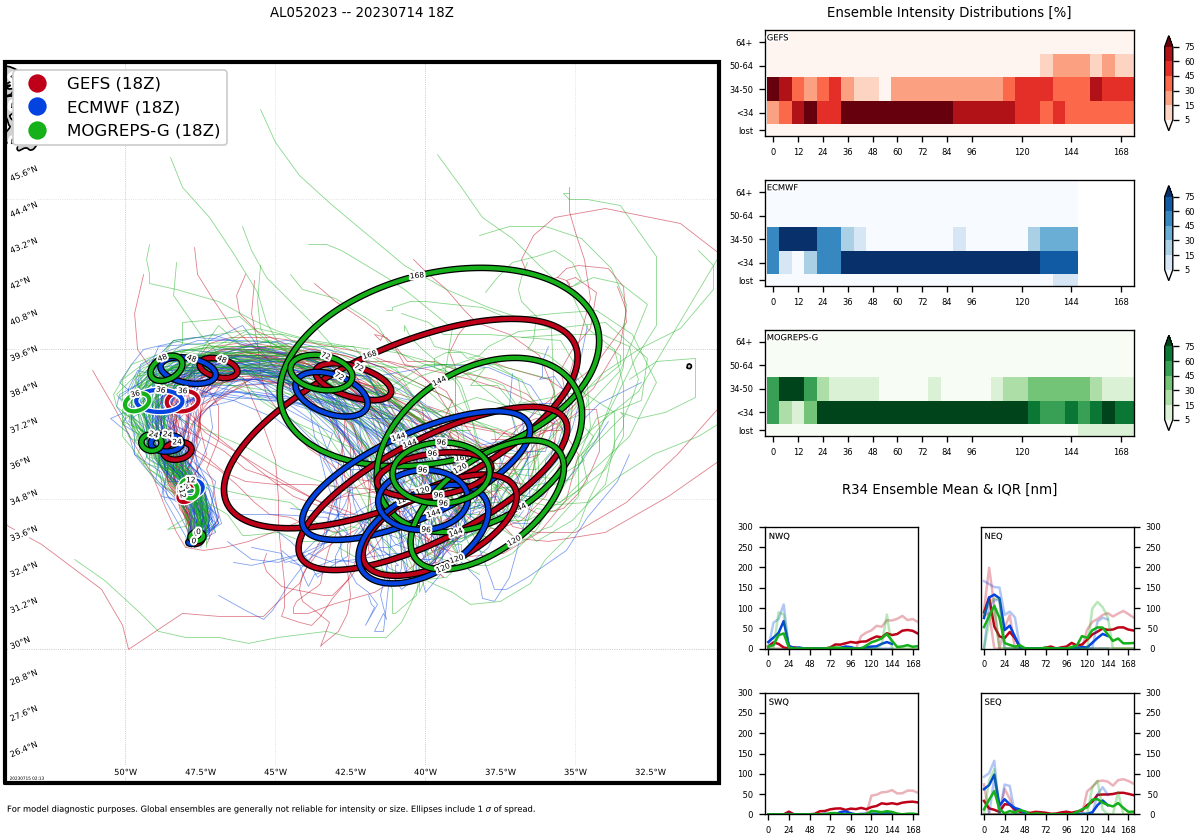

Model Diagnostic Plot

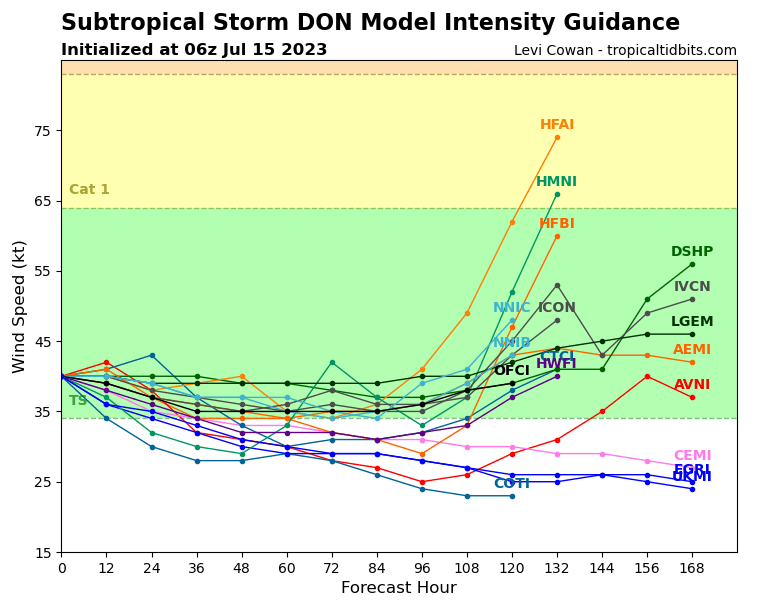

Intensity Guidance
