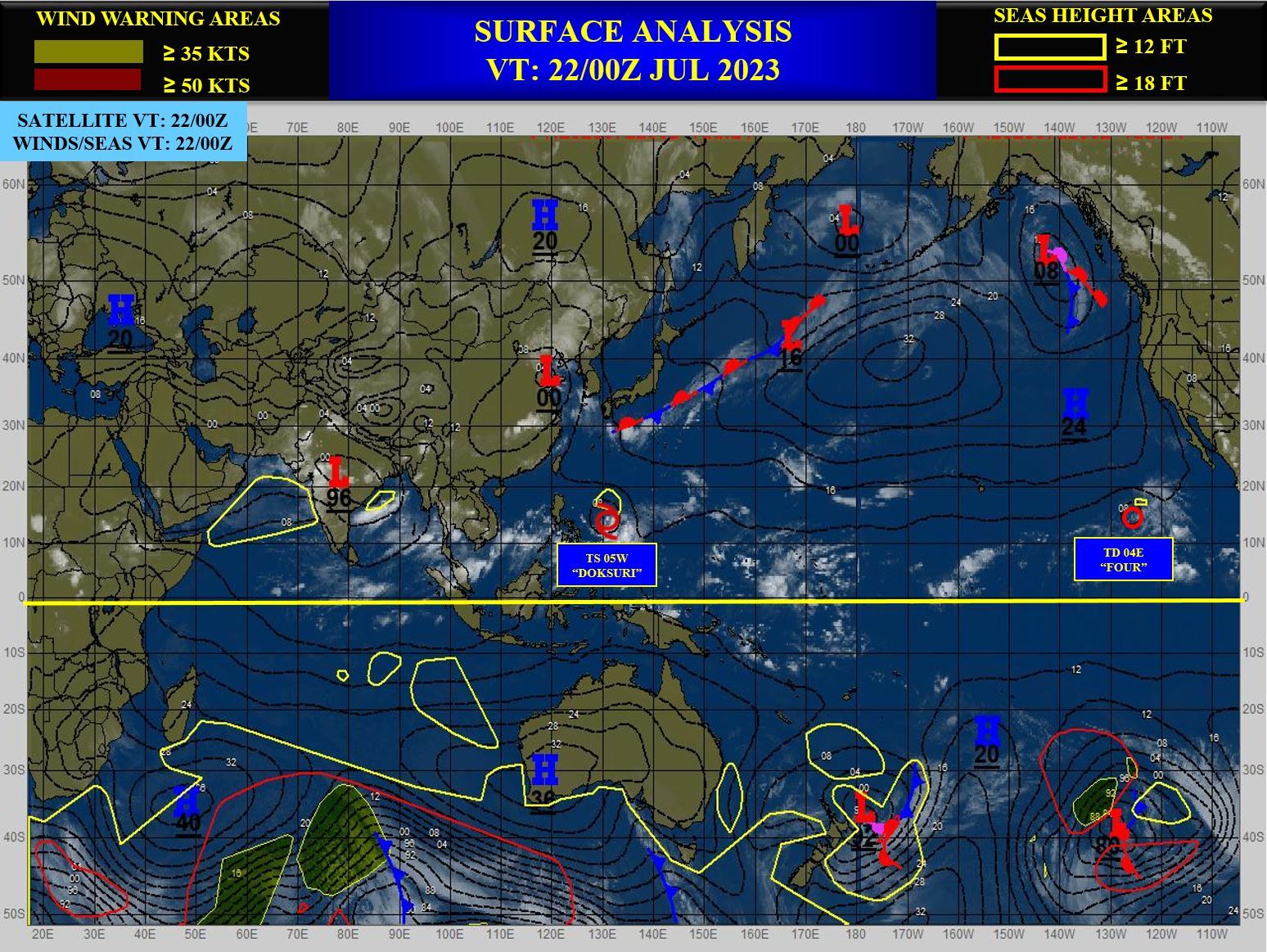

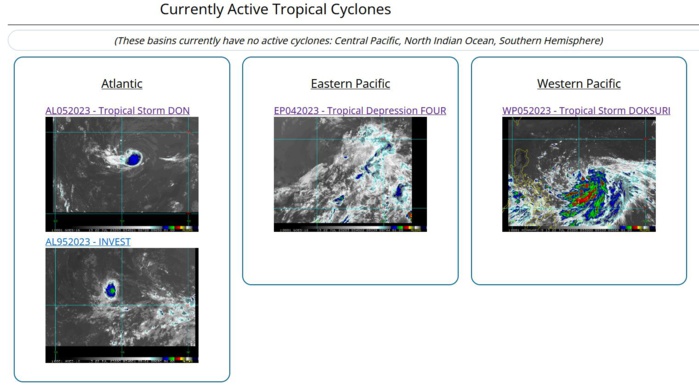

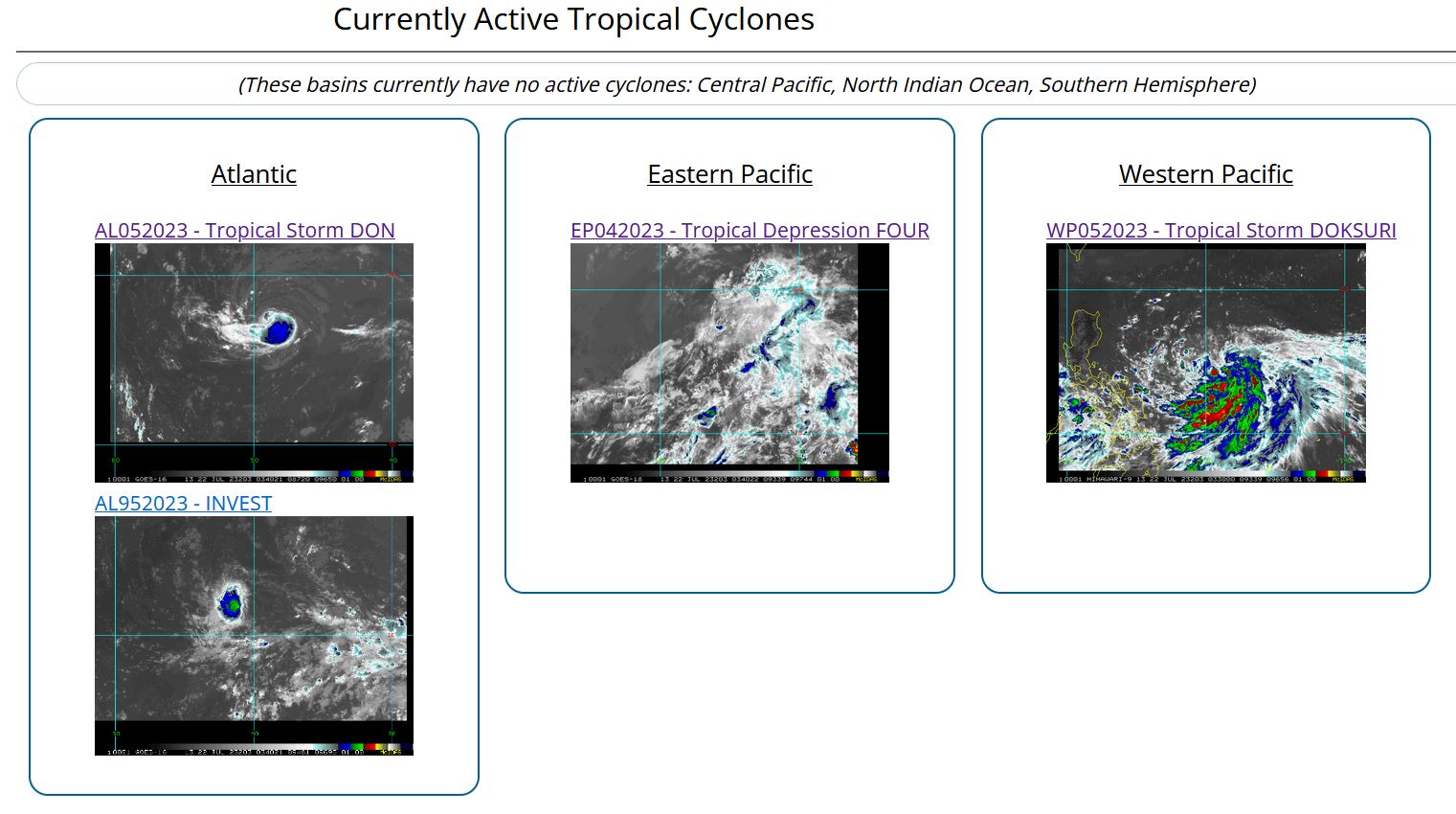

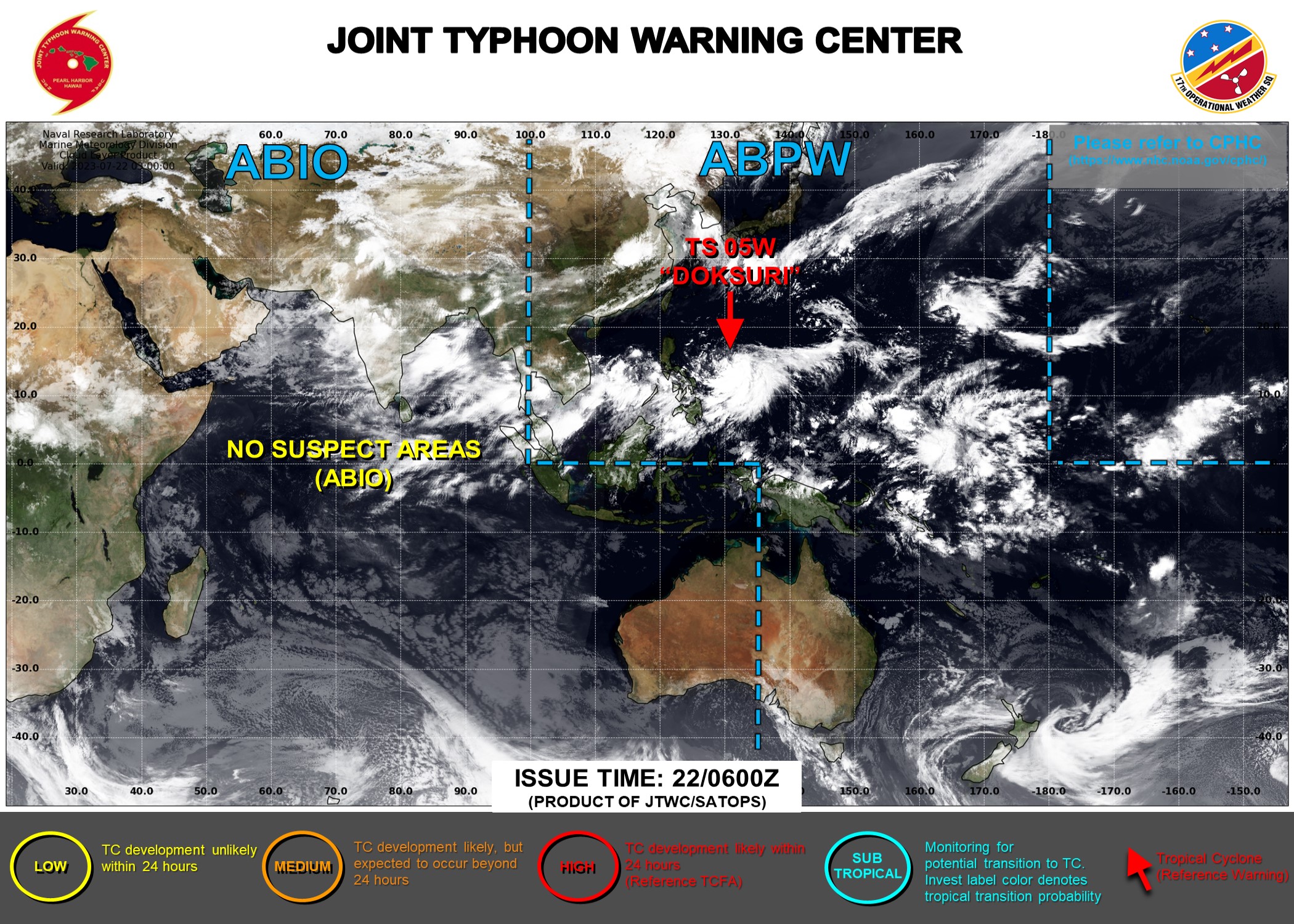

CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED
WESTERN NORTH PACIFIC: TS 05W(DOKSURI). CURRENT ESTIMATED INTENSITY IS 35 KNOTS: +15 KNOTS/24H.
0523071700 71N1362E 20
0523071706 73N1361E 20
0523071712 75N1360E 20
0523071718 77N1359E 20
0523071800 80N1357E 20
0523071806 81N1352E 20
0523071812 80N1347E 20
0523071818 79N1341E 20
0523071900 80N1333E 20
0523071906 86N1328E 20
0523071912 93N1322E 20
0523071918 102N1315E 20
0523072000 115N1318E 20
0523072006 124N1328E 20
0523072012 129N1335E 20
0523072018 137N1333E 20
0523072100 139N1328E 20
0523072106 141N1322E 20
0523072112 143N1318E 30
0523072118 144N1316E 30
0523072200 145N1311E 35
0523071706 73N1361E 20
0523071712 75N1360E 20
0523071718 77N1359E 20
0523071800 80N1357E 20
0523071806 81N1352E 20
0523071812 80N1347E 20
0523071818 79N1341E 20
0523071900 80N1333E 20
0523071906 86N1328E 20
0523071912 93N1322E 20
0523071918 102N1315E 20
0523072000 115N1318E 20
0523072006 124N1328E 20
0523072012 129N1335E 20
0523072018 137N1333E 20
0523072100 139N1328E 20
0523072106 141N1322E 20
0523072112 143N1318E 30
0523072118 144N1316E 30
0523072200 145N1311E 35
WARNING 3 ISSUED AT 22/03UTC.

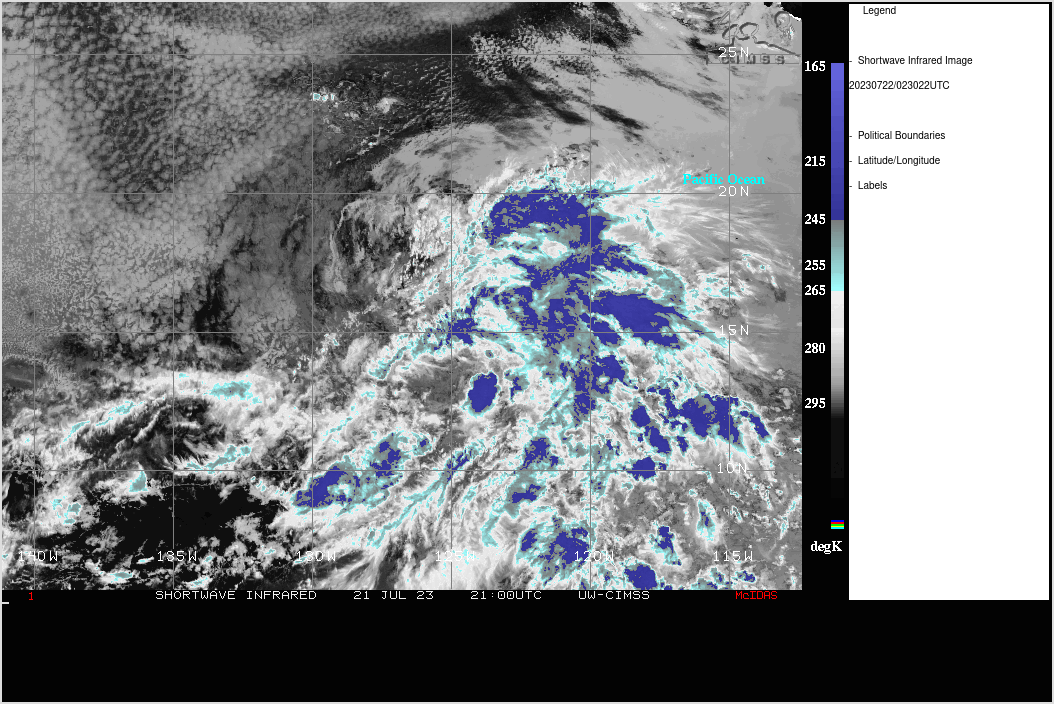

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED.

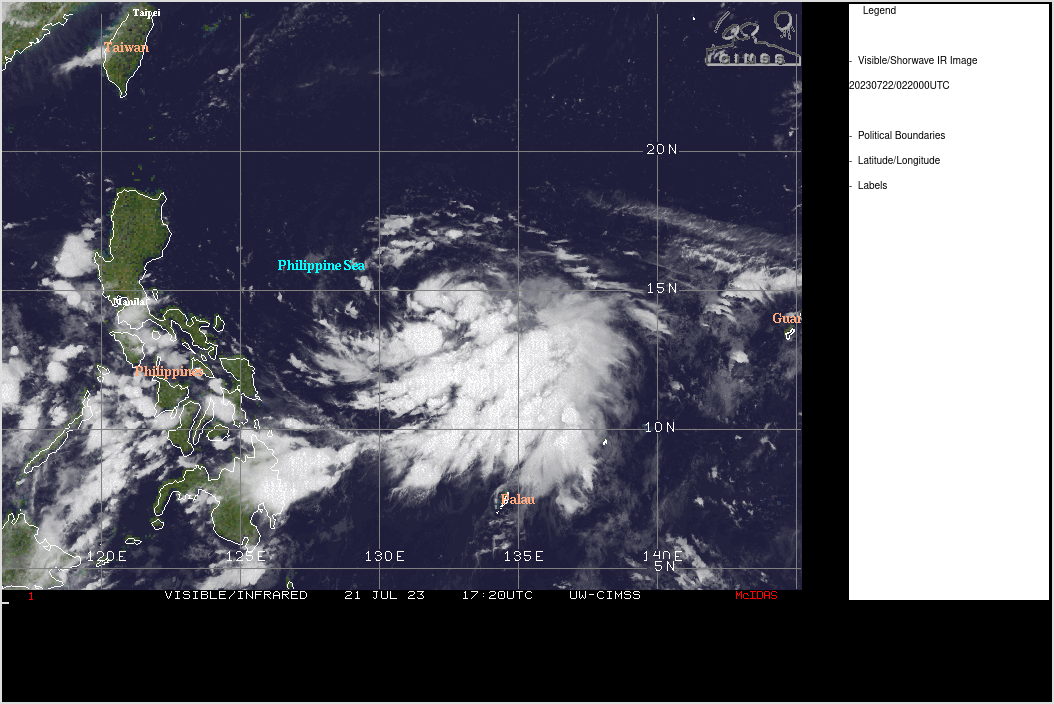

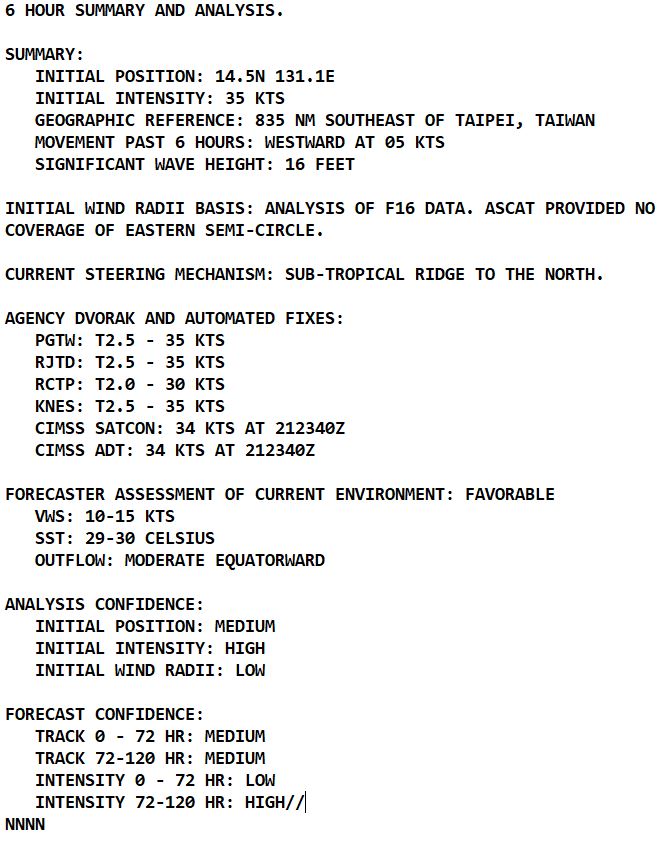

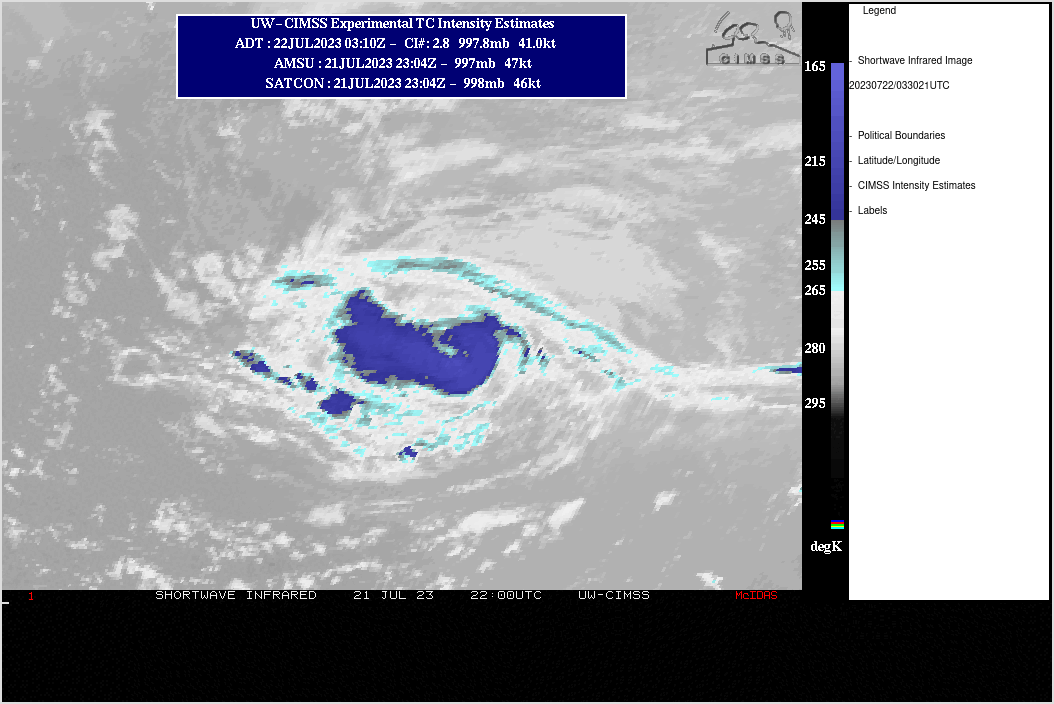

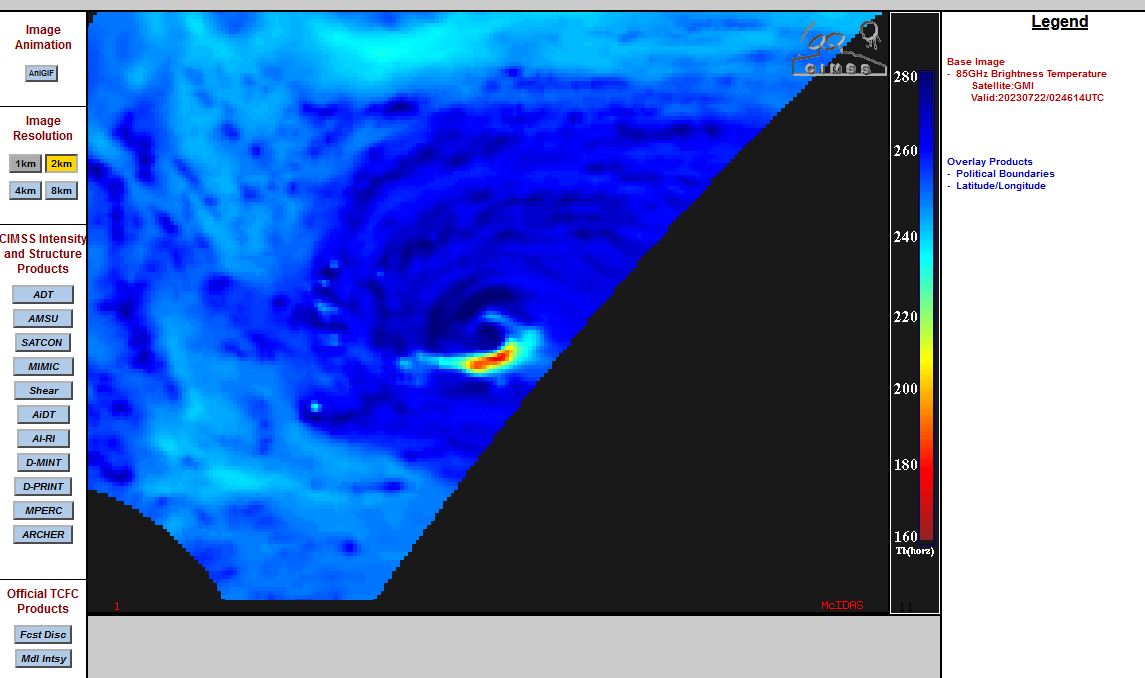

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY DEPICTS A PARTIALLY EXPOSED DEVELOPING LOW LEVEL CIRCULATION (LLC), WITH VIGOROUS FLARING THUNDERSTORM ACTIVITY SLOWLY BUILDING NEAR THE CENTER FROM THE SOUTHEASTERN FLANK. DRY SUBSIDENT AIR UNDER THE SUBTROPICAL RIDGE TO THE NORTH CONTINUES TO HAMPER WRAPPING OF THE CONVECTION AROUND THE NORTHERN SEMI-CIRCLE, WHILE GFS MID-LEVEL ANALYSIS INDICATES THE WEAK VORTEX REMAINS TILTED. A 212023Z F16 PASS OFFERED LITTLE HELP TO FINE TUNE THE CENTER POSITION, BUT DID REVEAL THAT CORE CONVECTION WAS STILL WEAK AT THAT TIME. THE INITIAL POSITION WAS PLACED BASED ON AVAILABLE FIXES WITH MEDIUM CONFIDENCE THANKS TO THE PARTIAL EXPOSURE. HOWEVER, A LATE-ARRIVING 220044Z ASCAT-B PARTIAL PASS (NO CENTER COVERAGE) RAISES THE POSSIBILITY THAT THE LLC COULD BE 20 MILES FURTHER WEST. THE INITIAL INTENSITY WAS RAISED TO 35 KNOTS, BASED ON T2.5 FIXES FROM PGTW, KNES, AND RJTD, WITH A SLIGHT IMPROVEMENT IN CONVECTIVE WRAPPING TO THE EAST AND SOUTH NOTED. THE LATEST CIMSS VERTICAL WIND SHEAR (VWS) ANALYSIS INDICATES NORTHERLY SHEAR HAS TICKED UP TO 10-15 KNOTS, FURTHER CONTRIBUTING TO THE SLOW DEVELOPMENT. OUTFLOW IS PREDOMINANTLY CONSTRAINED TO AN EQUATORWARD CHANNEL, WITH A TUTT TO THE NORTH EAST PROVIDING A SLIGHT ENHANCEMENT. OCEAN CONDITIONS REMAIN VERY FAVORABLE.

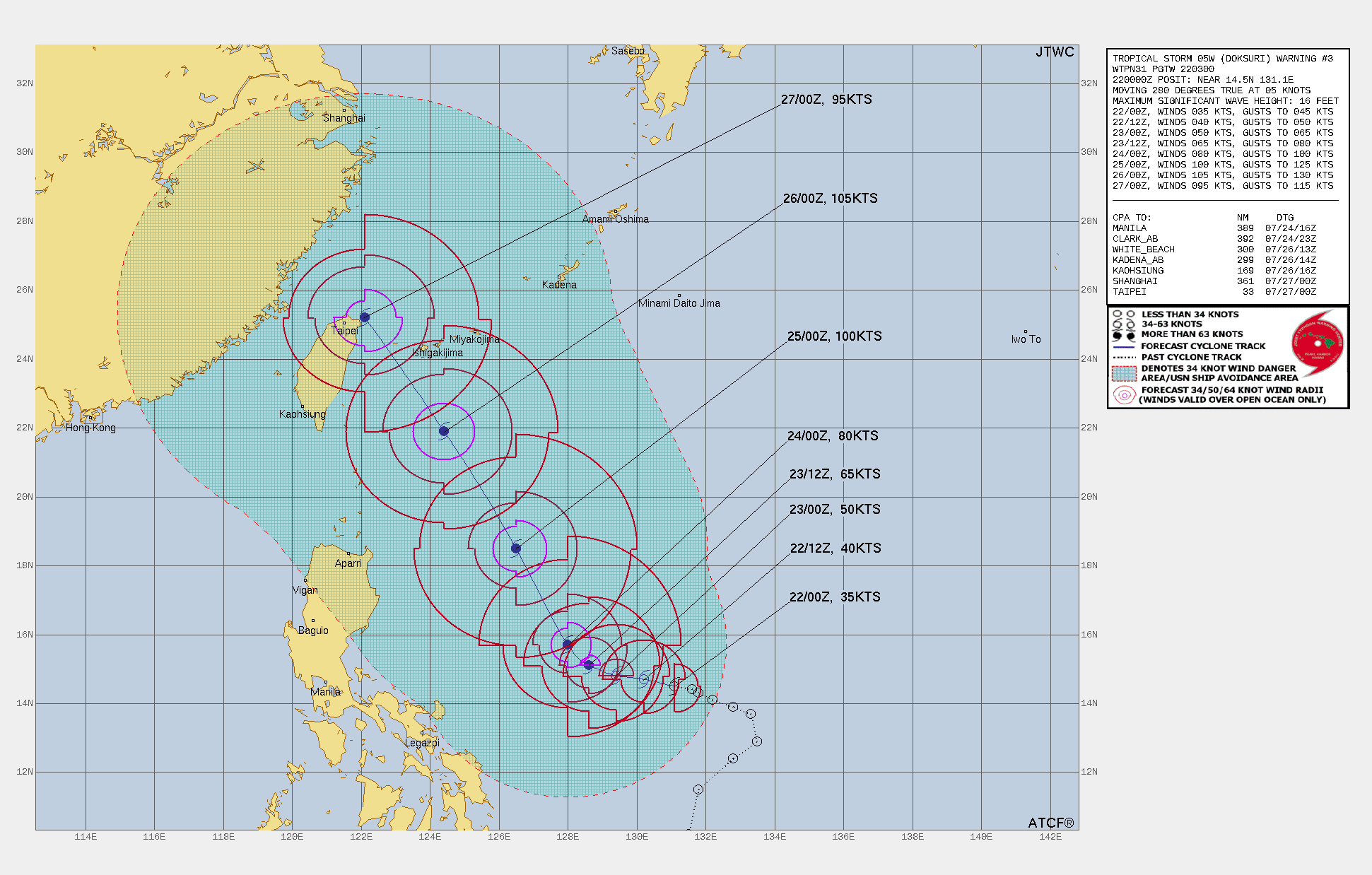

TC Warning Graphic
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TROPICAL STORM (TS) DOKSURI SHOULD CONTINUE TO SLOWLY GET ITS ACT TOGETHER OVER THE NEXT DAY, WITH INCREASING MID-LEVEL MOISTURE AND BETTER ALIGNMENT OF THE VORTEX EXPECTED AS CENTRAL CONVECTION BUILDS AND WRAPS AROUND THE LLC. ENVIRONMENTAL FACTORS SHOULD BE FAVORABLE FOR RAPID INTENSIFICATION (RI) TO OCCUR AFTER TAU 24, AS INDICATED BY MULTIPLE RI AIDS. THE SYSTEM WILL SLOWLY TRACK WEST NORTHWEST OVER THE NEXT 24-36 HOURS, AFTER WHICH A BREAK IN THE MID-LEVEL RIDGE IS EXPECTED TO OCCUR, ALLOWING DOKSURI TO START TRACKING POLEWARD. THE TIMING OF THE POLEWARD TURN WILL LARGELY DICTATE IF DOKSURI TRACKS MORE TOWARDS SOUTHERN TAIWAN, OR FURTHER EAST TOWARDS THE RYUKUS. PEAK INTENSITY IS CURRENTLY FORECAST TO BE 105 KNOTS. THE TRACK WAS PLACED NEAR THE MULTI-MODEL CONSENSUS, ADJUSTED SLIGHTLY EASTWARD BASED ON THE GFS AND HAFS-A SOLUTIONS.

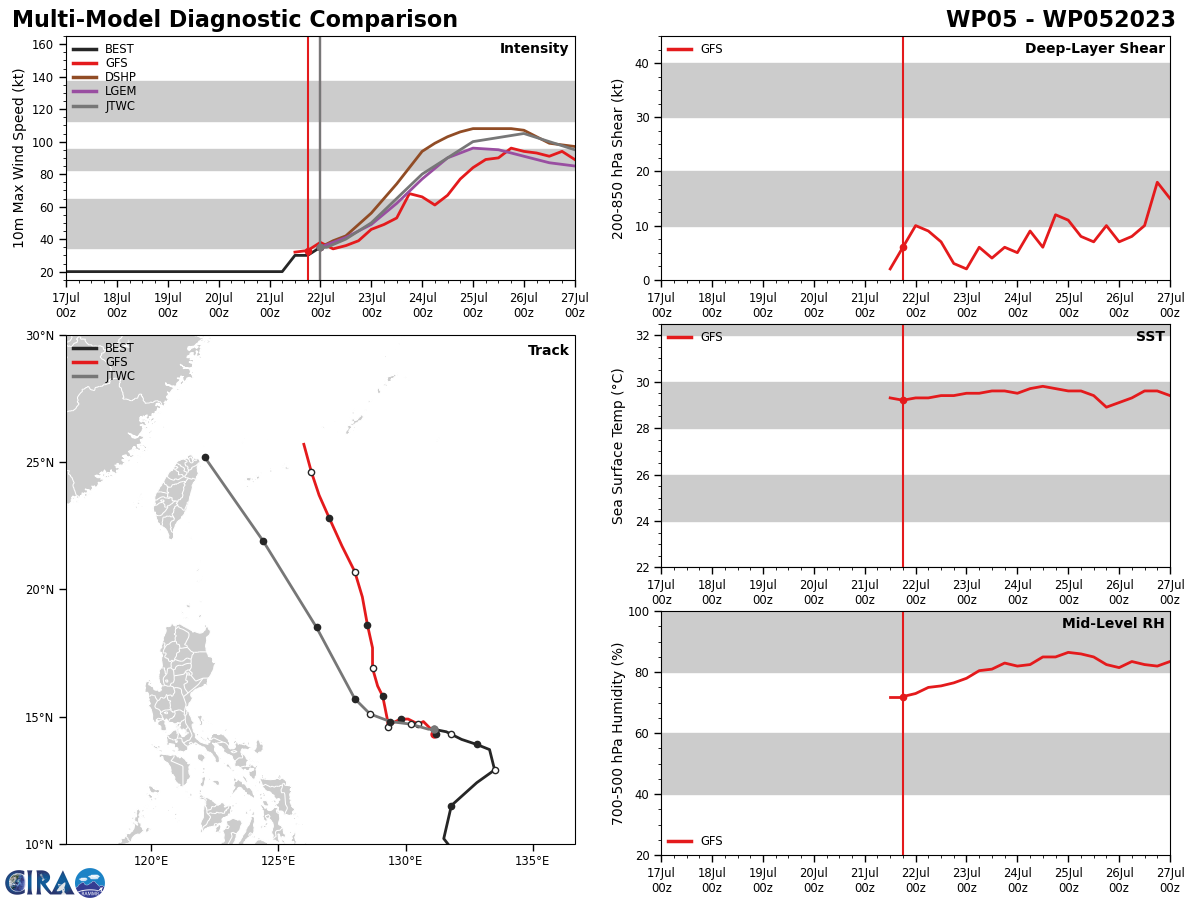

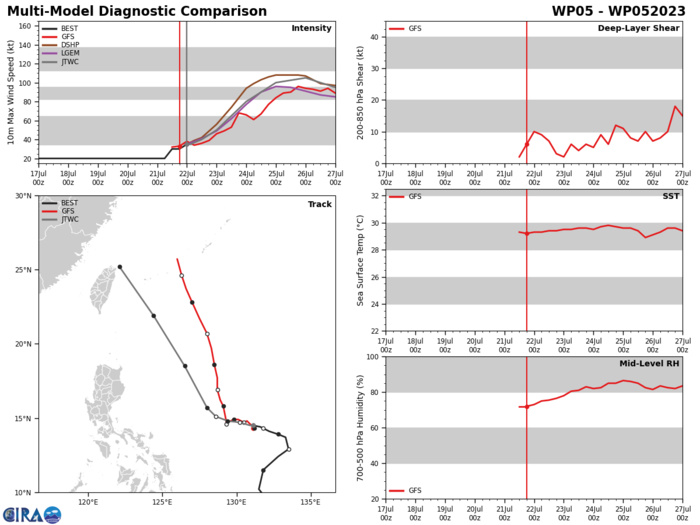

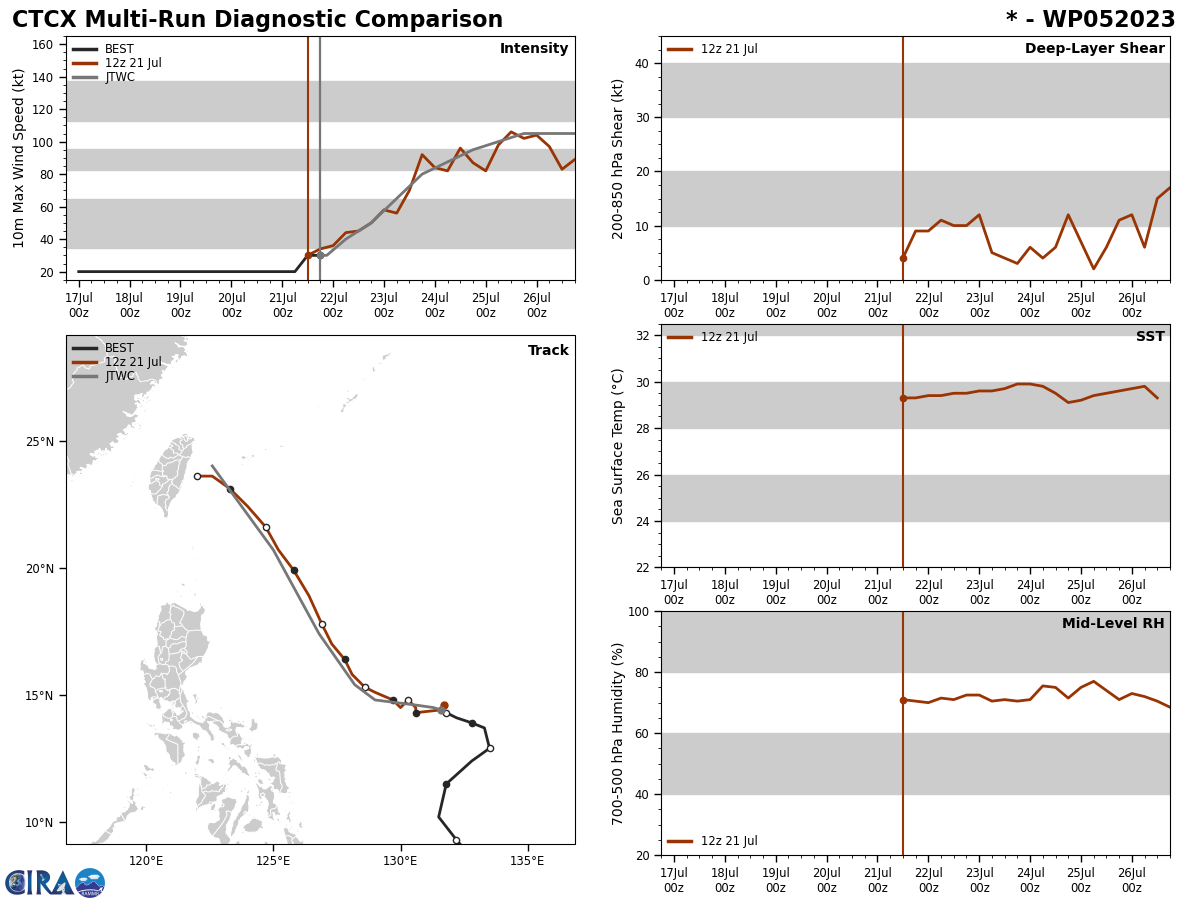

Model Diagnostic Plot
MODEL DISCUSSION: THE GFS, GFS ENSEMBLE MEAN, AND HAFS-A MODEL REMAIN ON THE EASTERN EDGE OF THE LARGE SPREAD ENVELOPE DUE TO A FASTER POLEWARD TURN. THE REST OF THE SPREAD IS SLOW TO GAIN LATITUDE AS THE SYSTEM TAKES ITS TIME DEVELOPING, WHICH IS WHAT CURRENT ANALYSIS INDICATES.

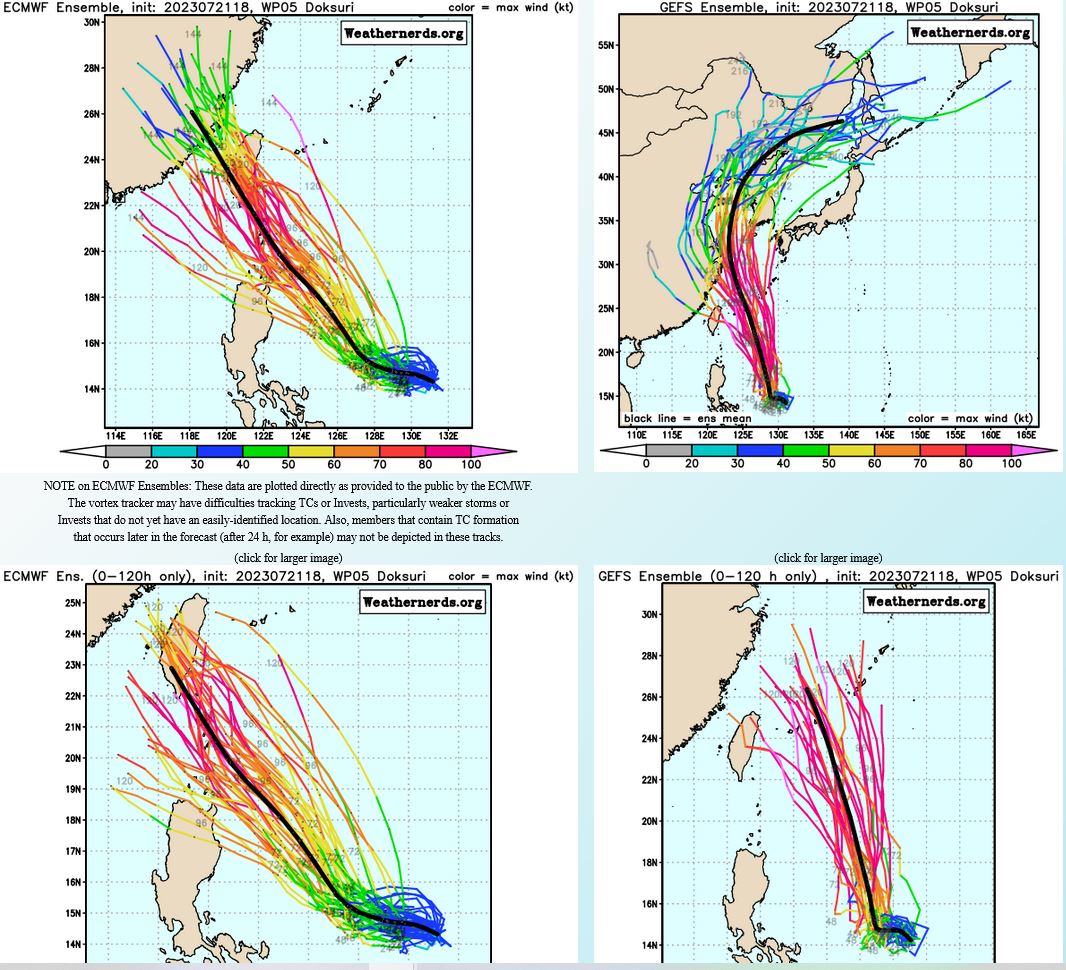

TC Ensemble Forecasts

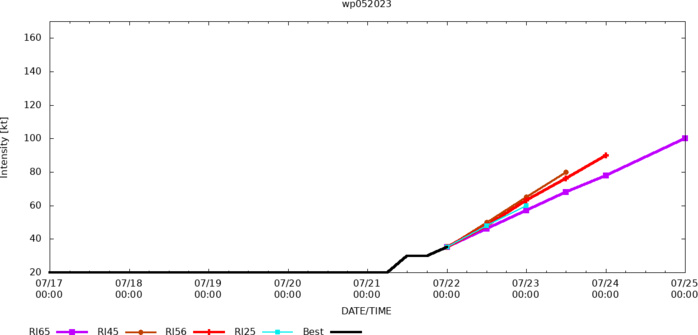

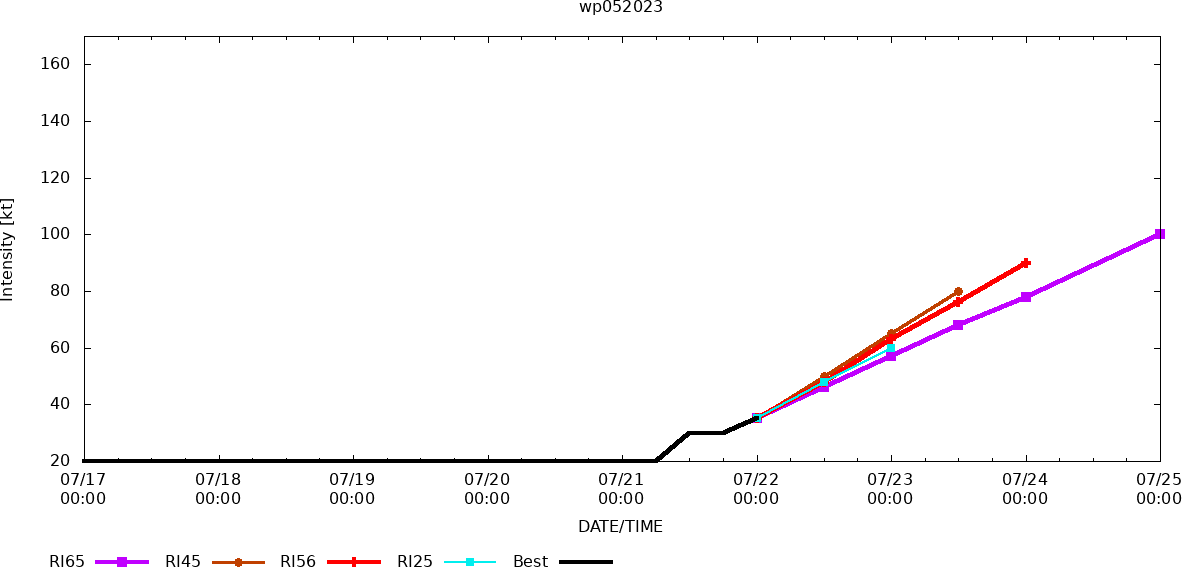

RIPA Forecast AND RIPA STORM TABLE ATTACHED BELOW

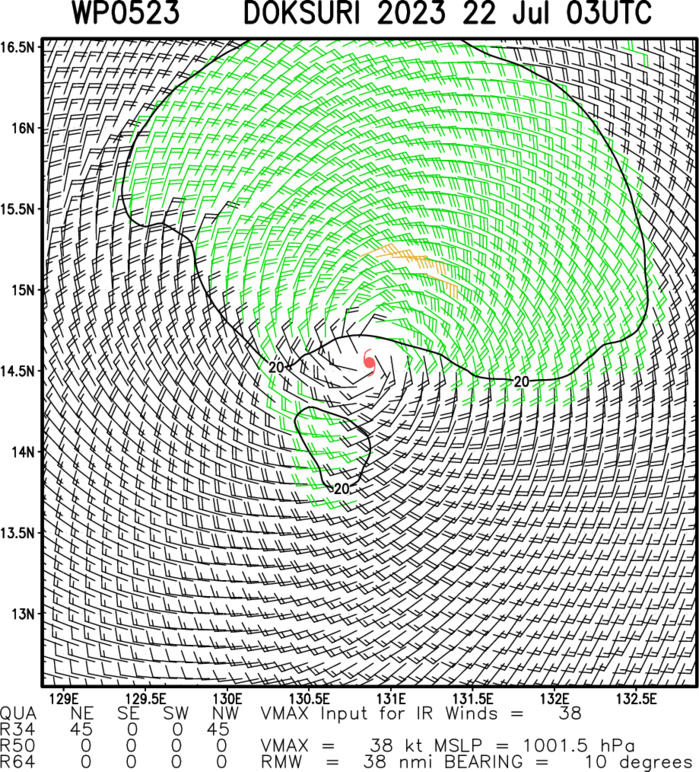

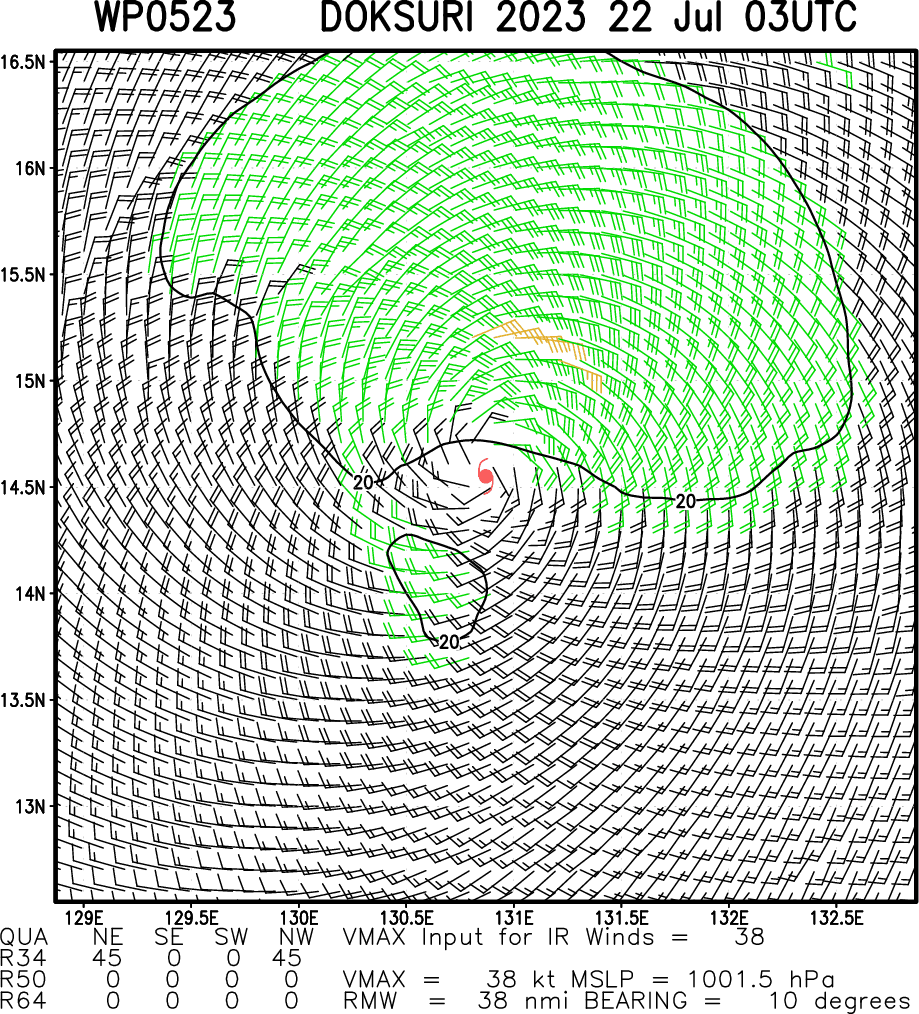

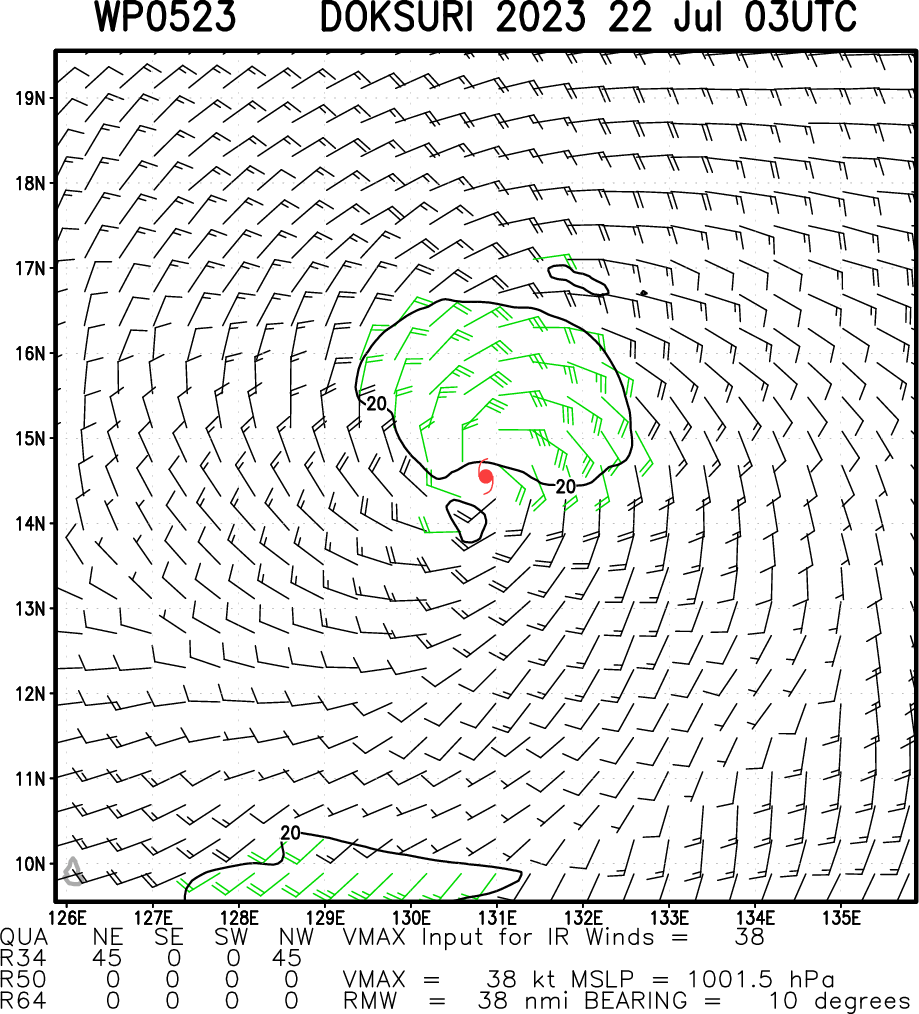

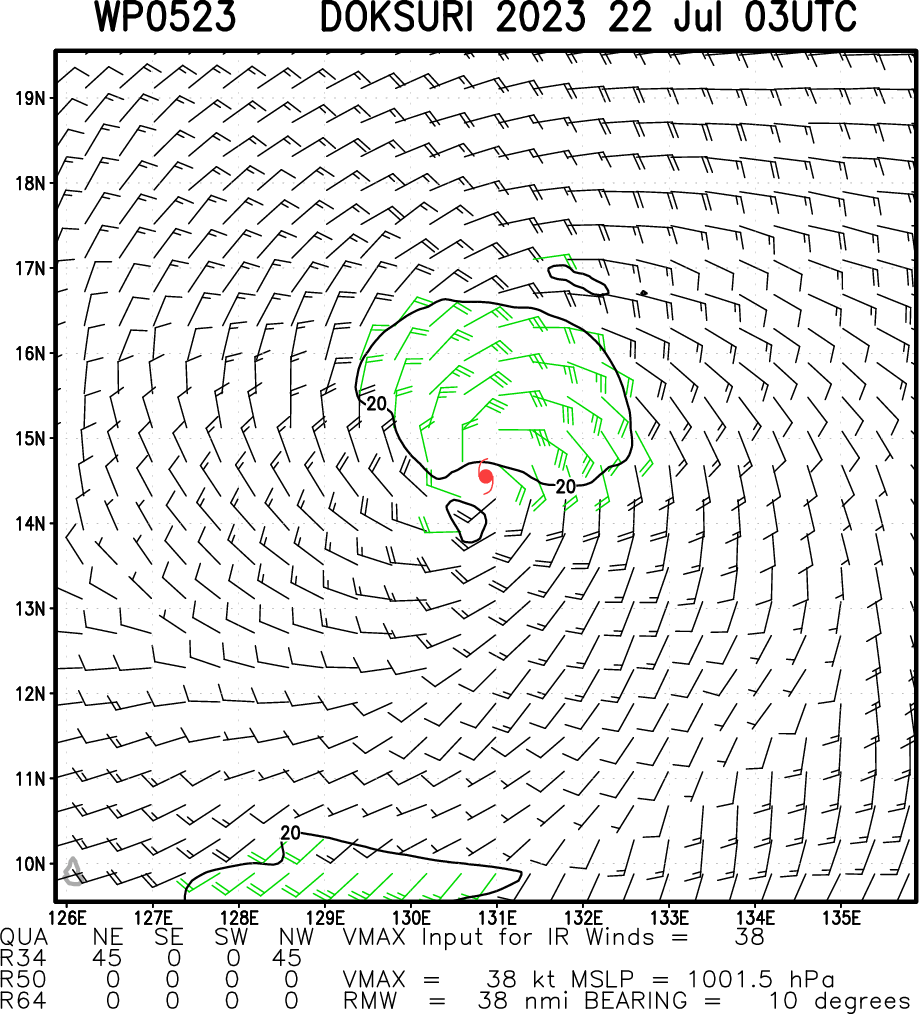

Multiplatform Satellite Surface Wind Analysis (Experimental)

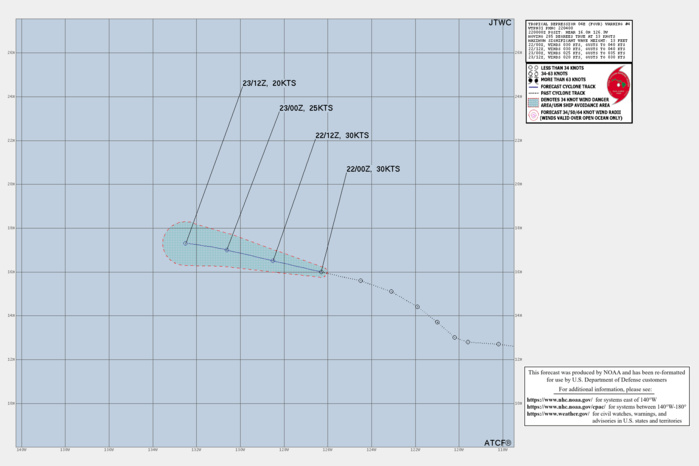

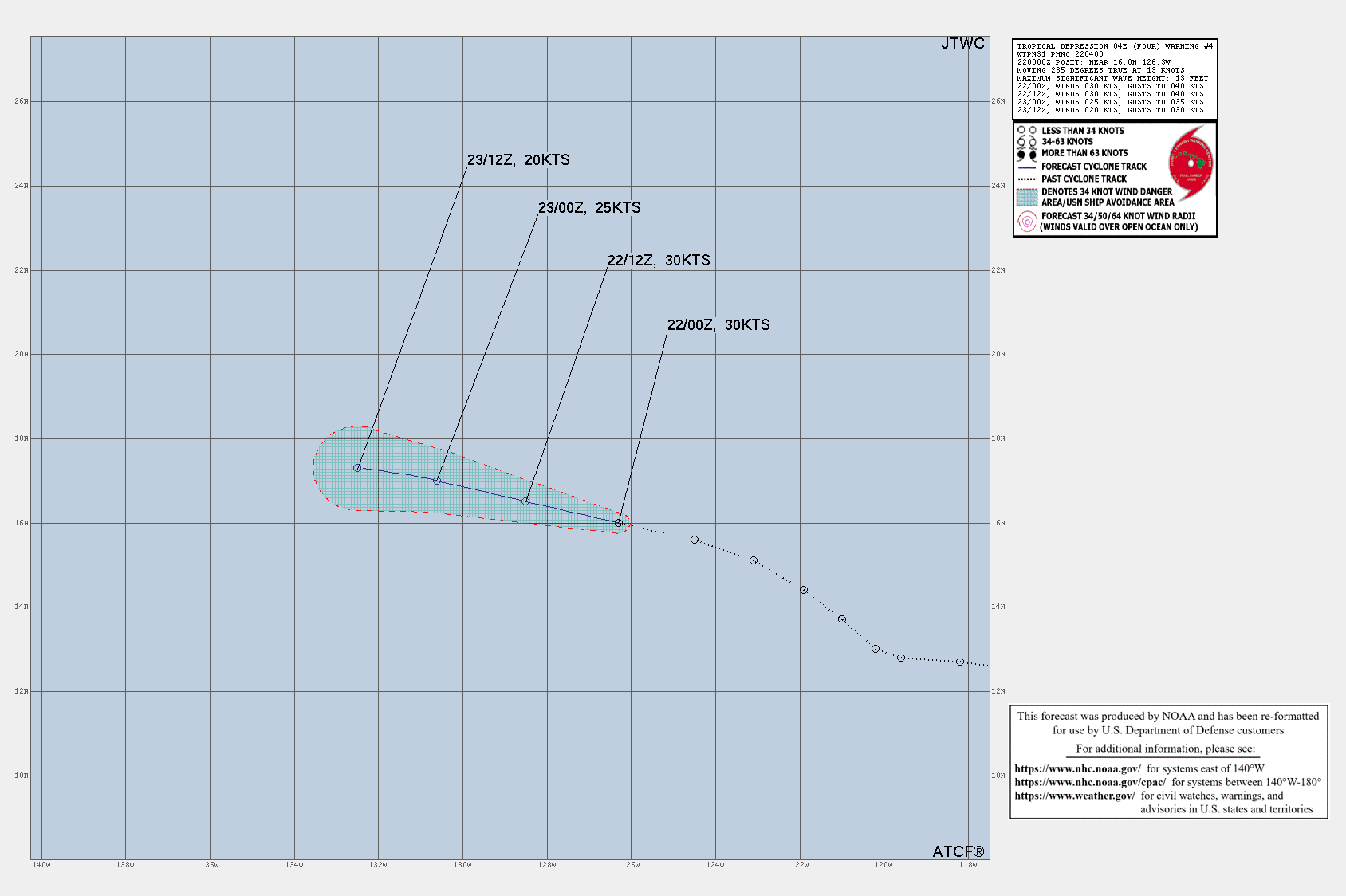

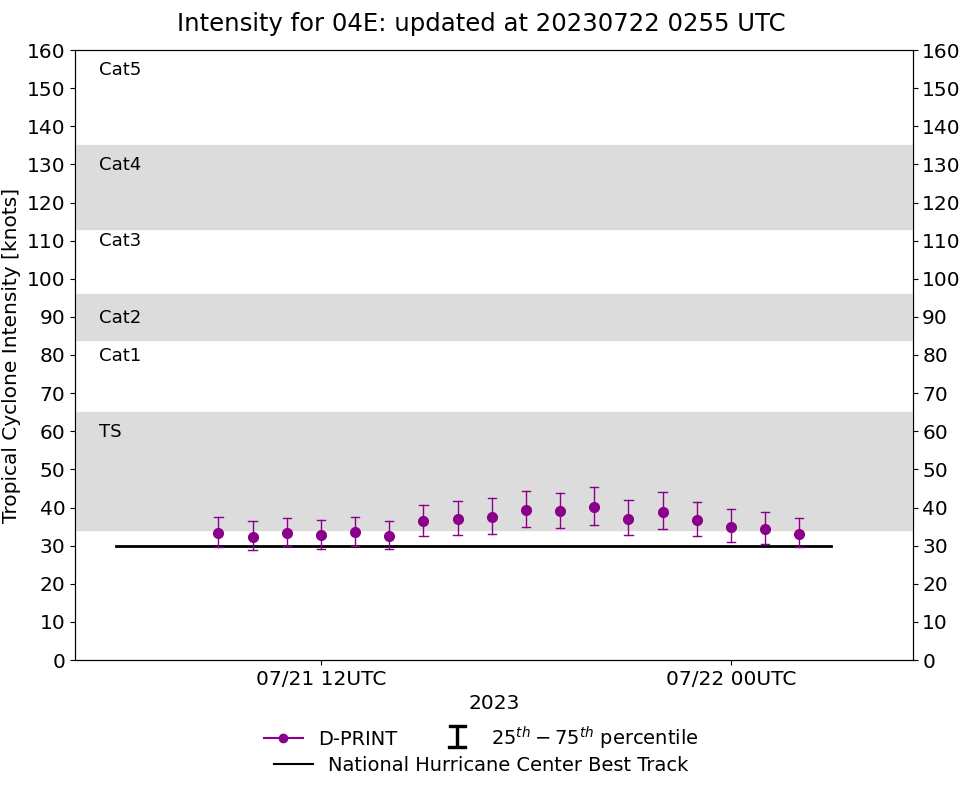

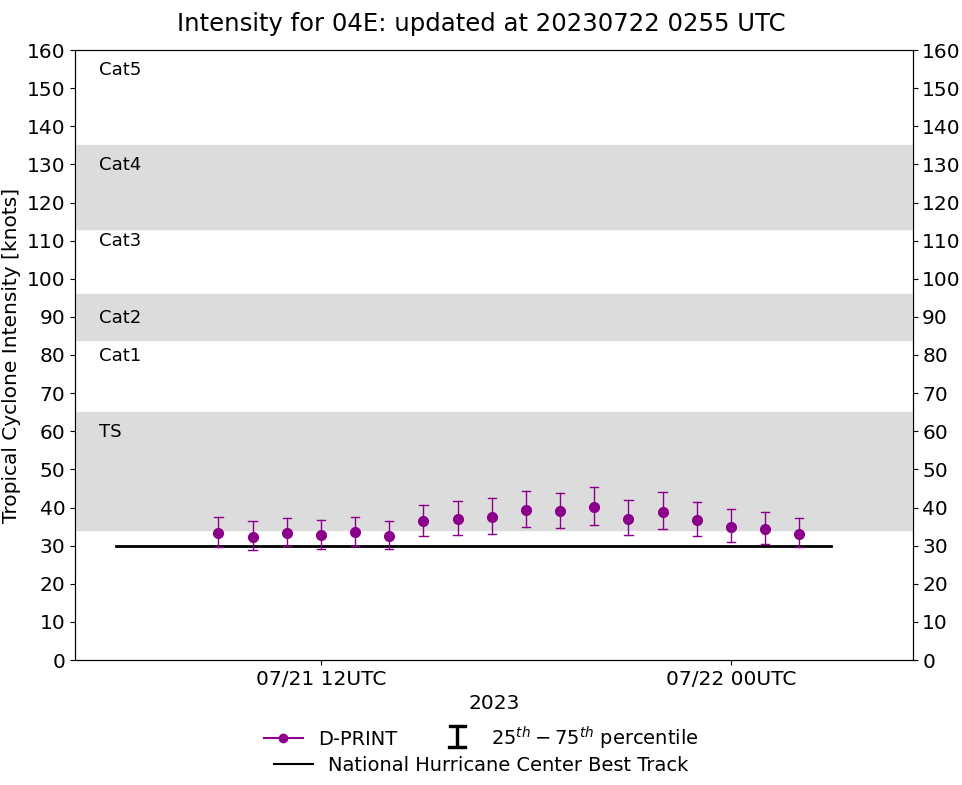

EASTERN NORTH PACIFIC: TD 04E. WARNING 4 ISSUED AT 220400UTC. ESTIMATED INTENSITY IS 30 KNOTS: STABLE/24H.
0423071812 100N1089W 20
0423071818 104N1099W 20
0423071900 108N1109W 25
0423071906 113N1121W 30
0423071912 117N1133W 30
0423071918 122N1149W 30
0423072000 125N1166W 30
0423072006 127N1182W 30
0423072012 128N1196W 30
0423072018 130N1202W 30
0423072100 137N1210W 30
0423072106 144N1219W 30
0423072112 151N1231W 30
0423072118 156N1245W 30
0423072200 160N1263W 30
0423071818 104N1099W 20
0423071900 108N1109W 25
0423071906 113N1121W 30
0423071912 117N1133W 30
0423071918 122N1149W 30
0423072000 125N1166W 30
0423072006 127N1182W 30
0423072012 128N1196W 30
0423072018 130N1202W 30
0423072100 137N1210W 30
0423072106 144N1219W 30
0423072112 151N1231W 30
0423072118 156N1245W 30
0423072200 160N1263W 30
CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED.

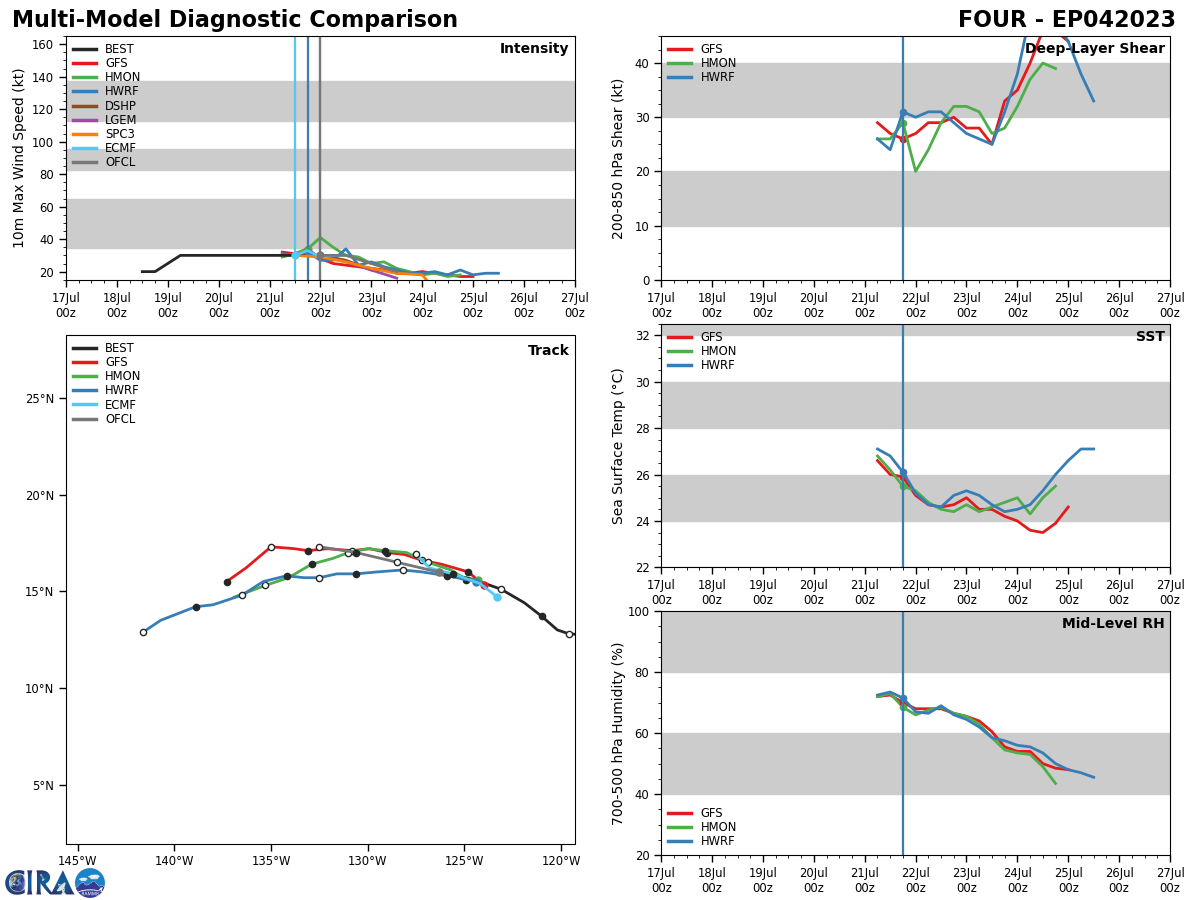

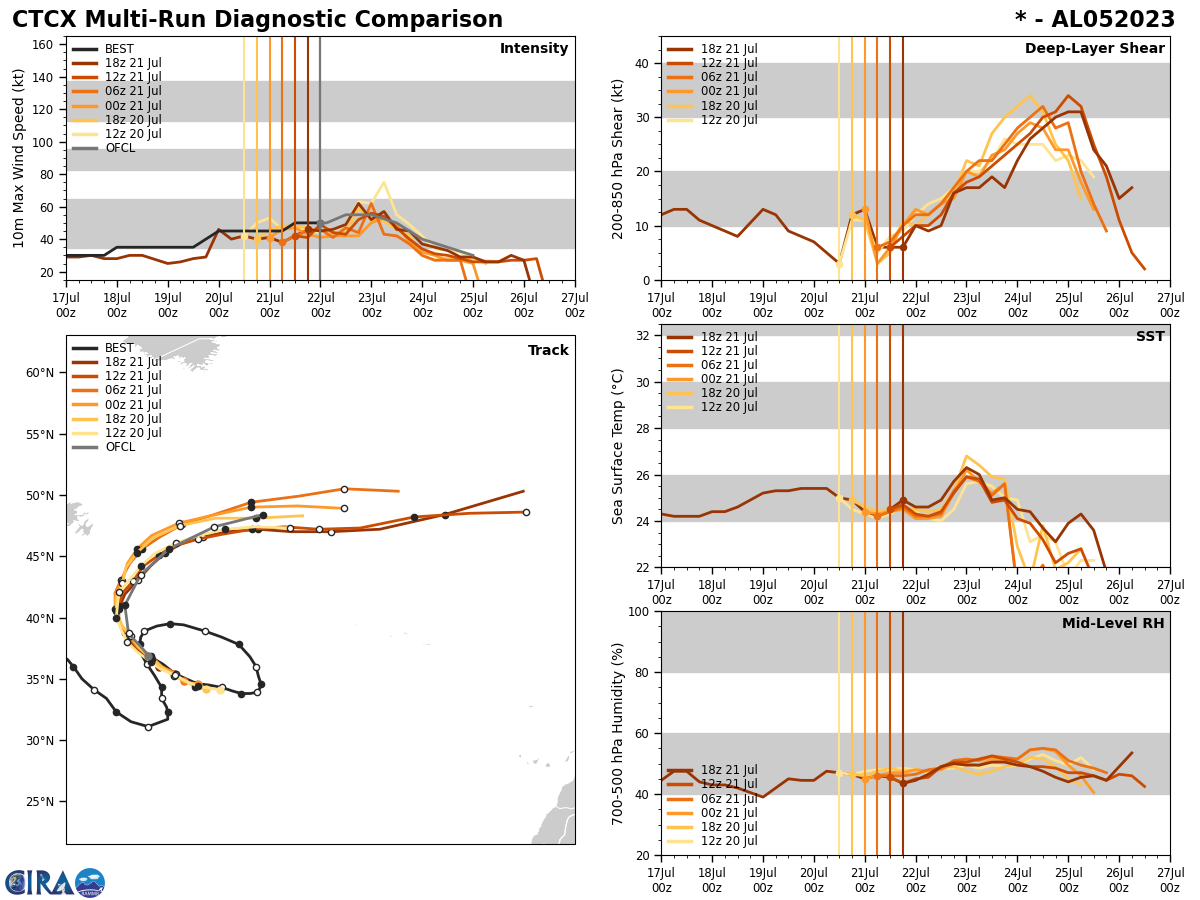

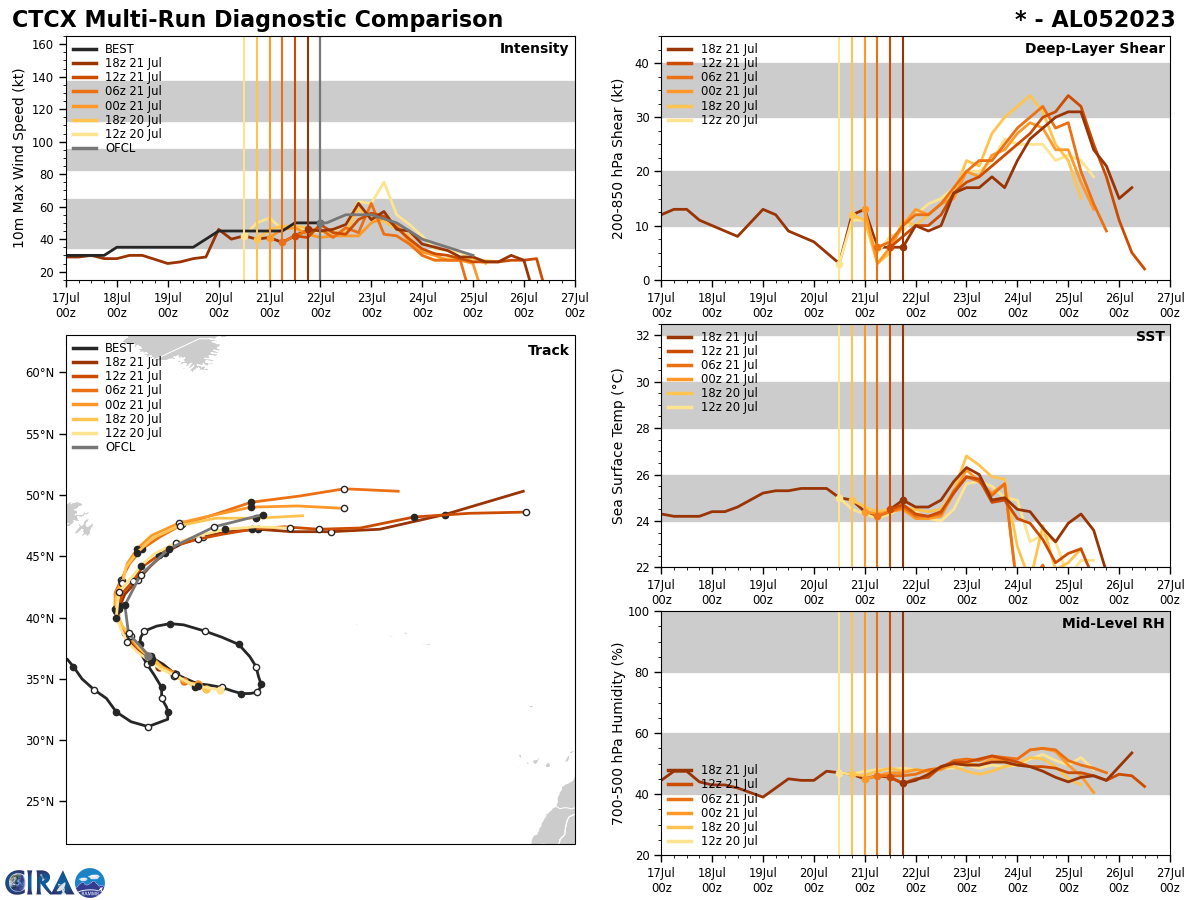

Model Diagnostic Plot

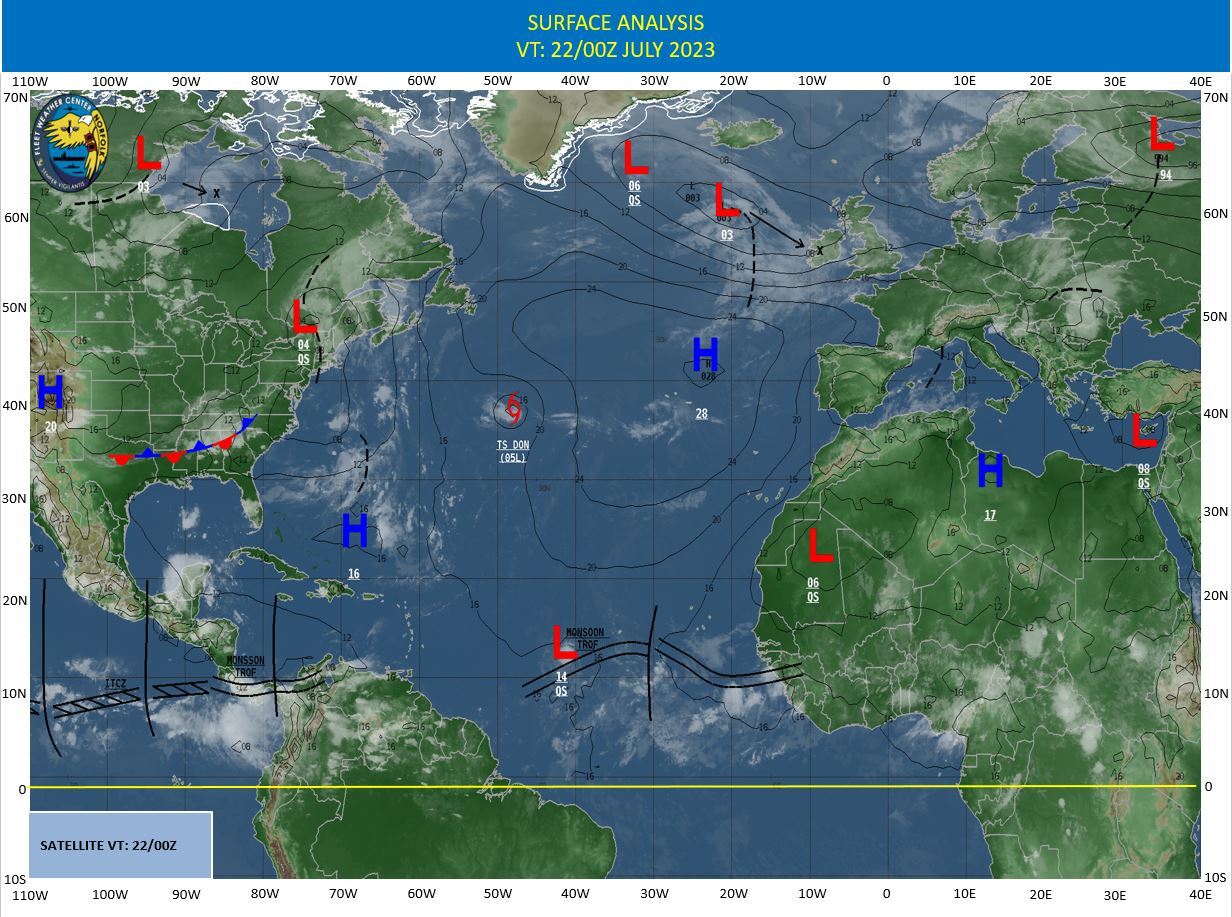

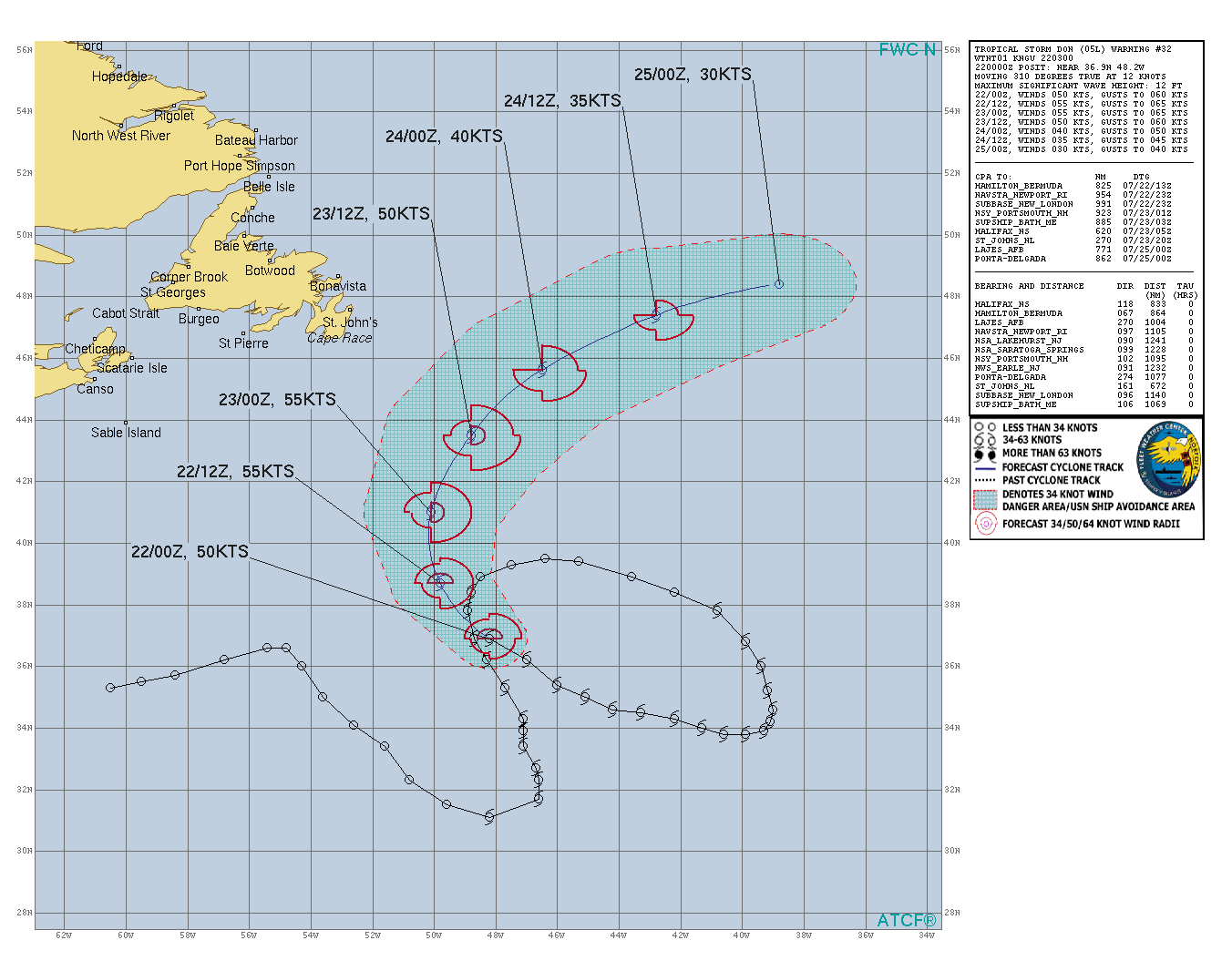

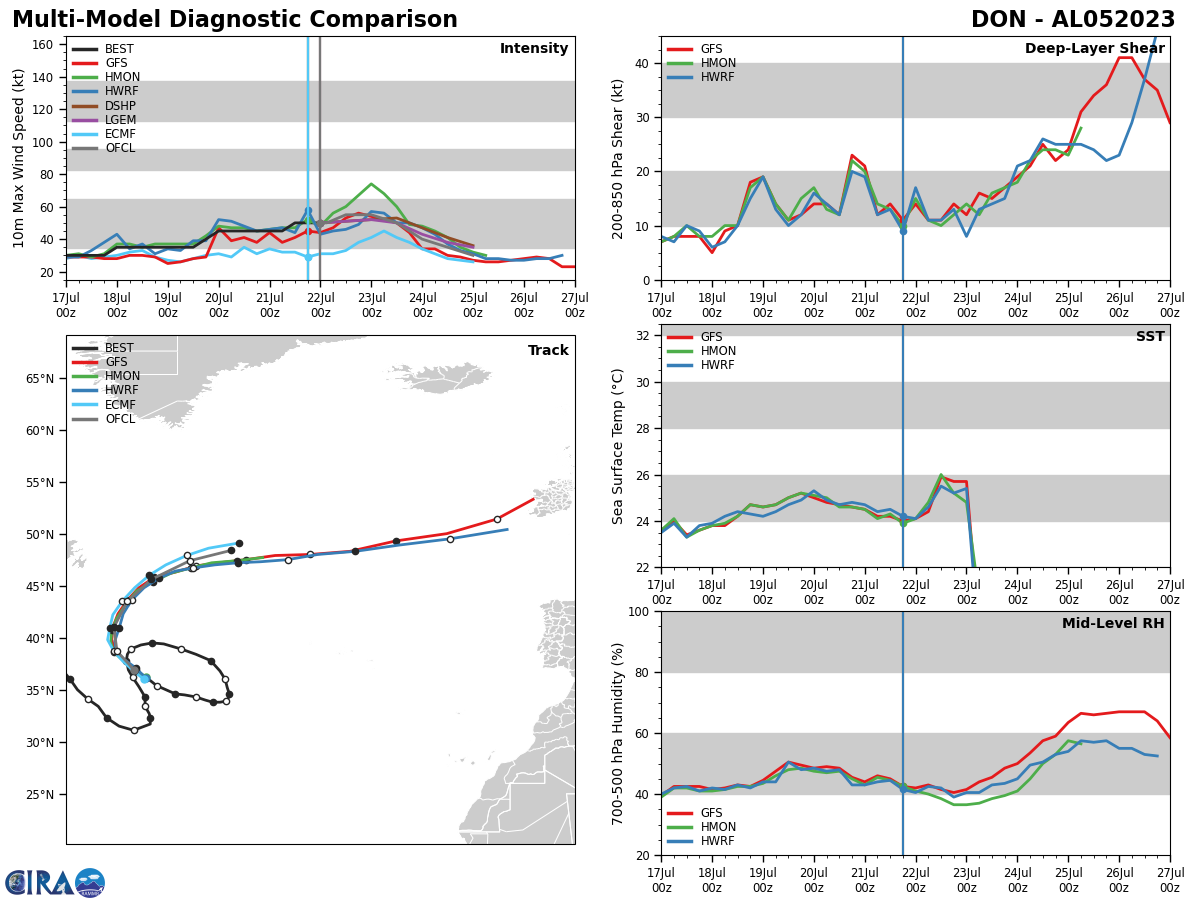

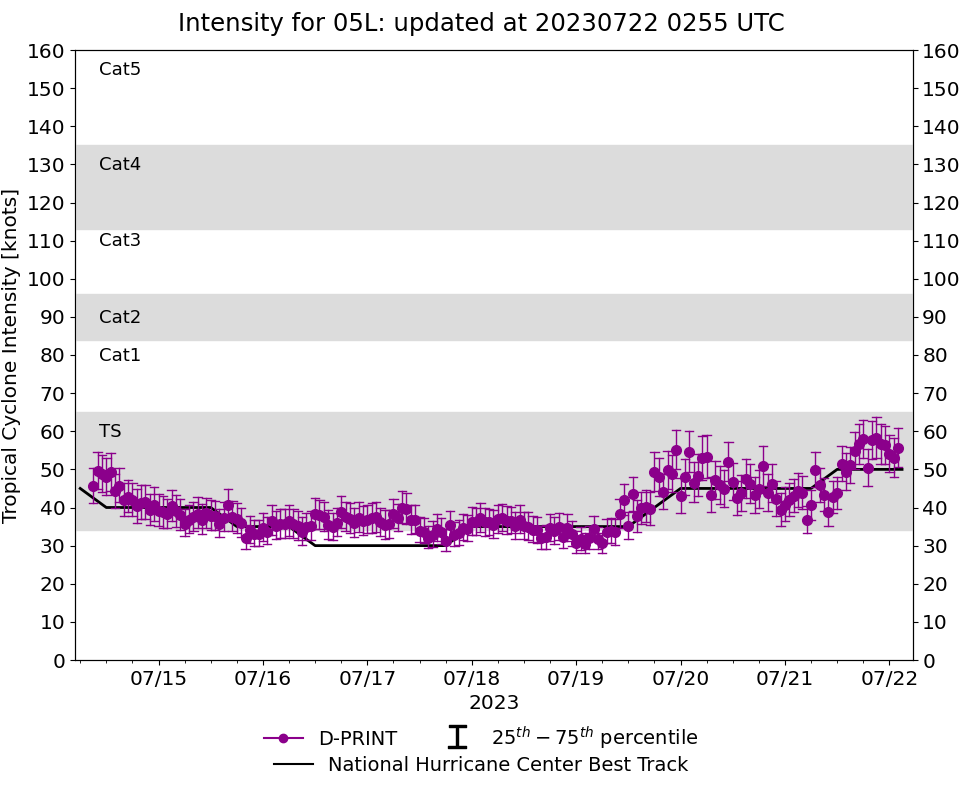

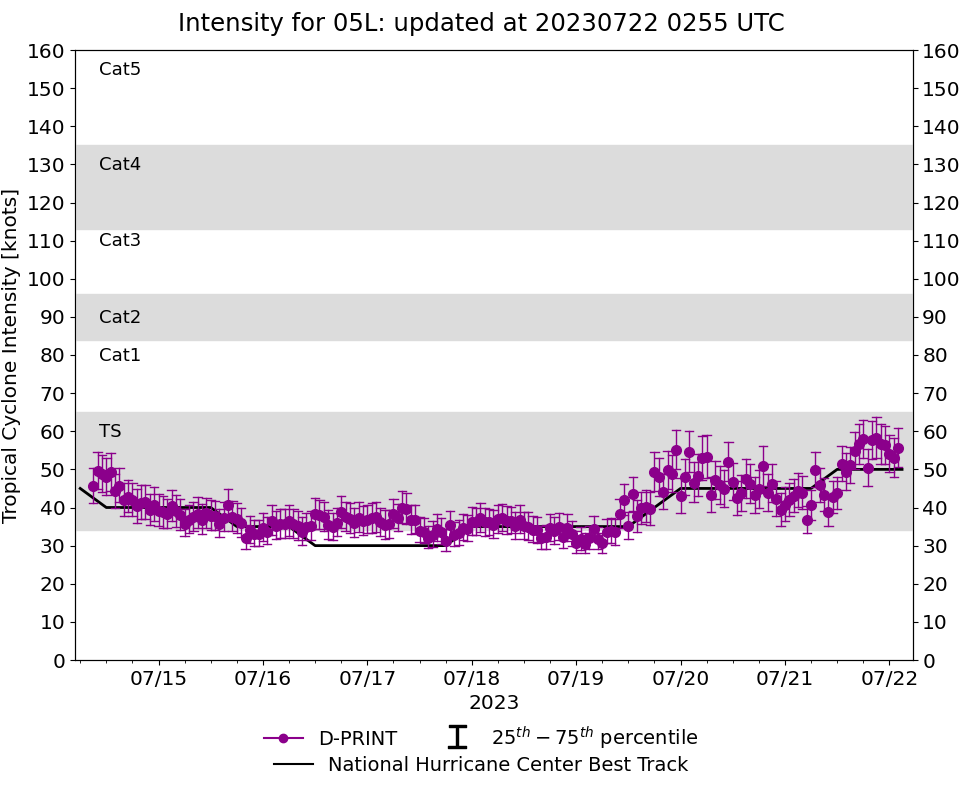

NORTH ATLANTIC OCEAN: TS 05L(DON). WARNING 32 ISSUED AT 220300UTC. CURRENT ESTIMATED INTENSITY IS 50 KNOTS: + 5 KNOTS/24H.
0523072018 345N 433W 45
0523072100 346N 442W 45
0523072106 350N 451W 45
0523072112 354N 460W 50
0523072118 362N 470W 50
0523072200 369N 482W 50
0523072100 346N 442W 45
0523072106 350N 451W 45
0523072112 354N 460W 50
0523072118 362N 470W 50
0523072200 369N 482W 50
